Cesium|xt3d 轨迹回放

效果
代码
预览地址

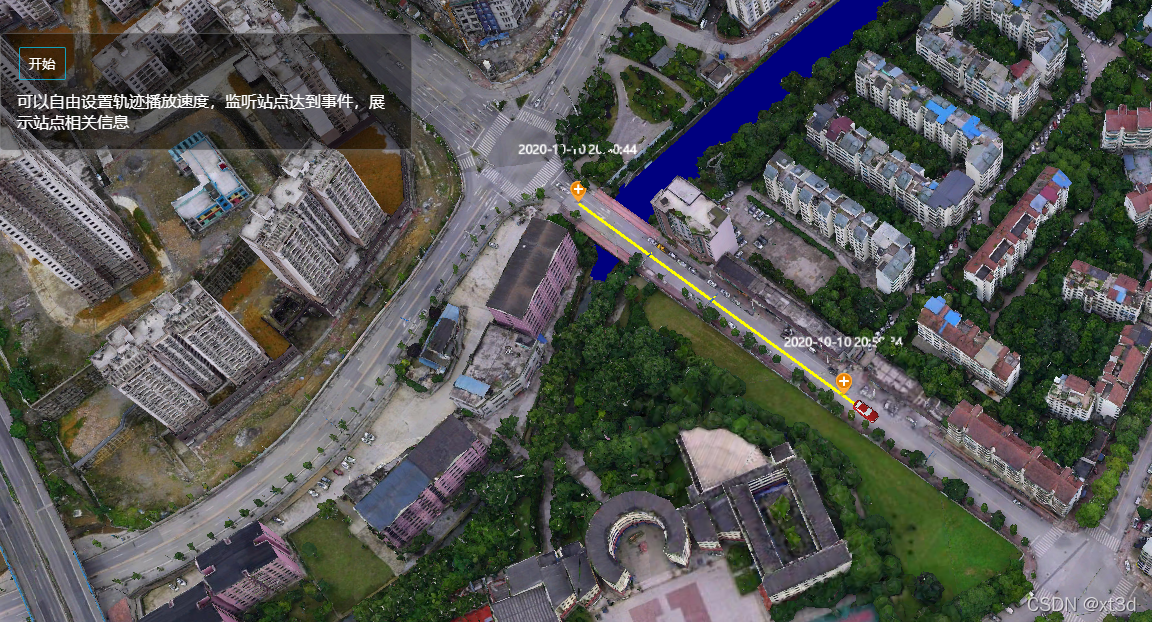

效果

在这里插入图片描述
代码

 <!DOCTYPE html>
<html lang="zh-CN">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>cesium|xt3d</title>
    <!-- 引入Cesium -->
    <script src="https://unpkg.com/cesium@1.84.0/Build/Cesium/Cesium.js"></script>
    <link rel="stylesheet" href="https://unpkg.com/cesium@1.84.0/Build/Cesium/Widgets/widgets.css">

    <!--  引入xt3d -->
    <script src="http://www.xt3d.cn/xt3dlib/xt3d.min.js"></script>
    <style>
        html,
        body,
        #map3d {
            width: 100%;
            height: 100%;
            margin: 0px;
            padding: 0px;
        }

        .btn-container {
            position: absolute;
            left: 10px;
            top: 90px;
            padding: 10px 15px;
            border-radius: 4px;
            border: 1px solid rgba(128, 128, 128, 0.5);
            color: #ffffff;
            background: rgba(0, 0, 0, 0.4);
            box-shadow: 0 3px 14px rgb(128 128 128 / 50%);
            max-width: 380px;
        }

        button {
            background: transparent;
            border: 1px solid #00d0ffb8;
            color: white;
            padding: 7px 9px;
            border-radius: 2px;
            margin: 3px;
            cursor: pointer
        }

        .tip-item {
            margin: 2px 0px;
            padding: 5px 1px;
        }
    </style>
</head>

<body>
    <div id="map3d"></div>
    <div class="btn-container">
        <button onclick="start()">开始</button>
        <div class="tip-item">可以自由设置轨迹播放速度，监听站点达到事件，展示站点相关信息</div>
    </div>
    <script>
        let xt3dInit = {
            init(el) {
                this.initViewer(el);
                this.load3dtiles();
            },

            //初始化viewer
            initViewer(el) {
                this.viewer = new Cesium.Viewer(el, {
                    infoBox: false,
                    selectionIndicator: false,
                    navigation: false,
                    animation: false,
                    timeline: false,
                    baseLayerPicker: false,
                    geocoder: false,
                    homeButton: false,
                    sceneModePicker: false,
                    navigationHelpButton: false,
                    shouldAnimate: true,
                    imageryProvider: new Cesium.UrlTemplateImageryProvider({
                        url: "https://t7.tianditu.gov.cn/DataServer?T=img_w&x={x}&y={y}&l={z}&tk=tdtTk"
                    }),
                });
                this.viewer.scene.globe.depthTestAgainstTerrain = true;
            },

            //初始化轨迹线
            initTrackLine() {
                let stops = [{
                    time: "2020-10-10 20:40:44",
                    position: {
                        x: -1573617.4792363436,
                        y: 5327874.154272335,
                        z: 3122892.2787437937
                    },
                }, {
                    time: "2020-10-10 20:50:34",
                    position: {
                        x: -1573731.9941211839,
                        y: 5327897.036182902,
                        z: 3122799.912331608
                    },
                }, {
                    time: "2020-10-10 21:10:43",
                    position: {
                        x: -1573827.099578625,
                        y: 5327918.677117841,
                        z: 3122722.2807716513
                    },
                }, {
                    time: "2020-10-10 21:40:33",
                    position: {
                        x: -1573884.5479743225,
                        y: 5327843.811385092,
                        z: 3122812.1113319555
                    },
                }, {
                    time: "2020-10-10 21:55:22",
                    position: {
                        x: -1573936.4138518127,
                        y: 5327774.013957246,
                        z: 3122901.092331419
                    },
                }]

                if (this.trackLine) {
                    this.trackLine.stop();
                    this.clearStops();
                }
                this.trackLine = new xt3d.TrackRoam.TrackLine(this.viewer, {
                    modelUrl: "/data.xt3d.cn/assets/gltf/redCar.glb",
                    scale: 0.1
                });
                this.stopEntities = [];
                this.trackLine.StopsArrivedEvent.addEventListener(this.stopsArrivedEventHandler, this);
                this.trackLine.play(stops, 50); //站点和速度
            },

            //站点到达事件
            stopsArrivedEventHandler(stop, index) {
                const stopEntity = this.viewer.entities.add({
                    position: stop.position,
                    label: {
                        text: stop.time,
                        scale: 0.5,
                        font: 'normal 24px MicroSoft YaHei',
                        distanceDisplayCondition: new Cesium.DistanceDisplayCondition(0, 5000),
                        scaleByDistance: new Cesium.NearFarScalar(1000, 1, 3000, 0.4),
                        verticalOrigin: Cesium.VerticalOrigin.BOTTOM,
                        style: Cesium.LabelStyle.FILL_AND_OUTLINE,
                        pixelOffset: new Cesium.Cartesian2(0, -50),
                        outlineWidth: 9,
                        outlineColor: Cesium.Color.WHITE
                    },
                    billboard: {
                        image: "static/images/marker/marker.png",
                        scaleByDistance: new Cesium.NearFarScalar(300, 1, 1200, 0.4), //设置随图缩放距离和比例
                        distanceDisplayCondition: new Cesium.DistanceDisplayCondition(0, 10000), //设置可见距离 10000米可见
                        verticalOrigin: Cesium.VerticalOrigin.BOTTOM
                    },
                });
                this.stopEntities.push(stopEntity);
            },

            //清除站点
            clearStops() {
                if (!this.stopEntities) return;
                this.stopEntities.forEach(item => {
                    this.viewer.entities.remove(item);
                });
                this.stopEntities = [];
            },

            //加载3dtiles数据
            load3dtiles() {
                var tileset = this.viewer.scene.primitives.add(
                    new Cesium.Cesium3DTileset({
                        url: "http://www.xt3d.cn/data/offset_3dtiles/tileset.json",
                    })
                );

                tileset.readyPromise
                    .then(tileset => {
                        this.viewer.zoomTo(
                            tileset,
                        );
                        xt3d.TilesetPlugin.setTilesetHeight(tileset, 55);
                    })
                    .otherwise(function(error) {
                        console.log(error);
                    });
            },

            destroy() {
                this.viewer.entities.removeAll();
                this.viewer.imageryLayers.removeAll(true);
                this.viewer.destroy();
            }
        }

        xt3dInit.init("map3d");

        function start() {
            xt3dInit.initTrackLine();
        }
    </script>
</body>

</html>
