本文档详细介绍了如何使用Entity Framework（EF）生成数据库，包括启用迁移、创建数据库更新脚本和执行数据库更新的命令。示例代码展示了配置类、数据库上下文类以及迁移类的实现，并提供了相应的配置文件和NuGet包信息。最后，展示了运行结果生成的SQL语句。

1.概要

1.1 情景

使用ef生成数据库

1.2.生成数据库使用的命令

1.2.1生成一个配置类命令：Enable-Migrations -EnableAutomaticMigrations

1.2.2生成一个数据库更新脚本文件：Add-Migration InitialCreate

1.2.3生成数据库文件的命令：Update-Database -Verbose

2.代码

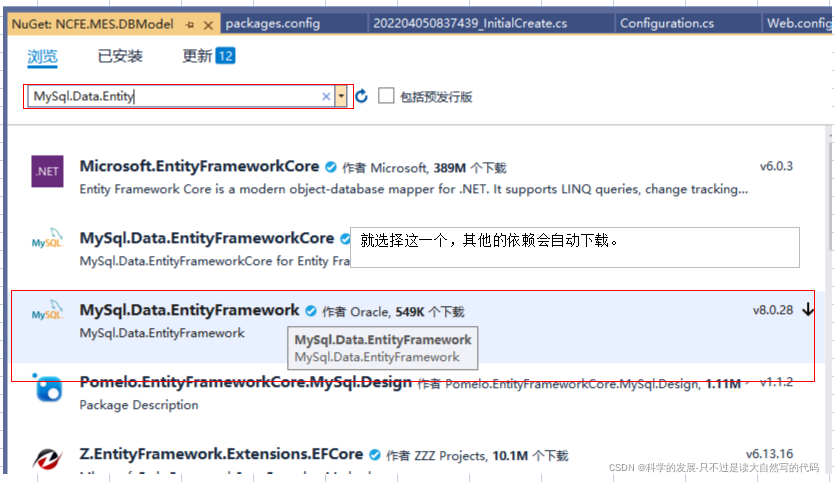

2.1 依赖添加

2.1

using MySql.Data.EntityFramework;
using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations.Schema;
using System.Data.Entity;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace EF生成数据库命令
{
    class Program
    {
        static void Main(string[] args)
        {

        }
        [Table("Tb1")]
        public class Tb1
        {
            public int id { set; get; }
            public int v1 { set; get; }
        }
        [DbConfigurationType(typeof(MySqlEFConfiguration))]
        public class DBContentMy : DbContext
        {
            public DBContentMy() : base("DbConnStr")
            {
                Database.SetInitializer<DBContentMy>(null);
            }
            protected override void OnModelCreating(DbModelBuilder modelBuilder)
            {
                base.OnModelCreating(modelBuilder);
            }


            public DbSet<Tb1> Tb1s { set; get; }
        }
    }
}

1.2

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <configSections>
    <!-- For more information on Entity Framework configuration, visit http://go.microsoft.com/fwlink/?LinkID=237468 -->
    <section name="entityFramework" type="System.Data.Entity.Internal.ConfigFile.EntityFrameworkSection, EntityFramework, Version=6.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" requirePermission="false" />
  </configSections>
	<connectionStrings>
		<add name="DbConnStr" connectionString="Data Source=localhost;port=3306;Initial Catalog=db2;user id=root;password=123456;" providerName="MySql.Data.MySqlClient" />
	</connectionStrings>
	<startup>
        <supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.7.2" />
    </startup>
    <entityFramework>
        <providers>
            <provider invariantName="System.Data.SqlClient" type="System.Data.Entity.SqlServer.SqlProviderServices, EntityFramework.SqlServer" />
        <provider invariantName="MySql.Data.MySqlClient" type="MySql.Data.MySqlClient.MySqlProviderServices, MySql.Data.EntityFramework, Version=8.0.28.0, Culture=neutral, PublicKeyToken=c5687fc88969c44d">
      </provider></providers>
    </entityFramework>
  <runtime>
    <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
      <dependentAssembly>
        <assemblyIdentity name="System.Runtime.CompilerServices.Unsafe" publicKeyToken="b03f5f7f11d50a3a" culture="neutral" />
        <bindingRedirect oldVersion="0.0.0.0-5.0.0.0" newVersion="5.0.0.0" />
      </dependentAssembly>
    </assemblyBinding>
  </runtime>
</configuration>

2.2 Enable-Migrations -EnableAutomaticMigrations

namespace EF生成数据库命令.Migrations
{
    using System;
    using System.Data.Entity;
    using System.Data.Entity.Migrations;
    using System.Linq;

    internal sealed class Configuration : DbMigrationsConfiguration<EF生成数据库命令.Program.DBContentMy>
    {
        public Configuration()
        {
            AutomaticMigrationsEnabled = true;
        }

        protected override void Seed(EF生成数据库命令.Program.DBContentMy context)
        {
            //  This method will be called after migrating to the latest version.

            //  You can use the DbSet<T>.AddOrUpdate() helper extension method
            //  to avoid creating duplicate seed data.
        }
    }
}

2.3 Add-Migration InitialCreate

namespace EF生成数据库命令.Migrations
{
using System;
using System.Data.Entity.Migrations;

public partial class InitialCreate : DbMigration
{
public override void Up()
{
CreateTable(
"dbo.Tb1",
c => new
{
id = c.Int(nullable: false, identity: true),
v1 = c.Int(nullable: false),
})
.PrimaryKey(t => t.id);

}

public override void Down()
{
DropTable("dbo.Tb1");
}
}
}

2.4

<?xml version="1.0" encoding="utf-8"?>
<packages>
  <package id="EntityFramework" version="6.2.0" targetFramework="net452" />
  <package id="EntityFramework.zh-Hans" version="6.2.0" targetFramework="net452" />
  <package id="Microsoft.AspNet.Cors" version="5.0.0" targetFramework="net46" />
  <package id="Microsoft.AspNet.Identity.Core" version="2.2.1" targetFramework="net452" />
  <package id="Microsoft.AspNet.Identity.Core.zh-Hans" version="2.2.1" targetFramework="net452" />
  <package id="Microsoft.AspNet.Identity.EntityFramework" version="2.2.1" targetFramework="net452" />
  <package id="Microsoft.AspNet.Identity.EntityFramework.zh-Hans" version="2.2.1" targetFramework="net452" />
  <package id="Microsoft.AspNet.Identity.Owin" version="2.2.1" targetFramework="net452" />
  <package id="Microsoft.AspNet.Identity.Owin.zh-Hans" version="2.2.1" targetFramework="net452" />
  <package id="Microsoft.Owin" version="3.0.1" targetFramework="net452" />
  <package id="Microsoft.Owin.Cors" version="3.0.1" targetFramework="net46" />
  <package id="Microsoft.Owin.Security" version="3.0.1" targetFramework="net452" />
  <package id="MySql.Data" version="6.10.9" targetFramework="net452" />
  <package id="MySql.Data.Entity" version="6.10.9" targetFramework="net452" />
  <package id="Owin" version="1.0" targetFramework="net46" />
</packages

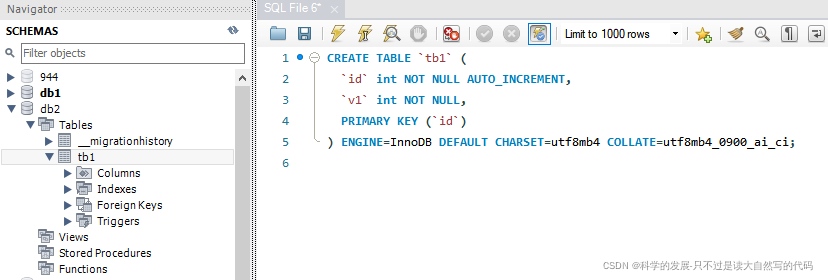

3.运行结果

CREATE TABLE `tb1` (
  `id` int NOT NULL AUTO_INCREMENT,
  `v1` int NOT NULL,
  PRIMARY KEY (`id`)
)

4.引用

ef数据迁移命令总结之Update-Database_一头小驴的博客-优快云博客_ef update-database

EF Add-Migration总结 - 雨中超越 - 博客园

ef数据迁移命令总结之 Enable-Migrations_一头小驴的博客-优快云博客_enable-migration
