Android应用网络限制功能（网络白名单）实现

先看看需求：现在4G流量费用比较昂贵，为了避免流量的消耗，我们可以限制某个应用连接网络，或者限制某个app只能使用wifi等等。
　　

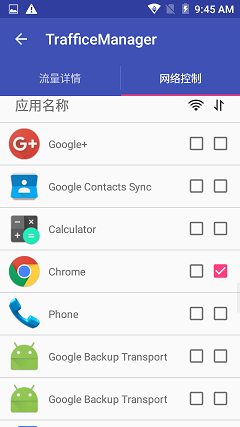

　　再看看效果图：
　　　　　　　　　　　　

当我们使用流量上网时，会发现此时谷歌浏览器无法连接网络，这就达到了我们的目的。

不多说，直接上代码。

1.第一步：我们需要把我们控制网络的方法声明在frameworks/base/core/Java/android/os/INetworkManagementService.aidl中：

interface INetworkManagementService
{
……
void setMobileDataUidRule(int uid, boolean allow);

void setWifiDataUidRule(int uid, boolean allow);
……
}

第二步：在frameworks/base/services/core/java/com/android/server目录下的NetworkManagementService.java中实现我们声明的两个方法:

//add by xiaoxsen
    public void setMobileDataUidRule(int uid, boolean allow) {
        enforceSystemUid();//check
        try {
			final String rule = allow ? "allow" : "deny";
            mConnector.execute("firewall", "set_mobile_data_uid_rule", uid, rule);
        } catch (NativeDaemonConnectorException e) {
            throw e.rethrowAsParcelableException();
        }
    }

    public void setWifiDataUidRule(int uid, boolean allow) {
        enforceSystemUid();
        try {
			final String rule = allow ? "allow" : "deny";
            mConnector.execute("firewall", "set_wifi_data_uid_rule", uid, rule);
        } catch (NativeDaemonConnectorException e) {
            throw e.rethrowAsParcelableException();
        }
    }
    //add by xiaoxsen

第三步：下面又通过socket通信方式调用到system/netd层的system/netd/server目录下的CommandListener.cpp中添加如下：

CommandListener::CommandListener() :
     FrameworkListener("netd", true) {
    //add  by xiaoxsen
    sFirewallCtrl->initIptableFirewall();// 开机初始化
    //add  by xiaoxsen
    .......
    }

然后在int CommandListener::FirewallCmd::runCommand()中添加：

//add  by xiaoxsen
	 if (!strcmp(argv[1], "set_mobile_data_uid_rule")) {
        if (argc != 4) {
            cli->sendMsg(ResponseCode::CommandSyntaxError,
                    "Usage: firewall set_mobile_data_uid_rule <1000> <allow|deny>",
                    false);
            return 0;
        }
        int uid = atoi(argv[2]);
        FirewallRule rule = parseRule(argv[3]);
        int res = sFirewallCtrl->setMobileDataUidRule(uid, rule);
        return sendGenericOkFail(cli, res);
    }
    if (!strcmp(argv[1], "set_wifi_data_uid_rule")) {
        if (argc != 4) {
            cli->sendMsg(ResponseCode::CommandSyntaxError,
                    "Usage: firewall set_wifi_data_uid_rule <1000> <allow|deny>",
                    false);
            return 0;
        }
        int uid = atoi(argv[2]);
        FirewallRule rule = parseRule(argv[3]);
        int res = sFirewallCtrl->setWifiDataUidRule(uid, rule);
        return sendGenericOkFail(cli, res);
    }
	//add  by xiaoxsen

上面代码又调用到system/netd/server目录下的FirewallController.cpp的方法，添加的方法如下：

#include <cutils/properties.h>
//add  by xiaoxsen
const char* op_3g;
const char* op_wifi;
. . .
int FirewallController::initIptableFirewall(void) {
    int res = 0;
    op_3g = "ccmni+"; //网络端口
    op_wifi = "wlan0";//wifi网络端口
    //查看网络端口的方法：
    //1.输入adb shell
    //2.输入netcfg

    // 新建一个drop_wall链表
    res |= execIptables(V4V6, "-w", "-N", "drop_wall", NULL);
    // 把新建的drop_wall链表添加到OUTPUT链表目录下
    res |= execIptables(V4V6, "-w", "-A", "OUTPUT", "-j", "drop_wall", NULL);
}
int FirewallController::setMobileDataUidRule(int uid, FirewallRule rule) {
    char uidStr[16];
    sprintf(uidStr, "%d", uid);
    const char* op;
    if (rule == ALLOW) {
        op = "-D";// 删除链表中的规则
    } else {
        op = "-A";// 添加规则到链表
    }
    int res = 0;
    res |= execIptables(V4V6, "-w", op, "drop_wall", "-o", op_3g, "-m", "owner",
            "--uid-owner", uidStr, "-j", "REJECT", NULL);
    return res;
}

int FirewallController::setWifiDataUidRule(int uid, FirewallRule rule) {
    char uidStr[16];
    sprintf(uidStr, "%d", uid);
    const char* op;
    if (rule == ALLOW) {
        op = "-D";// 删除链表中的规则
    } else {
        op = "-A";// 添加规则到链表
    }
    int res = 0;
    res |= execIptables(V4V6, "-w", op, "drop_wall", "-o", op_wifi, "-m", "owner",
            "--uid-owner", uidStr, "-j", "REJECT", NULL);
    return res;
}
 //add  by xiaoxsen

上面添加的方法声明在system/netd/server目录下的FirewallController.h中：

class FirewallController {
    public:
        . . .
        //add  by xiaoxsen
        int initIptableFirewall(void);
        int setMobileDataUidRule(int, FirewallRule);
        int setWifiDataUidRule(int, FirewallRule);
        //add  by xiaoxsen
        . . .
}

第四步：调用方法实现防火墙功能：

networkManagementService = INetworkManagementService.
Stub.asInterface(ServiceManager.getService(Context.NETWORKMANAGEMENT_SERVICE));
	 if (networkManagementService != null) {
		networkManagementService. setMobileDataUidRule (10038,true);
		networkManagementService. setWifiDataUidRule (10048, true);
	}

这里只要传递应用的uid进去就可以实现。

获取uid的方式：

		List<AppdataInfo> installApplictionList = new ArrayList<AppdataInfo>();
		pm = mContext.getPackageManager();
		List<ApplicationInfo> installedApplications = pm.getInstalledApplications(PackageManager.GET_META_DATA);
		for (ApplicationInfo applicationInfo : installedApplications) {

			if (applicationInfo != null && PackageManager.PERMISSION_GRANTED == pm
					.checkPermission(Manifest.permission.INTERNET,
							applicationInfo.packageName)) {
				//这样就能获取到有网络权限应用的uid
				int uid = applicationInfo.uid

	}
