图像分类网络5——AlexNet实现猫狗大战

1 AlexNet简介

AlexNet是2012年ImageNet竞赛冠军获得者Hinton和他的学生Alex Krizhevsky设计的。也是在那年之后，更多的更深的神经网络被提出，比如优秀的vgg,GoogLeNet。 这对于传统的机器学习分类算法而言，已经相当的出色。

论文地址：
http://www.cs.toronto.edu/~fritz/absps/imagenet.pdf

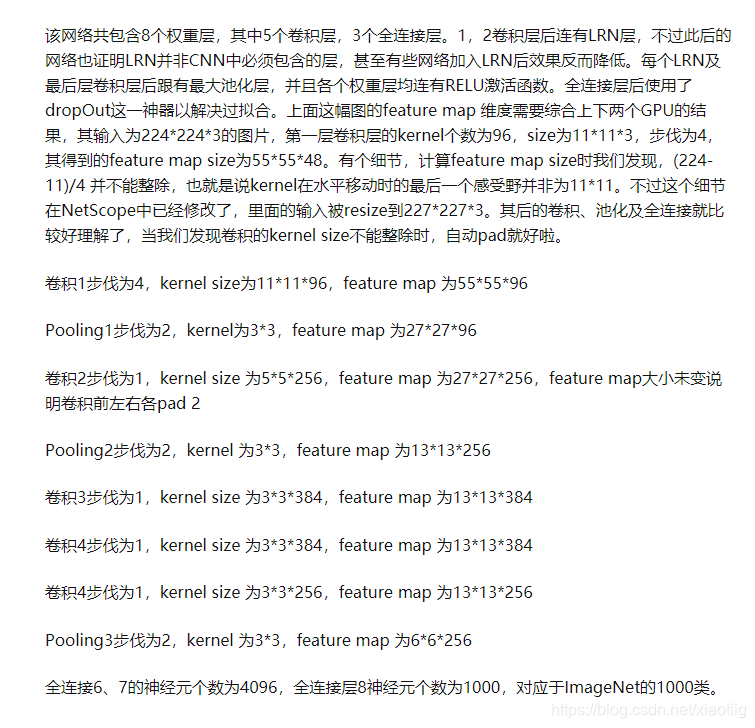

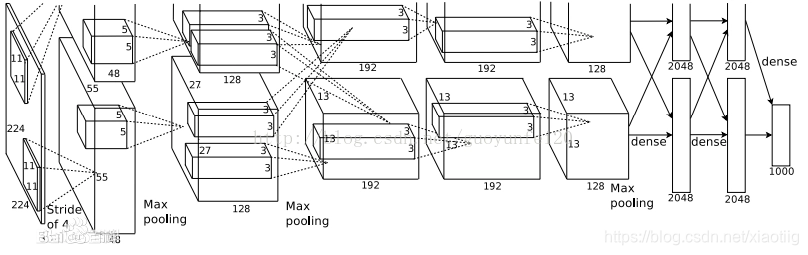

1.1 结构

这个结构挺难看懂的，主要是因为使用了两块GPU

这两篇文章很好：

https://blog.youkuaiyun.com/qq_24695385/article/details/80368618

https://zhuanlan.zhihu.com/p/27222043

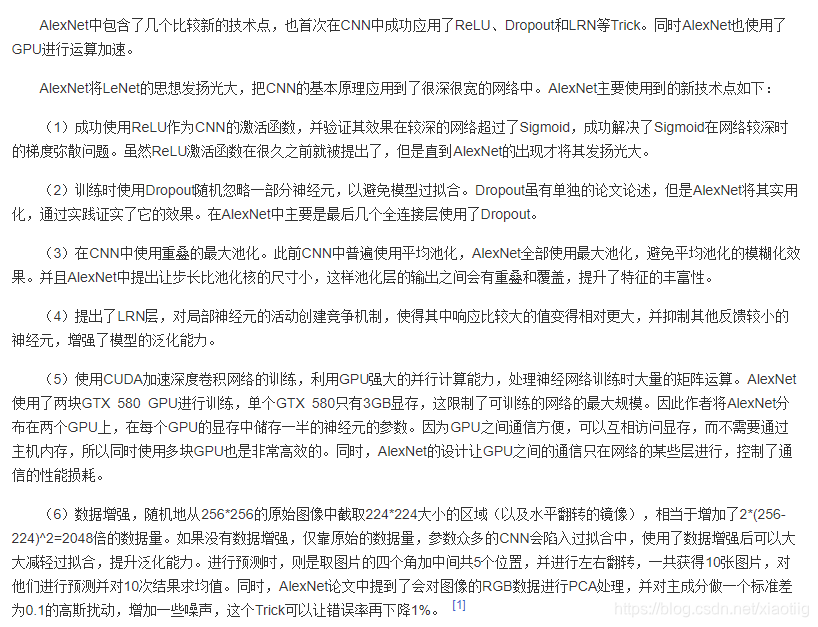

1.2 六大特点

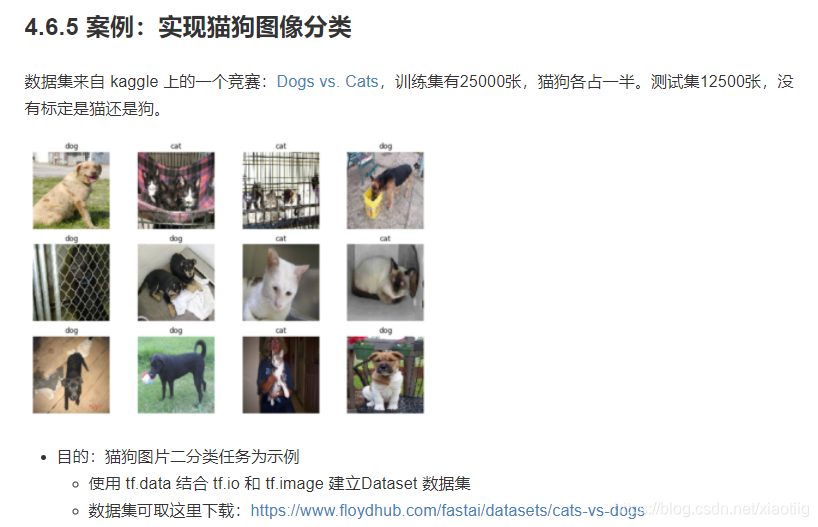

2 猫狗大战数据集

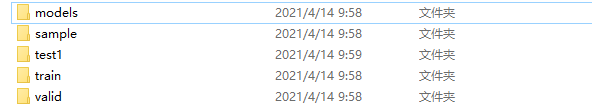

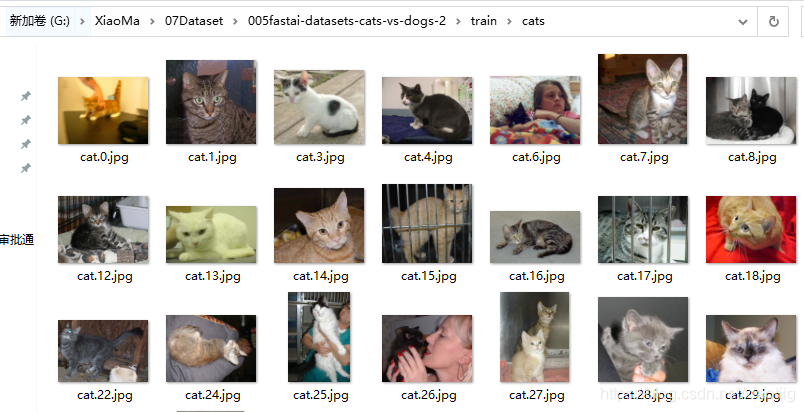

训练文件中，一个猫的文件夹，一个狗的文件夹，分别有11500张

3 代码实现

注意：
注意：
注意：

这个模型有些bug还没有解决，流程是对的

import tensorflow as tf
import os

# Alexnet实现猫狗大战

class CatOrDog(object):
    """猫狗分类
    """
    num_epochs = 1
    batch_size = 32
    learning_rate = 0.001
        # 训练目录
    train_cats_dir = r'G:\XiaoMa\07Dataset\005fastai-datasets-cats-vs-dogs-2\train\cats'
    train_dogs_dir = r'G:\XiaoMa\07Dataset\005fastai-datasets-cats-vs-dogs-2\train\dogs'
    # 验证目录
    test_cats_dir = r'G:\XiaoMa\07Dataset\005fastai-datasets-cats-vs-dogs-2\valid\cats'
    test_dogs_dir = r'G:\XiaoMa\07Dataset\005fastai-datasets-cats-vs-dogs-2\valid\dogs'

    model = tf.keras.Sequential([
        tf.keras.layers.Conv2D(96, 11, strides=4, activation='relu', padding="same", input_shape=(256, 256, 3)),
        tf.keras.layers.MaxPooling2D(pool_size=(3,3), strides=2),

        tf.keras.layers.Conv2D(256, 5, activation='relu', padding="same"),
        tf.keras.layers.MaxPooling2D(pool_size=(3,3), strides=2),

        tf.keras.layers.Conv2D(384, 3, activation='relu', padding="same"),
        tf.keras.layers.Conv2D(384, 3, activation='relu', padding="same"),
        tf.keras.layers.Conv2D(256, 3, activation='relu', padding="same"),

        tf.keras.layers.Flatten(),
        tf.keras.layers.Dense(64, activation='relu'),
        tf.keras.layers.Dense(64, activation='relu'),
        tf.keras.layers.Dense(2, activation='softmax')
    ])
    """
    self.model = tf.keras.Sequential([
            tf.keras.layers.Conv2D(32, 3, activation='relu', input_shape=(256, 256, 3)),
            tf.keras.layers.MaxPooling2D(),
            tf.keras.layers.Conv2D(32, 5, activation='relu'),
            tf.keras.layers.MaxPooling2D(),
            tf.keras.layers.Flatten(),
            tf.keras.layers.Dense(64, activation='relu'),
            tf.keras.layers.Dense(2, activation='softmax')
        ])

    """



    def __init__(self):
        # 1、读取训练集的猫狗文件
        self.train_cat_filenames = tf.constant([CatOrDog.train_cats_dir + filename
                                                for filename in os.listdir(CatOrDog.train_cats_dir)])
        self.train_dog_filenames = tf.constant([CatOrDog.train_dogs_dir + filename
                                                for filename in os.listdir(CatOrDog.train_dogs_dir)])
        # 2、猫狗文件列表合并，并且初始化猫狗的目标值，0为猫，1为狗
        self.train_filenames = tf.concat([self.train_cat_filenames, self.train_dog_filenames], axis=-1)
        self.train_labels = tf.concat([
            tf.zeros(self.train_cat_filenames.shape, dtype=tf.int32),
            tf.ones(self.train_dog_filenames.shape, dtype=tf.int32)],
            axis=-1)

    def get_batch(self):
        """获取dataset批次数据
        :return:
        """
        train_dataset = tf.data.Dataset.from_tensor_slices((self.train_filenames, self.train_labels))
        print(train_dataset)
        # 进行数据的map, 随机，批次和预存储
        train_dataset = train_dataset.map(
            map_func=self._decode_and_resize,
            num_parallel_calls=tf.data.experimental.AUTOTUNE)
        train_dataset = train_dataset.shuffle(buffer_size=20000)
        train_dataset = train_dataset.batch(CatOrDog.batch_size)
        train_dataset = train_dataset.prefetch(tf.data.experimental.AUTOTUNE)
        return train_dataset

    # 图片处理函数，读取，解码并且进行输入形状修改
    def _decode_and_resize(self,filename, label):
        image_string = tf.io.read_file(filename)
        image_decoded = tf.image.decode_jpeg(image_string)
        image_resized = tf.image.resize(image_decoded, [256, 256]) / 255.0
        return image_resized, label




    def train(self, train_dataset):
        """训练过程
        :return:
        """
        self.model.compile(
            optimizer=tf.keras.optimizers.Adam(learning_rate=CatOrDog.learning_rate),
            loss=tf.keras.losses.sparse_categorical_crossentropy,
            metrics=[tf.keras.metrics.sparse_categorical_accuracy]
        )

        self.model.fit(train_dataset, epochs=CatOrDog.num_epochs)
        self.model.save_weights("./ckpt/cat_or_dogs.h5")

    def test(self):
        # 1、构建测试数据集
        test_cat_filenames = tf.constant([CatOrDog.test_cats_dir + filename
                                          for filename in os.listdir(CatOrDog.test_cats_dir)])
        test_dog_filenames = tf.constant([CatOrDog.test_dogs_dir + filename
                                          for filename in os.listdir(CatOrDog.test_dogs_dir)])
        test_filenames = tf.concat([test_cat_filenames, test_dog_filenames], axis=-1)
        test_labels = tf.concat([
            tf.zeros(test_cat_filenames.shape, dtype=tf.int32),
            tf.ones(test_dog_filenames.shape, dtype=tf.int32)],
            axis=-1)
        # 2、构建dataset
        test_dataset = tf.data.Dataset.from_tensor_slices((test_filenames, test_labels))
        test_dataset = test_dataset.map(self._decode_and_resize)
        test_dataset = test_dataset.batch(self.batch_size)

        # 3、加载模型进行评估
        if os.path.exists("./ckpt/cat_or_dogs.h5"):
            self.model.load_weights("./ckpt/cat_or_dogs.h5")

        print(self.model.metrics_names)
        print(self.model.evaluate(test_dataset))

if __name__ == "__main__":
    cat_dos = CatOrDog()
    train_dataset = cat_dos.get_batch()
    cat_dos.train(train_dataset)
    cat_dos.model.summary()
    print("训练结束")
    cat_dos.test()
