opencvC++学习24直方图计算

代码：

#include <iostream>
#include <opencv2/opencv.hpp>
using namespace std;
using namespace cv;

Mat src, dst, map_x, map_y;
const char* OUTPUT_TITLE = "remap demo";

int main()
{
    src = imread("D:/opencvSRC/test.jpg");
    if (!src.data) {
        printf("could not load image...\n");
        return -1;
    }
    char input_win[] = "input image";
    char OUTPUT_T[] = "histogram demo";
    namedWindow(input_win, CV_WINDOW_AUTOSIZE);
   // namedWindow(OUTPUT_TITLE, CV_WINDOW_AUTOSIZE);
    imshow(input_win, src);

    // 分通道显示
    vector<Mat> bgr_planes;
    split(src, bgr_planes);
    imshow("single channel demo", bgr_planes[0]);

    // 计算直方图
    int histSize = 256;
    float range[] = { 0, 256 };
    const float *histRanges = { range };
    Mat b_hist, g_hist, r_hist;
    calcHist(&bgr_planes[0], 1, 0, Mat(), b_hist, 1, &histSize, &histRanges,true, false);
    calcHist(&bgr_planes[1], 1, 0, Mat(), g_hist, 1, &histSize, &histRanges,true, false);
    calcHist(&bgr_planes[2], 1, 0, Mat(), r_hist, 1, &histSize, &histRanges,true, false);



    // 归一化
    int hist_h = 400;
    int hist_w = 512;
    int bin_w = hist_w / histSize;
    Mat histImage(hist_w, hist_h, CV_8UC3, Scalar(0, 0, 0));
    normalize(b_hist, b_hist, 0, hist_h, NORM_MINMAX, -1, Mat());
    normalize(g_hist, g_hist, 0, hist_h, NORM_MINMAX, -1, Mat());
    normalize(r_hist, r_hist, 0, hist_h, NORM_MINMAX, -1, Mat());

    // render histogram chart
    for (int i = 1; i < histSize; i++) {
        line(histImage, Point((i - 1)*bin_w, hist_h - cvRound(b_hist.at<float>(i - 1))),
             Point((i)*bin_w, hist_h - cvRound(b_hist.at<float>(i))), Scalar(255, 0, 0), 2, LINE_AA);

        line(histImage, Point((i - 1)*bin_w, hist_h - cvRound(g_hist.at<float>(i - 1))),
             Point((i)*bin_w, hist_h - cvRound(g_hist.at<float>(i))), Scalar(0, 255, 0), 2, LINE_AA);

        line(histImage, Point((i - 1)*bin_w, hist_h - cvRound(r_hist.at<float>(i - 1))),
             Point((i)*bin_w, hist_h - cvRound(r_hist.at<float>(i))), Scalar(0, 0, 255), 2, LINE_AA);
    }
    imshow(OUTPUT_T, histImage);

    waitKey(0);

    return 0;
}

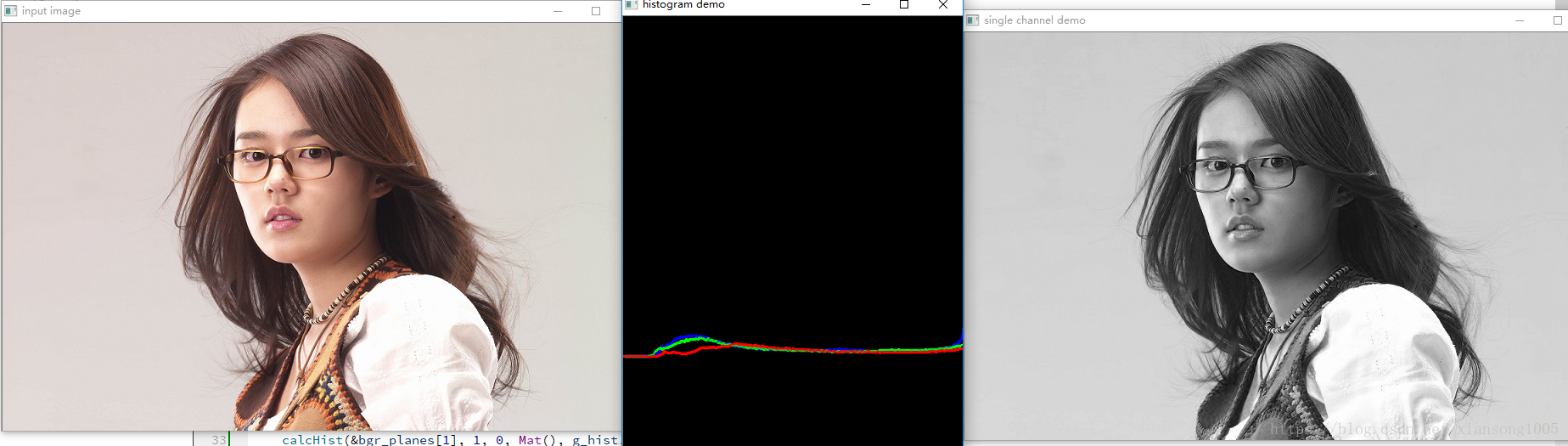

效果：
