【51单片机2个独立按键2个独立数码管静态显示内容自定】2022-10-22

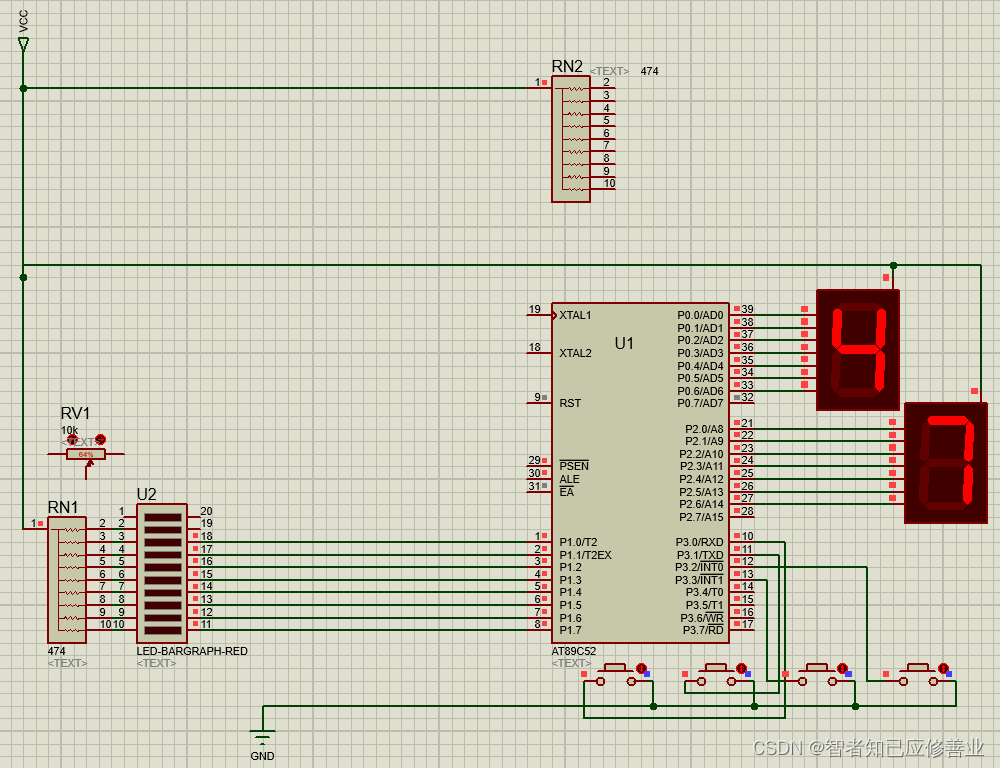

缘由利用2个独立按键和2个数码管，用Proteus仿真软件设计一个单片机静态显示程序。显示内容自定。上传实验代码及仿真截图。-嵌入式-优快云问答

#include "REG52.h"
unsigned char code smgduan[]={0x3f,0x06,0x5b,0x4f,0x66,0x6d,0x7d,0x07
,0x7f,0x6f,0x77,0x7c,0x39,0x5e,0x79,0x71,0,64,15,56}; //共阴0~F消隐减号
sbit k1=P3^0;
sbit k2=P3^1;
void main()
{
	unsigned char sm=0,jz=4,w=7;
	P0=~smgduan[jz];
	P2=~smgduan[w];
	while(1)
	{
		if(k1==0&&++sm==0)
		{
			if(w==7)w=4;else w=7;
			P0=~smgduan[w];
			while(k1==0);
		}
		if(k2==0&&++sm==0)
		{
			if(jz==4)jz=7;else jz=4;
			P2=~smgduan[jz];
			while(k2==0);
		}
	}
}
