clickhouse 集群搭建

clickhouse集群搭建

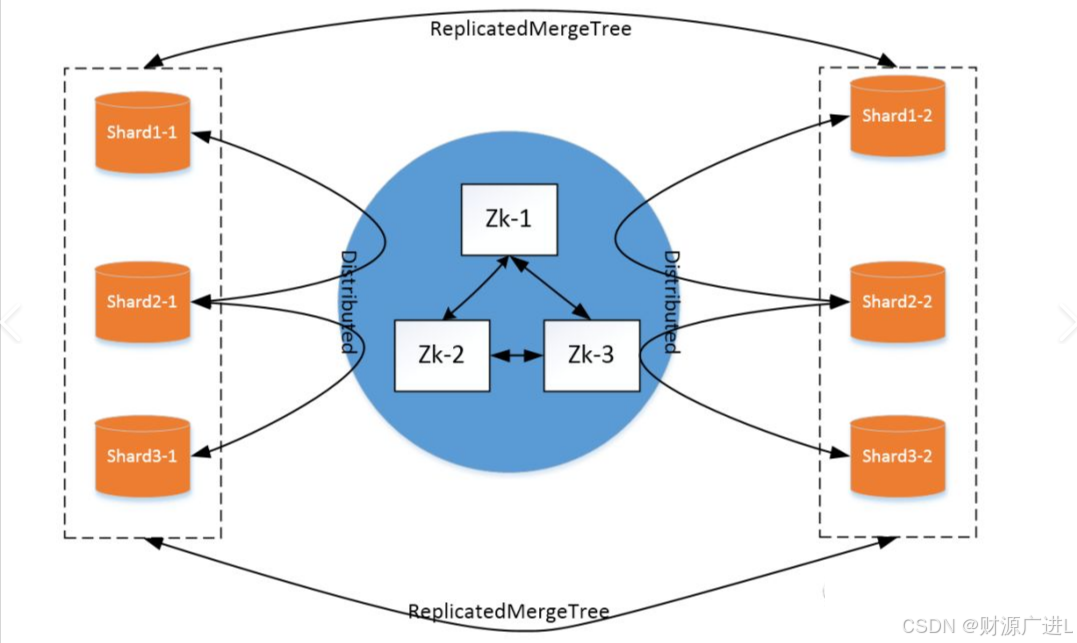

集群原理拓扑图

主机环境：
ip地址			  zookeeper集群      clickhouse集群
192.168.3.59		zookeeper-1		  clickhouse-1
192.168.3.151		zookeeper-2		  clickhouse-2
192.168.3.242		zookeeper-3		  clickhouse-3
192.168.3.228						  clickhouse-4

一、搭建zookeeper集群

环境介绍

部署方式：docker-compose 部署

主机3PCS：
192.168.3.59
192.168.3.151
192.168.3.242

所用镜像：wurstmeister/zookeeper

目录结构

zookeeper-01/
├── docker-compose.yml
└── zoo
    ├── conf
    │   ├── configuration.xsl
    │   ├── log4j.properties
    │   └── zoo.cfg
    └── data
        └── myid

# 配置好一份后修改docker-compose中主机名、容器名，修改myid中的值。

修改配置：

docker-compose

version: '2'
services:
  zookeeper:
    image: wurstmeister/zookeeper:latest
    hostname: zookeeper-01
    container_name: zookeeper-01
    restart: always
    network_mode: host
    ports:
      - "2182:2182"
      - "2888:2888"
      - "3888:3888"
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - ./zoo/conf:/opt/zookeeper-3.4.13/conf
      - ./zoo/data/myid:/opt/zookeeper-3.4.13/data/myid
    healthcheck:
      test: ["CMD-SHELL", "netstat -tnlp|grep :2182 || exit 1"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 15s

./zoo/conf/zoo.cfg

# 添加以下配置
globalOutstandingLimit=200
minSessionTimeout=16000
maxSessionTimeout=30000
server.1=192.168.3.59:2888:3888
server.2=192.168.3.151:2888:3888
server.3=192.168.3.242:2888:3888

./zoo/data/myid

1

其他主机配置：

# 配置好一份后修改docker-compose中主机名、容器名，修改myid中的值。
# myid值根据server.x=...的 x 值
# 如 192.168.3.242 主机，myid值为3
server.1=192.168.3.59:2888:3888   >> myid >> 1
server.2=192.168.3.151:2888:3888  >> myid >> 2
server.3=192.168.3.242:2888:3888  >> myid >> 3

启动：

docker-compose up -d

检查

[root@Node1 zookeeper-01]# docker exec -it zookeeper-01 /bin/bash
root@zookeeper-01:/opt/zookeeper-3.4.13# bash bin/zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper-3.4.13/bin/../conf/zoo.cfg
Mode: leader

[root@Node2 zookeeper-02]# docker exec -it zookeeper-02 /bin/bash
root@zookeeper-02:/opt/zookeeper-3.4.13# bash bin/zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper-3.4.13/bin/../conf/zoo.cfg
Mode: follower

[root@Node3 docker-compose]# docker exec -it zookeeper-03 /bin/bash
root@zookeeper-03:/opt/zookeeper-3.4.13# bash bin/zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper-3.4.13/bin/../conf/zoo.cfg
Mode: follower
# 其中有一个节点是leader，有两个节点是follower，证明zookeeper集群是部署成功的
# 节点1选举为leader节点，其余为follower节点。

二、搭建clickhouse集群

环境介绍

部署方式：docker-compose 部署

主机4PCS：
192.168.3.59	分片01、副本01
192.168.3.151	分片01、副本02
192.168.3.242	分片02、副本01
192.168.3.228	分片02、副本02

所用镜像：yandex/clickhouse-server

目录结构

clickhouse-01/
├── config.xml				# 配置文件
├── data
├── docker-compose.yml
├── log
├── metrika.xml				# 集群信息
└── users.xml				# 用户配置

修改配置：

docker-compose

version: '2'
services:
  clickhouse-server:
    image: yandex/clickhouse-server
    hostname: clickhouse-01
    container_name: clickhouse-01
    restart: always
    network_mode: host
    ports:
      - 8123:8123
      - 9000:9000
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - ./config.xml:/etc/clickhouse-server/config.xml
      - ./users.xml:/etc/clickhouse-server/users.xml
      - ./metrika.xml:/etc/clickhouse-server/metrika.xml
      - ./data:/var/lib/clickhouse
      - ./log:/var/log/clickhouse-server

config.xml

#改动配置
<listen_host>0.0.0.0</listen_host>    # 开放访问
...
<timezone>Asia/Shanghai</timezone>	  # 配置时区
...
<include_from>/etc/clickhouse-server/metrika.xml</include_from>   # 配置集群文件
<macros incl="macros" optional="true"/> .
#optional="true" 表示如果 macros 文件不存在，ClickHouse 也不会报错。
...
<interserver_http_host>192.168.3.59</interserver_http_host>		 # 修改内部通讯地址
...

metrika.xml

<yandex>
    <clickhouse_remote_servers>
        <ck_cluster>
           <!-- 数据分片1  -->
            <shard>
                <internal_replication>true</internal_replication>
                <replica>
                    <host>192.168.3.59</host>
                    <port>9000</port>
                     <!-- #注意：若在users.xml中设置了用户和密码，此处要添加<user>test</user><password>123</password> -->
					<user>user</user>
					<password>password</password>
                </replica>
                <replica>
                    <host>192.168.3.151</host>
                    <port>9000</port>
					<user>user</user>
					<password>password</password>
                </replica>
            </shard>
            <!-- 数据分片2  -->
            <shard>
                <internal_replication>true</internal_replication>
                <replica>
                    <host>192.168.3.242</host>
                    <port>9000</port>
					<user>user</user>
					<password>password</password>
                </replica>
                <replica>
                    <host>192.168.3.228</host>
                    <port>9000</port>
					<user>user</user>
					<password>password</password>
                </replica>
            </shard>
        </ck_cluster>
    </clickhouse_remote_servers>

<!-- zookeeper 集群信息 -->
    <zookeeper-servers>
        <node index="1">
            <host>192.168.3.59</host>
            <port>2182</port>
        </node>
        <node index="2">
            <host>192.168.3.151</host>
            <port>2182</port>
        </node>
        <node index="3">
            <host>192.168.3.242</host>
            <port>2182</port>
        </node>
    </zookeeper-servers>

    <macros>
        <shard>01</shard>
        <!-- #注意:每台服务器的配置文件。写自己的IP地址 -->
        <replica>192.168.3.59</replica>
    </macros>

    <networks>
        <ip>::</ip>
    </networks>

    <clickhouse_compression>
        <case>
            <min_part_size>10000000000</min_part_size>
            <min_part_size_ratio>0.01</min_part_size_ratio>
            <method>lz4</method>
        </case>
    </clickhouse_compression>

</yandex>

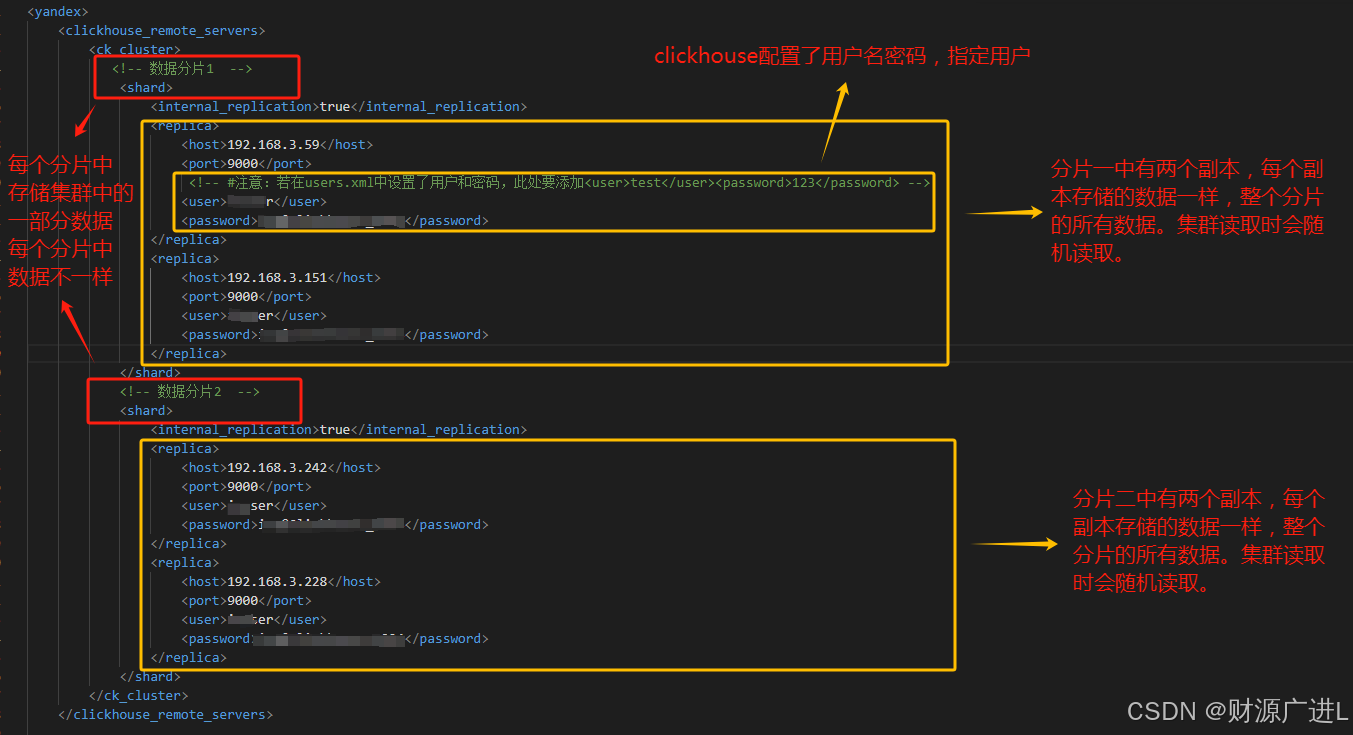

分片副本解释：

配置修改

macros字段

根据每台机器的分片副本，配置。如：192.168.3.242为第2分片的第一副本这样配置：

    <macros>
        <shard>02</shard>      			   # 分片信息
        <replica>192.168.3.242</replica>   # 副本信息(可以为本机ip地址或者如副本1则修改为1)
    </macros>

启动

docker-compose up -d

检查

配置后可以再每台机器上用命令查看是否成功

# 第2分片第一副本的机器会显示：
select * from system.macros
┌─macro───┬─substitution────────────┐
│ replica │ 02           			│
│ shard   │ 192.168.3.242           │
└─────────┴─────────────────────────┘

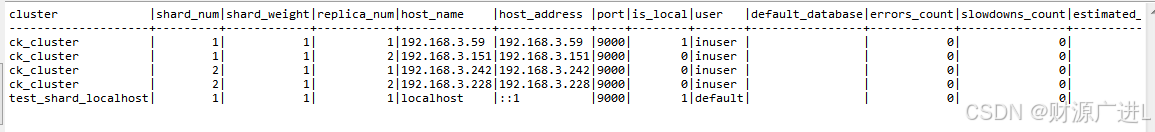

查看集群信息：

select * from system.clusters;
# 两分片、两副本集群
