ROS程序分析

Node

publisher

#include "ros/ros.h"
#include "std_msgs/String.h"

#include <sstream>

/**
 * This tutorial demonstrates simple sending of messages over the ROS system.
 */
int main(int argc, char **argv)
{
  /**
   * The ros::init() function needs to see argc and argv so that it can perform
   * any ROS arguments and name remapping that were provided at the command line.
   * For programmatic remappings you can use a different version of init() which takes
   * remappings directly, but for most command-line programs, passing argc and argv is
   * the easiest way to do it.  The third argument to init() is the name of the node.
   *
   * You must call one of the versions of ros::init() before using any other
   * part of the ROS system.
   */
  ros::init(argc, argv, "talker");

  /**
   * NodeHandle is the main access point to communications with the ROS system.
   * The first NodeHandle constructed will fully initialize this node, and the last
   * NodeHandle destructed will close down the node.
   */
  ros::NodeHandle n;

  /**
   * The advertise() function is how you tell ROS that you want to
   * publish on a given topic name. This invokes a call to the ROS
   * master node, which keeps a registry of who is publishing and who
   * is subscribing. After this advertise() call is made, the master
   * node will notify anyone who is trying to subscribe to this topic name,
   * and they will in turn negotiate a peer-to-peer connection with this
   * node.  advertise() returns a Publisher object which allows you to
   * publish messages on that topic through a call to publish().  Once
   * all copies of the returned Publisher object are destroyed, the topic
   * will be automatically unadvertised.
   *
   * The second parameter to advertise() is the size of the message queue
   * used for publishing messages.  If messages are published more quickly
   * than we can send them, the number here specifies how many messages to
   * buffer up before throwing some away.
   */
  ros::Publisher chatter_pub = n.advertise<std_msgs::String>("chatter", 1000);

  ros::Rate loop_rate(10);

  /**
   * A count of how many messages we have sent. This is used to create
   * a unique string for each message.
   */
  int count = 0;
  while (ros::ok())
  {
    /**
     * This is a message object. You stuff it with data, and then publish it.
     */
    std_msgs::String msg;

    std::stringstream ss;
    ss << "hello world " << count;
    msg.data = ss.str();

    ROS_INFO("%s", msg.data.c_str());

    /**
     * The publish() function is how you send messages. The parameter
     * is the message object. The type of this object must agree with the type
     * given as a template parameter to the advertise<>() call, as was done
     * in the constructor above.
     */
    chatter_pub.publish(msg);

    ros::spinOnce();

    loop_rate.sleep();
    ++count;
  }


  return 0;
}

subscriber

#include "ros/ros.h"
#include "std_msgs/String.h"

/**
 * This tutorial demonstrates simple receipt of messages over the ROS system.
 */
void chatterCallback(const std_msgs::String::ConstPtr& msg)
{
  ROS_INFO("I heard: [%s]", msg->data.c_str());
}

int main(int argc, char **argv)
{
  /**
   * The ros::init() function needs to see argc and argv so that it can perform
   * any ROS arguments and name remapping that were provided at the command line.
   * For programmatic remappings you can use a different version of init() which takes
   * remappings directly, but for most command-line programs, passing argc and argv is
   * the easiest way to do it.  The third argument to init() is the name of the node.
   *
   * You must call one of the versions of ros::init() before using any other
   * part of the ROS system.
   */
  ros::init(argc, argv, "listener");

  /**
   * NodeHandle is the main access point to communications with the ROS system.
   * The first NodeHandle constructed will fully initialize this node, and the last
   * NodeHandle destructed will close down the node.
   */
  ros::NodeHandle n;

  /**
   * The subscribe() call is how you tell ROS that you want to receive messages
   * on a given topic.  This invokes a call to the ROS
   * master node, which keeps a registry of who is publishing and who
   * is subscribing.  Messages are passed to a callback function, here
   * called chatterCallback.  subscribe() returns a Subscriber object that you
   * must hold on to until you want to unsubscribe.  When all copies of the Subscriber
   * object go out of scope, this callback will automatically be unsubscribed from
   * this topic.
   *
   * The second parameter to the subscribe() function is the size of the message
   * queue.  If messages are arriving faster than they are being processed, this
   * is the number of messages that will be buffered up before beginning to throw
   * away the oldest ones.
   */
  ros::Subscriber sub = n.subscribe("chatter", 1000, chatterCallback);

  /**
   * ros::spin() will enter a loop, pumping callbacks.  With this version, all
   * callbacks will be called from within this thread (the main one).  ros::spin()
   * will exit when Ctrl-C is pressed, or the node is shutdown by the master.
   */
  ros::spin();

  return 0;
}

 Service

server

#include "ros/ros.h"
#include "beginner_tutorials/AddTwoInts.h"

bool add(beginner_tutorials::AddTwoInts::Request  &req,
         beginner_tutorials::AddTwoInts::Response &res)
{
  res.sum = req.a + req.b;
  ROS_INFO("request: x=%ld, y=%ld", (long int)req.a, (long int)req.b);
  ROS_INFO("sending back response: [%ld]", (long int)res.sum);
  return true;
}

int main(int argc, char **argv)
{
  ros::init(argc, argv, "add_two_ints_server");
  ros::NodeHandle n;

  ros::ServiceServer service = n.advertiseService("add_two_ints", add);
  ROS_INFO("Ready to add two ints.");
  ros::spin();

  return 0;
}

 client

#include "ros/ros.h"
#include "beginner_tutorials/AddTwoInts.h"
#include <cstdlib>

int main(int argc, char **argv)
{
  ros::init(argc, argv, "add_two_ints_client");
  if (argc != 3)
  {
    ROS_INFO("usage: add_two_ints_client X Y");
    return 1;
  }

  ros::NodeHandle n;
  ros::ServiceClient client = n.serviceClient<beginner_tutorials::AddTwoInts>("add_two_ints");
  beginner_tutorials::AddTwoInts srv;
  srv.request.a = atoll(argv[1]);
  srv.request.b = atoll(argv[2]);
  if (client.call(srv))
  {
    ROS_INFO("Sum: %ld", (long int)srv.response.sum);
  }
  else
  {
    ROS_ERROR("Failed to call service add_two_ints");
    return 1;
  }

  return 0;
}

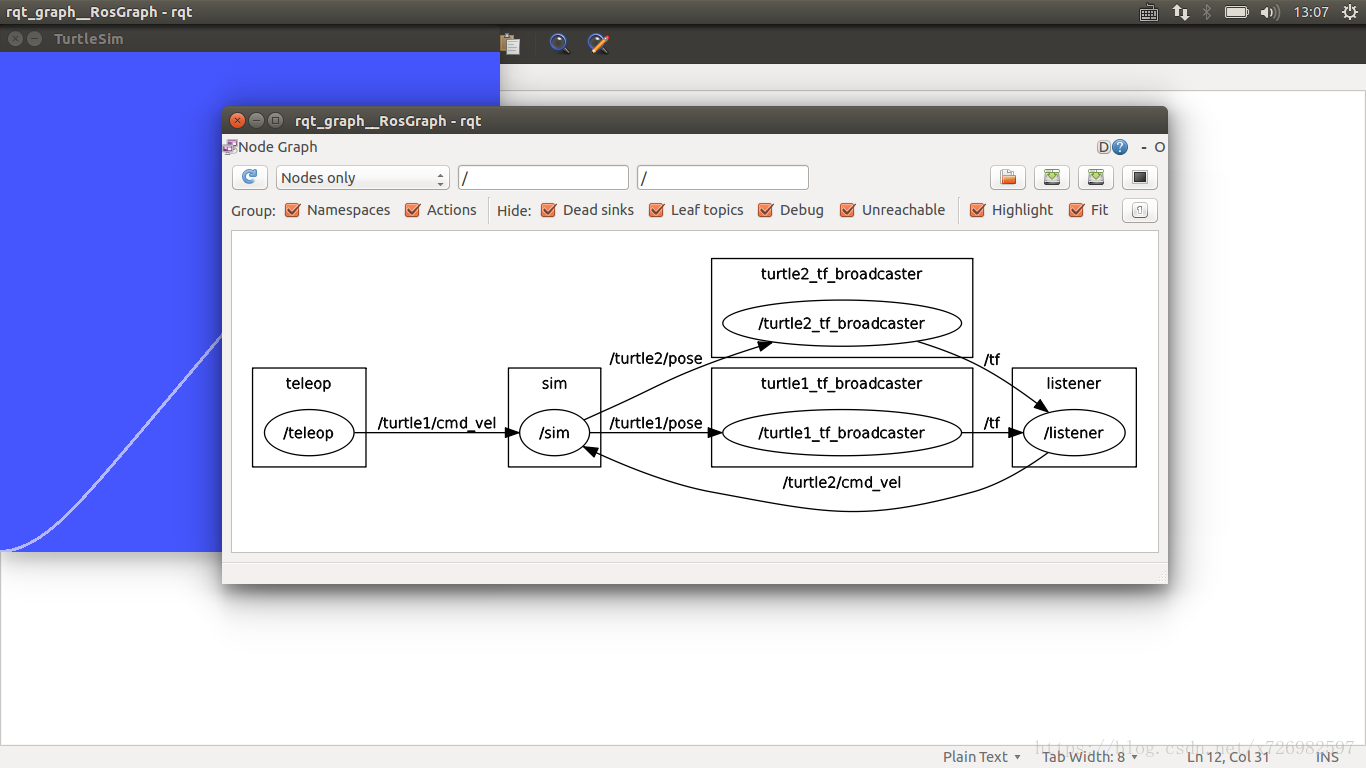

TF

 broadcaster

#include <ros/ros.h>
#include <tf/transform_broadcaster.h>
#include <turtlesim/Pose.h>

std::string turtle_name;



void poseCallback(const turtlesim::PoseConstPtr& msg){
  static tf::TransformBroadcaster br;
  tf::Transform transform;
  transform.setOrigin( tf::Vector3(msg->x, msg->y, 0.0) );
  tf::Quaternion q;
  q.setRPY(0, 0, msg->theta);
  transform.setRotation(q);
  br.sendTransform(tf::StampedTransform(transform, ros::Time::now(), "world", turtle_name)); //接收到海龟的位置信息后转换成tf坐标系的格式发布到话题/tf上
}

int main(int argc, char** argv){
  ros::init(argc, argv, "my_tf_broadcaster");
  if (argc != 2){ROS_ERROR("need turtle name as argument"); return -1;};
  turtle_name = argv[1];

  ros::NodeHandle node;
  ros::Subscriber sub = node.subscribe(turtle_name+"/pose", 10, &poseCallback);

  ros::spin();
  return 0;
};

listener

#include <ros/ros.h>
#include <tf/transform_listener.h>
#include <turtlesim/Velocity.h>
#include <turtlesim/Spawn.h>

int main(int argc, char** argv){
  ros::init(argc, argv, "my_tf_listener");

  ros::NodeHandle node;

  ros::service::waitForService("spawn");
  ros::ServiceClient add_turtle =
    node.serviceClient<turtlesim::Spawn>("spawn");
  turtlesim::Spawn srv;
  add_turtle.call(srv);

  ros::Publisher turtle_vel =
    node.advertise<turtlesim::Velocity>("turtle2/command_velocity", 10);

  tf::TransformListener listener;

  ros::Rate rate(10.0);
  while (node.ok()){
    tf::StampedTransform transform;
    try{
      listener.lookupTransform("/turtle2", "/turtle1",
                               ros::Time(0), transform); //订阅/tf的消息，对比两者的差别后将转换数据赋值给tansform
    }
    catch (tf::TransformException ex){
      ROS_ERROR("%s",ex.what());
      ros::Duration(1.0).sleep();
    }

    turtlesim::Velocity vel_msg;
    vel_msg.angular = 4.0 * atan2(transform.getOrigin().y(),
                                transform.getOrigin().x());
    vel_msg.linear = 0.5 * sqrt(pow(transform.getOrigin().x(), 2) +
                                pow(transform.getOrigin().y(), 2));
    turtle_vel.publish(vel_msg);

    rate.sleep();
  }
  return 0;
};
