环境

操作系统：CentOS7.9

架构：x86

准备

修改机器名

三台服务器分别执行。

hostnamectl set-hostname k8s-master
hostnamectl set-hostname k8s-node1
hostnamectl set-hostname k8s-node2

修改hosts

三台服务器均需执行。

echo -e "IP1 k8s-master1\nIP2 k8s-node1\nIP3 k8s-node2" >> /etc/hosts

关闭防火墙

三台服务器均需执行。

systemctl stop firewalld
systemctl disable firewalld

关闭SELinux

三台服务器均需执行。

sed -i 's/enforcing/disabled/' /etc/selinux/config
setenforce 0

关闭交换空间

三台服务器均需执行。

sed -ri 's/.*swap.*/#&/' /etc/fstab
swapoff -a

加载br_netfilter模块

三台服务器均需执行。

modprobe br_netfilter
lsmod | grep br_netfilter

修改网卡配置

三台服务器均需执行。

cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF
sysctl -p

修改yum源

三台服务器均需执行。

①cd /etc/yum.repos.d

②mv CentOS-Base.repo CentOS-Base.repo.bak

③编辑文件

cat > /etc/yum.repos.d/CentOS-Base.repo << 'EOF'

# CentOS-Base.repo
#
# The mirror system uses the connecting IP address of the client and the
# update status of each mirror to pick mirrors that are updated to and
# geographically close to the client.  You should use this for CentOS updates
# unless you are manually picking other mirrors.
#
# If the mirrorlist= does not work for you, as a fall back you can try the
# remarked out baseurl= line instead.
#
#

[base]
name=CentOS-$releasever - Base - mirrors.aliyun.com
failovermethod=priority
baseurl=http://mirrors.aliyun.com/centos/$releasever/os/$basearch/
        http://mirrors.aliyuncs.com/centos/$releasever/os/$basearch/
        http://mirrors.cloud.aliyuncs.com/centos/$releasever/os/$basearch/
gpgcheck=0
gpgkey=http://mirrors.aliyun.com/centos/RPM-GPG-KEY-CentOS-7

#released updates
[updates]
name=CentOS-$releasever - Updates - mirrors.aliyun.com
failovermethod=priority
baseurl=http://mirrors.aliyun.com/centos/$releasever/updates/$basearch/
        http://mirrors.aliyuncs.com/centos/$releasever/updates/$basearch/
        http://mirrors.cloud.aliyuncs.com/centos/$releasever/updates/$basearch/
gpgcheck=0
gpgkey=http://mirrors.aliyun.com/centos/RPM-GPG-KEY-CentOS-7

#additional packages that may be useful
[extras]
name=CentOS-$releasever - Extras - mirrors.aliyun.com
failovermethod=priority
baseurl=http://mirrors.aliyun.com/centos/$releasever/extras/$basearch/
        http://mirrors.aliyuncs.com/centos/$releasever/extras/$basearch/
        http://mirrors.cloud.aliyuncs.com/centos/$releasever/extras/$basearch/
gpgcheck=0
gpgkey=http://mirrors.aliyun.com/centos/RPM-GPG-KEY-CentOS-7

#additional packages that extend functionality of existing packages
[centosplus]
name=CentOS-$releasever - Plus - mirrors.aliyun.com
failovermethod=priority
baseurl=http://mirrors.aliyun.com/centos/$releasever/centosplus/$basearch/
        http://mirrors.aliyuncs.com/centos/$releasever/centosplus/$basearch/
        http://mirrors.cloud.aliyuncs.com/centos/$releasever/centosplus/$basearch/
gpgcheck=0
enabled=0
gpgkey=http://mirrors.aliyun.com/centos/RPM-GPG-KEY-CentOS-7

#contrib - packages by Centos Users
[contrib]
name=CentOS-$releasever - Contrib - mirrors.aliyun.com
failovermethod=priority
baseurl=http://mirrors.aliyun.com/centos/$releasever/contrib/$basearch/
        http://mirrors.aliyuncs.com/centos/$releasever/contrib/$basearch/
        http://mirrors.cloud.aliyuncs.com/centos/$releasever/contrib/$basearch/
gpgcheck=0
enabled=0
gpgkey=http://mirrors.aliyun.com/centos/RPM-GPG-KEY-CentOS-7

EOF

cat > /etc/yum.repos.d/docker-ce.repo << 'EOF'

[docker-ce-stable]
name=Docker CE Stable - $basearch
baseurl=https://mirrors.aliyun.com/docker-ce/linux/centos/$releasever/$basearch/stable
enabled=1
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/docker-ce/linux/centos/gpg

[docker-ce-stable-debuginfo]
name=Docker CE Stable - Debuginfo $basearch
baseurl=https://mirrors.aliyun.com/docker-ce/linux/centos/$releasever/debug-$basearch/stable
enabled=0
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/docker-ce/linux/centos/gpg

[docker-ce-stable-source]
name=Docker CE Stable - Sources
baseurl=https://mirrors.aliyun.com/docker-ce/linux/centos/$releasever/source/stable
enabled=0
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/docker-ce/linux/centos/gpg

[docker-ce-test]
name=Docker CE Test - $basearch
baseurl=https://mirrors.aliyun.com/docker-ce/linux/centos/$releasever/$basearch/test
enabled=0
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/docker-ce/linux/centos/gpg

[docker-ce-test-debuginfo]
name=Docker CE Test - Debuginfo $basearch
baseurl=https://mirrors.aliyun.com/docker-ce/linux/centos/$releasever/debug-$basearch/test
enabled=0
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/docker-ce/linux/centos/gpg

[docker-ce-test-source]
name=Docker CE Test - Sources
baseurl=https://mirrors.aliyun.com/docker-ce/linux/centos/$releasever/source/test
enabled=0
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/docker-ce/linux/centos/gpg

[docker-ce-nightly]
name=Docker CE Nightly - $basearch
baseurl=https://mirrors.aliyun.com/docker-ce/linux/centos/$releasever/$basearch/nightly
enabled=0
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/docker-ce/linux/centos/gpg

[docker-ce-nightly-debuginfo]
name=Docker CE Nightly - Debuginfo $basearch
baseurl=https://mirrors.aliyun.com/docker-ce/linux/centos/$releasever/debug-$basearch/nightly
enabled=0
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/docker-ce/linux/centos/gpg

[docker-ce-nightly-source]
name=Docker CE Nightly - Sources
baseurl=https://mirrors.aliyun.com/docker-ce/linux/centos/$releasever/source/nightly
enabled=0
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/docker-ce/linux/centos/gpg
EOF

cat > /etc/yum.repos.d/kubernetes.repo << 'EOF'
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

④重载

yum clean all
yum makecache
yum repolist

安装docker

三台服务器均需执行。

①yum源安装：

yum install docker-ce-19.03.9 docker-ce-cli-19.03.9 -y

②启动docker：

systemctl start docker
systemctl enable docker

③修改docker配置：

touch /etc/docker/daemon.json

vi /etc/docker/daemon.json

{
  "registry-mirrors": [
    "https://docker.m.daocloud.io",
    "https://noohub.ru",
    "https://huecker.io",
    "https://dockerhub.timeweb.cloud",
    "https://docker.rainbond.cc"
  ],
  "exec-opts": [
    "native.cgroupdriver=systemd"
  ]
}

④启动docker：

systemctl restart docker

安装kubeadm、kubelet和kubectl

三台服务器均需执行。

①yum源安装：

yum install -y kubelet-1.20.5 kubeadm-1.20.5 kubectl-1.20.5

②设置开机自启动：

systemctl enable kubelet

集群搭建

启动master

在master节点服务器执行。

①启动：

apiserver-advertise-address需修改为本机IP。

kubeadm init --apiserver-advertise-address=192.168.234.129 --image-repository=registry.aliyuncs.com/google_containers --kubernetes-version v1.20.5 --service-cidr=10.10.10.0/16 --pod-network-cidr=10.244.0.0/16 --ignore-preflight-errors=NumCPU

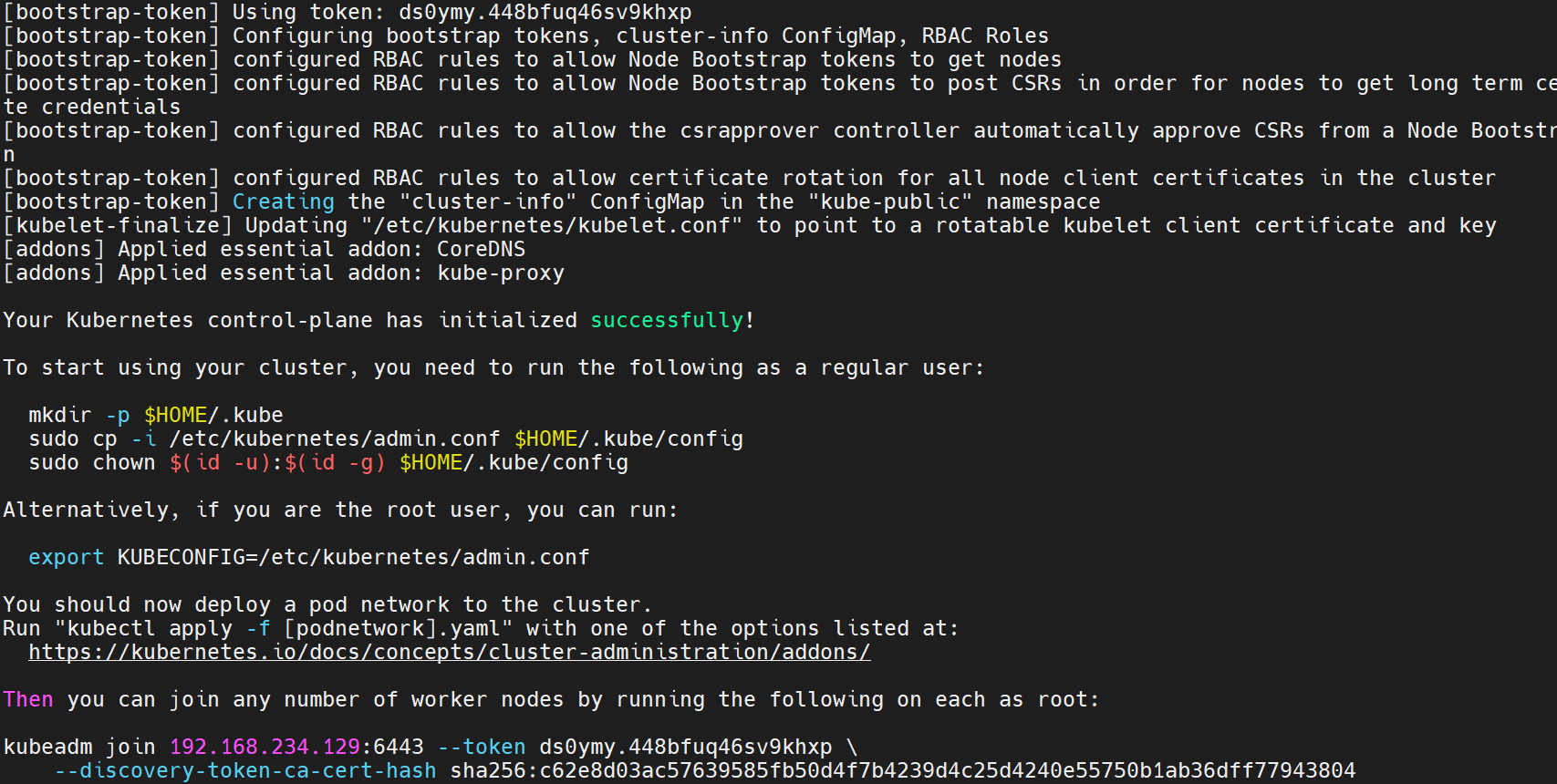

运行成功：

②echo "export KUBECONFIG=/etc/kubernetes/admin.conf" >> /etc/profile
③source /etc/profile

其余节点加入

在node节点服务器执行。

①kubeadm join IP1:6443 --token ds0ymy.448bfuq46sv9khxp \
--discovery-token-ca-cert-hash sha256:c62e8d03ac57639585fb50d4f7b4239d4c25d4240e55750b1ab36dff77943804

②默认token有效期为24小时，当过期之后，该token就不可用了。这时就需要在master重新创建token，可以直接使用命令快捷生成：

kubeadm token create --print-join-command

③从主节点获取配置文件：

scp root@IP1:/etc/kubernetes/admin.conf /etc/kubernetes/

echo "export KUBECONFIG=/etc/kubernetes/admin.conf" >> ~/.bash_profile

source ~/.bash_profile

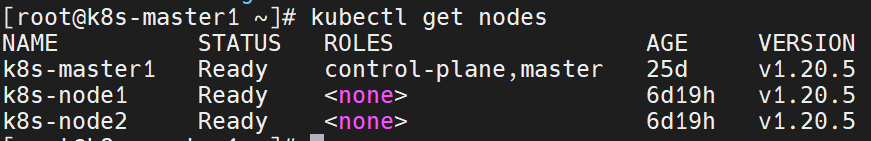

获取节点信息

任意服务器执行。

①kubectl get nodes

节点STATUS要是Ready。node节点没有ROLES诶，回头瞅眼。

安装calico网络插件

在master节点服务器执行。

①vi calico.yaml

修改CALICO_IPV4POOL_CIDR与启动master时的--pod-network-cidr一致。

---
# Source: calico/templates/calico-config.yaml
# This ConfigMap is used to configure a self-hosted Calico installation.
kind: ConfigMap
apiVersion: v1
metadata:
  name: calico-config
  namespace: kube-system
data:
  # Typha is disabled.
  typha_service_name: "none"
  # Configure the backend to use.
  calico_backend: "bird"

  # Configure the MTU to use
  veth_mtu: "1440"

  # The CNI network configuration to install on each node.  The special
  # values in this config will be automatically populated.
  cni_network_config: |-
    {
      "name": "k8s-pod-network",
      "cniVersion": "0.3.1",
      "plugins": [
        {
          "type": "calico",
          "log_level": "info",
          "datastore_type": "kubernetes",
          "nodename": "__KUBERNETES_NODE_NAME__",
          "mtu": __CNI_MTU__,
          "ipam": {
              "type": "calico-ipam"
          },
          "policy": {
              "type": "k8s"
          },
          "kubernetes": {
              "kubeconfig": "__KUBECONFIG_FILEPATH__"
          }
        },
        {
          "type": "portmap",
          "snat": true,
          "capabilities": {"portMappings": true}
        }
      ]
    }

---
# Source: calico/templates/kdd-crds.yaml
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: felixconfigurations.crd.projectcalico.org
spec:
  scope: Cluster
  group: crd.projectcalico.org
  version: v1
  names:
    kind: FelixConfiguration
    plural: felixconfigurations
    singular: felixconfiguration
---

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: ipamblocks.crd.projectcalico.org
spec:
  scope: Cluster
  group: crd.projectcalico.org
  version: v1
  names:
    kind: IPAMBlock
    plural: ipamblocks
    singular: ipamblock

---

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: blockaffinities.crd.projectcalico.org
spec:
  scope: Cluster
  group: crd.projectcalico.org
  version: v1
  names:
    kind: BlockAffinity
    plural: blockaffinities
    singular: blockaffinity

---

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: ipamhandles.crd.projectcalico.org
spec:
  scope: Cluster
  group: crd.projectcalico.org
  version: v1
  names:
    kind: IPAMHandle
    plural: ipamhandles
    singular: ipamhandle

---

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: ipamconfigs.crd.projectcalico.org
spec:
  scope: Cluster
  group: crd.projectcalico.org
  version: v1
  names:
    kind: IPAMConfig
    plural: ipamconfigs
    singular: ipamconfig

---

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: bgppeers.crd.projectcalico.org
spec:
  scope: Cluster
  group: crd.projectcalico.org
  version: v1
  names:
    kind: BGPPeer
    plural: bgppeers
    singular: bgppeer

---

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: bgpconfigurations.crd.projectcalico.org
spec:
  scope: Cluster
  group: crd.projectcalico.org
  version: v1
  names:
    kind: BGPConfiguration
    plural: bgpconfigurations
    singular: bgpconfiguration

---

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: ippools.crd.projectcalico.org
spec:
  scope: Cluster
  group: crd.projectcalico.org
  version: v1
  names:
    kind: IPPool
    plural: ippools
    singular: ippool

---

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: hostendpoints.crd.projectcalico.org
spec:
  scope: Cluster
  group: crd.projectcalico.org
  version: v1
  names:
    kind: HostEndpoint
    plural: hostendpoints
    singular: hostendpoint

---

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: clusterinformations.crd.projectcalico.org
spec:
  scope: Cluster
  group: crd.projectcalico.org
  version: v1
  names:
    kind: ClusterInformation
    plural: clusterinformations
    singular: clusterinformation

---

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: globalnetworkpolicies.crd.projectcalico.org
spec:
  scope: Cluster
  group: crd.projectcalico.org
  version: v1
  names:
    kind: GlobalNetworkPolicy
    plural: globalnetworkpolicies
    singular: globalnetworkpolicy

---

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: globalnetworksets.crd.projectcalico.org
spec:
  scope: Cluster
  group: crd.projectcalico.org
  version: v1
  names:
    kind: GlobalNetworkSet
    plural: globalnetworksets
    singular: globalnetworkset

---

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: networkpolicies.crd.projectcalico.org
spec:
  scope: Namespaced
  group: crd.projectcalico.org
  version: v1
  names:
    kind: NetworkPolicy
    plural: networkpolicies
    singular: networkpolicy

---

apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: networksets.crd.projectcalico.org
spec:
  scope: Namespaced
  group: crd.projectcalico.org
  version: v1
  names:
    kind: NetworkSet
    plural: networksets
    singular: networkset
---
# Source: calico/templates/rbac.yaml

# Include a clusterrole for the kube-controllers component,
# and bind it to the calico-kube-controllers serviceaccount.
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: calico-kube-controllers
rules:
  # Nodes are watched to monitor for deletions.
  - apiGroups: [""]
    resources:
      - nodes
    verbs:
      - watch
      - list
      - get
  # Pods are queried to check for existence.
  - apiGroups: [""]
    resources:
      - pods
    verbs:
      - get
  # IPAM resources are manipulated when nodes are deleted.
  - apiGroups: ["crd.projectcalico.org"]
    resources:
      - ippools
    verbs:
      - list
  - apiGroups: ["crd.projectcalico.org"]
    resources:
      - blockaffinities
      - ipamblocks
      - ipamhandles
    verbs:
      - get
      - list
      - create
      - update
      - delete
  # Needs access to update clusterinformations.
  - apiGroups: ["crd.projectcalico.org"]
    resources:
      - clusterinformations
    verbs:
      - get
      - create
      - update
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: calico-kube-controllers
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: calico-kube-controllers
subjects:
- kind: ServiceAccount
  name: calico-kube-controllers
  namespace: kube-system
---
# Include a clusterrole for the calico-node DaemonSet,
# and bind it to the calico-node serviceaccount.
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: calico-node
rules:
  # The CNI plugin needs to get pods, nodes, and namespaces.
  - apiGroups: [""]
    resources:
      - pods
      - nodes
      - namespaces
    verbs:
      - get
  - apiGroups: [""]
    resources:
      - endpoints
      - services
    verbs:
      # Used to discover service IPs for advertisement.
      - watch
      - list
      # Used to discover Typhas.
      - get
  - apiGroups: [""]
    resources:
      - nodes/status
    verbs:
      # Needed for clearing NodeNetworkUnavailable flag.
      - patch
      # Calico stores some configuration information in node annotations.
      - update
  # Watch for changes to Kubernetes NetworkPolicies.
  - apiGroups: ["networking.k8s.io"]
    resources:
      - networkpolicies
    verbs:
      - watch
      - list
  # Used by Calico for policy information.
  - apiGroups: [""]
    resources:
      - pods
      - namespaces
      - serviceaccounts
    verbs:
      - list
      - watch
  # The CNI plugin patches pods/status.
  - apiGroups: [""]
    resources:
      - pods/status
    verbs:
      - patch
  # Calico monitors various CRDs for config.
  - apiGroups: ["crd.projectcalico.org"]
    resources:
      - globalfelixconfigs
      - felixconfigurations
      - bgppeers
      - globalbgpconfigs
      - bgpconfigurations
      - ippools
      - ipamblocks
      - globalnetworkpolicies
      - globalnetworksets
      - networkpolicies
      - networksets
      - clusterinformations
      - hostendpoints
    verbs:
      - get
      - list
      - watch
  # Calico must create and update some CRDs on startup.
  - apiGroups: ["crd.projectcalico.org"]
    resources:
      - ippools
      - felixconfigurations
      - clusterinformations
    verbs:
      - create
      - update
  # Calico stores some configuration information on the node.
  - apiGroups: [""]
    resources:
      - nodes
    verbs:
      - get
      - list
      - watch
  # These permissions are only requried for upgrade from v2.6, and can
  # be removed after upgrade or on fresh installations.
  - apiGroups: ["crd.projectcalico.org"]
    resources:
      - bgpconfigurations
      - bgppeers
    verbs:
      - create
      - update
  # These permissions are required for Calico CNI to perform IPAM allocations.
  - apiGroups: ["crd.projectcalico.org"]
    resources:
      - blockaffinities
      - ipamblocks
      - ipamhandles
    verbs:
      - get
      - list
      - create
      - update
      - delete
  - apiGroups: ["crd.projectcalico.org"]
    resources:
      - ipamconfigs
    verbs:
      - get
  # Block affinities must also be watchable by confd for route aggregation.
  - apiGroups: ["crd.projectcalico.org"]
    resources:
      - blockaffinities
    verbs:
      - watch
  # The Calico IPAM migration needs to get daemonsets. These permissions can be
  # removed if not upgrading from an installation using host-local IPAM.
  - apiGroups: ["apps"]
    resources:
      - daemonsets
    verbs:
      - get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: calico-node
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: calico-node
subjects:
- kind: ServiceAccount
  name: calico-node
  namespace: kube-system

---
# Source: calico/templates/calico-node.yaml
# This manifest installs the calico-node container, as well
# as the CNI plugins and network config on
# each master and worker node in a Kubernetes cluster.
kind: DaemonSet
apiVersion: apps/v1
metadata:
  name: calico-node
  namespace: kube-system
  labels:
    k8s-app: calico-node
spec:
  selector:
    matchLabels:
      k8s-app: calico-node
  updateStrategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
  template:
    metadata:
      labels:
        k8s-app: calico-node
      annotations:
        # This, along with the CriticalAddonsOnly toleration below,
        # marks the pod as a critical add-on, ensuring it gets
        # priority scheduling and that its resources are reserved
        # if it ever gets evicted.
        scheduler.alpha.kubernetes.io/critical-pod: ''
    spec:
      nodeSelector:
        beta.kubernetes.io/os: linux
      hostNetwork: true
      tolerations:
        # Make sure calico-node gets scheduled on all nodes.
        - effect: NoSchedule
          operator: Exists
        # Mark the pod as a critical add-on for rescheduling.
        - key: CriticalAddonsOnly
          operator: Exists
        - effect: NoExecute
          operator: Exists
      serviceAccountName: calico-node
      # Minimize downtime during a rolling upgrade or deletion; tell Kubernetes to do a "force
      # deletion": https://kubernetes.io/docs/concepts/workloads/pods/pod/#termination-of-pods.
      terminationGracePeriodSeconds: 0
      priorityClassName: system-node-critical
      initContainers:
        # This container performs upgrade from host-local IPAM to calico-ipam.
        # It can be deleted if this is a fresh installation, or if you have already
        # upgraded to use calico-ipam.
        - name: upgrade-ipam
          image: calico/cni:v3.8.9
          command: ["/opt/cni/bin/calico-ipam", "-upgrade"]
          env:
            - name: KUBERNETES_NODE_NAME
              valueFrom:
                fieldRef:
                  fieldPath: spec.nodeName
            - name: CALICO_NETWORKING_BACKEND
              valueFrom:
                configMapKeyRef:
                  name: calico-config
                  key: calico_backend
          volumeMounts:
            - mountPath: /var/lib/cni/networks
              name: host-local-net-dir
            - mountPath: /host/opt/cni/bin
              name: cni-bin-dir
          securityContext:
            privileged: true
        # This container installs the CNI binaries
        # and CNI network config file on each node.
        - name: install-cni
          image: calico/cni:v3.8.9
          command: ["/install-cni.sh"]
          env:
            # Name of the CNI config file to create.
            - name: CNI_CONF_NAME
              value: "10-calico.conflist"
            # The CNI network config to install on each node.
            - name: CNI_NETWORK_CONFIG
              valueFrom:
                configMapKeyRef:
                  name: calico-config
                  key: cni_network_config
            # Set the hostname based on the k8s node name.
            - name: KUBERNETES_NODE_NAME
              valueFrom:
                fieldRef:
                  fieldPath: spec.nodeName
            # CNI MTU Config variable
            - name: CNI_MTU
              valueFrom:
                configMapKeyRef:
                  name: calico-config
                  key: veth_mtu
            # Prevents the container from sleeping forever.
            - name: SLEEP
              value: "false"
          volumeMounts:
            - mountPath: /host/opt/cni/bin
              name: cni-bin-dir
            - mountPath: /host/etc/cni/net.d
              name: cni-net-dir
          securityContext:
            privileged: true
        # Adds a Flex Volume Driver that creates a per-pod Unix Domain Socket to allow Dikastes
        # to communicate with Felix over the Policy Sync API.
        - name: flexvol-driver
          image: calico/pod2daemon-flexvol:v3.8.9
          volumeMounts:
          - name: flexvol-driver-host
            mountPath: /host/driver
          securityContext:
            privileged: true
      containers:
        # Runs calico-node container on each Kubernetes node.  This
        # container programs network policy and routes on each
        # host.
        - name: calico-node
          image: calico/node:v3.8.9
          env:
            # Use Kubernetes API as the backing datastore.
            - name: DATASTORE_TYPE
              value: "kubernetes"
            # Wait for the datastore.
            - name: WAIT_FOR_DATASTORE
              value: "true"
            # Set based on the k8s node name.
            - name: NODENAME
              valueFrom:
                fieldRef:
                  fieldPath: spec.nodeName
            # Choose the backend to use.
            - name: CALICO_NETWORKING_BACKEND
              valueFrom:
                configMapKeyRef:
                  name: calico-config
                  key: calico_backend
            # Cluster type to identify the deployment type
            - name: CLUSTER_TYPE
              value: "k8s,bgp"
            # Auto-detect the BGP IP address.
            - name: IP
              value: "autodetect"
            # Enable IPIP
            - name: CALICO_IPV4POOL_IPIP
              value: "Always"
            # Set MTU for tunnel device used if ipip is enabled
            - name: FELIX_IPINIPMTU
              valueFrom:
                configMapKeyRef:
                  name: calico-config
                  key: veth_mtu
            # The default IPv4 pool to create on startup if none exists. Pod IPs will be
            # chosen from this range. Changing this value after installation will have
            # no effect. This should fall within `--cluster-cidr`.
            - name: CALICO_IPV4POOL_CIDR
              value: "10.244.0.0/16"
            # Disable file logging so `kubectl logs` works.
            - name: CALICO_DISABLE_FILE_LOGGING
              value: "true"
            # Set Felix endpoint to host default action to ACCEPT.
            - name: FELIX_DEFAULTENDPOINTTOHOSTACTION
              value: "ACCEPT"
            # Disable IPv6 on Kubernetes.
            - name: FELIX_IPV6SUPPORT
              value: "false"
            # Set Felix logging to "info"
            - name: FELIX_LOGSEVERITYSCREEN
              value: "info"
            - name: FELIX_HEALTHENABLED
              value: "true"
          securityContext:
            privileged: true
          resources:
            requests:
              cpu: 250m
          livenessProbe:
            exec:
              command:
                - /bin/calico-node
                - -felix-live
                - -bird-live
            periodSeconds: 10
            initialDelaySeconds: 10
            failureThreshold: 6
          readinessProbe:
            exec:
              command:
              - /bin/calico-node
              - -bird-ready
              - -felix-ready
            periodSeconds: 10
          volumeMounts:
            - mountPath: /lib/modules
              name: lib-modules
              readOnly: true
            - mountPath: /run/xtables.lock
              name: xtables-lock
              readOnly: false
            - mountPath: /var/run/calico
              name: var-run-calico
              readOnly: false
            - mountPath: /var/lib/calico
              name: var-lib-calico
              readOnly: false
            - name: policysync
              mountPath: /var/run/nodeagent
      volumes:
        # Used by calico-node.
        - name: lib-modules
          hostPath:
            path: /lib/modules
        - name: var-run-calico
          hostPath:
            path: /var/run/calico
        - name: var-lib-calico
          hostPath:
            path: /var/lib/calico
        - name: xtables-lock
          hostPath:
            path: /run/xtables.lock
            type: FileOrCreate
        # Used to install CNI.
        - name: cni-bin-dir
          hostPath:
            path: /opt/cni/bin
        - name: cni-net-dir
          hostPath:
            path: /etc/cni/net.d
        # Mount in the directory for host-local IPAM allocations. This is
        # used when upgrading from host-local to calico-ipam, and can be removed
        # if not using the upgrade-ipam init container.
        - name: host-local-net-dir
          hostPath:
            path: /var/lib/cni/networks
        # Used to create per-pod Unix Domain Sockets
        - name: policysync
          hostPath:
            type: DirectoryOrCreate
            path: /var/run/nodeagent
        # Used to install Flex Volume Driver
        - name: flexvol-driver-host
          hostPath:
            type: DirectoryOrCreate
            path: /usr/libexec/kubernetes/kubelet-plugins/volume/exec/nodeagent~uds
---

apiVersion: v1
kind: ServiceAccount
metadata:
  name: calico-node
  namespace: kube-system

---
# Source: calico/templates/calico-kube-controllers.yaml

# See https://github.com/projectcalico/kube-controllers
apiVersion: apps/v1
kind: Deployment
metadata:
  name: calico-kube-controllers
  namespace: kube-system
  labels:
    k8s-app: calico-kube-controllers
spec:
  # The controllers can only have a single active instance.
  replicas: 1
  selector:
    matchLabels:
      k8s-app: calico-kube-controllers
  strategy:
    type: Recreate
  template:
    metadata:
      name: calico-kube-controllers
      namespace: kube-system
      labels:
        k8s-app: calico-kube-controllers
      annotations:
        scheduler.alpha.kubernetes.io/critical-pod: ''
    spec:
      nodeSelector:
        beta.kubernetes.io/os: linux
      tolerations:
        # Mark the pod as a critical add-on for rescheduling.
        - key: CriticalAddonsOnly
          operator: Exists
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      serviceAccountName: calico-kube-controllers
      priorityClassName: system-cluster-critical
      containers:
        - name: calico-kube-controllers
          image: calico/kube-controllers:v3.8.9
          env:
            # Choose which controllers to run.
            - name: ENABLED_CONTROLLERS
              value: node
            - name: DATASTORE_TYPE
              value: kubernetes
          readinessProbe:
            exec:
              command:
              - /usr/bin/check-status
              - -r

---

apiVersion: v1
kind: ServiceAccount
metadata:
  name: calico-kube-controllers
  namespace: kube-system
---
# Source: calico/templates/calico-etcd-secrets.yaml

---
# Source: calico/templates/calico-typha.yaml

---
# Source: calico/templates/configure-canal.yaml

②kubectl apply -f calico.yaml

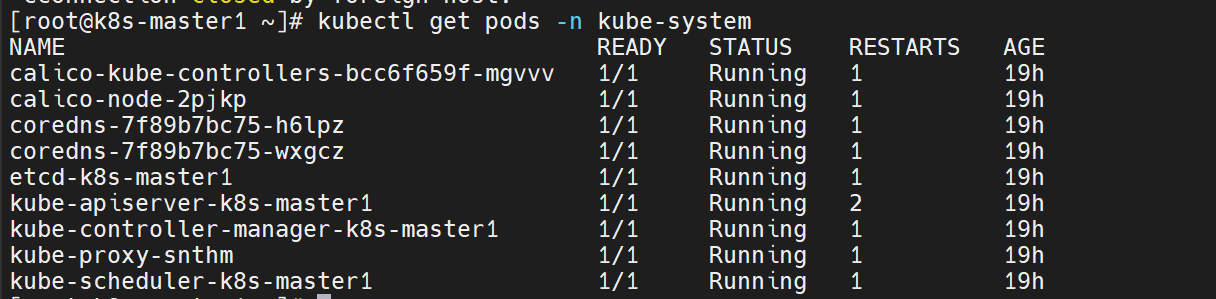

③验证：kubectl get pods -n kube-system

STATUS要是Running。

部署dashboard

在master节点服务器执行。

部署

①vi recommended.yaml

默认 dashboad 只能集群内部访问，修改 service 为 nodeport 类型，暴露到外部。

# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Namespace
metadata:
  name: kubernetes-dashboard

---

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30001
  selector:
    k8s-app: kubernetes-dashboard
  type: NodePort

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-certs
  namespace: kubernetes-dashboard
type: Opaque

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-csrf
  namespace: kubernetes-dashboard
type: Opaque
data:
  csrf: ""

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-key-holder
  namespace: kubernetes-dashboard
type: Opaque

---

kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-settings
  namespace: kubernetes-dashboard

---

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
rules:
  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
  - apiGroups: [""]
    resources: ["secrets"]
    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
    verbs: ["get", "update", "delete"]
    # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
  - apiGroups: [""]
    resources: ["configmaps"]
    resourceNames: ["kubernetes-dashboard-settings"]
    verbs: ["get", "update"]
    # Allow Dashboard to get metrics.
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["heapster", "dashboard-metrics-scraper"]
    verbs: ["proxy"]
  - apiGroups: [""]
    resources: ["services/proxy"]
    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
    verbs: ["get"]

---

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
rules:
  # Allow Metrics Scraper to get metrics from the Metrics server
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]

---

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.4.0
          imagePullPolicy: Always
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard
            # Uncomment the following line to manually specify Kubernetes API server Host
            # If not specified, Dashboard will attempt to auto discover the API server and connect
            # to it. Uncomment only if the default does not work.
            # - --apiserver-host=http://my-address:port
          volumeMounts:
            - name: kubernetes-dashboard-certs
              mountPath: /certs
              # Create on-disk volume to store exec logs
            - mountPath: /tmp
              name: tmp-volume
          livenessProbe:
            httpGet:
              scheme: HTTPS
              path: /
              port: 8443
            initialDelaySeconds: 30
            timeoutSeconds: 30
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      volumes:
        - name: kubernetes-dashboard-certs
          secret:
            secretName: kubernetes-dashboard-certs
        - name: tmp-volume
          emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 8000
      targetPort: 8000
  selector:
    k8s-app: dashboard-metrics-scraper

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: dashboard-metrics-scraper
  template:
    metadata:
      labels:
        k8s-app: dashboard-metrics-scraper
    spec:
      securityContext:
        seccompProfile:
          type: RuntimeDefault
      containers:
        - name: dashboard-metrics-scraper
          image: kubernetesui/metrics-scraper:v1.0.7
          ports:
            - containerPort: 8000
              protocol: TCP
          livenessProbe:
            httpGet:
              scheme: HTTP
              path: /
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 30
          volumeMounts:
          - mountPath: /tmp
            name: tmp-volume
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      volumes:
        - name: tmp-volume
          emptyDir: {}

②kubectl apply -f recommended.yaml

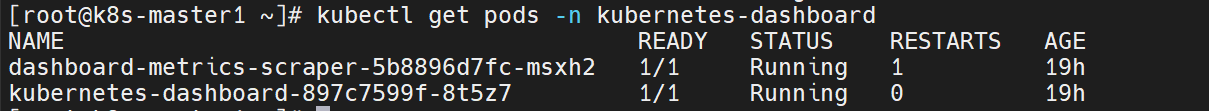

③验证：kubectl get pods -n kubernetes-dashboard

STATUS要是Running。

④查看service：kubectl get svc -A|grep dashboard

⑤创建service account

# 创建用户
kubectl create serviceaccount dashboard-admin -n kube-system
# 用户授权
kubectl create clusterrolebinding dashboard-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin

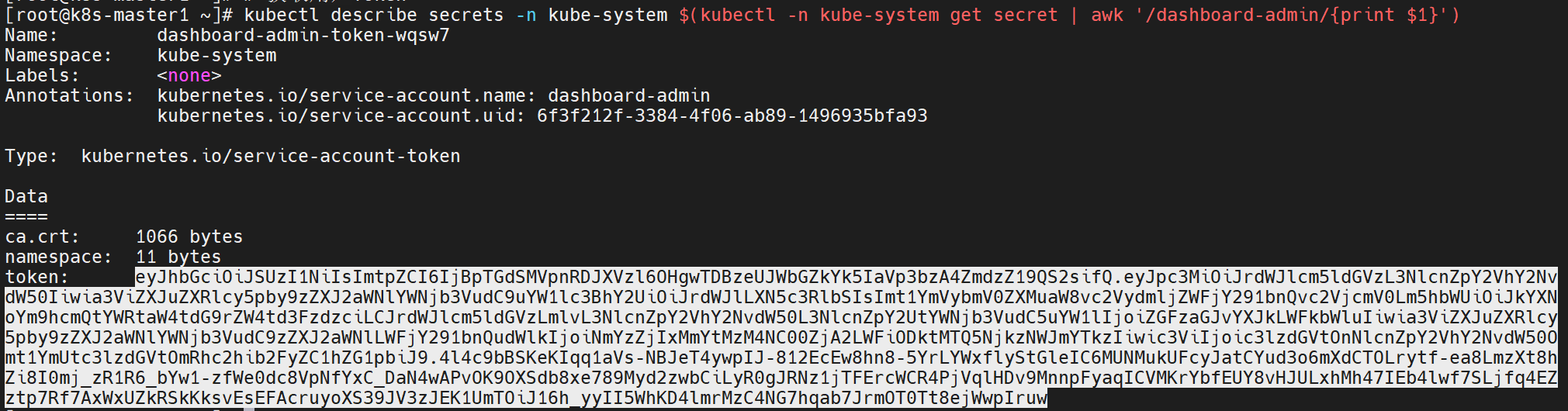

# 获取用户Token
kubectl describe secrets -n kube-system $(kubectl -n kube-system get secret | awk '/dashboard-admin/{print $1}')

登录时使用该token。

⑥登录：https://IP:30001

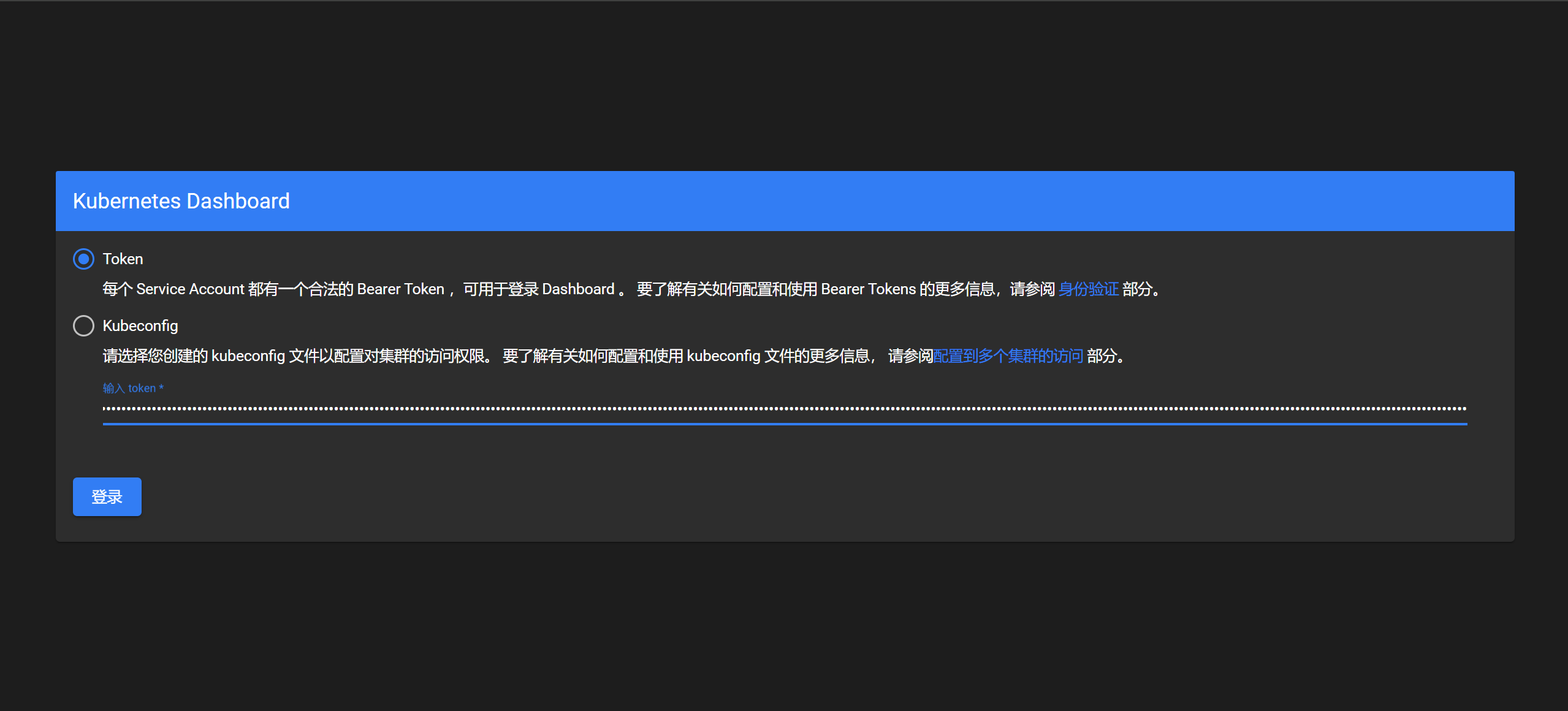

填入token：

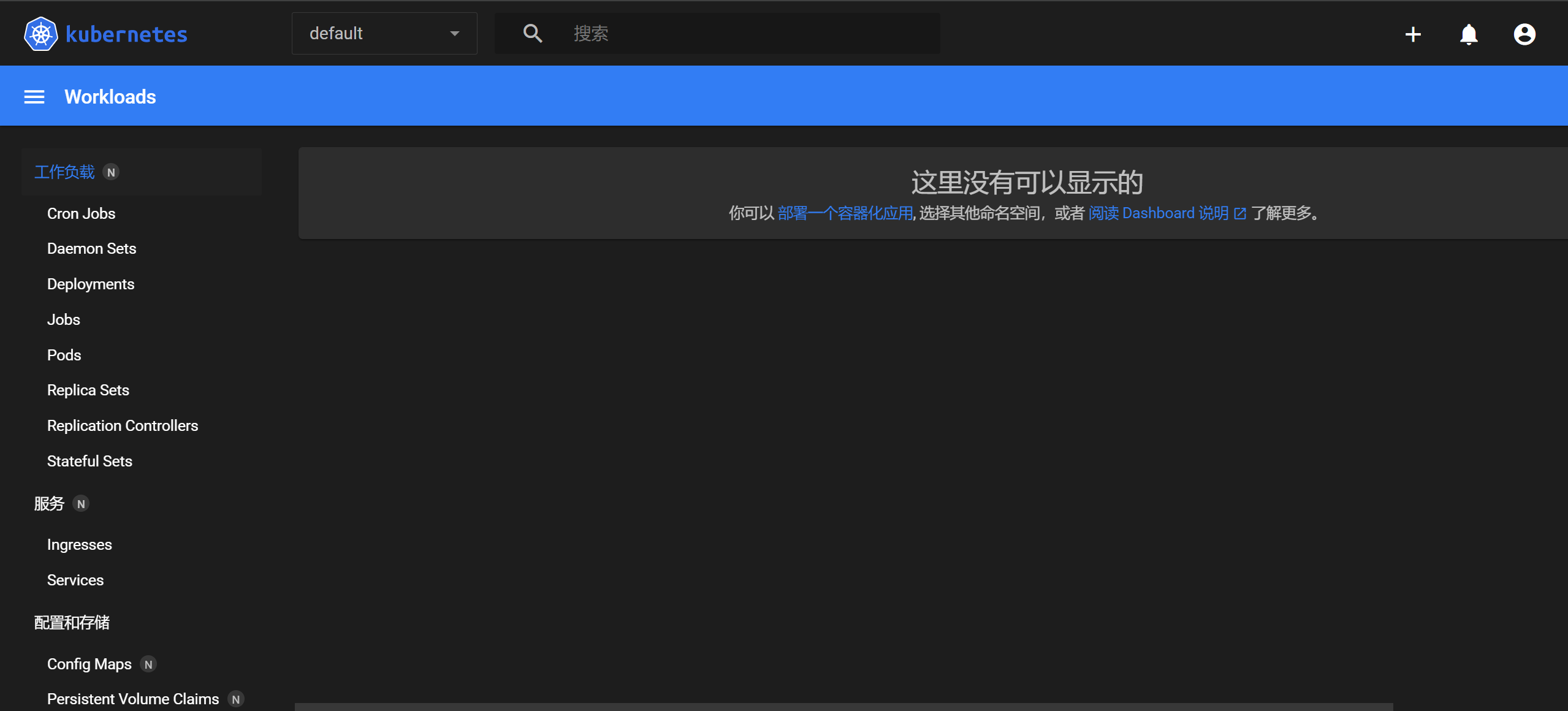

登录成功

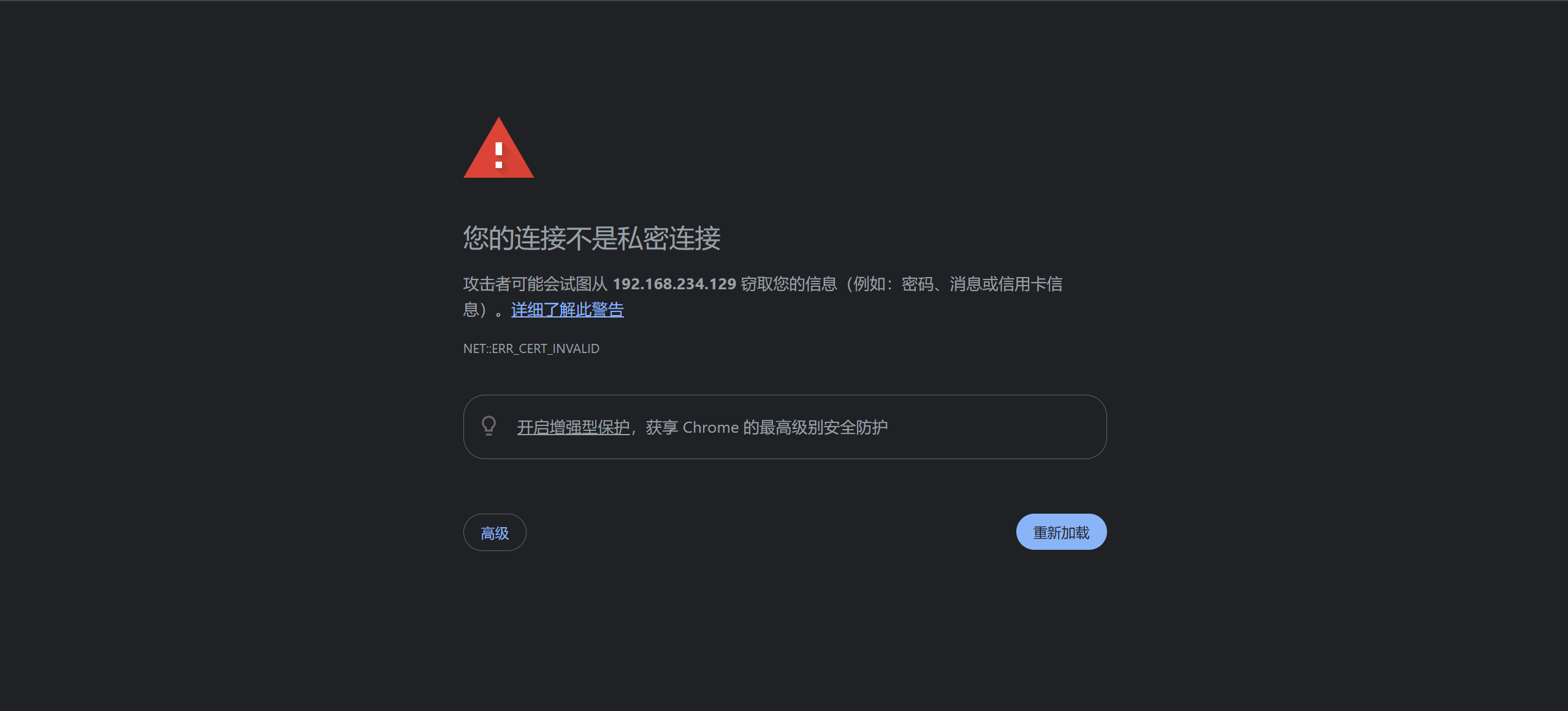

Chrome登录问题

难过（；´д｀）ゞ

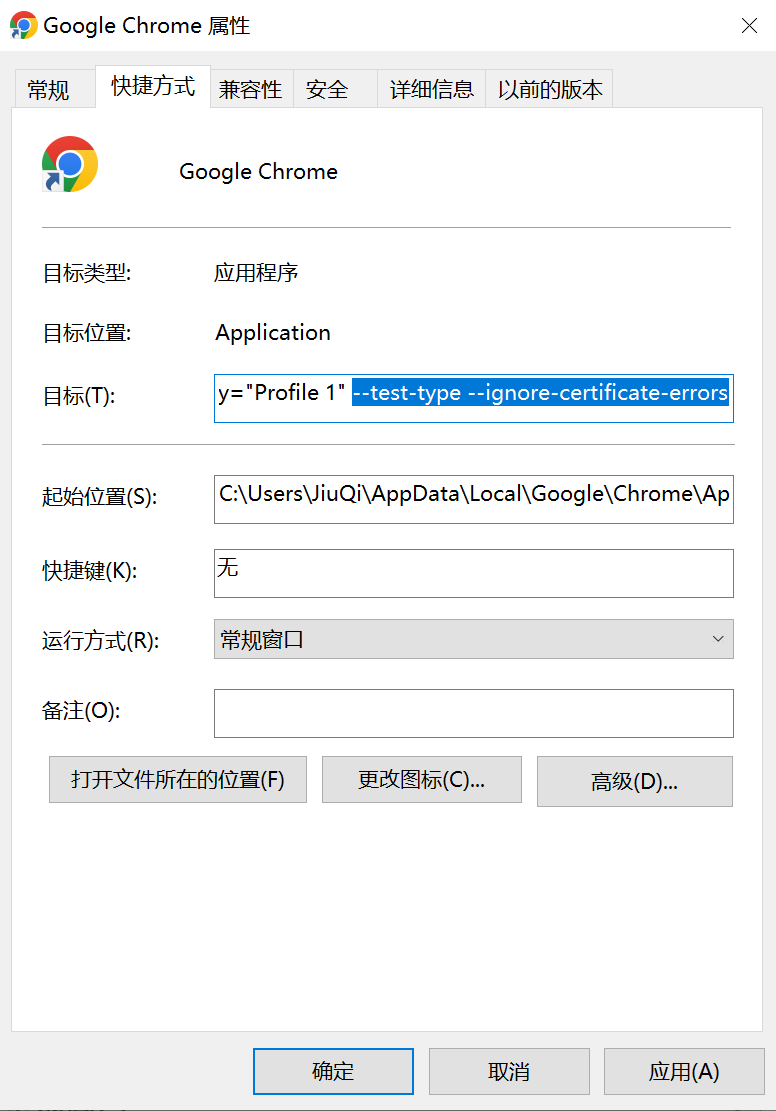

方法一修改Chrome属性

①右键Chrome，修改属性，目标中添加--test-type --ignore-certificate-errors

②重启Chrome就可以打开咯§(*￣▽￣*)§

方法二生成新证书

①创建证书存放路径：mkdir key && cd key

②生成证书：

openssl genrsa -out dashboard.key 2048

openssl req -new -out dashboard.csr -key dashboard.key -subj '/CN=IP'

openssl x509 -req -in dashboard.csr -signkey dashboard.key -out dashboard.crt

③删除原有证书：

kubectl delete secret kubernetes-dashboard-certs -n kubernetes-dashboard

④创建新证书的secret：

kubectl create secret generic kubernetes-dashboard-certs --from-file=dashboard.key --from-file=dashboard.crt -n kubernetes-dashboard

⑤删除pod：

kubectl get pod -n kubernetes-dashboard | grep -v NAME | awk '{print "kubectl delete po " $1 " -n kubernetes-dashboard"}' | sh

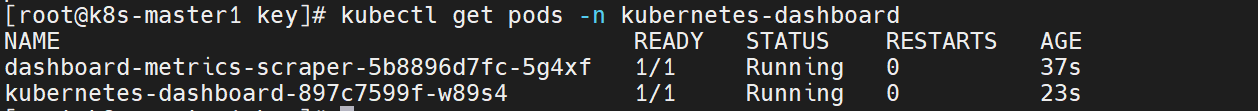

⑥验证新的pod是否启动成功：kubectl get pod -n kubernetes-dashboard

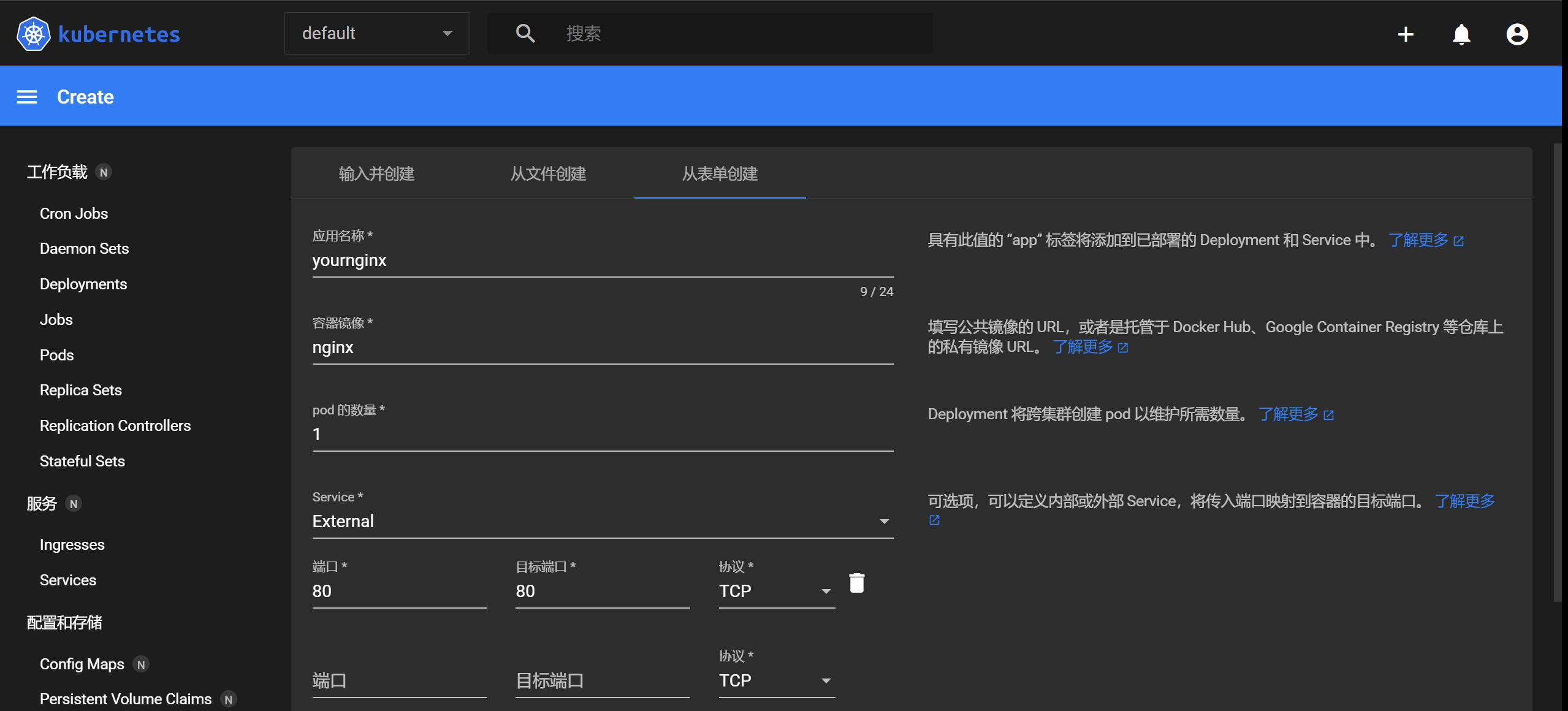

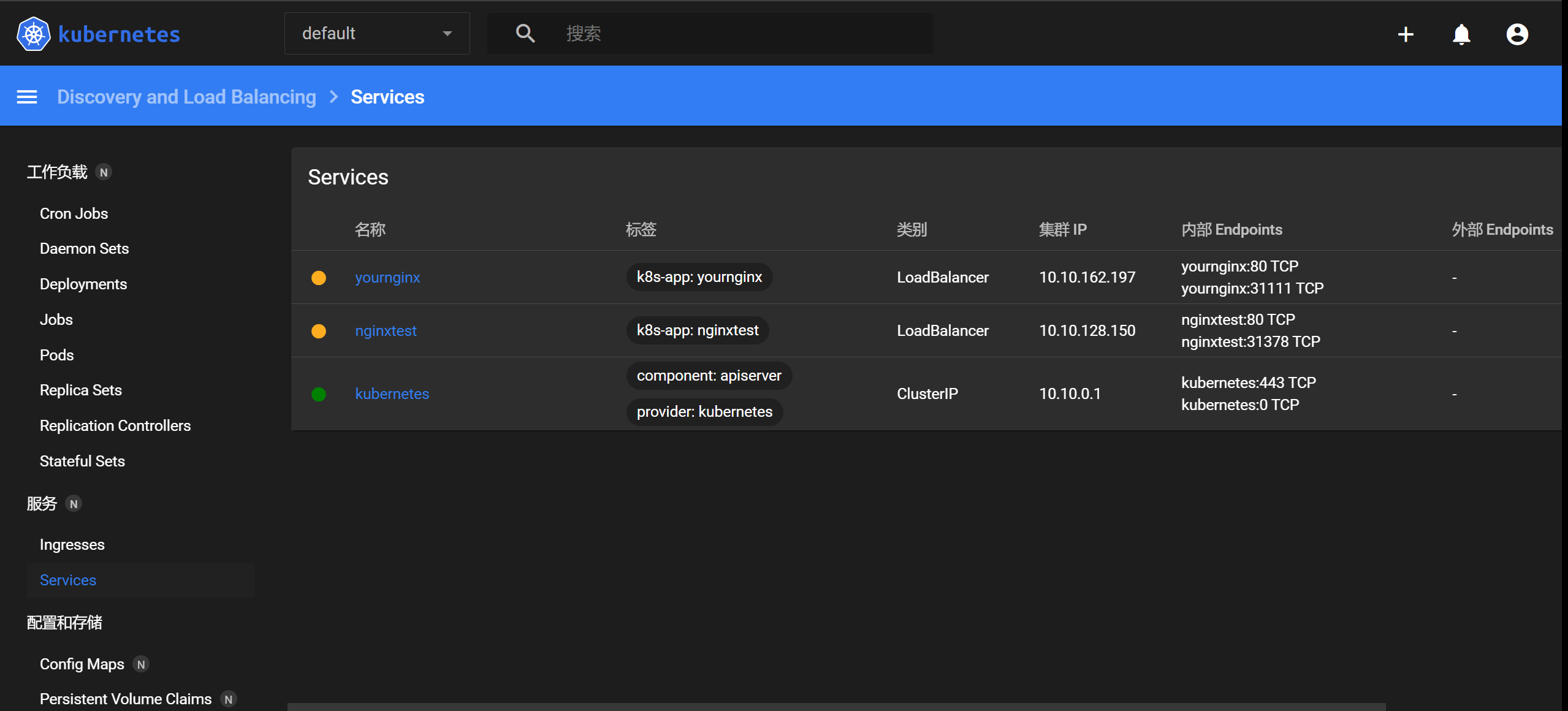

使用

①若部署单机版（仅master），默认不允许调度pod，需将master标记为可调度。

kubectl taint nodes --all node-role.kubernetes.io/master-

②主页右上角加号创建。

③左侧Services查看。

为啥是黄色嘞(＃°Д°)
