RFID应用

Band		UHF
Frequency		It varies by country.

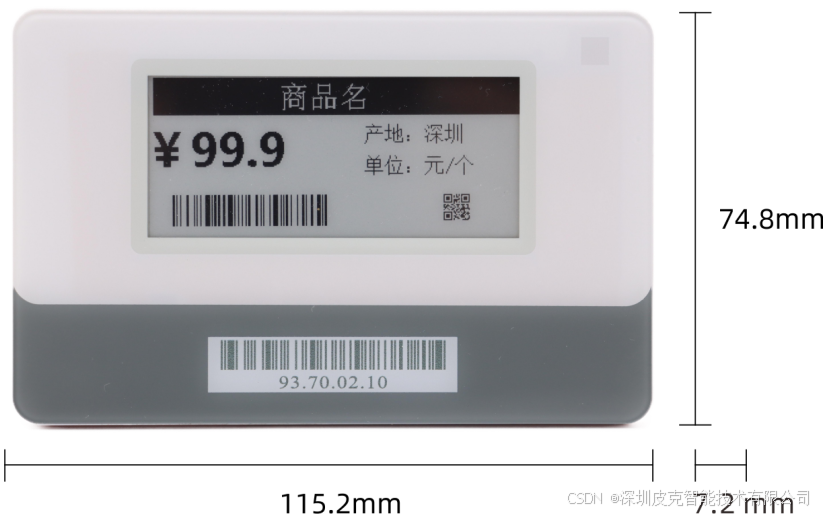

Display		2.9 inch (296 x 128dot)
Display colors		Black and White
Communication distance	Inventory	Approx.  160cm ※This is a test values and distance varies by the manufacturer of RFID scanners.   ※This is a test value obtained under room temperature conditions. It is not a guaranteed value.
	Update lmage	Approx.  60cm ※This is a test values and distance varies by the manufacturer of RFID scanners.   ※This is a test value obtained under room temperature conditions. It is not a guaranteed value.
Panel's life		1.000.000 times
Memory		EPC(UII) :480bit(60byte) User area 61440bit(7680byte) ※User can use 32768bit(4096byte) while image updating.
Protective class		IP54
Dimensions		103(W) x 46(H) x 6.6(D)mm
Wight		Approx. 35g

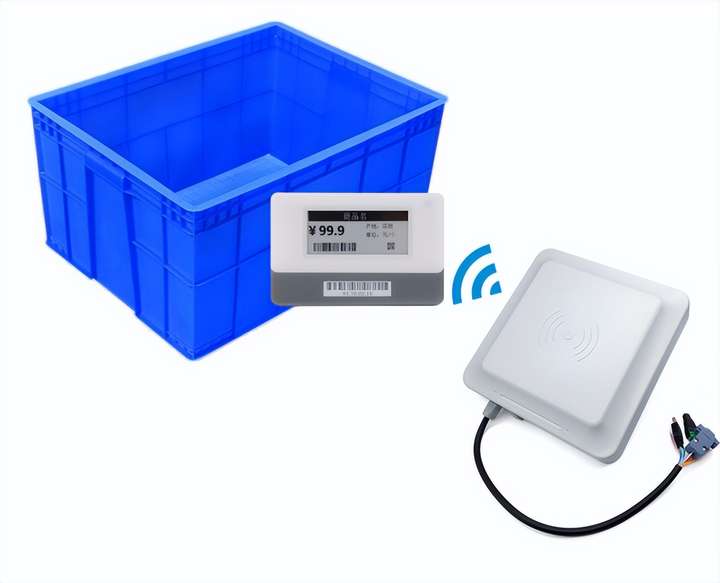

使用方法①：

CPH-B701 读写器超高频读写器一体机

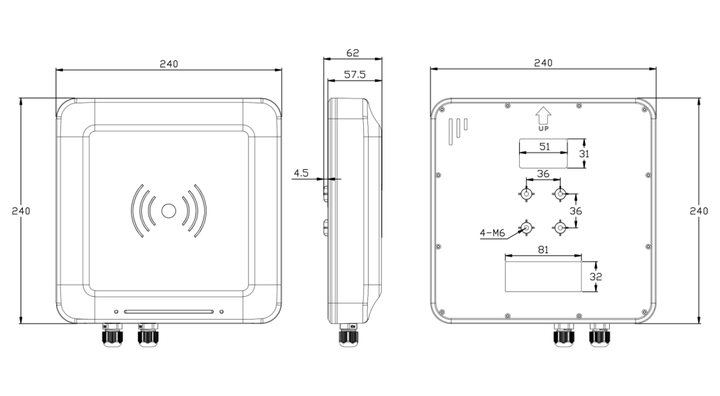

读写器体积参数为: 240mm×240mm×62mm

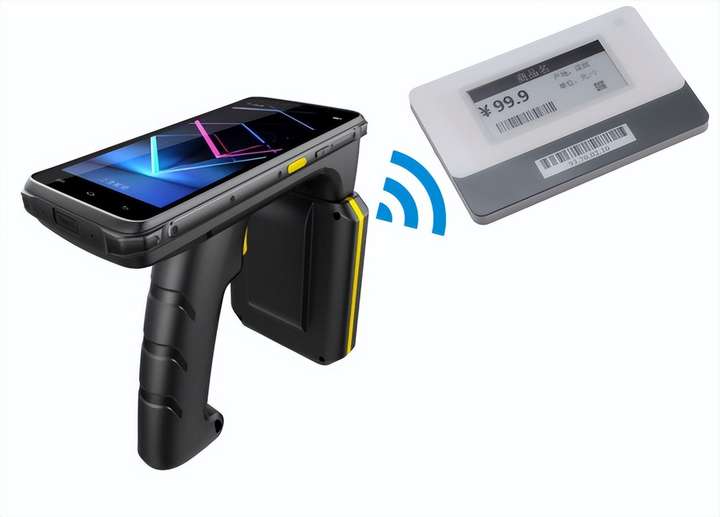

使用方法②：

C66 企业级UHF-RFID数据采集终端

• 顶级 UHF RFID 引擎

• 5dBi 圆极化天线，20m 超长识读距离

• 10000mAh 大电池超长续航 18W 快速充电

• 强劲扫码性能
