Activiti系列二: 项目搭建及插件安装

一 项目搭建

  1. 开发环境

      activiti-5.22.0   jdk1.8

  2. 搭建过程

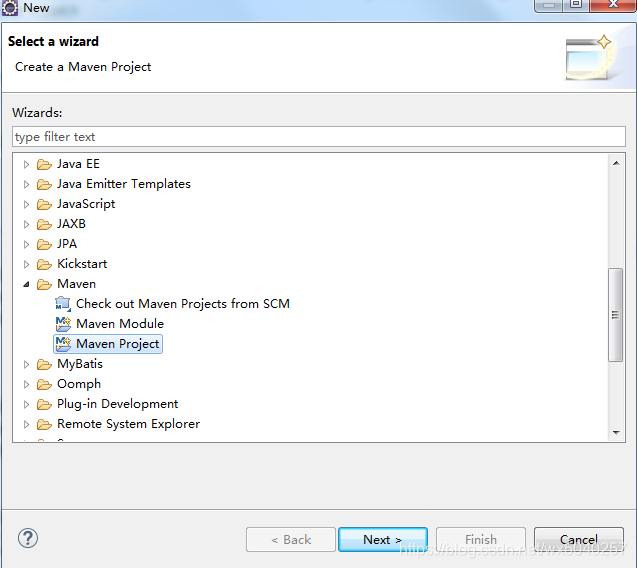

(1) 新建maven项目

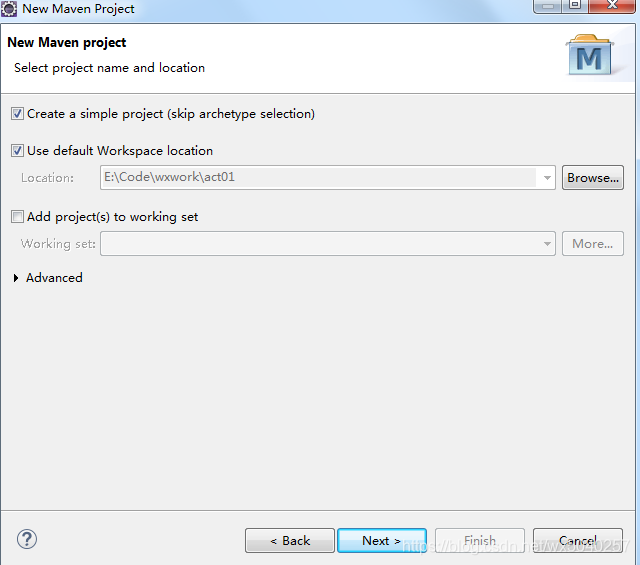

(2) 勾选第一个选项

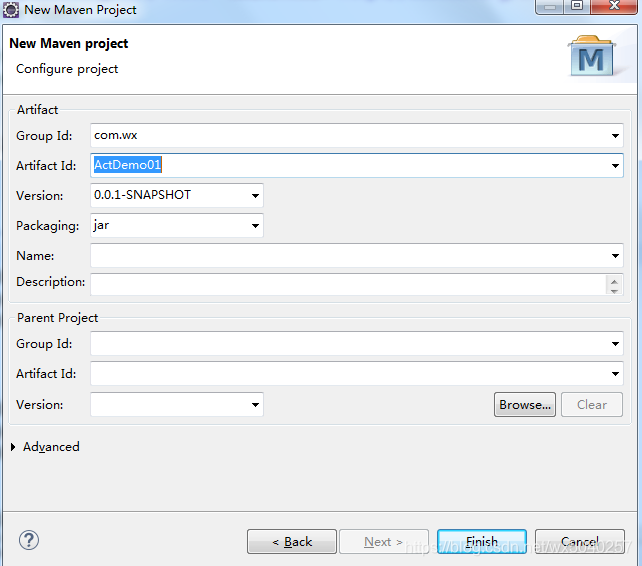

(3) 点下一步，按图所示输入，然后点完成

(4) 打开pom文件，粘贴如下代码

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.wx</groupId>
  <artifactId>act01</artifactId>
  <version>0.0.1-SNAPSHOT</version>

  <properties>
		<activiti.version>5.22.0</activiti.version>
	</properties>

	<dependencies>
		<!--activiti start -->
		<dependency>
			<groupId>org.activiti</groupId>
			<artifactId>activiti-engine</artifactId>
			<version>${activiti.version}</version>
		</dependency>

		<dependency>
			<groupId>org.activiti</groupId>
			<artifactId>activiti-spring</artifactId>
			<version>${activiti.version}</version>
		</dependency>
		<dependency>
			<groupId>org.activiti</groupId>
			<artifactId>activiti-modeler</artifactId>
			<version>${activiti.version}</version>
		</dependency>
		<dependency>
			<groupId>org.activiti</groupId>
			<artifactId>activiti-diagram-rest</artifactId>
			<version>${activiti.version}</version>
		</dependency>
		<!--activiti end -->
		<dependency>
		    <groupId>mysql</gr
