Networking 服务

OpenStack Networking（neutron），允许创建、插入接口设备，这些设备由其他的OpenStack服务管理。插件式的实现可以容纳不同的网络设备和软件，为OpenStack架构与部署提供了灵活性。
OpenStack网络主要和OpenStack计算交互，以提供网络连接到它的实例。

网络（neutron）概念

OpenStack网络（neutron）管理OpenStack环境中所有虚拟网络基础设施（VNI），物理网络基础设施（PNI）的接入层。OpenStack网络允许租户创建包括像 firewall， :term:load balancer和 :term:virtual private network (VPN)等这样的高级虚拟网络拓扑。
对于任意一个给定的网络都必须包含至少一个外部网络。不像其他的网络那样，外部网络不仅仅是一个定义的虚拟网络。相反，它代表了一种OpenStack安装之外的能从物理的，外部的网络访问的视图。外部网络上的IP地址可供外部网络上的任意的物理设备所访问
外部网络之外，任何 Networking 设置拥有一个或多个内部网络。这些软件定义的网络直接连接到虚拟机。仅仅在给定网络上的虚拟机，或那些在通过接口连接到相近路由的子网上的虚拟机，能直接访问连接到那个网络上的虚拟机。
如果外部网络想要访问实例或者相反实例想要访问外部网络，那么网络之间的路由就是必要的了。每一个路由都配有一个网关用于连接到外部网络，以及一个或多个连接到内部网络的接口。就像一个物理路由一样，子网可以访问同一个路由上其他子网中的机器，并且机器也可以访问路由的网关访问外部网络。
另外，你可以将外部网络的IP地址分配给内部网络的端口。不管什么时候一旦有连接连接到子网，那个连接被称作端口。你可以给实例的端口分配外部网络的IP地址。通过这种方式，外部网络上的实体可以访问实例.
网络服务同样支持安全组。安全组允许管理员在安全组中定义防火墙规则。一个实例可以属于一个或多个安全组，网络为这个实例配置这些安全组中的规则，阻止或者开启端口，端口范围或者通信类型。

安装并配置控制节点

在配置OpenStack网络（neutron）服务之前，需要为其创建一个数据库，服务凭证和API端点

1. 创建数据库

用数据库连接客户端以 root 用户连接到数据库服务器

[root@controller ~]# mysql -p

创建neutron 数据库

MariaDB [(none)]> CREATE DATABASE neutron;

授权

MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'localhost' \
    ->   IDENTIFIED BY 'neutron';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'%'    IDENTIFIED BY 'neutron';

2. 获得 admin 凭证来获取只有管理员能执行的命令的访问权限

[root@controller ~]# . admin-openrc

3. 创建服务证书

创建neutron用户

[root@controller ~]# openstack user create --domain default --password neutron neutron
+-----------+----------------------------------+
| Field     | Value                            |
+-----------+----------------------------------+
| domain_id | 2cc353d733a74c629c0c7db9327e540a |
| enabled   | True                             |
| id        | 27e1a1b2752c47d3b4b72df5a22500b6 |
| name      | neutron                          |
+-----------+----------------------------------+

添加admin 角色到neutron 用户

[root@controller ~]# openstack role add --project service --user neutron admin

创建neutron服务实体

[root@controller ~]# openstack service create --name neutron \
>   --description "OpenStack Networking" network
+-------------+----------------------------------+
| Field       | Value                            |
+-------------+----------------------------------+
| description | OpenStack Networking             |
| enabled     | True                             |
| id          | 2a32972d7d8446ecb0ae2a2a3cf6e118 |
| name        | neutron                          |
| type        | network                          |
+-------------+----------------------------------+

4. 创建网络服务API端点

[root@controller ~]# openstack endpoint create --region RegionOne \
>   network public http://controller:9696
+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | dcdfb8f4ffa746ad8e251eb3cbef07ad |
| interface    | public                           |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | 2a32972d7d8446ecb0ae2a2a3cf6e118 |
| service_name | neutron                          |
| service_type | network                          |
| url          | http://controller:9696           |
+--------------+----------------------------------+
[root@controller ~]# openstack endpoint create --region RegionOne \
>   network internal http://controller:9696
+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | 5c95794bbd8541038b6f095c225c61dd |
| interface    | internal                         |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | 2a32972d7d8446ecb0ae2a2a3cf6e118 |
| service_name | neutron                          |
| service_type | network                          |
| url          | http://controller:9696           |
+--------------+----------------------------------+
[root@controller ~]# openstack endpoint create --region RegionOne \
>   network admin http://controller:9696
+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | 91373d34d40046bead6bbde5366d519d |
| interface    | admin                            |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | 2a32972d7d8446ecb0ae2a2a3cf6e118 |
| service_name | neutron                          |
| service_type | network                          |
| url          | http://controller:9696           |
+--------------+----------------------------------+

5.配置公有网络

在controller节点上安装并配置网络组件

安装组件

[root@controller ~]# yum install openstack-neutron openstack-neutron-ml2 \
>   openstack-neutron-linuxbridge ebtables -y

配置服务组件

Networking 服务器组件的配置包括数据库、认证机制、消息队列、拓扑变化通知和插件。

[root@controller ~]# vim /etc/neutron/neutron.conf

[DEFAULT]
core_plugin = ml2           # 启用ML2插件并禁用其他插件
service_plugins =
backend = rabbit            # 配置 RabbitMQ 消息队列的连接
auth_strategy = keystone    # 配置认证服务访问
notify_nova_on_port_status_changes = True     # 配置网络服务来通知计算节点的网络拓扑变化
notify_nova_on_port_data_changes = True

[database]                  # 配置数据库访问
connection = mysql+pymysql://neutron:neutron@controller/neutron

[oslo_messaging_rabbit]       # 配置 RabbitMQ 消息队列的连接
rabbit_host = controller
rabbit_userid = openstack
rabbit_password = openstack

[keystone_authtoken]          # 配置认证服务访问
auth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = neutron

[nova]      # 配置网络服务来通知计算节点的网络拓扑变化
auth_url = http://controller:35357
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = nova
password = nova

[oslo_concurrency]     # 配置锁路径
lock_path = /var/lib/neutron/tmp

配置 Modular Layer 2 (ML2) 插件

ML2插件使用Linuxbridge机制来为实例创建layer－2虚拟网络基础设施

[root@controller ~]# vim /etc/neutron/plugins/ml2/ml2_conf.ini

[ml2]
type_drivers = flat,vlan             # 启用flat和VLAN网络
tenant_network_types =               # 禁用私有网络
mechanism_drivers = linuxbridge      # 启用Linuxbridge机制
extension_drivers = port_security    # 启用端口安全扩展驱动

[ml2_type_flat]                      # 配置公共虚拟网络为flat网络
flat_networks = provider

[securitygroup]                      # 启用 ipset 增加安全组规则的高效性
enable_ipset = True

配置Linuxbridge代理

Linuxbridge代理为实例建立layer－2虚拟网络并且处理安全组规则。

[root@controller ~]# vim /etc/neutron/plugins/ml2/linuxbridge_agent.ini

[linux_bridge]       #将公共虚拟网络和公共物理网络接口对应起来
physical_interface_mappings = provider:eth1   # 底层的物理公共网络接口

[vxlan]              # 禁止VXLAN覆盖网络
enable_vxlan = False

[securitygroup]      # 启用安全组并配置 Linuxbridge iptables firewall driver
enable_security_group = True
firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver

配置DHCP代理

[root@controller ~]# vim /etc/neutron/dhcp_agent.ini
[DEFAULT]
interface_driver = neutron.agent.linux.interface.BridgeInterfaceDriver
dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq
enable_isolated_metadata = True

6. 配置元数据代理

[root@controller ~]# vim /etc/neutron/metadata_agent.ini

[DEFAULT]
nova_metadata_ip = controller
metadata_proxy_shared_secret = westos
## 配置Linuxbridge驱动接口，DHCP驱动并启用隔离元数据，这样在公共网络上的实例就可以通过网络来访问元数据

7.为计算节点配置网络服务

[root@controller ~]# vim /etc/nova/nova.conf

[neutron]    # 配置访问参数，启用元数据代理并设置密码
url = http://controller:9696
auth_url = http://controller:35357
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = neutron

service_metadata_proxy = True
metadata_proxy_shared_secret = westos

8. 完成安装

网络服务初始化脚本需要一个超链接 /etc/neutron/plugin.ini指向ML2插件配置文件/etc/neutron/plugins/ml2/ml2_conf.ini。

[root@controller ~]# ln -s /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini

同步数据库

[root@controller ~]# su -s /bin/sh -c "neutron-db-manage --config-file /etc/neutron/neutron.conf \
>   --config-file /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head" neutron

控制节点->公有网络->dhcp

重启计算API 服务

[root@controller ~]# systemctl restart openstack-nova-api.service

当系统启动时，启动 Networking 服务并配置它启动

[root@controller ~]# systemctl enable neutron-server.service \
>   neutron-linuxbridge-agent.service neutron-dhcp-agent.service \
>   neutron-metadata-agent.service
[root@controller ~]# systemctl start neutron-server.service \
>   neutron-linuxbridge-agent.service neutron-dhcp-agent.service \
>   neutron-metadata-agent.service

安装和配置计算节点

1. 安装组件

[root@compute1 ~]# yum install openstack-neutron-linuxbridge ebtables ipset -y

2. 配置通用组件

[root@compute1 ~]# vim /etc/neutron/neutron.conf

[DEFAULT]
rpc_backend = rabbit          # 配置 RabbitMQ 消息队列的连接
auth_strategy = keystone      # 配置认证服务访问

[oslo_messaging_rabbit]       # 配置 RabbitMQ 消息队列的连接
rabbit_host = controller
rabbit_userid = openstack
rabbit_password = openstack

[keystone_authtoken]          # 配置认证服务访问
auth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = neutron

[oslo_concurrency]            # 配置锁路径
lock_path = /var/lib/neutron/tmp

3. 配置公共网络

配置Linuxbridge代理

[root@compute1 ~]# vim /etc/neutron/plugins/ml2/linuxbridge_agent.ini

[linux_bridge]        # 将公共虚拟网络和公共物理网络接口对应起来
physical_interface_mappings = provider:eth1

[vxlan]               # 禁止VXLAN覆盖网络
enable_vxlan = False

[securitygroup]       # 启用安全组并配置 Linuxbridge iptables firewall driver
enable_security_group = True
firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver

4. 为计算节点配置网络服务

编辑/etc/nova/nova.conf文件

[root@compute1 ~]# vim /etc/nova/nova.conf

[neutron]        # 配置访问参数
url = http://controller:9696
auth_url = http://controller:35357
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = neutron

5. 完成安装

重启计算服务

[root@compute1 ~]# systemctl restart openstack-nova-compute.service

启动Linuxbridge代理并配置它开机自启动

[root@compute1 ~]# systemctl enable --now neutron-linuxbridge-agent.service

验证操作

列出加载的扩展来验证neutron-server进程是否正常启动

[root@controller ~]# neutron agent-list
+---------------+---------------+------------+-------------------+-------+----------------+-----------------+
| id            | agent_type    | host       | availability_zone | alive | admin_state_up | binary          |
+---------------+---------------+------------+-------------------+-------+----------------+-----------------+
| 2e788a9d-     | Linux bridge  | controller |                   | :-)   | True           | neutron-        |
| 1c23-43c1     | agent         |            |                   |       |                | linuxbridge-    |
| -876f-        |               |            |                   |       |                | agent           |
| 91f6d3e81075  |               |            |                   |       |                |                 |
| 44757567-6f81 | Metadata      | controller |                   | :-)   | True           | neutron-        |
| -4168-9248-79 | agent         |            |                   |       |                | metadata-agent  |
| 294fe628ff    |               |            |                   |       |                |                 |
| 7e44b6b0-f4f8 | DHCP agent    | controller | nova              | :-)   | True           | neutron-dhcp-   |
| -4334-ab0e-   |               |            |                   |       |                | agent           |
| fc8d423000bc  |               |            |                   |       |                |                 |
| fe0345c5-3cf4 | Linux bridge  | compute1   |                   | :-)   | True           | neutron-        |
| -42a0-86d4-ca | agent         |            |                   |       |                | linuxbridge-    |
| 2b454b73e4    |               |            |                   |       |                | agent           |
+---------------+---------------+------------+-------------------+-------+----------------+-----------------+

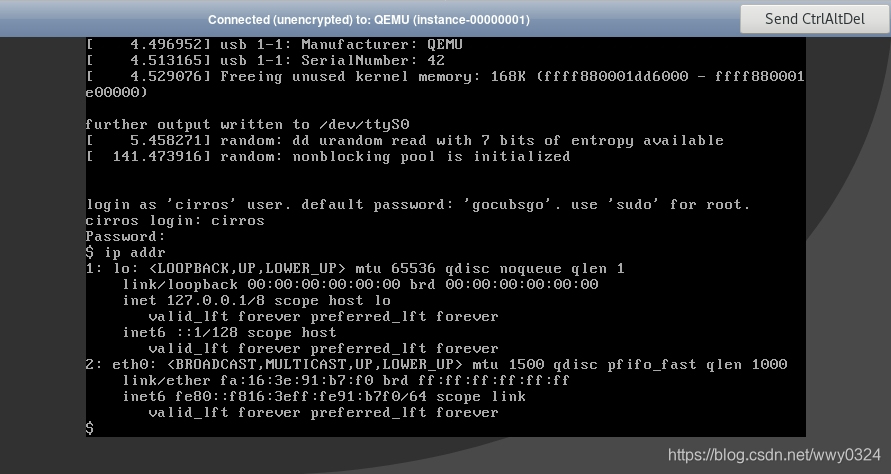

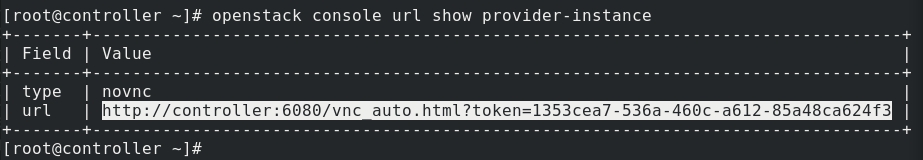

启动一个实例

创建虚拟网络

创建提供者网络

在控制节点上，加载 admin 凭证来获取管理员能执行的命令访问权限

[root@controller ~]# . admin-openrc

创建网络

[root@controller ~]# neutron net-create --shared --provider:physical_network provider \
>   --provider:network_type flat provider
Created a new network:
+---------------------------+--------------------------------------+
| Field                     | Value                                |
+---------------------------+--------------------------------------+
| admin_state_up            | True                                 |
| availability_zone_hints   |                                      |
| availability_zones        |                                      |
| created_at                | 2020-09-30T03:05:28                  |
| description               |                                      |
| id                        | 337ebc38-5eb8-4b3f-a2da-0f74781a1bb3 |
| ipv4_address_scope        |                                      |
| ipv6_address_scope        |                                      |
| mtu                       | 1500                                 |
| name                      | provider                             |
| port_security_enabled     | True                                 |
| provider:network_type     | flat                                 |
| provider:physical_network | provider                             |
| provider:segmentation_id  |                                      |
| router:external           | False                                |
| shared                    | True                                 |
| status                    | ACTIVE                               |
| subnets                   |                                      |
| tags                      |                                      |
| tenant_id                 | d5a6b16ab0ef4e52a302f4cb895260ad     |
| updated_at                | 2020-09-30T03:05:28                  |
+---------------------------+--------------------------------------+

在网络上创建一个子网

公共网络172.25.4.0/24的网关为172.25.4.250。DHCP服务为每个实例分配IP，IP从172.25.4.100 到 172.25.4.200。所有实例的DNS使用114.114.114.114

[root@controller ~]# neutron subnet-create --name provider \        # 创建一个名为provide的子网
> --allocation-pool start=172.25.4.100,end=172.25.4.200 \           # 分配给实例的子网网段
> --dns-nameserver 114.114.114.114 --gateway 172.25.4.250 \         # DNS解析服务的IP地址，公共网络的网关
> provider 172.25.4.0/24
Created a new subnet:
+-------------------+--------------------------------------------------+
| Field             | Value                                            |
+-------------------+--------------------------------------------------+
| allocation_pools  | {"start": "172.25.4.100", "end": "172.25.4.200"} |
| cidr              | 172.25.4.0/24                                    |
| created_at        | 2020-09-30T03:07:54                              |
| description       |                                                  |
| dns_nameservers   | 114.114.114.114                                  |
| enable_dhcp       | True                                             |
| gateway_ip        | 172.25.4.250                                     |
| host_routes       |                                                  |
| id                | c9be1758-1d22-4747-aa16-6c4edc2e83e4             |
| ip_version        | 4                                                |
| ipv6_address_mode |                                                  |
| ipv6_ra_mode      |                                                  |
| name              | provider                                         |
| network_id        | 337ebc38-5eb8-4b3f-a2da-0f74781a1bb3             |
| subnetpool_id     |                                                  |
| tenant_id         | d5a6b16ab0ef4e52a302f4cb895260ad                 |
| updated_at        | 2020-09-30T03:07:54                              |
+-------------------+--------------------------------------------------+

创建m1.nano规格的主机

默认的最小规格的主机需要512 MB内存。如果计算节点内存不足4 GB的，创建只需要64 MB的m1.nano规格的主机。若单纯为了测试的目的，请使用m1.nano规格的主机来加载CirrOS镜像

[root@controller ~]# openstack flavor create --id 0 --vcpus 1 --ram 64 --disk 1 m1.nano  # flavor：云主机类型；创建； --id，--vcpus：cpu，定义资源的量
+----------------------------+---------+
| Field                      | Value   |
+----------------------------+---------+
| OS-FLV-DISABLED:disabled   | False   |
| OS-FLV-EXT-DATA:ephemeral  | 0       |
| disk                       | 1       |
| id                         | 0       |
| name                       | m1.nano |
| os-flavor-access:is_public | True    |
| ram                        | 64      |
| rxtx_factor                | 1.0     |
| swap                       |         |
| vcpus                      | 1       |
+----------------------------+---------+

生成一个键值对

1. 导入租户`demo`的凭证

[root@controller ~]# . demo-openrc

2. 生成和添加秘钥对

[root@controller ~]# ssh-keygen -q -N ""
Enter file in which to save the key (/root/.ssh/id_rsa):
[root@controller ~]# openstack keypair create --public-key ~/.ssh/id_rsa.pub mykey   # 把公钥上传到openstack上面，实现免密连接
+-------------+-------------------------------------------------+
| Field       | Value                                           |
+-------------+-------------------------------------------------+
| fingerprint | 10:ff:26:e9:12:d6:21:82:68:91:65:8c:54:8c:45:97 |
| name        | mykey                                           |
| user_id     | f8287a3c47ce47f8aa69e0b0c898f3ac                |
+-------------+-------------------------------------------------+

3. 验证公钥的添加

[root@controller ~]# openstack keypair list   # 可以看到mykey
+-------+-------------------------------------------------+
| Name  | Fingerprint                                     |
+-------+-------------------------------------------------+
| mykey | 10:ff:26:e9:12:d6:21:82:68:91:65:8c:54:8c:45:97 |
+-------+-------------------------------------------------+

增加安全组规则

默认情况下， default安全组适用于所有实例并且包括拒绝远程访问实例的防火墙规则。对诸如CirrOS这样的Linux镜像，至少允许ICMP (ping) 和安全shell(SSH)规则。

添加规则到 default 安全组

允许 ICMP (ping)

[root@controller ~]# openstack security group rule create --proto icmp default
+-----------------------+--------------------------------------+
| Field                 | Value                                |
+-----------------------+--------------------------------------+
| id                    | 33206175-063f-405a-bcd7-6aec5d42cadb |
| ip_protocol           | icmp                                 |
| ip_range              | 0.0.0.0/0                            |
| parent_group_id       | 6fd0bcf4-c6f3-4769-959f-525587e8b2bd |
| port_range            |                                      |
| remote_security_group |                                      |
+-----------------------+--------------------------------------+

允许安全 shell (SSH) 的访问

[root@controller ~]# openstack security group rule create --proto tcp --dst-port 22 default
+-----------------------+--------------------------------------+
| Field                 | Value                                |
+-----------------------+--------------------------------------+
| id                    | 17348229-553a-4bdc-8611-2e056232bf59 |
| ip_protocol           | tcp                                  |
| ip_range              | 0.0.0.0/0                            |
| parent_group_id       | 6fd0bcf4-c6f3-4769-959f-525587e8b2bd |
| port_range            | 22:22                                |
| remote_security_group |                                      |
+-----------------------+--------------------------------------+

启动一个实例–在公有网络上创建实例

1. 确定实例选项

在控制节点上，获得 admin 凭证来获取只有管理员能执行的命令的访问权限

[root@controller ~]# . demo-openrc

一个实例指定了虚拟机资源的大致分配，包括处理器、内存和存储。
列出可用类型：

[root@controller ~]# openstack flavor list
+----+-----------+-------+------+-----------+-------+-----------+
| ID | Name      |   RAM | Disk | Ephemeral | VCPUs | Is Public |
+----+-----------+-------+------+-----------+-------+-----------+
| 0  | m1.nano   |    64 |    1 |         0 |     1 | True      |
| 1  | m1.tiny   |   512 |    1 |         0 |     1 | True      |
| 2  | m1.small  |  2048 |   20 |         0 |     1 | True      |
| 3  | m1.medium |  4096 |   40 |         0 |     2 | True      |
| 4  | m1.large  |  8192 |   80 |         0 |     4 | True      |
| 5  | m1.xlarge | 16384 |  160 |         0 |     8 | True      |
+----+-----------+-------+------+-----------+-------+-----------+

列出可用镜像

[root@controller ~]# openstack image list
+--------------------------------------+--------+--------+
| ID                                   | Name   | Status |
+--------------------------------------+--------+--------+
| cc08e3a1-cd2e-479b-9415-41db294ed678 | cirros | active |
+--------------------------------------+--------+--------+

列出可用网络

[root@controller ~]# openstack network list
+--------------------------------------+----------+--------------------------------------+
| ID                                   | Name     | Subnets                              |
+--------------------------------------+----------+--------------------------------------+
| 337ebc38-5eb8-4b3f-a2da-0f74781a1bb3 | provider | c9be1758-1d22-4747-aa16-6c4edc2e83e4 |
+--------------------------------------+----------+--------------------------------------+

列出可用的安全组

[root@controller ~]# openstack security group list
+-----------------------------------+---------+------------------------+----------------------------------+
| ID                                | Name    | Description            | Project                          |
+-----------------------------------+---------+------------------------+----------------------------------+
| 6fd0bcf4-c6f3-4769-959f-          | default | Default security group | 8bf0b3c5f6d440248b37a35d77e551b2 |
| 525587e8b2bd                      |         |                        |                                  |
+-----------------------------------+---------+------------------------+----------------------------------+

2.创建实例

启动实例

[root@controller ~]# openstack server create --flavor m1.nano --image cirros --nic net-id=337ebc38-5eb8-4b3f-a2da-0f74781a1bb3 --security-group default --key-name mykey provider-instance

##  --nic  使用``provider``公有网络的ID
##  --image cirros             # 镜像名称
##  --security-group default   # 安全组
##  --key-name mykey           # 密钥名称
##  provider-instance          # 云主机名称

+--------------------------------------+-----------------------------------------------+
| Field                                | Value                                         |
+--------------------------------------+-----------------------------------------------+
| OS-DCF:diskConfig                    | MANUAL                                        |
| OS-EXT-AZ:availability_zone          |                                               |
| OS-EXT-STS:power_state               | 0                                             |
| OS-EXT-STS:task_state                | scheduling                                    |
| OS-EXT-STS:vm_state                  | building                                      |
| OS-SRV-USG:launched_at               | None                                          |
| OS-SRV-USG:terminated_at             | None                                          |
| accessIPv4                           |                                               |
| accessIPv6                           |                                               |
| addresses                            |                                               |
| adminPass                            | 4BtYdz5hRpwY                                  |
| config_drive                         |                                               |
| created                              | 2020-09-30T03:18:07Z                          |
| flavor                               | m1.nano (0)                                   |
| hostId                               |                                               |
| id                                   | d9f262a9-6454-4e82-88a4-4cbbd6e2558f          |
| image                                | cirros (cc08e3a1-cd2e-479b-9415-41db294ed678) |
| key_name                             | mykey                                         |
| name                                 | provider-instance                             |
| os-extended-volumes:volumes_attached | []                                            |
| progress                             | 0                                             |
| project_id                           | 8bf0b3c5f6d440248b37a35d77e551b2              |
| properties                           |                                               |
| security_groups                      | [{u'name': u'default'}]                       |
| status                               | BUILD                                         |
| updated                              | 2020-09-30T03:18:08Z                          |
| user_id                              | f8287a3c47ce47f8aa69e0b0c898f3ac              |
+--------------------------------------+-----------------------------------------------+

检查实例的状态

[root@compute1 ~]# ps ax

17899 ?        Rl     0:37 /usr/libexec/qemu-kvm -name instance-00000001 -S -machine pc-i440fx-rhel7.0.0,acc
17902 ?        Ss     0:00 /usr/lib/systemd/systemd-machined
17904 ?        S      0:00 [vhost-17899]
17908 ?        S      0:00 [kvm-pit/17899]
18124 pts/0    R+     0:00 ps ax

##   -name instance-00000001    #虚拟机名称

[root@foundation4 ~]# which virsh
/usr/bin/virsh
[root@foundation4 ~]# rpm -qf /usr/bin/virsh
libvirt-client-4.5.0-23.module+el8+2800+2d311f65.x86_64
[root@compute1 ~]# yum install -y libvirt-client   #

[root@controller ~]# openstack server list      #可以看一下分到的ip地址
+--------------------------------------+-------------------+--------+-----------------------+
| ID                                   | Name              | Status | Networks              |
+--------------------------------------+-------------------+--------+-----------------------+
| d9f262a9-6454-4e82-88a4-4cbbd6e2558f | provider-instance | ACTIVE | provider=172.25.4.100 |
+--------------------------------------+-------------------+--------+-----------------------+
[root@compute1 ~]# virsh list
 Id    Name                           State
----------------------------------------------------
 1     instance-00000001              running

[root@compute1 ~]# brctl show
bridge name	bridge id		STP enabled	interfaces
brq337ebc38-5e		8000.525400d51276	no		eth1
							tap5e6eeea5-64   # 云主机的网络就桥接在这个网卡上

3. 使用虚拟控制台访问实例

[root@controller ~]# openstack console url show provider-instance

在这里插入图片描述
网页测试：

 http://controller:6080/vnc_auto.html?token=1353cea7-536a-460c-a612-85a48ca624f3

在这里插入图片描述

4. 验证能否远程访问实例

在控制节点或其他公有网络上的主机使用 SSH远程访问实例

[root@controller ~]# ssh cirros@172.25.4.100       #  免密登陆
$ ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast qlen 1000
    link/ether fa:16:3e:91:b7:f0 brd ff:ff:ff:ff:ff:ff
    inet 172.25.4.100/24 brd 172.25.4.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::f816:3eff:fe91:b7f0/64 scope link
       valid_lft forever preferred_lft forever

您可能感兴趣的与本文相关的镜像

Stable-Diffusion-3.5

图片生成

Stable-Diffusion

Stable Diffusion 3.5 (SD 3.5) 是由 Stability AI 推出的新一代文本到图像生成模型，相比 3.0 版本，它提升了图像质量、运行速度和硬件效率
