IDEA 搭建spring + maven + mybatis 项目

---

前言

本文是在mac pro上使用IDEA 搭建spring + maven + mybatis 项目，其中项目的相关配置如下：

ideaIU-2022.3.3-aarch64
apache-maven-3.6.3
apache-tomcat-8.5.87
mysql-8.0.32-macos13-arm64
JAVA 17.0.6

---

搭建流程

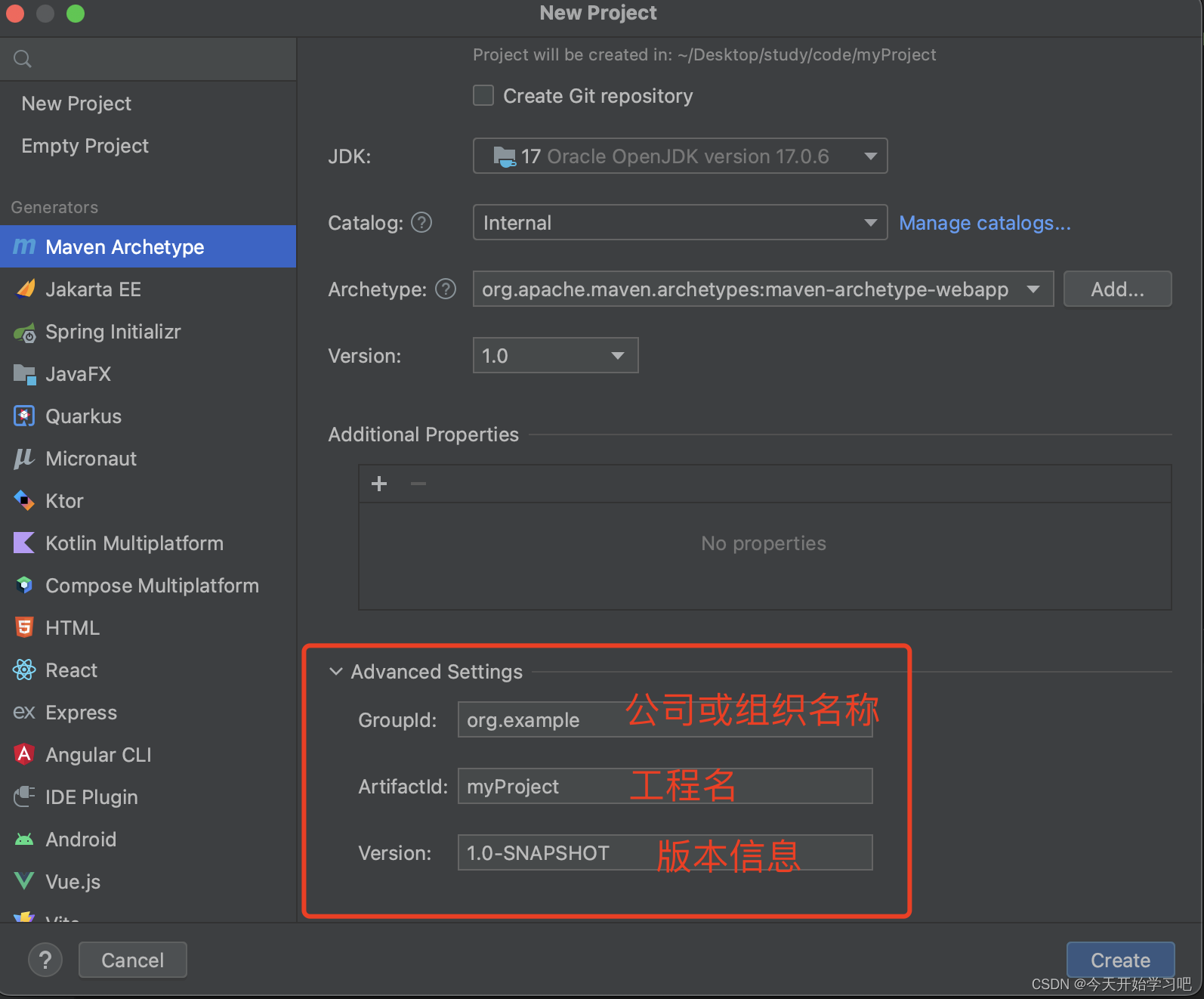

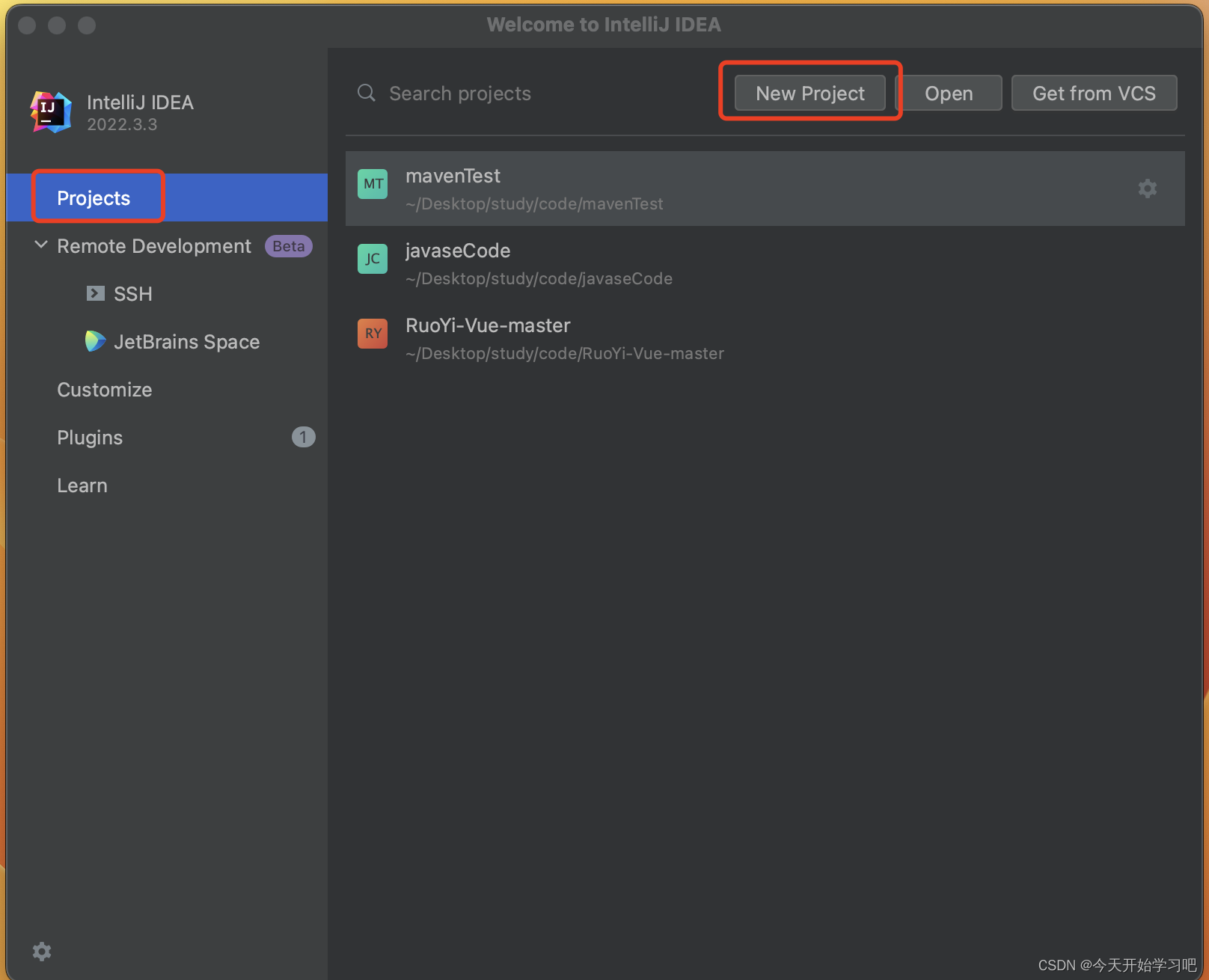

1.创建空模板

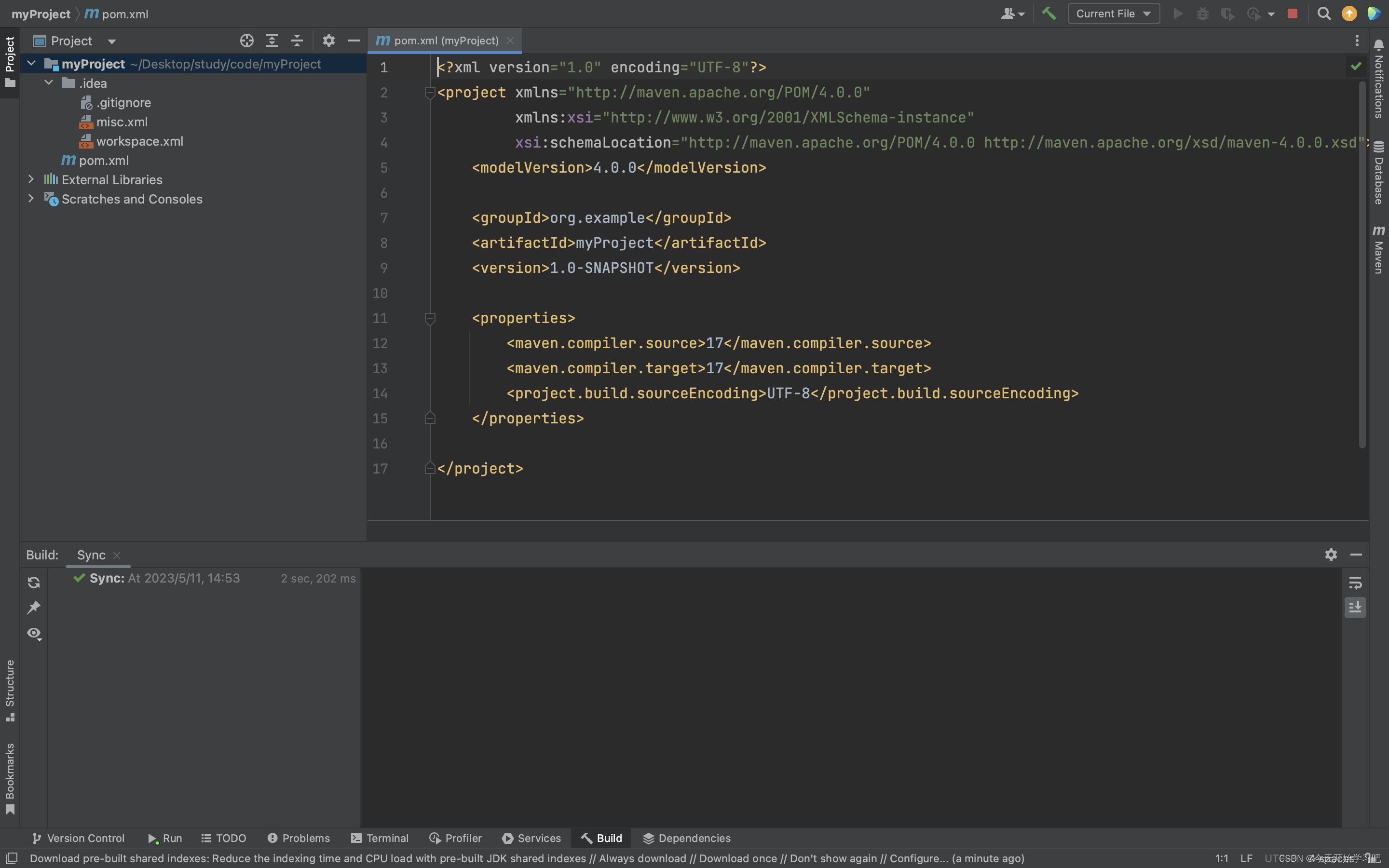

搭建完成的项目如下图所示：

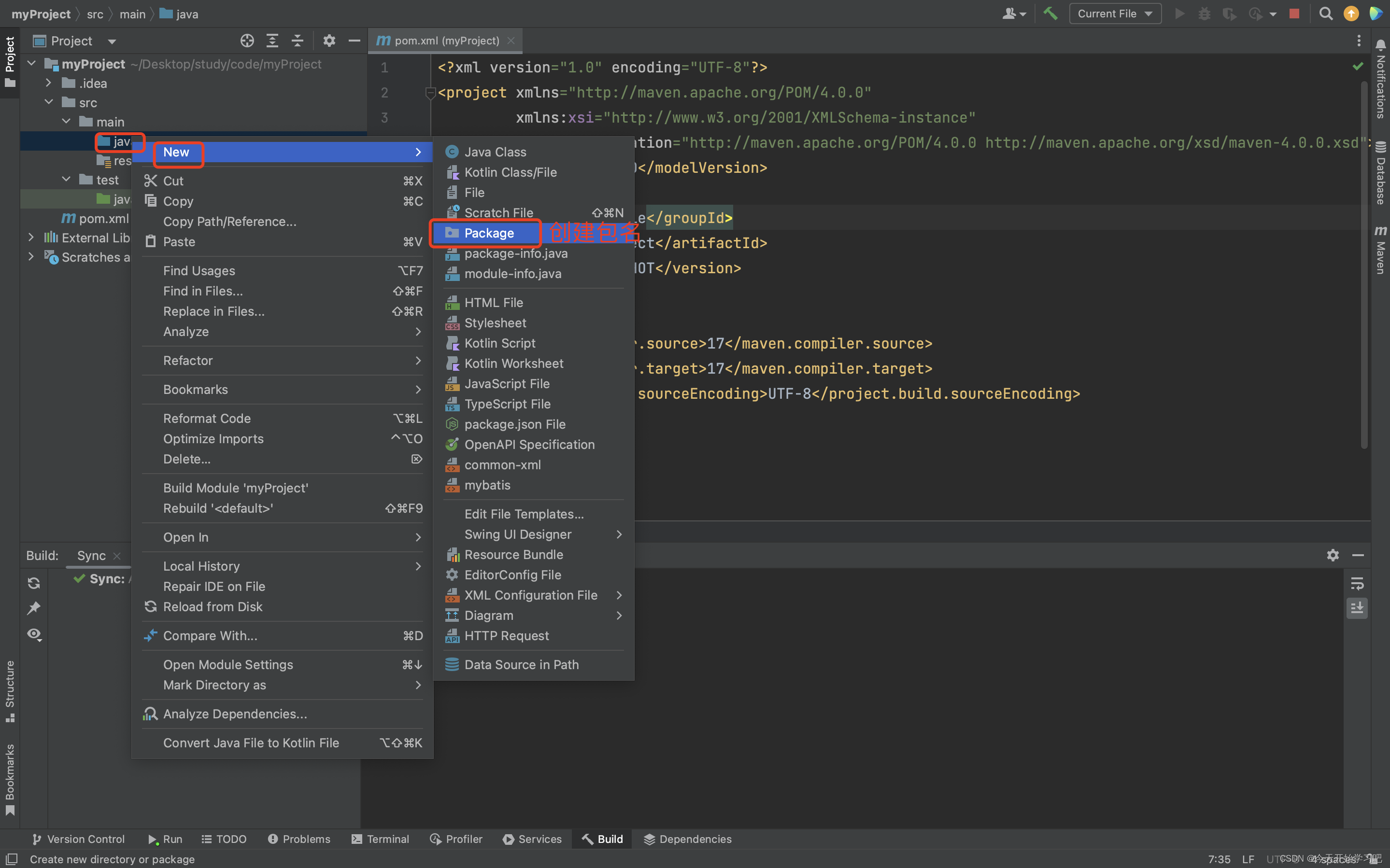

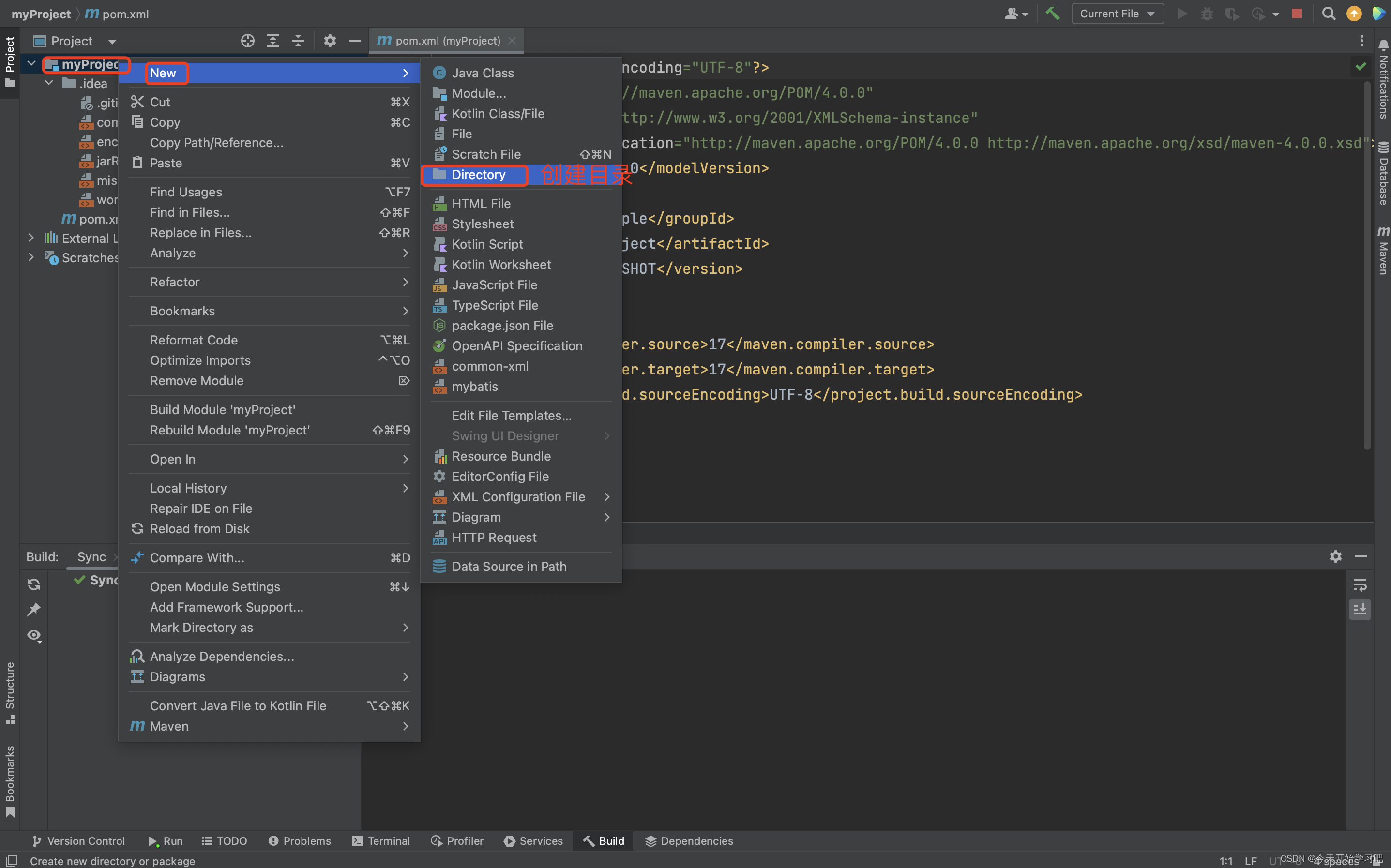

2.搭建目录结构

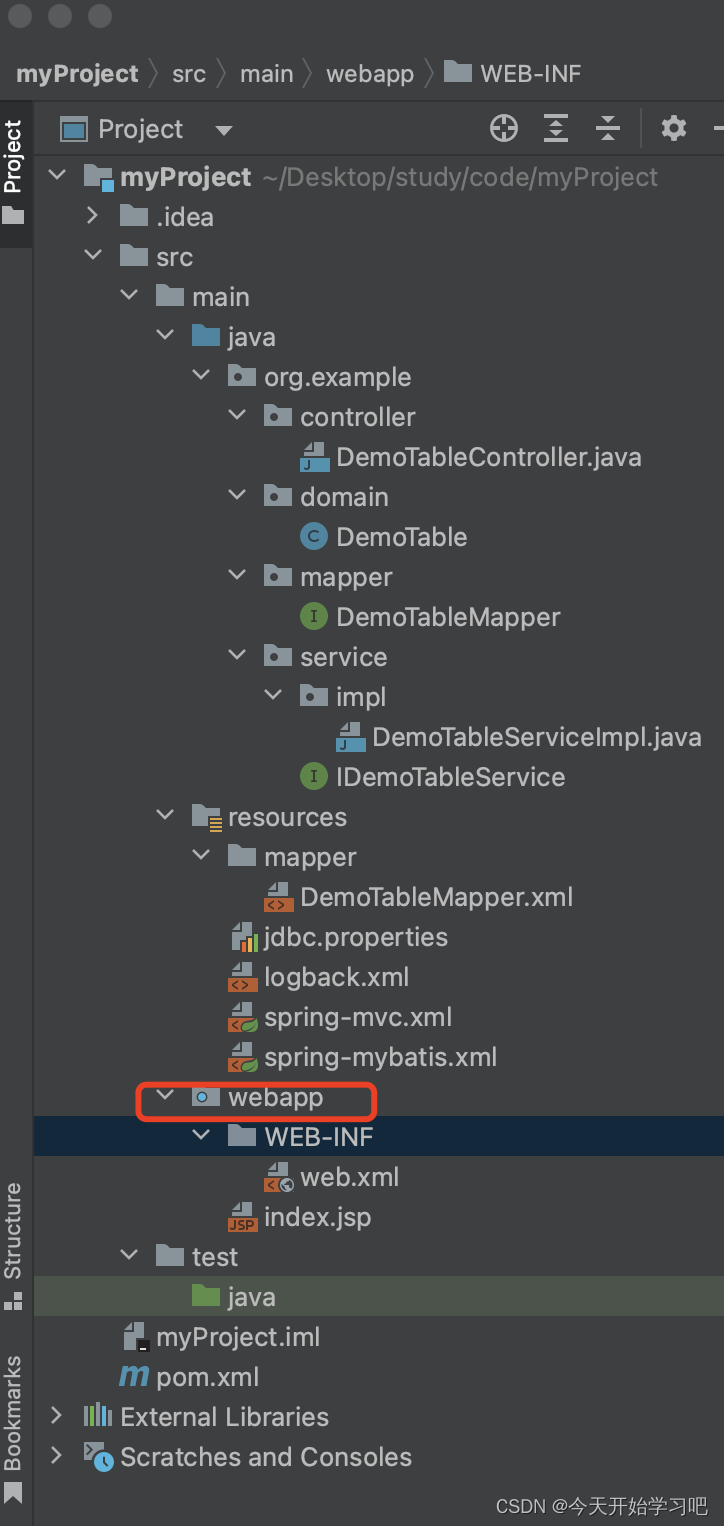

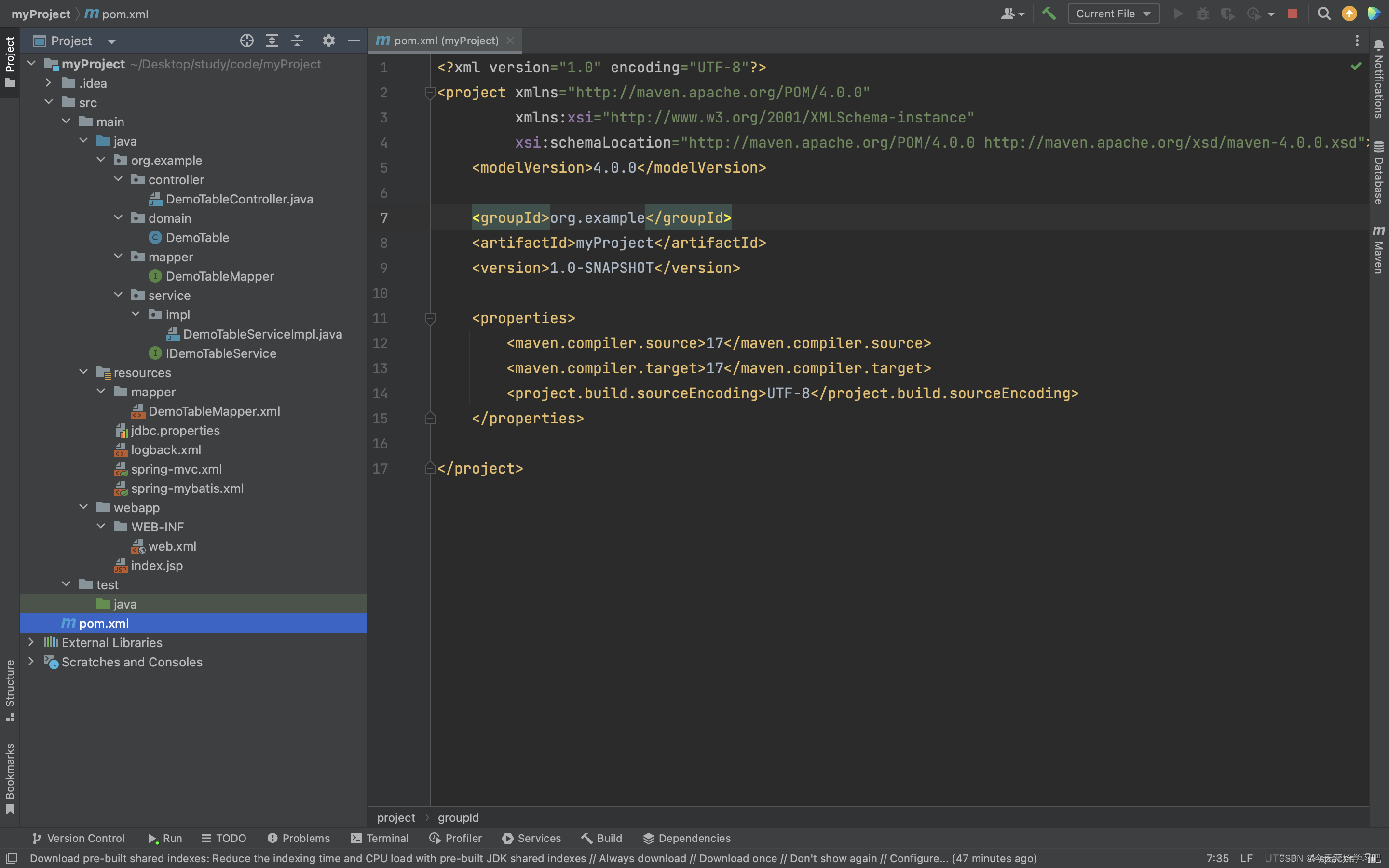

搭建完的目录结构如下图所示：

3.修改默认配置

3.1添加web配置

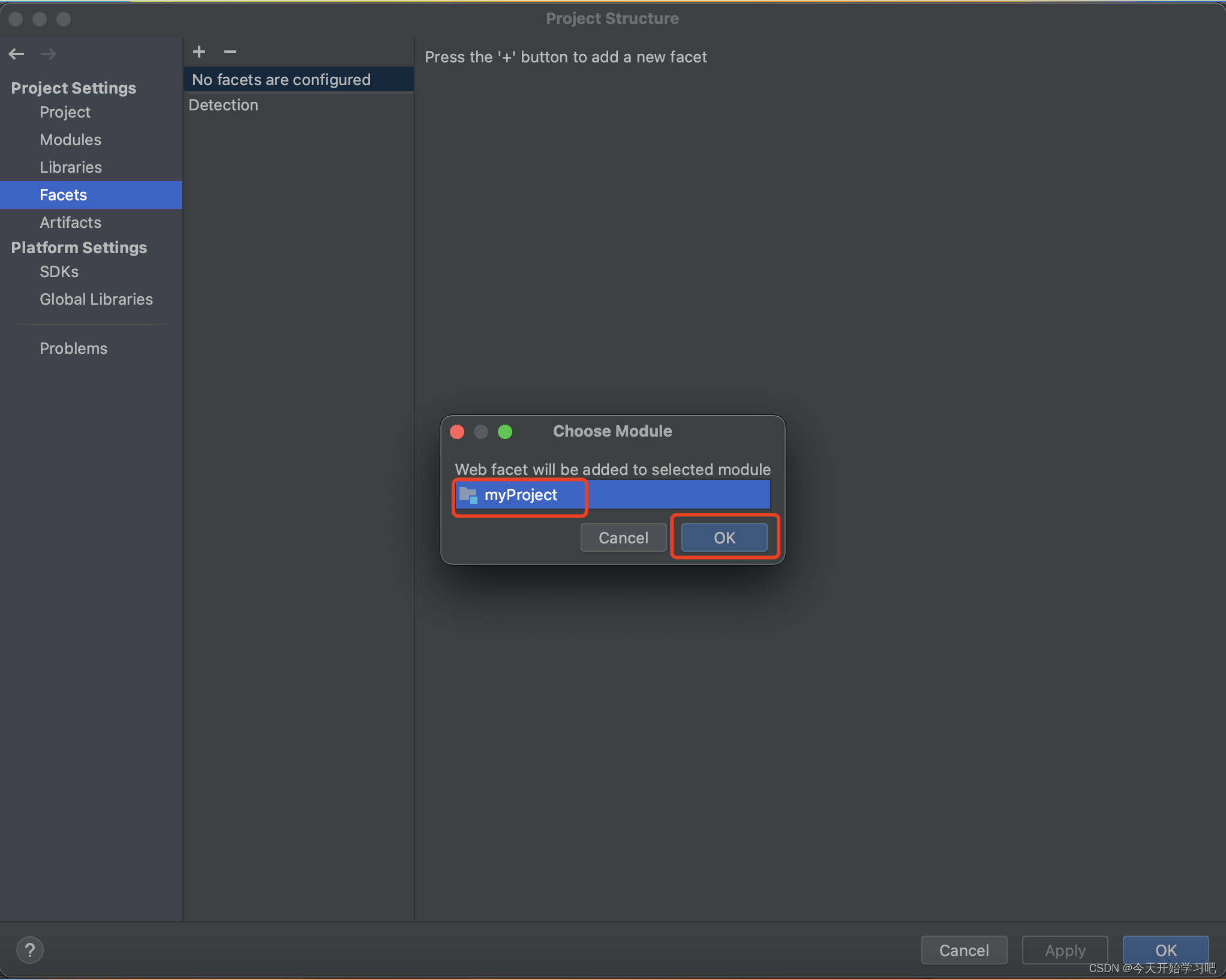

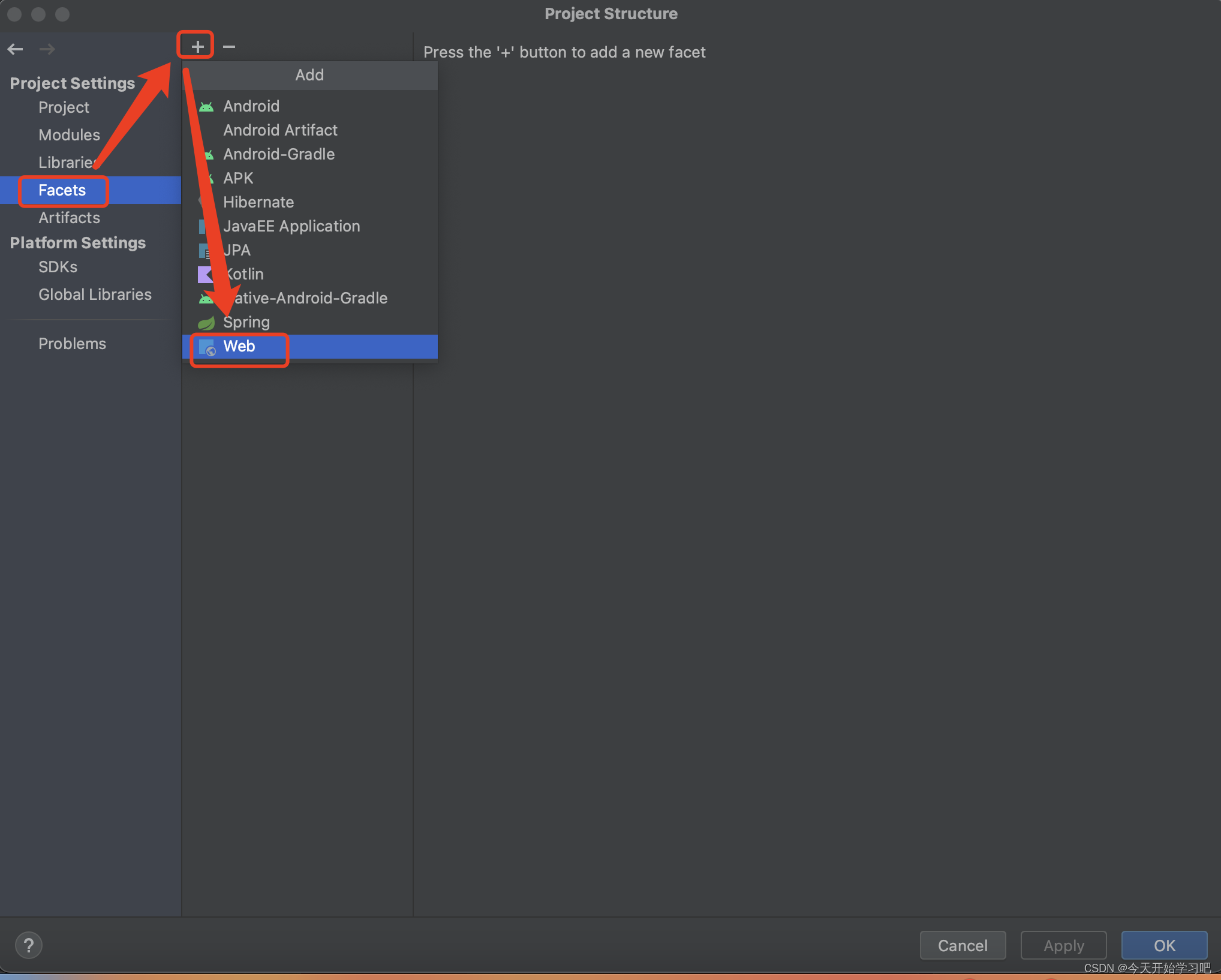

当前创建的maven项目是一个普通的Java项目,不是web项目,我们要进行一下改造

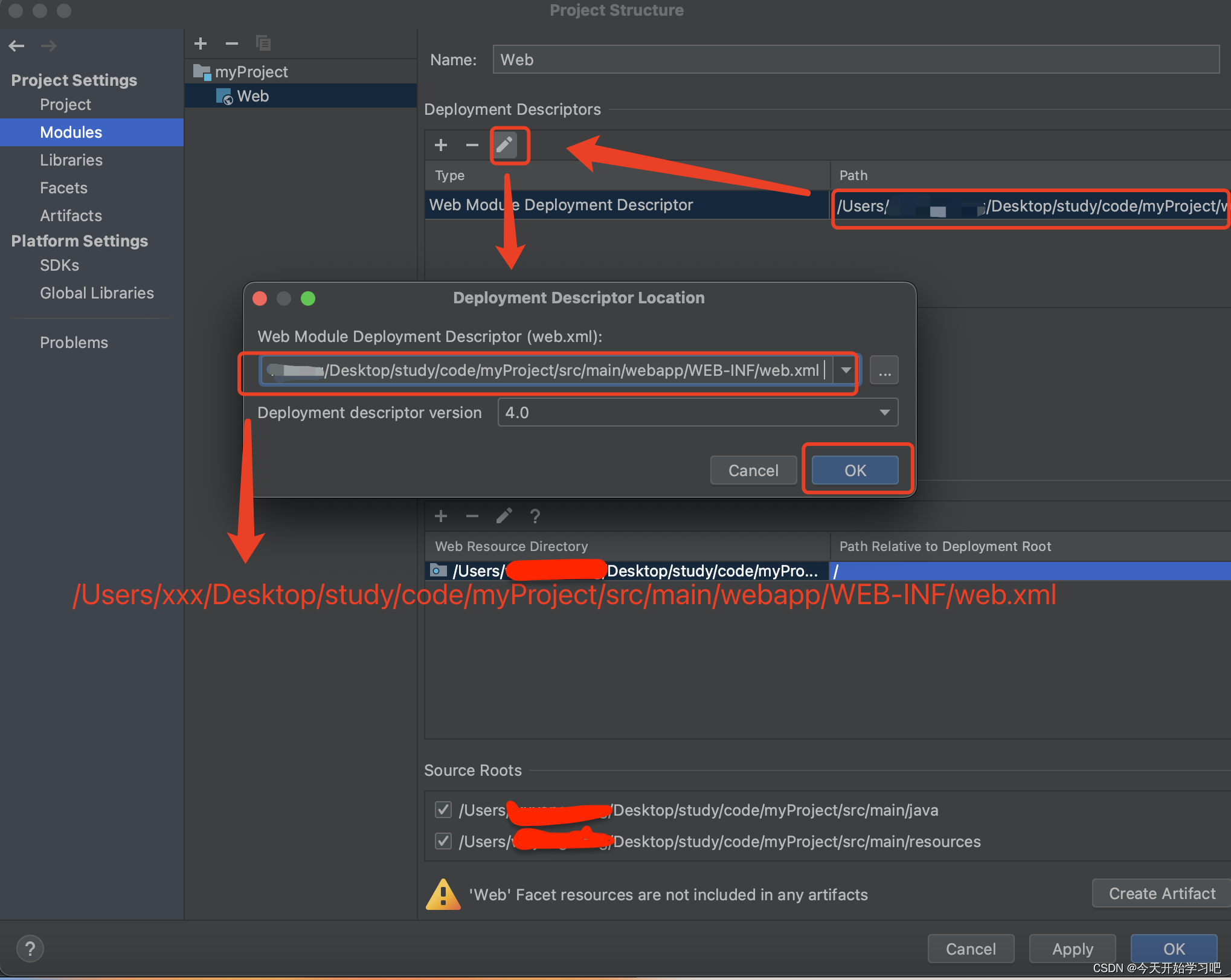

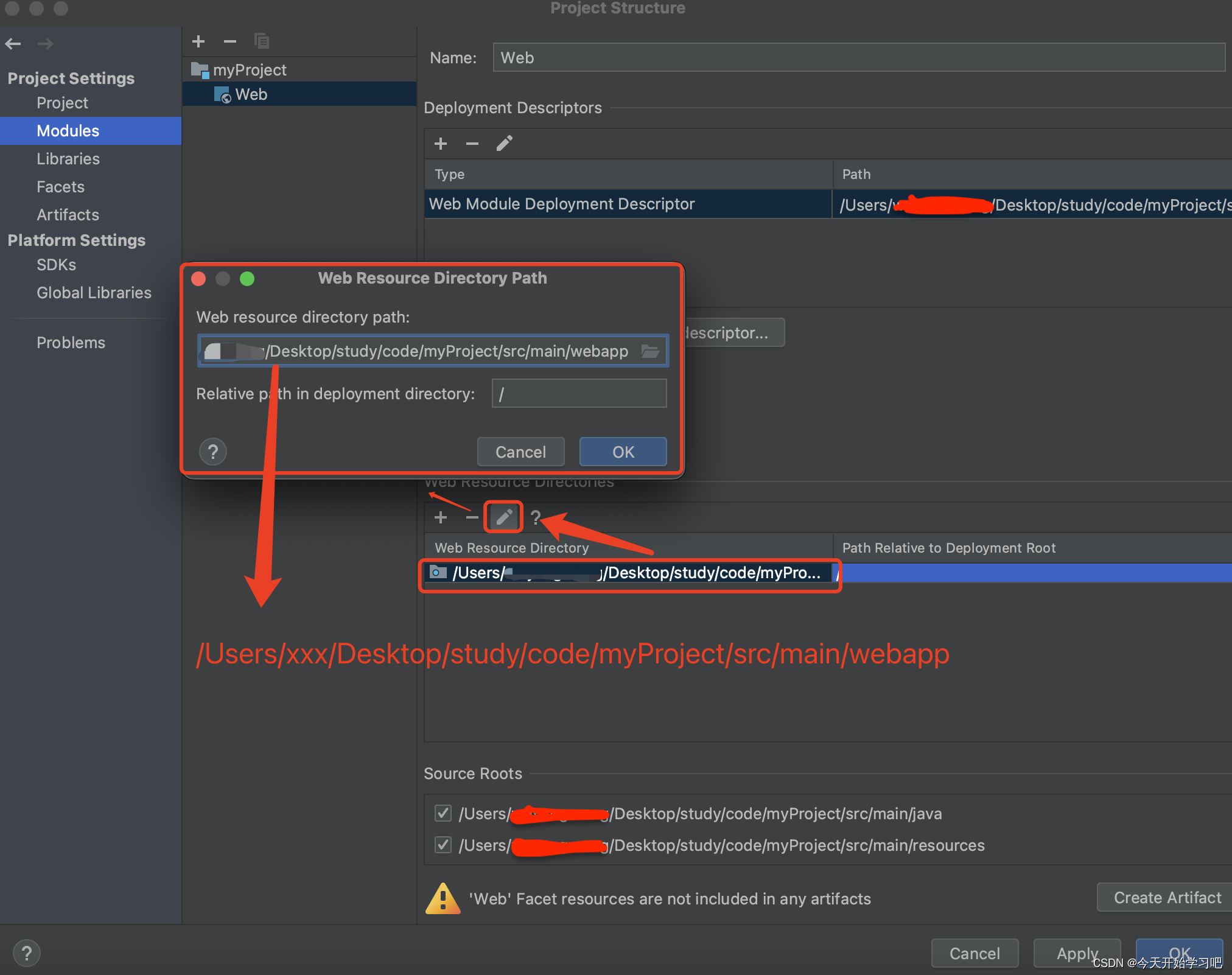

修改后的路径如下：

注意：修改路径时最好不要手动输入路径，点击旁边📁文件夹图标去选择路径

修改完后，webapp文件夹变化如下：

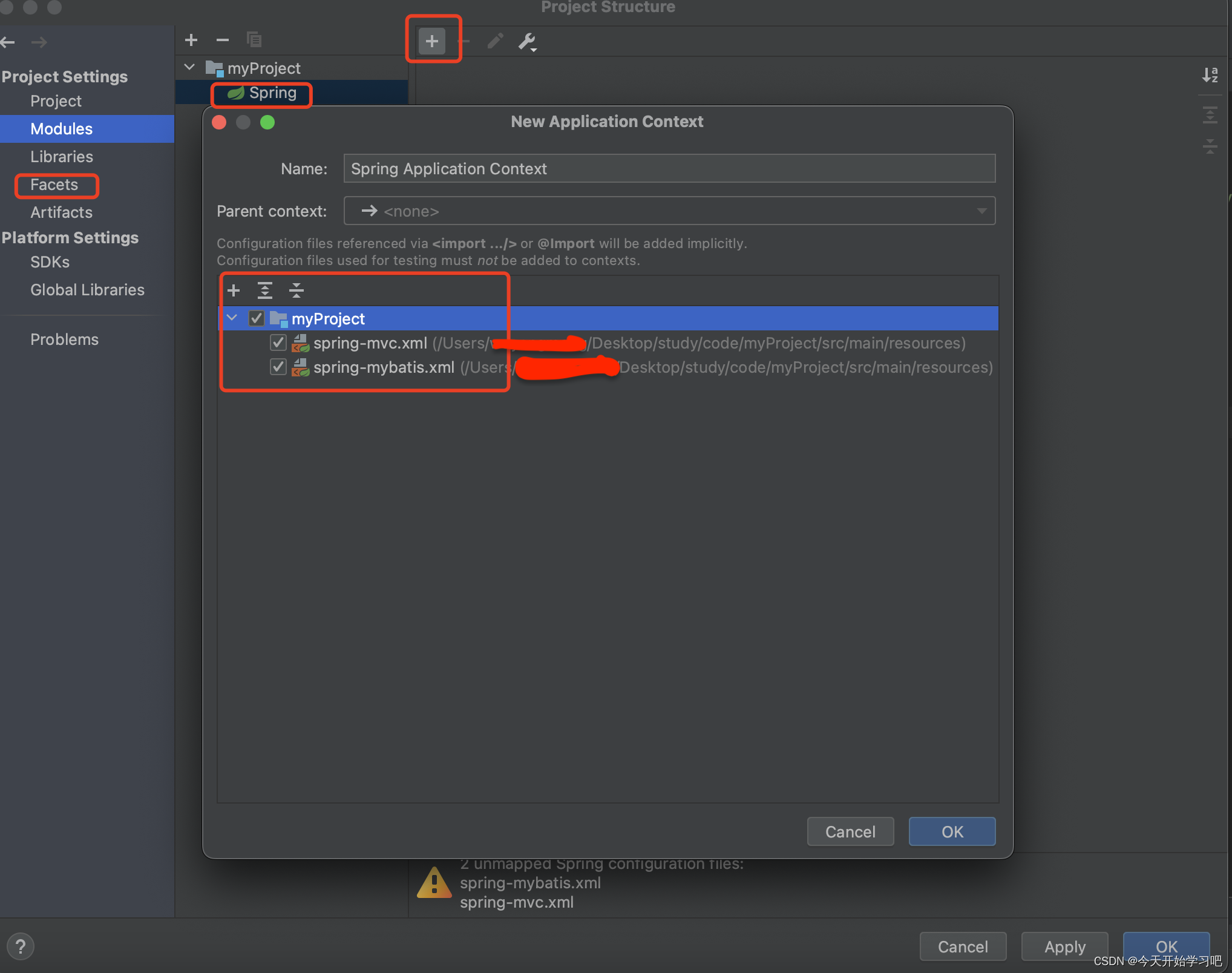

3.2添加spring配置

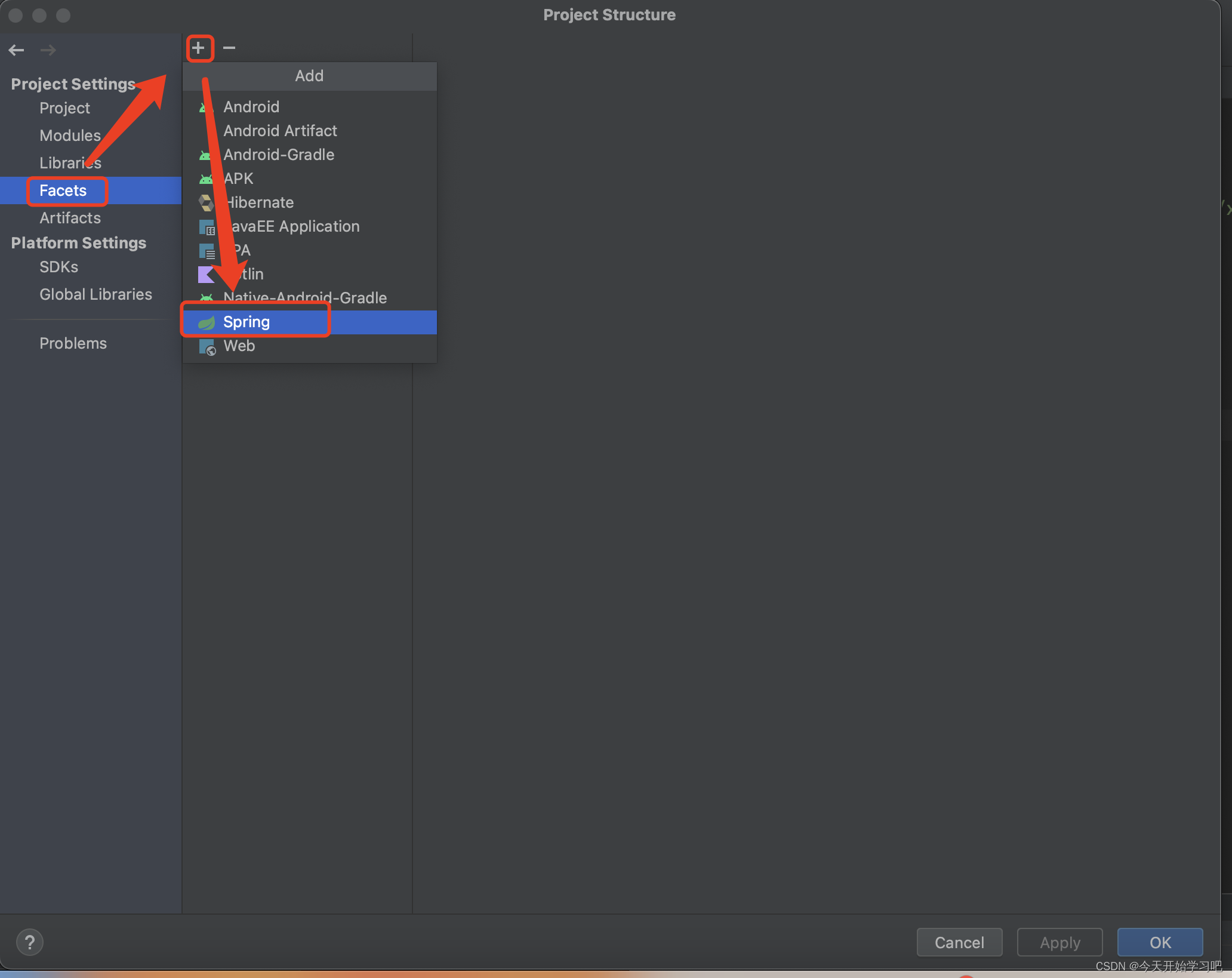

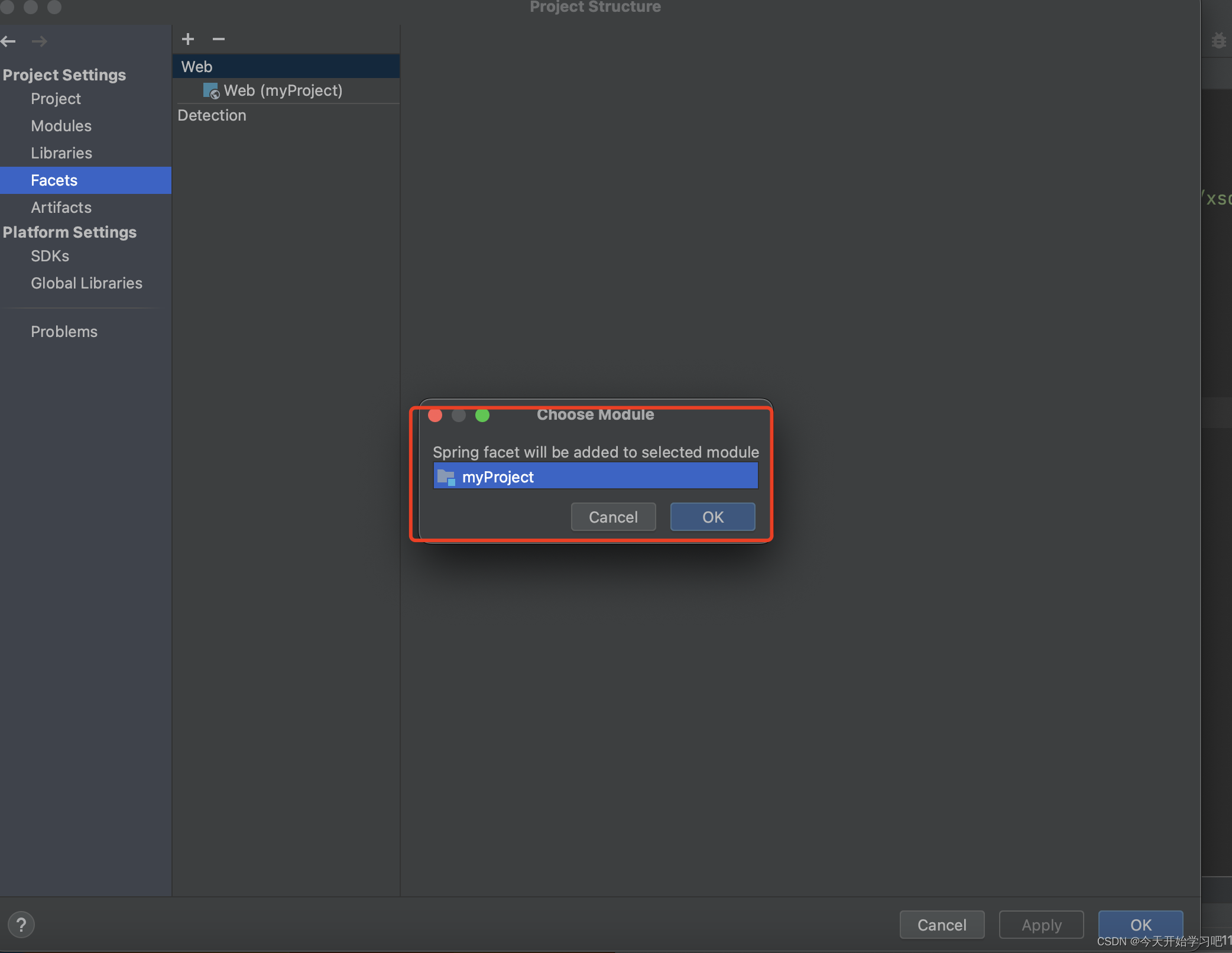

添加spring配置与上面添加web配置类似，进入File —> project Structure —> facets—> 点击+号，添加spring

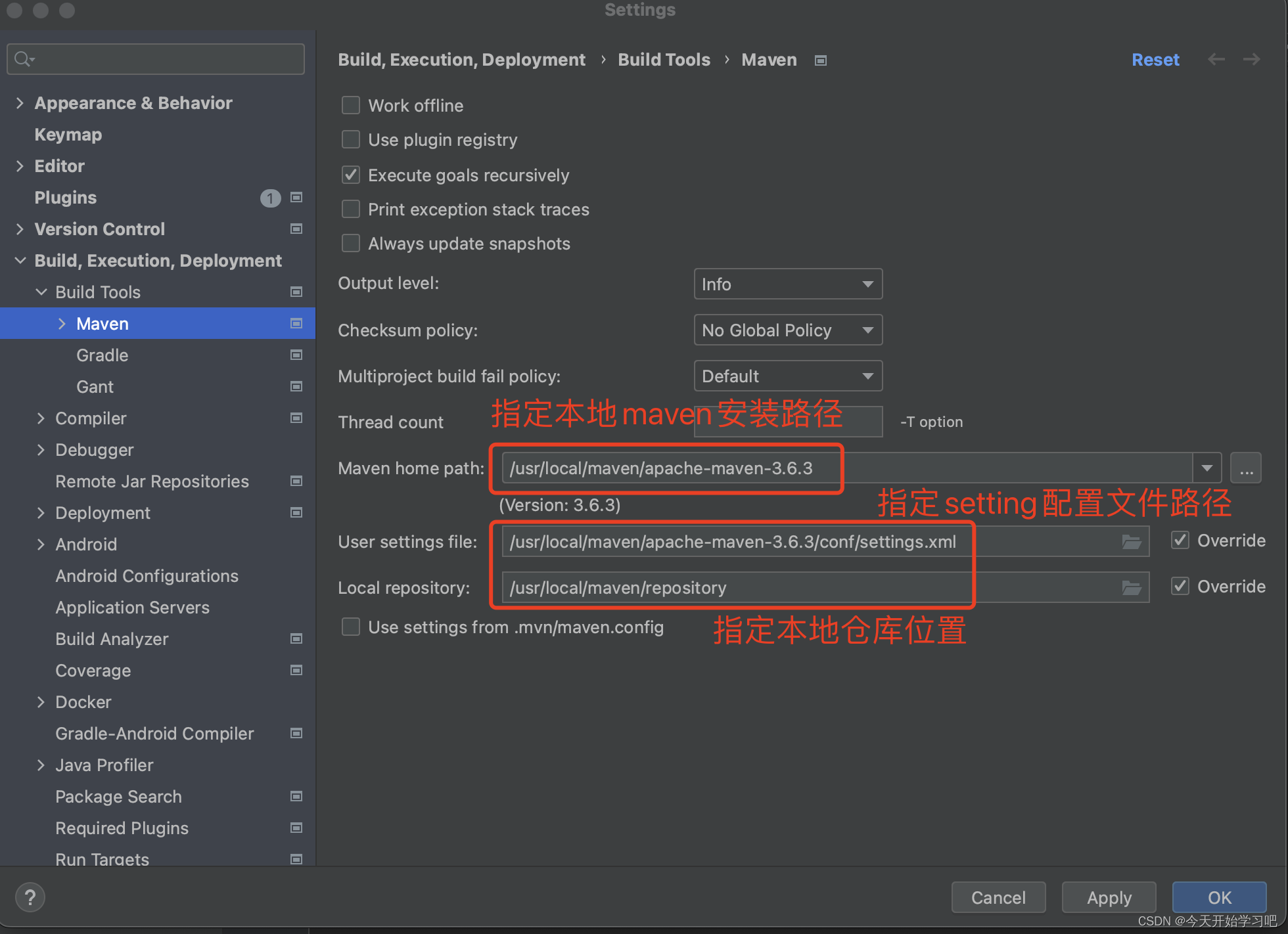

3.3修改maven配置

注意：macos使用idea进行配置找不到隐藏目录（/usr/local/），需要按快捷键command+shift+G，输入需要的路径。

3.4添加tomcat配置

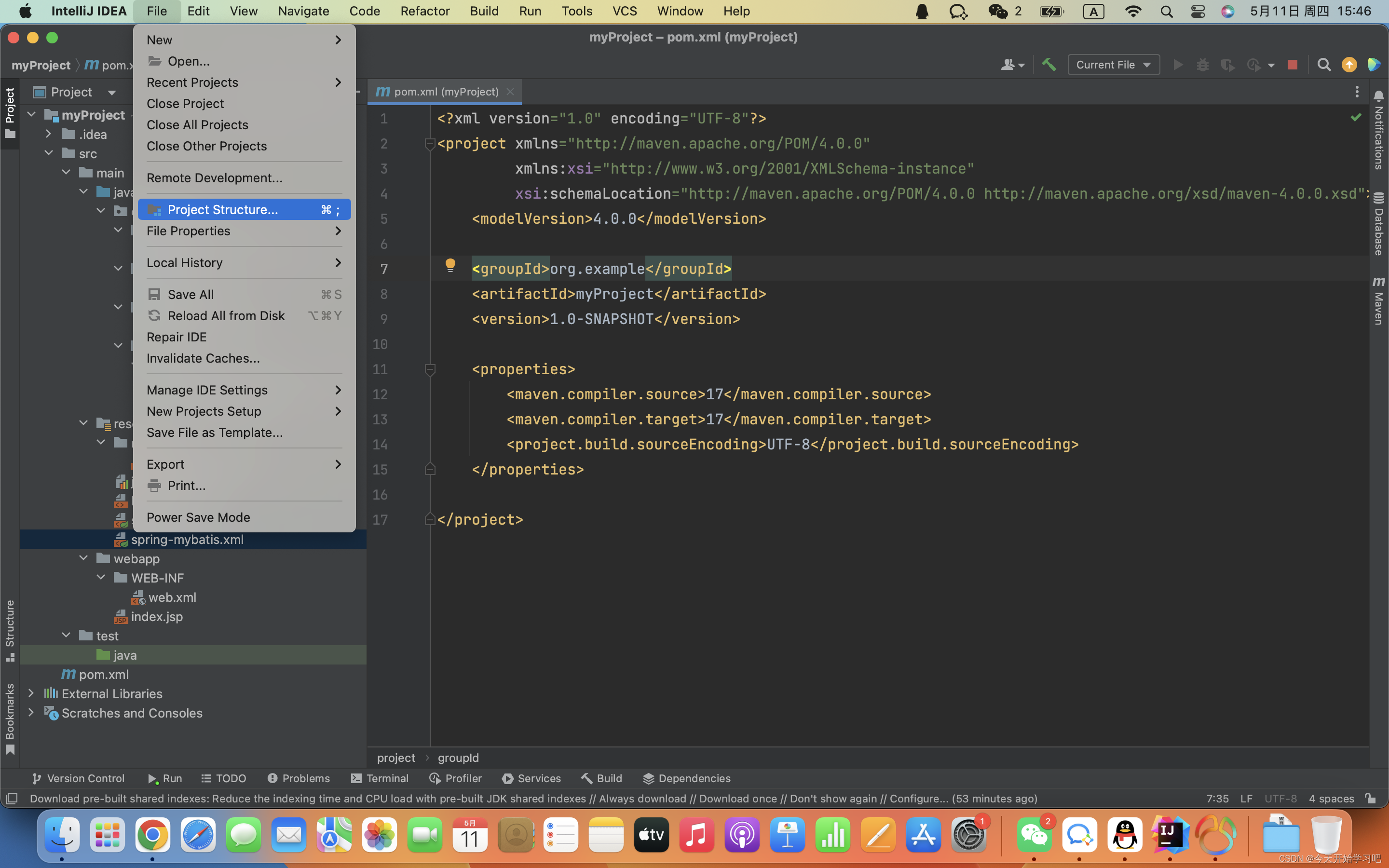

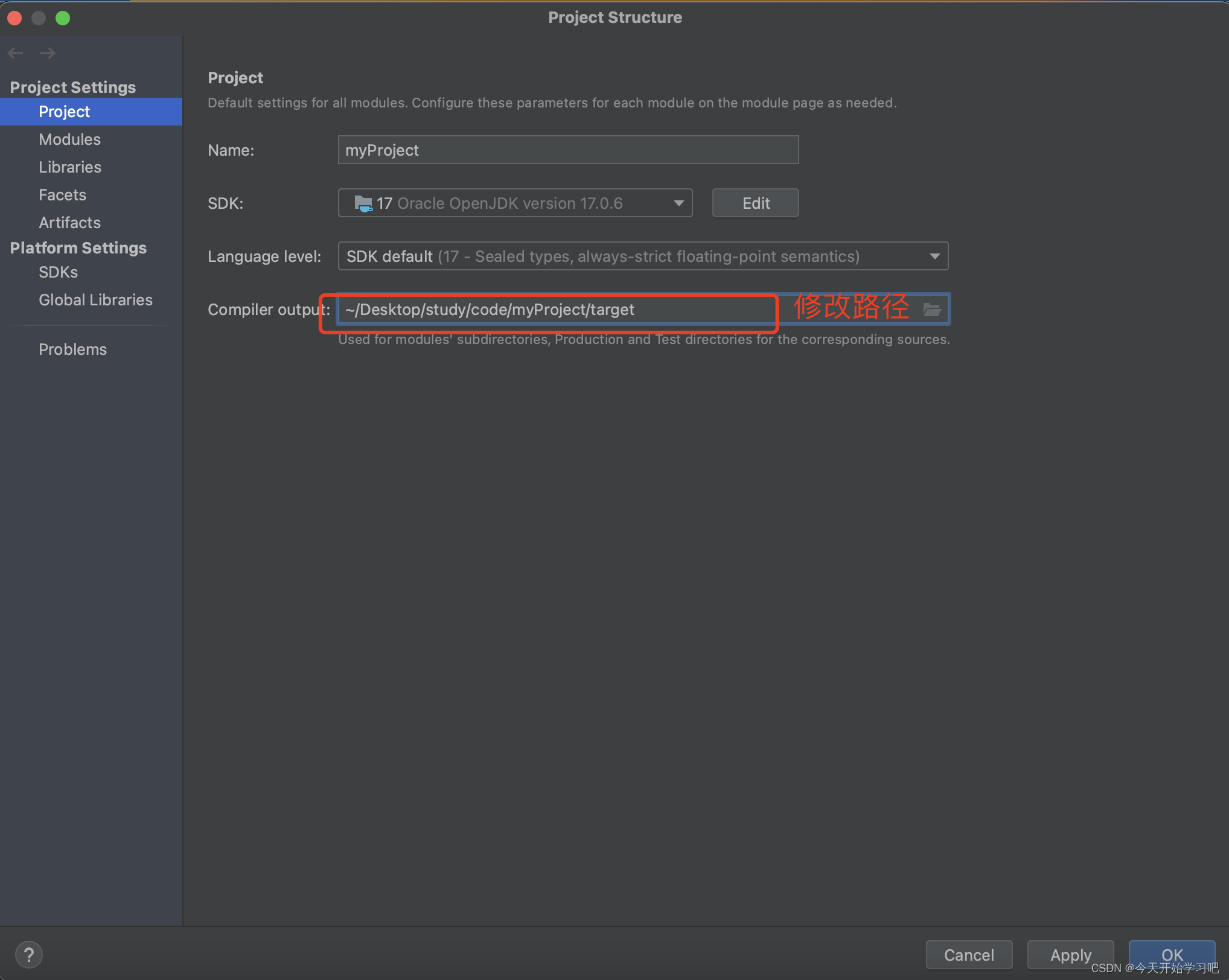

先进入File —> project Structure —> Project修改项目编译点输出路径

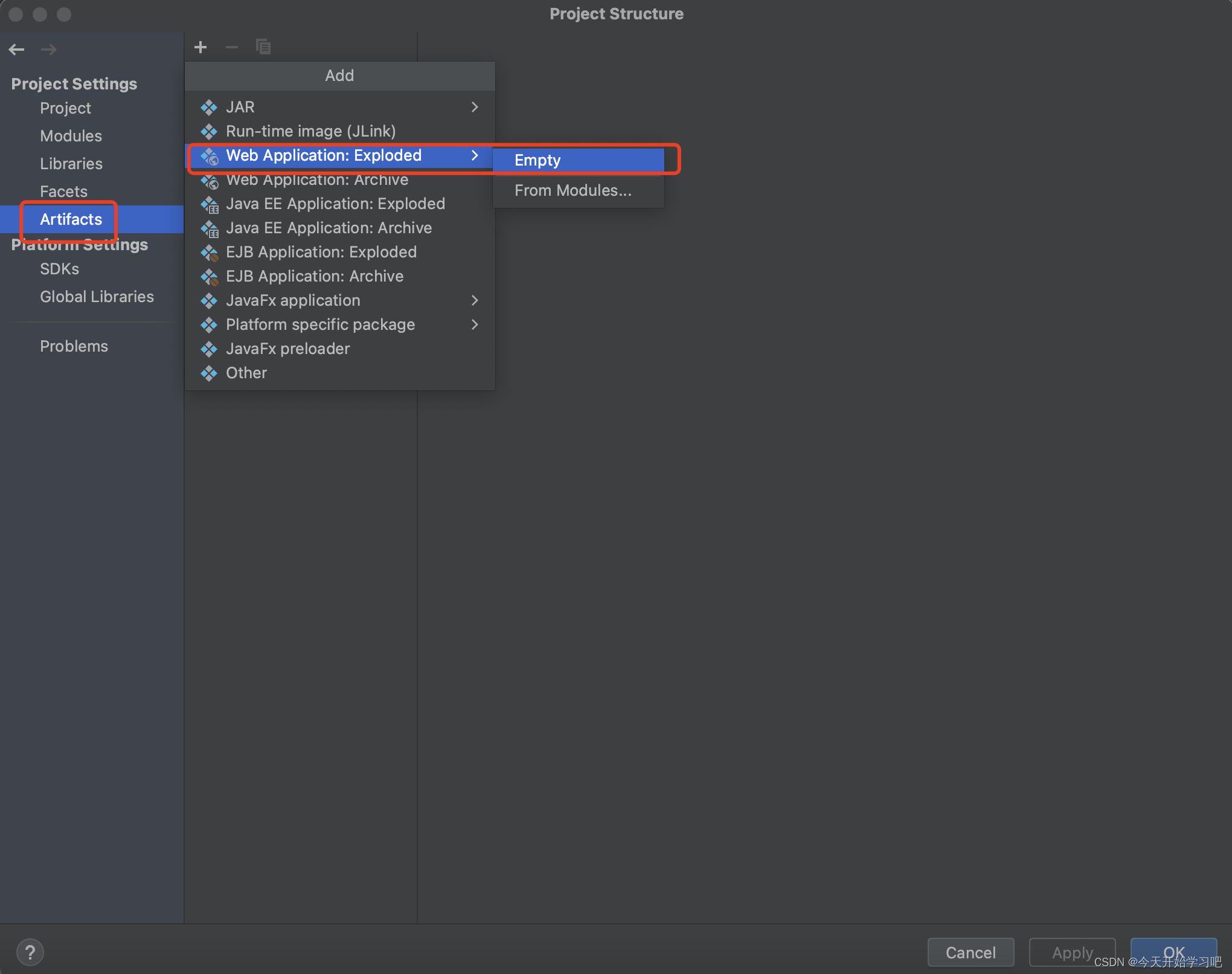

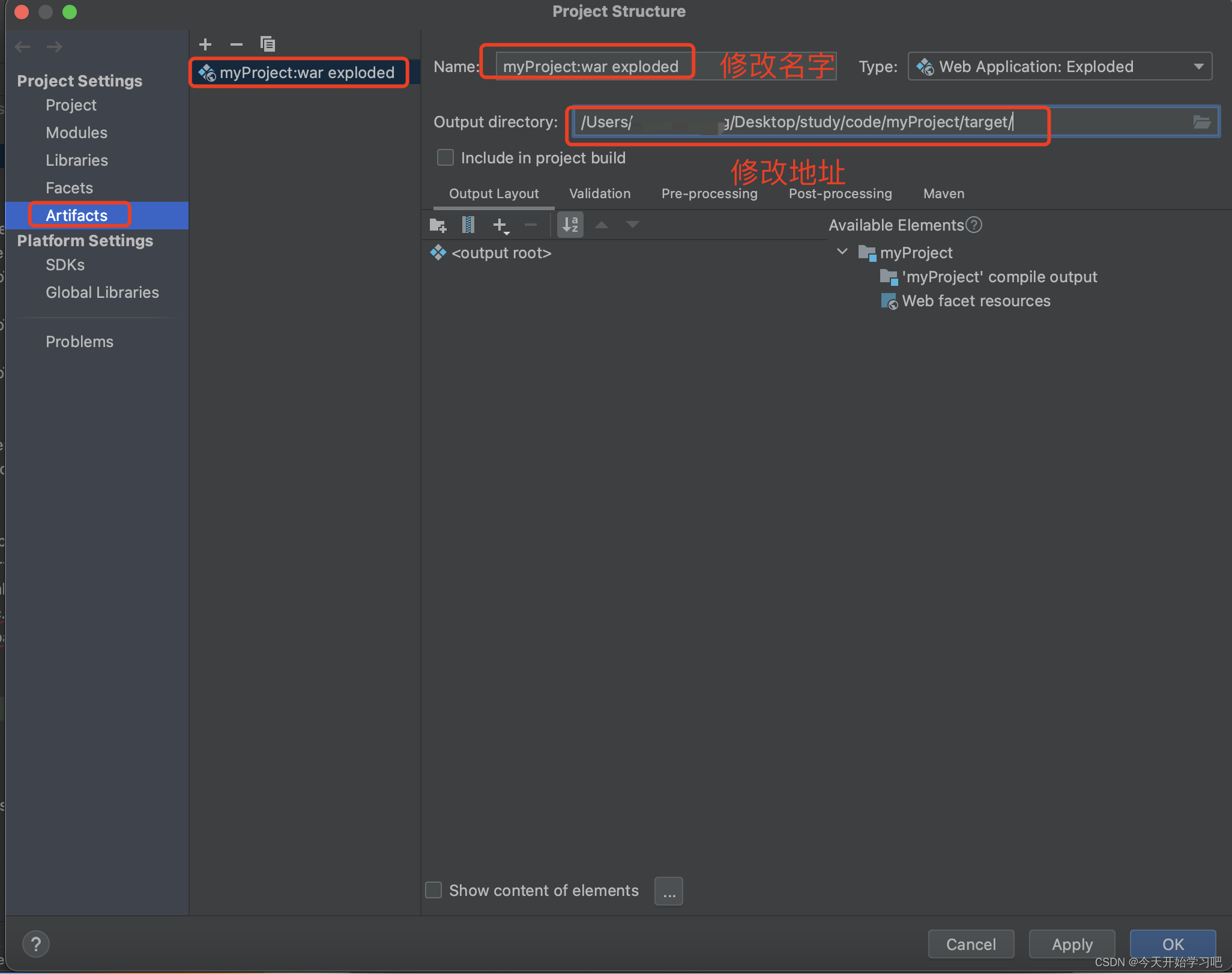

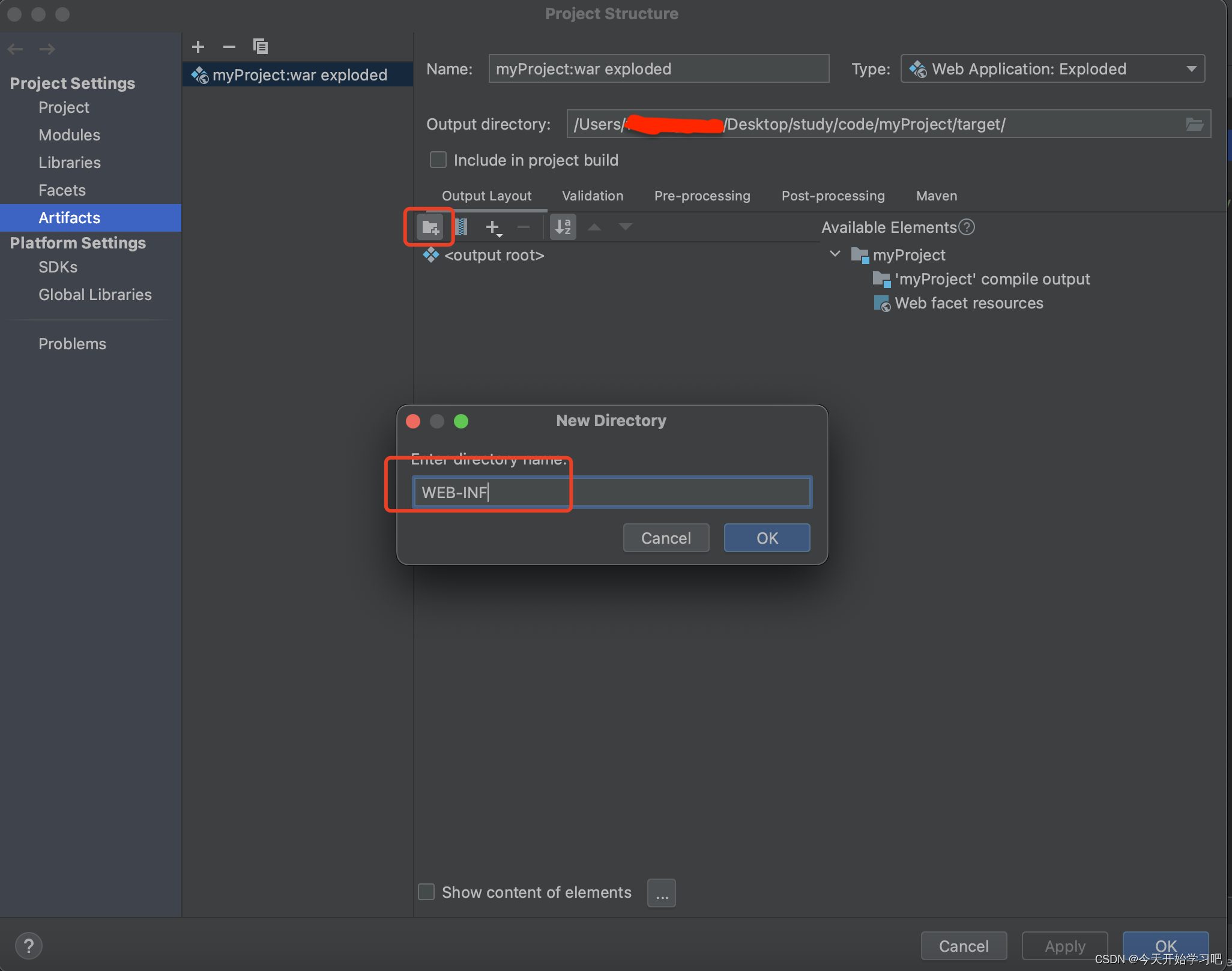

然后进入File —> project Structure —> Artifacts添加artifact

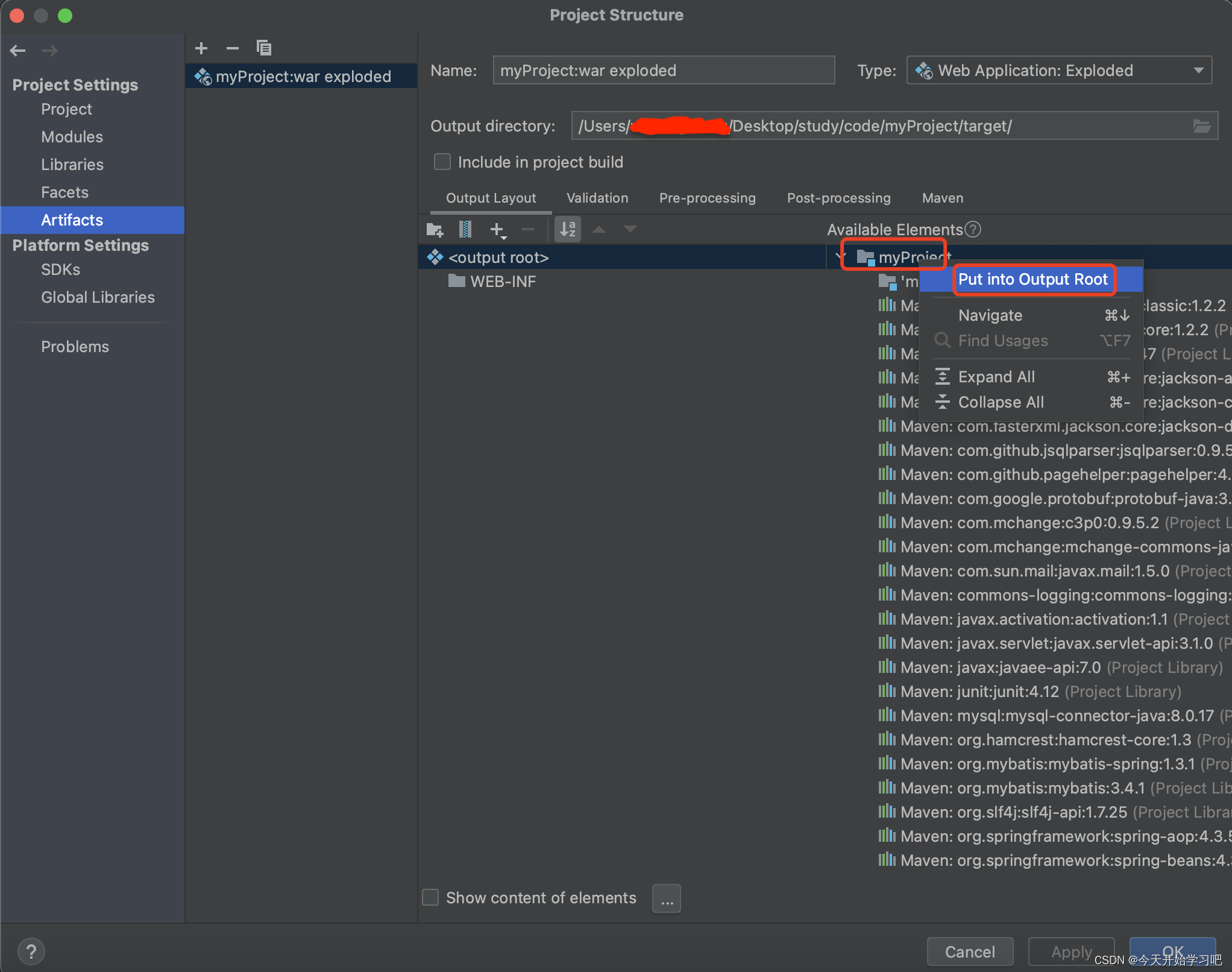

注意：这有一步很重要，在添加完以后，一定要选中你的项目，然后鼠标左键Put into Output Root一下

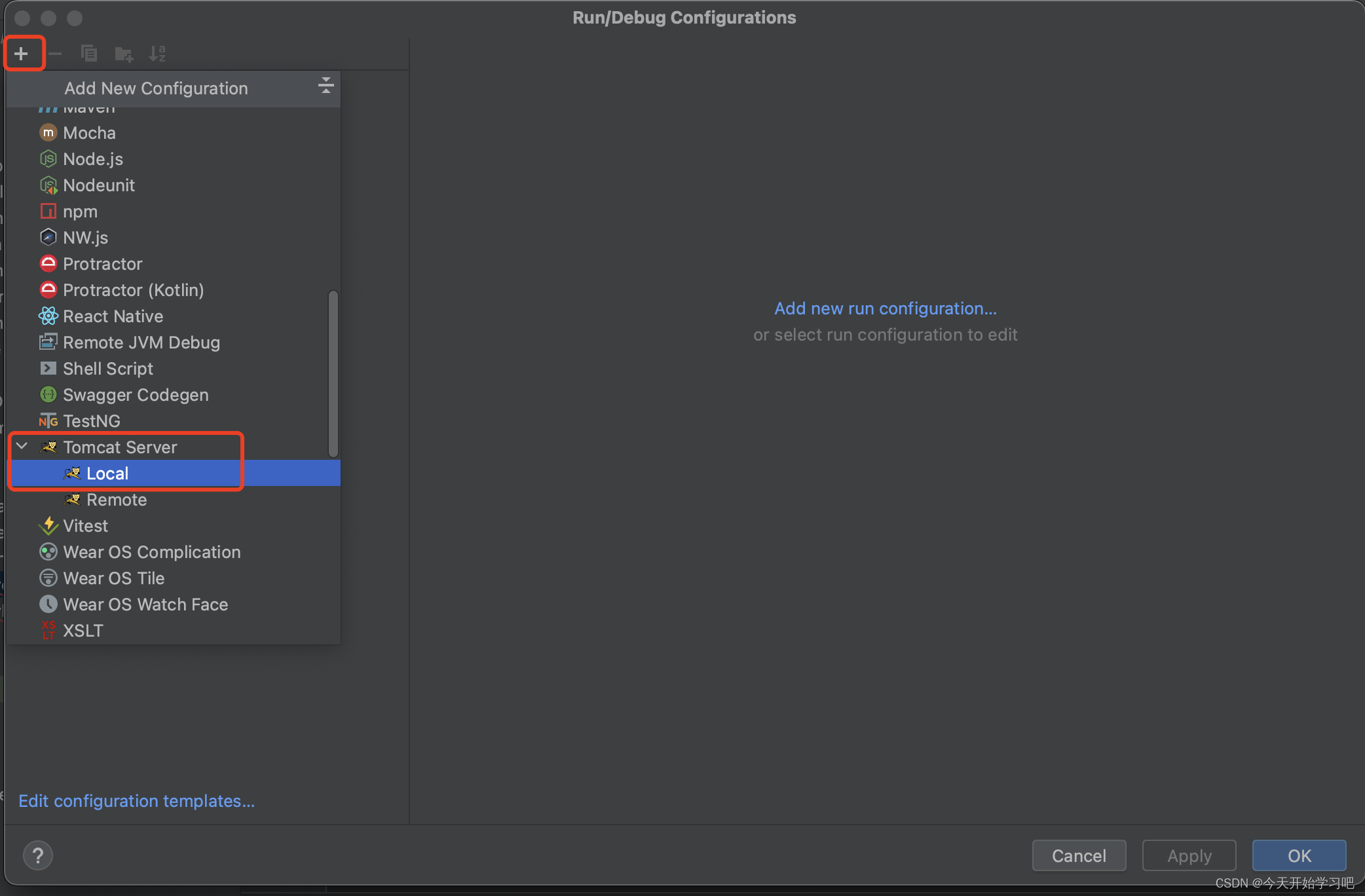

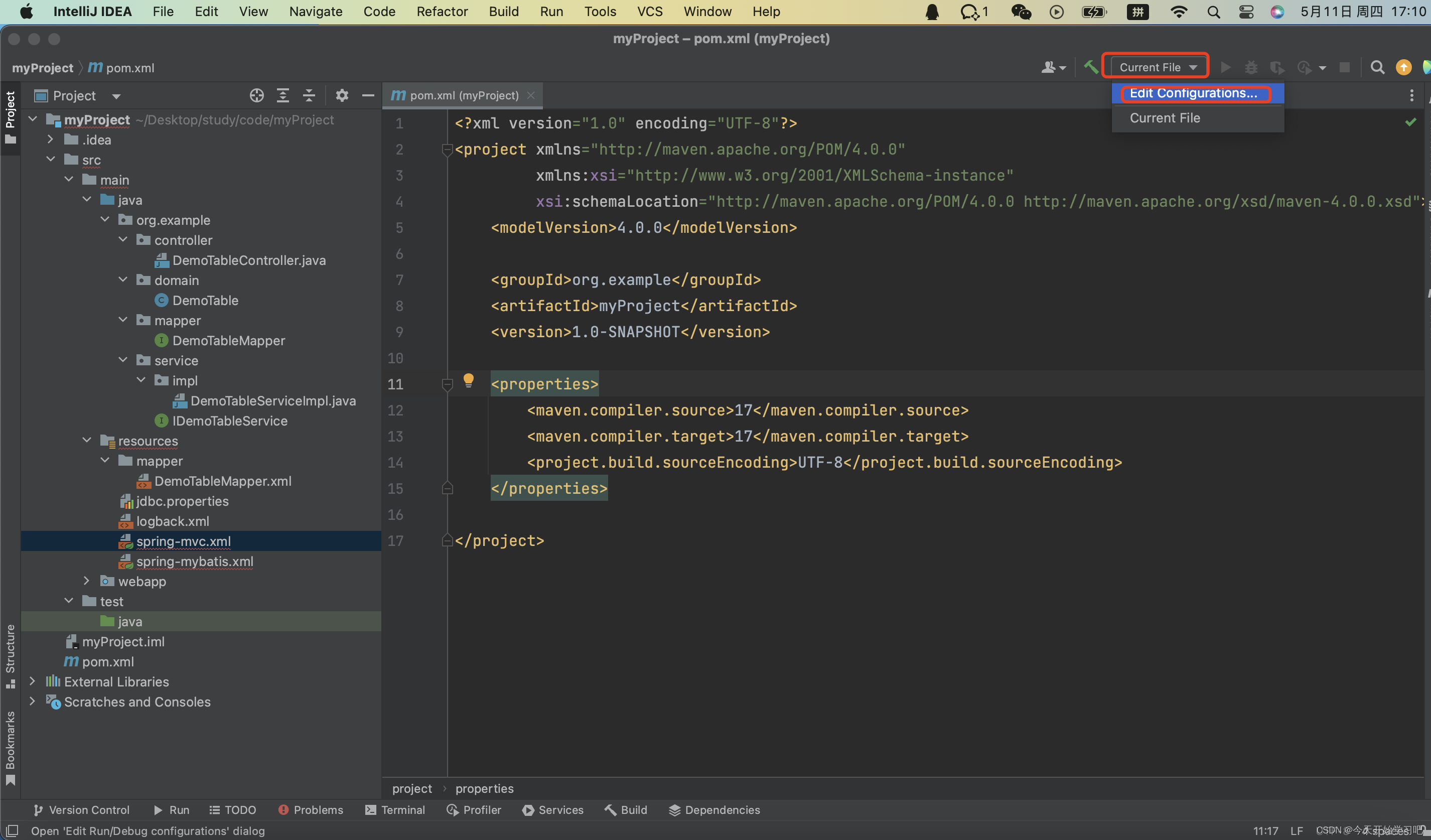

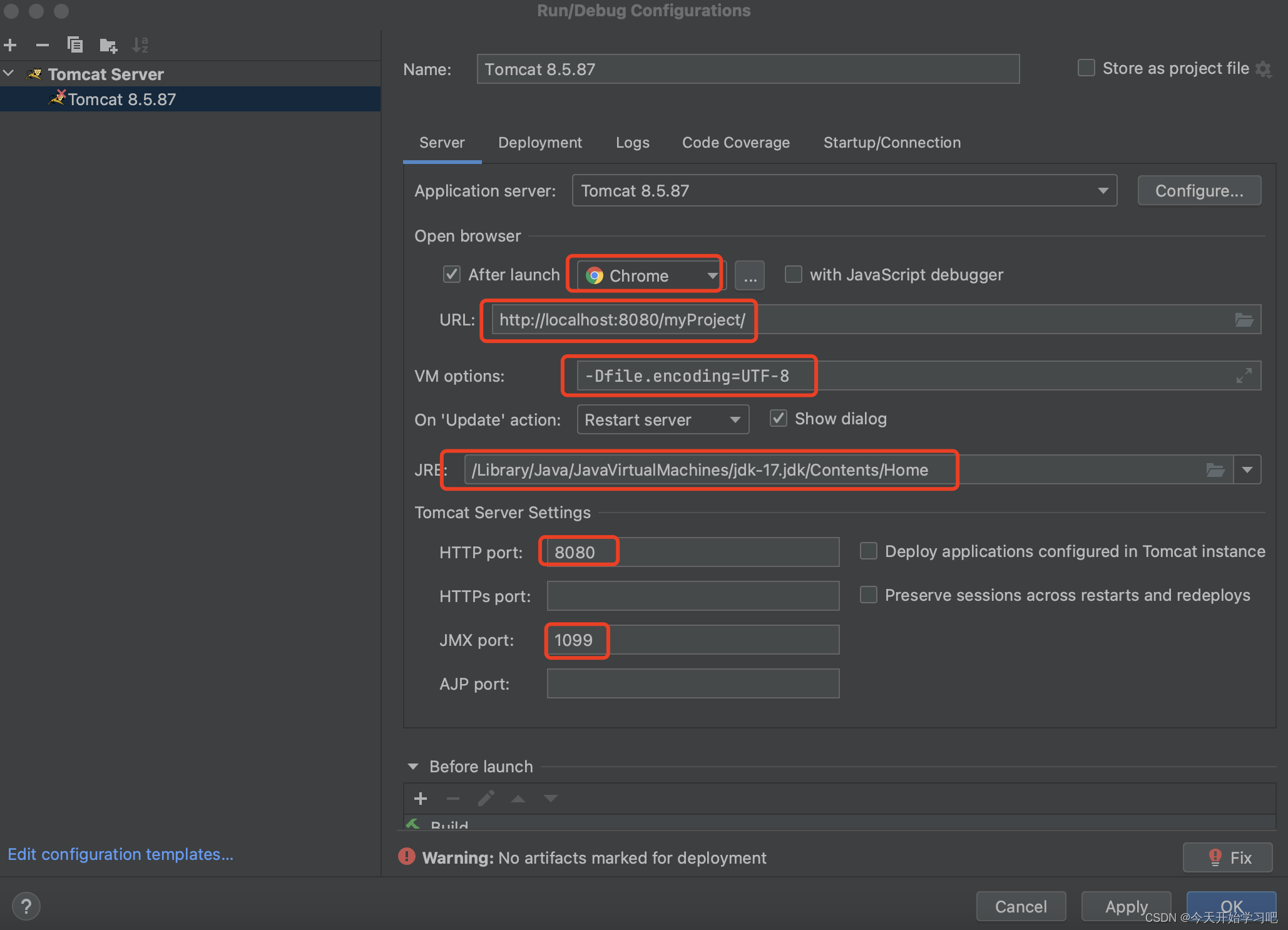

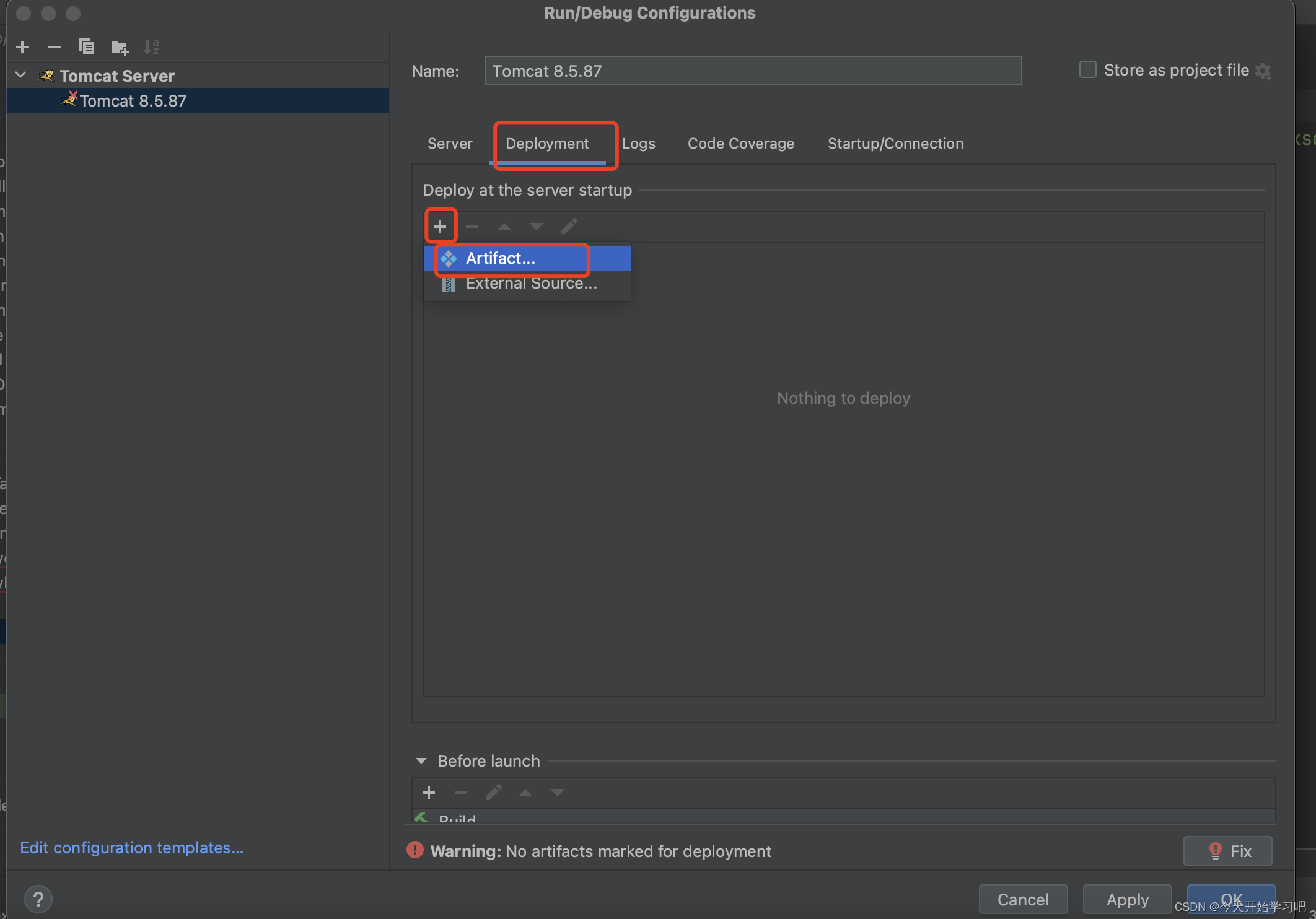

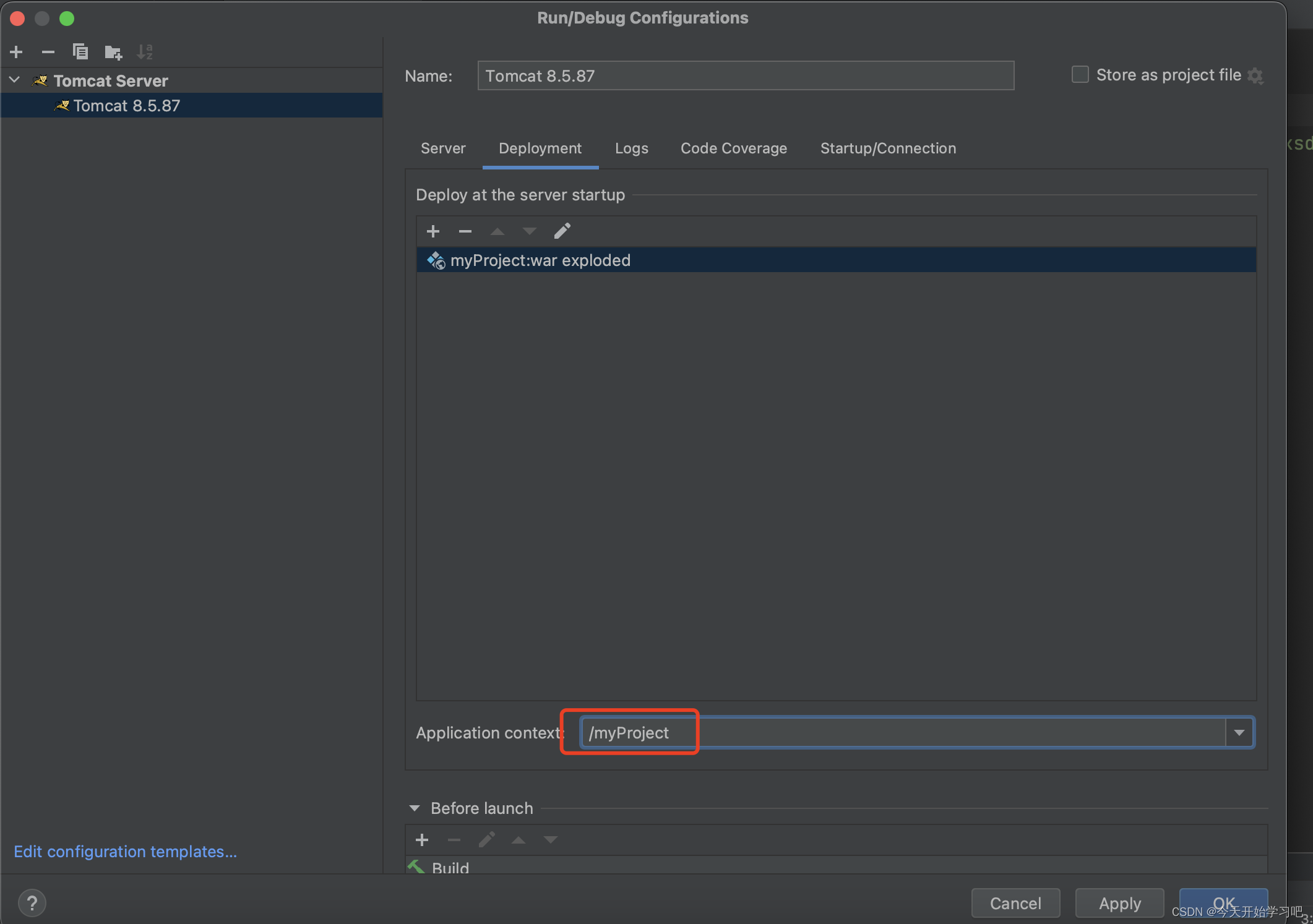

最后配置tomcat

4.添加配置文件

4.1完善jdbc.properties

此文件用以配置数据库的相关配置，需要修改的地方为数据库地址、用户名和密码

jdbc.driver=com.mysql.jdbc.Driver
#数据库地址
jdbc.url=jdbc:mysql://localhost:3306/demo_database?useUnicode=true&characterEncoding=utf8&serverTimezone=Asia/Shanghai
#用户名
jdbc.username=root
#密码
jdbc.password=root123456
#最大连接数
c3p0.maxPoolSize=30
#最小连接数
c3p0.minPoolSize=10
#关闭连接后不自动commit
c3p0.autoCommitOnClose=false
#获取连接超时时间
c3p0.checkoutTimeout=10000
#当获取连接失败重试次数
c3p0.acquireRetryAttempts=2

4.2完善spring-mvc.xml

此文件里边的可变量是base-package,是代码架构中的扫描位置，如果自建package不同，记得修改。

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc
       http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">

    <!-- 扫描web相关的bean -->
    <context:component-scan base-package="org.example"/>
    <!-- 开启SpringMVC注解模式 -->
    <mvc:annotation-driven/>

    <!-- 静态资源默认servlet配置 -->
    <mvc:default-servlet-handler/>

    <!-- 配置jsp 显示ViewResolver -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
        <property name="prefix" value="/WEB-INF/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

</beans>

4.3完善spring-mybatis.xml

此文件注意各个配置的base-package代码扫描位置，数据库连接池信息去jdbc.properties中取。

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/tx
       http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!-- 扫描service包下所有使用注解的类型 -->
    <context:component-scan base-package="org.example.service"/>

    <!-- 配置数据库相关参数properties的属性：${url} -->
    <context:property-placeholder location="classpath:jdbc.properties"/>

    <!-- 数据库连接池 -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <property name="maxPoolSize" value="${c3p0.maxPoolSize}"/>
        <property name="minPoolSize" value="${c3p0.minPoolSize}"/>
        <property name="autoCommitOnClose" value="${c3p0.autoCommitOnClose}"/>
        <property name="checkoutTimeout" value="${c3p0.checkoutTimeout}"/>
        <property name="acquireRetryAttempts" value="${c3p0.acquireRetryAttempts}"/>
    </bean>

    <!-- 配置SqlSessionFactory对象 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 扫描model包 使用别名 -->
        <property name="typeAliasesPackage" value="org.example.domain"/>
        <!-- 扫描sql配置文件:mapper需要的xml文件 -->
        <property name="mapperLocations" value="classpath:mapper/*.xml"/>
    </bean>

    <!-- 配置扫描Dao接口包，动态实现Dao接口，注入到spring容器中 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 注入sqlSessionFactory -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!-- 给出需要扫描Dao接口包 -->
        <property name="basePackage" value="org.example.mapper"/>
    </bean>

    <!-- 配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!-- 配置基于注解的声明式事务 -->
    <tx:annotation-driven transaction-manager="transactionManager"/>

</beans>

4.4完善logback.xml

此文件是日志文件

<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="true">
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <pattern>%d{HH:mm:ss.SSS} [%thread] %-5level %logger{36} - %msg%n</pattern>
        </encoder>
    </appender>
    <root level="debug">
        <appender-ref ref="STDOUT"/>
    </root>
</configuration>

4.5完善web.xml

此文件修改项为display-name和description

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">

    <display-name>myProject</display-name>
    <description>spring-maven-mybatis项目</description>

    <!-- 编码过滤器 -->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- 配置DispatcherServlet -->
    <servlet>
        <servlet-name>SpringMVC</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!-- 配置springMVC需要加载的配置文件-->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-*.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
        <async-supported>true</async-supported>
    </servlet>
    <servlet-mapping>
        <servlet-name>SpringMVC</servlet-name>
        <!-- 匹配所有请求，此处也可以配置成 *.do 形式 -->
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <welcome-file-list>
        <welcome-file>index.jsp</welcome-file>
    </welcome-file-list>

</web-app>

4.6完善index.jsp

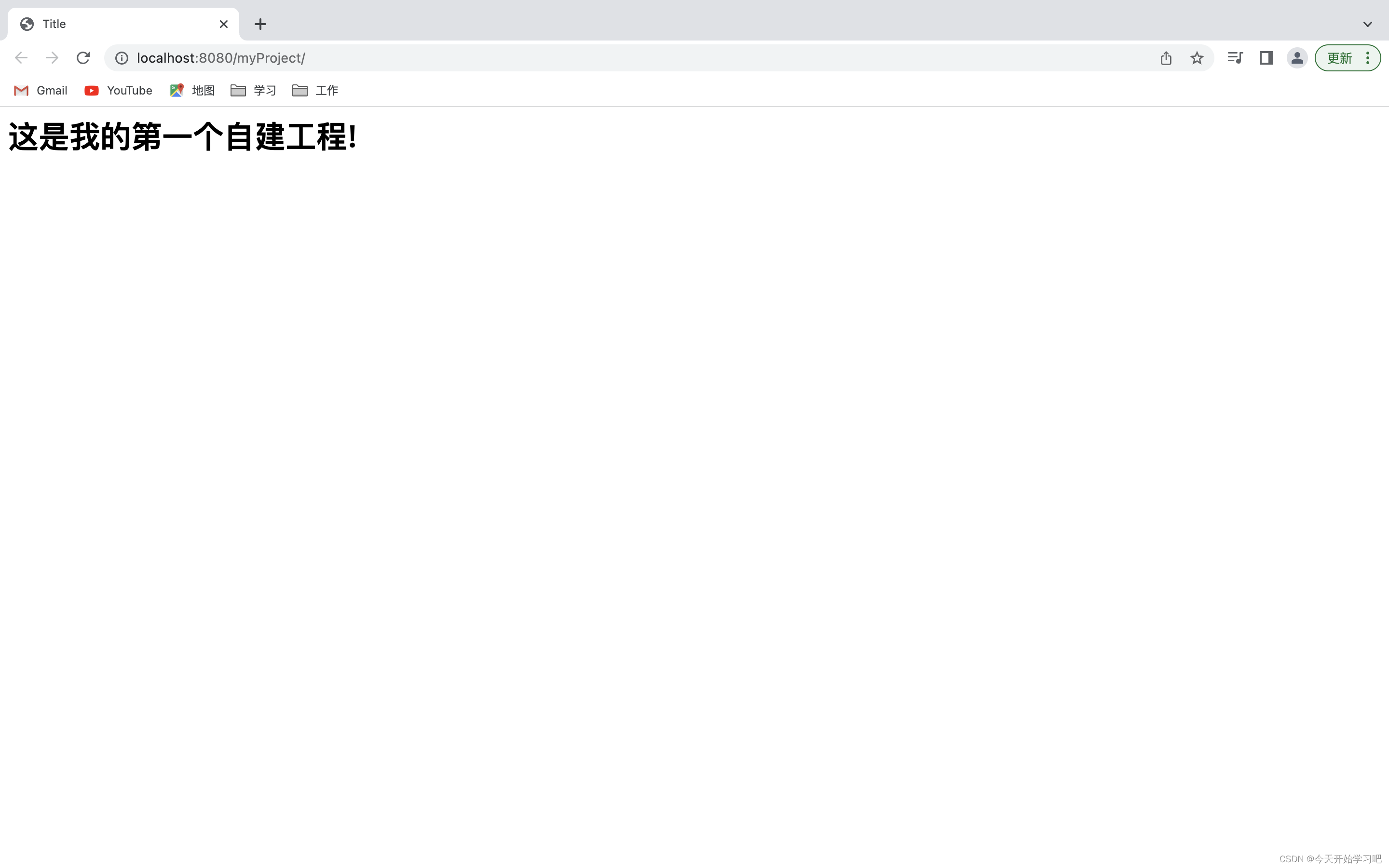

此文件是运行项目时默认访问的文件

<%@ page contentType="text/html;charset=UTF-8" language="java" isELIgnored="false"%>
<html>
<head>
    <title>Title</title>
</head>
<body>
    <h1>这是我的第一个自建工程!</h1>
</body>
</html>

4.7完善pom.xml

每次有新增的jar包，需要在此文件中添加依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>myProject</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <!-- spring版本号 -->
        <spring.version>4.3.5.RELEASE</spring.version>
        <!-- mybatis版本号 -->
        <mybatis.version>3.4.1</mybatis.version>
    </properties>

    <repositories>
        <repository>
            <id>nexus-aliyun</id>
            <name>nexus-aliyun</name>
            <url>http://maven.aliyun.com/nexus/content/groups/public/</url>
            <releases>
                <enabled>true</enabled>
            </releases>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </repository>
    </repositories>

    <dependencies>

        <!-- java ee -->
        <dependency>
            <groupId>javax</groupId>
            <artifactId>javaee-api</artifactId>
            <version>7.0</version>
        </dependency>

        <!-- 单元测试 -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>

        <!-- 实现slf4j接口并整合 -->
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>1.2.2</version>
        </dependency>

        <!-- JSON -->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.8.7</version>
        </dependency>

        <!-- 数据库 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.17</version>
            <scope>runtime</scope>
        </dependency>

        <!-- 数据库连接池 -->
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.2</version>
        </dependency>

        <!-- MyBatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>

        <!-- mybatis/spring整合包 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.1</version>
        </dependency>

        <!-- Spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>4.3.5.RELEASE</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.8.7</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>4.3.5.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <!--            <scope>provided</scope>-->
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.47</version>
        </dependency>

        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
            <version>4.1.6</version>
        </dependency>
    </dependencies>

    <build>
        <finalName>mavenTest</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <!-- 设置JDK版本 -->
                    <source>17</source>
                    <target>17</target>
                </configuration>
            </plugin>
        </plugins>

        <!-- 如果不添加此节点mybatis的mapper.xml文件都会被漏掉。 -->
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                    <include>*.*</include>
                </includes>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                    <include>*.*</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>
    </build>
</project>

5.添加示例代码

5.1完善domain文件

package org.example.domain;

import com.fasterxml.jackson.annotation.JsonFormat;

import java.util.Date;

public class DemoTable {
    private Integer id;
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss",timezone = "GMT+8")
    private Date createTime;
    private String createUser;
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss",timezone = "GMT+8")
    private Date editTime;
    private String editUser;
    private String name;
    private String gender;
    private Integer age;
    private String remark;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public Date getCreateTime() {
        return createTime;
    }

    public void setCreateTime(Date createTime) {
        this.createTime = createTime;
    }

    public String getCreateUser() {
        return createUser;
    }

    public void setCreateUser(String createUser) {
        this.createUser = createUser;
    }

    public Date getEditTime() {
        return editTime;
    }

    public void setEditTime(Date editTime) {
        this.editTime = editTime;
    }

    public String getEditUser() {
        return editUser;
    }

    public void setEditUser(String editUser) {
        this.editUser = editUser;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getGender() {
        return gender;
    }

    public void setGender(String gender) {
        this.gender = gender;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public String getRemark() {
        return remark;
    }

    public void setRemark(String remark) {
        this.remark = remark;
    }

}

5.2完善controller文件

package org.example.controller;

import org.example.domain.DemoTable;
import org.example.service.IDemoTableService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.*;

@RestController
@RequestMapping("/demo")
public class DemoTableController {

    @Autowired
    private IDemoTableService iDemoTableService;

    @GetMapping("/listDemoTable")
    public List<DemoTable> listDemoTable() {
        List<DemoTable> list = iDemoTableService.listDemoTable();
        return list;
    }

}

5.3完善service文件

package org.example.service;

import org.example.domain.DemoTable;

import java.util.List;

public interface IDemoTableService {

    List<DemoTable> listDemoTable();

}

5.4完善service.impl文件

package org.example.service.impl;

import org.example.domain.DemoTable;
import org.example.mapper.DemoTableMapper;
import org.example.service.IDemoTableService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class DemoTableServiceImpl implements IDemoTableService {

    @Autowired(required = false)
    private DemoTableMapper demoTableMapper;

    @Override
    public List<DemoTable> listDemoTable(){
        List<DemoTable> list=demoTableMapper.listDemoTable();
        return list;
    }

}

5.5完善mapper文件

package org.example.mapper;

import org.example.domain.DemoTable;

import java.util.List;

public interface DemoTableMapper {

    List<DemoTable> listDemoTable();

}

5.6完善mapper.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="org.example.mapper.DemoTableMapper">
    <resultMap type="org.example.domain.DemoTable" id="demoTableMap">
        <id property="id" column="id"/>
        <result property="createTime" column="create_time"/>
        <result property="createUser" column="create_user"/>
        <result property="editTime" column="edit_time"/>
        <result property="editUser" column="edit_user"/>
        <result property="name" column="name"/>
        <result property="gender" column="gender"/>
        <result property="age" column="age"/>
        <result property="remark" column="remark"/>
    </resultMap>

    <select id="listDemoTable" resultMap="demoTableMap">
        select *
        from demo_table
    </select>

</mapper>

6.运行项目

全部配置完成后，启动项目，弹出页面，如下图所示

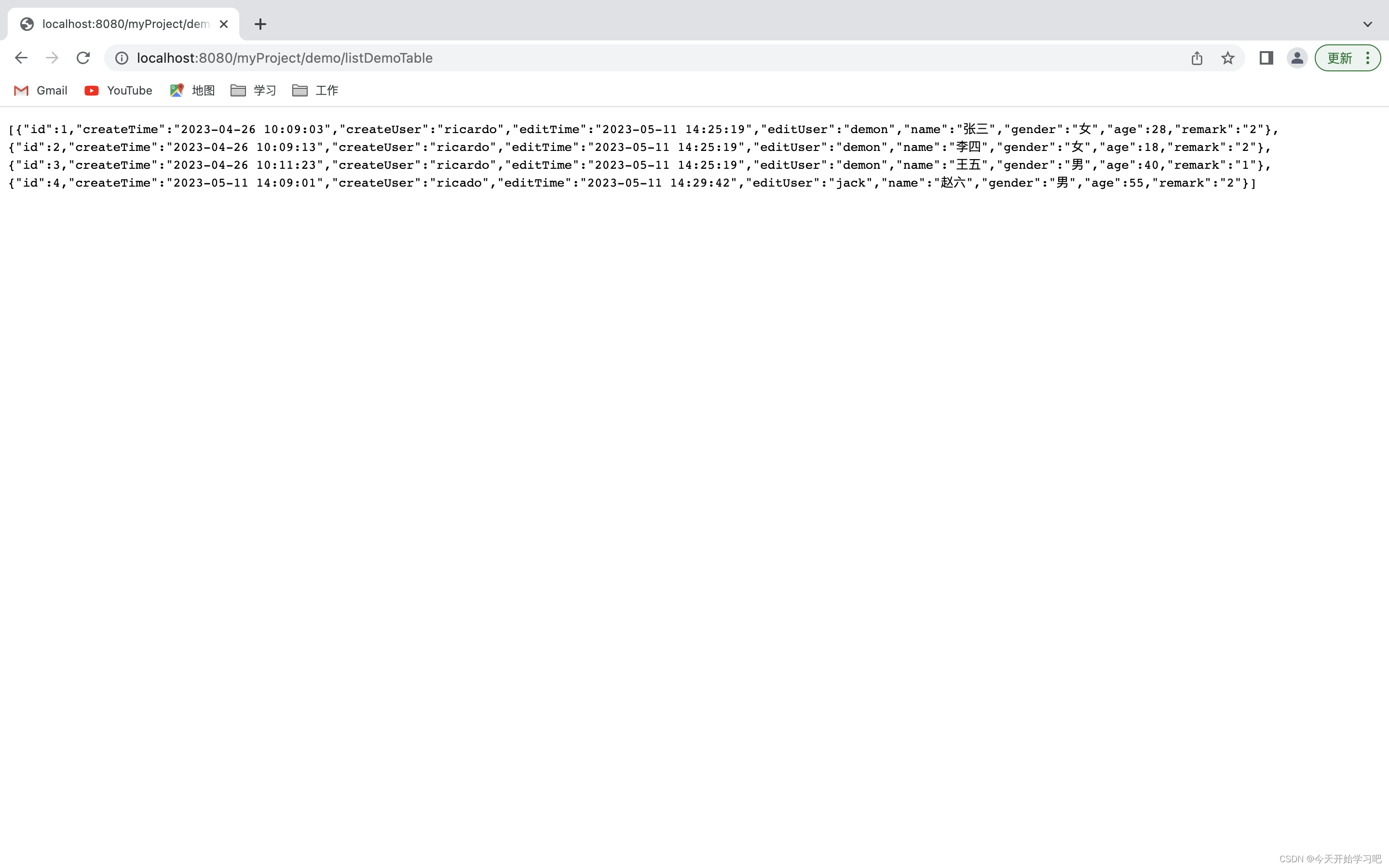

访问接口
http://localhost:8080/myProject/demo/listDemoTable
得到的结果如下图：

---

总结

以上就是本人在mac pro上搭建一个spring + maven + mybatis 项目的简单实现。
