/dev/mem

x86平台下只允许访问起始的1MB内存

# dd if=/dev/mem of=/dev/null

dd: error reading '/dev/mem': Operation not permitted
1048576 bytes (1.0 MB, 1.0 MiB) copied, 0.187975 s, 5.6 MB/s

workaround it by follows:

(1) Rebuild your kernel without the CONFIG_STRICT_DEVMEM restriction.
(2) Port the Fedora /dev/crash driver (./drivers/char/crash.c) to your kernel.
(3) Write a kretprobe module that tinkers with the return value of the
kernel's devmem_is_allowed() function such that it always returns 1.

http://gleeda.blogspot.com/2009/08/devcrash-driver.html

程序test1.c

#include <stdio.h>
#include <unistd.h>
#include <sys/mman.h>
#include <string.h>

int main(int argc, char **argv)
{
    unsigned char *addr;

    addr = mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_ANONYMOUS|MAP_SHARED, -1, 0);

    strcpy(addr, "AAAAA");

    printf("address at: %p   content is: %s\n", addr, addr);
    getchar();
    printf("address at: %p   content is: %s\n", addr, addr);

    munmap(addr, 4096);
    return 1;
}

下面做个实验通过/dev/mem来修改进程A的某个地址，

1) 编译后执行 ./test1

 address at: 0x7f252e412000   content is: AAAA

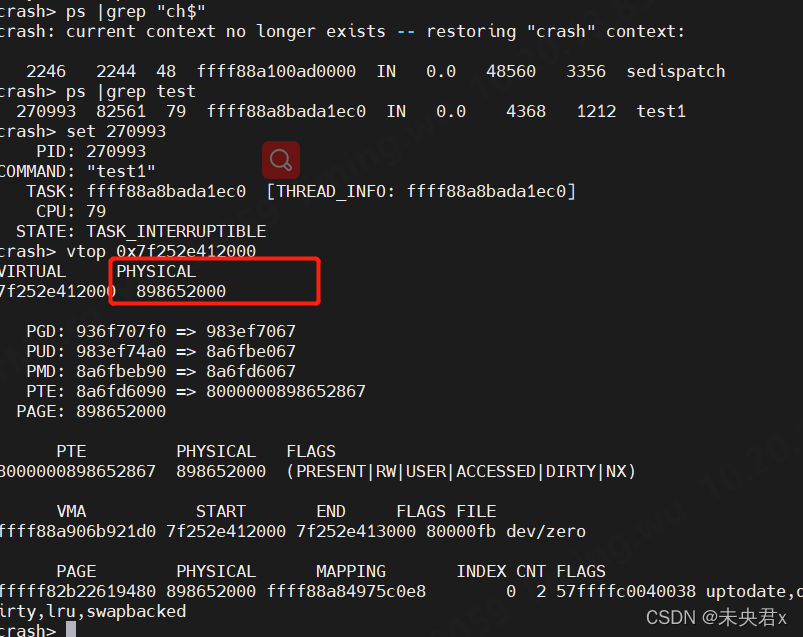

2） 通过crash工具查看0x7f252e412000 对应的物理地址

 3） 通过另外一个程序来修改这段物理地址

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/mman.h>
#include <string.h>
#include <fcntl.h>

int main(int argc, char **argv)
{
    int fd;
    unsigned char *addr;
    unsigned long off;

    off = strtol(argv[1], NULL, 16);

    fd = open("/dev/mem", O_RDWR);

    addr = mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_SHARED, fd, off);

    strcpy(addr, "changed by wlm");
    close(fd);

    munmap(addr, 4096);

    return 1;
}

编译后运行：./hack 0x898652000

可以看到入职直接运行会出现“Segmentation fault (core dumped)”的错误。

通过stap 跟踪可以看到 返回的是“0 pagenr=0x965447”,说明这段内存是不允许访问的。

# stap -e 'probe kernel.function("devmem_is_allowed").return { printf("%d %s", $return, $$parms)}'


4）于是我们可以通过stap来篡改devmem_is_allowed 的返回值。从而绕过这个问题。

运行这个命令后，需要退出crash后重进crash

# stap -g -e 'probe kernel.function("devmem_is_allowed").return { $return = 1 }'

5）test1程序键入回车，可以看到hack的输出。
