Docker学习（六）-Kubernetes - Spring Boot 应用

接上一篇

Docker学习（五）-Kubernetes 集群搭建 - Spring Boot 应用-优快云博客

新建

k8s-demo.yaml

apiVersion: apps/v1beta2
kind: Deployment
metadata:
  name: k8s-springboot-demo
  labels:
    app: k8s-springboot-demo
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: k8s-springboot-demo
  template:
    metadata:
      labels:
        app: k8s-springboot-demo
    spec:
      containers:
      - name: k8s-springboot-demo
        image: service-test:latest
        ports:
        - containerPort: 8080
          protocol: TCP
        livenessProbe:
          httpGet:
            path: /
            port: 8080
          initialDelaySeconds: 30
          timeoutSeconds: 30
        imagePullPolicy: IfNotPresent
      tolerations:
      - key: node-role.kubernetes.io/master
        effect: NoSchedule

---
apiVersion: v1
kind: Service
metadata:
  name: k8s-springboot-demo
  namespace: default
  labels:
    app: k8s-springboot-demo
spec:
  ports:
    - port: 8080
      targetPort: 8080
  selector:
    app: k8s-springboot-demo
  type: NodePort

创建service

 kubectl create -f k8s-demo.yaml

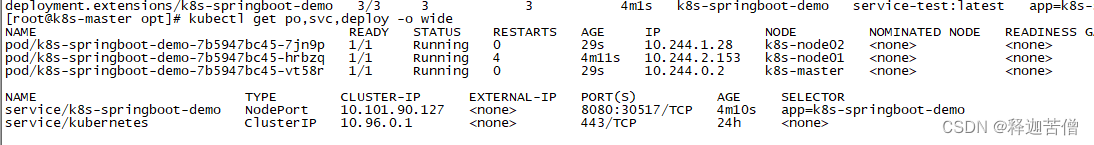

查看实列运行情况

kubectl get po,svc,deploy -o wide

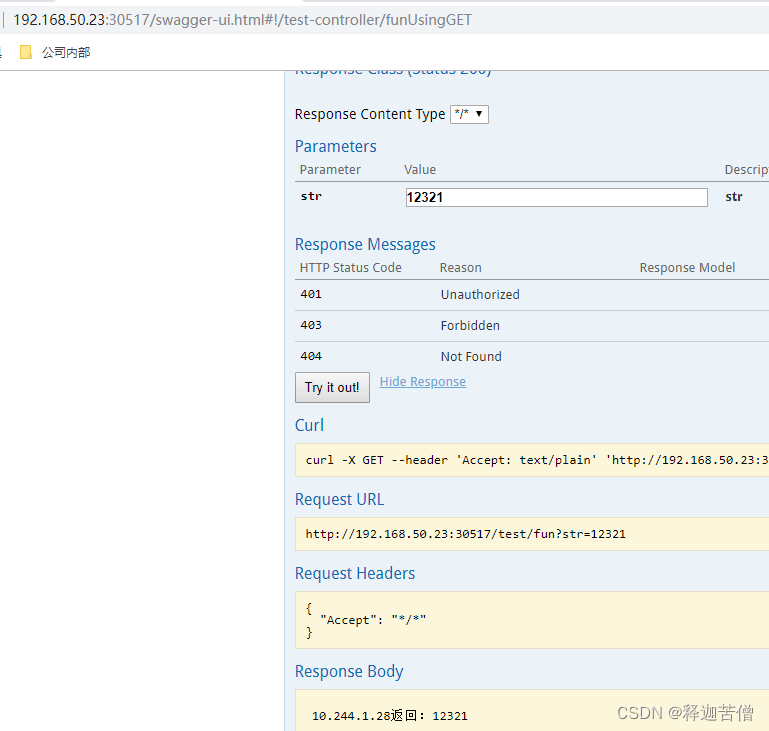

 测试访问

NodePort方式，可以到任意一个节点的30516端口查看
