spark hadoop 基础配置

1 准备环境

192.168.0.251 shulaibao1
192.168.0.252 shulaibao2
hadoop-2.8.0-bin
spark-2.1.1-bin-hadoop2.7
关闭selinux：
/etc/selinux/config：SELINUX=disabled

增加hadoop用户组与用户

$groupadd -g 1000 hadoop
$useradd -u 2000 -g hadoop hadoop
$mkdir -p /home/data/app/hadoop
$chown -R hadoop:hadoop /home/data/app/hadoop
$passwd hadoop

配置无密码登录

$ssh-keygen -t rsa $cd /home/hadoop/.ssh $cp id_rsa.pub
authorized_keys_hadoop1 $scp authorized_keys_hadoop2
hadoop@hadoop1:/home/hadoop/.ssh $scpauthorize{d}_{k}ey{s}_{h}adoop3hadoop@hadoop1:/home/hadoop/.ssh使用$cat authorized_keys_hadoop1 >>
authorized_keys 命令 使用$scp authorized_keys
hadoop@hadoop2:/home/hadoop/.ssh把密码文件分发出去

• 1.1 安装jdk

推荐jdk1.8

• 1.2 安装并设置protobuf

注：该程序包需要在gcc安装完毕后才能安装，否则提示无法找到gcc编译器。

• 1.2.1 下载protobuf安装包

推荐版本2.5+
下载链接为： https://code.google.com/p/protobuf/downloads/list
[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-3IyICxz1-1571794250477)(https://img-blog.youkuaiyun.com/20170930115439383?watermark/2/text/aHR0cDovL2Jsb2cuY3Nkbi5uZXQvd29sZmpzb24=/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70/gravity/SouthEast)]

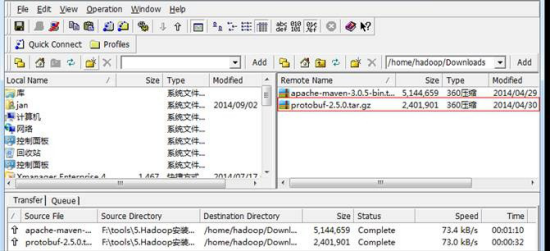

• 1.2.2使用ssh工具把protobuf-2.5.0.tar.gz包上传到/home/data/software目录

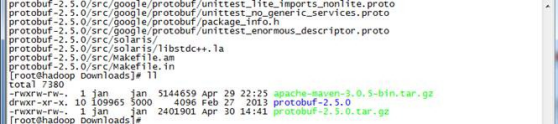

1.2.3 解压安装包

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-JEd51F29-1571794250479)(https://img-blog.youkuaiyun.com/20170930115605317?watermark/2/text/aHR0cDovL2Jsb2cuY3Nkbi5uZXQvd29sZmpzb24=/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70/gravity/SouthEast)]

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-1P1ZISnY-1571794250481)(https://img-blog.youkuaiyun.com/20170930122237135?watermark/2/text/aHR0cDovL2Jsb2cuY3Nkbi5uZXQvd29sZmpzb24=/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70/gravity/SouthEast)]

$tar -zxvf protobuf-2.5.0.tar.gz

• 1.2.4 把protobuf-2.5.0目录转移到/usr/local目录下

$sudo mv protobuf-2.5.0 /usr/local

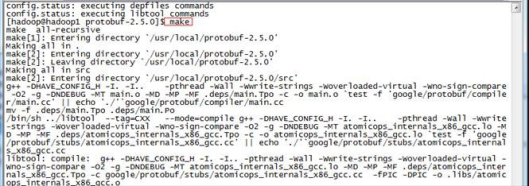

• 1.2.5 进行目录运行命令

进入目录以root用户运行如下命令：

#./configure
#make
#make check
#make install

• 1.2.6 验证是否安装成功

运行成功之后，通过如下方式来验证是否安装成功

#protoc

2 安装hadoop

• 2.1 上传、解压、创建目录

tar -zxvf
mkdir tmp
Mdkdir name
Mkdir data

• 2.2 hadoop核心配置

配置路径：/home/data/app/hadoop/etc/hadoop
Core.xml

<?xml version="1.0" encoding="UTF-8"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
  Licensed under the Apache License, Version 2.0 (the "License");
  you may not use this file except in compliance with the License.
  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

  Unless required by applicable law or agreed to in writing, software
  distributed under the License is distributed on an "AS IS" BASIS,
  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  See the License for the specific language governing permissions and
  limitations under the License. See accompanying LICENSE file.
-->

<!-- Put site-specific property overrides in this file. -->

<configuration>
  <property>
    <name>fs.default.name</name>
    <value>hdfs://shulaibao1:9010</value>
  </property>
  <property>
    <name>fs.defaultFS</name>
    <value>hdfs://shulaibao1:9010</value>
  </property>
  <property>
    <name>io.file.buffer.size</name>
    <value>131072</value>
  </property>
  <property>
    <name>hadoop.tmp.dir</name>
    <value>file:/home/data/app/hadoop/hadoop-2.8.0/tmp</value>
    <description>Abase for other temporary directories.</description>
  </property>
  <property>
    <name>hadoop.proxyuser.hduser.hosts</name>
    <value>*</value>
  </property>
  <property>
    <name>hadoop.proxyuser.hduser.groups</name>
    <value>*</value>
  </property>
</configuration>

Hdfs-site.xml

<?xml version="1.0" encoding="UTF-8"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
  Licensed under the Apache License, Version 2.0 (the "License");
  you may not use this file except in compliance with the License.
  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

  Unless required by applicable law or agreed to in writing, software
  distributed under the License is distributed on an "AS IS" BASIS,
  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  See the License for the specific language governing permissions and
  limitations under the License. See accompanying LICENSE file.
-->

<!-- Put site-specific property overrides in this file. -->

<configuration>
  <property>
   <name>dfs.namenode.secondary.http-address</name>
   <value>shulaibao1:9011</value>
  </property>
  <property>
   <name>dfs.namenode.name.dir</name>
   <value>file:/home/data/app/hadoop/hadoop-2.8.0/name</value>
  </property>
  <property>
   <name>dfs.datanode.data.dir</name>
   <value>file:/home/data/app/hadoop/hadoop-2.8.0/data</value>
  </property>
  <property>
   <name>dfs.replication</name>
   <value>1</value>
  </property>
  <property>
   <name>dfs.webhdfs.enabled</name>
   <value>true</value>
  </property>
</configuration>

Mapred-site.xml

<?xml version="1.0"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
  Licensed under the Apache License, Version 2.0 (the "License");
  you may not use this file except in compliance with the License.
  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

  Unless required by applicable law or agreed to in writing, software
  distributed under the License is distributed on an "AS IS" BASIS,
  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  See the License for the specific language governing permissions and
  limitations under the License. See accompanying LICENSE file.
-->

<!-- Put site-specific property overrides in this file. -->

<configuration>
  <property>
    <name>mapreduce.framework.name</name>
    <value>yarn</value>
  </property>
  <property>
    <name>mapreduce.jobhistory.address</name>
    <value>shulaibao1:10020</value>
  </property>
  <property>
    <name>mapreduce.jobhistory.webapp.address</name>
    <value>shulaibao1:19888</value>
  </property>
</configuration>

Yarn-site.xml

<?xml version="1.0"?>
<!--
  Licensed under the Apache License, Version 2.0 (the "License");
  you may not use this file except in compliance with the License.
  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

  Unless required by applicable law or agreed to in writing, software
  distributed under the License is distributed on an "AS IS" BASIS,
  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  See the License for the specific language governing permissions and
  limitations under the License. See accompanying LICENSE file.
-->

<!-- Site specific YARN configuration properties -->

<configuration>
  <property>
    <name>yarn.nodemanager.aux-services</name>
    <value>mapreduce_shuffle</value>
  </property>
  <property>
    <name>yarn.nodemanager.aux-services.mapreduce.shuffle.class</name>
    <value>org.apache.hadoop.mapred.ShuffleHandler</value>
  </property>
  <property>
    <name>yarn.resourcemanager.address</name>
    <value>shulaibao1:8032</value>
  </property>
  <property>
    <name>yarn.resourcemanager.scheduler.address</name>
    <value>shulaibao1:8030</value>
  </property>
  <property>
    <name>yarn.resourcemanager.resource-tracker.address</name>
    <value>shulaibao1:8031</value>
  </property>
  <property>
    <name>yarn.resourcemanager.admin.address</name>
    <value>shulaibao1:8033</value>
  </property>
  <property>
    <name>yarn.resourcemanager.webapp.address</name>
    <value>shulaibao1:8088</value>
  </property>
</configuration>

Slaves
shulaibao1
shulaibao2

• 2.2 hadoop-env.sh yarn-env.sh环境配置

/home/hadoop/.bash_profile增加环境变量

export JAVA_HOME=/home/data/software/jdk1.8.0_121
export HADOOP_HOME=/home/data/app/hadoop/hadoop-2.8.0
export PATH=$PATH:/home/data/app/hadoop/hadoop-2.8.0/bin

Hadoop-env.sh修改export

• HADOOP_CONF_DIR=KaTeX parse error: Expected '}', got 'EOF' at end of input: …OOP_CONF_DIR:-"HADOOP_HOME/etc/hadoop"}
• 2.3 分发到Scp -r source target -h -p2.4 验证hdfs

路径：/home/data/app/hadoop/hadoop-2.8.0/bin

• 初始化格式化namenode

$./bin/hdfs namenode -format

• 启动hdfs

$./start-dfs.sh

• Jps

Master：

Slave：

3 安装spark

• 3.1 下载并上传并解压
• 3.2 基础环境配置

/etc/profile
export SPARK_HOME=/home/data/app/hadoop/spark-2.1.1-bin-hadoop2.7
export PATH=$PATH:$SPARK_HOME/bin:$SPARK_HOME/sbin

• 3.3 spark核心配置

/home/data/app/hadoop/spark-2.1.1-bin-hadoop2.7/conf/spark-env.sh
export SPARK_MASTER_IP=shulaibao2
export SPARK_MASTER_PORT=7077
export SPARK_WORKER_CORES=1
export SPARK_WORKER_INSTANCES=1
export SPARK_WORKER_MEMORY=512M
export SPARK_LOCAL_IP=192.168.0.251
export PYTHONH

vim /home/data/app/hadoop/spark-2.1.1-bin-hadoop2.7/conf/slaves
shulaibao1
shulaibao2

• 3.4 发到其他机器

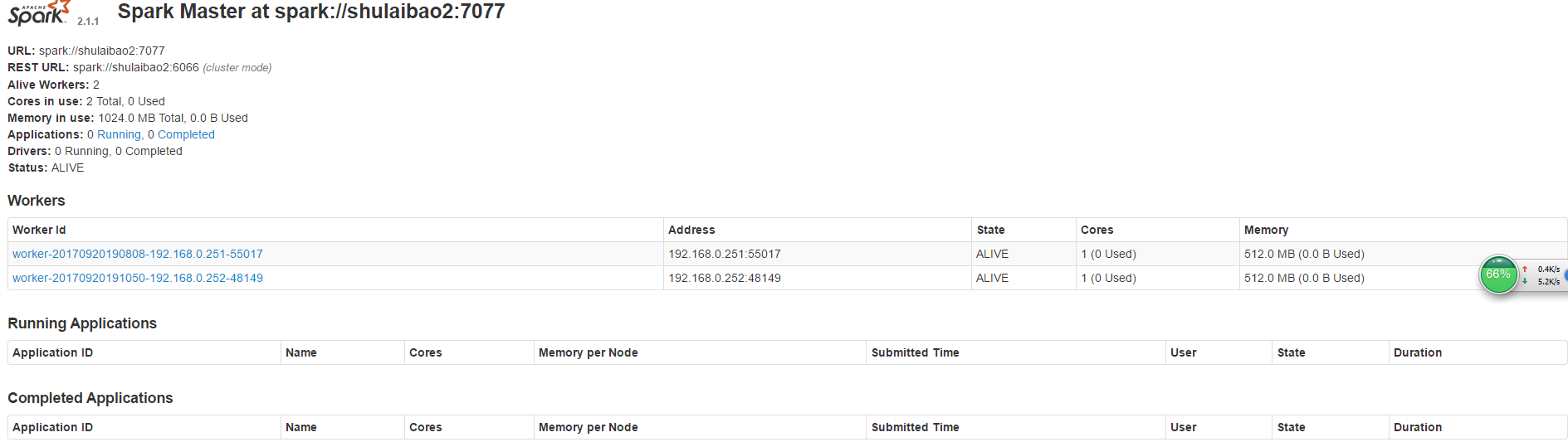

• 3.5 启动spark并验证

/home/data/app/hadoop/spark-2.1.1-bin-hadoop2.7/sbin
./start-all.sh

Master：

Slave：

Spark webui:http://192.168.0.252:8082/
