　　最近google发布了grpc1.0，数据交互使用了protocol buffer，相比之前使用的hession和json序列化方式性能应该提升不少，所有先搞一个grpc的hello world跑一下，项目使用maven搭建，并使用Eclipse开发。

一.使用Eclipse创建maven项目，添加pom配置

1.添加grpc1.0 maven依赖

<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <grpc.version>1.4.0</grpc.version><!-- CURRENT_GRPC_VERSION -->
</properties>

<dependencies>
	<dependency>
		<groupId>io.grpc</groupId>
		<artifactId>grpc-netty</artifactId>
		<version>${grpc.version}</version>
	</dependency>
	<dependency>
		<groupId>io.grpc</groupId>
		<artifactId>grpc-protobuf</artifactId>
		<version>${grpc.version}</version>
	</dependency>
	<dependency>
		<groupId>io.grpc</groupId>
		<artifactId>grpc-stub</artifactId>
		<version>${grpc.version}</version>
	</dependency>
	<dependency>
		<groupId>io.grpc</groupId>
		<artifactId>grpc-testing</artifactId>
		<version>${grpc.version}</version>
		<scope>test</scope>
	</dependency>
	<dependency>
		<groupId>junit</groupId>
		<artifactId>junit</artifactId>
		<version>4.11</version>
		<scope>test</scope>
	</dependency>
	<dependency>
		<groupId>org.mockito</groupId>
		<artifactId>mockito-core</artifactId>
		<version>1.9.5</version>
		<scope>test</scope>
	</dependency>
</dependencies>

2.配置protobuf maven插件

配置了protobuf 插件后，可以自动将.proto文件生成对应的java代码。

<build>
	<extensions>
		<extension>
			<groupId>kr.motd.maven</groupId>
			<artifactId>os-maven-plugin</artifactId>
			<version>1.4.1.Final</version>
		</extension>
	</extensions>
	<plugins>
		<plugin>
			<groupId>org.xolstice.maven.plugins</groupId>
			<artifactId>protobuf-maven-plugin</artifactId>
			<version>0.5.0</version>
			<configuration>
				<protocArtifact>com.google.protobuf:protoc:3.3.0:exe:${os.detected.classifier}</protocArtifact>
				<pluginId>grpc-java</pluginId>
				<pluginArtifact>io.grpc:protoc-gen-grpc-java:${grpc.version}:exe:${os.detected.classifier}</pluginArtifact>
			</configuration>
			<executions>
				<execution>
					<goals>
						<goal>compile</goal>
						<goal>compile-custom</goal>
					</goals>
				</execution>
			</executions>
		</plugin>
	</plugins>
</build>

　　配置完，整个pom.xml文件内容如下：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.bijian</groupId>
  <artifactId>test-grpc</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>jar</packaging>

  <name>test-grpc</name>
  <url>http://maven.apache.org</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <grpc.version>1.4.0</grpc.version><!-- CURRENT_GRPC_VERSION -->
  </properties>

    <dependencies>
        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-netty</artifactId>
            <version>${grpc.version}</version>
        </dependency>
        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-protobuf</artifactId>
            <version>${grpc.version}</version>
        </dependency>
        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-stub</artifactId>
            <version>${grpc.version}</version>
        </dependency>
        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-testing</artifactId>
            <version>${grpc.version}</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.mockito</groupId>
            <artifactId>mockito-core</artifactId>
            <version>1.9.5</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <extensions>
            <extension>
                <groupId>kr.motd.maven</groupId>
                <artifactId>os-maven-plugin</artifactId>
                <version>1.4.1.Final</version>
            </extension>
        </extensions>
        <plugins>
            <plugin>
                <groupId>org.xolstice.maven.plugins</groupId>
                <artifactId>protobuf-maven-plugin</artifactId>
                <version>0.5.0</version>
                <configuration>
                    <protocArtifact>com.google.protobuf:protoc:3.3.0:exe:${os.detected.classifier}</protocArtifact>
                    <pluginId>grpc-java</pluginId>
                    <pluginArtifact>io.grpc:protoc-gen-grpc-java:${grpc.version}:exe:${os.detected.classifier}</pluginArtifact>
                </configuration>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>compile-custom</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
	</build>
</project>

二.编写proto文件helloworld.proto

syntax = "proto3";

option java_multiple_files = true;
option java_package = "io.grpc.examples.helloworld";
option java_outer_classname = "HelloWorldProto";
option objc_class_prefix = "HLW";

package helloworld;

// The greeting service definition.
service Greeter {
  // Sends a greeting
  rpc SayHello (HelloRequest) returns (HelloReply) {}
}

// The request message containing the user's name.
message HelloRequest {
  string name = 1;
}

// The response message containing the greetings
message HelloReply {
  string message = 1;
}

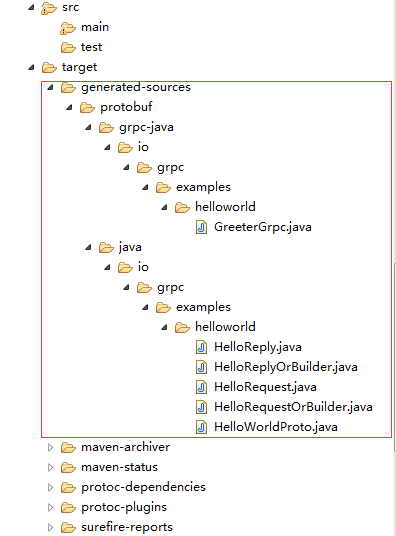

然后点击pom.xml右击->Run as->Maven install，将会在target/generatedo-sources下生成的对应的java代码，如下所示：

　　将生成的代码拷贝到src/main/java下，如下所示（有几处@java.lang.Override的编译错误，去掉即可）：

三.编写grpc 服务端HelloWorldServer.java

package com.bijian.test_grpc;

import io.grpc.Server;
import io.grpc.ServerBuilder;
import io.grpc.examples.helloworld.GreeterGrpc;
import io.grpc.examples.helloworld.HelloReply;
import io.grpc.examples.helloworld.HelloRequest;
import io.grpc.stub.StreamObserver;
import java.io.IOException;

public class HelloWorldServer {

    private int port = 50051;
    private Server server;

    private void start() throws IOException {

        server = ServerBuilder.forPort(port)
                .addService(new GreeterImpl())
                .build()
                .start();

        System.out.println("service start...");

        Runtime.getRuntime().addShutdownHook(new Thread() {

            @Override
            public void run() {

                System.err.println("*** shutting down gRPC server since JVM is shutting down");
                HelloWorldServer.this.stop();
                System.err.println("*** server shut down");
            }
        });
    }

    private void stop() {
        if (server != null) {
            server.shutdown();
        }
    }

    // block 一直到退出程序
    private void blockUntilShutdown() throws InterruptedException {
        if (server != null) {
            server.awaitTermination();
        }
    }

    public static void main(String[] args) throws IOException, InterruptedException {

        final HelloWorldServer server = new HelloWorldServer();
        server.start();
        server.blockUntilShutdown();
    }

    // 实现 定义一个实现服务接口的类
    private class GreeterImpl extends GreeterGrpc.GreeterImplBase {

        public void sayHello(HelloRequest req, StreamObserver<HelloReply> responseObserver) {
            System.out.println("service:"+req.getName());
            HelloReply reply = HelloReply.newBuilder().setMessage(("Hello: " + req.getName())).build();
            responseObserver.onNext(reply);
            responseObserver.onCompleted();
        }
    }
}

四.编写grpc 客户端 HelloWorldClient.java

package com.bijian.test_grpc;

import io.grpc.ManagedChannel;
import io.grpc.ManagedChannelBuilder;
import io.grpc.examples.helloworld.GreeterGrpc;
import io.grpc.examples.helloworld.HelloReply;
import io.grpc.examples.helloworld.HelloRequest;
import java.util.concurrent.TimeUnit;

public class HelloWorldClient {

    private final ManagedChannel channel;
    private final GreeterGrpc.GreeterBlockingStub blockingStub;

    public HelloWorldClient(String host,int port){
        channel = ManagedChannelBuilder.forAddress(host,port)
                .usePlaintext(true)
                .build();

        blockingStub = GreeterGrpc.newBlockingStub(channel);
    }


    public void shutdown() throws InterruptedException {
        channel.shutdown().awaitTermination(5, TimeUnit.SECONDS);
    }

    public void greet(String name){
        HelloRequest request = HelloRequest.newBuilder().setName(name).build();
        HelloReply   response = blockingStub.sayHello(request);
        System.out.println(response.getMessage());

    }

    public static void main(String[] args) throws InterruptedException {
        HelloWorldClient client = new HelloWorldClient("127.0.0.1",50051);
        for(int i=0;i<5;i++){
            client.greet("world:"+i);
        }
    }
}

五.项目完整结构

六.项目运行结果

服务端

service start...
service:world:0
service:world:1
service:world:2
service:world:3
service:world:4
三月 17, 2018 9:30:40 下午 io.grpc.netty.NettyServerTransport notifyTerminated

客户端

Hello: world:0
Hello: world:1
Hello: world:2
Hello: world:3
Hello: world:4

参考文章：http://blog.youkuaiyun.com/whzhaochao/article/details/52421867
