经典好文推荐，通过阅读本文，您将收获以下知识点:

一、MTK Camera 预览流程
二、MTK Camera Trace 启动流程拆解

一、MTK Camera 预览流程

1.1 MTK camera app 预览大致流程

  1. Camera app 开始准备Open Camera call到Camera Service的 connect call 开始链接底层
  2. Camera FWK 响应 camera app 下发的open 动作
  3. Camera HAL 开始响应 下发的 open session
  4. open阶段为了启动速度，开始CPU提频进入perf模式
  5. Camera hal 层开始响应startOpenDevice attachOpenDeviceLocked
  6. Camera HAL 初始化 pipline 一些静态信息，调用Sensor HalDeviceAdapter 开始power on createInstance --> initSensor -->setSensorMclk 上电流程
  7. Camera HAL 初始化闪光灯
  8. Camera APP 检查open state 状态 CAMERA_OPENING，并匹配最合适的预览size，拍照size、缩略图size
  9. Camera app 创建会话请求后开始配流请求，
  10. Camera app 创建会话 开启配流
  11. 配置并申请 buffer
  12. OTP lsc校准数据获取
  13. 3A Hal、ISP Hal、 Sensor power on流程结束，开始向上callback 通知poweron 流程结束
  14. 预览场景需要走的Feature feature combination: MTK_CAMERA_SCENARIO_STREAMING_NORMAL
  15. 解析配流size ，parseStreamSize_4Cell select size 尺寸，选择sensormode
  16. 决策 P1 IMGO && RRZO 配置影响功耗
  17. 决策预览size ，FD size，sensor 出图size
  18. 开始配流
  19. 开始build P1 stream流信息
  20. pipeline context dump 预览流、拍照流、流经的node
  21. AppStreamMgr 配3路流 预览： 1280x720 ；拍照：4080x2296 ； 缩略图：160x96
  22. Camera app 创建会话结束 配流结束
  23. OTP 数据获取
  24. 配流结束，Camera APP 用于在CameraCaptureSession中设置预览请求，以实现连续的相机预览或视频录制等功能
  25. Camera HAL 开始准备第一帧预览请求 [submitRequest] <4Cell/0> requestNo:0
  26. Camera FWK 第一帧请求ok
  27. Camera HAL 出图并callback result 到上层 Frame timer: 预览出图 frame end updateResult callback 预览帧到上层

1.2 MTK camera app 预览 流程 log如下：

//1. Camera  app 开始准备Open Camera call到Camera Service的 connect call 开始链接底层
    03-14 22:07:13.569627  2897  2897 I CamAp_DeviceMgr2: [openCamera] cameraId = 0
    03-14 22:07:13.578430  1046  2371 I CameraService: CameraService::connect call (PID 2897 "com.mediatek.camera", camera ID 0) and Camera API version 2

    //2.camera FWK 响应 camera app  下发的open 动作
    03-14 22:07:13.584792  1046  2371 I Camera2ClientBase: Camera 0: Opened. Client: com.mediatek.camera (PID 2897, UID 10092)
    03-14 22:07:13.584858  1046  2371 I CameraDeviceClient: CameraDeviceClient 0: Opened

    //3. Camera  HAL 开始响应 下发的 open session
    03-14 22:07:13.589530  1127  1127 I mtkcam-dev3: 0[CameraDevice3Impl::open] open camera3 device (device@1.1/internal/0) systraceLevel(1) instanceId(0) vid(0)
    03-14 22:07:13.590813  1127  1127 D mtkcam_hal_aidl_device: [0-aidl-session::open] +, callback=0xb400007c9aca8dc0  // 通过0-aidl-session::open 下发opensession
    03-14 22:07:13.591310  1127  1127 I mtkcam-dev3: [0-session::open] +

    //4. open阶段为了启动速度，开始CPU提频进入perf模式
    03-14 22:07:13.591339  1127  1127 D mtkcam-dev3: [0-session::open] Enter camera perf mode
    03-14 22:07:13.591367  1127  1127 D Cam3CPUCtrl: [enterCameraPerf] enable PERF_RES_DRAM_CM_MGR_CAM_ENABLE
    03-14 22:07:13.591384  1127  1127 D Cam3CPUCtrl: [enterCameraPerf] enable PERF_RES_SCHED_PREFER_IDLE_TA
    03-14 22:07:13.591396  1127  1127 D Cam3CPUCtrl: [enterCameraPerf] enable PERF_RES_SCHED_PREFER_IDLE_FG
    03-14 22:07:13.591411  1127  1127 D Cam3CPUCtrl: [enterCameraPerf] enable PERF_RES_FPS_FPSGO_CONTROL
    03-14 22:07:13.591423  1127  1127 D Cam3CPUCtrl: [enterCameraPerf] enable PERF_RES_FPS_FBT_CEILING_ENABLE
    03-14 22:07:13.591434  1127  1127 D Cam3CPUCtrl: [enterCameraPerf] enable PERF_RES_FPS_FPSGO_CONTROL_HWUI
    03-14 22:07:13.591453  1127  1127 I mtkpower_client: perf_lock_acq, hdl:0, dur:0, num:12, pid:1127, tid:1127
    03-14 22:07:13.595494  1127  1127 D Cam3CPUCtrl: [enterCameraPerf] enterCameraPerf done

    // 5.Camera hal 层开始响应startOpenDevice attachOpenDeviceLocked
    03-14 22:07:13.598245  1127  1127 D mtkcam-devicemgr: [startOpenDevice] + device@1.1/internal/0 mActiveOperationCommandList.size:0 mOpenDeviceMap.size:0 mPhysEnumDeviceMap.size:3 mVirtEnumDeviceMap.size:5
    03-14 22:07:13.598763  1127  1127 I mtkcam-devicemgr: [attachOpenDeviceLocked] device: device@1.1/internal/0 openTimestamp:03-14 22:07:13.598
    03-14 22:07:13.599583  1127  1127 D mtkcam-dev3: [0-session::tryRunCommandLocked] Run command onOpenLocked +
    03-14 22:07:13.599616  1127  1127 D mtkcam-dev3: [0-session::onOpenLocked] +
    03-14 22:07:13.599646  1127  1127 D mtkcam-dev3: [0-session::onOpenLocked] Disable HalBufHandler

    // 6. Camera HAL 初始化 pipline 一些静态信息，调用Sensor HalDeviceAdapter 开始power on createInstance --> initSensor -->setSensorMclk 上电流程
    03-14 22:07:13.601516  1127  1127 I mtkcam-pipelinemodel: [initPipelineStaticInfo] idx[0]: sensorId[0]: fcellSensorPattern(2)
    03-14 22:07:13.602602  1127  3169 I mtkcam-DeviceAdapter: 0[HalDeviceAdapter::powerOn] powerOn +  // HalDeviceAdapter 开始poweron
    03-14 22:07:13.603036  1127  3169 D Hal3Av3 : [createInstance] sensorIdx(0) HalDeviceAdapter:0
    03-14 22:07:13.603073  1127  3171 D mtkcam-DeviceAdapter: [initSensor] powerOnSensor0      //初始化 powerOnSensor0
    03-14 22:07:13.603127  1127  3171 D MtkCam/HalSensorList: [querySecureState] Secure State is 0
    03-14 22:07:13.603161  1127  3171 D SeninfDrvImp: [init][init]: Entry count 0
    03-14 22:07:13.605041  1127  3171 D MtkCam/HalSensor: [powerOn] sensorIdx : 0
    03-14 22:07:13.605756  1127  3171 D MtkCam/HalSensor: [setSensorMclk] sensorIdx 0, mclk_src 1, SensorMCLKPLL 1000 // SensorMCLKPLL

    // 7.Camera HAL 初始化闪光灯
    03-14 22:07:13.617934  1127  3169 I FlashHal: init().
    03-14 22:07:13.618039  1127  3169 I StrobeDrvFlashlightFops: openkd(): mUsers(1).
    03-14 22:07:13.618107  1127  3169 I StrobeDrvFlashlightFops: ioctl failed: type/ct (1,1) Inappropriate ioctl for device
    03-14 22:07:13.618134  1127  3169 E StrobeDrvFlashlight: getMaxDuty(): failed. (getMaxDuty){#266:vendor/mediatek/proprietary/hardware/mtkcam/aaa/source/isp_40/../common/strobe/strobe_drv_flashlight.cpp}
    03-14 22:07:13.618148  1127  3169 I StrobeDrvFlashlight: maxDuty:0
    03-14 22:07:13.629444  1127  3177 D MtkCam/SensorProviderService: (3177)[doEnableSensor] SensorManager createEventQueue successfully

    // 8. Camera APP 检查open state 状态  CAMERA_OPENING，并匹配最合适的预览size，拍照size、缩略图size
    03-14 22:07:13.674999  2897  3180 I CamAp_PhotoDevice2Controller: [openCamera] cameraId : 0,sync = false
    03-14 22:07:13.675183  2897  3180 I CamAp_PhotoDevice2Controller: [canOpenCamera] new id: 0 current camera :null isSameCamera = false current state : CAMERA_UNKNOWN isStateReady = true can open : true
    03-14 22:07:13.675373  2897  3180 I CamAp_DeviceMgr2: [openCamera] cameraId = 0
    03-14 22:07:13.725902  2897  3180 I CamAp_PhotoDevice2Controller: [onOpened]  camera2proxy = com.mediatek.camera.common.device.v2.Camera2Proxy@8ef6f46 preview surface = null  mCameraState = CAMERA_OPENINGcamera2Proxy id = 0 mCameraId = 0
    03-14 22:07:13.751381  2897  3180 I CamAp_CameraUtil: findBestMatchPanelSize size: 1280 X 720    // 匹配最合适的预览size
    03-14 22:07:13.751473  2897  3180 I CamAp_PhotoDevice2Controller: [updatePictureSize] :4080x2296 //拍照size、
    03-14 22:07:13.757624  2897  3180 I CamAp_CaptureSurface: [updatePictureInfo] width = 160,height = 96,format = 35,maxImage = 5, hasImageReader = false mCaptureType = thumbnail  //缩略图size

    //9.app 创建会话请求后开始配流请求，
    03-14 22:07:13.761319  2897  3180 I CamAp_PhotoDevice2Controller: [configureSession] +, isFromOpen :true // app 创建会话
    03-14 22:07:13.763024  2897  3163 I CamAp_API2-Handler-0: [createCaptureRequest]+, pending time = 0ms.   // app 创建预览请求
    03-14 22:07:13.763504  1127  1532 D mtkcam-dev3: [0-session::constructDefaultRequestSettings] -> constructDefaultRequestSettings (type:0x1)
    03-14 22:07:13.764230  2897  3163 I CamAp_API2-Handler-0: [createCaptureRequest]-, executing time = 1ms.

    //10. Camera app 创建会话  开启配流
    03-14 22:07:13.767801  2897  3163 I CamAp_API2-Handler-0: [createCaptureSession]+, pending time = 0ms.
    03-14 22:07:13.768280  2897  3163 I CamAp_API2-Handler-0: [createCaptureSession] with mOutputConfigs
    03-14 22:07:13.782269  1127  1127 I mtkcam_hal_aidl_device: [0-aidl-session::configureStreams] Stream{id: 0, streamType: OUTPUT, width: 1280, height: 720, format: IMPLEMENTATION_DEFINED, usage: GPU_TEXTURE, dataSpace: UNKNOWN, rotation: ROTATION_0, physicalCameraId: , bufferSize: 0, groupId: -1, sensorPixelModesUsed: [ANDROID_SENSOR_PIXEL_MODE_DEFAULT], dynamicRangeProfile: ANDROID_REQUEST_AVAILABLE_DYNAMIC_RANGE_PROFILES_MAP_STANDARD, useCase: ANDROID_SCALER_AVAILABLE_STREAM_USE_CASES_DEFAULT, colorSpace: -1}
    03-14 22:07:13.782320  1127  1127 I mtkcam_hal_aidl_device: [0-aidl-session::configureStreams] Stream{id: 1, streamType: OUTPUT, width: 4080, height: 2296, format: BLOB, usage: CPU_READ_OFTEN, dataSpace: JFIF, rotation: ROTATION_0, physicalCameraId: , bufferSize: 14461181, groupId: -1, sensorPixelModesUsed: [ANDROID_SENSOR_PIXEL_MODE_DEFAULT], dynamicRangeProfile: ANDROID_REQUEST_AVAILABLE_DYNAMIC_RANGE_PROFILES_MAP_STANDARD, useCase: ANDROID_SCALER_AVAILABLE_STREAM_USE_CASES_DEFAULT, colorSpace: -1}
    03-14 22:07:13.782403  1127  1127 I mtkcam_hal_aidl_device: [0-aidl-session::configureStreams] Stream{id: 2, streamType: OUTPUT, width: 160, height: 96, format: YCBCR_420_888, usage: CPU_READ_OFTEN, dataSpace: JFIF, rotation: ROTATION_0, physicalCameraId: , bufferSize: 0, groupId: -1, sensorPixelModesUsed: [ANDROID_SENSOR_PIXEL_MODE_DEFAULT], dynamicRangeProfile: ANDROID_REQUEST_AVAILABLE_DYNAMIC_RANGE_PROFILES_MAP_STANDARD, useCase: ANDROID_SCALER_AVAILABLE_STREAM_USE_CASES_DEFAULT, colorSpace: -1}
    03-14 22:07:13.816786  2897  2897 I CamAp_QuickActivity: onStart()
    03-14 22:07:13.820492  2897  2897 I CamAp_QuickActivity: onResume()

    //11.配置并申请 buffer
    03-14 22:07:13.782439  1127  1127 D mtkcam_hal_aidl_utils: [configBufferCacheMap] streamId:0x0, add to mBufferHandleCacheMap
    03-14 22:07:13.782457  1127  1127 D mtkcam_hal_aidl_utils: [configBufferCacheMap] streamId:0x1, add to mBufferHandleCacheMap
    03-14 22:07:13.782474  1127  1127 D mtkcam_hal_aidl_utils: [configBufferCacheMap] streamId:0x2, add to mBufferHandleCacheMap
    03-14 22:07:13.831120  1127  3169 I DMABUFHEAPS: Using DMA-BUF heap named: mtk_mm
    03-14 22:07:13.831250  1127  3169 D MtkCam/IonHeap: [IonHeap::doAllocDma] allocate success...fd:18 1536x16-STA_BYTE-CT_0

    //12.OTP 校准数据获取
    03-14 22:07:13.827473  1127  3169 D CamCalHelper: CamCalHelper Get cal data.
    03-14 22:07:13.827494  1127  3169 I CamCalCamCal: ver0723 pCamCalData->deviceID=1
    03-14 22:07:13.827509  1127  3169 I CamCalCamCal: ver0723 g_lastSensorID=2376  pCamCalData->sensorID=5026
    03-14 22:07:13.827521  1127  3169 I CamCalCamCal: ver0723 s_preloadSizeLimitDefaultValue = 0x1500,change value to 0x214d
    03-14 22:07:13.827533  1127  3169 I CamCalCamCal: ver0723 u4Offset=0 u4Length=4 sensorID=5026
    03-14 22:07:13.827547  1127  3169 D CamCalHelper: CamCalHelper Read data from memory[0]
    03-14 22:07:13.827561  1127  3169 I CamCalCamCal: ver0723 Table[0] ID= 0x6000101, CID = 0x13000000
    03-14 22:07:13.827573  1127  3169 I CamCalCamCal: ver0723 Table[1] ID= 0x13000000, CID = 0x13000000
    03-14 22:07:13.827588  1127  3169 I CamCalCamCal: ver0723 CID Matched! DevID=1, DataVer=2
    03-14 22:07:13.827600  1127  3169 I CamCalCamCal: ver0723 LayoutType= 0x1
    03-14 22:07:13.827612  1127  3169 I CamCalCamCal: ver0723 result= 0x0
    03-14 22:07:13.827623  1127  3169 I CamCalCamCal: ver0723 result = 0, LayoutType = 1
    03-14 22:07:13.827635  1127  3169 I CamCalCamCal: ver0723  lsc table_size 1868
    03-14 22:07:13.827647  1127  3169 I CamCalCamCal: ver0723  u4Offset=53 u4Length=1868
    03-14 22:07:13.827660  1127  3169 D CamCalHelper: CamCalHelper Read data from memory[0]
    03-14 22:07:13.827673  1127  3169 I CamCalCamCal: ver0723 ====================== SingleLsc Data==================
    03-14 22:07:13.827851  1127  3169 I CamCalCamCal: ver0723 ======================SNInfo==================

    //13.3A Hal、ISP Hal、  Sensor power on流程结束，开始向上callback 通知poweron 流程结束
    03-14 22:07:13.847626  1127  3171 D MtkCam/HalSensor: [powerOn] - <HalDeviceAdapter:0> ret:1, meSensorDev = 0x1
    03-14 22:07:13.874610  1127  3169 D MtkCam/Utils: {CamProfile}[HalDeviceAdapter:0::powerOn] 3A Hal -: (0-th) ===> [start-->now: 271 ms]
    03-14 22:07:13.875060  1127  3169 D MtkCam/Utils: {CamProfile}[HalDeviceAdapter:0::powerOn] ISP Hal -: (1-th) ===> [start-->now: 272 ms] [last-->now: 0 ms]
    03-14 22:07:13.875081  1127  3169 D MtkCam/Utils: {CamProfile}[HalDeviceAdapter:0::powerOn] Sensor powerOn -: (2-th) ===> [start-->now: 272 ms] [last-->now: 0 ms]
    03-14 22:07:13.875123  1127  3169 D MtkCam/HwInfoHelper: [get4CellSensorPattern] SensorStaticInfo 4CellSensor_Pattern(type:6) (pattern:Packed)
    03-14 22:07:13.875143  1127  3169 I mtkcam-DeviceAdapter: 0[HalDeviceAdapter::powerOn] 3A notifyPowerOn //3a 上电成功
    03-14 22:07:13.875182  1127  3169 D Hal3Av3 : [notifyPwrOn]+
    03-14 22:07:13.875294  1127  3169 D Hal3Av3 : [notifyPwrOn]-
    03-14 22:07:13.875312  1127  3169 D MtkCam/Utils: {CamProfile}[HalDeviceAdapter:0::powerOn] 3A notifyPowerOn -: (3-th) ===> [start-->now: 272 ms] [last-->now: 0 ms]
    03-14 22:07:13.875326  1127  3169 I mtkcam-DeviceAdapter: 0[HalDeviceAdapter::powerOn] powerOn - // poweron 流程结束

    //14.预览场景需要走的Feature  feature combination: MTK_CAMERA_SCENARIO_STREAMING_NORMAL
    03-14 22:07:13.881067  2897  3180 I CamAp_PhotoDevice2Controller: [canOpenCamera] new id: 0 current camera :0 isSameCamera = true current state : CAMERA_OPENED isStateReady = false can open : false
    03-14 22:07:13.907321  1127  1127 D mtkcam-FeatureSettingPolicy: [extractStreamConfiguration_Default] .AppConfiguration(#sessionParams=7,operation=0) .AppImageStreamInfo(videoConsumer=0) .3DNR(force=1,ap=0,dual=0,stereo=0) .EIS(ap=0,adv=0,adv_support=1,EM=0,multiZoom:0); proprietaryClient:1, AF:1, AIShutter:0
    03-14 22:07:13.907427  1127  1127 D mtkcam-customer_scenario_mgr: [customer_get_streaming_scenario] scenarioHint(isDualCam:0(0x0), streamingScenarioIndex:-1), isVideo(0)
    03-14 22:07:13.907445  1127  1127 I mtkcam-customer_scenario_mgr: [customer_get_streaming_scenario] no dedicated scenario, normal scenario
    03-14 22:07:13.907458  1127  1127 I mtkcam-customer_scenario_mgr: [customer_get_streaming_scenario] scenario:51
    03-14 22:07:13.907503  1127  1127 D mtkcam-customer_scenario_mgr: [customer_get_features_table_by_scenario] scenario:51, table size:1
    03-14 22:07:13.907541  1127  1127 I mtkcam-customer_scenario_mgr: [customer_get_features_table_by_scenario] find features for scenario(51 : MTK_CAMERA_SCENARIO_STREAMING_NORMAL) in logical map
    03-14 22:07:13.907582  1127  1127 I mtkcam-customer_scenario_mgr: [customer_get_streaming_config] streaming scenario config, fixMarginList(0), qCount(0)
    03-14 22:07:13.907601  1127  1127 I mtkcam-FeatureSettingPolicy: [updateStreamConfiguration]
    scenario(MTK_CAMERA_SCENARIO_STREAMING_NORMAL)
    for (openId:0, scenario:51, config: #fixedMargin=0, #queue=0 ) support feature:NO_FEATURE_NORMAL(0),
    feature combination:MTK_FEATURE_COMBINATION_VIDEO_NORMAL(0x400c00181020)
    03-14 22:07:13.908919  1127  1127 D mtkcam-FeatureSettingPolicy: [evaluateStreamConfiguration] 4-cell sensor: sensor[0] get CropMode sucess: (0)
    03-14 22:07:13.908983  1127  1127 D mtkcam-FeatureSettingPolicy: [evaluateStreamConfiguration] out->StreamingParams:{
    .additionalHalP1OutputBufferNum={ .imgo=0 .rrzo=2 .lcso=2 .rsso=0 .scaledYuv=0 }
    .supportedScenarioFeatures=0x400c00181020  // MTK_FEATURE_COMBINATION_VIDEO_NORMAL(0x400c00181020)
    .disableInitRequest=0 .bForceIMGOPool=0 .RRZ=1.000000 .LMV=1 .RSS=(0/0) .PQ=1 .CZ=1 .DRE=0 .HFG=0 .DSDN=1 .EIS=0 .3DNR=67 .FSC=0x0(maxMargin=0) .HDR10=(0/0) .EISInfo(mode=0,factor=100,videoConfig=0,tsq=0,extra=0,preview=0) .batch[0](0) .p1Config[0](hdrhal=0x0,hdrsensor=0x0,aeTarget=0,expNum=0,fusNum=0) }

    //15.解析配流size ，parseStreamSize_4Cell select size 尺寸，选择sensormode
    03-14 22:07:13.909196  1127  1127 I mtkcam-SensorSettingPolicy4cell: [operator()] default preview mode(0): width(2048), height(1536), fps(30)
    03-14 22:07:13.909213  1127  1127 I mtkcam-SensorSettingPolicy4cell: [parseStreamSize_4Cell] checkStreamSize(vAppImage_Jpeg)
    03-14 22:07:13.909244  1127  1127 I mtkcam-SensorSettingPolicy4cell: [parseStreamSize_4Cell] StreamId(0x1) image width 4080, height 2296
    03-14 22:07:13.909258  1127  1127 I mtkcam-SensorSettingPolicy4cell: [parseStreamSize_4Cell] StreamId(0x2) image width 160, height 96
    03-14 22:07:13.909270  1127  1127 I mtkcam-SensorSettingPolicy4cell: [parseStreamSize_4Cell] StreamId(0x2) set 4:3 sensor mode
    03-14 22:07:13.909284  1127  1127 I mtkcam-SensorSettingPolicy4cell: [parseSensorMode_4Cell] find match sensor mode 0
    03-14 22:07:13.909304  1127  1127 I mtkcam-SensorSettingPolicy4cell: select size(4096x3072)@30  sensorMode:1 hdrSensorMode:0 hdrHalMode:0 HfpsMode:0

    //16.决策 P1 IMGO && RRZO  配置影响功耗
    03-14 22:07:13.911623  1127  1127 I mtkcam-P1HwSettingPolicy: { .imgoAlloc={ format:0x2201 4096x3072 }
    .imgoDefaultRequest={ format:0x2201 4096x3072 } //影响拍照size
    .imgoSeamlessRequest={ format:0 0x0 }
    .rrzoDefaultRequest={ format:0x2205 1280x960 }  //影响预览size
    .rssoSize=288x512 .pixelMode=1 .usingCamSV=0 }

    //17.决策预览size ，FD size，sensor 出图size
    03-14 22:07:13.912259  1127  1127 D mtkcam-ConfigStreamInfoPolicy: [evaluatePreviewSize] evaluate preview size : 1280x720
    03-14 22:07:13.912271  1127  1127 D mtkcam-ConfigStreamInfoPolicy: [evaluatePreviewSize] FD buffer size : 640x360
    03-14 22:07:13.913707  1127  1127 D MtkCam/HwInfoHelper: [getSensorOutputSize] w1 x h1 = 4096 x 3072

    //18.开始配流
    03-14 22:07:13.915145  1127  1127 I MtkCam/ppl_context: [PipelineContext] <4Cell/0> (0xb400007c7ac97120)
    03-14 22:07:13.915184  1127  1127 D MtkCam/ppl_context: [beginConfigure] +
    03-14 22:07:13.915239  1127  1127 D MtkCam/ppl_context: [beginConfigure] -

    //19.开始build P1 stream流信息
    03-14 22:07:13.915254  1127  1127 D mtkcam-PipelineContextBuilder: [configContextLocked_Streams] +
    03-14 22:07:13.915281  1127  1127 D mtkcam-PipelineContextBuilder: [configContextLocked_Streams] Jpeg Rotation enable: 1 support packed jpeg: 0
    03-14 22:07:13.915324  1127  1127 D mtkcam-PipelineContextBuilder: [configContextLocked_Streams] id : 0
    03-14 22:07:13.915343  1127  1127 D mtkcam-PipelineContextBuilder: [configContextLocked_Streams] Build P1 stream
    03-14 22:07:13.915359  1127  1127 D mtkcam-PipelineContextBuilder: [configContextLocked_Streams] New: p1 full raw(0xb400007deac478f0); resized raw(0xb400007deac48df0), bIsZslEnabled(1)
    03-14 22:07:13.915551  1127  1127 D MtkCam/IonHeap: [IonHeap::doAllocDma] allocate success...fd:35 640x360-YUY2-Hal:Image
    03-14 22:07:13.915941  1127  1127 D mtkcam-fbm_pool: [allocateBuffers] [Hal:Image:FD] max(5) min(1) mIonDevice(0xb400007d4ac45958)
    03-14 22:07:13.916212  1127  1127 D mtkcam-fbm_pool: [allocateBuffers] [Hal:Image:P1:Fullraw_main1] max(9) min(0) mIonDevice(0xb400007d4ac45f78)
    03-14 22:07:13.916355  1127  1127 D mtkcam-fbm_pool: [allocateBuffers] [Hal:Image:P1:Resizeraw_main1] max(11) min(0) mIonDevice(0xb400007d4ac45db8)
    03-14 22:07:13.916714  1127  3193 D MtkCam/IonHeap: [IonHeap::doAllocDma] allocate success...fd:36 640x360-YUY2-Hal:Image
    03-14 22:07:13.916830  1127  3193 D MtkCam/IonHeap: [IonHeap::doAllocDma] allocate success...fd:37 640x360-YUY2-Hal:Image
    03-14 22:07:13.916930  1127  3193 D MtkCam/IonHeap: [IonHeap::doAllocDma] allocate success...fd:43 640x360-YUY2-Hal:Image
    03-14 22:07:13.917077  1127  3195 D MtkCam/IonHeap: [IonHeap::doAllocDma] allocate success...fd:44 1280x960-FG_BYR10-Hal:Image
    03-14 22:07:13.917425  1127  3195 D Drv/IMem: [getBufPA_imgbuf] memID(44),PA(0xfb000000),username(1280x960-FG_BYR10-Hal:Image)
    03-14 22:07:13.917728  1127  3193 D MtkCam/IonHeap: [IonHeap::doAllocDma] allocate success...fd:45 640x360-YUY2-Hal:Image
    03-14 22:07:13.917789  1127  3193 D mtkcam-fbm_pool: [operator()] updateBufferCount: [Hal:Image:FD] done (5)
    03-14 22:07:13.918875  1127  1127 D MtkCam/HwInfoHelper: [alignPass1HwLimitation] rrzo size 4096x3072, stride 5120

    //20.pipeline context dump 预览流、拍照流、流经的node
    03-14 22:07:13.924301  1127  1127 I MtkCam/ppl_context: [dump] <4Cell/0>  //后主摄 4cell sensor
    03-14 22:07:13.924341  1127  1127 I MtkCam/ppl_context: [dump]
    .root={ 0x1 },   // 预览流、拍照流、流经的node
    .edges={(0x1 -> 0x15)(0x1 -> 0x14)(0x15 -> 0x16)(0x14 -> 0x16)(0x15 -> 0x23)(0x14 -> 0x23)}
                                         --->FDNode 0x16
                                        /
                  -->P2StreamNode 0x15--
                 /                      \
                /                        ---> JpegNode 0x23
    P1Node 0x1s->
                \                         --->FDNode 0x16
                 \                       /
                  -->P2CaptureNode 0x14--
                                         \
                                          ---> JpegNode 0x23

    03-14 22:07:13.924414  1127  1127 I MtkCam/ppl_context: [dump] <nodeId=0x1 (P1Node) NO-INIT>
    03-14 22:07:13.924438  1127  1127 I MtkCam/ppl_context: [dump]     In: .AppImage={ } .HalImage={ } .AppMeta={ 0x80000000 } .HalMeta={ 0x100000018 }
    03-14 22:07:13.924468  1127  1127 I MtkCam/ppl_context: [dump]    Out: .AppImage={ } .HalImage={ 0x100000001 0x100000003 0x100000004 } .AppMeta={ 0x100000024 } .HalMeta={ 0x10000001b }
    03-14 22:07:13.924493  1127  1127 I MtkCam/ppl_context: [dump] <nodeId=0x14 (P2CaptureNode) NO-INIT>
    03-14 22:07:13.924521  1127  1127 I MtkCam/ppl_context: [dump]     In: .AppImage={ } .HalImage={ 0x100000001 0x100000003 0x100000004 } .AppMeta={ 0x80000000 0x100000024 } .HalMeta={ 0x10000001b }
    03-14 22:07:13.924542  1127  1127 I MtkCam/ppl_context: [dump]    Out: .AppImage={ 0 0x2 } .HalImage={ 0x100000010 0x100000011 } .AppMeta={ 0x100000028 } .HalMeta={ 0x10000001f }
    03-14 22:07:13.924558  1127  1127 I MtkCam/ppl_context: [dump] <nodeId=0x15 (P2StreamNode) NO-INIT>
    03-14 22:07:13.924583  1127  1127 I MtkCam/ppl_context: [dump]     In: .AppImage={ } .HalImage={ 0x100000001 0x100000003 0x100000004 } .AppMeta={ 0x80000000 0x100000024 } .HalMeta={ 0x10000001b }
    03-14 22:07:13.924605  1127  1127 I MtkCam/ppl_context: [dump]    Out: .AppImage={ 0 0x2 } .HalImage={ 0x100000010 0x100000011 0x100000013 } .AppMeta={ 0x100000027 } .HalMeta={ 0x10000001e }
    03-14 22:07:13.924620  1127  1127 I MtkCam/ppl_context: [dump] <nodeId=0x16 (FDNode) NO-INIT>
    03-14 22:07:13.924638  1127  1127 I MtkCam/ppl_context: [dump]     In: .AppImage={ } .HalImage={ 0x100000013 } .AppMeta={ 0x80000000 } .HalMeta={ 0x10000001e }
    03-14 22:07:13.924655  1127  1127 I MtkCam/ppl_context: [dump]    Out: .AppImage={ } .HalImage={ } .AppMeta={ 0x100000029 } .HalMeta={ }
    03-14 22:07:13.924672  1127  1127 I MtkCam/ppl_context: [dump] <nodeId=0x23 (JpegNode) NO-INIT>
    03-14 22:07:13.924693  1127  1127 I MtkCam/ppl_context: [dump]     In: .AppImage={ } .HalImage={ 0x100000010 0x100000011 } .AppMeta={ 0x80000000 } .HalMeta={ 0x10000001e 0x10000001f }
    03-14 22:07:13.924710  1127  1127 I MtkCam/ppl_context: [dump]    Out: .AppImage={ 0x1 } .HalImage={ } .AppMeta={ 0x10000002a } .HalMeta={ }
    03-14 22:07:13.924723  1127  1127 I MtkCam/ppl_context: [dump] <image streams>
    03-14 22:07:13.924841  1127  1127 I MtkCam/ppl_context: [dump]     [IMAGE-APP-PROVIDER]0 1280x720  OUT ImgFormat:0x11(NV21) BufPlanes(strides/sizeInBytes):[ 1280/921600 1280/493440 ] startOffset:0 bufStep:0 t:0/r:0 maxBuffers:12 d/s:0x00000000(UNKNOWN) s0:d0:App:YCrCb_420_SP:0|HW_TEXTURE AllocImgFormat:0x11(NV21) AllocBufPlanes(strides/sizeInBytes):[ 1280/921600 1280/493440 ] Real:0x11(YCrCb_420_SP) Request:0x22(IMPLEMENTATION_DEFINED) Override:0x11(YCrCb_420_SP) Hal-Client-usage:0x100(0|HW_TEXTURE) Hal-usage:0x20033(0|SW_READ_OFTEN|SW_WRITE_OFTEN|HW_CAMERA_WRITE) HalStream::(consumer/producer)Usage:0/0x20033 0xb400007c8ac50690 phy:-1
    03-14 22:07:13.924922  1127  1127 I MtkCam/ppl_context: [dump]     [IMAGE-APP-PROVIDER]0x1 4080x2296 OUT ImgFormat:0x2300(JPEG) BufPlanes(strides/sizeInBytes):[ 14461181/14461184 ] startOffset:0 bufStep:0 t:0/r:0 maxBuffers:11 d/s:0x08c20000(V0_JFIF|STANDARD_BT601_625|TRANSFER_SMPTE_170M|RANGE_FULL) s1:d0:App:BLOB:0|SW_READ_OFTEN AllocImgFormat:0x21(BLOB) AllocBufPlanes(strides/sizeInBytes):[ 14461181/14461184 ] Real:0x21(BLOB) Request:0x21(BLOB) Override:0x21(BLOB) Hal-Client-usage:0x3(0|SW_READ_OFTEN) Hal-usage:0x20033(0|SW_READ_OFTEN|SW_WRITE_OFTEN|HW_CAMERA_WRITE) HalStream::(consumer/producer)Usage:0/0x20033 0xb400007c8ac50310 phy:-1
    03-14 22:07:13.925005  1127  1127 I MtkCam/ppl_context: [dump]     [IMAGE-APP-PROVIDER]0x2  160x96   OUT ImgFormat:0x11(NV21) BufPlanes(strides/sizeInBytes):[ 192/18432 192/9504 ] startOffset:0 bufStep:0 t:0/r:0 maxBuffers:12 d/s:0x08c20000(V0_JFIF|STANDARD_BT601_625|TRANSFER_SMPTE_170M|RANGE_FULL) s2:d0:App:YCrCb_420_SP:0|SW_READ_OFTEN AllocImgFormat:0x11(NV21) AllocBufPlanes(strides/sizeInBytes):[ 192/18432 192/9504 ] Real:0x11(YCrCb_420_SP) Request:0x23(YCbCr_420_888) Override:0x23(YCbCr_420_888) Hal-Client-usage:0x3(0|SW_READ_OFTEN) Hal-usage:0x20033(0|SW_READ_OFTEN|SW_WRITE_OFTEN|HW_CAMERA_WRITE) HalStream::(consumer/producer)Usage:0/0x20033 0xb400007c8ac535d0 phy:-1
    03-14 22:07:13.925067  1127  1127 I MtkCam/ppl_context: [dump]     [IMAGE-HAL-POOL    ]0x100000001 4096x3072 ImgFormat:0x2201(BAYER10) BufPlanes(strides/sizeInBytes):[ 5120/15728640 ] startOffset:0 bufStep:0 t:0 maxBufNum:9 minInitBufNum:0 Hal:Image:P1:Fullraw_main1 AllocImgFormat:0x21(BLOB) AllocBufPlanes(strides/sizeInBytes):[ 15728640/15728640 ] Private{exist?0 id:0}
    03-14 22:07:13.925120  1127  1127 I MtkCam/ppl_context: [dump]     [IMAGE-HAL-POOL    ]0x100000003 1280x960  ImgFormat:0x2205(FG_BAYER10) BufPlanes(strides/sizeInBytes):[ 2400/2304000 ] startOffset:0 bufStep:0 t:0 maxBufNum:11 minInitBufNum:0 Hal:Image:P1:Resizeraw_main1 AllocImgFormat:0x2205(FG_BAYER10) AllocBufPlanes(strides/sizeInBytes):[ 2400/2304000 ] Private{exist?0 id:0}
    03-14 22:07:13.925182  1127  1127 I MtkCam/ppl_context: [dump]     [IMAGE-HAL-POOL    ]0x100000004 294912x1    ImgFormat:0x21(BLOB) BufPlanes(strides/sizeInBytes):[ 294912/294912 ] startOffset:0 bufStep:0 t:0 maxBufNum:12 minInitBufNum:1 Hal:Image:STT_main1 AllocImgFormat:0x21(BLOB) AllocBufPlanes(strides/sizeInBytes):[ 294912/294912 ] Private{exist?1 id:2}
    03-14 22:07:13.925246  1127  1127 I MtkCam/ppl_context: [dump]     [IMAGE-HAL-RUNTIME ]0x100000010 4080x2296 ImgFormat:0x11(NV21) BufPlanes(strides/sizeInBytes):[ 4080/9400320 4080/4700160 ] startOffset:0 bufStep:0 t:0 maxBufNum:11 minInitBufNum:0 Hal:Image:JpegYuv AllocImgFormat:0x11(NV21) AllocBufPlanes(strides/sizeInBytes):[ 4080/9400320 4080/4700160 ] Private{exist?0 id:0}
    03-14 22:07:13.925301  1127  1127 I MtkCam/ppl_context: [dump]     [IMAGE-HAL-RUNTIME ]0x100000011   -1x-1   ImgFormat:0x14(YUY2) BufPlanes(strides/sizeInBytes):[ 0/0 ] startOffset:0 bufStep:0 t:0 maxBufNum:11 minInitBufNum:0 Hal:Image:ThumbnailYuv AllocImgFormat:0x14(YUY2) AllocBufPlanes(strides/sizeInBytes):[ 0/0 ] Private{exist?0 id:0}
    03-14 22:07:13.925354  1127  1127 I MtkCam/ppl_context: [dump]     [IMAGE-HAL-POOL    ]0x100000013  640x360  ImgFormat:0x14(YUY2) BufPlanes(strides/sizeInBytes):[ 1280/460800 ] startOffset:0 bufStep:0 t:0 maxBufNum:5 minInitBufNum:1 Hal:Image:FD AllocImgFormat:0x14(YUY2) AllocBufPlanes(strides/sizeInBytes):[ 1280/460800 ] Private{exist?0 id:0}
    03-14 22:07:13.925370  1127  1127 I MtkCam/ppl_context: [dump] <meta streams>
    03-14 22:07:13.925396  1127  1127 I MtkCam/ppl_context: [dump]     [META -APP-USER    ]0x80000000 maxBuffers:0 minInitBufNum:0 Meta:App:Control phy:0
    03-14 22:07:13.925416  1127  1127 I MtkCam/ppl_context: [dump]     [META -HAL-USER    ]0x100000018 maxBuffers:10 minInitBufNum:1 Hal:Meta:Control_main1 phy:-1
    ... ...
    03-14 22:07:13.925589  1127  1127 I MtkCam/ppl_context: [dump] <image buffer pool>

    //21. AppStreamMgr 配3路流 预览： 1280x720 ；拍照：4080x2296 ； 缩略图：160x96
    03-14 22:07:13.929036  1127  1127 D mtkcam-AppStreamMgr: [AppMgr-configureStreams]  0 1280x720  OUT ImgFormat:0x11(NV21) BufPlanes(strides/sizeInBytes):[ 1280/921600 1280/493440 ] startOffset:0 bufStep:0 t:0/r:0 maxBuffers:12 d/s:0x00000000(UNKNOWN) s0:d0:App:YCrCb_420_SP:0|HW_TEXTURE AllocImgFormat:0x11(NV21) AllocBufPlanes(strides/sizeInBytes):[ 1280/921600 1280/493440 ] Real:0x11(YCrCb_420_SP) Request:0x22(IMPLEMENTATION_DEFINED) Override:0x11(YCrCb_420_SP) Hal-Client-usage:0x100(0|HW_TEXTURE) Hal-usage:0x20033(0|SW_READ_OFTEN|SW_WRITE_OFTEN|HW_CAMERA_WRITE) HalStream::(consumer/producer)Usage:0/0x20033 0xb400007c8ac50690 phy:-1
    03-14 22:07:13.929091  1127  1127 D mtkcam-AppStreamMgr: [AppMgr-configureStreams]  0x1 4080x2296 OUT ImgFormat:0x2300(JPEG) BufPlanes(strides/sizeInBytes):[ 14461181/14461184 ] startOffset:0 bufStep:0 t:0/r:0 maxBuffers:11 d/s:0x08c20000(V0_JFIF|STANDARD_BT601_625|TRANSFER_SMPTE_170M|RANGE_FULL) s1:d0:App:BLOB:0|SW_READ_OFTEN AllocImgFormat:0x21(BLOB) AllocBufPlanes(strides/sizeInBytes):[ 14461181/14461184 ] Real:0x21(BLOB) Request:0x21(BLOB) Override:0x21(BLOB) Hal-Client-usage:0x3(0|SW_READ_OFTEN) Hal-usage:0x20033(0|SW_READ_OFTEN|SW_WRITE_OFTEN|HW_CAMERA_WRITE) HalStream::(consumer/producer)Usage:0/0x20033 0xb400007c8ac50310 phy:-1
    03-14 22:07:13.929148  1127  1127 D mtkcam-AppStreamMgr: [AppMgr-configureStreams]  0x2  160x96   OUT ImgFormat:0x11(NV21) BufPlanes(strides/sizeInBytes):[ 192/18432 192/9504 ] startOffset:0 bufStep:0 t:0/r:0 maxBuffers:12 d/s:0x08c20000(V0_JFIF|STANDARD_BT601_625|TRANSFER_SMPTE_170M|RANGE_FULL) s2:d0:App:YCrCb_420_SP:0|SW_READ_OFTEN AllocImgFormat:0x11(NV21) AllocBufPlanes(strides/sizeInBytes):[ 192/18432 192/9504 ] Real:0x11(YCrCb_420_SP) Request:0x23(YCbCr_420_888) Override:0x23(YCbCr_420_888) Hal-Client-usage:0x3(0|SW_READ_OFTEN) Hal-usage:0x20033(0|SW_READ_OFTEN|SW_WRITE_OFTEN|HW_CAMERA_WRITE) HalStream::(consumer/producer)Usage:0/0x20033 0xb400007c8ac535d0 phy:-1
    03-14 22:07:13.929375  1127  1127 I mtkcam_hal_aidl_device: [0-aidl-session::configureStreams] HalStream{id: 0, overrideFormat: YCRCB_420_SP, producerUsage: 131123, consumerUsage: CPU_READ_NEVER, maxBuffers: 12, overrideDataSpace: JFIF, physicalCameraId: -1, supportOffline: false, enableHalBufferManager: false}
    03-14 22:07:13.929396  1127  1127 I mtkcam_hal_aidl_device: [0-aidl-session::configureStreams] HalStream{id: 1, overrideFormat: BLOB, producerUsage: 131123, consumerUsage: CPU_READ_NEVER, maxBuffers: 11, overrideDataSpace: JFIF, physicalCameraId: -1, supportOffline: false, enableHalBufferManager: false}
    03-14 22:07:13.929413  1127  1127 I mtkcam_hal_aidl_device: [0-aidl-session::configureStreams] HalStream{id: 2, overrideFormat: YCBCR_420_888, producerUsage: 131123, consumerUsage: CPU_READ_NEVER, maxBuffers: 12, overrideDataSpace: JFIF, physicalCameraId: -1, supportOffline: false, enableHalBufferManager: false}

    //22. Camera app 创建会话结束 配流结束
    //03-14 22:07:13.767801  2897  3163 I CamAp_API2-Handler-0: [createCaptureSession]+, pending time = 0ms.
    03-14 22:07:13.948694  2897  3163 I CamAp_API2-Handler-0: [createCaptureSession]-, executing time = 181ms.
    03-14 22:07:13.948976  2897  3164 I CamAp_API2-Handler-0: [onConfigured], session = android.hardware.camera2.impl.CameraCaptureSessionImpl@9221bde
    03-14 22:07:13.949524  2897  3180 I CamAp_PhotoDevice2Controller: [onConfigured],session = com.mediatek.camera.common.device.v2.Camera2CaptureSessionProxy@3b7b1bf, mNeedFinalizeOutput:false

    //23. OTP 数据获取
    03-14 22:07:14.055323  1127  3200 D awb_mgr : [getEEPROMData()][1]
    03-14 22:07:14.055383  1127  3200 D CamCalHelper: CamCalHelper Get cal data.
    03-14 22:07:14.055404  1127  3200 I CamCalCamCal: ver0723 pCamCalData->deviceID=1
    03-14 22:07:14.055420  1127  3200 I CamCalCamCal: ver0723 g_lastSensorID=5026  pCamCalData->sensorID=5026
    03-14 22:07:14.055435  1127  3200 I CamCalCamCal: ver0723 s_preloadSizeLimitDefaultValue = 0x1500,change value to 0x214d
    03-14 22:07:14.055449  1127  3200 I CamCalCamCal: ver0723 result = 0, LayoutType = 1
    03-14 22:07:14.055464  1127  3200 I CamCalCamCal: ver0723 DoCamCal2AGain : enter..BlockSize=23 SensorID=5026
    03-14 22:07:14.055481  1127  3200 D CamCalHelper: CamCalHelper Read data from memory[0]
    03-14 22:07:14.055498  1127  3200 I CamCalCamCal: ver0723 DoCamCal2AGain : ======================AF CAM_CAL==================
    03-14 22:07:14.055513  1127  3200 I CamCalCamCal: ver0723 DoCamCal2AGain : [AFInf] = 441
    03-14 22:07:14.055527  1127  3200 I CamCalCamCal: ver0723 DoCamCal2AGain : [AFMacro] = 739
    03-14 22:07:14.055542  1127  3200 I CamCalCamCal: ver0723 DoCamCal2AGain : ======================AF CAM_CAL==================
    03-14 22:07:14.055624  1127  3200 I CamCalCamCal: ver0723 DoCamCal2AGain : ======================AWB CAM_CAL==================
    03-14 22:07:14.068210  1127  3241 I CamCalCamCal: ver0723 ======================PDAF Data==================

    //24. 配流结束，Camera APP 用于在CameraCaptureSession中设置预览请求，以实现连续的相机预览或视频录制等功能
    03-14 22:07:14.080826  2897  3163 I CamAp_API2-Handler-0: [setRepeatingRequest]+, pending time = 1ms
    03-14 22:07:14.086297  2897  3163 I CamAp_API2-Handler-0: [setRepeatingRequest]-, executing time = 5ms.

    //25. Camera HAL 开始准备第一帧预览请求 [submitRequest] <4Cell/0> requestNo:0
    03-14 22:07:14.111577  1127  1127 D mtkcam-dev3-utils: [0-AppRequestUtil::createOneRequest] requestNumber[0]:StreamBuffer:0xb400007d4ac4a2c0 streamId:0 bufferId:1 buffer:0xb400007d1ac3a590 status:OK acquireFenceOp.hdl:0x0 releaseFenceOp.hdl:0x0 acquireFenceOp.fd:-1 releaseFenceOp.fd:-1 appBufferHandleHolder:0xb400007ddac86e68 freeByOthers:0 /
    03-14 22:07:14.111722  1127  1127 I mtkcam-AppStreamMgr: [earlyCallbackMeta] early callback metadata, requestNo: 0
    03-14 22:07:14.111853  1127  1127 I mtkcam-PipelineModelSession:
    [submitRequest] <4Cell/0> requestNo:0 {  //submit第一帧预览请求
    repeating:0
    control.aeTargetFpsRange:5,30   //预览帧率配置
    control.captureIntent:1         // captureIntent 1: 预览； 2： 拍照 ；3： 录像； 4:录像抓拍 5：ZSL
    control.enableZsl:0             // 是否开启ZSL
    control.processRawEn:0 control.mode:1 control.sceneMode:0 control.videoStabilizationMode:0 edge.mode:1 }
    03-14 22:07:14.111928  1127  1127 I mtkcam-FeatureSettingPolicy: [collectDefaultSensorInfo] keep the first request config as default config
    03-14 22:07:14.112664  1127  1127 I mtkcam-InitFrameHandler: [enqueue] RequestNo:0 FrameNo:0

    // 26. Camera FWK  第一帧请求ok
    03-14 22:07:14.113523  1127  1127 D mtkcam-dev3: [0-session::processCaptureRequest] -> 1st request - OK

    // 27. Camera  HAL  出图并callback result 到上层 Frame timer: 预览出图  frame end  updateResult callback 预览帧到上层
    03-14 22:07:14.115334  1127  3168 D mtkcam-AppStreamMgr: [0-FrameHandler::updateResult] requestNo 0, real time:1, last partial:0
    03-14 22:07:14.250714  1127  3231 D MtkCam/StreamingPipe/Timer: [print]Frame timer [#    1/   0][t  19][io   0][tof  0/  0][d  0/  0][mss  0/  0/  0/  0][a 18/  4/ 13][tun  0/  0][msf  0/  0][vnr  0/  0/  0][am  0][b  0/  0][tpi(  0/  0)/(  0/  0)/(  0/  0)][vmdp_A  0/  0 vmdp_B  0/  0][h  7/  0/  0][e  0][r  0/  0][w_A  0/  0/  0/  0 w_B  0/  0/  0/  0][x  0][disp  0/  0][async  0/  0][p2sm  0/  0/  0][fps0.00/0.00/  5/ 30]
    03-14 22:07:14.282892  1127  3223 D mtkcam-pipeline: [onLastStrongRef] [ requestNo:0 frameNo:0 ] frame end
    03-14 22:07:14.283846  1127  3168 D mtkcam-AppStreamMgr: [0-FrameHandler::updateResult] requestNo 0, real time:0, last partial:1

二、MTK Camera Trace 启动流程拆解

1.MTK Camera app 启动阶段拆解表格

启动阶段模块trace 关键字
S0系统deliverInputEvent(AppLaunch_dispatchPtr:Up桌面相机图标点击事件处理 ) ⇒ activityStart或Camera APP 进程创建
S1Camera APPactivityStart或Camera APP 进程创建 ⇒ connectDevice
S2Camera HALconnectDevice
S3Camera APPconnectDevice end ⇒ CameraHal::configureStreams start
S4Camera HALCameraHal::configureStreams
S5Camera APPCameraHal::configureStreams end ⇒ setRepeatingRequest start

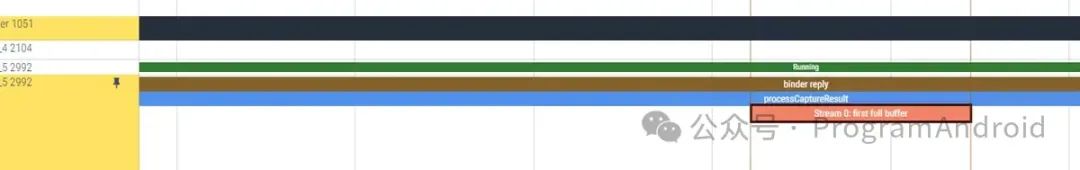

S6Camera HALsetRepeatingRequest start ⇒ first full buffer

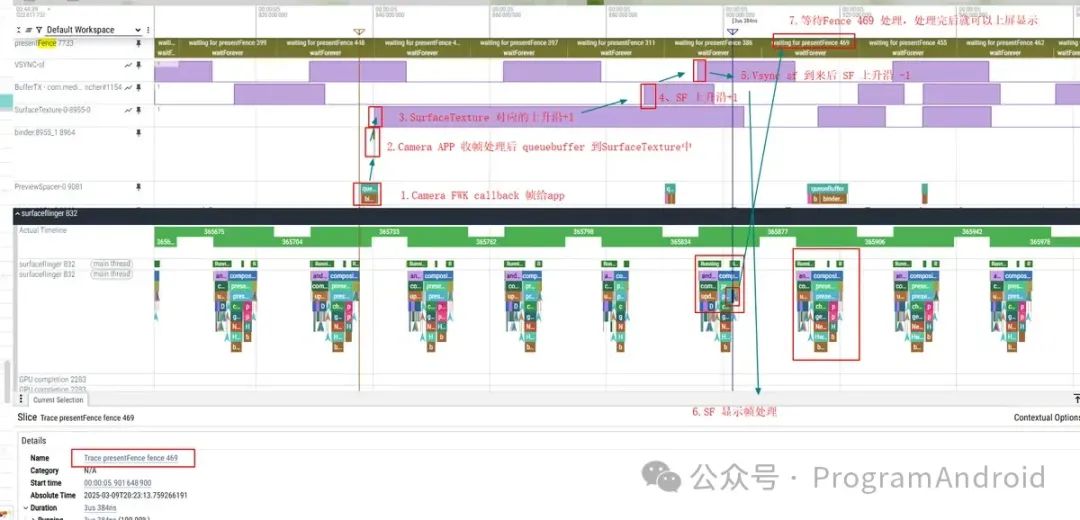

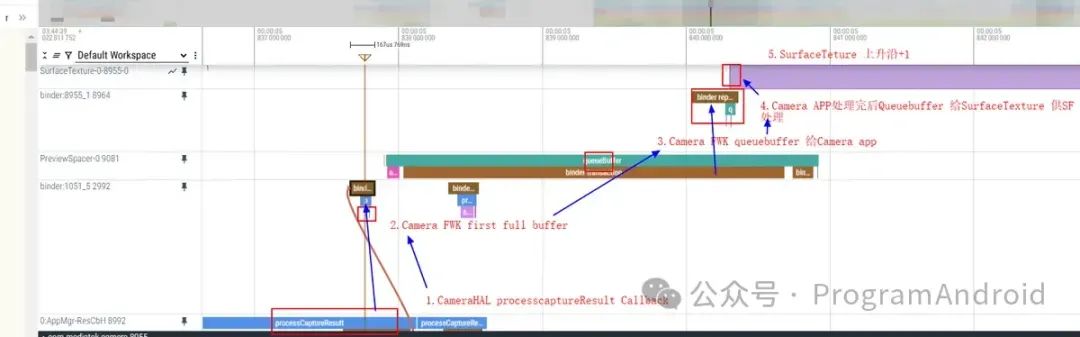

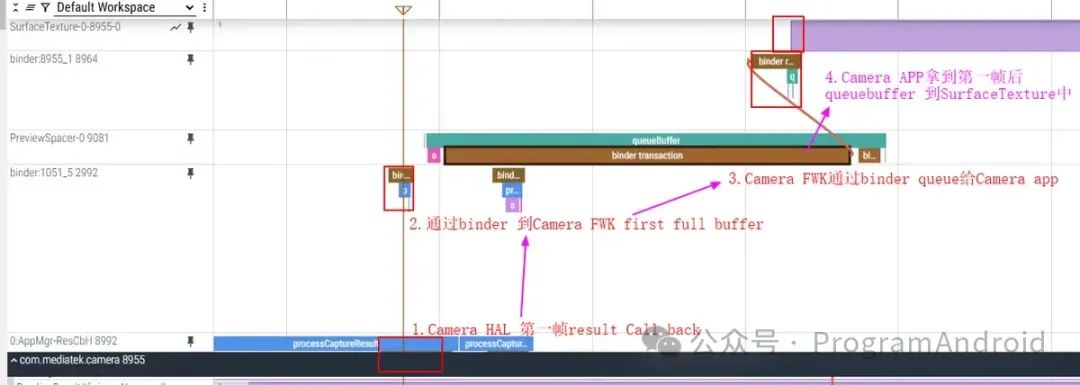

S7Camera APP、SFfirst full buffer ⇒ 第一帧显示(onPreviewOk)

2 MTK Camera 预览流程trace 拆解

2.1 S0：AppLaunch_dispatchPtr:Up /deliverInputEvent (桌面相机图标点击事件处理) --> APP 进程创建

和你一起终身学习，这里是程序员Android

点击事件 Trace TAG：

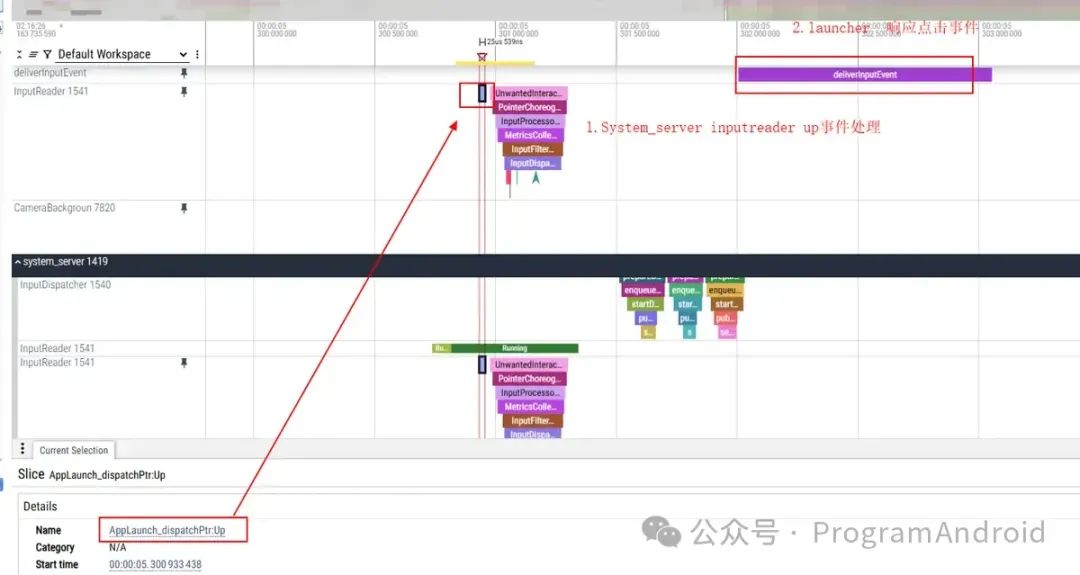

AppLaunch_dispatchPtr:Up
deliverInputEvent

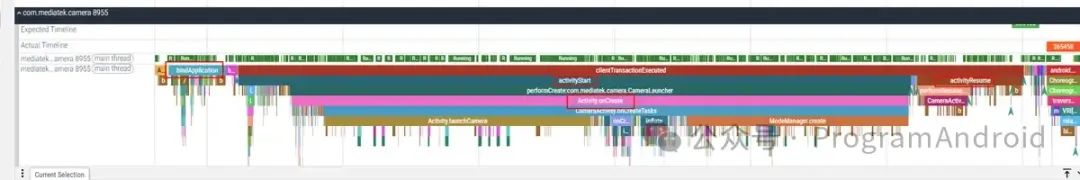

2.2 S1： activityStart或Camera APP 进程创建 ⇒ connectDevice

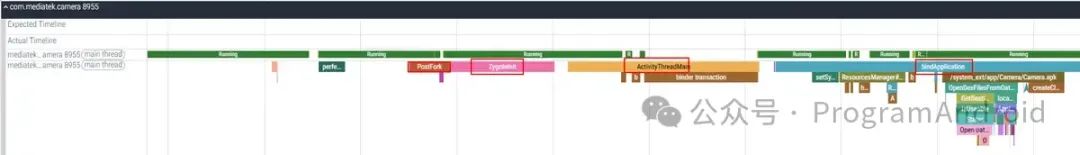

从Touch UP 到 ActivityStart 阶段，系统创建App进程耗时：

和你一起终身学习，这里是程序员Android

Camera APP 进程创建trace TAG
PostFork
ZygoteInit
ActivityThreadMain
bindApplication
activityStart
Activity.onCreate
activityResume

  • 1.PostFork 耗时需要排查 Zygote.java 代码

Zygote.java frameworks\base\core\java\com\android\internal\os

    1. ZygoteInit 耗时需要排查ZygoteInit.java 代码

ZygoteInit.java frameworks\base\core\java\com\android\internal\os

  • 3.ActivityThreadMain耗时需要排查ActivityThread.java代码

ActivityThread.java frameworks\base\core\java\android\app

    1. bindApplication 耗时需要排查ActivityThread.java代码,同上
    1. 从 ActivityStart 到 App 层 OpenCamera 耗时

Camera App 开始执行 MainActivity 一系列 onCreate，onStart，onResume，openCamera等操作

和你一起终身学习，这里是程序员Android

5.1. activityStart 耗时需要排查 LaunchActivityItem.java 代码
LaunchActivityItem.java frameworks\base\core\java\android\app\servertransaction
5.2. ResumeActivityItem耗时需要排查 ResumeActivityItem.java 代码
ResumeActivityItem.java frameworks\base\core\java\android\app\servertransaction
5.3. Choreographer#doFrame 耗时需要排查 Choreographer.java 代码
Choreographer.java frameworks\base\core\java\android\view

  • 6.Framework层 cameraserver 开始响应App getCameraCharacteristics 、connectDevice 等操作。
camera Server 在此期间的行为

open camera 前的Trace TAG
getCameraCharacteristics
connectDevice

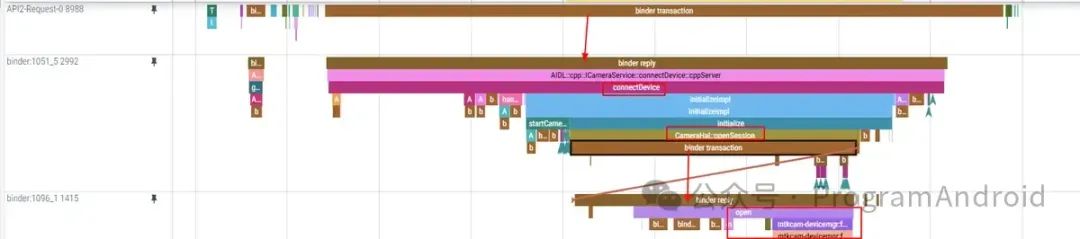

2.3 S2: connectDevice

和你一起终身学习，这里是程序员Android

连接Camera 期间的Trace TAG：
AIDL::cpp::ICameraService::connectDevice::cppServer
connectDevice
CameraHal::openSession
mtkcam-devicemgr:finishOpenDevice

2.4 S3: connectDevice end ⇒ CameraHal::configureStreams start

Camera app 下发opensession后，底层开始对sensor 进行poweron上电处理

2.4.1 power on 上电 trace
和你一起终身学习，这里是程序员Android

power on 上电 trace TAG:
powerOnSensor0
LogicalDev powerOn
init(3A)
AE init
AF init
FLASH init
TUNING init

2.4.2 power on 上电 log
行  7595: 03-14 22:07:13.602602  1127  3169 I mtkcam-DeviceAdapter: 0[HalDeviceAdapter::powerOn] powerOn +
    行  7605: 03-14 22:07:13.603073  1127  3171 D mtkcam-DeviceAdapter: [initSensor] powerOnSensor0
    行  7638: 03-14 22:07:13.605041  1127  3171 D MtkCam/HalSensor: [powerOn] sensorIdx : 0
    行  8302: 03-14 22:07:13.827410  1127  3169 D lsc_nvram: [importEEPromData] Sensor(1) power on done, count(20), (m_eSensorDev & u4PowerOn)(0)
    行  8478: 03-14 22:07:13.847626  1127  3171 D MtkCam/HalSensor: [powerOn] - <HalDeviceAdapter:0> ret:1, meSensorDev = 0x1
    行  8667: 03-14 22:07:13.874610  1127  3169 D MtkCam/Utils: {CamProfile}[HalDeviceAdapter:0::powerOn] 3A Hal -: (0-th) ===> [start-->now: 271 ms]
    行  8677: 03-14 22:07:13.875060  1127  3169 D MtkCam/Utils: {CamProfile}[HalDeviceAdapter:0::powerOn] ISP Hal -: (1-th) ===> [start-->now: 272 ms] [last-->now: 0 ms]
    行  8678: 03-14 22:07:13.875081  1127  3169 D MtkCam/Utils: {CamProfile}[HalDeviceAdapter:0::powerOn] Sensor powerOn -: (2-th) ===> [start-->now: 272 ms] [last-->now: 0 ms]
    行  8680: 03-14 22:07:13.875143  1127  3169 I mtkcam-DeviceAdapter: 0[HalDeviceAdapter::powerOn] 3A notifyPowerOn
    行  8688: 03-14 22:07:13.875312  1127  3169 D MtkCam/Utils: {CamProfile}[HalDeviceAdapter:0::powerOn] 3A notifyPowerOn -: (3-th) ===> [start-->now: 272 ms] [last-->now: 0 ms]
    行  8689: 03-14 22:07:13.875326  1127  3169 I mtkcam-DeviceAdapter: 0[HalDeviceAdapter::powerOn] powerOn -

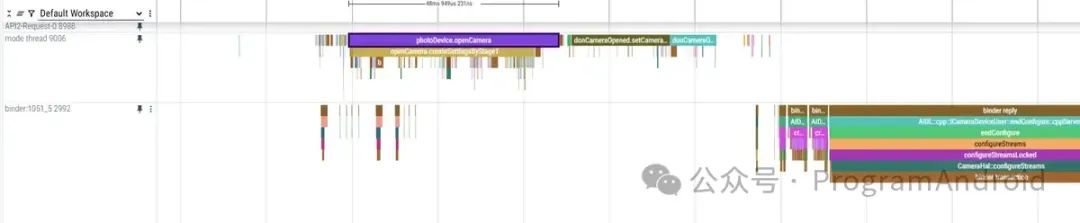

2.4.3 Camera app opencamera 以及getCameraCharacteristics

Camera app photoDevice.openCamera 获取getCameraCharacteristics

和你一起终身学习，这里是程序员Android

Trace TAG：
photoDevice.openCamera
openCamera.createSettingsByStage1

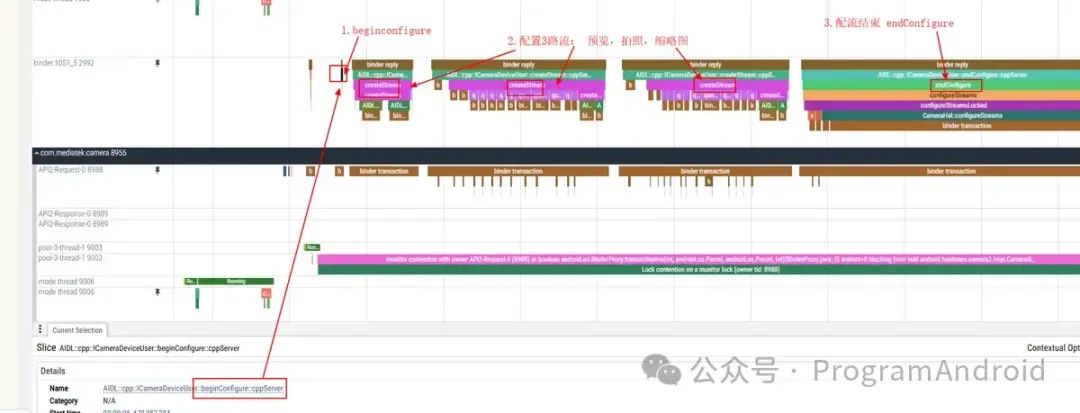

2.4.4 Camera APP 开始配流（预览，拍照、缩略图）Trace
和你一起终身学习，这里是程序员Android

Trace TAG:

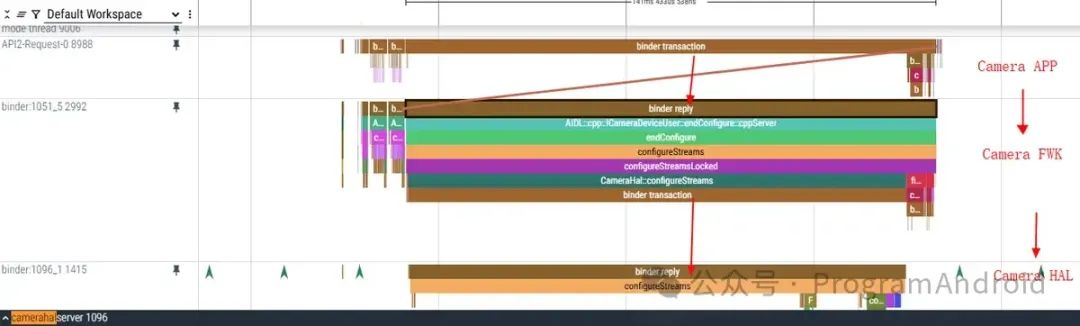

AIDL::cpp::ICameraDeviceUser::beginConfigure::cppServer
createStream
endConfigure
configureStreams
2.4.5 Camera APP 开始配流（预览，拍照、缩略图）Log
行  8196: 03-14 22:07:13.761319  2897  3180 I CamAp_PhotoDevice2Controller: [configureSession] +, isFromOpen :true
    行  8199: 03-14 22:07:13.763024  2897  3163 I CamAp_API2-Handler-0: [createCaptureRequest]+, pending time = 0ms.
    行  8207: 03-14 22:07:13.764230  2897  3163 I CamAp_API2-Handler-0: [createCaptureRequest]-, executing time = 1ms.
    行  8212: 03-14 22:07:13.767801  2897  3163 I CamAp_API2-Handler-0: [createCaptureSession]+, pending time = 0ms.
    行  8213: 03-14 22:07:13.768280  2897  3163 I CamAp_API2-Handler-0: [createCaptureSession] with mOutputConfigs
    行  8230: 03-14 22:07:13.782269  1127  1127 I mtkcam_hal_aidl_device: [0-aidl-session::configureStreams] Stream{id: 0, streamType: OUTPUT, width: 1280, height: 720, format: IMPLEMENTATION_DEFINED, usage: GPU_TEXTURE, dataSpace: UNKNOWN, rotation: ROTATION_0, physicalCameraId: , bufferSize: 0, groupId: -1, sensorPixelModesUsed: [ANDROID_SENSOR_PIXEL_MODE_DEFAULT], dynamicRangeProfile: ANDROID_REQUEST_AVAILABLE_DYNAMIC_RANGE_PROFILES_MAP_STANDARD, useCase: ANDROID_SCALER_AVAILABLE_STREAM_USE_CASES_DEFAULT, colorSpace: -1}
    行  8232: 03-14 22:07:13.782320  1127  1127 I mtkcam_hal_aidl_device: [0-aidl-session::configureStreams] Stream{id: 1, streamType: OUTPUT, width: 4080, height: 2296, format: BLOB, usage: CPU_READ_OFTEN, dataSpace: JFIF, rotation: ROTATION_0, physicalCameraId: , bufferSize: 14461181, groupId: -1, sensorPixelModesUsed: [ANDROID_SENSOR_PIXEL_MODE_DEFAULT], dynamicRangeProfile: ANDROID_REQUEST_AVAILABLE_DYNAMIC_RANGE_PROFILES_MAP_STANDARD, useCase: ANDROID_SCALER_AVAILABLE_STREAM_USE_CASES_DEFAULT, colorSpace: -1}
    行  8233: 03-14 22:07:13.782403  1127  1127 I mtkcam_hal_aidl_device: [0-aidl-session::configureStreams] Stream{id: 2, streamType: OUTPUT, width: 160, height: 96, format: YCBCR_420_888, usage: CPU_READ_OFTEN, dataSpace: JFIF, rotation: ROTATION_0, physicalCameraId: , bufferSize: 0, groupId: -1, sensorPixelModesUsed: [ANDROID_SENSOR_PIXEL_MODE_DEFAULT], dynamicRangeProfile: ANDROID_REQUEST_AVAILABLE_DYNAMIC_RANGE_PROFILES_MAP_STANDARD, useCase: ANDROID_SCALER_AVAILABLE_STREAM_USE_CASES_DEFAULT, colorSpace: -1}
    行  8237: 03-14 22:07:13.782502  1127  1127 D mtkcam-dev3: [0-session::configureStreams] camera default configureStreams setConfigTimeCPUCtrl
    行  8247: 03-14 22:07:13.783354  1127  1127 D mtkcam-dev3: [0-session::tryRunCommandLocked] Run command onConfigureStreamsLocked +
    行  8248: 03-14 22:07:13.783383  1127  1127 D mtkcam-dev3: [0-session::onConfigureStreamsLocked] +
    行  8249: 03-14 22:07:13.783409  1127  1127 D mtkcam-dev3: [0-session::onConfigureStreamsLocked] Enter CPU full run mode, timeout: 1000 ms
    行  9197: 03-14 22:07:13.915184  1127  1127 D MtkCam/ppl_context: [beginConfigure] +
    行  9201: 03-14 22:07:13.915239  1127  1127 D MtkCam/ppl_context: [beginConfigure] -
    行  9389: 03-14 22:07:13.928783  1127  1127 D mtkcam-dev3: [0-session::onConfigureStreamsLocked] halMaxBufferSize=12 HalStream.maxBuffers=12
    行  9390: 03-14 22:07:13.928800  1127  1127 D mtkcam-dev3: [0-session::onConfigureStreamsLocked] halMaxBufferSize=11 HalStream.maxBuffers=11
    行  9391: 03-14 22:07:13.928817  1127  1127 D mtkcam-dev3: [0-session::onConfigureStreamsLocked] halMaxBufferSize=12 HalStream.maxBuffers=12
    行  9392: 03-14 22:07:13.928836  1127  1127 D mtkcam-dev3: [0-session::onConfigureStreamsLocked] [setConfigMap] mImageConfigMap.size()=3, mMetaConfigMap.size()=1
    行  9401: 03-14 22:07:13.929036  1127  1127 D mtkcam-AppStreamMgr: [AppMgr-configureStreams]  0 1280x720  OUT ImgFormat:0x11(NV21) BufPlanes(strides/sizeInBytes):[ 1280/921600 1280/493440 ] startOffset:0 bufStep:0 t:0/r:0 maxBuffers:12 d/s:0x00000000(UNKNOWN) s0:d0:App:YCrCb_420_SP:0|HW_TEXTURE AllocImgFormat:0x11(NV21) AllocBufPlanes(strides/sizeInBytes):[ 1280/921600 1280/493440 ] Real:0x11(YCrCb_420_SP) Request:0x22(IMPLEMENTATION_DEFINED) Override:0x11(YCrCb_420_SP) Hal-Client-usage:0x100(0|HW_TEXTURE) Hal-usage:0x20033(0|SW_READ_OFTEN|SW_WRITE_OFTEN|HW_CAMERA_WRITE) HalStream::(consumer/producer)Usage:0/0x20033 0xb400007c8ac50690 phy:-1
    行  9403: 03-14 22:07:13.929091  1127  1127 D mtkcam-AppStreamMgr: [AppMgr-configureStreams]  0x1 4080x2296 OUT ImgFormat:0x2300(JPEG) BufPlanes(strides/sizeInBytes):[ 14461181/14461184 ] startOffset:0 bufStep:0 t:0/r:0 maxBuffers:11 d/s:0x08c20000(V0_JFIF|STANDARD_BT601_625|TRANSFER_SMPTE_170M|RANGE_FULL) s1:d0:App:BLOB:0|SW_READ_OFTEN AllocImgFormat:0x21(BLOB) AllocBufPlanes(strides/sizeInBytes):[ 14461181/14461184 ] Real:0x21(BLOB) Request:0x21(BLOB) Override:0x21(BLOB) Hal-Client-usage:0x3(0|SW_READ_OFTEN) Hal-usage:0x20033(0|SW_READ_OFTEN|SW_WRITE_OFTEN|HW_CAMERA_WRITE) HalStream::(consumer/producer)Usage:0/0x20033 0xb400007c8ac50310 phy:-1
    行  9404: 03-14 22:07:13.929148  1127  1127 D mtkcam-AppStreamMgr: [AppMgr-configureStreams]  0x2  160x96   OUT ImgFormat:0x11(NV21) BufPlanes(strides/sizeInBytes):[ 192/18432 192/9504 ] startOffset:0 bufStep:0 t:0/r:0 maxBuffers:12 d/s:0x08c20000(V0_JFIF|STANDARD_BT601_625|TRANSFER_SMPTE_170M|RANGE_FULL) s2:d0:App:YCrCb_420_SP:0|SW_READ_OFTEN AllocImgFormat:0x11(NV21) AllocBufPlanes(strides/sizeInBytes):[ 192/18432 192/9504 ] Real:0x11(YCrCb_420_SP) Request:0x23(YCbCr_420_888) Override:0x23(YCbCr_420_888) Hal-Client-usage:0x3(0|SW_READ_OFTEN) Hal-usage:0x20033(0|SW_READ_OFTEN|SW_WRITE_OFTEN|HW_CAMERA_WRITE) HalStream::(consumer/producer)Usage:0/0x20033 0xb400007c8ac535d0 phy:-1
    行  9409: 03-14 22:07:13.929243  1127  1127 D mtkcam-dev3: [0-session::onConfigureStreamsLocked] -
    行  9413: 03-14 22:07:13.929306  1127  1127 I mtkcam-dev3: [0-session::tryRunCommandLocked] Run command onConfigureStreamsLocked -
    行  9414: 03-14 22:07:13.929375  1127  1127 I mtkcam_hal_aidl_device: [0-aidl-session::configureStreams] HalStream{id: 0, overrideFormat: YCRCB_420_SP, producerUsage: 131123, consumerUsage: CPU_READ_NEVER, maxBuffers: 12, overrideDataSpace: JFIF, physicalCameraId: -1, supportOffline: false, enableHalBufferManager: false}
    行  9415: 03-14 22:07:13.929396  1127  1127 I mtkcam_hal_aidl_device: [0-aidl-session::configureStreams] HalStream{id: 1, overrideFormat: BLOB, producerUsage: 131123, consumerUsage: CPU_READ_NEVER, maxBuffers: 11, overrideDataSpace: JFIF, physicalCameraId: -1, supportOffline: false, enableHalBufferManager: false}
    行  9416: 03-14 22:07:13.929413  1127  1127 I mtkcam_hal_aidl_device: [0-aidl-session::configureStreams] HalStream{id: 2, overrideFormat: YCBCR_420_888, producerUsage: 131123, consumerUsage: CPU_READ_NEVER, maxBuffers: 12, overrideDataSpace: JFIF, physicalCameraId: -1, supportOffline: false, enableHalBufferManager: false}
    行  9586: 03-14 22:07:13.948694  2897  3163 I CamAp_API2-Handler-0: [createCaptureSession]-, executing time = 181ms.
    行  9587: 03-14 22:07:13.948976  2897  3164 I CamAp_API2-Handler-0: [onConfigured], session = android.hardware.camera2.impl.CameraCaptureSessionImpl@9221bde
    行  9591: 03-14 22:07:13.949524  2897  3180 I CamAp_PhotoDevice2Controller: [onConfigured],session = com.mediatek.camera.common.device.v2.Camera2CaptureSessionProxy@3b7b1bf, mNeedFinalizeOutput:false

2.5 S4: CameraHal::configureStreams

和你一起终身学习，这里是程序员Android

Trace TAG:
AIDL::cpp::ICameraDeviceUser::endConfigure::cppServer
endConfigure
configureStreams
CameraHal::configureStreams

2.6 S5：CameraHal::configureStreams 结束 -->submitRequestList

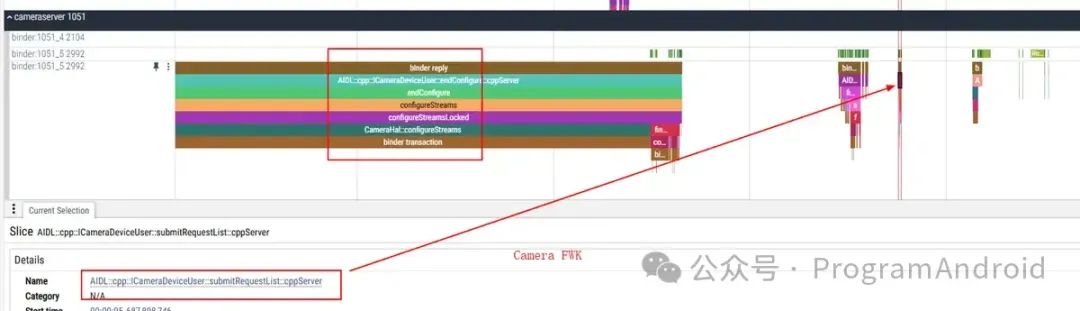

2.6.1 CameraHal::configureStreams 结束 -->submitRequestList 下发预览请求 trace TAG
和你一起终身学习，这里是程序员Android
2.6.2 submitRequestList 下发预览请求 trace TAG
和你一起终身学习，这里是程序员Android

Trace TAG:

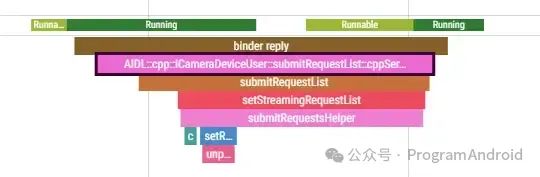

AIDL::cpp::ICameraDeviceUser::submitRequestList::cppServer
submitRequestList
setStreamingRequestList
submitRequestsHelper
setRepeatingRequests

2.7 S6：submitRequestList --> first full buffer

2.7.1 第一帧预览请求

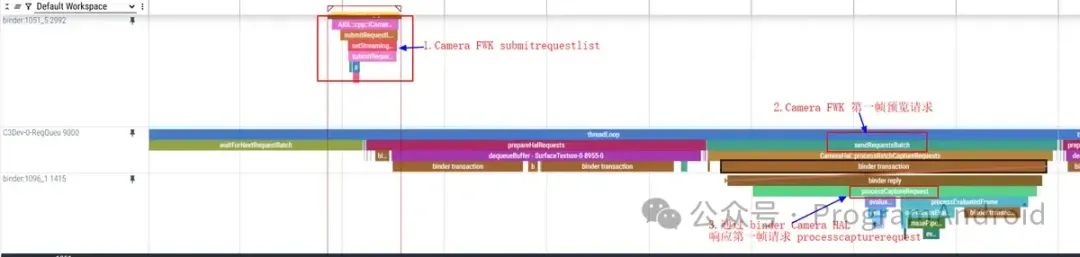

第一帧预览请求 Trace
第一帧预览请求的trace

Camera FWK trace TAG：
sendRequestsBatch
CameraHal::processBatchCaptureRequests
frame capture

Camera HAL trace TAG：
processCaptureRequest

第一帧预览请求 Log
//25. Camera HAL 开始准备第一帧预览请求 [submitRequest] <4Cell/0> requestNo:0
    03-14 22:07:14.111577  1127  1127 D mtkcam-dev3-utils: [0-AppRequestUtil::createOneRequest] requestNumber[0]:StreamBuffer:0xb400007d4ac4a2c0 streamId:0 bufferId:1 buffer:0xb400007d1ac3a590 status:OK acquireFenceOp.hdl:0x0 releaseFenceOp.hdl:0x0 acquireFenceOp.fd:-1 releaseFenceOp.fd:-1 appBufferHandleHolder:0xb400007ddac86e68 freeByOthers:0 /
    03-14 22:07:14.111722  1127  1127 I mtkcam-AppStreamMgr: [earlyCallbackMeta] early callback metadata, requestNo: 0
    03-14 22:07:14.111853  1127  1127 I mtkcam-PipelineModelSession:
    [submitRequest] <4Cell/0> requestNo:0 {  //submit第一帧预览请求
    repeating:0
    control.aeTargetFpsRange:5,30   //预览帧率配置
    control.captureIntent:1         // captureIntent 1: 预览； 2： 拍照 ；3： 录像； 4:录像抓拍 5：ZSL
    control.enableZsl:0             // 是否开启ZSL
    control.processRawEn:0 control.mode:1 control.sceneMode:0 control.videoStabilizationMode:0 edge.mode:1 }
    03-14 22:07:14.111928  1127  1127 I mtkcam-FeatureSettingPolicy: [collectDefaultSensorInfo] keep the first request config as default config
    03-14 22:07:14.112664  1127  1127 I mtkcam-InitFrameHandler: [enqueue] RequestNo:0 FrameNo:0

    // 26. Camera FWK  第一帧请求ok
    03-14 22:07:14.113523  1127  1127 D mtkcam-dev3: [0-session::processCaptureRequest] -> 1st request - OK
2.7.2 第一帧出图callback 请求
第一帧出图定位： callback Camera FWK 关键trace TAG
和你一起终身学习，这里是程序员Android

Trace TAG:
processCaptureResults

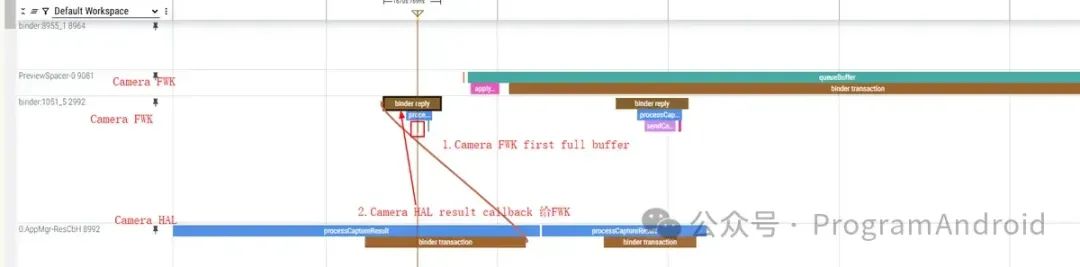

Stream 0: first full buffer
第一帧出图callback Camera HAL --> Camera FWK -->Camera APP
和你一起终身学习，这里是程序员Android
第一帧callback 流程（Camera HAL -->Camera FWK）
和你一起终身学习，这里是程序员Android

第一帧出图callback Camera HAL trace TAG
processCaptureResult
第一帧出图callback Camera FWK 关键 trace TAG：first full buffer
Stream 0: first full buffer
frame capture

第一帧callback 流程（Camera FWK -->Camera APP）
和你一起终身学习，这里是程序员Android

Camera APP trace TAG:
SurfaceTexture

第一帧callback 流程 Log
// 27. Camera  HAL  出图并callback result 到上层 Frame timer: 预览出图  frame end  updateResult callback 预览帧到上层
    03-14 22:07:14.115334  1127  3168 D mtkcam-AppStreamMgr: [0-FrameHandler::updateResult] requestNo 0, real time:1, last partial:0
    03-14 22:07:14.250714  1127  3231 D MtkCam/StreamingPipe/Timer: [print]Frame timer [#    1/   0][t  19][io   0][tof  0/  0][d  0/  0][mss  0/  0/  0/  0][a 18/  4/ 13][tun  0/  0][msf  0/  0][vnr  0/  0/  0][am  0][b  0/  0][tpi(  0/  0)/(  0/  0)/(  0/  0)][vmdp_A  0/  0 vmdp_B  0/  0][h  7/  0/  0][e  0][r  0/  0][w_A  0/  0/  0/  0 w_B  0/  0/  0/  0][x  0][disp  0/  0][async  0/  0][p2sm  0/  0/  0][fps0.00/0.00/  5/ 30]
    03-14 22:07:14.282618  1127  3223 I MtkCam/Utils: {CamProfile}[CameraDevice3SessionImpl::onFrameUpdated] updateResult: requestNo:0 userId:0x16 OAppMeta#(left:0 this:1): (1-th) ===> ( overtime > 1 ms) [start-->now: 5 ms] [last-->now: 5 ms]
    03-14 22:07:14.282892  1127  3223 D mtkcam-pipeline: [onLastStrongRef] [ requestNo:0 frameNo:0 ] frame end
    03-14 22:07:14.283846  1127  3168 D mtkcam-AppStreamMgr: [0-FrameHandler::updateResult] requestNo 0, real time:0, last partial:1

2.8 S7： first full buffer ⇒ 第一帧显示(onPreviewOk)

第一帧callback 流程（Camera APP -->SurfaceFliger 送显示）
和你一起终身学习，这里是程序员Android

SF 显示trace TAG：
surfaceflinger
vsync-sf
BufferTx
Fence

至此，本篇已结束。转载网络的文章，小编觉得很优秀，欢迎点击阅读原文，支持原创作者，如有侵权，恳请联系小编删除，欢迎您的建议与指正。同时期待您的关注，感谢您的阅读，谢谢！

点个在看，为大佬点赞！

Camera预览流程
做最好的自己
02-28 1488
camera预览
【camera】Mtk相机冷启动的拆解笔记
没有手牌的博客
02-28 1435
文章目录1 概述2 S0+S13 S24 S35 S46 S57 S68 S7 1 概述 冷启动大致可以分成以下几块内容: S0 (system) 主要是 Activity 的创建耗时（从 Touch up，即 ptr:up 开始） ptr:up S1 App 从 Activity 创建成功，到下 open camera 的时间（对应 CameraService::connect）； Note：我习惯把 S0 和 S1 算成一大阶段； S2 HAL open camera
MTK Camera 照片切视频Systrace拆解分析
最新发布
程序员Android
03-31 873
和你一起终身学习，这里是程序员Android经典好文推荐，通过阅读本文，您将收获以下知识点:一、Systrace 拆解概览二、Systrace 阶段拆解详解。
Camera systrace的知识整理
彧玊的博客
04-28 649
1.result返回的tag： HAL3ProcessCaptureResult : 196 （先找到你对应的帧号，然后进行修改就可以定位到了） 2.下发request的tag： HAL3ProcessCaptureRequest : 196 （可以搭配result判断底层一共处理了多长时间） 3.app的页面加载起来 activityStart（需要在对应的app进程里面找） 4. camerahal::opensession 5.第一帧显示出来 first full buffer 6
【MTK】camera性能学习－初看systrace
来碗炒饭
05-28 3061
冷启动 热启动 模式切换 镜头切换 预览类 拍照类 分析工具 https://ui.perfetto.dev/ chrome://tracing/ 工具比较 技巧分享
不同场景systrace tag
yangzex的专栏
10-24 2118
kernel-V4.1*版本： adb shell "echo 1 > /sys/kernel/tracing/events/kernel-V5.10版本： adb shell "echo 1 > /sys/kernel/tracing/events/kernel-V4.1*版本： adb shell "echo 1 > /sys/kernel/tracing/events/如果发现CPU频率缺失，检查如下trace event有没有打开。
Android camera预览流程
热门推荐
chengwei_peng
10-17 1万+
前面已经简单介绍了，在Android系统中open camera的流程，但是，它又是怎么预览、怎么配置流，如何最终操作到camera HAL的呢。接下来以android原生相机应用，android9，API2，camera HAL3为例，继续阅读代码，看看预览过程到底进行了什么操作？ configureStreams 操作 APP — 从open camera说起 在 Camera2 相机应用，打...
Android Camera2-预览、拍照、录像流程
xiaowang_lj的博客
07-20 2738
重复模式（Repeating）：指的是不断重复执行指定的 Capture 操作，当有其他模式的 Capture 提交时会暂停该模式，转而执行其他被模式的 Capture，当其他模式的 Capture 执行完毕后又会自动恢复继续执行该模式的 Capture，例如显示预览画面就是不断 Capture 获取每一帧画面。在 Camera2 上，你可以在规定的曝光时长范围内配置拍照的曝光时间，从而实现拍摄长曝光图片，你甚至可以延长每一帧预览画面的曝光时间让整个预览画面在暗环境下也能保证一定的亮度。
【MTK-Camera Capture、Preview request解析】
Sugar_wolf的博客
02-07 812
MTK-Camera Capture、Preview request解析
gfpsgo:gfpsgo
04-16
适用于Linux的gfpsgo 概述 gfpsgo是ps （ 1 ）（与AIX格式兼容）的Go库和工具，并扩展了各种描述符，这些描述符可用于显示与容器相关的数据。 与ps （ 1 ）工具一样，该库背后的想法是提供一种易于使用的提取与过程相关的数据的方法。 使用ps （ 1 ）的问题是ps输出是格式化的字符串，该字符串被空格分隔成几列，这使得输出极不可能自动解析。 这也增加了一些抖动，因为我们必须在容器中派生并执行ps ，或者随后对输出进行过滤，这进一步限制了可用性。 该工具和库旨在使事情变得更舒适，尤其是对于容器运行时。 API允许加入给定进程的mount名称空间，并将自动解析/proc和/dev/文件系统。 该API包含以下功能： gfpsgo.ProcessInfo(descriptors []string) ([][]string, error) ProcessInfo返回
MTK平台camera硬件相关解决方法
10-06
MTK平台camera硬件相关解决方法
十分钟实现 Android Camera2 相机预览
朱豪凯的博客
06-28 1万+
因为工作中要使用Android Camera2 API，但因为Camera2比较复杂，网上资料也比较乱，有一定入门门槛，所以花了几天时间系统研究了下，并在优快云上记录了下，希望能帮助到更多的小伙伴。
Android Camera（七）数据流配置
书山有路勤为径
02-04 3402
数据流配置 目录 数据流配置 参考实现 推荐的数据流配置 实现 验证 用于查询数据流组合的 API 实现 验证 Android 10 引入了一些功能，允许相机客户端针对具体使用情形选择最佳的摄像头数据流，并确保摄像头设备支持某些数据流组合。数据流配置是指在摄像头设备中配置的单个摄像头数据流，而数据流组合是指在摄像头设备中配置的一组或多组数据流。如需详细了解这些功能，请参阅推荐的...
如何查看友商的Camera配流情况
欢迎关注，期待一起见证彼此的成长~
08-27 534
如下图所示，我是直接过滤搜索 Stream configuration。从图片内容我们可以看到，当前占用相机的app,一共申请了2路流，分别是 0x22 1280 *720 和 0x21 1280 *720。我们可以通过dumpsys media.camera 命令，能获取到当前使用相机的情况，在保存的文件里面，过滤搜索 Stream configuration，就能找到我们想要的信息。如果只是抓logcat日志，我们可能没法从中获取到有效信息，毕竟一般出货的机器版本，基本已经把大部分相关日志都给关闭了。
[MTK 驱动开发]MTK CAMERA 流程
feelinghappy的专栏
06-17 2542
<br />chrisking 发表于 2010-1-11 21:56:00近来准备驱动通过EMI驱动一个LCD屏，加上一颗4W的sensor，研究了下CAMERA的流程。<br />以23C的平台为例子。<br /> <br />1. mmi_camera_entry_app_screen 进入MMI，CAMERA进行分配动态内存，供采集数据处理。<br />2. mmi_camera_entry_app_screen_internal，进入判断T卡等环境相关，---》CAMERA_ENTER_STATE
高通和MTK驱动修改FPS的文件
dyy0920的博客
04-09 635
文件名：sensor_lib.h。
Camera2 预览流程分析
ltc_666的博客
04-09 1531
提示：文章写完后，目录可以自动生成，如何生成可参考右边的帮助文档 文章目录前言一、流程图二、相机预览流程1. 创建预览会话2. 发送拍照请求总结 前言 前面已经分析了Camera2的open流程，接下来我们分析一下Camera2的预览流程。 一、流程图 二、相机预览流程 从 TextureView 获取到 SurfaceTexture 将 SurfaceTexture 默认缓冲区的大小配置为相机预览的大小 新建一个 Surface 作为预览输出 CaptureRequest.Builder 设置 .
mtk android8.1上，camera主摄的调用流程
xuhui_7810的专栏
12-28 2288
mtk的摄像头hal模块，跟android原生的有很大的出入，基本上是自己重写了一套，不熟悉的话，查看起来相当的复杂。特别是在8.0以后，mtk的hal，既使用了hidl接口，又没有完全按照hidl的标准来，底层仍是他们自己的一套流程。如果按google的流程来看，是别想弄明白的。 前段时间，我调了下mtk的camera，大致弄清了它们的流程。随手记了点笔记，写得...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

程序员Android

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
