Flutter学习笔记之-滚动Widget的基础使用

ListView

通过官方文档可知ListView的创建方式有很多，可以根据实际情况选择使用方式
1、默认构造函数
2、ListView.builder方法，可以显示大量数据的ListView
3、ListView.separated可以添加分割线
4、ListView.custom自定义的方式

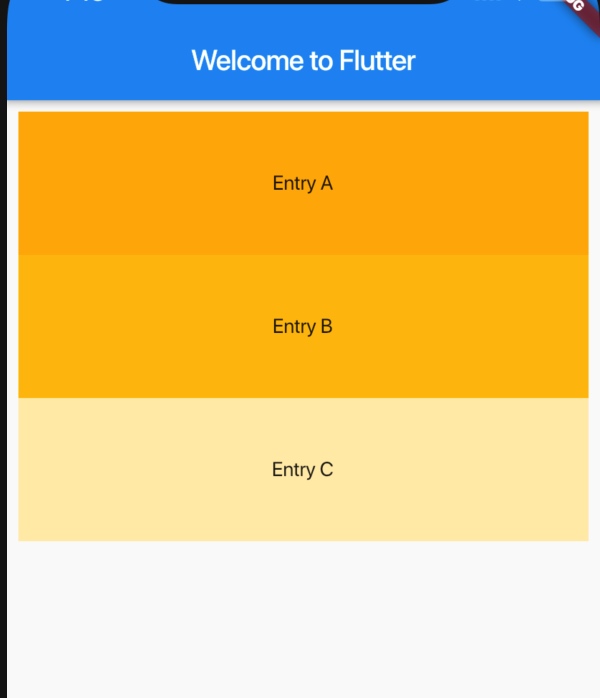

1、默认构造函数的方式

class DemoWidget extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return ListView(
      itemExtent: 100, // 行高
      padding: const EdgeInsets.all(8),
      children: <Widget>[
        Container(
          height: 50,
          color: Colors.amber[600],
          child: const Center(child: Text('Entry A')),
        ),
        Container(
          height: 50,
          color: Colors.amber[500],
          child: const Center(child: Text('Entry B')),
        ),
        Container(
          height: 50,
          color: Colors.amber[100],
          child: const Center(child: Text('Entry C')),
        ),
      ],
    );
  }
}

Alt

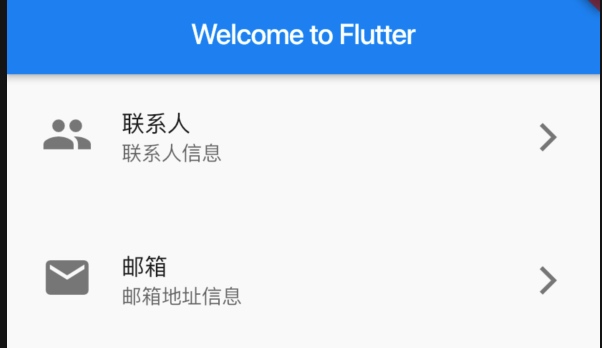

ListTile的默认样式：
有一个图标或图片（Icon），有一个标题（Title），有一个子标题（Subtitle），还有尾部一个图标（Icon）

class DemoWidget extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return ListView(
      itemExtent: 100, // 行高
      padding: const EdgeInsets.all(8),
      children: <Widget>[
        ListTile(
          leading: Icon(Icons.people, size: 36,),
          title: Text("联系人"),
          subtitle: Text("联系人信息"),
          trailing: Icon(Icons.arrow_forward_ios),
        ),
        ListTile(
          leading: Icon(Icons.email, size: 36,),
          title: Text("邮箱"),
          subtitle: Text("邮箱地址信息"),
          trailing: Icon(Icons.arrow_forward_ios),
        ),
      ],
    );
  }
}

Alt

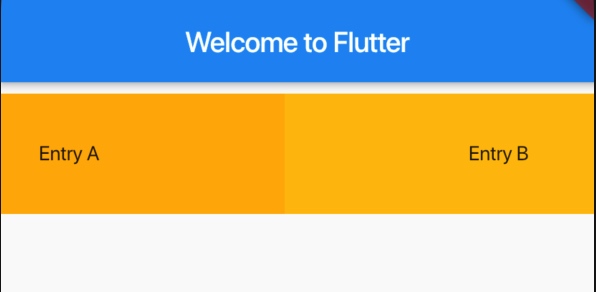

横向滚动的布局方式

class DemoWidget extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Container(
      height: 100,
      child: ListView(
        // 滚动方向，横向滚动
        scrollDirection: Axis.horizontal,
        itemExtent: 300, // 行高
        padding: const EdgeInsets.all(8),
        children: <Widget>[
          Container(
            color: Colors.amber[600],
            child: const Center(child: Text('Entry A')),
          ),
          Container(
            color: Colors.amber[500],
            child: const Center(child: Text('Entry B')),
          ),
          Container(
            color: Colors.amber[100],
            child: const Center(child: Text('Entry C')),
          ),
        ],
      ),
    );
  }
}

Alt

2、ListView.builder方式创建ListView

class DemoFulWidget extends StatefulWidget {
  @override
  _DemoFulWidgetState createState() => _DemoFulWidgetState();
}

class _DemoFulWidgetState extends State<DemoFulWidget> {
  final List<String> entries = <String>['A', 'B', 'C'];
  final List<int> colorCodes = <int>[600, 500, 100];

  @override
  Widget build(BuildContext context) {
    return ListView.builder(
        padding: EdgeInsets.all(10),
        itemExtent: 50,
        itemCount: entries.length,
        itemBuilder: (BuildContext context, int index) {
          return Container(
            child: Text("Hello world - ${entries[index]}"),
            color: Colors.amber[colorCodes[index]],
          );
        });
  }
}

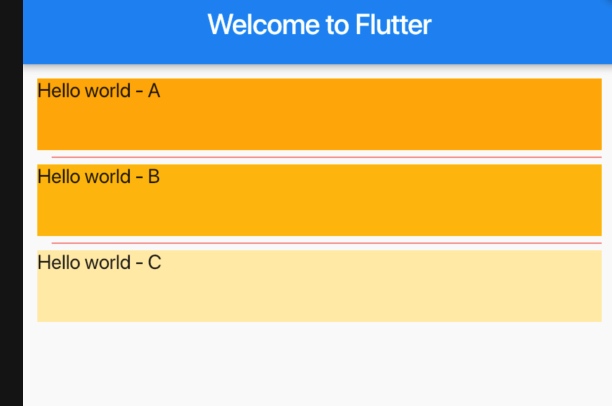

3、 ListView.separated可以添加分割线

class DemoFulWidget extends StatefulWidget {
  @override
  _DemoFulWidgetState createState() => _DemoFulWidgetState();
}

class _DemoFulWidgetState extends State<DemoFulWidget> {
  final List<String> entries = <String>['A', 'B', 'C'];
  final List<int> colorCodes = <int>[600, 500, 100];

  @override
  Widget build(BuildContext context) {
    return ListView.separated(
        padding: EdgeInsets.all(10),
        itemBuilder: (BuildContext context, int index) {
      return Container(
        height: 50,
        child: Text("Hello world - ${entries[index]}"),
        color: Colors.amber[colorCodes[index]],
      );
    }, separatorBuilder: (BuildContext context, int index) {
          return Divider(
            height: 10,
            indent: 10, // 距离左边的位置
            color: Colors.red,);
    }, itemCount: entries.length);
  }
}

Alt

GridView

GridView类似于iOS上的UICollectionView

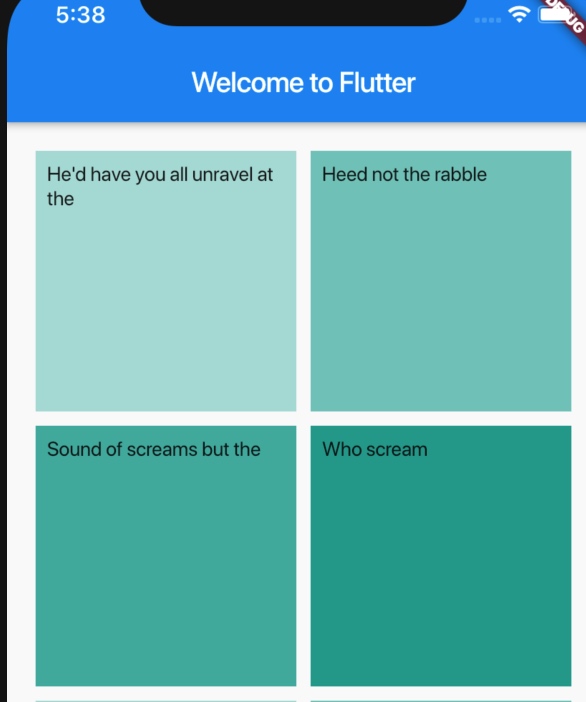

1、GridView.count实现方式

class DemoWidget extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return GridView.count(
      crossAxisCount: 2,
      primary: false,
      padding: const EdgeInsets.all(20),
      // 次轴方向上的间隔
      crossAxisSpacing: 10,
    // 主轴方向上的间隔
      mainAxisSpacing: 10,
      children: <Widget>[
        Container(
          padding: const EdgeInsets.all(8),
          child: const Text("He'd have you all unravel at the"),
          color: Colors.teal[100],
        ),
        Container(
          padding: const EdgeInsets.all(8),
          child: const Text('Heed not the rabble'),
          color: Colors.teal[200],
        ),
        Container(
          padding: const EdgeInsets.all(8),
          child: const Text('Sound of screams but the'),
          color: Colors.teal[300],
        ),
        Container(
          padding: const EdgeInsets.all(8),
          child: const Text('Who scream'),
          color: Colors.teal[400],
        ),
        Container(
          padding: const EdgeInsets.all(8),
          child: const Text("He'd have you all unravel at the"),
          color: Colors.teal[100],
        ),
        Container(
          padding: const EdgeInsets.all(8),
          child: const Text('Heed not the rabble'),
          color: Colors.teal[200],
        ),
        Container(
          padding: const EdgeInsets.all(8),
          child: const Text('Sound of screams but the'),
          color: Colors.teal[300],
        ),
        Container(
          padding: const EdgeInsets.all(8),
          child: const Text('Who scream'),
          color: Colors.teal[400],
        )
      ],
    );
  }
}

Alt

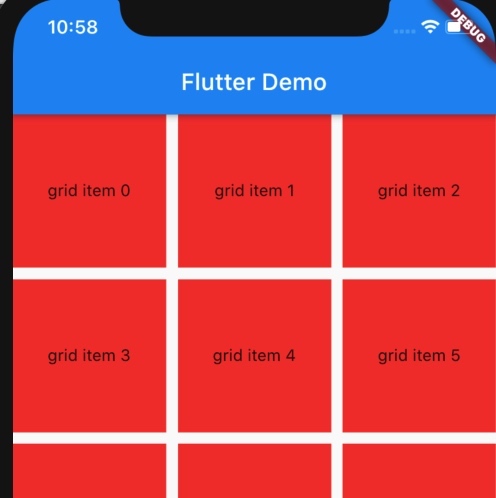

2、GridView使用gridDelegate方式创建

方式一采用默认构造方式
class _MyHomePageState extends State<MyHomePage> {
  List<Widget> getChildrenWidgets() {
    return List.generate(20, (index) {
      return Container(child: Text("grid item $index"), color: Colors.red, alignment: Alignment.center,);
    }
    );
  }

  @override
  Widget build(BuildContext context) {
    return GridView(
      children: getChildrenWidgets(),
      gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(crossAxisCount: 3, mainAxisSpacing: 10, crossAxisSpacing: 10),
      );
  }
}

方式二利用GridView.builder的方式创建
@override
  Widget build(BuildContext context) {
    return GridView.builder(
        gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(crossAxisCount: 3, mainAxisSpacing: 10, crossAxisSpacing: 10),
        itemBuilder: (BuildContext context, int index) {
          return Container(child: Text("grid item $index"), color: Colors.red, alignment: Alignment.center,);
        });
  }

Alt

3、GridView实现滚动监听

class _MyHomePageState extends State<MyHomePage> {

  ScrollController _scrollController;
  @override
  void initState() {
    super.initState();
    _scrollController = ScrollController();
    _scrollController.addListener(() {
      // 打印位置监听数据
      print("lister = ${_scrollController.offset}");
       if (_scrollController.offset >= 1000) {
        // 滚动到起始位置
        _scrollController.animateTo(0, duration: Duration(seconds: 2), curve: Curves.easeInCirc);
      }
    });
  }

  @override
  void dispose() {
    // TODO: implement dispose
    super.dispose();
    _scrollController.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return GridView.builder(
      controller: _scrollController,
        gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
            crossAxisCount: 3, mainAxisSpacing: 10, crossAxisSpacing: 10),
        itemBuilder: (BuildContext context, int index) {
          return Container(
            child: Text("grid item $index"),
            color: Colors.red,
            alignment: Alignment.center,);
        });
  }
}

4、GridView监听滚动开始、结束、滚动中的状态

class _MyHomePageState extends State<MyHomePage> {
  @override
  Widget build(BuildContext context) {
    return NotificationListener(
      child: GridView.builder(
          gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
              crossAxisCount: 3, mainAxisSpacing: 10, crossAxisSpacing: 10),
          itemBuilder: (BuildContext context, int index) {
            return Container(
              child: Text("grid item $index"),
              color: Colors.red,
              alignment: Alignment.center,);
          }),
      onNotification: (ScrollNotification notification) {
        if (notification is ScrollStartNotification) {
          print("开始滚动");
        } else if (notification is ScrollUpdateNotification) {
          print("滚动中..");
        } else if (notification is ScrollEndNotification) {
          print("滚动结束");
        }
        return false;
      },
    );
  }
}

CustomScrollView

1、利用CustomScrollView实现GridView的效果，分别用SliverSafeArea增加安全区域显示，SliverPadding实现SliverGrid间距。

class _MyHomePageState extends State<MyHomePage> {
  @override
  Widget build(BuildContext context) {
    return CustomScrollView(
      slivers: <Widget>[
        SliverSafeArea( // 安全区域
          sliver: SliverPadding( // 添加间距
            padding: EdgeInsets.all(10),
            sliver: SliverGrid(delegate: SliverChildBuilderDelegate(
                    (BuildContext context, int index) {
                  return Container(child: Text("grid item $index"),
                      color: Colors.red,
                      alignment: Alignment.center);
                }, childCount: 20
            ),
                gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
                    crossAxisCount: 3, mainAxisSpacing: 10, crossAxisSpacing: 10)),
          ),
        )
      ],
    );
  }
}

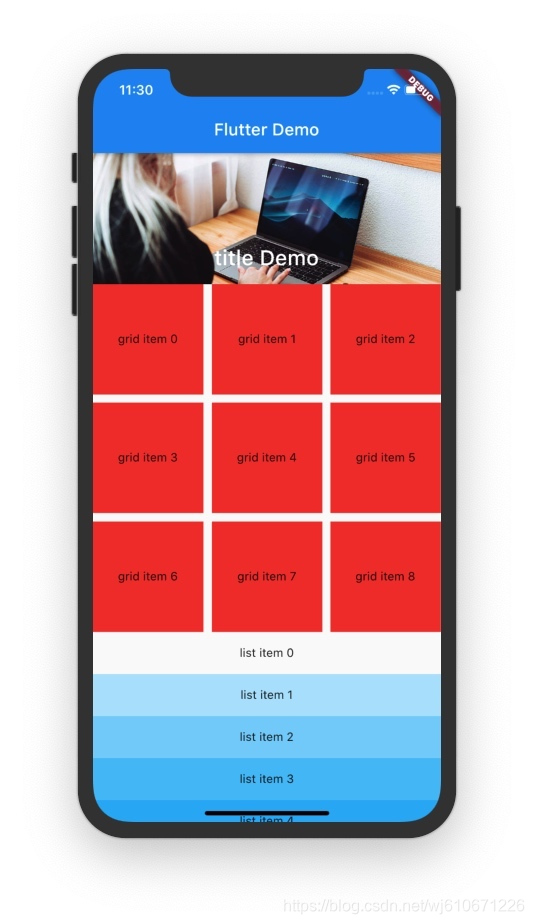

2、利用CustomScrollView实现GridView+ListView的效果

class _MyHomePageState extends State<MyHomePage> {
  @override
  Widget build(BuildContext context) {
    return CustomScrollView(
      slivers: <Widget>[
        SliverAppBar(
          expandedHeight: 250.0,
          flexibleSpace: FlexibleSpaceBar(
            title: Text('Coderwhy Demo'),
            background: Image(
              image: NetworkImage(
                "https://tva1.sinaimg.cn/large/006y8mN6gy1g72j6nk1d4j30u00k0n0j.jpg",
              ),
              fit: BoxFit.cover,
            ),
          ),
        ),
        SliverGrid(delegate: SliverChildBuilderDelegate(
                (BuildContext context, int index) {
              return Container(child: Text("grid item $index"),
                  color: Colors.red,
                  alignment: Alignment.center);
            }, childCount: 9
        ),
            gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
                crossAxisCount: 3, mainAxisSpacing: 10, crossAxisSpacing: 10)
        ),
        SliverFixedExtentList(
          itemExtent: 50.0,
          delegate: SliverChildBuilderDelegate(
                  (BuildContext context, int index) {
                return Container(
                    alignment: Alignment.center,
                    color: Colors.lightBlue[100 * (index % 9)],
                child: new Text('list item $index'),
                );
              },
              childCount: 20
          ),
        ),
      ],
    );
  }
}

在这里插入图片描述
