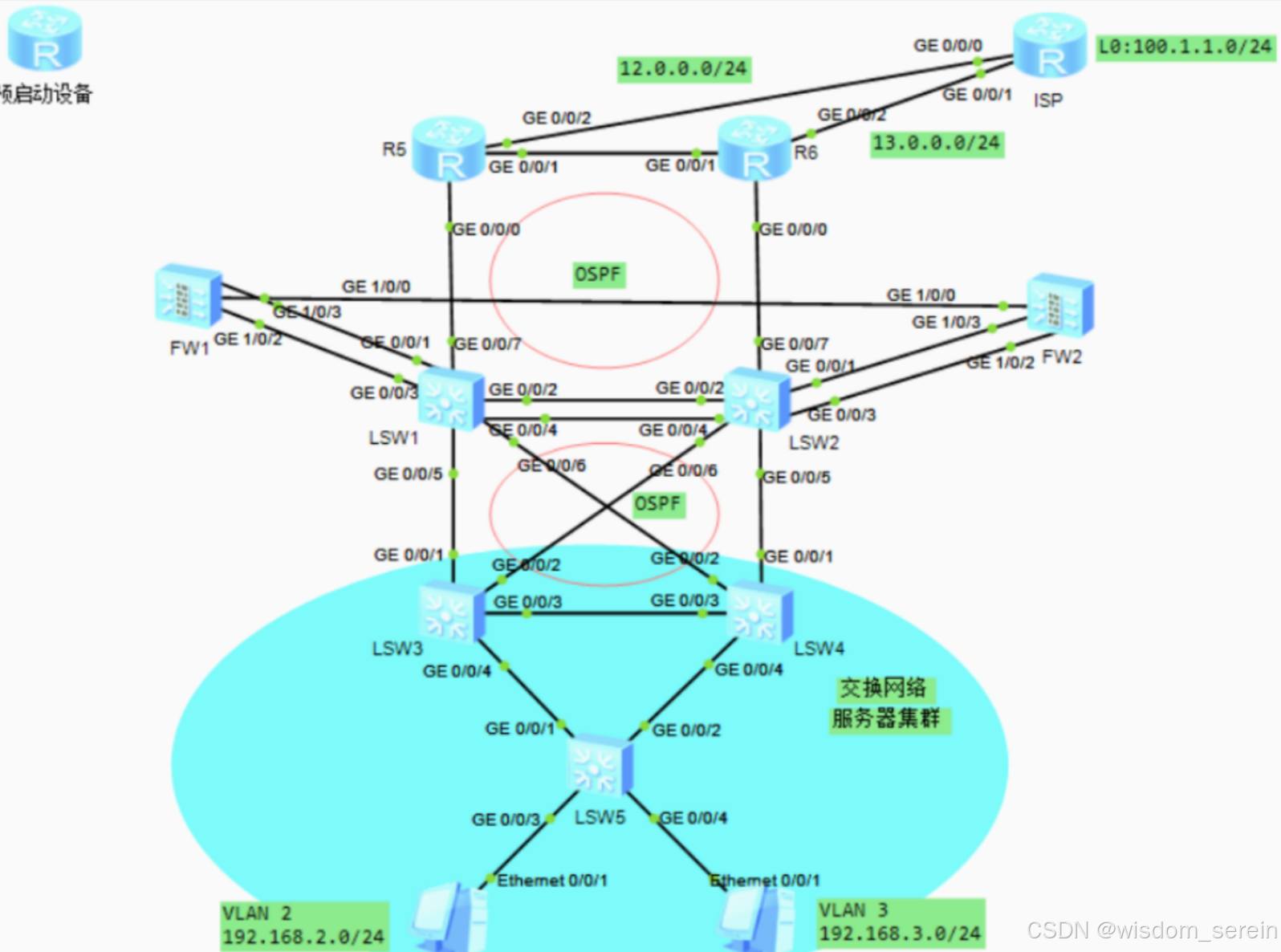

1、SW3的流量

正常情况下：SW1_VRF-->FW1--->SW1_Public--->R5

故障情况下：SW2_VRF-->FW2--->SW2_Public--->R6

2、SW4的流量

正常情况下：SW2_VRF-->FW2--->SW2_Public--->R6

故障情况下：SW1_VRF-->FW1--->SW1_Public--->R5

3、交换网络负载均衡

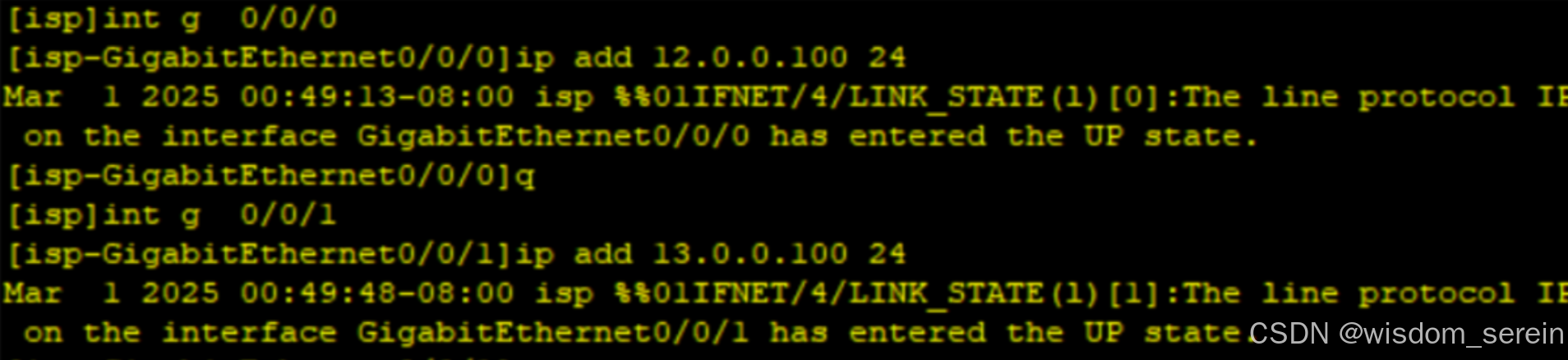

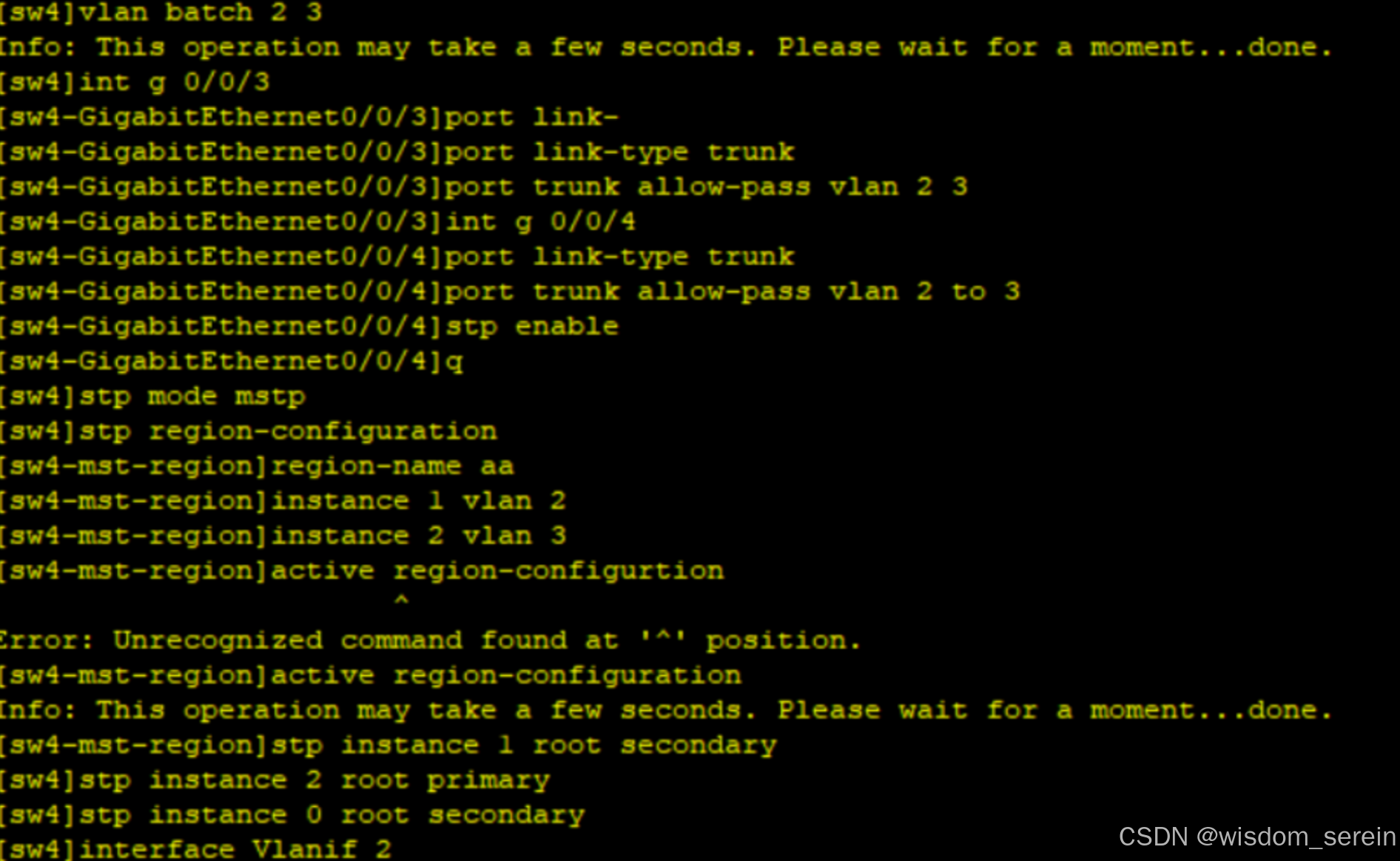

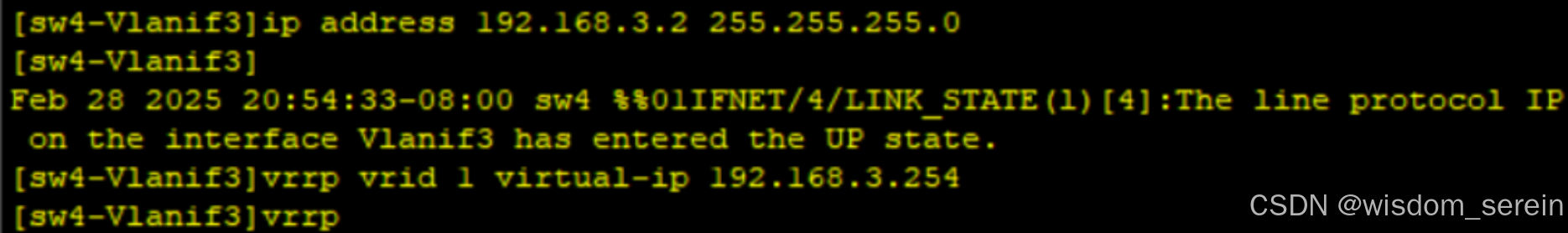

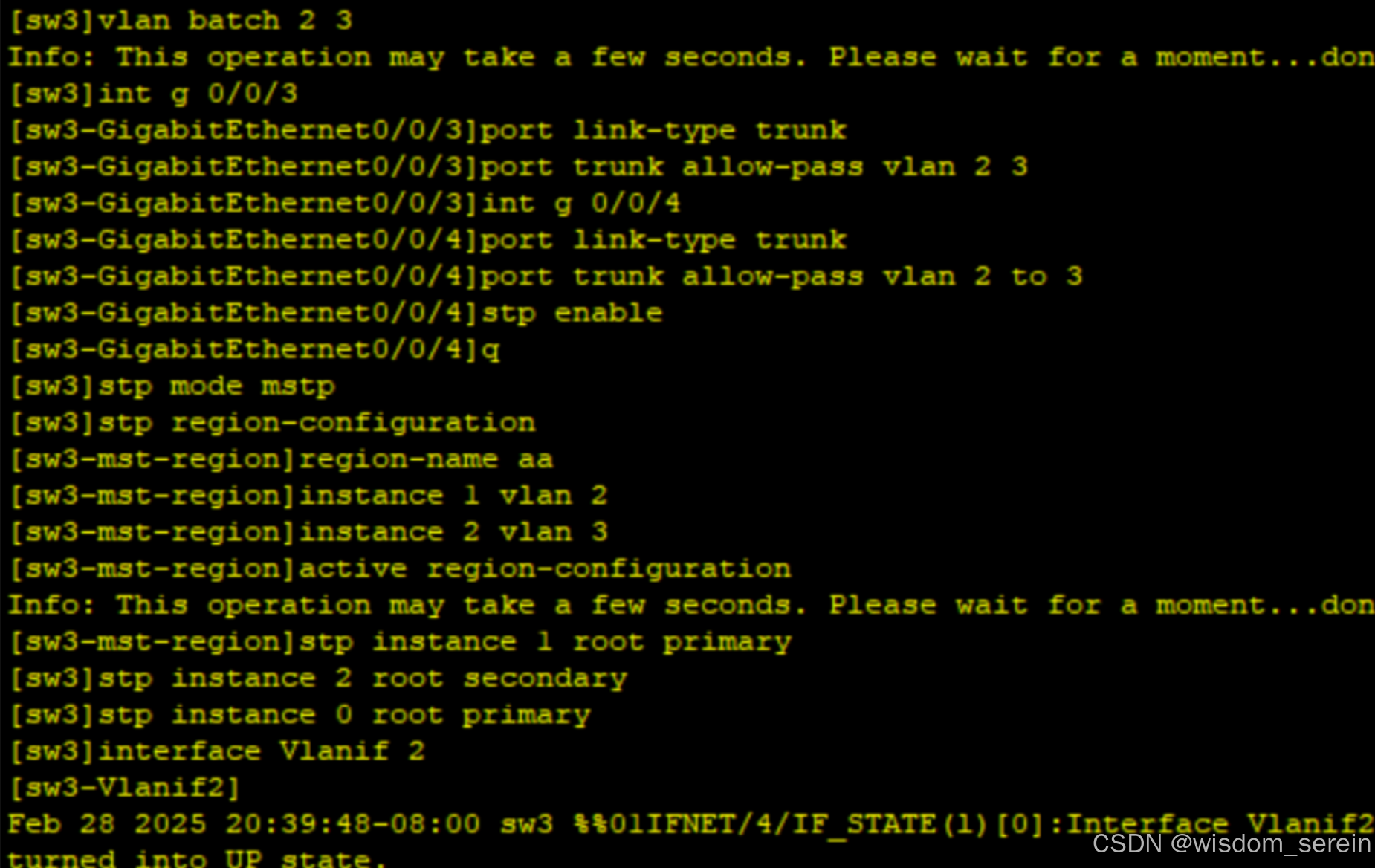

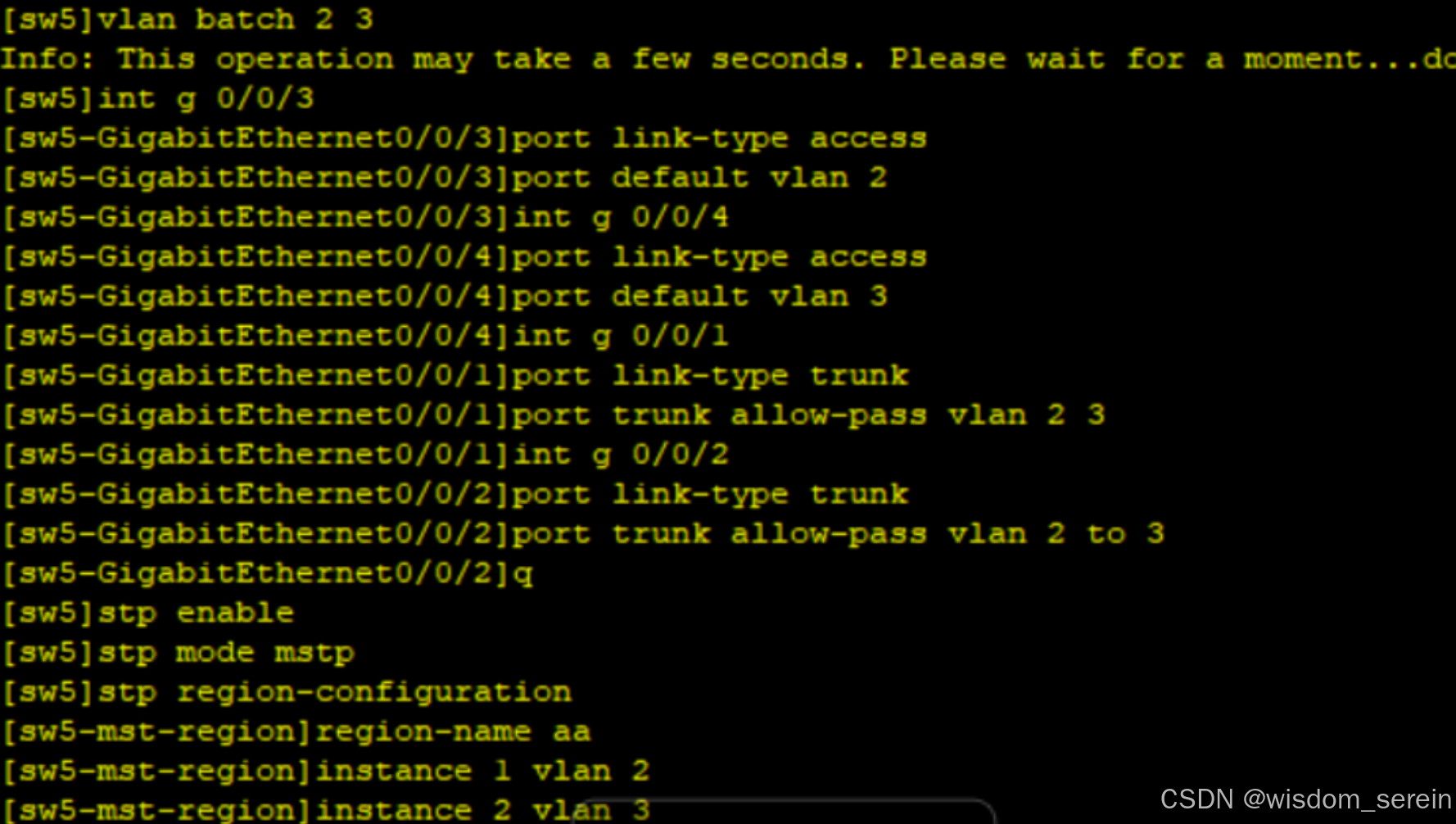

配置交换机

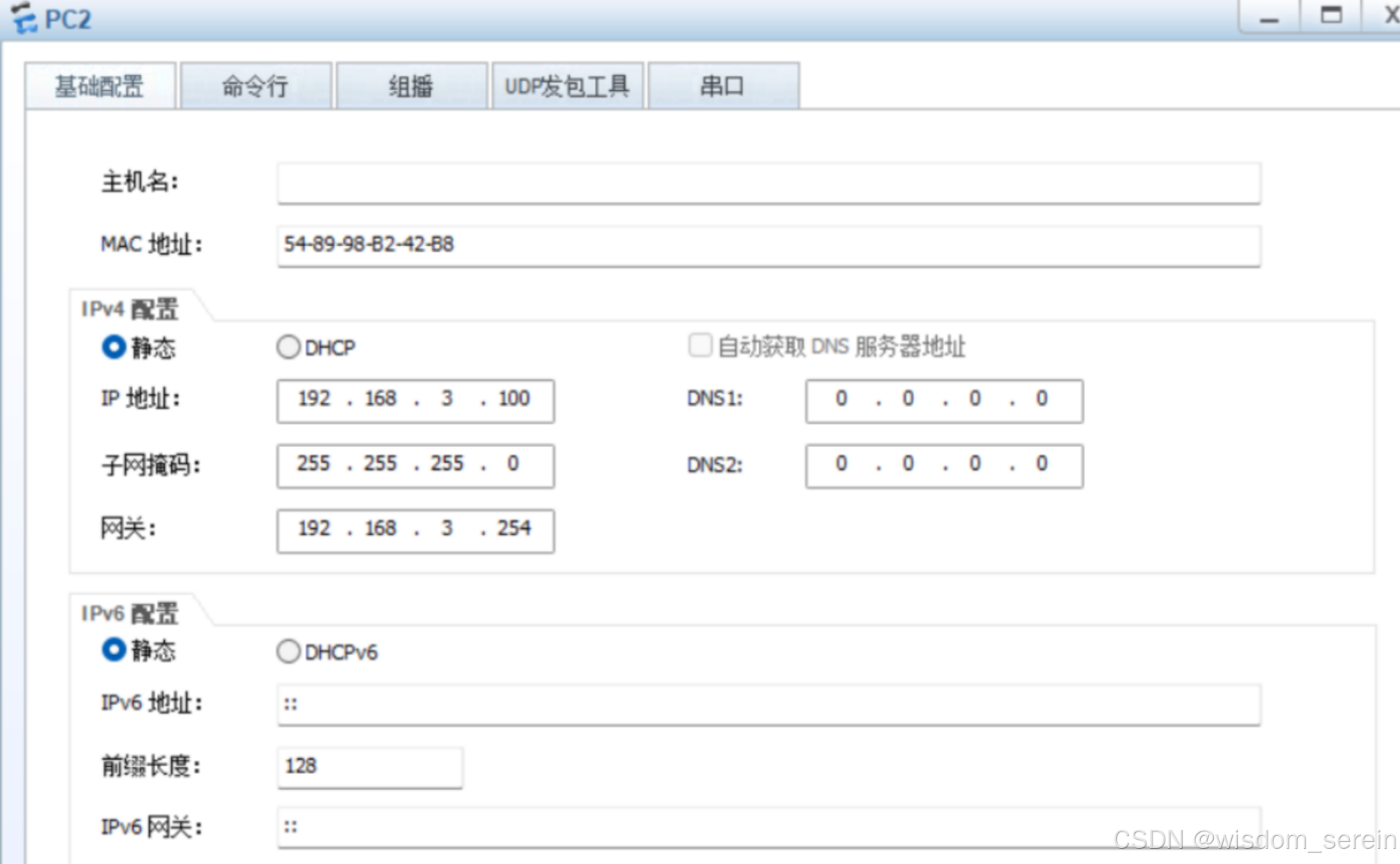

配置PC

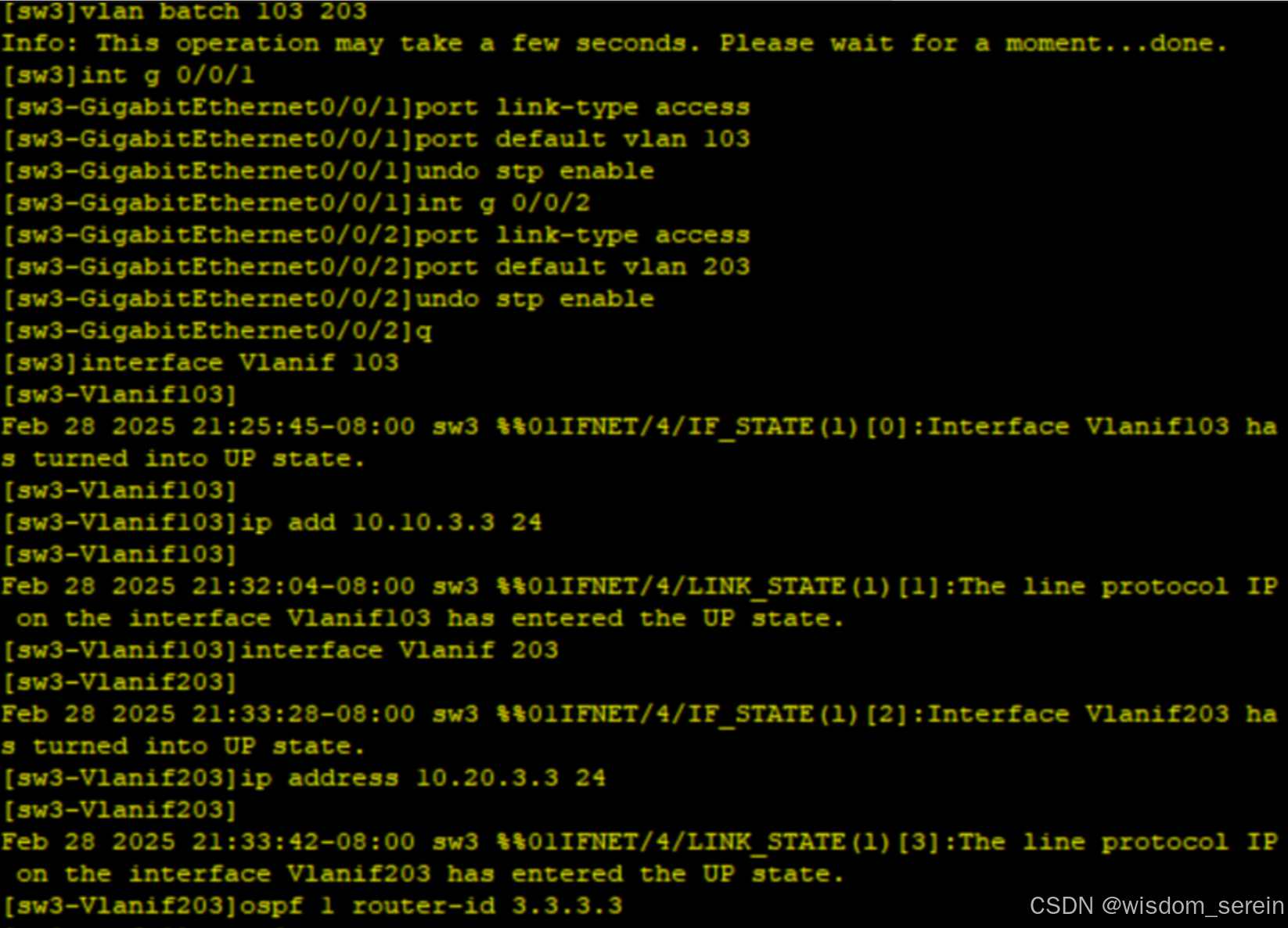

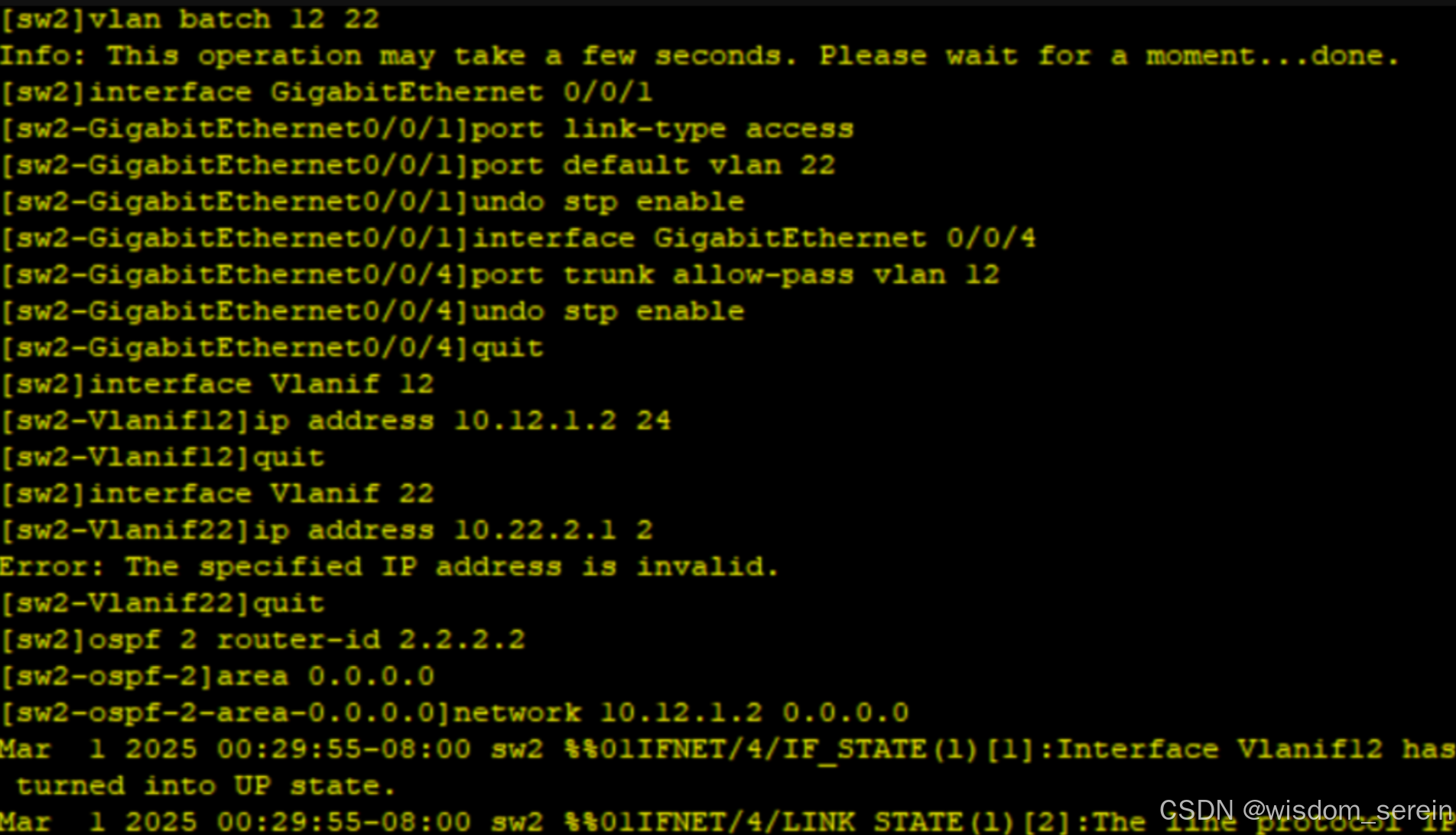

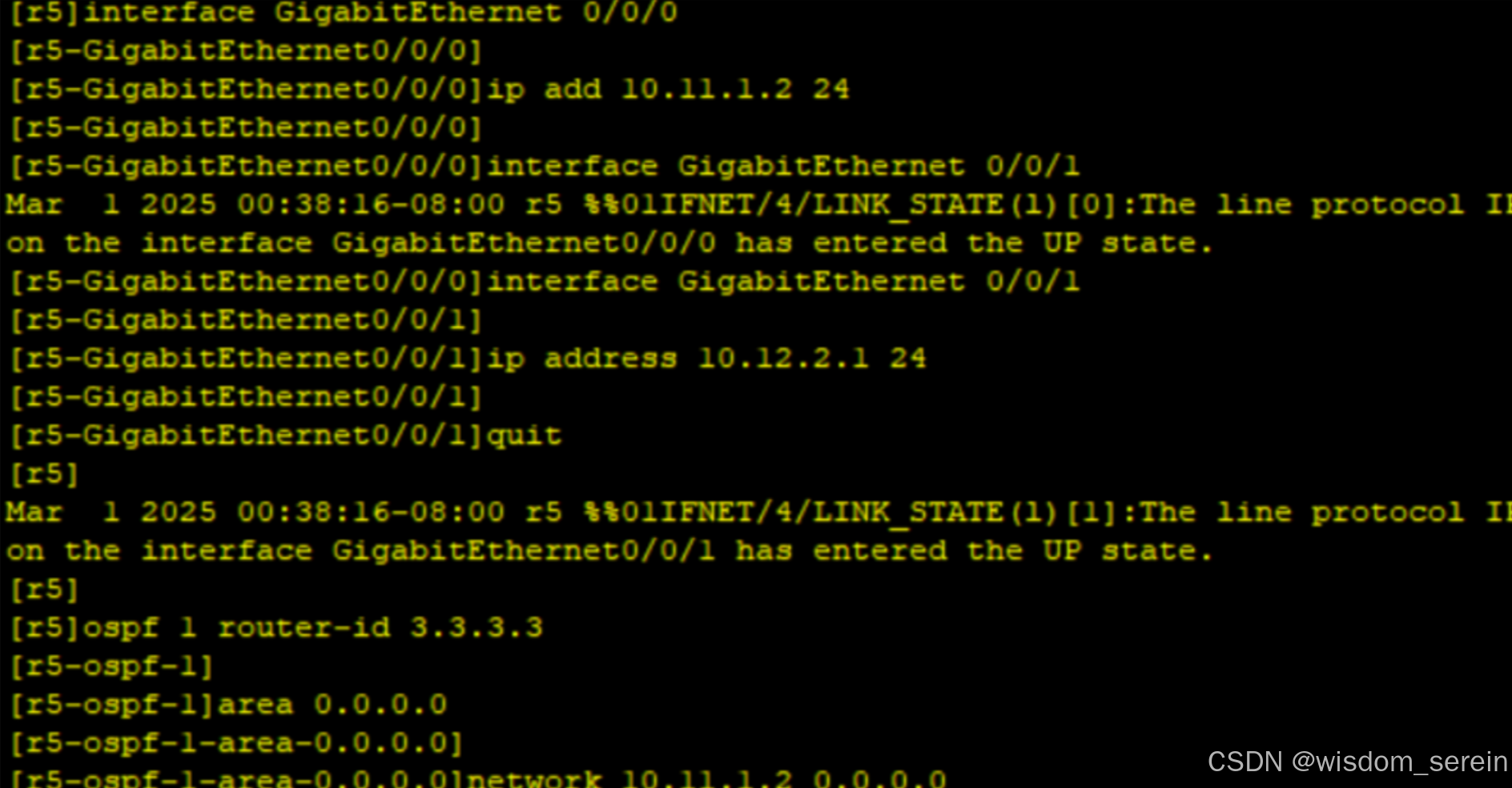

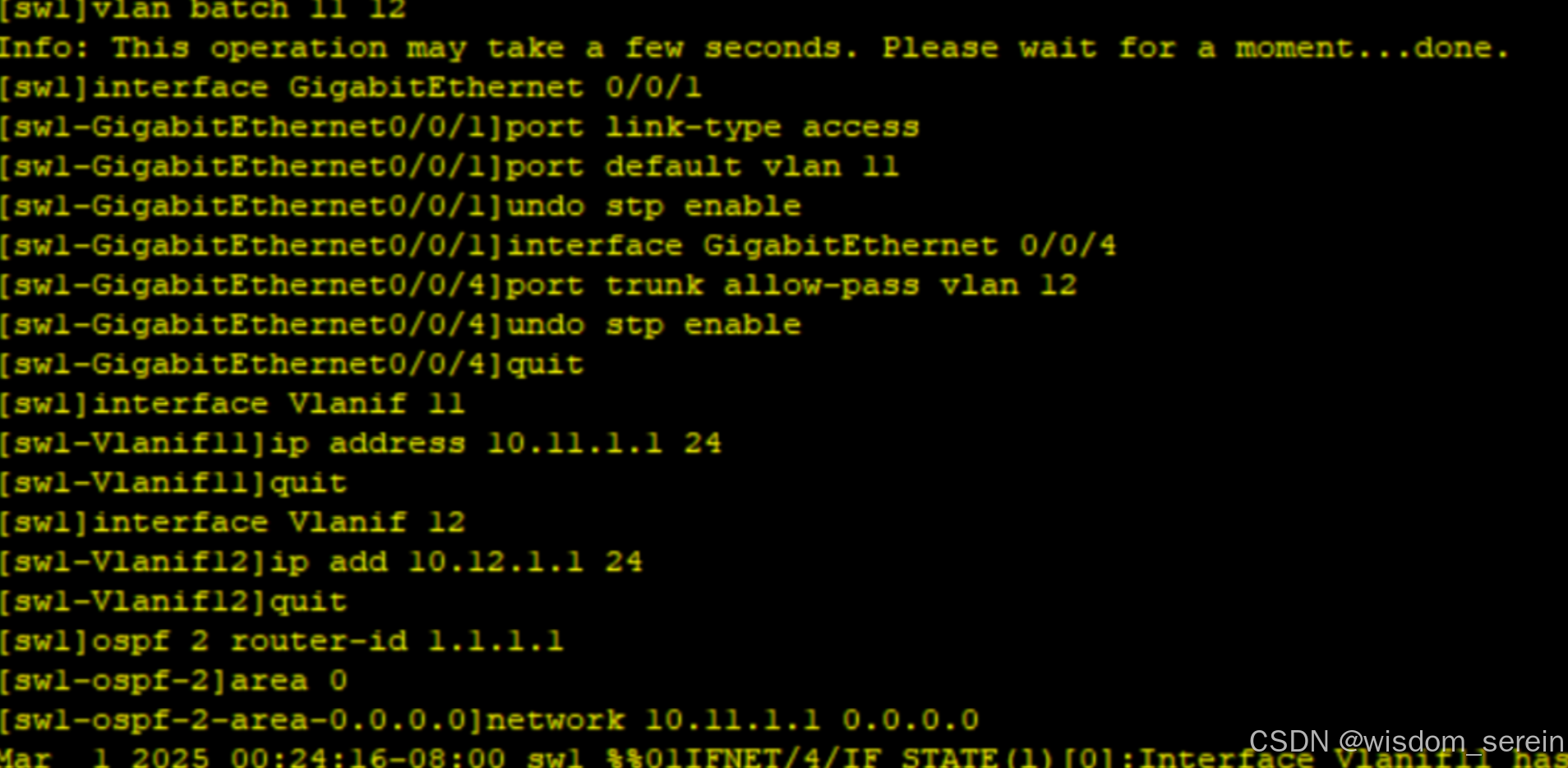

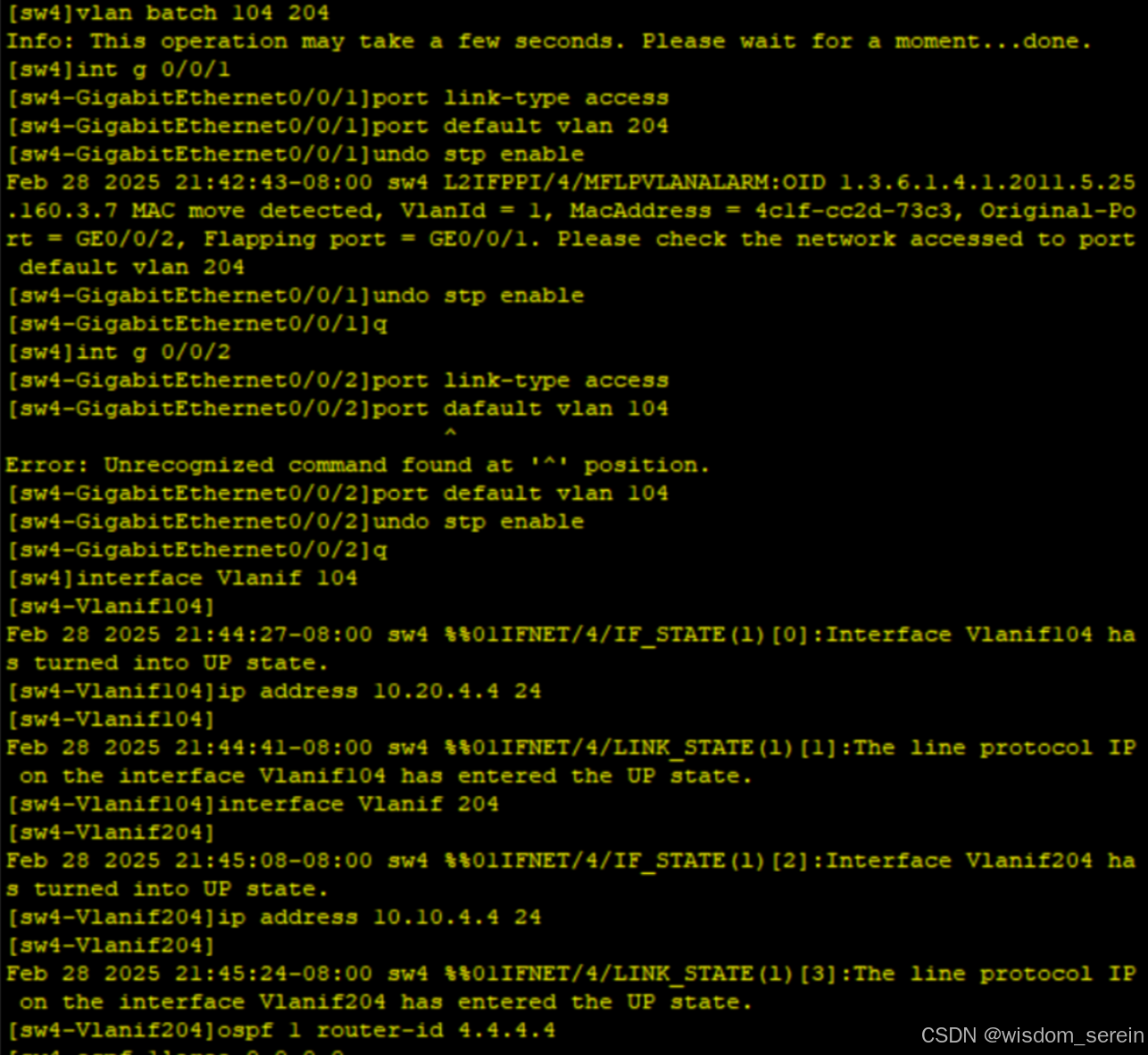

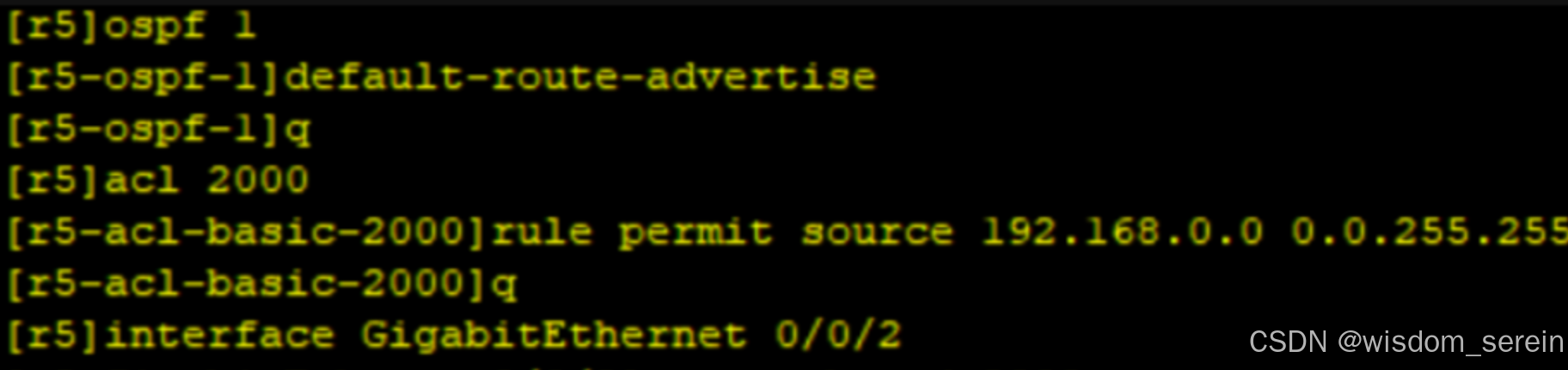

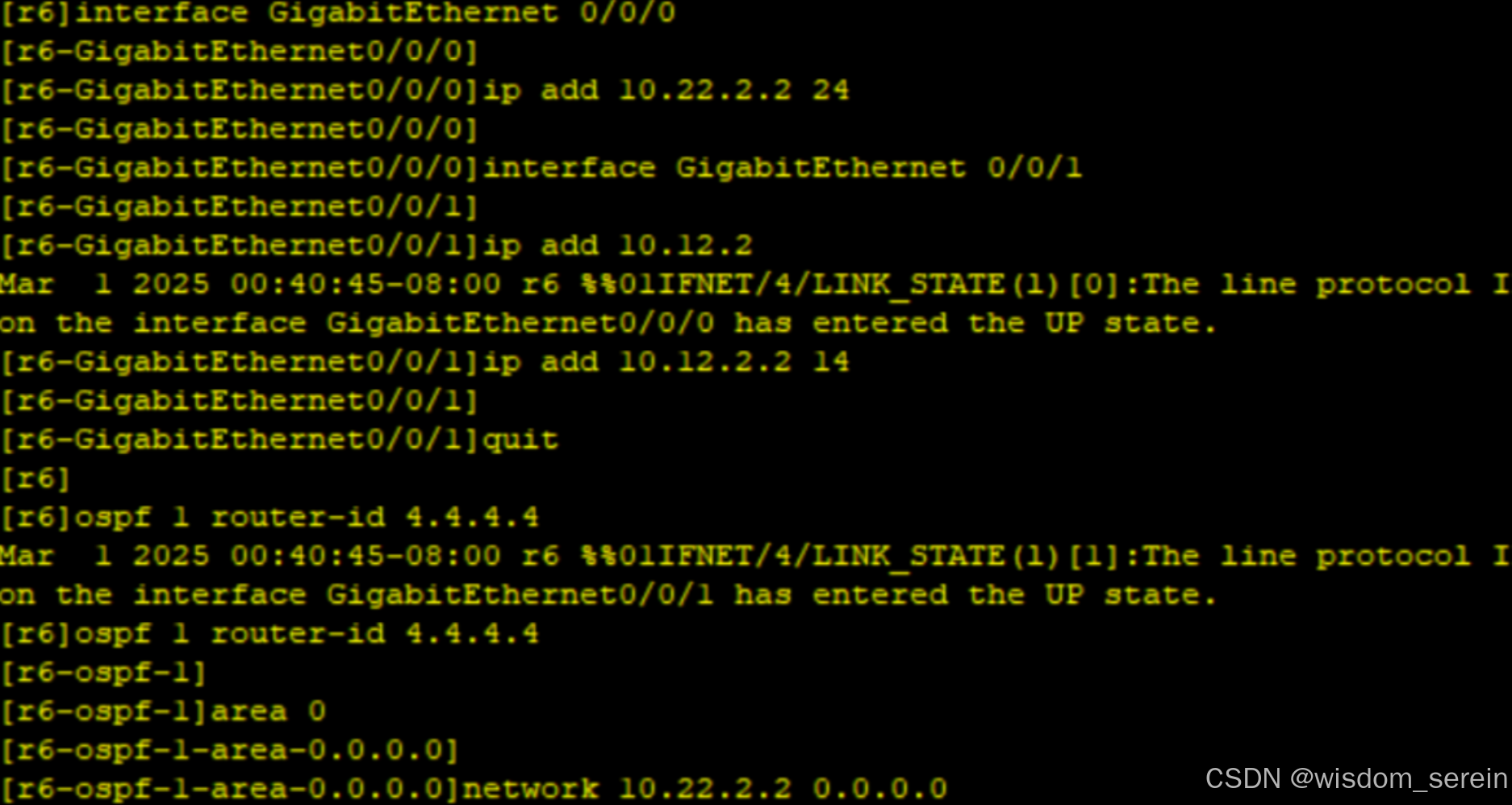

汇聚到核心层路由配置
SW1-SW2：VLAN 102---10.10.2.0/24

SW1-SW3：VLAN 103---10.10.3.0/24

SW1-SW4：VLAN 104---10.10.4.0/24

SW2-SW3：VLAN 203---10.20.3.0/24

SW2-SW4：VLAN 204---10.20.4.0/24

先创建VRF空间，其中 GE0/0/3-GE0/0/6属于该空间接口。

VRF空间配置信息：名称：VRF RD：100:1 RT：100:1

ip vpn-instance VRF //创建VRF空间

route-distinguisher 100:1 //设定RD值

vpn-target 100:1 both //设定RT值

ip binding vpn-instance VRF //将接口划入到VRF这个交换机中，在接口进行配置之前执行

在进行配置时，需要携带vpn-instance参数，创建Vlanif接口，并将接口划入VRF空间：

[SW1]interface Vlanif 102
[SW1-Vlanif102]ip binding vpn-instance VRF //将接口划入到VRF这个交换机中，在接口进行配置之前执行
[SW1-Vlanif102]ip address 10.10.2.1 24

[SW1]interface Vlanif 103
[SW1-Vlanif103]ip binding vpn-instance VRF
[SW1-Vlanif103]ip add 10.10.3.1 24

[SW1]interface Vlanif 104
[SW1-Vlanif104]ip binding vpn-instance VRF
[SW1-Vlanif104]ip add 10.10.4.1 24

[SW2]interface Vlanif 102
[SW2-Vlanif102]ip binding vpn-instance VRF
[SW2-Vlanif102]ip address 10.10.2.2 24

[SW2]interface Vlanif 203
[SW2-Vlanif203]ip binding vpn-instance VRF
[SW2-Vlanif203]ip address 10.20.3.2 24

[SW2]interface Vlanif 204
[SW2-Vlanif204]ip binding vpn-instance VRF
[SW2-Vlanif204]ip add 10.20.4.2 24

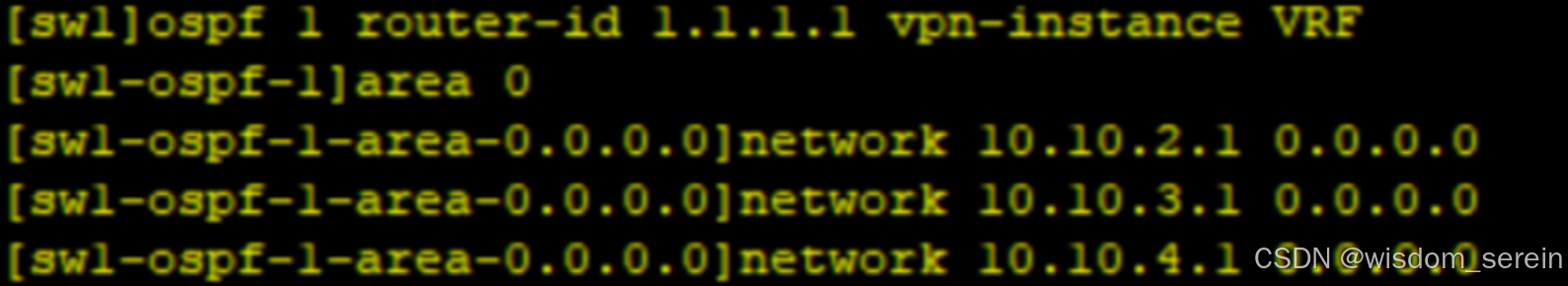

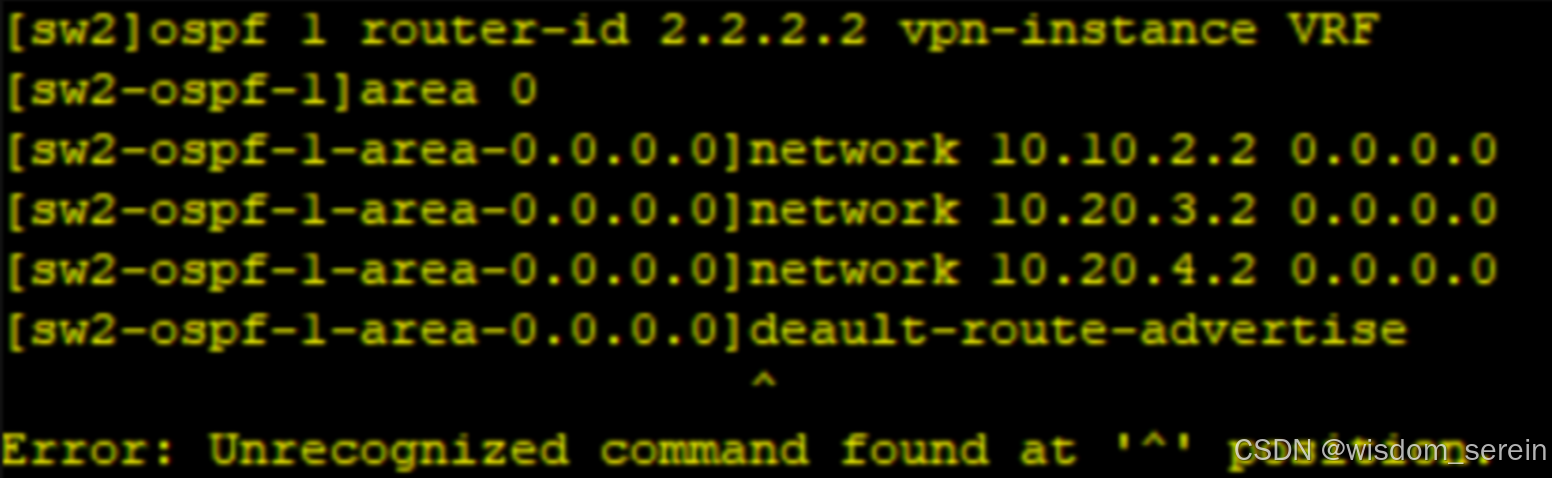

配置OSPF

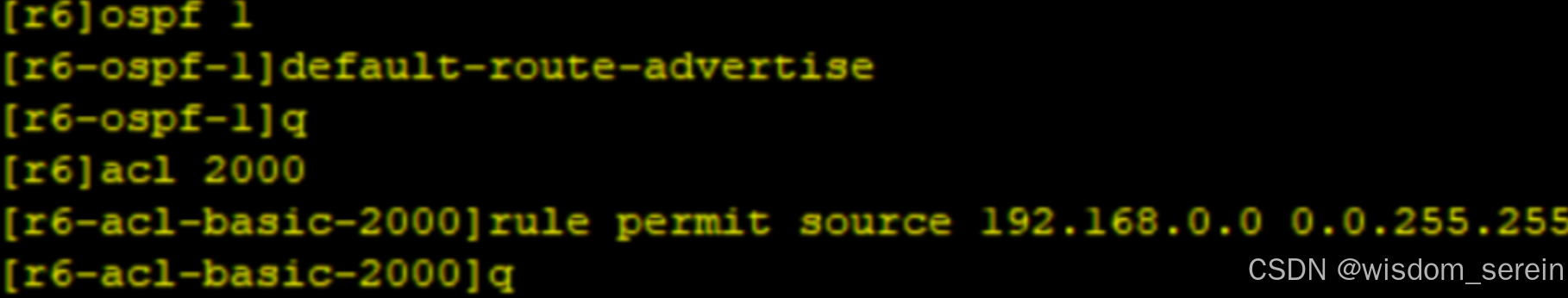

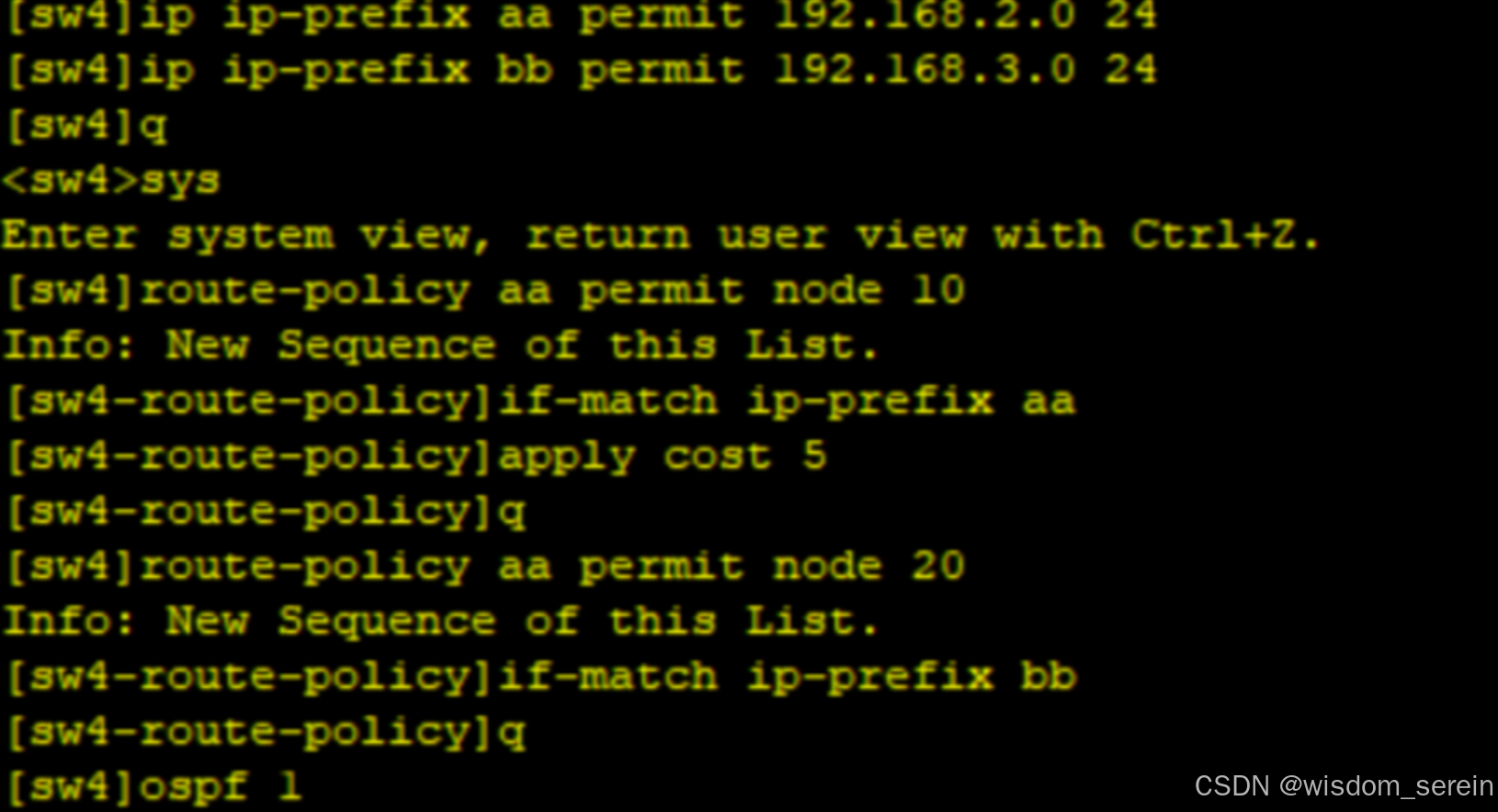

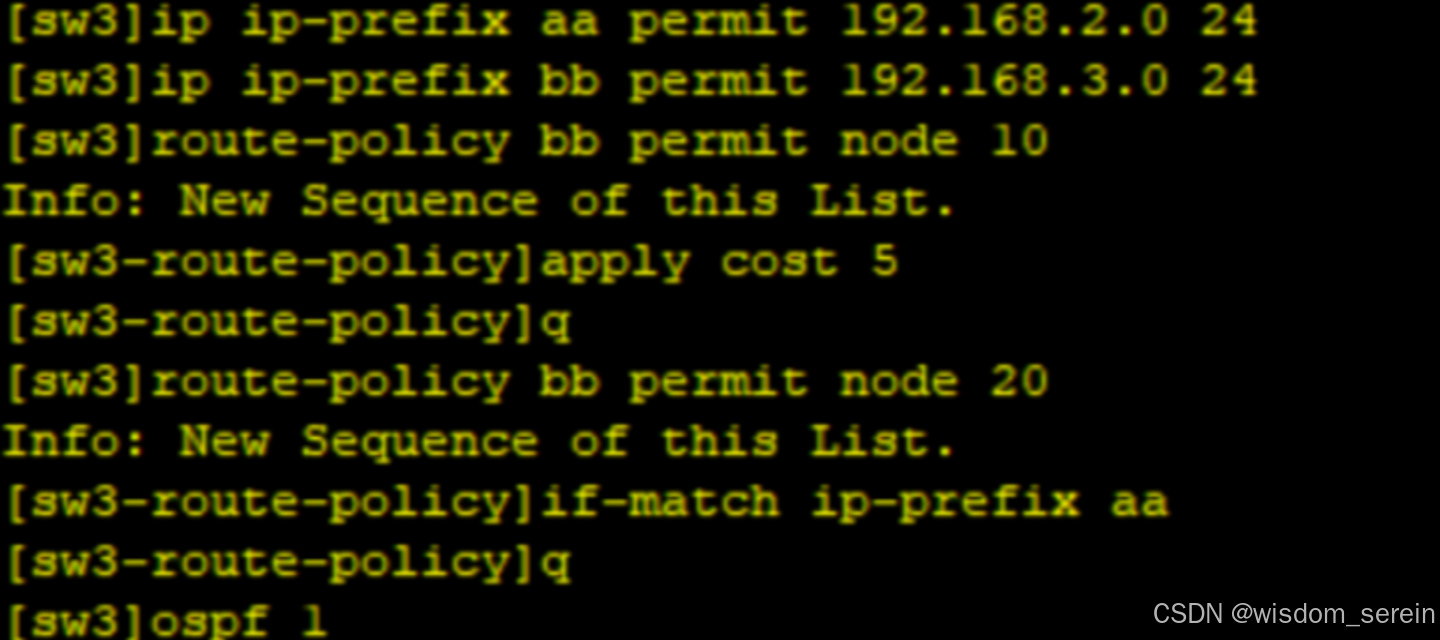

配置路由策略

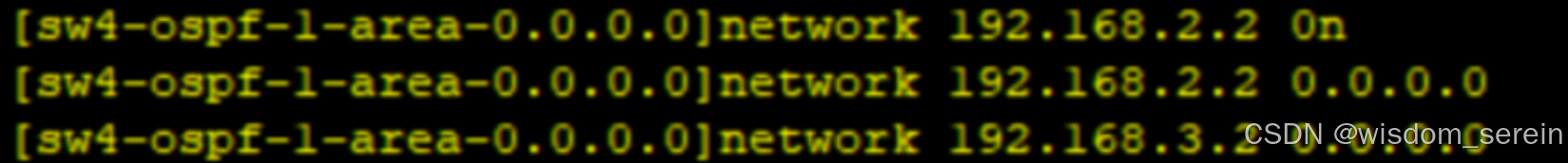

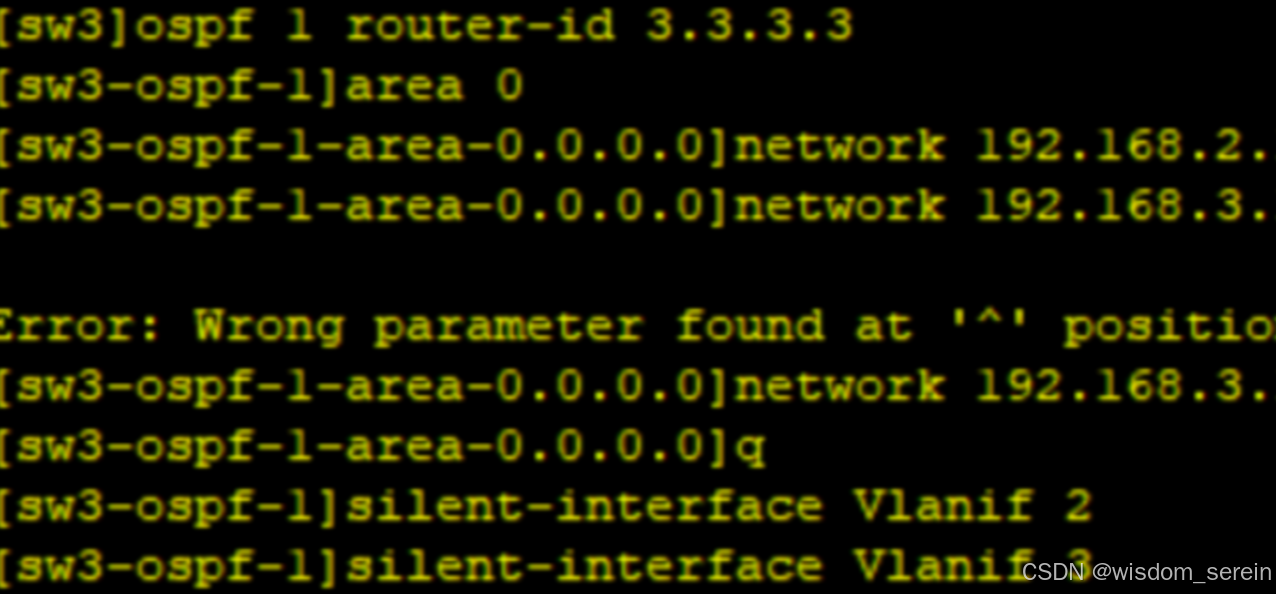

删除宣告的192.168.2.0/24和192.168.3.0/24网段信息，防止发生冲突

VRF交换机和防火墙的路由交互

[SW1]vlan batch 401 402
[SW1]interface GigabitEthernet 0/0/2
[SW1-GigabitEthernet0/0/2]port link-type trunk
[SW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 401 402
[SW1]interface GigabitEthernet 0/0/5
[SW1-GigabitEthernet0/0/5]port link-type trunk
[SW1-GigabitEthernet0/0/5]port trunk allow-pass vlan 401 402

[SW1]interface Vlanif 401
[SW1-Vlanif401]ip binding vpn-instance VRF
[SW1-Vlanif401]ip address 10.40.1.1 24
[SW1-Vlanif401]vrrp vrid 1 virtual-ip 10.40.1.100
[SW1-Vlanif401]vrrp vrid 1 priority 120
[SW1-Vlanif401]vrrp vrid 1 preempt-mode timer delay 60
[SW1-Vlanif401]vrrp vrid 1 track interface GigabitEthernet 0/0/2 reduced 30

[SW1]interface Vlanif 402
[SW1-Vlanif402]ip binding vpn-instance VRF
[SW1-Vlanif402]ip address 10.40.2.1 24
[SW1-Vlanif402]vrrp vrid 2 virtual-ip 10.40.2.100

[SW2]vlan batch 401 402
[SW2]interface GigabitEthernet 0/0/3
[SW2-GigabitEthernet0/0/3]port link-type trunk
[SW2-GigabitEthernet0/0/3]port trunk allow-pass vlan 401 402
[SW2]interface GigabitEthernet 0/0/5
[SW2-GigabitEthernet0/0/5]port link-type trunk
[SW2-GigabitEthernet0/0/5]port trunk allow-pass vlan 401 402

[SW2]interface Vlanif 401
[SW2-Vlanif401]ip binding vpn-instance VRF
[SW2-Vlanif401]ip address 10.40.1.2 24
[SW2-Vlanif401]vrrp vrid 1 virtual-ip 10.40.1.100

[SW2]interface Vlanif 402
[SW2-Vlanif402]ip binding vpn-instance VRF
[SW2-Vlanif402]ip address 10.40.2.2 24
[SW2-Vlanif402]vrrp vrid 2 virtual-ip 10.40.2.100
[SW2-Vlanif402]vrrp vrid 2 priority 120
[SW2-Vlanif402]vrrp vrid 2 preempt-mode timer delay 60
[SW2-Vlanif402]vrrp vrid 2 track interface GigabitEthernet 0/0/3 reduced 30

[FW1]vlan batch 401 402 403 404
[FW1]interface GigabitEthernet 1/0/0
[FW1-GigabitEthernet1/0/0]ip add 10.10.10.1 30

[FW1]interface GigabitEthernet 1/0/1.401
[FW1-GigabitEthernet1/0/1.401]ip add 10.40.1.10 24
[FW1-GigabitEthernet1/0/1.401]vlan-type dot1q 401

[FW1]interface GigabitEthernet 1/0/1.402
[FW1-GigabitEthernet1/0/1.402]ip address 10.40.2.10 24
[FW1-GigabitEthernet1/0/1.402]vlan-type dot1q 402

[FW1]interface GigabitEthernet 1/0/2.403
[FW1-GigabitEthernet1/0/2.403]ip address 10.40.3.10 24
[FW1-GigabitEthernet1/0/2.403]vlan-type dot1q 403

[FW1]interface GigabitEthernet 1/0/2.404
[FW1-GigabitEthernet1/0/2.404]ip add 10.40.4.10 24
[FW1-GigabitEthernet1/0/2.404]vlan-type dot1q 404

[FW2]vlan batch 401 402 403 404
[FW2]interface GigabitEthernet 1/0/0
[FW2-GigabitEthernet1/0/0]ip add 10.10.10.2 30

[FW2]interface GigabitEthernet 1/0/2.401
[FW2-GigabitEthernet1/0/2.401]ip address 10.40.1.20 24
[FW2-GigabitEthernet1/0/2.401]vlan-type dot1q 401

[FW2]interface GigabitEthernet 1/0/2.402
[FW2-GigabitEthernet1/0/2.402]ip add 10.40.2.20 24
[FW2-GigabitEthernet1/0/2.402]vlan-type dot1q 402

[FW2]interface GigabitEthernet 1/0/1.403
[FW2-GigabitEthernet1/0/1.403]ip add 10.40.3.20 24
[FW2-GigabitEthernet1/0/1.403]vlan-type dot1q 403

[FW2]interface GigabitEthernet 1/0/1.404
[FW2-GigabitEthernet1/0/1.404]ip add 10.40.4.20 24
[FW2-GigabitEthernet1/0/1.404]vlan-type dot1q 404
