该产品是一款基于Qualcomm芯片的工业级WiFi嵌入式主板，支持2x2MIMO技术，提供2.4GHz和5.8GHz双频段，最高传输速率可达1773.5Mbps。主板支持接入点、客户端、WDS接入点和WDS客户端模式，配备有3个1Gbps以太网RJ45端口和2个1GbpsSFP插槽。其内置安全电源设计，具有过压、欠压、短路保护功能，并支持9-36V宽电压输入。此外，主板还兼容5G蜂窝模块和扩展接口。

https://www.mxcomm.cn/products/industrial-wireless/wifi-embedded-motherboard.html

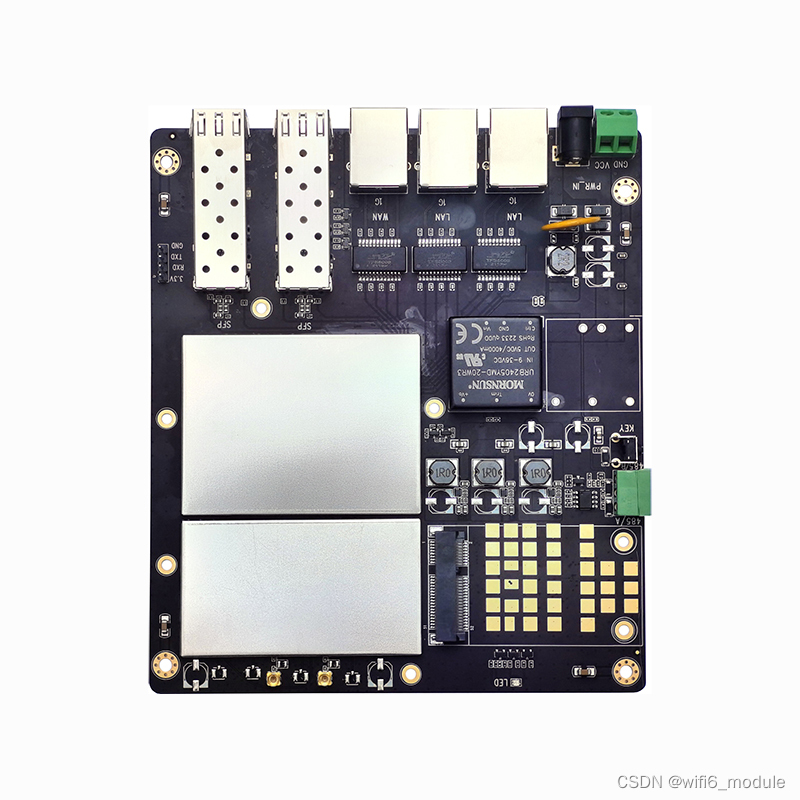

WiFi Qualcomm Chipset Embedded Motherboard

- Chipset: IPQ6010+QCA8075+QCN5052+QCN5022
- 2.4GHz rate 573.5Mbps, 5.8GHz rate 1200Mbps
- Support access point, client, WDS access point, WDS client mode
- Support 2×2MIMO, dual-band combined MMCX connector
- Support extended Uart/RS-485/5G cellular module
- Includ 3* 1Gbps ethernet RJ45 Port and 2* 1Gbps SFP
- Professional intrinsic safety power supply design, with under-voltage protection, output short-circuit, over-current, over-voltage protection, input anti-reverse connection function
- WIFI stand-alone power consumption ≤ 15W, extended 5G network power consumption ≤ 18W
- DC or 2-PIN 5.08mm pitch terminals for power supply, wide voltage range as 9~36V
- Meet the intrinsic safety requirement
- Support AC management
