一、AIDL理解

二、使用方法

RemoteService (服务端)

ServiceClient(客户端)


一、AIDL理解

每个应用程序都运行在自己的独立进程中,并且可以启动另一个应用进程的服务,而且经常需要在不同的进程间传递数据对象
在Android平台,一个进程不能直接访问另一个进程的内存空间,所以要想对话,需要将对象分解成操作系统可以理解的基本单元,并且有序的通过进程边界。

AIDL(Android Interface Definition Language)
用于生成可以在Android设备上两个进程之间进行进程间通信(interprocess communication,IPC)的代码。
如果在一个进程中(例如Activity)要调用另一个进程中(例如Service)对象的操作,就可以使用AIDL生成可序列化的参数。

参考官网介绍: https://developer.android.com/guide/components/aidl

二、使用方法

使用AIDL进行进程间通信实例(远程Service):客户端通过绑定服务,并获取服务端返回的IBinder 对象, 得到服务端定义的AIDL 的实例对象,可以对服务端进行调用操作。

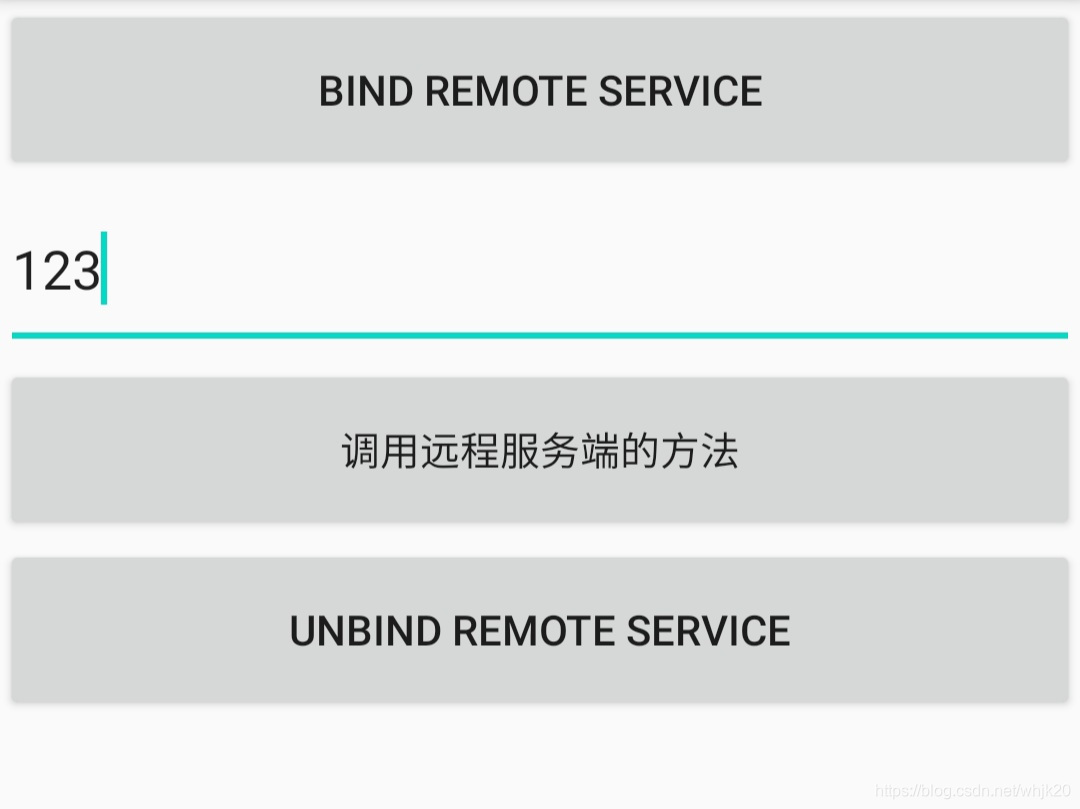

实例如图:

RemoteService (服务端)

1.  新建一个工程 (选则No Activity), 工程名为 RemoteService
2.  在src/main/java 目录的主包下, 创建一个文件名为RemoteService.java, 它继承 Service
3.  src/main 目录的主包下, 右键 new -> AIDL -> 输入文件名为 Student,  Student.aidl 在 src/main/aidl 目录下

// Student.aidl
package com.example.remoteservice;

// Declare Student so AIDL can find it and knows that it implements
// the parcelable protocol.

parcelable Student;

4. src/main/java 目录的主包下, 右键 new -> Java Class -> 输入文件名为 Student, 并实现Parcelable接口( 进程间传递非默认类型的对象)

并实现打包数据(writeToParcel) 和 解包对象Creator

package com.example.remoteservice;

import android.os.Parcel;
import android.os.Parcelable;

public class Student implements Parcelable {
    private int id;
    private String name;
    private float score;

    public Student(int id, String name, float score) {
        this.id = id;
        this.name = name;
        this.score = score;
    }

    protected Student(Parcel in) {
        id = in.readInt();
        name = in.readString();
        score = in.readFloat();
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public float getScore() {
        return score;
    }

    public void setScore(float score) {
        this.score = score;
    }

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", score=" + score +
                '}';
    }

    @Override
    public int describeContents() {
        return 0;
    }

    //打包, 创建一个Student 对象
    @Override
    public void writeToParcel(Parcel dest, int flags) {
        dest.writeInt(id);
        dest.writeString(name);
        dest.writeFloat(score);
    }

    //解包, 创建一个Student 对象
    public static final Creator<Student> CREATOR = new Creator<Student>() {
        @Override
        public Student createFromParcel(Parcel in) {
            return new Student(in);
        }

        @Override
        public Student[] newArray(int size) {
            return new Student[size];
        }
    };

}

5. src/main 目录的主包下, 右键 new -> AIDL -> IStudentService,  会有IStudentService.aidl 在 src/main/aidl 目录下, 并手动导入Student 类

// IStudentService.aidl
package com.example.remoteservice;

// Declare any non-default types here with import statements
// Studio 自动提示需要导入非默认类型的类
import com.example.remoteservice.Student;

interface IStudentService {
     Student getStudentById(int id); // 需要手动import Student , 否则报错:.1-13: Failed to resolve 'Student'
}

6. Build -> Clean project -> 成功后,  Build -> Make project ,成功后

则在目录:RemoteService\app\build\generated\aidl_source_output_dir\debug\out, 自动生成 IStudentService接口文件

注意它的内部静态类 Stub  和 asInterface() 方法, 其中前者供服务端在onBind时返回, 或者供客服端获取服务端的服务实例对象

/*
 * This file is auto-generated.  DO NOT MODIFY.
 */
package com.example.remoteservice;
public interface IStudentService extends android.os.IInterface
{
  /** Default implementation for IStudentService. */
  public static class Default implements com.example.remoteservice.IStudentService
  {
    @Override public com.example.remoteservice.Student getStudentById(int id) throws android.os.RemoteException
    {
      return null;
    }
    @Override
    public android.os.IBinder asBinder() {
      return null;
    }
  }
  /** Local-side IPC implementation stub class. */
  public static abstract class Stub extends android.os.Binder implements com.example.remoteservice.IStudentService
  {
    private static final java.lang.String DESCRIPTOR = "com.example.remoteservice.IStudentService";
    /** Construct the stub at attach it to the interface. */
    public Stub()
    {
      this.attachInterface(this, DESCRIPTOR);
    }
    /**
     * Cast an IBinder object into an com.example.remoteservice.IStudentService interface,
     * generating a proxy if needed.
     */
    public static com.example.remoteservice.IStudentService asInterface(android.os.IBinder obj)
    {
      if ((obj==null)) {
        return null;
      }
      android.os.IInterface iin = obj.queryLocalInterface(DESCRIPTOR);
      if (((iin!=null)&&(iin instanceof com.example.remoteservice.IStudentService))) {
        return ((com.example.remoteservice.IStudentService)iin);
      }
      return new com.example.remoteservice.IStudentService.Stub.Proxy(obj);
    }
    @Override public android.os.IBinder asBinder()
    {
      return this;
    }
    @Override public boolean onTransact(int code, android.os.Parcel data, android.os.Parcel reply, int flags) throws android.os.RemoteException
    {
      java.lang.String descriptor = DESCRIPTOR;
      switch (code)
      {
        case INTERFACE_TRANSACTION:
        {
          reply.writeString(descriptor);
          return true;
        }
        case TRANSACTION_getStudentById:
        {
          data.enforceInterface(descriptor);
          int _arg0;
          _arg0 = data.readInt();
          com.example.remoteservice.Student _result = this.getStudentById(_arg0);
          reply.writeNoException();
          if ((_result!=null)) {
            reply.writeInt(1);
            _result.writeToParcel(reply, android.os.Parcelable.PARCELABLE_WRITE_RETURN_VALUE);
          }
          else {
            reply.writeInt(0);
          }
          return true;
        }
        default:
        {
          return super.onTransact(code, data, reply, flags);
        }
      }
    }
    private static class Proxy implements com.example.remoteservice.IStudentService
    {
      private android.os.IBinder mRemote;
      Proxy(android.os.IBinder remote)
      {
        mRemote = remote;
      }
      @Override public android.os.IBinder asBinder()
      {
        return mRemote;
      }
      public java.lang.String getInterfaceDescriptor()
      {
        return DESCRIPTOR;
      }
      @Override public com.example.remoteservice.Student getStudentById(int id) throws android.os.RemoteException
      {
        android.os.Parcel _data = android.os.Parcel.obtain();
        android.os.Parcel _reply = android.os.Parcel.obtain();
        com.example.remoteservice.Student _result;
        try {
          _data.writeInterfaceToken(DESCRIPTOR);
          _data.writeInt(id);
          boolean _status = mRemote.transact(Stub.TRANSACTION_getStudentById, _data, _reply, 0);
          if (!_status && getDefaultImpl() != null) {
            return getDefaultImpl().getStudentById(id);
          }
          _reply.readException();
          if ((0!=_reply.readInt())) {
            _result = com.example.remoteservice.Student.CREATOR.createFromParcel(_reply);
          }
          else {
            _result = null;
          }
        }
        finally {
          _reply.recycle();
          _data.recycle();
        }
        return _result;
      }
      public static com.example.remoteservice.IStudentService sDefaultImpl;
    }
    static final int TRANSACTION_getStudentById = (android.os.IBinder.FIRST_CALL_TRANSACTION + 0);
    public static boolean setDefaultImpl(com.example.remoteservice.IStudentService impl) {
      // Only one user of this interface can use this function
      // at a time. This is a heuristic to detect if two different
      // users in the same process use this function.
      if (Stub.Proxy.sDefaultImpl != null) {
        throw new IllegalStateException("setDefaultImpl() called twice");
      }
      if (impl != null) {
        Stub.Proxy.sDefaultImpl = impl;
        return true;
      }
      return false;
    }
    public static com.example.remoteservice.IStudentService getDefaultImpl() {
      return Stub.Proxy.sDefaultImpl;
    }
  }
  public com.example.remoteservice.Student getStudentById(int id) throws android.os.RemoteException;
}

7. RemoteService.java 中创建 Binder 对象, 即创建 IStudentService.stub (Binder的子类)的对象 并实现 AIDL中声明的通信接口, 并把 Binder 对象在onBind返回

package com.example.remoteservice;

import android.app.Service;
import android.content.Intent;
import android.os.IBinder;
import android.os.RemoteException;
import android.util.Log;

import androidx.annotation.Nullable;

public class RemoteService extends Service {
    private static final String TAG = "RemoteService";

    @Override
    public void onCreate() {
        super.onCreate();
        log("onCreate");
    }

    @Override
    public int onStartCommand(Intent intent, int flags, int startId) {
        log("onStartCommand");
        return super.onStartCommand(intent, flags, startId);
    }

    @Nullable
    @Override
    public IBinder onBind(Intent intent) {
        log("onBind");
        return binder;
    }

    private final IStudentService.Stub binder = new IStudentService.Stub() {
        @Override
        public Student getStudentById(int id) throws RemoteException {
            return new Student(id, "Tom", 75.0f);
        }
    };

    @Override
    public boolean onUnbind(Intent intent) {
        log("onUnbind");
        return super.onUnbind(intent);
    }

    @Override
    public void onDestroy() {
        super.onDestroy();
        log("onDestroy");
    }

    private void log(String msg){
        Log.d(TAG, msg);
    }
}

8. AndroidManifest 中定义service 的action

<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.remoteservice">

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme" >

        <service android:name=".RemoteService">
            <intent-filter>
                <action android:name="com.example.remoteservice.bindservice"/>
            </intent-filter>
        </service>
    </application>
</manifest>

ServiceClient(客户端)

1. 创建一个 Empty Activity 的工程Serviceclient
2. 布局xml( 提供 绑定按钮、 解绑按钮、调用远程服务方法按钮 以及 id 输入框)

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">

    <Button
        android:layout_width="match_parent"
        android:layout_height="60dp"
        android:onClick="bindRemoteService"
        android:text="bind remote service"/>

    <EditText
        android:id="@+id/edit_text"
        android:layout_width="match_parent"
        android:layout_height="60dp"/>
    <Button
        android:layout_width="match_parent"
        android:layout_height="60dp"
        android:onClick="invokeRemoteService"
        android:text="调用远程服务端的方法"/>

    <Button
        android:layout_width="match_parent"
        android:layout_height="60dp"
        android:onClick="unbindRemoteService"
        android:text="unbind remote service"/>

</LinearLayout>

其中 onClick 对应的方法,会在Activity 中实现
3. 拷贝 RemoteService 中 src/main 下 aidl文件夹, 到工程 Serviceclient 的src/main 目录下, 即生成新的目录 src/main/aidl
4. 拷贝 RemoteService 中 的Student.java 到工程中Serviceclient,  注意包名(即路径要一样):src/main/java/com/example/remoteservice
    也就是在RemoteService 中 aidl相关的文件拷贝一份到ServiceClient 中, 并且相对路径需要一致
5. Activity中 实现绑定、解绑、调用服务操作

package com.example.serviceclient;

import androidx.appcompat.app.AppCompatActivity;

import android.content.ComponentName;
import android.content.Context;
import android.content.Intent;
import android.content.ServiceConnection;
import android.os.Bundle;
import android.os.IBinder;
import android.os.RemoteException;
import android.text.TextUtils;
import android.util.Log;
import android.view.View;
import android.widget.EditText;

import com.example.remoteservice.IStudentService;
import com.example.remoteservice.Student;

public class MainActivity extends AppCompatActivity {
    private static final String TAG = "MainActivity";
    private IStudentService mService = null;

    private ServiceConnection mServiceConnection;
    private EditText mEditText;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        mEditText = findViewById(R.id.edit_text);
    }

    public void bindRemoteService(View view) {
        if (mServiceConnection == null) {
            log("bindRemoteService");
            mServiceConnection = new ServiceConnection() {
                @Override
                public void onServiceConnected(ComponentName name, IBinder service) {
                    log("bindRemoteService -onServiceConnected");
                    mService = IStudentService.Stub.asInterface(service);
                }

                @Override
                public void onServiceDisconnected(ComponentName name) {
                    log("bindRemoteService -onServiceDisconnected");
                    mService = null;
                }
            };

            //需要显示调用
            Intent intent = new Intent("com.example.remoteservice.bindservice");
            intent.setPackage("com.example.remoteservice");
            bindService(intent, mServiceConnection, Context.BIND_AUTO_CREATE);
        }
    }

    public void invokeRemoteService(View view) {
        String id = mEditText.getText().toString();
        if (mService == null || TextUtils.isEmpty(id)) {
            log("invokeRemoteService but service is null or id is empty");
            return;
        }
        try {
            Student student = mService.getStudentById(Integer.parseInt(id));
            if (student != null) {
                log("invokeRemoteService success: " + student.toString());
            } else {
                log("invokeRemoteService but student is null");
            }
        } catch (RemoteException e) {
            e.printStackTrace();
        }
    }

    public void unbindRemoteService(View view) {
        if (mServiceConnection != null) {
            unbindService(mServiceConnection);
            mServiceConnection = null;
            mService = null;
            log("unbindRemoteService successfully");
        } else {
            log("already unbindRemoteService, no need");
        }
    }

    private void log(String message) {
        Log.d(TAG, message);
    }
}

其中Service 的绑定需要显示调用,即创建一个带Action(在RemoteService 的AndroidManifest 声明时,定义的action) 的Intent, 并且设置它的包名(setPackage),

或者设置类名(包名+带详细路径的类名):

Intent setClassName(@NonNull String packageName, @NonNull String className)

否则会报错:

Caused by: java.lang.IllegalArgumentException: Service Intent must be explicit: Intent { act=com.example.remoteservice.bindservice }

参考: https://stackoverflow.com/questions/27842430/service-intent-must-be-explicit-intent

评论 1
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
