本文档详细介绍了如何配置 OSPF 路由协议，包括分配 IP 地址，调整路由器优先级以指定 DR 和 BDR，设置 MD5 密文认证，以及在 R5 上强制下发缺省路由，确保全网可达。通过这些步骤，实现了网络的稳定通信和安全控制。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

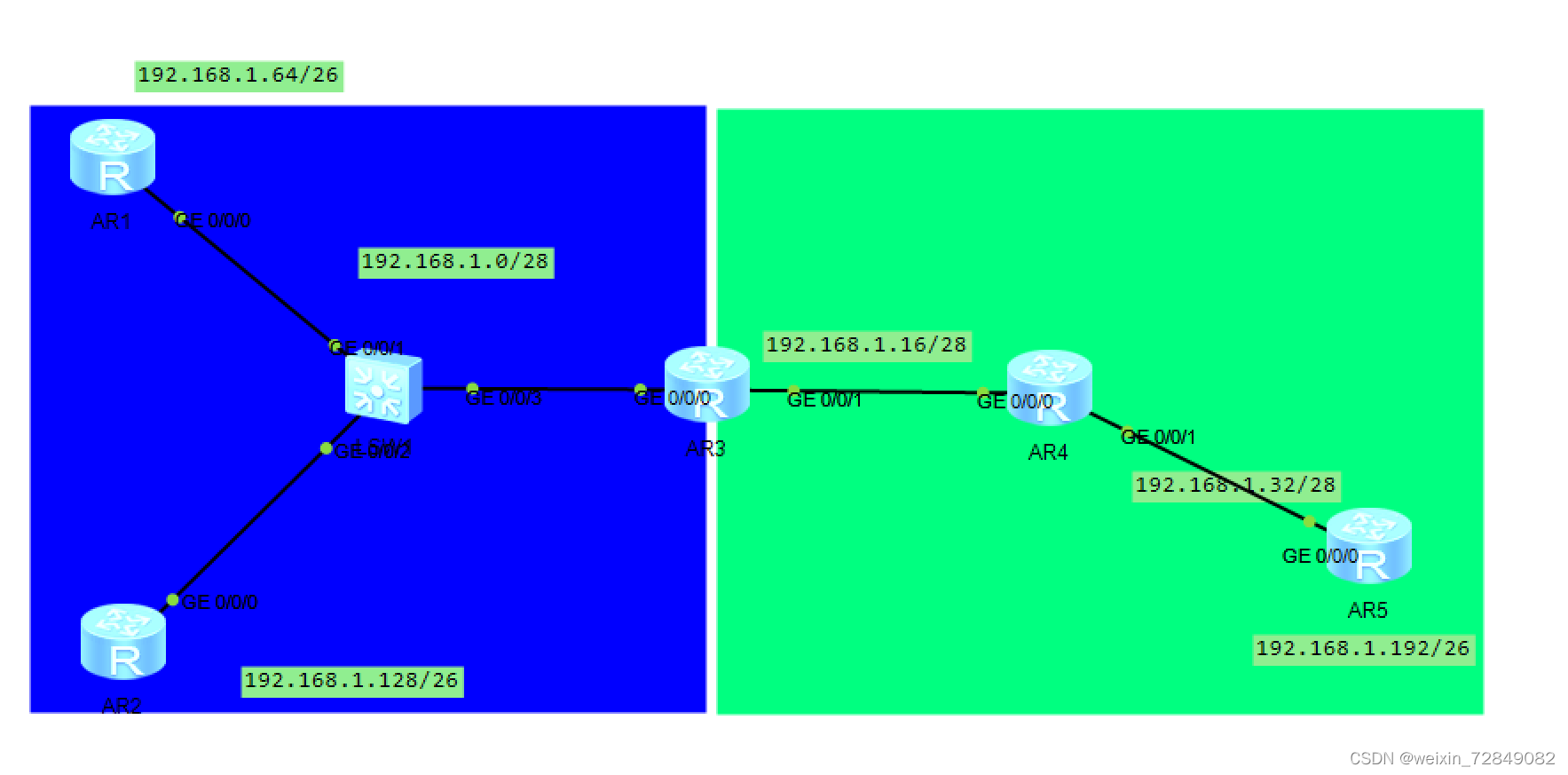

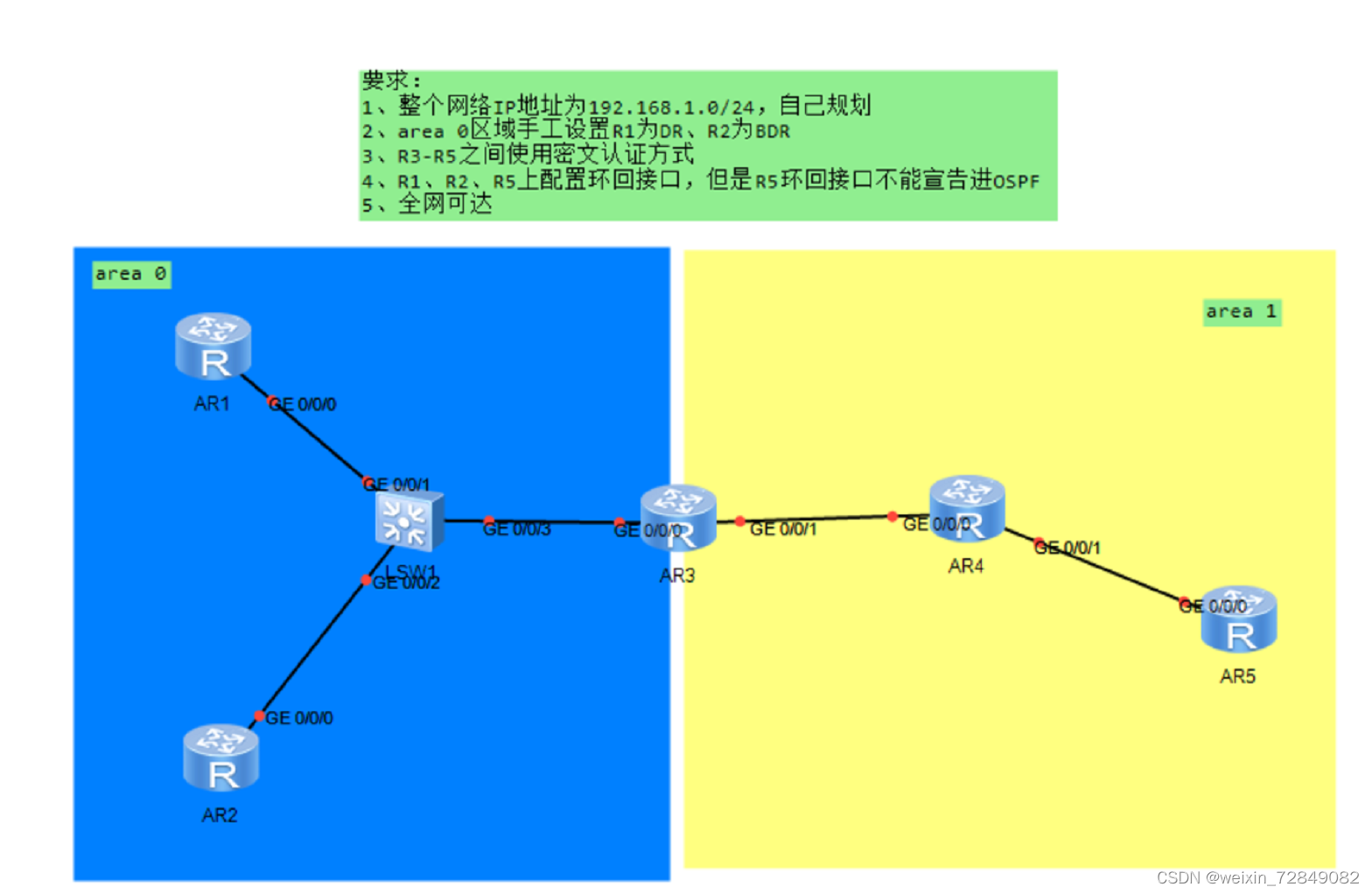

分析：1.根据广播域和环回合理分配ip
2. 更改R1,R3优先级
3.配置密文认证
4.R5强制下发缺省

配置：1.分配ip

[r1]interface g0/0/0
[r1-GigabitEthernet0/0/0]ip address 192.168.1.1 28	//配置ip
[r1]interface LoopBack 0
[r1-LoopBack0]ip address 192.168.1.65 26   //环回
[r1]ospf 1 router-id 1.1.1.1
[r1-ospf-1]area 0
[r1-ospf-1-area-0.0.0.0]network 192.168.1.1 0.0.0.0
[r1-ospf-1-area-0.0.0.0]network 192.168.1.65 0.0.0.0   //宣告
[r1-GigabitEthernet0/0/0]ospf dr-priority 20      //修改优先级


 Area 0.0.0.0 interface 192.168.1.1(GigabitEthernet0/0/0)'s neighbors
 Router ID: 2.2.2.2          Address: 192.168.1.2
   State: Full  Mode:Nbr is  Master  Priority: 1
   DR: 192.168.1.1  BDR: 192.168.1.2  MTU: 0
   Dead timer due in 35  sec
   Retrans timer interval: 5
   Neighbor is up for 00:00:12
   Authentication Sequence: [ 0 ]

 Router ID: 3.3.3.3          Address: 192.168.1.3
   State: Full  Mode:Nbr is  Master  Priority: 0
   DR: 192.168.1.1  BDR: 192.168.1.2  MTU: 0
   Dead timer due in 40  sec
   Retrans timer interval: 4
   Neighbor is up for 00:00:22
   Authentication Sequence: [ 0 ]

[r2]interface g0/0/0
[r2-GigabitEthernet0/0/0]ip address 192.168.1.2 28  //配置ip
[r2]interface LoopBack 0
[r2-LoopBack0]ip address 192.168.1.129 26    //环回
[r2]ospf 1 rou
[r2]ospf 1 router-id 2.2.2.2
[r2-ospf-1]area 0
[r2-ospf-1-area-0.0.0.0]network 192.168.1.2 0.0.0.0
[r2-ospf-1-area-0.0.0.0]network 192.168.1.129 0.0.0.0   //宣告

R3.因为R3同属两个区域所以要更改区域配置.

[Huawei]interface g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add
[Huawei-GigabitEthernet0/0/0]ip address 192.168.1.3 28
[Huawei-GigabitEthernet0/0/0]int g0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 192.168.1.17 28  //配置ip
[Huawei]sysname r3
[r3]ospf 1 router-id 3.3.3.3
[r3-ospf-1]area 0
[r3-ospf-1-area-0.0.0.0]network 192.168.1.3 0.0.0.0
[r3-ospf-1]area 1
[r3-ospf-1-area-0.0.0.1]network 192.168.1.17 0.0.0.0    //宣告
[r3-GigabitEthernet0/0/1]ospf authentication-mode md5 2 cipher 123   //密文认证

[Huawei]interface g0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 192.168.1.18 28
[Huawei-GigabitEthernet0/0/0]int g0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 192.168.1.33 28  //配置ip
[Huawei]sysname r4
[r4]ospf 1 router-id 4.4.4.4
[r4-ospf-1]area 1
[r4-ospf-1-area-0.0.0.1]network 192.168.1.18 0.0.0.0
[r4-ospf-1-area-0.0.0.1]network 192.168.1.33 0.0.0.0    //宣告
[r4]interface g0/0/0
[r4-GigabitEthernet0/0/0]ospf authentication-mode md5 2 cipher 123
[r4-GigabitEthernet0/0/0]int g0/0/1
[r4-GigabitEthernet0/0/1]ospf authentication-mode md5 2 cipher abc   //密文

R5：根据要求R5环回不能宣告进ospf 所以要强制下发缺省

[r5]interface g0/0/0
[r5-GigabitEthernet0/0/0]ip address 192.168.1.34 28  //配置IP
[r5]interface LoopBack 0
[r5-LoopBack0]ip address 192.168.1.193 26
[r5]ospf 1 router-id 5.5.5.5
[r5-ospf-1]area 1
[r5-ospf-1-area-0.0.0.1]network 192.168.1.34 0.0.0.0   //宣告
[r5]interface g0/0/0
[r5-GigabitEthernet0/0/0]ospf authentication-mode md5 2 cipher abc   //密文
[r5]ospf 1
[r5-ospf-1]default-route-advertise always   //强制下发缺省

结果：全网可达

<r1>ping -a 192.168.1.65 192.168.1.193
  PING 192.168.1.193: 56  data bytes, press CTRL_C to break
    Reply from 192.168.1.193: bytes=56 Sequence=1 ttl=253 time=70 ms
    Reply from 192.168.1.193: bytes=56 Sequence=2 ttl=253 time=50 ms
    Reply from 192.168.1.193: bytes=56 Sequence=3 ttl=253 time=60 ms
    Reply from 192.168.1.193: bytes=56 Sequence=4 ttl=253 time=60 ms
    Reply from 192.168.1.193: bytes=56 Sequence=5 ttl=253 time=40 ms

  --- 192.168.1.193 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 40/56/70 ms
