OpenCV c++

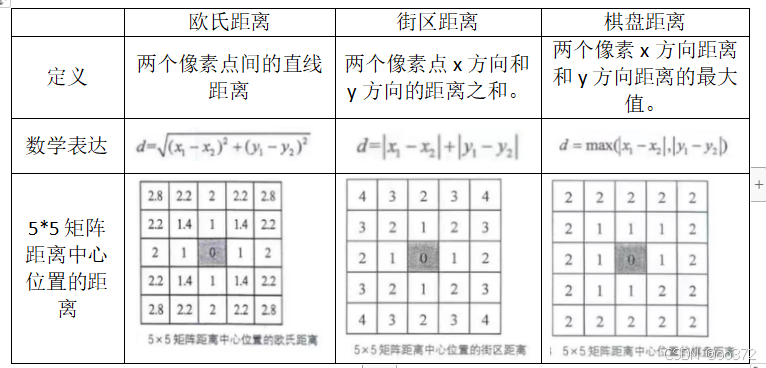

图像像素距离变换

distanceTransform(imgBW, dist, 1, 3, CV_32F);

一、输入图像，CV_8U灰度图

二、输出图像，尺寸与输入图像相同，数据类型为CV_8U或CV_32F

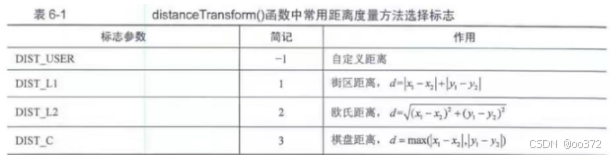

三、计算两个像素间距离方法的标志

四、距离变换掩码矩阵尺寸，欧氏距离：5*5精确，3*3粗略；街区距离：3*3快，5*5慢

五、输出数据类型

注：由于distanceTransform()函数是计算图像中非零像素距离0像素的最小距离，0像素是黑色，所以不建议用尺寸过小或者黑色区域较多的图像，否则不利于观察。

#include<opencv2/opencv.hpp>
#include<quickopencv.h>
#include<iostream>
#include<math.h>
using namespace cv;
using namespace std;


int main(int argc, char** argv) {
	//构建简易矩阵，用于求取像素之间的距离
	Mat a = (Mat_<uchar>(5, 5) << 1, 1, 1, 1, 1,
		1, 1, 1, 1, 1,
		1, 1, 0, 1, 1,
		1, 1, 1, 1, 1,
		1, 1, 1, 1, 1);
	Mat dist_L1, dist_L2, dist_C, dist_L12;
	//计算街区距离
	distanceTransform(a, dist_L1, 1, 3, CV_8U);
	cout << "街区距离" << endl << dist_L1 << endl;
	//计算欧式距离
	distanceTransform(a, dist_L2, 2, 5, CV_8U);
	cout << "欧式距离" << endl << dist_L2 << endl;
	//计算棋盘距离
	distanceTransform(a, dist_C, 3, 5, CV_8U);
	cout << "棋盘距离" << endl << dist_C << endl;

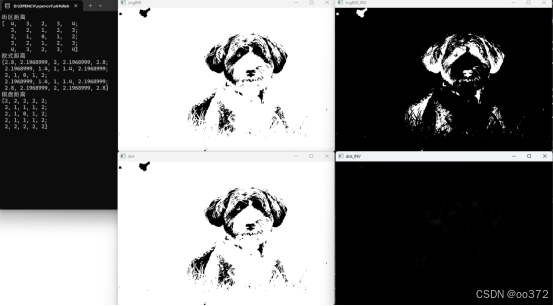

	//对图像进行距离变换
	Mat img = imread("D:/images/dog.png", IMREAD_ANYDEPTH);
	if (img.empty()) {
		cout << "请确认图像文件名称正确！" << endl;
		return -1;
	}
	Mat imgBW,imgBW_INV;
	//把图像转成二值图像，同时把黑白区域互换
	threshold(img, imgBW, 50, 255, THRESH_BINARY);
	threshold(img, imgBW_INV, 50, 255, THRESH_BINARY_INV);
	//距离变换
	Mat dist, dist_INV;
	distanceTransform(imgBW, dist, 1, 3, CV_32F);
	distanceTransform(imgBW_INV, dist_INV, 1, 3, CV_8U);

	imshow("imgBW", imgBW);
	imshow("dist", dist);
	imshow("imgBW_INV", imgBW_INV);
	imshow("dist_INV", dist_INV);
	waitKey(0);//此时图片显示时间为一直停留。（x）为x毫秒
	destroyAllWindows();
	return 0;
}
