Linux 异步IO简介（io_uring)

紫色的枫叶(lgy)

已于 2024-07-14 18:15:56 修改

阅读量896

点赞数 16

文章标签： java 开发语言

于 2024-07-04 22:51:06 首次发布

本文链接：https://blog.youkuaiyun.com/weixin_68925552/article/details/140098444

版权

1.什么是异步操作？

异步是形容两者之间的关系（例如：在网络信息交互时客户端和服务端的关系就属于异步的，即请求回应模式）。

2.什么是异步IO

将IO操作数据的请求和数据返回进行分开处理。对于异步的方式编程，并不是将CPU“有效的运行时间减少”，而是将耗时操作（例如：文件IO操作，文件IO的读写操作可以分为两个部分一个是IO事件的触发，一个是文件IO操作的结果（即将磁盘的数据加载到内核态再将内核态的数据拷贝到用户空间），在同步IO操作时将其看成是一个完整的过程，即具备“原子性”，CPU在此期间处于休眠的状态，导致CPU的利用率不高。）如何将此时间段的CPU利用起来，即阻塞等待结果的时间用来调度线程池（后面的文章将会讲到）里其他需要进行处理的，与阻塞线程逻辑没有关联的业务。一旦耗时操作完成，执行耗时操作任务的线程会主动的通知调度器此操作完成，然后进行线程的切换回原来的线程继续执行。

3.io_uring简介

io_uring 是在2019年加入到Linux内核的，并提供三个系统调用函数：

io_uring_setup函数:构建io_uring的环境所必须的参数；

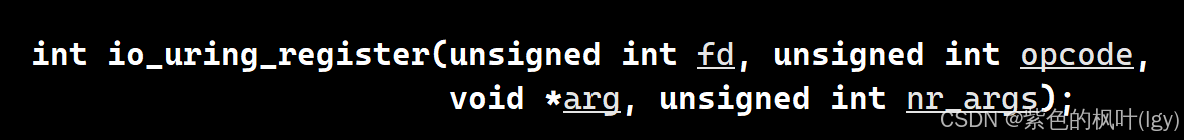

io_uring_register函数：开始提交；

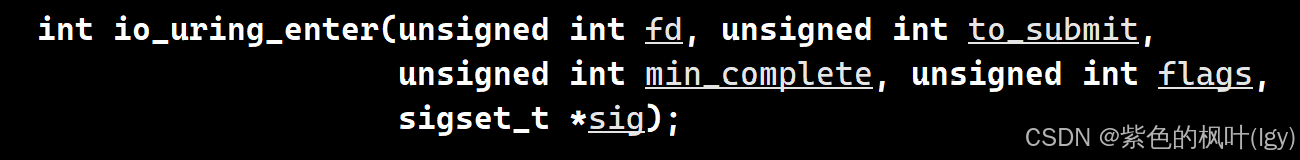

io_uring_enter函数：加入任务节点。

可以看到上述三个函数不是太过抽象，不利于理解和逻辑的梳理，因此又封装了一个liburing库。

4.使用异步IO代码

服务端代码：



#include <stdio.h>
#include <liburing.h>
#include <netinet/in.h>
#include <string.h>
#include <unistd.h>

#define ENTRIES_LENGTH		1024
#define BUFFER_LENGTH		1024

#define EVENT_ACCEPT   	0
#define EVENT_READ		1
#define EVENT_WRITE		2


int init_server(unsigned short port) {

	int sockfd = socket(AF_INET, SOCK_STREAM, 0);
	struct sockaddr_in serveraddr;
	memset(&serveraddr, 0, sizeof(struct sockaddr_in));
	serveraddr.sin_family = AF_INET;
	serveraddr.sin_addr.s_addr = htonl(INADDR_ANY);
	serveraddr.sin_port = htons(port);

	if (-1 == bind(sockfd, (struct sockaddr*)&serveraddr, sizeof(struct sockaddr))) {
		perror("bind");
		return -1;
	}

	listen(sockfd, 10);

	return sockfd;
}

struct conn_info{
    int fd;
    int event;
};


int set_event_accept(struct io_uring *ring,int sockfd, struct sockaddr *addr ,
                                            socklen_t *addrlen, int flags){

    struct io_uring_sqe *sqe =io_uring_get_sqe(ring);

    struct conn_info accept_info={
        .fd=sockfd,
        .event=EVENT_ACCEPT,
    };

    io_uring_prep_accept(sqe, sockfd, (struct sockaddr*)addr, addrlen, flags);
	memcpy(&sqe->user_data, &accept_info, sizeof(struct conn_info));

}

int set_event_recv(struct io_uring *ring, int sockfd,
				      void *buf, size_t len, int flags ){

                    struct io_uring_sqe* sqe=io_uring_get_sqe(ring);
                    struct conn_info accept_info={
                        .fd=sockfd,
                        .event=EVENT_READ,
                    };

                    io_uring_prep_recv(sqe,sockfd,buf,len,flags);
                    memcpy(&sqe->user_data,&accept_info,sizeof(struct conn_info));

}

int set_event_send(struct io_uring *ring, int sockfd,
				      void *buf, size_t len, int flags ){

                    struct io_uring_sqe* sqe=io_uring_get_sqe(ring);
                    struct conn_info accept_info={
                        .fd=sockfd,
                        .event=EVENT_WRITE,
                    };

                    io_uring_prep_send(sqe,sockfd,buf,len,flags);
                    memcpy(&sqe->user_data,&accept_info,sizeof(struct conn_info));

}

int main(int argc,char *argv[]){

    unsigned short port =6666;
    int socketfd=init_server(port);

    struct io_uring_params params;
	memset(&params, 0, sizeof(params));


    struct io_uring ring;
    io_uring_queue_init_params(ENTRIES_LENGTH,&ring,&params);
#if 0
    struct sockaddr_in clientaddr;
    socklen_t len=sizeof(clientaddr);
    accept(socketfd,(struct sockaddr*)&clientaddr,&len);
    printf("accpeted");
#else
    struct sockaddr_in clientaddr;
    socklen_t len=sizeof(clientaddr);
    set_event_accept(&ring,socketfd,(struct sockaddr *)&clientaddr,&len,0);


#endif

    char buffer[BUFFER_LENGTH]={0};

    while(1){
        io_uring_submit(&ring);

        struct io_uring_cqe *cqe;
        io_uring_wait_cqe(&ring,&cqe);//将submit 队列

        struct io_uring_cqe *cqes[128];
		int nready = io_uring_peek_batch_cqe(&ring, cqes, 128); //一次最多可以处理多少个IO任务

        int i=0;
        for(i=0;i<nready;i++){

            struct io_uring_cqe *entriesNode=cqes[i];
            struct conn_info result;
            memcpy(&result,&entriesNode->user_data,sizeof(struct conn_info));

            if(result.event==EVENT_ACCEPT){

                set_event_accept(&ring,socketfd,(struct sockaddr *)&clientaddr,&len,0);

                int connfd=entriesNode->res;

                //printf("set_event_accept\n");
                set_event_recv(&ring,connfd,buffer,BUFFER_LENGTH,0);


            }else if(result.event==EVENT_READ){

                int ret=entriesNode->res;
                if(ret==0){
                    close(result.fd);

                }else if(ret>0){

                    set_event_send(&ring,result.fd,buffer, ret, 0);

                }
            }else if(result.event==EVENT_WRITE){

                    int ret = entriesNode->res;

                    set_event_recv(&ring,result.fd,buffer,BUFFER_LENGTH,0);


            }
        }

        io_uring_cq_advance(&ring, nready);
    }
    return 0;
}

客服端代码：

#include <stdio.h>
#include <string.h>
#include <sys/socket.h>
#include <stdlib.h>
#include <unistd.h>

#include <sys/time.h>
#include <pthread.h>
#include <arpa/inet.h>

typedef struct test_context_s{

    char serverip[16];
    int port;
    int threadnum;
    int connection;
    int requestion;

#if 1
    int failed;
#endif

}test_context_t;


int connect_tcpserver(const char * ip,unsigned short port) {

	int connfd = socket(AF_INET, SOCK_STREAM, 0);
	struct sockaddr_in serveraddr;
	memset(&serveraddr, 0, sizeof(struct sockaddr_in));

	serveraddr.sin_family = AF_INET;
	serveraddr.sin_addr.s_addr = inet_addr(ip);
	serveraddr.sin_port = htons(port);

    int ret= connect(connfd, (struct sockaddr*)&serveraddr, sizeof(struct sockaddr));
	if (ret) {
		perror("connect");
		return -1;
	}


	return connfd;
}



#define MESSAGE_LENGTH 64
#define TIME_SUB_MS(tv1, tv2)  ((tv1.tv_sec - tv2.tv_sec) * 1000 + (tv1.tv_usec - tv2.tv_usec) / 1000)
#if MESSAGE_LENGTH==64

#define TEST_MESSAGE "1234567890abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ\r\n"
#elif MESSAGE_LENGTH==128
#elif
#endif
#define RBUFFER_LENGTH		2048

#define WBUFFER_LENGTH		2048

int send_recv_tcppkt(int fd){

#if 1
    int res = send(fd, TEST_MESSAGE, strlen(TEST_MESSAGE), 0);
	if (res < 0) {
		exit(1);
	}

	char rbuffer[RBUFFER_LENGTH] = {0};
	res = recv(fd, rbuffer, RBUFFER_LENGTH, 0);
	if (res <= 0) {
		exit(1);
	}

	if (strcmp(rbuffer, TEST_MESSAGE) != 0) {
		printf("failed: '%s' != '%s'\n", rbuffer, TEST_MESSAGE);
		return -1;
	}
#else

#endif
    return 0;

}

static void* test_qps_entry(void *arg){

    test_context_t *pctx=(test_context_t *)arg;
    int connfd=connect_tcpserver(pctx->serverip,pctx->port);

    if(connfd<0){
        printf("connect_tcpserver failed\n");
		return NULL;
    }

    int count =pctx->requestion/pctx->threadnum;

    int i=0;
    int res;
    while (i++<count)
    {
        res=send_recv_tcppkt(connfd);
        if (res != 0) {
			printf("send_recv_tcppkt failed\n%d\n",connfd);
			pctx->failed ++; //
			continue;
		}

    }

    return  NULL;

}

int main(int argc ,char*argv[]){


    int opt;
    test_context_t ctx = {0};

    while ((opt = getopt(argc, argv, "s:p:t:c:n:?")) != -1) {

		switch (opt) {

			case 's':
				printf("-s: %s\n", optarg);
				strcpy(ctx.serverip, optarg);
				break;

			case 'p':
				printf("-p: %s\n", optarg);

				ctx.port = atoi(optarg);
				break;

			case 't':
				printf("-t: %s\n", optarg);
				ctx.threadnum = atoi(optarg);
				break;

			case 'c':
				printf("-c: %s\n", optarg);
				ctx.connection = atoi(optarg);
				break;

			case 'n':
				printf("-n: %s\n", optarg);
				ctx.requestion = atoi(optarg);
				break;

			default:
				return -1;

		}

	}

    pthread_t *ptid=malloc(ctx.threadnum*sizeof(pthread_t));

    int i=0;

    struct timeval tv_begin;
    gettimeofday(&tv_begin,NULL);

    for(i=0;i<ctx.threadnum;i++){
        pthread_create(&ptid[i],NULL,test_qps_entry,&ctx);

    }

    for(i=0;i<ctx.threadnum;i++){
        pthread_join(ptid[i],NULL);

    }

    struct timeval tv_end;

    gettimeofday(&tv_end, NULL);

	int time_used = TIME_SUB_MS(tv_end, tv_begin);

    printf("success: %d, failed: %d, time_used: %d, qps: %d\n", ctx.requestion-ctx.failed,
		ctx.failed, time_used, ctx.requestion * 1000 / time_used);
clean:
	free(ptid);
    return 0;
}
