Nginx+Tomcat负载均衡、动静分离

目录

一、Tomcat多实例

二、Nginx+Tomcat负载均衡、动静分离

2.1 部署Nginx 负载均衡器

2.2.部署Tomcat1

2.3.部署Tomcat2

2.4.nginx配置

---

一、Tomcat多实例

1.安装jdk

1.关闭防火墙
systemctl stop firewalld
systemctl disable firewalld
setenforce 0

2.将安装 Tomcat 所需软件包传到/opt目录下
apache-tomcat-9.0.16.tar.gz
jdk-8u201-linux-x64.rpm

3.切换至/opt下，安装JDK
cd /opt
rpm -ivh jdk-8u201-linux-x64.rpm
​

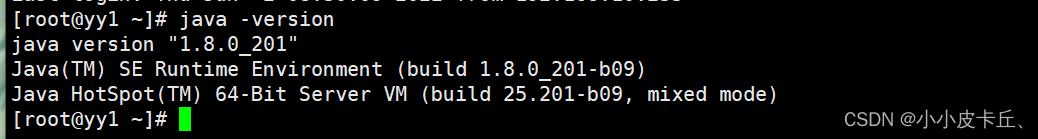

4.查看java版本
java -version

2.安装tomcat

1.切换至/opt下，解压tomcat包
cd /opt
tar -zxf apache-tomcat-9.0.16.tar.gz


2.将解压后的包拷贝至/usr/local/下并重命名
cp -a apache-tomcat-9.0.16 /usr/local/tomcat1
cp -a apache-tomcat-9.0.16 /usr/local/tomcat2

3.配置tomcat环境变量

vim /etc/profile
​
export JAVA_HOME=/usr/java/jdk1.8.0_201-amd64
export CLASSPATH=$JAVA_HOME/lib/tools.jar:$JAVA_HOME/lib/dt.jar
export PATH=$JAVA_HOME/bin:$PATH

4.修改tomcat2中的主配置文件

vim /usr/local/tomcat2/conf/server.xml
​
22    <Server port="8006" shutdown="SHUTDOWN">
69    <Connector port="8081" protocol="HTTP/1.1"
116   <Connector port="8010" protocol="AJP/1.3" redirectPort="8443" />
​

5.修改启动脚本和关闭脚本

1. #修改tomcat1的/usr/local/tomcat1/bin/startup.sh
vim /usr/local/tomcat/tomcat1/bin/startup.sh
​
export CATALINA_HOME1=/usr/local/tomcat1
export CATALINA_BASE1=/usr/local/tomcat1
export TOMCAT_HOME1=/usr/local/tomcat1
​
2. #修改tomcat1 的/usr/local/tomcat1/bin/shutdown.sh
vim /usr/local/tomcat/tomcat1/bin/shutdown.sh
​
export CATALINA_HOME1=/usr/local/tomcat1
export CATALINA_BASE1=/usr/local/tomcat1
export TOMCAT_HOME1=/usr/local/tomcat1
​
​
3. #修改tomcat2的/usr/local/tomcat2/bin/startup.sh
vim /usr/local/tomcat/tomcat2/bin/startup.sh
​
export CATALINA_HOME1=/usr/local/tomcat2
export CATALINA_BASE1=/usr/local/tomcat2
export TOMCAT_HOME1=/usr/local/tomcat2
​
4. #修改tomcat2的/usr/local/tomcat2/bin/shutdown.sh
vim /usr/local/tomcat/tomcat2/bin/shutdown.sh
​
export CATALINA_HOME1=/usr/local/tomcat2
export CATALINA_BASE1=/usr/local/tomcat2
export TOMCAT_HOME1=/usr/local/tomcat2
​

6.启动tomcat并查看

1.启动tomcat1
cd /usr/local/
./tomcat1/bin/startup.sh
​
2.启动tomcat2
./tomcat2/bin/startup.sh
​
3.查看是否启动成功
netstate -ntap|grep java
http://192.168.10.4:8080/
http://192.168.10.4:8081/

二、Nginx+Tomcat负载均衡、动静分离

• 以LNMP为例，一个企业内部最基础的架构组成需要一个处理静态Web服务的页面，一个动态Web服务的页面和数据库。
• 而我们实现了在Linux平台上，实现了Nginx + PHP 实现动静分离，而实际生产中往往一台nginx 需要“对应”多个动态处理的服务（及tomcat），所以如何将前端接收到的动态请求转交给后端多个tomcat处理，是我们此处研究的内容。

实验

环境简介：

ngnix：192.168.10.5

tomcat1：192.168.10.4:8080

tomcat2： 192.168.10.4:8081

2.1 部署Nginx 负载均衡器

192.168.10.5

1.关闭防火墙
systemctl stop firewalld
setenforce 0
​
2.安装依赖关系包
yum -y install pcre-devel zlib-devel gcc gcc-c++ make
​
3.新建用户和组便于管理
useradd -M -s /sbin/nologin nginx
​
4.切换至opt目录，将下载好的压缩包传进来解压
cd /opt
tar -zxf nginx-1.12.0.tar.gz
​
5.切换至解压后的目录下编译
cd nginx-1.12.0
​
./configure \
--prefix=/usr/local/nginx \
--user=nginx \
--group=nginx \
--with-http_stub_status_module
​
6.安装
make -j4 && make install
​
7.做软连接，让系统识别nginx的操作命令
ln -s /usr/local/nginx/sbin/nginx /usr/local/sbin/
​
8.将nginx命令加入服务
cd /lib/systemd/system

vim nginx.service
#!/bin.bash
[Unit]
Description=nginx
After=network.target
[Service]
Type=forking
PIDFile=/usr/local/nginx/logs/nginx.pid
ExecStart=/usr/local/nginx/sbin/nginx
ExecReload=/usr/bin/kill -s HUP $MAINPID
ExecStop=/usr/bin/kill -s QUIT $MAINPID
PrivateTmp=true
[Install]
WantedBy=multi-user.target
​
9.开启服务
chmod 754 /lib/systemd/system/nginx.service
systemctl start nginx.service
systemctl enable nginx.service
​
10.查看是否成功启动
netstat -ntap|grep nginx

2.2.部署Tomcat1

192.168.10.4:8080

1.关闭防火墙
systemctl stop firewalld
systemctl disable firewalld
setenforce 0
​
2.切换至/opt，将安装 Tomcat 所需软件包传到/opt目录下
apache-tomcat-9.0.16.tar.gz
jdk-8u201-linux-x64.rpm
​
3.安装JDK
rpm -ivh jdk-8u201-linux-x64.rpm
​
4.设置JDK的环境变量
vim /etc/profile
export JAVA_HOME=/usr/java/jdk1.8.0_201-amd64
export CLASSPATH=$JAVA_HOME/lib/tools.jar:$JAVA_HOME/lib/dt.jar
export PATH=$JAVA_HOME/bin:$PATH
​
5.刷新配置文件
source /etc/profile
​
6.切换至/opt下，解压tomcat包
cd /opt
tar -zxf apache-tomcat-9.0.16.tar.gz
​
7.将解压后的包拷贝至/usr/local/下并重命名
mv apache-tomcat-9.0.16 /usr/local/tomcat1
​
8.新建服务文件（systemctl）
vim /etc/systemd/system/tomcat1.service
[Unit]
Description=Tomcat
#After=syslog.target network.target remote-fs.target nss-lookup.target
After=syslog.target network.target
​
[Service]
Type=forking
ExecStart=/usr/local/tomcat1/bin/startup.sh
ExecStop=/usr/local/tomcat1/bin/shutdown.sh
RestartSec=3
PrivateTmp=true
​
[Install]
WantedBy=multi-user.target

9.修改tomcat1的/usr/local/tomcat1/bin/startup.sh
vim /usr/local/tomcat/tomcat1/bin/startup.sh
​
export CATALINA_HOME1=/usr/local/tomcat1
export CATALINA_BASE1=/usr/local/tomcat1
export TOMCAT_HOME1=/usr/local/tomcat1
​
修改tomcat1 的/usr/local/tomcat1/bin/shutdown.sh
vim /usr/local/tomcat/tomcat1/bin/shutdown.sh
​
export CATALINA_HOME1=/usr/local/tomcat1
export CATALINA_BASE1=/usr/local/tomcat1
export TOMCAT_HOME1=/usr/local/tomcat1
​
​

​
10.重新加载服务，并开启，查看是否成功启动
​
systemctl daemon-reload
systemctl start tomcat1
netstat -ntap |grep 8080
​
​
​
#############新建动态页面站点###########
​
11.切换至webapp下，新建yuyue目录
cd /usr/local/tomcat/webapps/
mkdir yuyuw
​
12.建立动态页面文件
vim yuyue/index.jsp
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<html>
  <head>
     <title>JSP yuyue page </title>
  </head>
  <body>
     <% out.println("动态页面1,this is yuyue");%>
  </body>
</html>
​
13.修改主配置文件
vim /usr/local/tomcat1/conf/server.xml
删除原来的站点模块
添加
<Host name="localhost" appBase="webapps"
            unpackWARs="true" autoDeploy="true" xmlValidation="false"
            xmlNamespaceAware="false">
                <Context docBase="/usr/local/tomcat1/webapps/yuyue"
                path="" reloadable="true" />
      </Host>
​
​
13.重启服务，并在网页测试
systemctl restart tomcat1.service

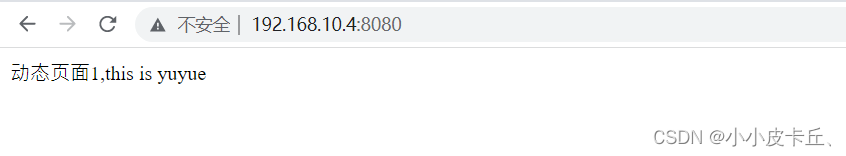

http://192.168.10.4:8080

2.3.部署Tomcat2

192.168.10.4:8081

1.切换至/opt下，解压tomcat包
cd /opt
tar -zxf apache-tomcat-9.0.16.tar.gz
​
2.将解压后的包拷贝至/usr/local/下并重命名
mv apache-tomcat-9.0.16 /usr/local/tomcat2

3.新建服务文件（systemctl）
vim /etc/systemd/system/tomcat2.service
[Unit]
Description=Tomcat
#After=syslog.target network.target remote-fs.target nss-lookup.target
After=syslog.target network.target
​
[Service]
Type=forking
ExecStart=/usr/local/tomcat/bin/startup.sh
ExecStop=/usr/local/tomcat/bin/shutdown.sh
RestartSec=3
PrivateTmp=true
​
[Install]
WantedBy=multi-user.target

4.修改端口号
vim /usr/local/tomcat2/conf/server.xml
​
22行    <Server port="8006" shutdown="SHUTDOWN">
69行    <Connector port="8081" protocol="HTTP/1.1"
116行   <Connector port="8010" protocol="AJP/1.3" redirectPort="8443" />

5.修改tomcat2的/usr/local/tomcat2/bin/startup.sh
vim /usr/local/tomcat/tomcat2/bin/startup.sh
​
export CATALINA_HOME1=/usr/local/tomcat2
export CATALINA_BASE1=/usr/local/tomcat2
export TOMCAT_HOME1=/usr/local/tomcat2
​
修改tomcat2的/usr/local/tomcat2/bin/shutdown.sh
vim /usr/local/tomcat/tomcat2/bin/shutdown.sh
​
export CATALINA_HOME1=/usr/local/tomcat2
export CATALINA_BASE1=/usr/local/tomcat2
export TOMCAT_HOME1=/usr/local/tomcat2
​
​
​
6.重新加载服务，并开启，查看是否成功启动
​
systemctl daemon-reload
systemctl start tomcat2
netstat -ntap |grep 8081
​
​
​
#############新建动态页面站点###########
​
7.切换至webapp下，新建yangshuo目录
cd /usr/local/tomcat/webapps/
mkdir yangshuo
​
12.建立动态页面文件
vim yangshuo/index.jsp
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<html>
  <head>
     <title>JSP yangshuo page </title>
  </head>
  <body>
     <% out.println("动态页面2,this is yangshuo");%>
  </body>
</html>
​
13.修改主配置文件
vim /usr/local/tomcat2/conf/server.xml
删除原来的站点模块
添加
<Host name="localhost" appBase="webapps"
            unpackWARs="true" autoDeploy="true" xmlValidation="false"
            xmlNamespaceAware="false">
                <Context docBase="/usr/local/tomcat/webapps/yangshuo"
                path="" reloadable="true" />
      </Host>
​
​
14.重启服务，并在网页测试
systemctl restart tomcat2.service

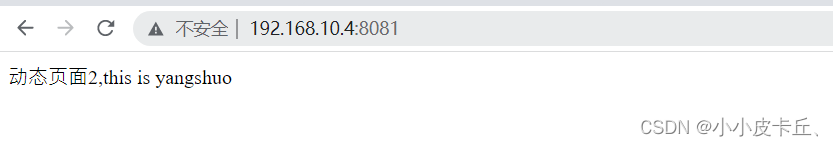

http://192.168.10.4:8081

2.4.nginx配置

192.168.10.5

1.切换至/usr/local/nginx/html/目录下
cd /usr/local/nginx/html/
​

2.创建test文件夹，并在里面创建静态网页
mkdir test
cd test
vim test.html
this is 1.html
​




4.修改配置文件
......
http {
......
 #gzip  on;

    #配置负载均衡的服务器列表，weight参数表示权重，权重越高，被分配到的概率越大
    upstream tomcat_server {
      server 192.168.10.4:8080 weight=1;
      server 192.168.10.4:8081 weight=1;
    }

 server {
        listen       80;
        server_name  www.kgc.com;
        #charset koi8-r;
        #access_log  logs/host.access.log  main;

        #配置Nginx处理动态页面请求，将 .jsp 文件请求转发到Tomcat 服务器处理
        location ~ .*\.jsp$ {
            #设置后端的 Web 服务器可以获取远程客户端的真实IP
            proxy_pass http://tomcat_server;
            #设定后端的Web服务器接收到的请求访问的主机名（域名或IP、端口），默认host的值为proxy_pass指令设置的主机名
            proxy_set_header HOST $host;
            #把$remote_addr赋值给X-Real-IP(自定义)，来获取源IP
            proxy_set_header X-Real-IP $remote_addr;
            #在Nginx作为代理服务器时，设置的IP列表，会把经过的机器ip，代理机器ip都记录下来
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            }

        location ~ .*\.(jpg|html|png|gif)$ {
                root html;
                expires 10d;
                break;
            }

        location / {
            root html;
            index  index.html index.htm;
            }


5.重启nginx服务
systemctl restart nginx

6.进行测试
http://www.kgc.com/1.jpg (如果找不到图片，就要对图片进行授权744)

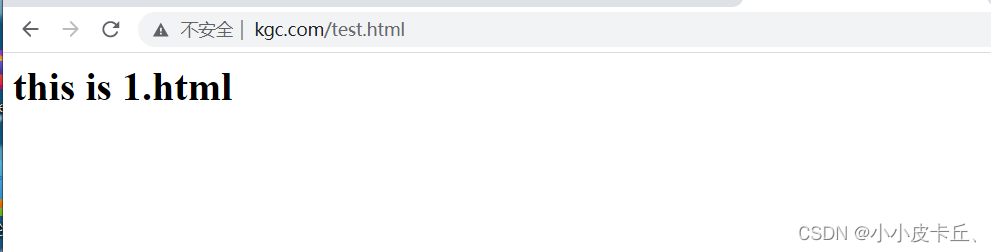

http://www.kgc.com/test.html

7.负载均衡、动静分离进行测试

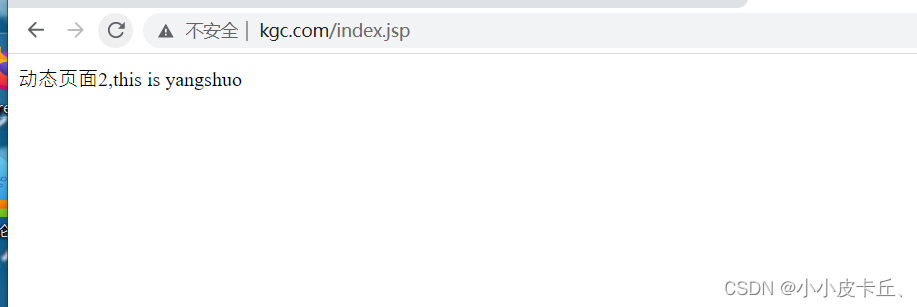

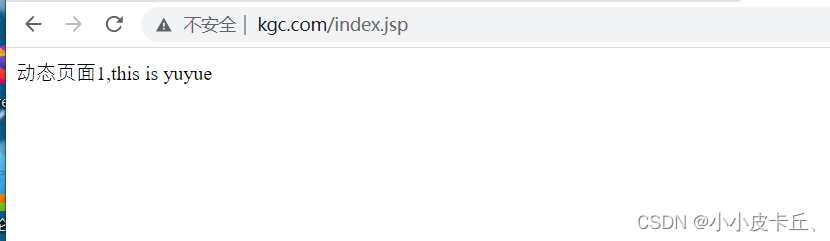

http://www.kgc.com/index.jsp

###刷新，会在tomcat1和tomcat2服务器之间进项跳转
