springboot集成xxl-job

springboot集成xxl-job

gitee:xxl-job官方下载地址
验证demo:黔程似景xxl-job验证demo

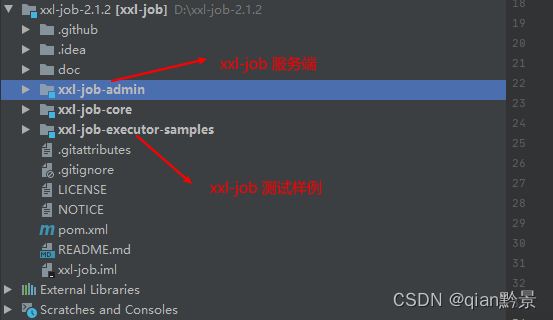

1.认识xxl-job相关模块

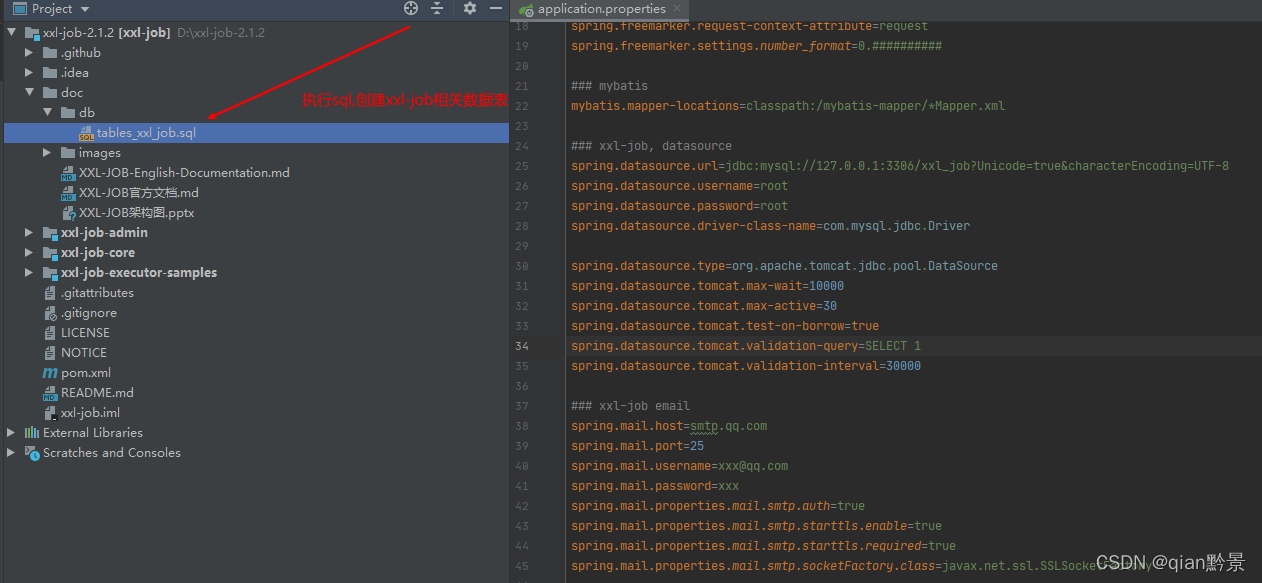

2.在数据库执行sql

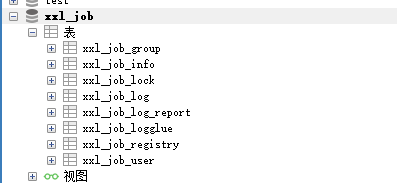

执行成功，显示如下

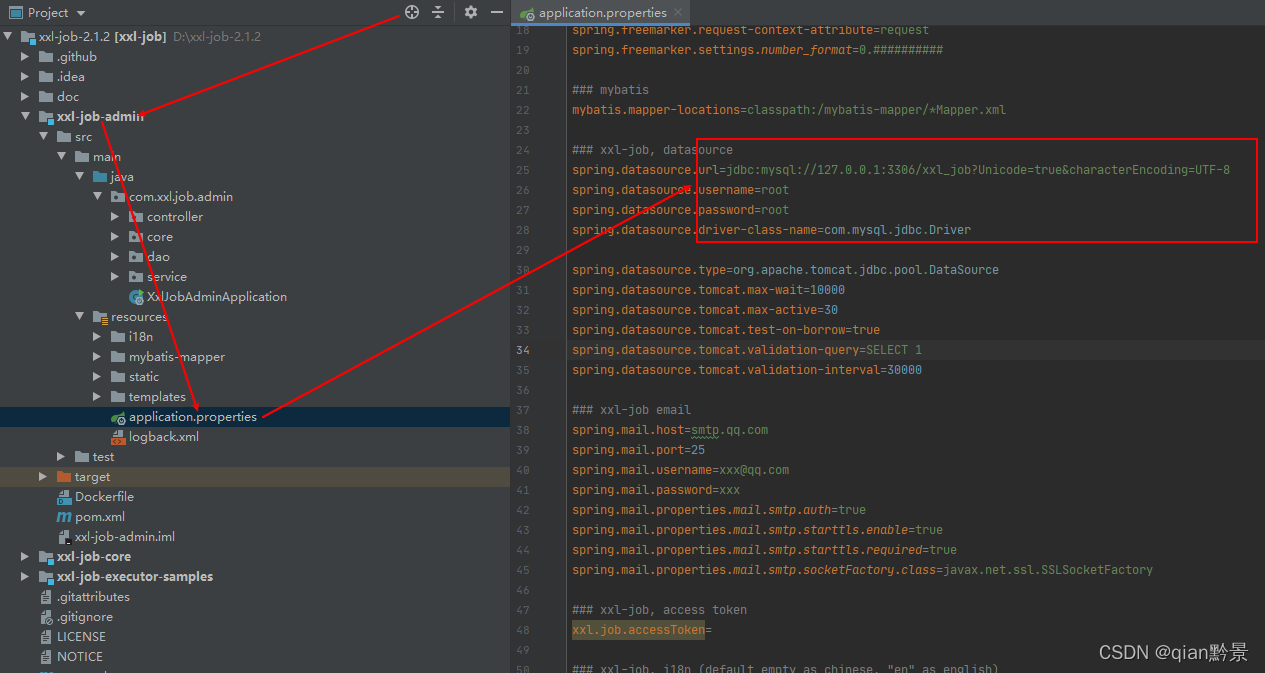

3.将数据库信息配置在xxl-job服务端

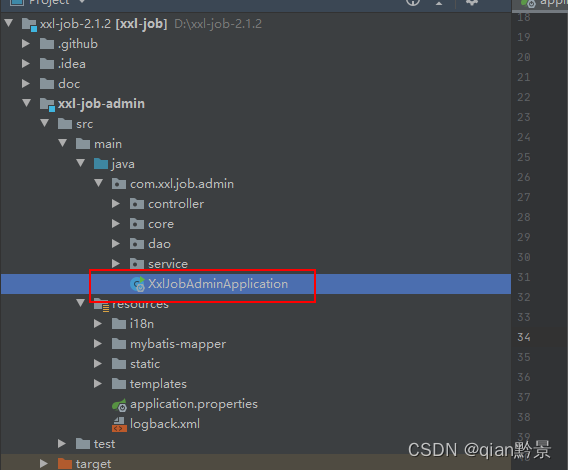

4.运行xxl-job-admin服务器（也可以打包放到服务器上面执行）

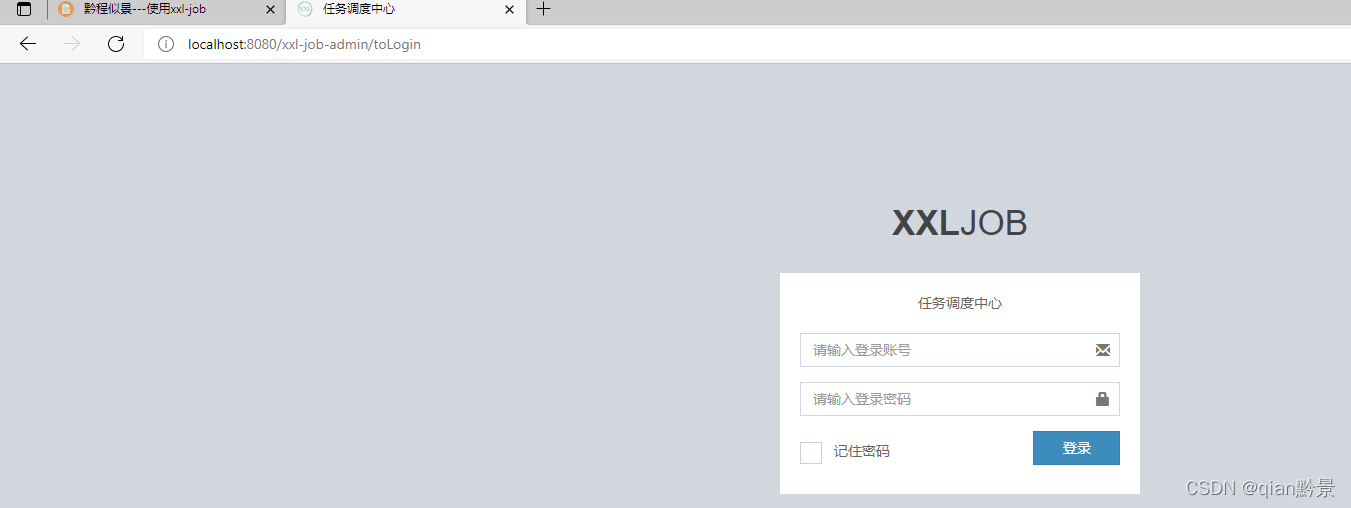

执行成功，即可访问：任务调度中心

默认用户：admin

默认密码：123456

5.创建使用xxl-job的项目

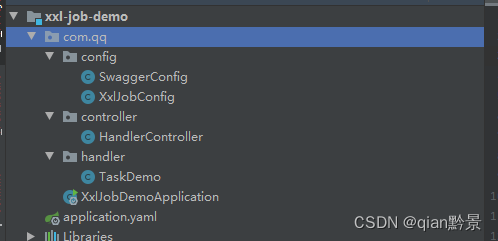

1.目录结构

2.相关依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.qq</groupId>
    <artifactId>xxl-job-demo</artifactId>
    <version>1.0-SNAPSHOT</version>

    <parent>
        <artifactId>spring-boot-starter-parent</artifactId>
        <groupId>org.springframework.boot</groupId>
        <version>2.4.5</version>
    </parent>

    <properties>
        <knife4j.version>1.9.6</knife4j.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--swagger测试接口文档-->
        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>knife4j-spring-boot-starter</artifactId>
            <version>${knife4j.version}</version>
        </dependency>
        <!-- xxl-job-core -->
        <dependency>
            <groupId>com.xuxueli</groupId>
            <artifactId>xxl-job-core</artifactId>
            <version>2.1.2</version>
        </dependency>
    </dependencies>

</project>

3.yaml配置文件

server:
  port: 8888

### xxl-job admin address list, such as "http://address" or "http://address01,http://address02"
xxl:
  job:
    executor:
      ### xxl-job executor address
      appname: xxl-job-demo
      ip: ''
      port: 9999
      ### xxl-job log retention days
      logretentiondays: 30
      ### xxl-job log path
      logpath: /data/applogs/xxl-job/jobhandler
    ### xxl-job, access token
    accessToken: ''
    admin:
      addresses: http://localhost:8080/xxl-job-admin

# log
#logging:
#  config: classpath:logback.xml

4.启动类

package com.qq;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @author 黔程似景
 * @description TODO
 * @date 2022/2/26 21:56
 **/
@SpringBootApplication
public class XxlJobDemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(XxlJobDemoApplication.class , args);
    }

}

5.xxl-job配置类

package com.qq.config;

import com.xxl.job.core.executor.impl.XxlJobSpringExecutor;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * xxl-job config
 *
 * @author xuxueli 2017-04-28
 */
@Configuration
public class XxlJobConfig {
    private Logger logger = LoggerFactory.getLogger(XxlJobConfig.class);

    @Value("${xxl.job.admin.addresses}")
    private String adminAddresses;

    @Value("${xxl.job.executor.appname}")
    private String appName;

    @Value("${xxl.job.executor.ip}")
    private String ip;

    @Value("${xxl.job.executor.port}")
    private int port;

    @Value("${xxl.job.accessToken}")
    private String accessToken;

    @Value("${xxl.job.executor.logpath}")
    private String logPath;

    @Value("${xxl.job.executor.logretentiondays}")
    private int logRetentionDays;

    @Bean
    public XxlJobSpringExecutor xxlJobExecutor() {
        logger.info(">>>>>>>>>>> xxl-job config init.");
        XxlJobSpringExecutor xxlJobSpringExecutor = new XxlJobSpringExecutor();
        xxlJobSpringExecutor.setAdminAddresses(adminAddresses);
        xxlJobSpringExecutor.setAppName(appName);
        xxlJobSpringExecutor.setIp(ip);
        xxlJobSpringExecutor.setPort(port);
        xxlJobSpringExecutor.setAccessToken(accessToken);
        xxlJobSpringExecutor.setLogPath(logPath);
        xxlJobSpringExecutor.setLogRetentionDays(logRetentionDays);

        return xxlJobSpringExecutor;
    }

    /**
     * 针对多网卡、容器内部署等情况，可借助 "spring-cloud-commons" 提供的 "InetUtils" 组件灵活定制注册IP；
     *
     *      1、引入依赖：
     *          <dependency>
     *             <groupId>org.springframework.cloud</groupId>
     *             <artifactId>spring-cloud-commons</artifactId>
     *             <version>${version}</version>
     *         </dependency>
     *
     *      2、配置文件，或者容器启动变量
     *          spring.cloud.inetutils.preferred-networks: 'xxx.xxx.xxx.'
     *
     *      3、获取IP
     *          String ip_ = inetUtils.findFirstNonLoopbackHostInfo().getIpAddress();
     */

}

6.任务调度类

package com.qq.handler;

import com.xxl.job.core.biz.model.ReturnT;
import com.xxl.job.core.handler.annotation.XxlJob;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;

/**
 * XxlJob开发示例（Bean模式）
 *
 * 开发步骤：
 * 1、在Spring Bean实例中，开发Job方法，方式格式要求为 "public ReturnT<String> execute(String param)"
 * 2、为Job方法添加注解 "@XxlJob(value="自定义jobhandler名称", init = "JobHandler初始化方法", destroy = "JobHandler销毁方法")"，注解value值对应的是调度中心新建任务的JobHandler属性的值。
 * 3、执行日志：需要通过 "XxlJobLogger.log" 打印执行日志；
 *
 * @author xuxueli 2019-12-11 21:52:51
 */
@Component
@EnableScheduling
public class TaskDemo{
    private static final Logger logger = LoggerFactory.getLogger(TaskDemo.class);
    /**
     * 1、简单任务示例（Bean模式）
     */
    @XxlJob("demoJobHandler")
    public ReturnT<String> demoJobHandler(String param) throws Exception {

        logger.info("测试任务1被触发了");
//        XxlJobLogger.log("测试任务1被触发了");
        return ReturnT.SUCCESS;
    }

    @XxlJob("helloJob")
    public ReturnT<String> helloJobHandler(String param) throws Exception {
        System.out.println("定时任务helloJob被执行了-----------");
        return ReturnT.SUCCESS;
    }

}

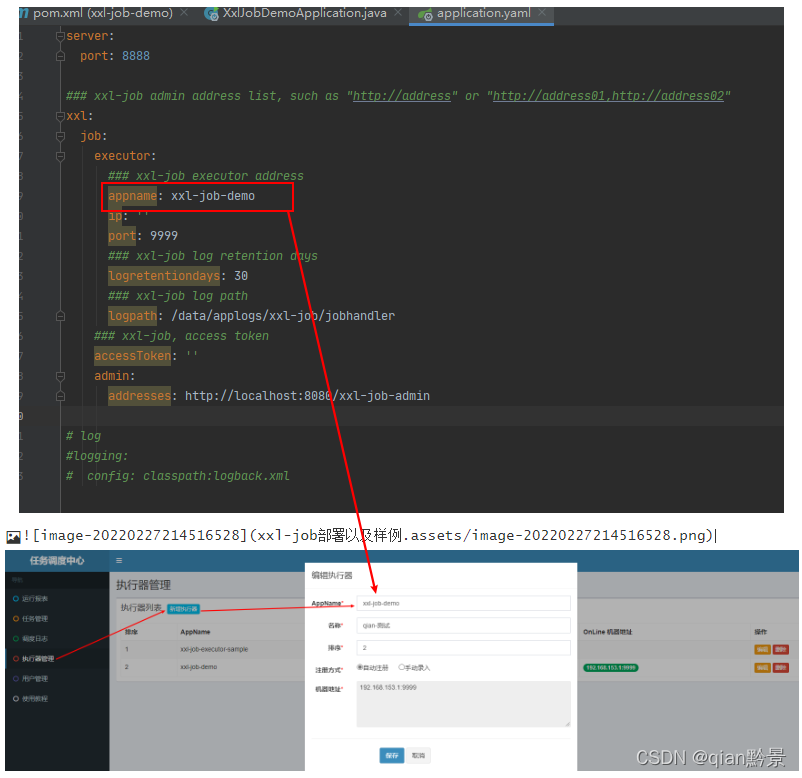

7.启动任务类（按照配置类参数，添加执行器）

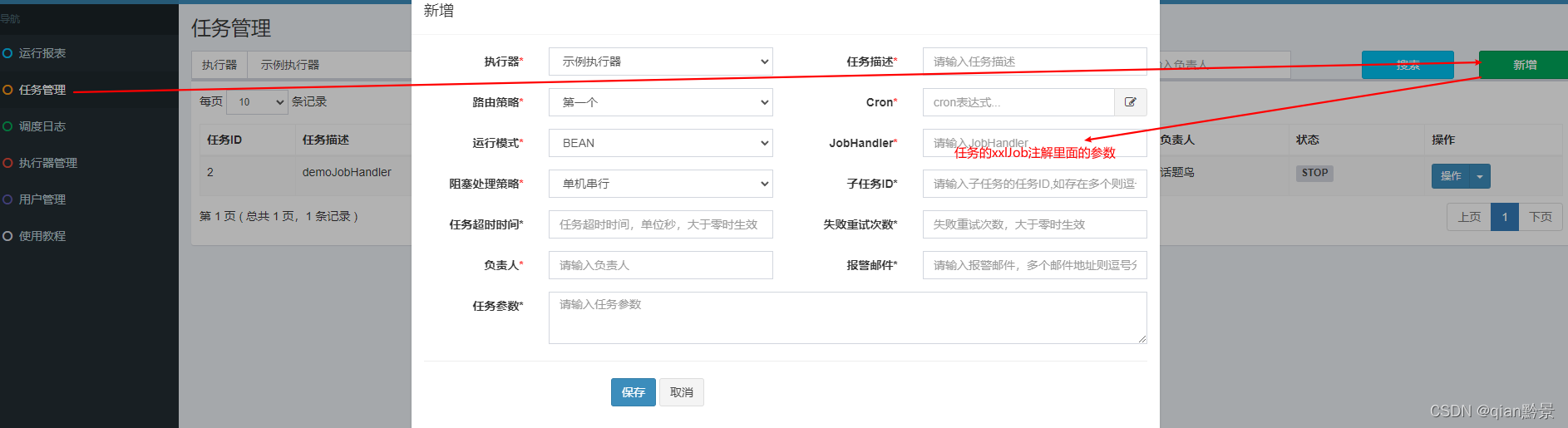

8.创建任务

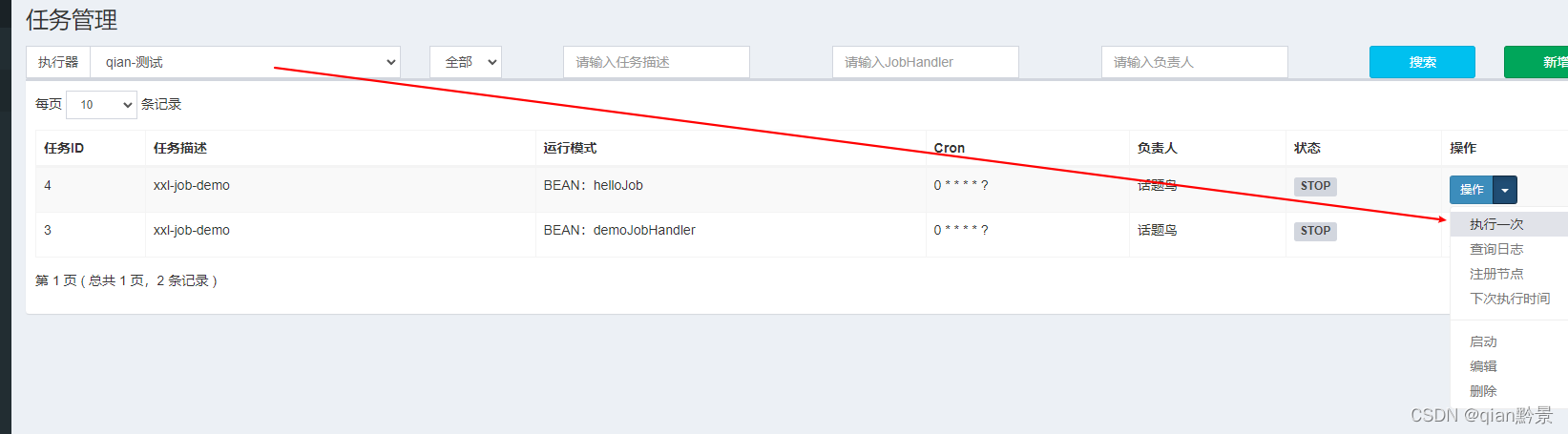

9.执行任务

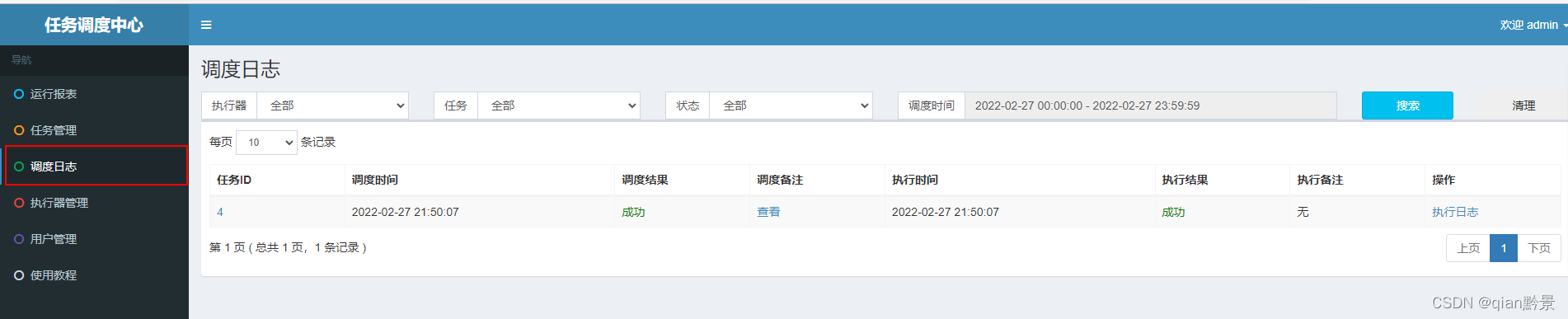

10.查看调度记录

6.可能存在的问题

1.执行器自动获取的ip有可能不对，如果出现这种错误，需要手动更改为正确的ip:port
2.如果没有添加org.springframework.scheduling.annotation.EnableScheduling注解，任务调度类的类名必须是SampleXxlJob，否则可能无法正常进行任务调度
3.如果不是在同一台服务器，同一个系统上，可能是存在时间差导致
