SpringBoot配置测试接口文档（swagger）

SpringBoot配置测试接口文档（swagger）

源码地址：https://gitee.com/benming-walnut/swagger-ui.git

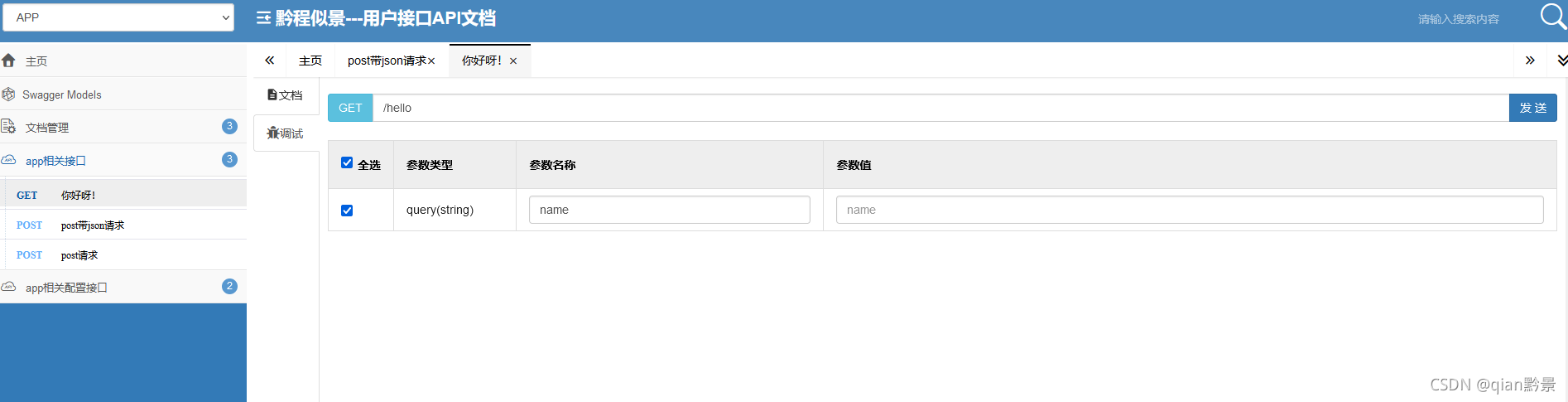

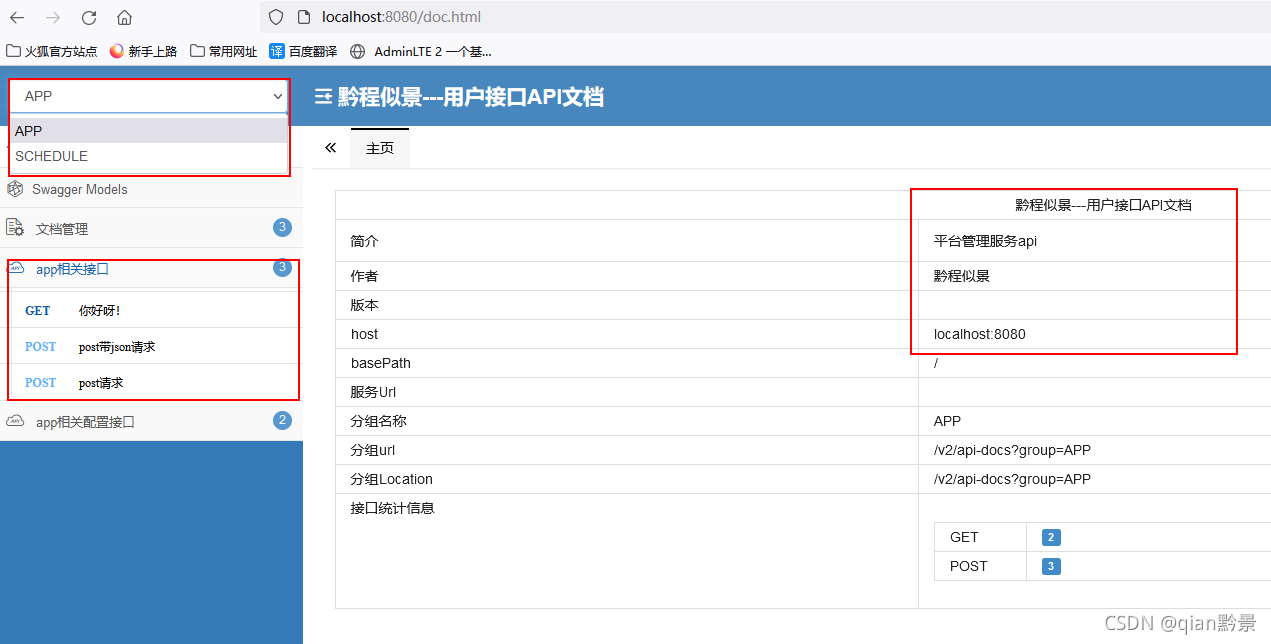

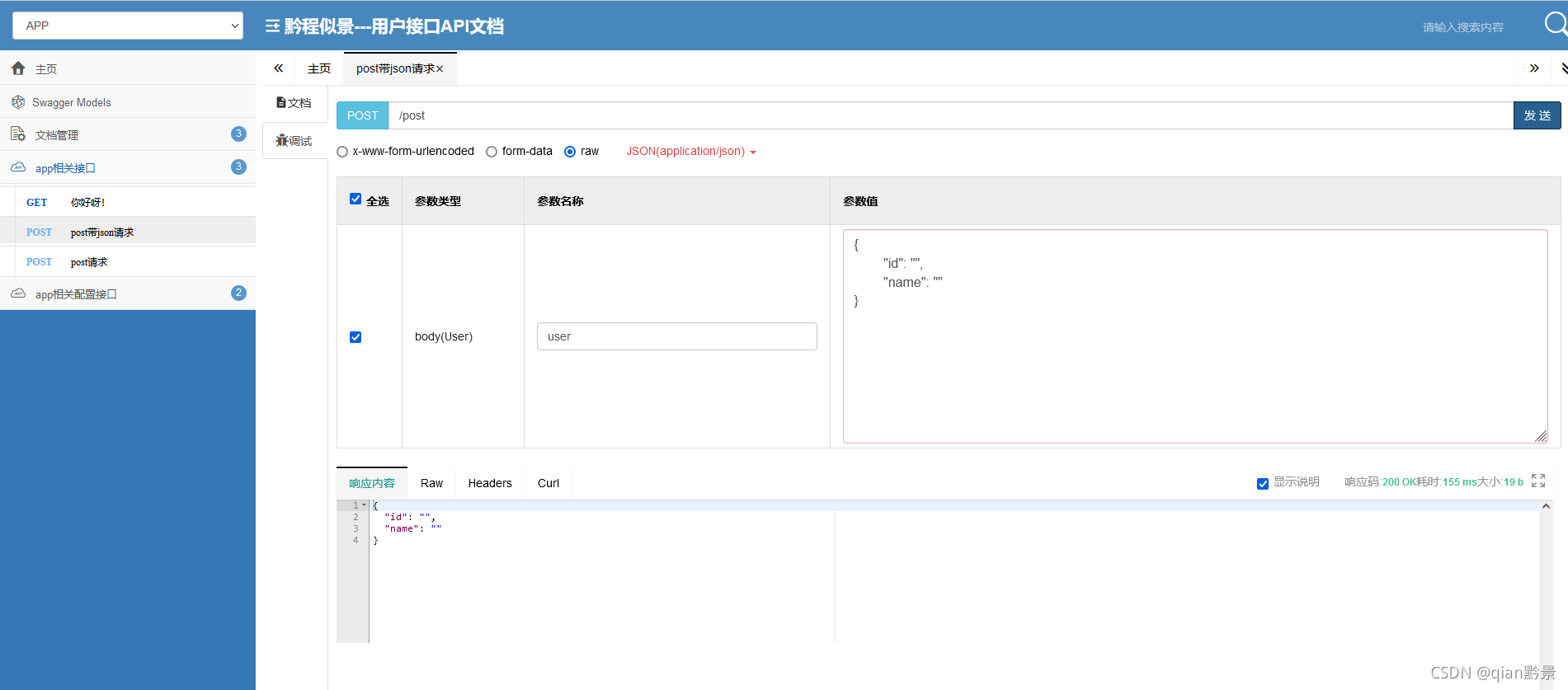

1.测试文档展示

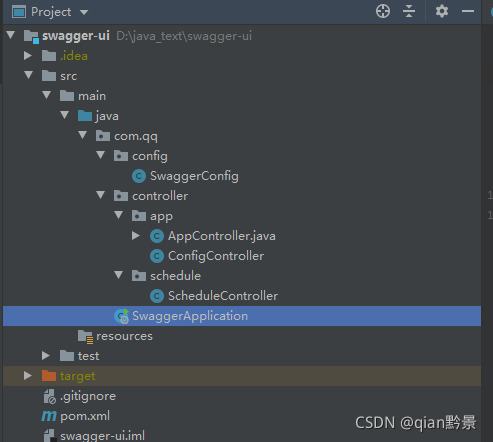

2.项目目录结构

3.相关依赖

    <parent>
        <artifactId>spring-boot-starter-parent</artifactId>
        <groupId>org.springframework.boot</groupId>
        <version>2.3.8.RELEASE</version>
    </parent>

    <properties>
        <knife4j.version>1.9.6</knife4j.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--swagger测试接口文档-->
        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>knife4j-spring-boot-starter</artifactId>
            <version>${knife4j.version}</version>
        </dependency>
    </dependencies>

4.启动类

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SwaggerApplication {
    public static void main(String[] args) {
        SpringApplication.run(SwaggerApplication.class, args);
    }
}

5.配置文件

import com.github.xiaoymin.knife4j.spring.annotations.EnableSwaggerBootstrapUi;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

/**
 * @author 黔程似景
 * @description app相关接口
 **/
@Configuration
@EnableSwagger2
@EnableSwaggerBootstrapUi
public class SwaggerConfig {

    private final static String APP_PAGE = "com.qq.controller.app";
    private final static String SCHEDULE_PAGE = "com.qq.controller.schedule";

    @Bean
    public Docket getAppRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(buildApiInfo("黔程似景---用户接口API文档")).groupName("APP")
                .select()
                .apis(RequestHandlerSelectors.basePackage(APP_PAGE))
                .paths(PathSelectors.any())
                .build();
    }

    @Bean
    public Docket getScheduleRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(buildApiInfo("黔程似景---后端接口API文档")).groupName("SCHEDULE")
                .select()
                .apis(RequestHandlerSelectors.basePackage(SCHEDULE_PAGE))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo buildApiInfo(String title) {
        Contact contact = new Contact("黔程似景", "http://localhost:8080", "");
        return new ApiInfoBuilder()
                .title(title)
                .description("平台管理服务api")
                .contact(contact)
                .build();
    }
}

6.Controller

import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author 黔程似景
 * @description app相关接口
 **/
@Api(tags = "app相关接口")
@RestController
public class AppController {

    @ApiOperation(value = "你好呀！")
    @GetMapping("/hello")
    public String getHello(String name) {
        return "hello " + name;
    }

    @ApiOperation(value = "post请求")
    @PostMapping("/postJson")
    public User postJson(User user) {
        return user;
    }

    @ApiOperation(value = "post带json请求")
    @PostMapping("/post")
    public User post(@RequestBody User user) {
        return user;
    }

}

class User {
    String id;
    String name;

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public User(String id, String name) {
        this.id = id;
        this.name = name;
    }

    public User() {
    }
}

import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author 黔程似景
 * @description app相关配置接口
 **/
@RestController
@Api(tags = "app相关配置接口")
public class ConfigController {

    @ApiOperation(value = "你好呀！")
    @GetMapping("/getConfig")
    public String getHello(String name) {
        return "hello" + name;
    }

    @ApiOperation(value = "获取用户信息")
    @PostMapping("/userMessage")
    public String getUserMessage(String name) {
        return name;
    }

}

import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author 黔程似景
 * @description 定时器测试接口
 **/
@RestController
@Api(tags = "定时器相关测试接口")
public class ScheduleController {

    @ApiOperation(value = "定时器xxx接口")
    @GetMapping("/getScheduleOne")
    public String getScheduleOne() {
        return "执行成功！";
    }

    @ApiOperation(value = "定时器2xxx接口")
    @GetMapping("/getSchedule")
    public String getSchedule() {
        return "定时器执行成功！";
    }

}

7.执行启动类

访问地址：http://localhost:8080/doc.html
