本文详细介绍了如何在IntelliJIDEA中搭建Mybatis开发环境，包括引入依赖、配置数据库连接、创建UserMapper和mybatis-config.xml，以及编写并运行单元测试。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

1,1mybatis环境搭建

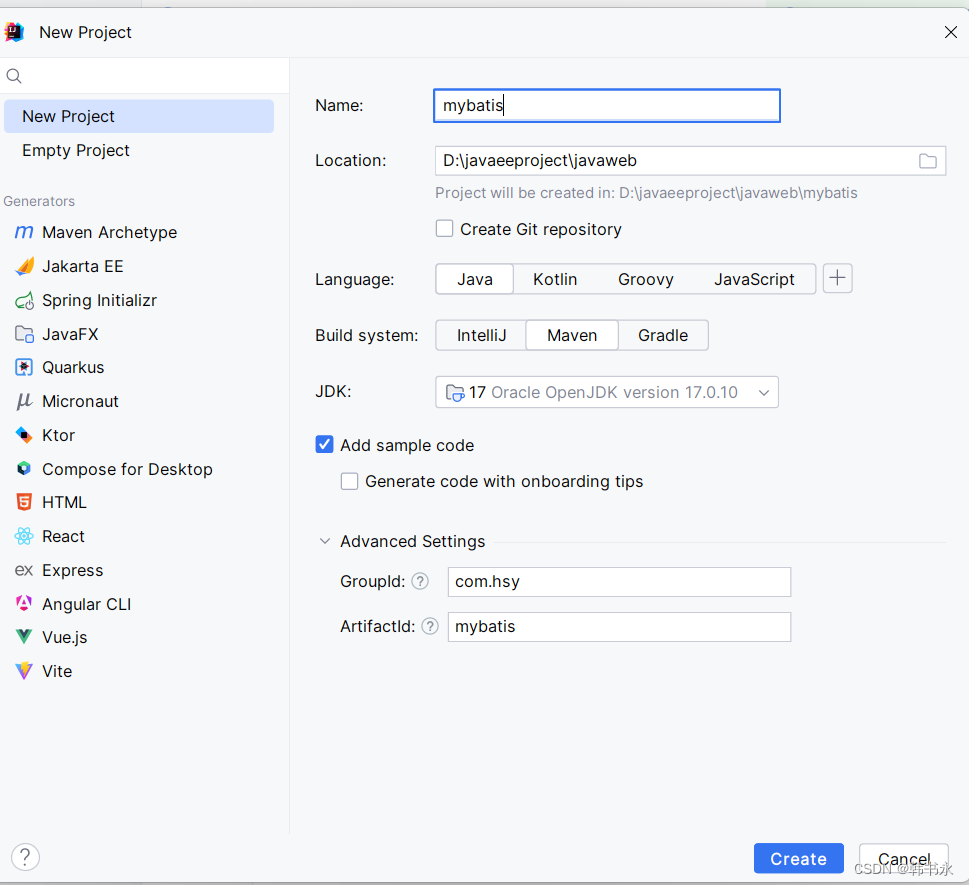

1,创建工程：使用Intellij IDEA工具，选择工具栏中的“File”-“New”-“Project”选项，弹出“New Project”对话框如图：

注意：此次使用jdk17版本
点击Create
2，引入相关依赖：
在pom.xml文件中导入MySQL驱动包、JUnit测试包、MyBatis的核心包等相关依赖，具体代码如下：

<dependencies>
        <!--代码核心包-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.2</version>
        </dependency>
        <!--MYSQL驱动包-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.11</version>
        </dependency>
        <!--junit测试包-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>
    </dependencies>
    <!-- 将src/main/java中的资源文件编译进classes文件夹-->
    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>

3，创建数据库
命名为：mybatis
4,创建数据库连接信息配置文件

#配置数据库连接参数
#配置文件
#连接数据库
mysql.driver=com.mysql.cj.jdbc.Driver
mysql.url=jdbc:mysql://localhost:3306/mybatis?serverTimezone=UTC&characterEncoding=utf8&useUnicode=true&useSSL=false&allowPublicKeyRetrieval=true
mysql.username=root
mysql.password=1234

注意：数据库名字和密码要和你自己的用户名和密码相同

5，创建Mybatis的核心配置文件

文件名：mybatis-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <!-- 环境配置 -->
    <!-- 加载类路径下的属性文件 -->
    <properties resource="db.properties"/>
    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <!-- 数据库连接相关配置 ,db.properties文件中的内容-->
            <dataSource type="POOLED">
                <property name="driver" value="${mysql.driver}"/>
                <property name="url" value="${mysql.url}"/>
                <property name="username" value="${mysql.username}"/>
                <property name="password" value="${mysql.password}"/>
            </dataSource>
        </environment>
    </environments>
    <!--mapping文件路径配置，在设置mapper以后在此位置插入-->

</configuration>

1.2Mybatis入门程序

1，数据准备
创建users表，并插入两条数据

create table users
(
    uid   int auto_increment
        primary key,
    uname varchar(20) not null,
    uage  int         not null
);

insert into users (uid, uname, uage) values (null,'张三',20),(null,'李四',18);

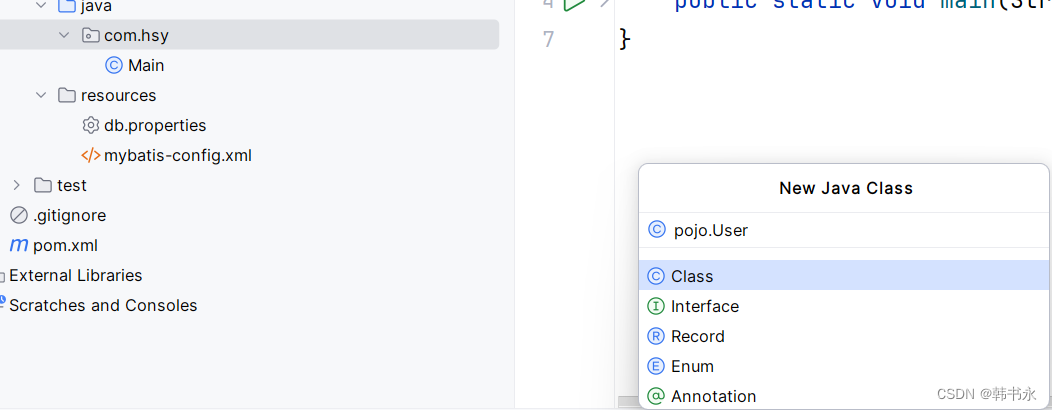

2，创建POJO实体

package com.hsy.pojo;

public class User {
    private int id;         //用户id
    private String uname;   //用户姓名
    private int uage;       //用户年龄
    //生成getter、setter方法
    public int getId() {
        return id;
    }
    public void setId(int id) {
        this.id = id;
    }
    public String getUname() {
        return uname;
    }
    public void setUname(String uname) {
        this.uname = uname;
    }
    public int getUage() {
        return uage;
    }
    public void setUage(int uage) {
        this.uage = uage;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", uname='" + uname + '\'' +
                ", uage=" + uage +
                '}';
    }
}

3，创建映射文件UserMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.hsy.pojo.User">
    <select id="findById" parameterType="int" resultType="com.hsy.pojo.User">
        select * from users where uid = #{id}
    </select>
</mapper>

4,修改myBatis-config.xml配置文件

    <mappers>
        <mapper resource="mapper/UserMapper.xml"/>
    </mappers>

5，编写测试类

package Test;

import com.hsy.pojo.User;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Test;


import java.io.IOException;
import java.io.Reader;



public class UserTest {
    @Test
    public void userFindByIdTest() {
        //读取文件名
        String resources = "mybatis-config.xml";
        //创建流
        Reader reader = null;
        try {
            //读取mybatis-config.xml文件内容到reader对象中
            reader = Resources.getResourceAsReader(resources);
        } catch (IOException e) {
            e.printStackTrace();
        }
        //初始化mybatis数据库,创建SqlSessionFactory类的实例
        SqlSessionFactory sqlMapper = new
                SqlSessionFactoryBuilder().build(reader);
        //创建SqlSession实例
        SqlSession session = sqlMapper.openSession();
        //传入参数查询，返回结果
        User user = session.selectOne("findById", 1);
        //输出结果

        System.out.println(user);
        //关闭session
        session.close();
    }
}

运行结果：

在运行时可能出现如下错误

java.io.IOException: Could not find resource mybatis-config.xml
	at org.apache.ibatis.io.Resources.getResourceAsStream(Resources.java:114)
	at org.apache.ibatis.io.Resources.getResourceAsStream(Resources.java:100)
	at org.apache.ibatis.io.Resources.getResourceAsReader(Resources.java:160)
	at Test.UserTest.userFindByIdTest(UserTest.java:25)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
	at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.base/java.lang.reflect.Method.invoke(Method.java:568)
	at org.junit.runners.model.FrameworkMethod$1.runReflectiveCall(FrameworkMethod.java:50)
	at org.junit.internal.runners.model.ReflectiveCallable.run(ReflectiveCallable.java:12)
	at org.junit.runners.model.FrameworkMethod.invokeExplosively(FrameworkMethod.java:47)
	at org.junit.internal.runners.statements.InvokeMethod.evaluate(InvokeMethod.java:17)
	at org.junit.runners.ParentRunner.runLeaf(ParentRunner.java:325)
	at org.junit.runners.BlockJUnit4ClassRunner.runChild(BlockJUnit4ClassRunner.java:78)
	at org.junit.runners.BlockJUnit4ClassRunner.runChild(BlockJUnit4ClassRunner.java:57)
	at org.junit.runners.ParentRunner$3.run(ParentRunner.java:290)
	at org.junit.runners.ParentRunner$1.schedule(ParentRunner.java:71)
	at org.junit.runners.ParentRunner.runChildren(ParentRunner.java:288)
	at org.junit.runners.ParentRunner.access$000(ParentRunner.java:58)
	at org.junit.runners.ParentRunner$2.evaluate(ParentRunner.java:268)
	at org.junit.runners.ParentRunner.run(ParentRunner.java:363)
	at org.junit.runner.JUnitCore.run(JUnitCore.java:137)
	at com.intellij.junit4.JUnit4IdeaTestRunner.startRunnerWithArgs(JUnit4IdeaTestRunner.java:69)
	at com.intellij.rt.junit.IdeaTestRunner$Repeater$1.execute(IdeaTestRunner.java:38)
	at com.intellij.rt.execution.junit.TestsRepeater.repeat(TestsRepeater.java:11)
	at com.intellij.rt.j

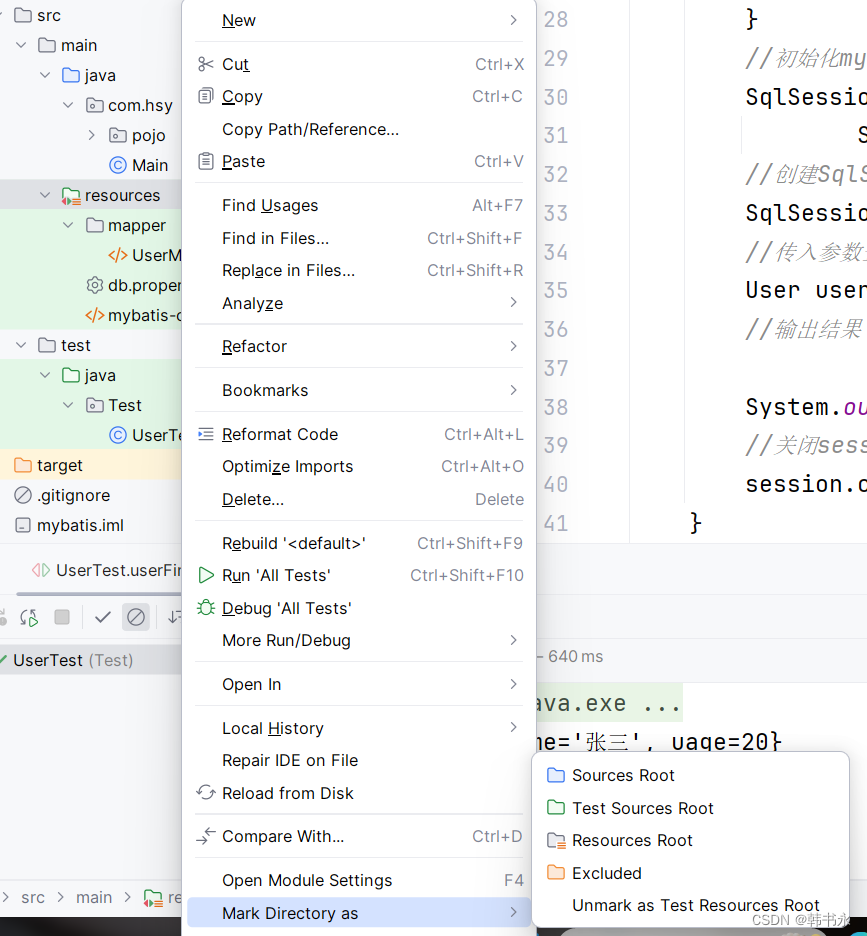

需要点击resources
