一、配置自定义MVC环境

1、将项目相关代码打包成jar包

右键项目Export ==> Export...

找到Java点击JAR flie

点击Next 注意勾选红色框框勾选的随后建在对应的路径里，最后finish

我们接着就把生成的jar包导入新的工程里--->并且把相关的依赖包也都导入--->再把我们分页标签的相关文件以及助手类导入；

2、导入工程

再建一个源文件夹：Source Folder

将项目需要的config.xml文件复制进来

二、通用增删改的编写

Student.java(学生实体类)

package com.zking.model;

public class Student {
    private Integer sid;

	private String sname;

	private Integer age;

	private String addr;


	public Integer getSid() {
		return sid;
	}

	public void setSid(Integer sid) {
		this.sid = sid;
	}

	public String getSname() {
		return sname;
	}

	public void setSname(String sname) {
		this.sname = sname;
	}

	public Integer getAge() {
		return age;
	}

	public void setAge(Integer age) {
		this.age = age;
	}

	public String getAddr() {
		return addr;
	}

	public void setAddr(String addr) {
		this.addr = addr;
	}


	public Student(Integer sid, String sname, Integer age, String addr) {
		super();
		this.sid = sid;
		this.sname = sname;
		this.age = age;
		this.addr = addr;
	}

	public Student() {
		// TODO Auto-generated constructor stub
	}

	@Override
	public String toString() {
		return "Student [sid=" + sid + ", sname=" + sname + ", age=" + age + ", addr=" + addr + "]";
	}

}

三、编写Dao方法层

StudentDao（dao层）

ppackage com.yian.dao;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;
import java.util.Objects;

import org.junit.Test;
import org.w3c.dom.ls.LSOutput;

import com.zking.model.Student;
import com.zking.util.BaseDao;
import com.zking.util.BaseDao.ICovent;
import com.zking.util.DBUtil;
import com.zking.util.PageBean;

public class StudentDao implements IStudentDao{

	@Override
	public List<Student> getStudents(Student stu ,PageBean pageBean) {

     String sql="select sid,sname,age,addr from student ";
     List<Object> param =new ArrayList<Object>();
     if(stu!=null&&stu.getSname()!=null&&!"".equals(stu.getSname())) {
    	 sql+=" where sname like ?";
    	 param.add("%"+stu.getSname()+"%");
     }
		return BaseDao.query(sql, param, pageBean,new ICovent<Student>() {

			@Override
			public List<Student> convent(ResultSet rs) throws SQLException {
               List<Student>list=new ArrayList<Student>();
               while(rs.next()) {
            	   Student s=new Student();
            	   s.setSid(rs.getInt("sid"));
            	   s.setSname(rs.getString("sname"));
            	   s.setAge(rs.getInt("age"));
            	   s.setAddr(rs.getString("addr"));
            	   list.add(s);
               }
				return list;
			}
		});

	}

	public void addStudents(Student student) {
		String sql="insert into student(sname,age,addr) values(?,?,?)";
		Connection con=null;
		PreparedStatement ps=null;
		try {
			con=DBUtil.getConection();
			ps=con.prepareStatement(sql);
			ps.setObject(1, student.getSname());
			ps.setObject(2,student.getAge());
			ps.setObject(3, student.getAddr());
			ps.executeUpdate();
		} catch (Exception e) {
			e.printStackTrace();
		}finally {
			DBUtil.closeDB(null, ps, con);
		}
	}

	public void updStudents(Student student) {
		String sql="update student set sname=?,age=?,addr=? where sid=?";
		Connection con=null;
		PreparedStatement ps=null;
		ResultSet rs=null;
		try {
			con=DBUtil.getConection();
			ps=con.prepareStatement(sql);
			ps.setObject(1, student.getSname());
			ps.setObject(2,student.getAge());
			ps.setObject(3, student.getAddr());
			ps.setObject(4, student.getSid());
			ps.executeUpdate();
		} catch (Exception e) {
			e.printStackTrace();
		}finally {
			DBUtil.closeDB(rs, ps, con);
		}
	}


	public void delStudents(int id) {
		String sql="delete from student where sid=?";
		Connection con=null;
		PreparedStatement ps=null;
		ResultSet rs=null;
		try {
			con=DBUtil.getConection();
			ps=con.prepareStatement(sql);
			ps.setInt(1, id);
		    ps.executeUpdate();
		} catch (Exception e) {
			e.printStackTrace();
		}finally {
			DBUtil.closeDB(rs, ps, con);
		}
	}


	public Student queryById(int id) {
		Student s=new Student();
		String sql="select * from student where sid=?";
		Connection con=null;
		PreparedStatement ps=null;
		ResultSet rs=null;
		try {
			con=DBUtil.getConection();
			ps=con.prepareStatement(sql);
			ps.setInt(1, id);
			rs=ps.executeQuery();
			if(rs.next()) {
				s.setSid(rs.getInt(1));
				s.setSname(rs.getString(2));
				s.setAge(rs.getInt(3));
				s.setAddr(rs.getString(4));
			}
		} catch (Exception e) {
			e.printStackTrace();
		}finally {
			DBUtil.closeDB(rs, ps, con);
		}
		return  s;
	}



	@Test
	public void testStudnet() {
		Student student = new Student();
		getStudents(student, new PageBean());
	}

	public static void main (String[] args)throws Exception{
		StudentDao dao = new StudentDao();
		PageBean pageBean = new PageBean();
		List<Student> students = dao.getStudents(null, pageBean);

		students.forEach(t-> System.out.println(t));
	}


}

IStudentDao

package com.yian.dao;

import java.util.List;

import com.zking.model.Student;
import com.zking.util.PageBean;

public interface IStudentDao {

	List<Student>getStudents(Student stu,PageBean pageBean);
    void addStudents(Student student);
    void updStudents(Student student);
    Student queryById(int id);
    void delStudents(int id);
}

四、编写Action接收请求并处理

StudentAction

package com.yian.action;

import java.util.List;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.yian.service.IStudentService;
import com.yian.service.StudentService;
import com.zking.model.Student;
import com.zking.mymvc.framework.AbstractDispatchAction;
import com.zking.mymvc.framework.ModelDriver;
import com.zking.util.PageBean;

public class StudentAction extends AbstractDispatchAction implements ModelDriver {

	private Student s=new Student();
	@Override
	public Object getMode() {

		return s;
	}

	private IStudentService service=new StudentService();

	public String getStudents(HttpServletRequest req,HttpServletResponse resp) {
		PageBean pageBean=new PageBean();
		pageBean.setRequest(req);
		List<Student> students = service.getStudents(s, pageBean);

		req.setAttribute("students", students);

		return "students";
	}

	public String addStudents(HttpServletRequest req,HttpServletResponse resp) {

		service.addStudents(s);
		return "success";
	}

	public String updStudents(HttpServletRequest req,HttpServletResponse resp) {
		s.setSid(Integer.parseInt(req.getParameter("sid")));
		service.updStudents(s);
		return "success";
	}

	public String getStudentById(HttpServletRequest req,HttpServletResponse resp) {
		Student queryById = service.queryById(Integer.parseInt(req.getParameter("sid")));
	    req.setAttribute("stu", queryById);
	   return "update";
	}

	public String delStudentById(HttpServletRequest req,HttpServletResponse resp) {
		service.delStudents(Integer.parseInt(req.getParameter("sid")));
	   return "success";
	}

}

五、编写service（相当于biz层）

IStudentService

package com.yian.service;

import java.util.List;

import com.zking.model.Student;
import com.zking.util.PageBean;

public interface IStudentService {

	List<Student>getStudents(Student stu,PageBean pageBean);
	 void addStudents(Student student);
	void updStudents(Student student);
	Student queryById(int id);
	void delStudents(int id);
}

StudentService

package com.yian.service;

import java.util.List;

import com.yian.dao.IStudentDao;
import com.yian.dao.StudentDao;
import com.zking.model.Student;
import com.zking.util.PageBean;

public class StudentService implements IStudentService{

	private IStudentDao dao=new StudentDao();
	@Override
	public List<Student> getStudents(Student stu,PageBean pageBean) {
		// TODO Auto-generated method stub
		return dao.getStudents(stu, pageBean);
	}
	@Override
	public void addStudents(Student student) {
		// TODO Auto-generated method stub
            dao.addStudents(student);
	}

	@Override
	public void updStudents(Student student) {
		 dao.updStudents(student);
	}
	@Override
	public Student queryById(int id) {
		// TODO Auto-generated method stub
		return dao.queryById(id) ;
	}
	@Override
	public void delStudents(int id) {
		// TODO Auto-generated method stub
		dao.delStudents(id);
	}

}

六、XML文件配置

config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE config[
	<!ELEMENT config (action*)>
	<!ELEMENT action (forward*)>
	<!ELEMENT forward EMPTY>
	<!ATTLIST action
	  path CDATA #REQUIRED
	  type CDATA #REQUIRED
	>
	<!ATTLIST forward
	  name CDATA #REQUIRED
	  path CDATA #REQUIRED
	  redirect (true|false) "false"
	>
]>
<config>
	<action path="/studentAction" type="com.yian.action.StudentAction">
		<forward name="students" path="/students.jsp" redirect="false"/>
	    <forward name="success" path="/studentAction.action?methodName=getStudents"/>
	     <forward name="update" path="updStudent.jsp"/>
	</action>
	<action path="/bookAction" type="com.zking.mymvc.action.BookAction">
		<forward name="books" path="/books.jsp" redirect="true"/>
	</action>
</config>

七、前端代码

主页界面

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
    <%@taglib prefix="z" uri="/zking" %>
    <%@taglib prefix="c"  uri="http://java.sun.com/jsp/jstl/core"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<center>
      <h1>学生信息</h1>
      <form action="<%=request.getContextPath()%>/student" method="post">
         <input type="text" name="sname"value="<%=request.getParameter("sname") == null ? "" : request.getParameter("sname")%>">
         <input type="submit" value="查询">

         <a href="<%=request.getContextPath()%>/addStudent.jsp">增加</a>

      </form>
      <table border>
      <tr>
         <td>学生学号</td>
         <td>学生姓名</td>
         <td>学生年龄</td>
         <td>学生地址</td>
         <td>学生操作</td>
      </tr>
      <c:forEach items="${students}" var="s">
      <tr>
        <td>${s.sid}</td>
        <td>${s.sname}</td>
        <td>${s.age}</td>
        <td>${s.addr}</td>
        <td>
          <a href="<%=request.getContextPath()%>/studentAction.action?methodName=getStudentById&sid=${s.sid}">修改</a>
          <a href="<%=request.getContextPath()%>/studentAction.action?methodName=delStudentById&sid=${s.sid}  "onclick="return confirm('确定删除吗?')">删除</a>
        </td>
      </tr>
      </c:forEach>
      </table>

     <z:paging pageBean="${pageBean}"/>
</center>

</body>
</html>

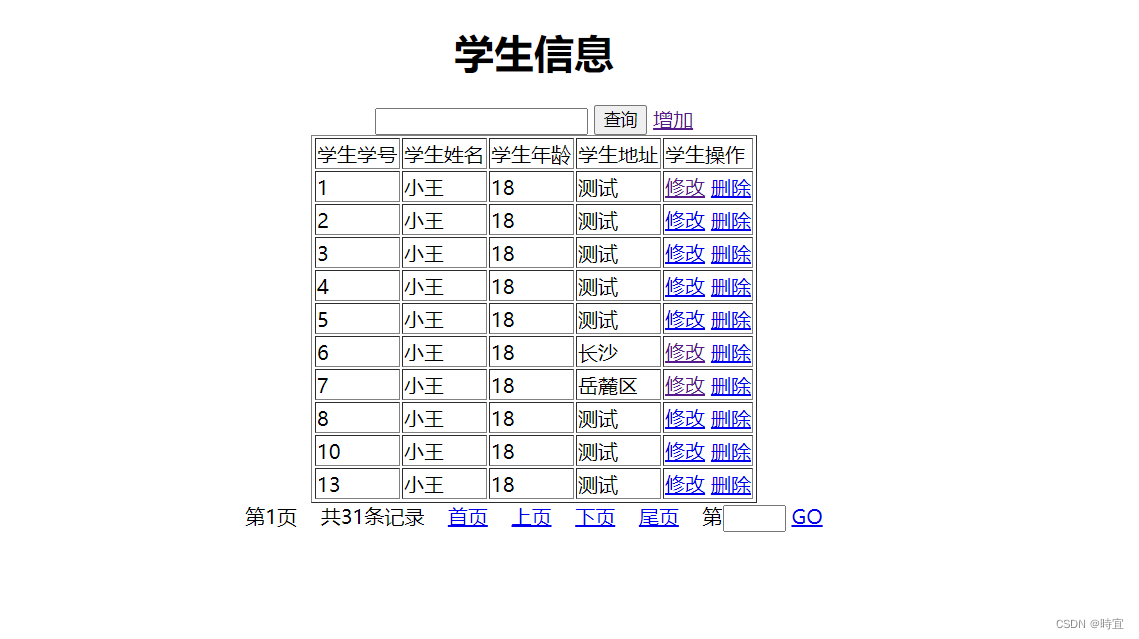

页面效果：

增加界面

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<center>
<h1>增加学生信息</h1>

	<form action="<%=request.getContextPath()%>/studentAction.action?methodName=addStudents" method="post">
		姓名：
		<input type="text" id="sname" name="sname"/><p>
		年龄：
		<input type="text" name="age"/><p>
		地址：
		<input type="text" name="addr"/><p>
		<p>
		<input type="submit" value="提交"/>
	</form>
   </center>
</body>
</html>

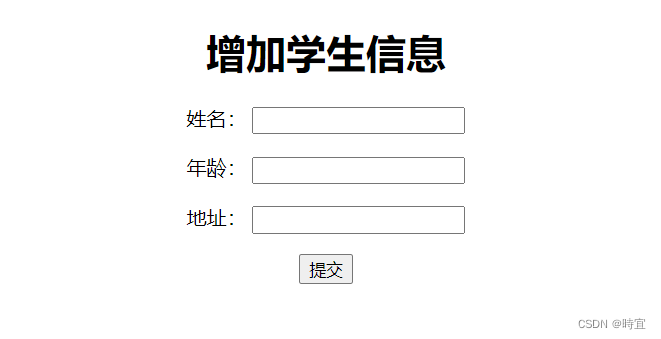

页面效果：

修改界面：

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<center>
<h1>修改学生信息</h1>

	<form action="<%=request.getContextPath()%>/studentAction.action?methodName=updStudents" method="post">
		<input type="hidden" id=sid name="sid" value="${stu.sid }"/>
		姓名：
		<input type="text" id="sname" name="sname" value="${stu.sname }"/><p>
		年龄：
		<input type="text" name="age" value="${stu.age }"/><p>
		地址：
		<input type="text" name="addr" value="${stu.addr }"/><p>
		<p>
		<input type="submit" value="提交"/>
	</form>
    </center>
</body>
</html>

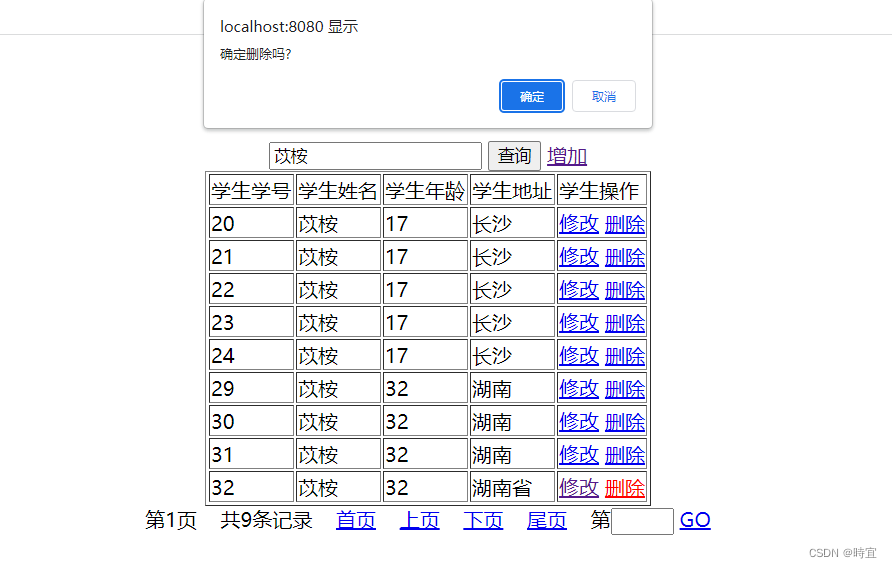

页面效果：
