VLAN实验

实验需求

1. pc1和pc3所在接口为access ; pvid vlan2

2. PC2/4/5/6处于同一网段:其中pc2可以访问pc4/5/6:Pc4可以访问Pc5，不能访问pc6

3. pc5不能访问pc6

4. pc1/pc3和 PC2/4/5/6不在一个网段

5. 所有pc通过DHCP获取ip地址,且pc1/3可以正常访问PC2/4/5/6

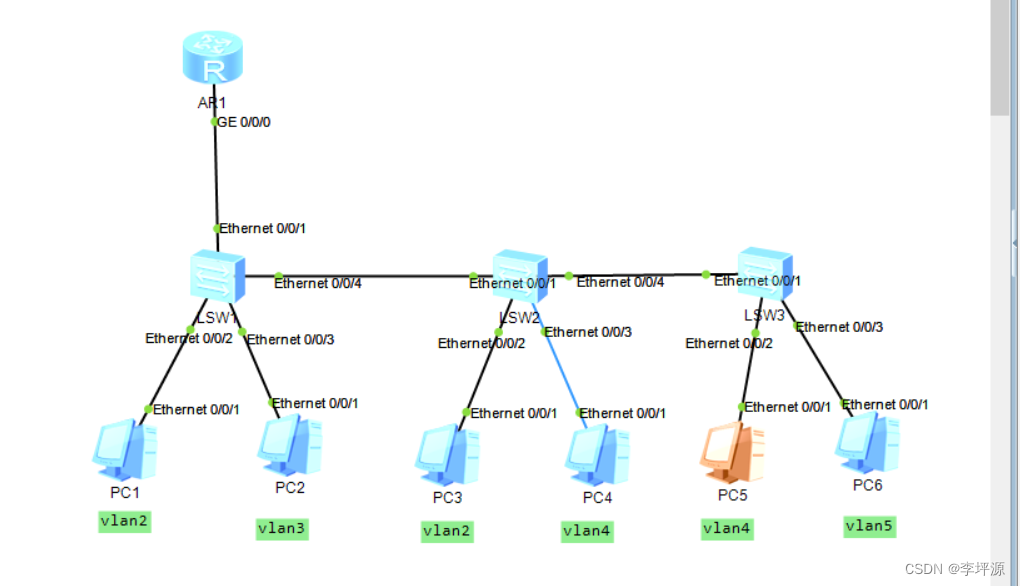

实验拓扑

实验分析

1. 所有交换机上都要创建vlan 2 to 5

2.pc1/3连交换机的接口工作模式改为access，并匹配vlan2

3.交换机之间相连的接口有标签并放行vlan 2 to 5

4. 按照需求修改PC2/4/5/6的通行规则

5.路由器上创建子接口，启用dhcp给vlan2分配ip，物理接口给其他vlan分配ip

实验配置

1. 在所有交换机上创建vlan

[sw1]vlan batch 2 to 5

[sw2]vlan batch 2 to 5

[sw3]vlan batch 2 to 5

2.配置交换机相连的接口

sw1
[sw1]int e0/0/4
[sw1-Ethernet0/0/4] port hybrid tagged vlan 2 to 5

sw2
[sw2]int e0/0/1
[sw2-Ethernet0/0/1] port hybrid tagged vlan 2 to 5
[sw2]int e0/0/4
[sw2-Ethernet0/0/4] port hybrid tagged vlan 2 to 5

sw3
[sw3]int e0/0/1
[sw3-Ethernet0/0/1] port hybrid tagged vlan 2 to 5

3.配置交换机连PC1/3的接口

sw1
[sw1]int e0/0/2
[sw1-Ethernet0/0/2]port link-type access
[sw1-Ethernet0/0/2]port default vlan 2
sw2
[sw2]int e0/0/2
[sw2-Ethernet0/0/2]port link-type access
[sw2-Ethernet0/0/2]port default vlan 2

4.配置交换机连PC2/4/5/6的接口

连pc2
[sw1-Ethernet0/0/2]int e0/0/3
[sw1-Ethernet0/0/3]dis th
#
interface Ethernet0/0/3
 port hybrid pvid vlan 3
 port hybrid untagged vlan 2 to 5
#
return
连pc4
[sw2-Ethernet0/0/2]int e0/0/3
[sw2-Ethernet0/0/3]dis th
#
interface Ethernet0/0/3
 port hybrid pvid vlan 4
 port hybrid untagged vlan 2 3 4
#
return
连pc5
[sw3]int e0/0/2
[sw3-Ethernet0/0/2]dis th
#
interface Ethernet0/0/2
 port hybrid pvid vlan 4
 port hybrid untagged vlan 2 3 4
#
return
连pc6
[sw3]int e0/0/3
[sw3-Ethernet0/0/3]dis th
#
interface Ethernet0/0/3
 port hybrid pvid vlan 5
 port hybrid untagged vlan 2 3 5
#
return

5.配置交换机连路由器的接口

[sw1-Ethernet0/0/1]port hybrid tagged vlan 2
[sw1-Ethernet0/0/1]port hybrid untagged vlan 3 to 5

6.配置路由器

        6.1创建子接口并配ip和管理vlan，以及开启arp

[r1]int g0/0/0.1
[r1-GigabitEthernet0/0/0.1]dis th
[V200R003C00]
#
interface GigabitEthernet0/0/0.1
 dot1q termination vid 2
 ip address 192.168.1.1 255.255.255.0
 arp broadcast enable
 dhcp select global
#
return

        6.2配置物理接口ip，并开启接口dhcp

[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]dis th
[V200R003C00]
#
interface GigabitEthernet0/0/0
 ip address 192.168.2.1 255.255.255.0
 dhcp select global
#
return

        6.1创建dhcp池塘

[r1]ip pool v2
[r1-ip-pool-v2]dis th
[V200R003C00]
#
ip pool v2
 gateway-list 192.168.1.1
 network 192.168.1.0 mask 255.255.255.0
 dns-list 114.114.114.114 8.8.8.8
#
return

[r1]ip pool v1
[r1-ip-pool-v1]dis th
[V200R003C00]
#
ip pool v1
 gateway-list 192.168.2.1
 network 192.168.2.0 mask 255.255.255.0
 dns-list 114.114.114.114 8.8.8.8
#
return

7. 在pc端开启dhcp

验证

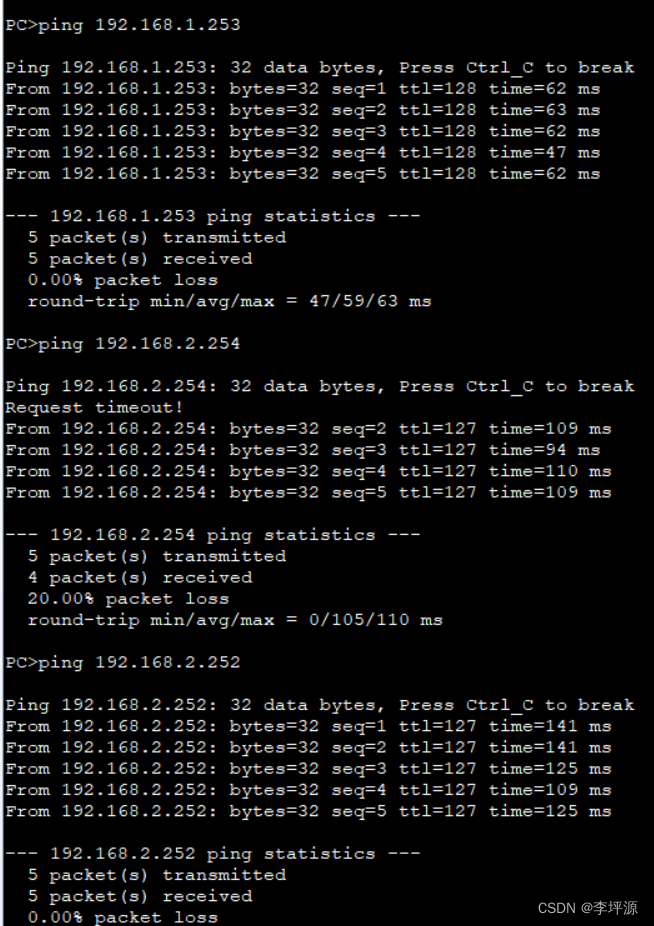

验证pc1和pc3可以访问其他pc

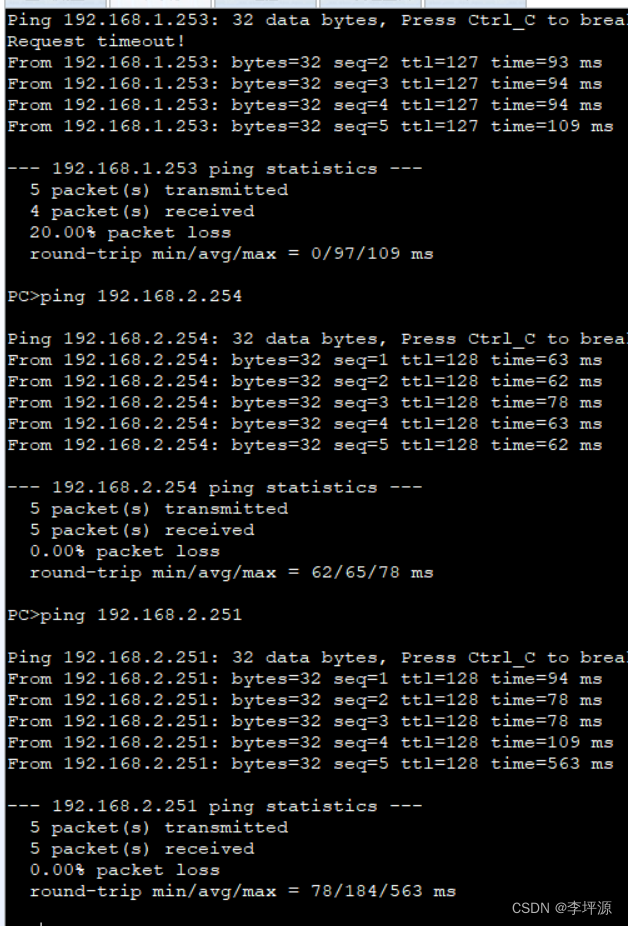

 pc2 验证2可以访问所有pc

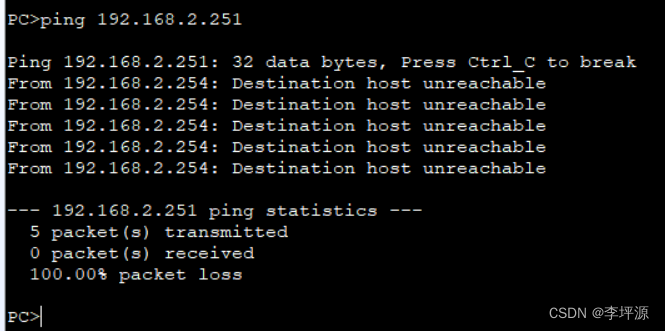

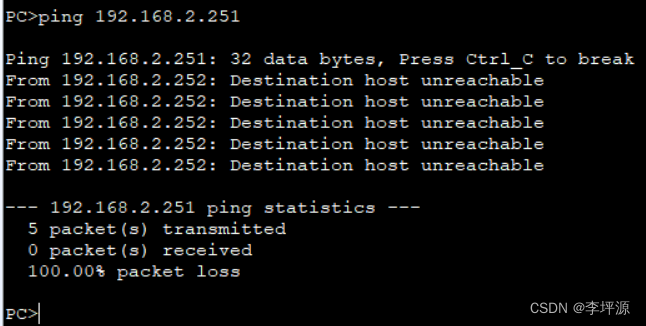

验证pc4和pc5不能访问 pc6





game over
