OpenCV项目8-目标追踪之LK光流法

• Lucas-Kanade：LK算法
• calcOpticalFlowPyrLK:计算光流金字塔LK算法

1.视频读取

import numpy as np
import cv2
cap = cv2.VideoCapture('./test.avi')

2.第一帧图片、灰度化

ret, old_frame = cap.read()
old_gray = cv2.cvtColor(old_frame, cv2.COLOR_BGR2GRAY)

3.图片角点检测

feature_params = dict(
    maxCorners=100,
    qualityLevel=0.3,
    minDistance=7)
p0 = cv2.goodFeaturesToTrack(old_gray, mask=None, **feature_params) # goodFeaturesToTrack：角点检测  **：拆字典

4.mask掩码创建

mask = np.zeros_like(old_frame) # zeros_like：创建全是0且形状与...一致的矩阵

5.第二帧图片、灰度化

color = np.random.randint(0, 255, (100, 3))
while True:
    ret, frame = cap.read()
    if frame is None:
        break
    gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)

6.光流估计

# None：下一帧特征点 winSize：窗口大小即方框 maxLevel：最大金字塔层级 p1：特征点
    p1, st, err = cv2.calcOpticalFlowPyrLK(old_gray, gray, p0, None, winSize=(15, 15), maxLevel=2)
    good_new = p1[st==1] # 哪些特征点找到 哪些特征点没找
    good_old = p0[st==1]

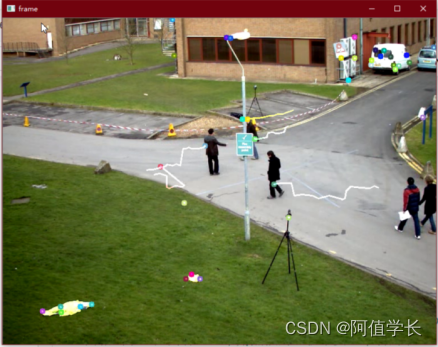

8.轨迹绘制

    for i, (new, old) in enumerate(zip(good_new, good_old)):
        a, b = new.ravel()
        c, d = old.ravel()
        mask = cv2.line(mask, (int(a), int(b)), (int(c), int(d)), color[i].tolist(), 2) # tolist：转为列表
        frame = cv2.circle(frame, (int(a), int(b)), 5, color[i].tolist(), -1) # circle：圆函数 画点 -1：圆点为实心    img = cv2.add(frame, mask)
    cv2.imshow('frame', img)
    key = cv2.waitKey(150)
    if key == 27:
        break
    old_gray = gray.copy() # 更新图
    p0 = good_new.reshape(-1, 1, 2) # 更新特征点

9.窗口摧毁、释放资源

    for i, (new, old) in enumerate(zip(good_new, good_old)):
        a, b = new.ravel()
        c, d = old.ravel()
        mask = cv2.line(mask, (int(a), int(b)), (int(c), int(d)), color[i].tolist(), 2) # tolist：转为列表
        frame = cv2.circle(frame, (int(a), int(b)), 5, color[i].tolist(), -1) # circle：圆函数 画点 -1：圆点为实心    img = cv2.add(frame, mask)
    cv2.imshow('frame', img)
    key = cv2.waitKey(150)
    if key == 27:
        break
    old_gray = gray.copy() # 更新图
    p0 = good_new.reshape(-1, 1, 2) # 更新特征点
