LED灯的基本控制

题目要求

首先让8路LED指示灯闪烁3遍然后熄灭，接着依次点亮LED指示灯，最后依次熄灭LED灯，程序循环实现上述功能。

分析设计

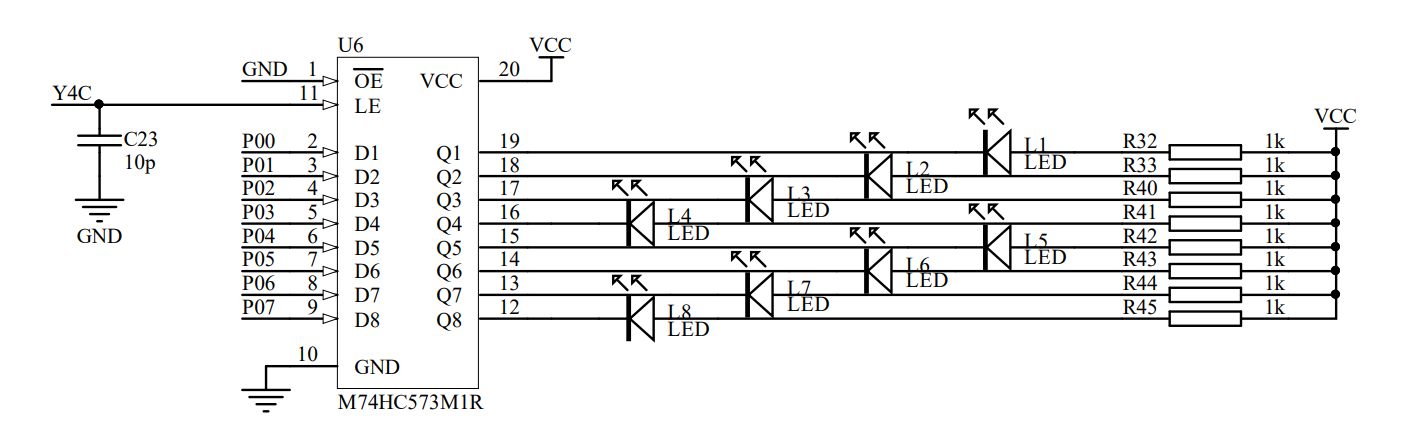

原理图：

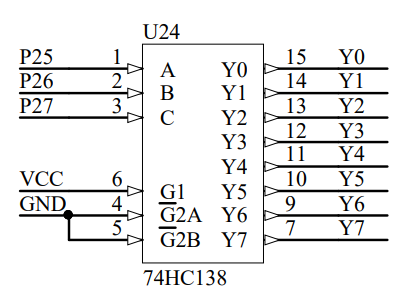

首先应该选通Y4C，也就是ABC = 100。

代码

#include <regx52.h>
#define uchar unsigned char
#define uint unsigned int

void HC138(uchar channel)
{
	switch (channel)
	{
		case 4:
			P2 = (P2 & 0x1f) | 0x80;
		break;
		case 5:
			P2 = (P2 & 0x1f) | 0xa0;
		break;
		case 6:
			P2 = (P2 & 0x1f) | 0xc0;
		break;
		case 7:
			P2 = (P2 & 0x1f) | 0xe0;
		break;
	}
}

void Delay(uint t)
{
	while (t -- ) ;
	while (t -- ) ;
}

void LED_3()
{
	int i;
	for (i = 0; i < 3; i ++ )
	{
		P0 = 0x00;
		Delay(60000);
		Delay(60000);
		P0 = 0xff;
		Delay(60000);
		Delay(60000);
	}
}

void LED()
{
	int i;
	LED_3();

	for (i = 0; i < 8; i ++ )
	{
		P0 = 0xfe << i;
		Delay(60000);
		Delay(60000);
	}

	for (i = 0; i < 8; i ++ )
	{
		P0 |= 0x01 << i;
		Delay(60000);
		Delay(60000);
	}
}

void main()
{
	HC138(4);
	while(1)
	{
		LED();
	}
}
