uart简略时序图及代码

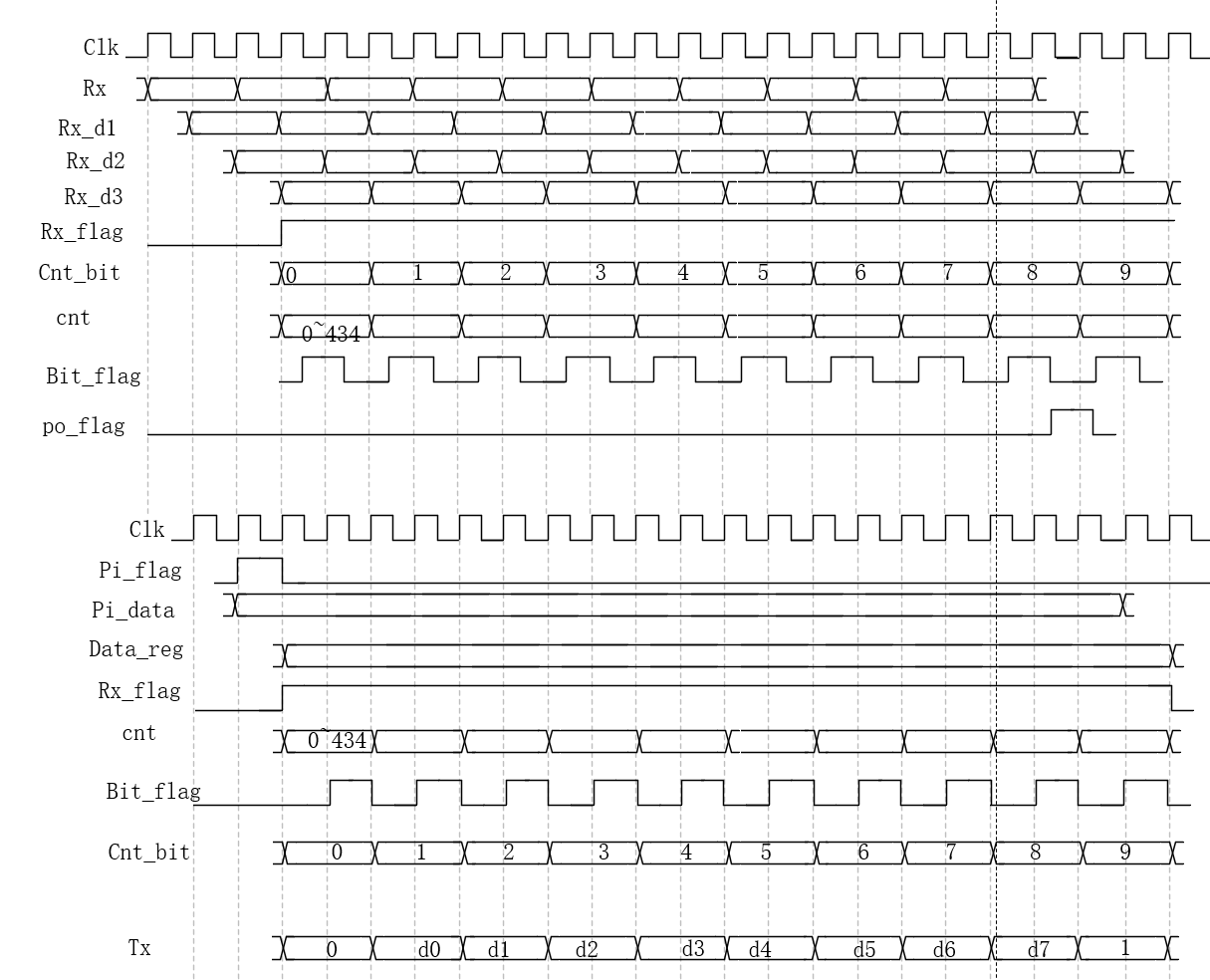

本文是本人经过学习uart后再自己独立不参考任何资料，自己独自写的代码，其主要目的就是想让自己习惯这种自己来设计代码过程，刚开始是比较慢的，但是我相信不断地重复这些，慢慢都会熟悉的。一下是我当时的一些时序图和代码的部分，有问题的读者可以私聊我交流讨论。非常感谢！！！

rx

// -----------------------------------------------------------------------------
// Copyright (c) 2014-2023 All rights reserved
// -----------------------------------------------------------------------------
// Author : tang     207993041@gmail.com
// File   : uart_rx.v
// Create : 2023-03-13 16:48:51
// Revise : 2023-03-13 16:48:51
// Editor : sublime text3, tab size (4)
// -----------------------------------------------------------------------------
module uart_rx(
    input       wire             clk,
    input       wire             rst_n,
    input       wire             rx,
    output       reg               po_flag,
    output       reg     [7:0]    po_data
    );
parameter    CNT_MAX=433;

reg            rx_1,rx_2,rx_reg;
reg                rx_flag;
reg        [3:0]    cnt_bit;
reg        [8:0]    cnt;
reg                bit_flag;

always @(posedge clk ) begin
    {rx_reg,rx_2,rx_1}<={rx_2,rx_1,rx};
end

always @(posedge clk or negedge rst_n) begin
    if (rst_n == 1'b0) begin
        rx_flag<= 1'b0;
    end
    else if(cnt_bit=='d8 && bit_flag==1'b1)begin
        rx_flag<= 1'b0;
    end
    else if(rx_reg==1'b1 && rx_2==1'b0) begin
        rx_flag<= 1'b1;
       end

end

always @(posedge clk or negedge rst_n) begin
    if (rst_n == 1'b0) begin
        cnt<= 'd0;
    end
    else if(cnt==CNT_MAX)begin
           cnt<= 'd0;
    end
    else if(rx_flag==1'b1) begin
        cnt <= cnt + 1'b1;
       end
       else begin
              cnt<= 'd0;
       end
end

always @(posedge clk or negedge rst_n) begin
    if (rst_n == 1'b0) begin
        bit_flag<= 'd0;
    end
    else if(cnt==CNT_MAX/2) begin
        bit_flag<=1'b1;
    end
    else begin
           bit_flag<= 1'b0;
    end
end

always @(posedge clk or negedge rst_n) begin
    if (rst_n == 1'b0) begin
        cnt_bit<= 'd0;
    end
    else if(cnt_bit=='d8 && bit_flag==1'b1)begin
           cnt_bit<= 'd0;
    end
    else if(bit_flag==1'b1) begin
        cnt_bit<= cnt_bit+1'b1;
       end
end

always @(posedge clk or negedge rst_n) begin
    if (rst_n == 1'b0) begin
        po_data<= 'd0;
    end
    else if(bit_flag==1'b1 && cnt_bit>=1 && cnt_bit<='d8) begin
        po_data<={rx_reg,po_data[7:1]};
       end
end

always @(posedge clk or negedge rst_n) begin
    if (rst_n == 1'b0) begin
        po_flag<= 1'b0;
    end
    else if(bit_flag==1'b1 && cnt_bit=='d8) begin
        po_flag<= 1'b1;
       end
       else begin
              po_flag<= 1'b0;
       end
end

endmodule

tx

// -----------------------------------------------------------------------------
// Copyright (c) 2014-2023 All rights reserved
// -----------------------------------------------------------------------------
// Author : tang  207993041@gmail.com
// File   : uart_tx.v
// Create : 2023-03-13 16:50:11
// Revise : 2023-03-13 16:50:11
// Editor : sublime text3, tab size (2)
// -----------------------------------------------------------------------------
`timescale 1ns / 1ps


module uart_tx(
    input       wire                clk,
    input       wire                rst_n,
    input       wire        [7:0]    pi_data,
    input       wire                pi_flag,
    output       reg                 tx
    );

parameter    CNT_MAX=433;


reg                tx_flag;
reg        [8:0]    cnt;
reg                bit_flag;
reg        [3:0]    cnt_bit;
reg   [7:0] data_reg;

always @(posedge clk or negedge rst_n) begin
    if (rst_n == 1'b0) begin
        data_reg<= 'd0;
    end
    else if(pi_flag==1'b1) begin
        data_reg<=pi_data;
     end
end

always @(posedge clk or negedge rst_n) begin
    if (rst_n == 1'b0) begin
        tx_flag<= 'd0;
    end
    else if(pi_flag==1'b1) begin
          tx_flag<=1'b1;
       end
       else if(bit_flag==1'b1 && cnt_bit=='d8)begin
              tx_flag<=1'b0;
       end
end

always @(posedge clk or negedge rst_n) begin
    if (rst_n == 1'b0) begin
        cnt<= 'd0;
    end
    else if(cnt==CNT_MAX)begin
           cnt<= 'd0;
    end
    else if(tx_flag==1'b1) begin
        cnt<=cnt+1'b1;
       end
end

always @(posedge clk or negedge rst_n) begin
    if (rst_n == 1'b0) begin
        bit_flag<= 'd0;
    end
    else if(cnt==CNT_MAX-1) begin
         bit_flag<= 1'b1;
       end
       else begin
              bit_flag<= 'd0;
       end
end

always @(posedge clk or negedge rst_n) begin
    if (rst_n == 1'b0) begin
        cnt_bit<= 'd0;
    end
    else if(cnt_bit=='d8 && bit_flag==1'b1)begin
           cnt_bit<= 'd0;
    end
    else if(bit_flag==1'b1) begin
        cnt_bit<= cnt_bit+1'b1;
       end
end

always @(posedge clk or negedge rst_n) begin
    if (rst_n == 1'b0) begin
        tx<= 1'b1;
    end
    else if(pi_flag==1'b1) begin
           tx<=0;
       end
       else if(bit_flag==1'b1 && cnt_bit<=7)begin
              tx<=data_reg[cnt_bit];
       end
       else if(bit_flag==1'b1 && cnt_bit=='d8)begin
              tx<= 1'b1;
       end
end

endmodule
