需要提前配置好maven环境，因为后面有maven打包操作

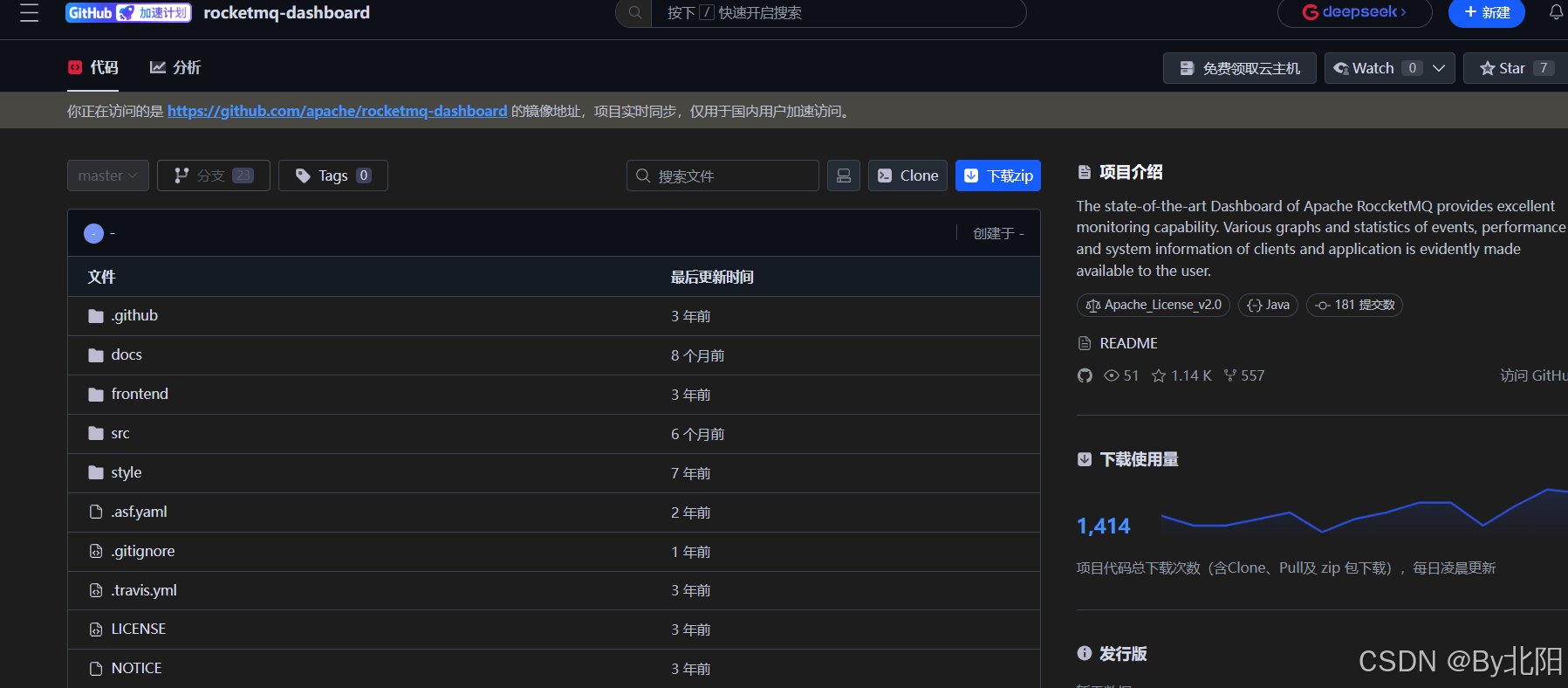

1，点击链接进入github下载

https://github.com/apache/rocketmq-dashboard

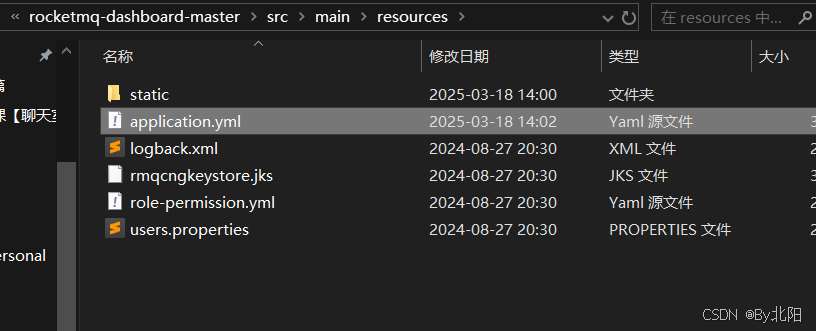

2，修改application.yml

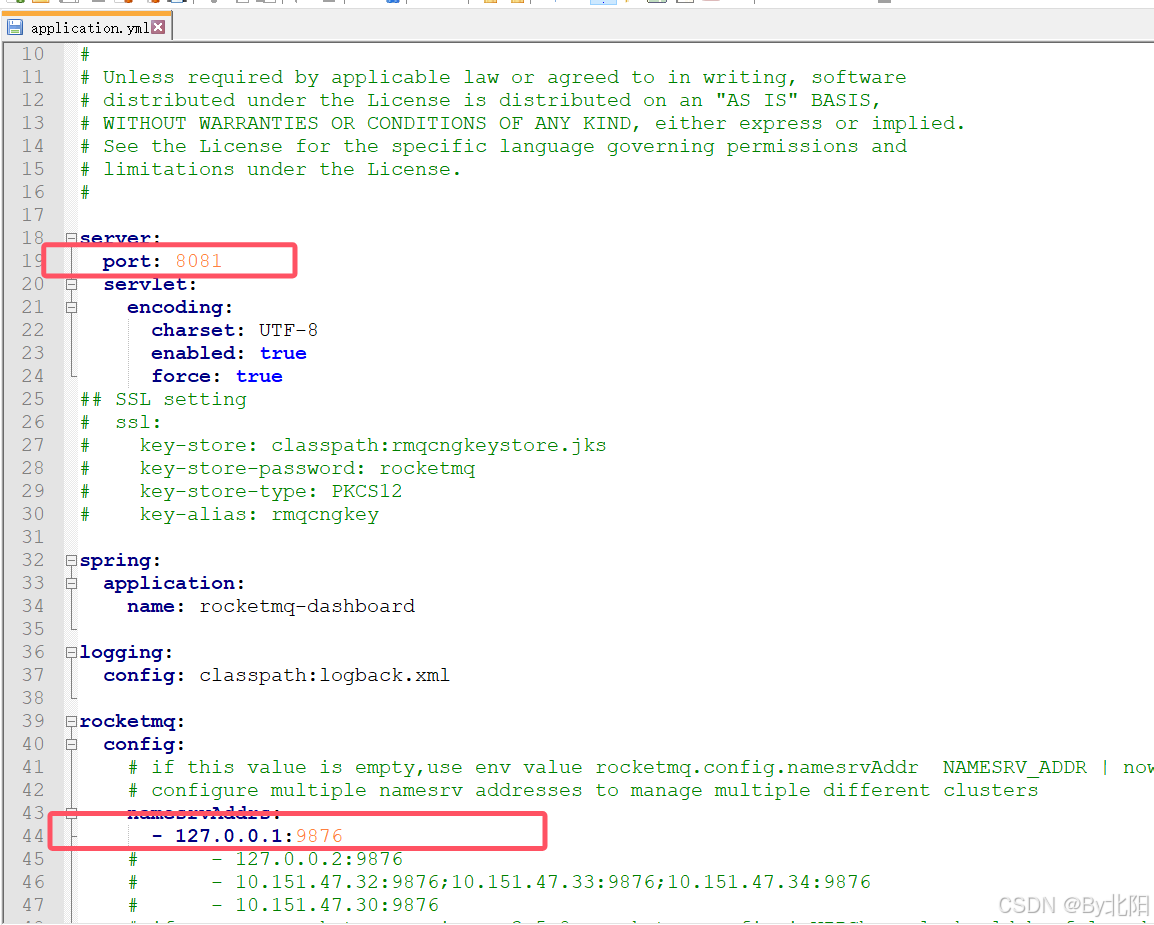

这两处可以根据自己需要进行修改

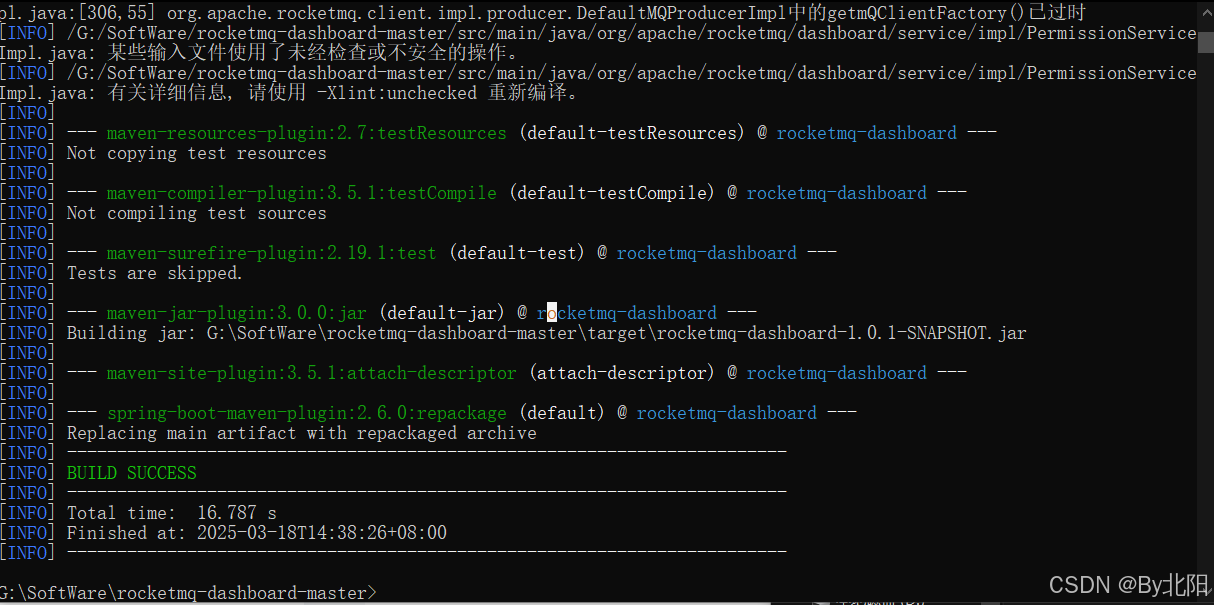

3，编译

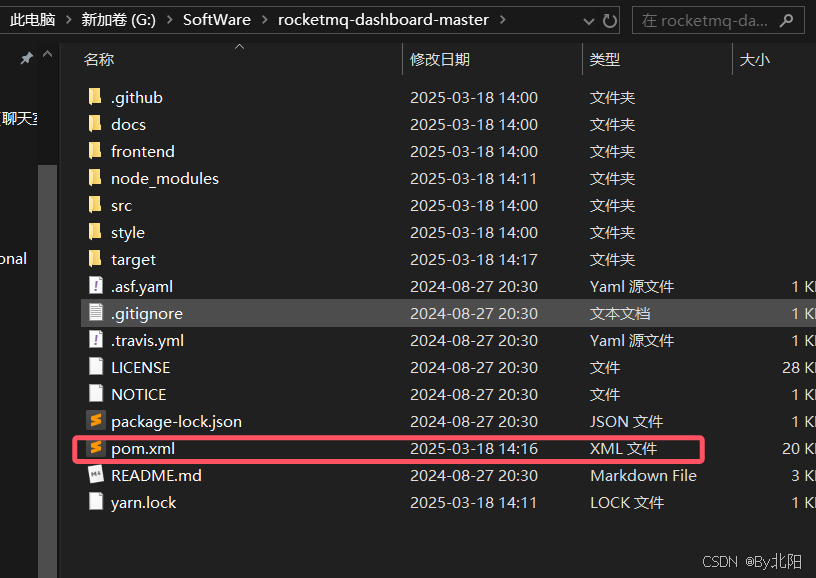

进入pom.xml，注释掉最后两个<plugin>,否则会在打包时报错

可以直接复制粘贴我的

<?xml version="1.0" encoding="UTF-8"?>
<!--
  ~ Licensed to the Apache Software Foundation (ASF) under one or more
  ~ contributor license agreements.  See the NOTICE file distributed with
  ~ this work for additional information regarding copyright ownership.
  ~ The ASF licenses this file to You under the Apache License, Version 2.0
  ~ (the "License"); you may not use this file except in compliance with
  ~ the License.  You may obtain a copy of the License at
  ~
  ~     http://www.apache.org/licenses/LICENSE-2.0
  ~
  ~ Unless required by applicable law or agreed to in writing, software
  ~ distributed under the License is distributed on an "AS IS" BASIS,
  ~ WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  ~ See the License for the specific language governing permissions and
  ~ limitations under the License.
  -->

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

    <parent>
        <groupId>org.apache</groupId>
        <artifactId>apache</artifactId>
        <version>18</version>
    </parent>

    <modelVersion>4.0.0</modelVersion>
    <groupId>org.apache.rocketmq</groupId>
    <artifactId>rocketmq-dashboard</artifactId>
    <packaging>jar</packaging>
    <version>1.0.1-SNAPSHOT</version>
    <name>rocketmq-dashboard</name>

    <scm>
        <url>git@github.com:apache/rocketmq-dashboard.git</url>
        <connection>scm:git:git@github.com:apache/rocketmq-dashboard.git</connection>
        <developerConnection>scm:git:git@github.com:apache/rocketmq-dashboard.git</developerConnection>
        <tag>1.0.0</tag>
    </scm>

    <mailingLists>
        <mailingList>
            <name>Development List</name>
            <subscribe>dev-subscribe@rocketmq.apache.org</subscribe>
            <unsubscribe>dev-unsubscribe@rocketmq.apache.org</unsubscribe>
            <post>dev@rocketmq.apache.org</post>
        </mailingList>
        <mailingList>
            <name>User List</name>
            <subscribe>users-subscribe@rocketmq.apache.org</subscribe>
            <unsubscribe>users-unsubscribe@rocketmq.apache.org</unsubscribe>
            <post>users@rocketmq.apache.org</post>
        </mailingList>
        <mailingList>
            <name>Commits List</name>
            <subscribe>commits-subscribe@rocketmq.apache.org</subscribe>
            <unsubscribe>commits-unsubscribe@rocketmq.apache.org</unsubscribe>
            <post>commits@rocketmq.apache.org</post>
        </mailingList>
    </mailingLists>

    <developers>
        <developer>
            <id>Apache RocketMQ</id>
            <name>Apache RocketMQ of ASF</name>
            <url>https://rocketmq.apache.org/</url>
        </developer>
    </developers>

    <organization>
        <name>Apache Software Foundation</name>
        <url>http://www.apache.org</url>
    </organization>

    <licenses>
        <license>
            <name>Apache License, Version 2.0</name>
            <url>http://www.apache.org/licenses/LICENSE-2.0</url>
            <distribution>repo</distribution>
        </license>
    </licenses>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>

        <guava.version>29.0-jre</guava.version>
        <commons-digester.version>2.1</commons-digester.version>
        <commons-lang.version>2.6</commons-lang.version>
        <commons-io.version>2.4</commons-io.version>
        <commons-cli.version>1.2</commons-cli.version>
        <commons-collections.version>3.2.2</commons-collections.version>
        <rocketmq.version>5.1.0</rocketmq.version>
        <surefire.version>2.19.1</surefire.version>
        <aspectj.version>1.9.6</aspectj.version>
        <lombok.version>1.18.22</lombok.version>
        <main.basedir>${basedir}/../..</main.basedir>
        <docker.image.prefix>apacherocketmq</docker.image.prefix>
        <spring.boot.version>2.6.0</spring.boot.version>
        <mockito-inline.version>3.3.3</mockito-inline.version>
        <jaxb-api.version>2.3.1</jaxb-api.version>
        <commons-pool2.version>2.4.3</commons-pool2.version>
        <easyexcel.version>2.2.10</easyexcel.version>
        <asm.version>4.2</asm.version>
        <junit.version>4.12</junit.version>
        <snakeyaml.version>1.30</snakeyaml.version>
        <cglib.version>2.2.2</cglib.version>
        <joor.version>0.9.6</joor.version>
        <bcpkix-jdk15on.version>1.68</bcpkix-jdk15on.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>${spring.boot.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
            <version>${spring.boot.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.data</groupId>
            <artifactId>spring-data-commons</artifactId>
            <version>${spring.boot.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <version>${spring.boot.version}</version>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.mockito</groupId>
                    <artifactId>mockito-core</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-validation</artifactId>
            <version>${spring.boot.version}</version>
        </dependency>
        <dependency>
            <groupId>commons-collections</groupId>
            <artifactId>commons-collections</artifactId>
            <version>${commons-collections.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.rocketmq</groupId>
            <artifactId>rocketmq-tools</artifactId>
            <version>${rocketmq.version}</version>
            <exclusions>
                <exclusion>
                    <groupId>ch.qos.logback</groupId>
                    <artifactId>logback-classic</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>ch.qos.logback</groupId>
                    <artifactId>logback-core</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.apache.rocketmq</groupId>
            <artifactId>rocketmq-namesrv</artifactId>
            <version>${rocketmq.version}</version>
            <exclusions>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-api</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>ch.qos.logback</groupId>
                    <artifactId>logback-classic</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>ch.qos.logback</groupId>
                    <artifactId>logback-core</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.apache.rocketmq</groupId>
            <artifactId>rocketmq-broker</artifactId>
            <version>${rocketmq.version}</version>
            <exclusions>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-api</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>ch.qos.logback</groupId>
                    <artifactId>logback-classic</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>ch.qos.logback</groupId>
                    <artifactId>logback-core</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>${guava.version}</version>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjrt</artifactId>
            <version>${aspectj.version}</version>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>${aspectj.version}</version>
        </dependency>
        <!-- Spring AOP + AspectJ -->
        <dependency>
            <groupId>cglib</groupId>
            <artifactId>cglib</artifactId>
            <version>${cglib.version}</version>
        </dependency>
        <dependency>
            <groupId>org.jooq</groupId>
            <artifactId>joor</artifactId>
            <version>${joor.version}</version>
        </dependency>
        <dependency>
            <groupId>org.bouncycastle</groupId>
            <artifactId>bcpkix-jdk15on</artifactId>
            <version>${bcpkix-jdk15on.version}</version>
        </dependency>
        <dependency>
            <groupId>javax.xml.bind</groupId>
            <artifactId>jaxb-api</artifactId>
            <version>${jaxb-api.version}</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>${lombok.version}</version>
        </dependency>
        <dependency>
            <groupId>org.mockito</groupId>
            <artifactId>mockito-inline</artifactId>
            <version>${mockito-inline.version}</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
            <version>${commons-pool2.version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>easyexcel</artifactId>
            <version>${easyexcel.version}</version>
        </dependency>
        <dependency>
            <groupId>org.ow2.asm</groupId>
            <artifactId>asm</artifactId>
            <version>${asm.version}</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>${junit.version}</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.yaml</groupId>
            <artifactId>snakeyaml</artifactId>
            <version>${snakeyaml.version}</version>
        </dependency>

    </dependencies>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.5.1</version>
                <configuration>
                    <source>${maven.compiler.source}</source>
                    <target>${maven.compiler.target}</target>
                    <compilerVersion>${maven.compiler.source}</compilerVersion>
                    <showDeprecation>true</showDeprecation>
                    <showWarnings>true</showWarnings>
                    <annotationProcessorPaths>
                        <path>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                            <version>${lombok.version}</version>
                        </path>
                    </annotationProcessorPaths>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring.boot.version}</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <!-- Use dockerfile-maven instead, https://github.com/spotify/dockerfile-maven -->
            <plugin>
                <groupId>com.spotify</groupId>
                <artifactId>docker-maven-plugin</artifactId>
                <version>0.4.11</version>
                <dependencies>
                    <dependency>
                        <groupId>javax.activation</groupId>
                        <artifactId>javax.activation-api</artifactId>
                        <version>1.2.0</version>
                        <scope>compile</scope>
                    </dependency>
                </dependencies>
                <configuration>
                    <imageName>${docker.image.prefix}/${project.artifactId}</imageName>
                    <dockerDirectory>src/main/docker</dockerDirectory>
                    <resources>
                        <resource>
                            <targetPath>/</targetPath>
                            <directory>${project.build.directory}</directory>
                            <include>${project.build.finalName}.jar</include>
                        </resource>
                    </resources>
                    <imageTags>
                        <imageTag>${project.version}</imageTag>
                        <imageTag>latest</imageTag>
                    </imageTags>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-checkstyle-plugin</artifactId>
                <version>2.17</version>
                <executions>
                    <execution>
                        <id>validate</id>
                        <phase>validate</phase>
                        <configuration>
                            <excludes>src/main/resources</excludes>
                            <configLocation>style/rmq_checkstyle.xml</configLocation>
                            <encoding>UTF-8</encoding>
                            <consoleOutput>true</consoleOutput>
                            <failsOnError>true</failsOnError>
                        </configuration>
                        <goals>
                            <goal>check</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>findbugs-maven-plugin</artifactId>
                <version>3.0.4</version>
            </plugin>
            <plugin>
                <groupId>org.jacoco</groupId>
                <artifactId>jacoco-maven-plugin</artifactId>
                <version>0.8.7</version>
                <executions>
                    <execution>
                        <id>prepare-agent</id>
                        <goals>
                            <goal>prepare-agent</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.eluder.coveralls</groupId>
                <artifactId>coveralls-maven-plugin</artifactId>
                <version>4.3.0</version>
                <dependencies>
                    <dependency>
                        <groupId>javax.xml.bind</groupId>
                        <artifactId>jaxb-api</artifactId>
                        <version>${jaxb-api.version}</version>
                    </dependency>
                </dependencies>
            </plugin>
            <plugin>
                <groupId>org.apache.rat</groupId>
                <artifactId>apache-rat-plugin</artifactId>
                <version>0.12</version>
                <configuration>
                    <excludes>
                        <exclude>.gitignore</exclude>
                        <exclude>.travis.yml</exclude>
                        <exclude>.asf.yaml</exclude>
                        <exclude>README.md</exclude>
                        <exclude>.github/**</exclude>
                        <exclude>docs/**</exclude>
                        <exclude>src/main/resources/static/vendor/**</exclude>
                        <exclude>src/main/resources/static/src/data/**</exclude>
                        <exclude>frontend/node_modules/**</exclude>
                        <exclude>frontend/build/**</exclude>
                        <exclude>frontend/**.json</exclude>
                        <exclude>frontend/**.lock</exclude>
                        <exclude>frontend/public/manifest.json</exclude>
                        <exclude>package-lock.json</exclude>
                    </excludes>
                </configuration>
            </plugin>
           <!--  <plugin>
                <groupId>com.github.eirslett</groupId>
                <artifactId>frontend-maven-plugin</artifactId>
                <version>1.11.3</version>
                <configuration>
                    <workingDirectory>frontend</workingDirectory>
                    <installDirectory>target</installDirectory>
                </configuration>
                <executions>
                    <execution>
                        <id>install node and yarn</id>
                        <goals>
                            <goal>install-node-and-yarn</goal>
                        </goals>
                        <configuration>
                            <nodeVersion>v16.2.0</nodeVersion>
                            <yarnVersion>v1.22.10</yarnVersion>
                        </configuration>
                    </execution>

                    <execution>
                        <id>yarn install</id>
                        <goals>
                            <goal>yarn</goal>
                        </goals>
                        <configuration>
                            <arguments>install</arguments>
                        </configuration>
                    </execution>
                    <execution>
                        <id>yarn build</id>
                        <goals>
                            <goal>yarn</goal>
                        </goals>
                        <configuration>
                            <arguments>build</arguments>
                        </configuration>
                    </execution>
                </executions>
            </plugin> -->
            <!-- <plugin>
                <artifactId>maven-antrun-plugin</artifactId>
                <executions>
                    <execution>
                        <phase>generate-resources</phase>
                        <configuration>
                            <target>
                                <copy todir="${project.build.directory}/classes/public">
                                    <fileset dir="${project.basedir}/frontend/build"/>
                                </copy>
                            </target>
                        </configuration>
                        <goals>
                            <goal>run</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin> -->
        </plugins>
    </build>
</project>

注意：此处需要使用到 Maven 指令，因此需要先配置好maven。
用 管理员身份打开命令提示符界面，进入目录 /rocketmq-dashboard-master，输入如下指令：

mvn clean package -Dmaven.test.skip=true

4，启动

注意：启动之前，要先启动RocketMQ中的name server和broker，否则可能会报错

不会的，可以看这个链接：RocketMQ的安装及配置（windows）-优快云博客

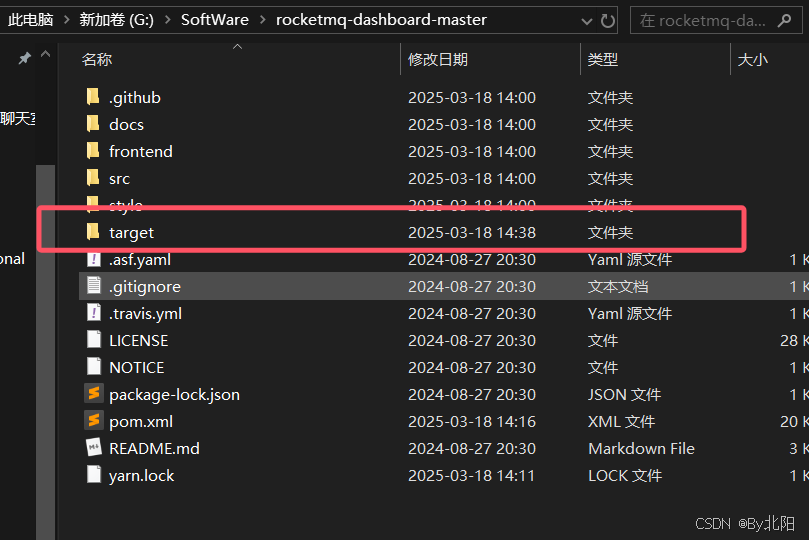

然后就会出现 target 目录：

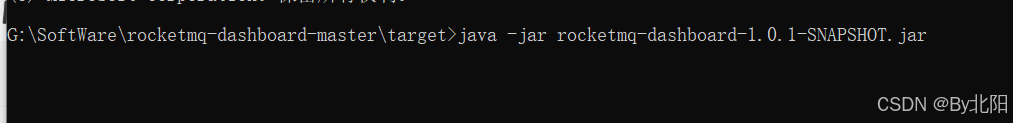

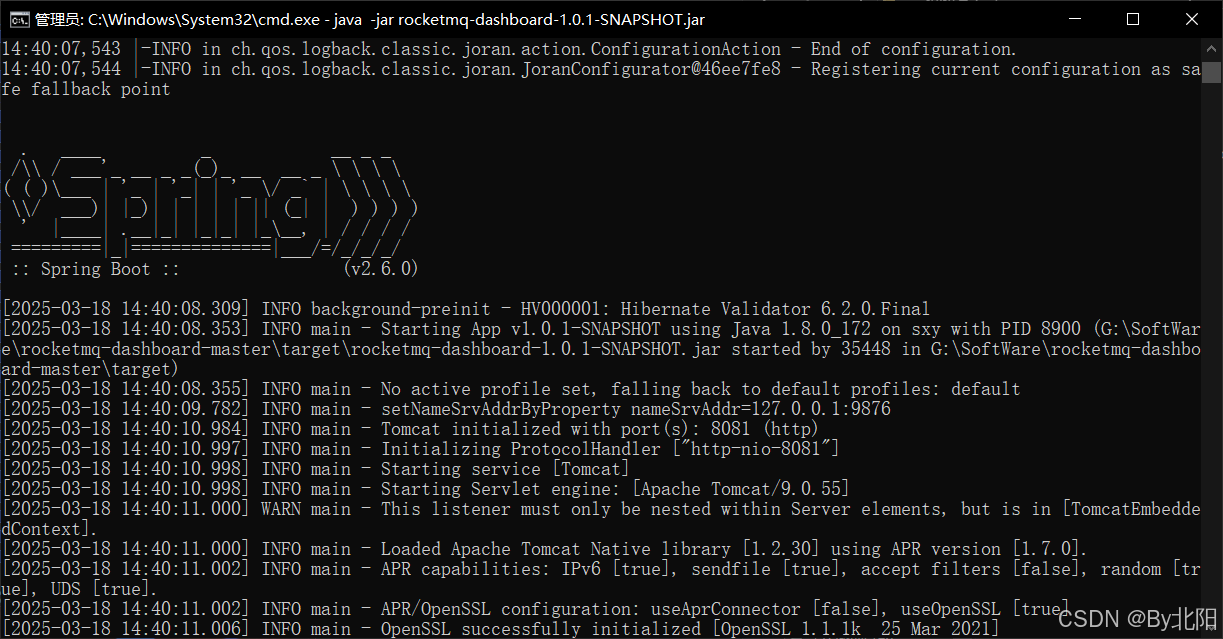

在命令提示符界面，进入target目录，输入指令：

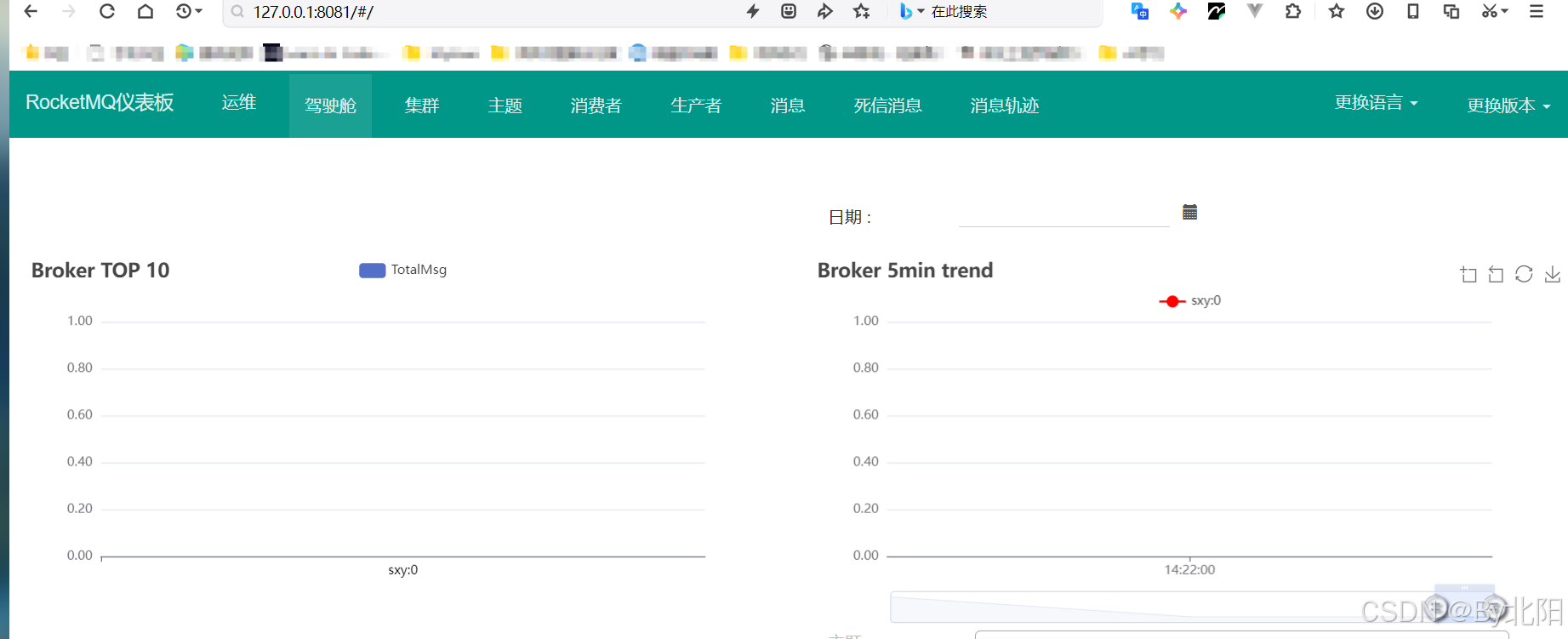

输入地址：http://127.0.0.1:8081，能正常显示页面，不报错，即成功
注意：此处的 8081 是前面在 application.yml中设置的，需要根据自己实际修改。
