openstack 部署

什么是openstack

OpenStack 是一系列开源工具（或开源项目）的组合，主要使用池化虚拟资源来构建和管理私有云及公共云。其中的六个项目主要负责处理核心云计算服务，包括计算、网络、存储、身份和镜像服务。还有另外十多个可选项目，用户可把它们捆绑打包，用来创建独特、可部署的云架构。

云计算模式

一、IaaS：基础设施即服务（个人比较习惯的）：用户通过网络获取虚机、存储、网络，然后用户根据自己的需求操作获取的资源

二、PaaS：平台即服务：将软件研发平台作为一种服务， 如Eclipse/Java编程平台，服务商提供编程接口/运行平台等

三、SaaS：软件即服务 ：将软件作为一种服务通过网络提供给用户，如web的电子邮件、HR系统、订单管理系统、客户关系系统等。用户无需购买软件，而是向提供商租用基于web的软件，来管理企业经营活动

OpenStack 中有哪些项目？

OpenStack 架构由大量开源项目组成。其中包含 6 个稳定可靠的核心服务，用于处理计算、网络、存储、身份和镜像； 同时，还为用户提供了十多种开发成熟度各异的可选服务。OpenStack 的 6 个核心服务主要担纲系统的基础架构，其余项目则负责管理控制面板、编排、裸机部署、信息传递、容器及统筹管理等操作。

keystone：Keystone 认证所有 OpenStack 服务并对其进行授权。同时，它也是所有服务的端点目录。
glance：Glance 可存储和检索多个位置的虚拟机磁盘镜像。
nova：是一个完整的 OpenStack 计算资源管理和访问工具，负责处理规划、创建和删除操作。
neutron：Neutron 能够连接其他 OpenStack 服务并连接网络。
dashboard：web管理界面
Swift： 是一种高度容错的对象存储服务，使用 RESTful API 来存储和检索非结构数据对象。
Cinder 通过自助服务 API 访问持久块存储。
Ceilometer：计费
Heat：编排

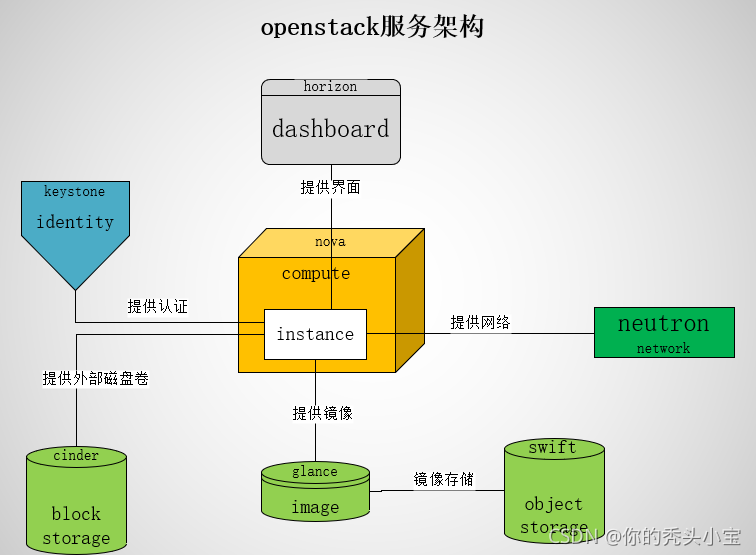

openstack基本架构

OpenStack环境部署

设备准备
三台CentOS，内存8G，双网卡

ct：设置网卡

ens33(NAT网卡):
BOOTPROTO=static
IPV4_ROUTE_METRIC=90	#添加调由优先级，有2条默认，使NAT优先，
ONBOOT=yes
IPADDR=192.168.8.157
NETMASK=255.255.255.0
GATEWAY=192.168.8.2

ens36(内网)：
BOOTPROTO=static
ONBOOT=yes
IPADDR=192.168.130.10
NETMASK=255.255.255.0
#GATEWAY=192.168.130.2	#注释网卡

ct1：

ens33(NAT网卡):
BOOTPROTO=static
IPV4_ROUTE_METRIC=90	#添加调由优先级，有2条默认，使NAT优先，
ONBOOT=yes
IPADDR=192.168.8.156
NETMASK=255.255.255.0
GATEWAY=192.168.8.2

ens36(内网)：
BOOTPROTO=static
ONBOOT=yes
IPADDR=192.168.130.20
NETMASK=255.255.255.0
#GATEWAY=192.168.130.2

ct2

ens33(NAT网卡):
BOOTPROTO=static
IPV4_ROUTE_METRIC=90	#添加调由优先级，有2条默认，使NAT优先，
ONBOOT=yes
IPADDR=192.168.8.158
NETMASK=255.255.255.0
GATEWAY=192.168.8.2

ens34(内网)：
BOOTPROTO=static
ONBOOT=yes
IPADDR=192.168.130.30
NETMASK=255.255.255.0
#GATEWAY=192.168.130.2

部署OpenStack依赖环境
三个节点同时设置，这里只显示ct节点

[root@ct ~]# vi /etc/hosts
192.168.130.10  ct
192.168.130.20  ct1
192.168.130.30  ct2
[root@ct ~]# ssh-keygen -t rsa				#免交互
[root@ct ~]# ssh-copy-id ct
[root@ct ~]# ssh-copy-id ct1
[root@ct ~]# ssh-copy-id ct2
[root@ct ~]# vi /etc/yum.conf 				#配置YUM能保存下载的安装软件
keepcache=1

##下载安装依赖包
[root@ct ~]# yum -y install net-tools bash-completion vim gcc gcc-c++ make pcre  pcre-devel expat-devel cmake  bzip2 lrzsz


##EXPAT C语言发开库，这里最好多安装几次
[root@ct ~]# yum -y install centos-release-openstack-train python-openstackclient openstack-selinux openstack-utils

设置时间同步
[root@ct ~]# yum install chrony -y

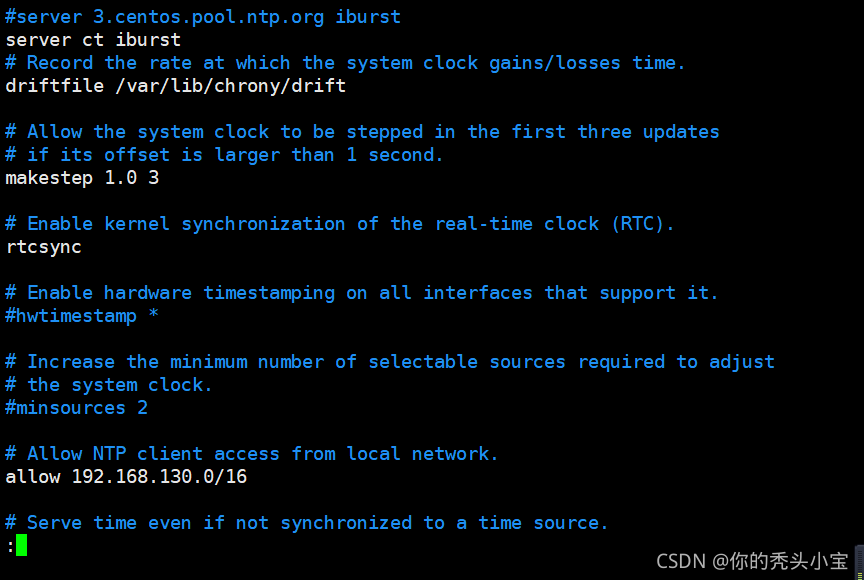

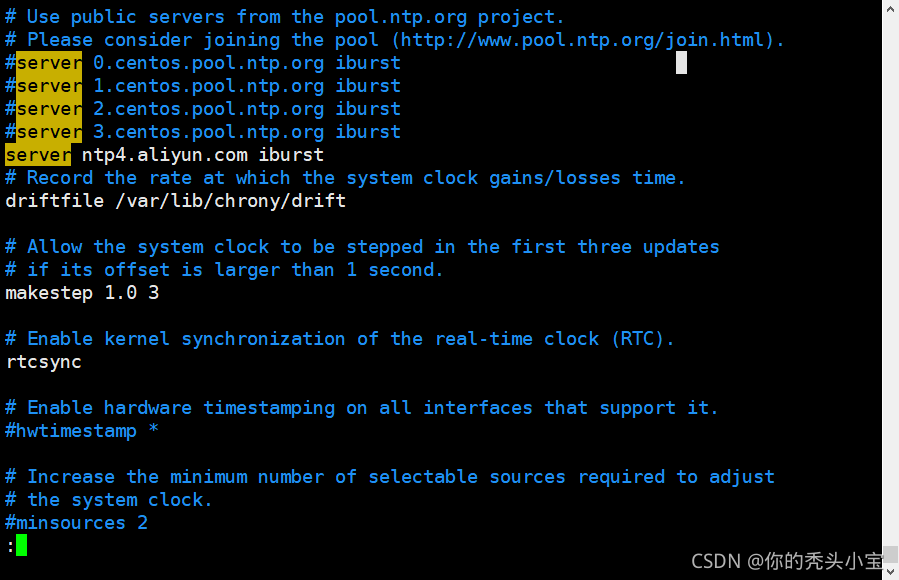

[root@ct ~]#  vim /etc/chrony.conf



[root@ct ~]#  systemctl enable chronyd.service
[root@ct ~]# systemctl restart chronyd.service			#三个节点都开启时间同步

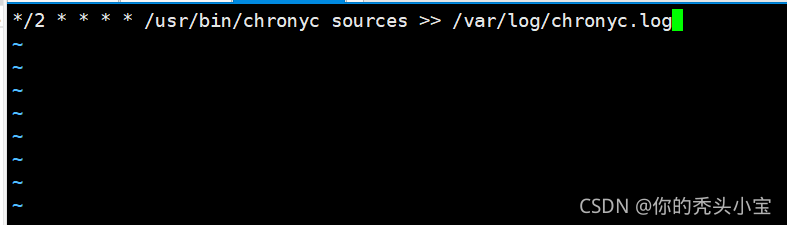

[root@ct ~]# crontab -e									#配置计划任务，两分钟同步一次

控制节点配置MariaDB

安装、配置mariadb

[root@ct ~]# yum -y install mariadb mariadb-server python2-PyMySQL
#python2-PyMySQL是OpenStack控制端连接MySQL的模块
[root@ct ~]# yum -y install libibverbs			#添加MySQL子配置文件
[root@ct ~]# vim /etc/my.cnf.d/openstack.cnf		#设置配置文件，添加以下内容
[mysqld]
bind-address = 192.168.140.10						#设置控制节点局域网地址
default-storage-engine = innodb						#设置默认存储引擎
innodb_file_per_table = on							#每张表独立表空间文件
max_connections = 4096								#最大连接数
collation-server = utf8_general_ci					#最大字符集
character-set-server = utf8

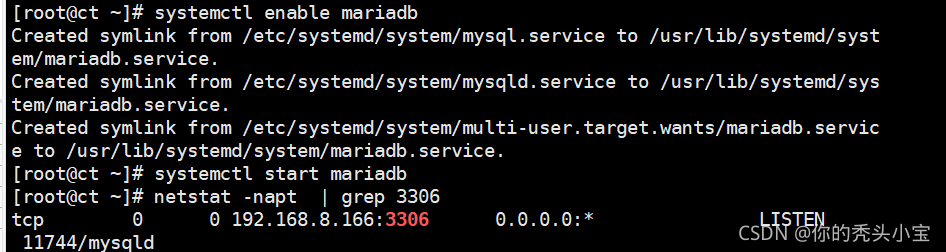

[root@ct ~]# systemctl enable mariadb
Created symlink from /etc/systemd/system/mysql.service to /usr/lib/systemd/system/mariadb.service.
Created symlink from /etc/systemd/system/mysqld.service to /usr/lib/systemd/system/mariadb.service.
Created symlink from /etc/systemd/system/multi-user.target.wants/mariadb.service to /usr/lib/systemd/system/mariadb.service.
[root@ct ~]# systemctl start mariadb				#开启mariadb
[root@ct ~]# cd /etc/my.cnf.d/
[root@ct my.cnf.d]# mysql_secure_installation		#执行mariadb安全配置脚本
…………………………
Disallow root login remotely? [Y/n] N				#交互过程只有这一步选择n允许root登录


部署RabbitMQ

[root@ct my.cnf.d]# yum -y install rabbitmq-server
[root@ct my.cnf.d]# systemctl enable rabbitmq-server.service
Created symlink from /etc/systemd/system/multi-user.target.wants/rabbitmq-server.service to /usr/lib/systemd/system/rabbitmq-server.service.
[root@ct my.cnf.d]# systemctl start rabbitmq-server.service
[root@ct my.cnf.d]# rabbitmqctl add_user openstack RABBIT_PASS 	#创建消息队列用户openstack，给予密码为RABBIT_PASS
Creating user "openstack"
[root@ct my.cnf.d]# rabbitmqctl set_permissions openstack ".*" ".*" ".*"
##配置openstack用户的操作权限（正则，配置读写权限）
Setting permissions for user "openstack" in vhost "/"
[root@ct my.cnf.d]# netstat -antp | grep 5672		#查看rabbitmq默认端口
tcp        0      0 0.0.0.0:25672           0.0.0.0:*               LISTEN      40164/beam.smp
tcp        0      0 127.0.0.1:33644         127.0.0.1:25672         TIME_WAIT   -
tcp6       0      0 :::5672                 :::*                    LISTEN      40164/beam.smp
[root@ct my.cnf.d]# netstat -antp | grep 25672		#查看rabbit测试工具CLI的端口
tcp        0      0 0.0.0.0:25672           0.0.0.0:*               LISTEN      40164/beam.smp

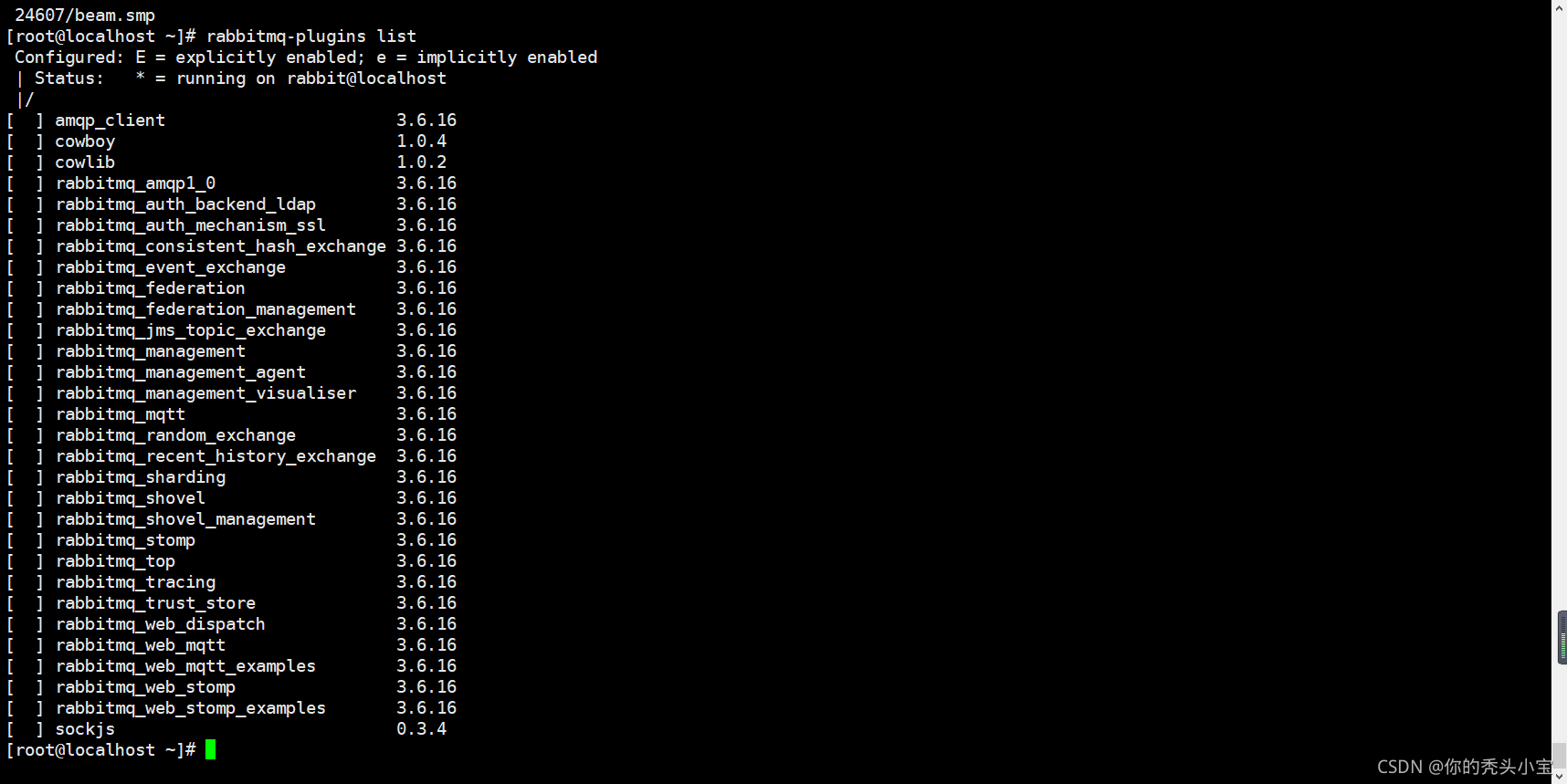

[root@ct my.cnf.d]# rabbitmq-plugins list			#查看rabbitmq插件列表
 Configured: E = explicitly enabled; e = implicitly enabled
 | Status:   * = running on rabbit@localhost
 |/
[  ] amqp_client                       3.6.16
[  ] cowboy                            1.0.4
[  ] cowlib                            1.0.2
[  ] rabbitmq_amqp1_0                  3.6.16
[  ] rabbitmq_auth_backend_ldap        3.6.16
[  ] rabbitmq_auth_mechanism_ssl       3.6.16
[  ] rabbitmq_consistent_hash_exchange 3.6.16
[  ] rabbitmq_event_exchange           3.6.16
[  ] rabbitmq_federation               3.6.16
[  ] rabbitmq_federation_management    3.6.16
[  ] rabbitmq_jms_topic_exchange       3.6.16
……………………………………

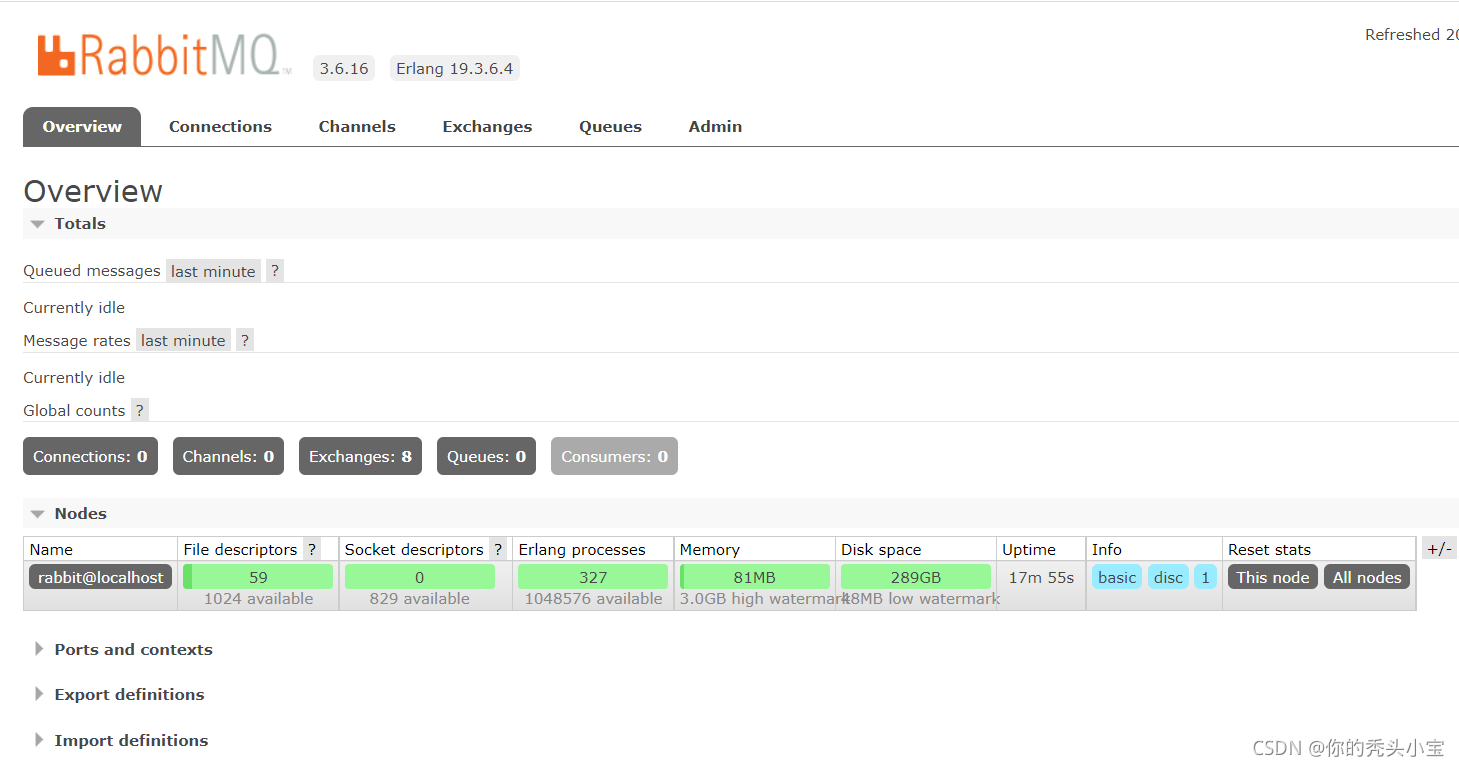

[root@ct my.cnf.d]# rabbitmq-plugins enable rabbitmq_management		#开启rabbitmq的web管理界面的插件
The following plugins have been enabled:
  amqp_client
  cowlib
  cowboy
  rabbitmq_web_dispatch
  rabbitmq_management_agent
  rabbitmq_management

Applying plugin configuration to rabbit@localhost... started 6 plugins.



部署memcached

[root@ct my.cnf.d]#  yum install -y memcached python-memcached
[root@ct my.cnf.d]# vi /etc/sysconfig/memcached 		#修改memcached配置文件PORT="11211"
USER="memcached"
MAXCONN="1024"
CACHESIZE="64"
OPTIONS="-l 127.0.0.1,::1，ct"
[root@ct my.cnf.d]# systemctl enable memcached
Created symlink from /etc/systemd/system/multi-user.target.wants/memcached.service to /usr/lib/systemd/system/memcached.service.
[root@ct my.cnf.d]# systemctl start memcached
[root@ct my.cnf.d]# netstat -antp | grep 11211
tcp        0      0 192.168.140.10:11211    0.0.0.0:*               LISTEN      42358/memcached
tcp        0      0 127.0.0.1:11211         0.0.0.0:*               LISTEN      42358/memcached
tcp6       0      0 ::1:11211               :::*                    LISTEN      42358/memcached
安装etcd(由go语言开发的开源，去中心化的数据库)
[root@ct my.cnf.d]# yum install -y etcd

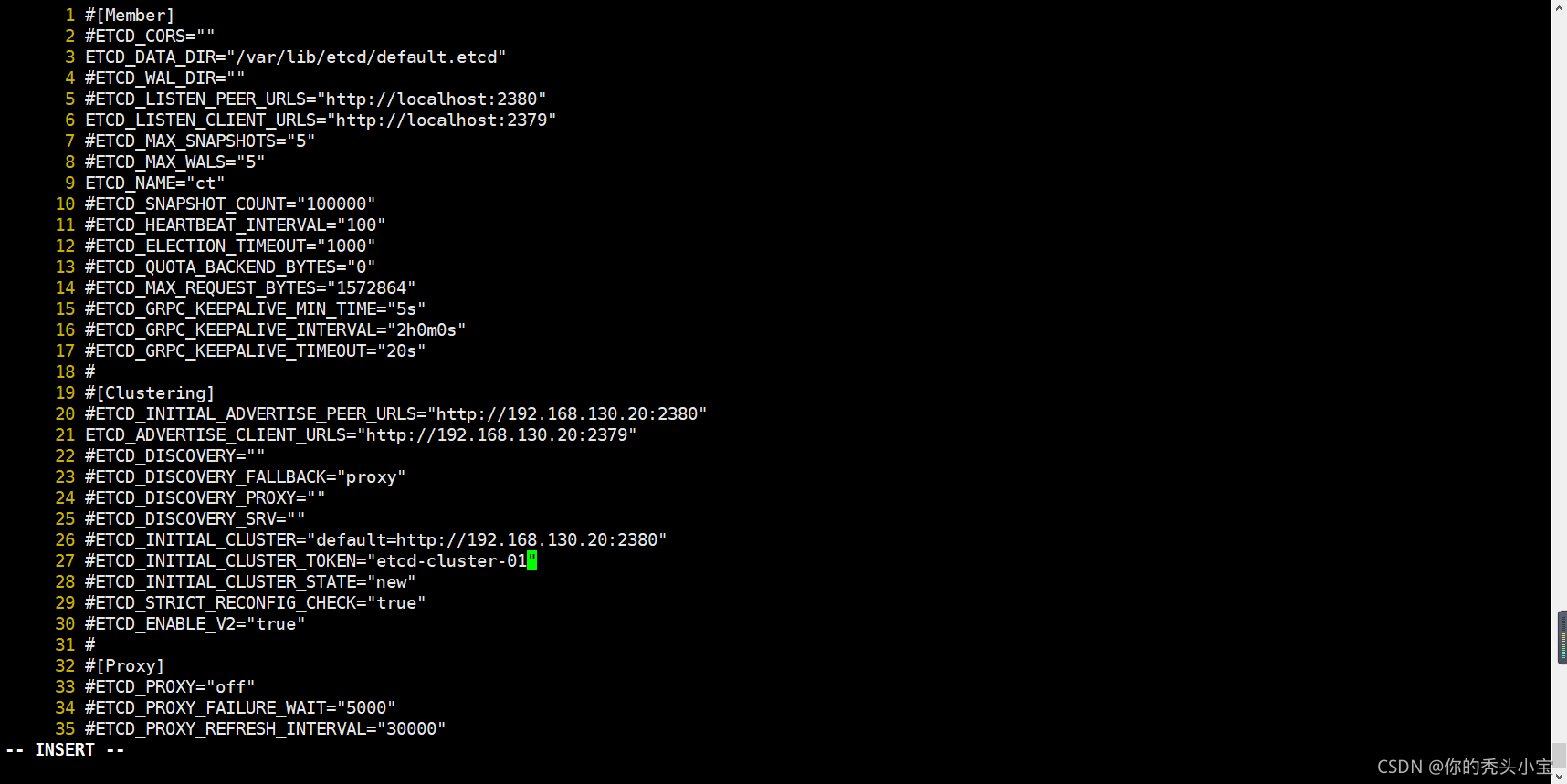

[root@ct my.cnf.d]# vi /etc/etcd/etcd.conf 		#修改配置文件


Keystone组件部署

创建数据库实例和数据库用户

[root@ct ~]# mysql -uroot -p
Enter password:
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 364
Server version: 10.3.20-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> create database keystone;
Query OK, 1 row affected (0.001 sec)

MariaDB [(none)]>  grant all privileges on keystone.* to 'keystone'@'localhost' identified by 'KEYSTONE_DBPASS';
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> grant all privileges on keystone.* to 'keystone'@'%' identified by 'KEYSTONE_DBPASS';
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> flush privileges;
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> exit
Bye

安装配置keystone、httpd、mod_wsgi（用来让apache能够代理python程序的组件）

[root@ct ~]# yum install -y openstack-keystone httpd mod_wsgi
[root@ct ~]# cp -a /etc/keystone/keystone.conf{,.bak}
[root@ct ~]# grep -Ev "^$|#" /etc/keystone/keystone.conf.bak > /etc/keystone/keystone.conf
		#过滤空格或#开头内容，并将内容覆盖到配置文件中
[root@ct ~]# cat /etc/keystone/keystone.conf
[DEFAULT]
[application_credential]
[assignment]
[auth]
[cache]
[catalog]
[cors]
[credential]
[database]
[domain_config]
[endpoint_filter]
[endpoint_policy]
[eventlet_server]
[federation]
[fernet_receipts]
[fernet_tokens]
[healthcheck]
[identity]
[identity_mapping]
[jwt_tokens]
[ldap]
[memcache]
[oauth1]
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_middleware]
[oslo_policy]
[policy]
[profiler]
[receipt]
[resource]
[revoke]
[role]
[saml]
[security_compliance]
[shadow_users]
[token]
[tokenless_auth]
[totp]
[trust]
[unified_limit]
[wsgi]

##通过pymysql模块访问mysql，知道用户名密码，数据库和域名
[root@ct ~]# openstack-config --set /etc/keystone/keystone.conf database connection mysql+pymysql://keystone:KEYSTONE_DBPASS@ct/keystone
##知道token的提供者为keystone自身
[root@ct ~]# openstack-config --set /etc/keystone/keystone.conf token provider fernet

##初始化认证服务数据库
[root@ct ~]# su -s /bin/sh -c "keystone-manage db_sync" keystone

##初始fernet密钥存储库，生成两个密钥，生成的密钥放于/etc/keystone/目录下，用于加密数据
[root@ct ~]# keystone-manage fernet_setup --keystone-user keystone --keystone-group keystone
[root@ct ~]# keystone-manage credential_setup --keystone-user keystone --keystone-group keystone

配置bootstrap身份认证服务
[root@ct ~]# keystone-manage bootstrap --bootstrap-password ADMIN_PASS \
> --bootstrap-admin-url http://ct:5000/v3/ \			#管理网
> --bootstrap-internal-url http://ct:5000/v3/ \			#内部网络
> --bootstrap-public-url http://ct:5000/v3/ \			#公共网络
> --bootstrap-region-id RegionOne

配置Apache服务
[root@ct ~]# echo "ServerNmae controller" >> /etc/httpd/conf/httpd.conf
[root@ct ~]# ln -s /usr/share/keystone/wsgi-keystone.conf /etc/httpd/conf.d/
[root@ct ~]# systemctl enable httpd
Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /usr/lib/systemd/system/httpd.service.
[root@ct ~]# systemctl start httpd
[root@ct ~]# netstat -antp | grep httpd
tcp6       0      0 :::5000                 :::*                    LISTEN      60926/httpd
tcp6       0      0 :::80                   :::*                    LISTEN      60926/httpd
配置管理员账户的环境变量
[root@ct ~]# cat >> ~/.bashrc << EOF
> export OS_USERNAME=admin						#设置管理员登录用户名
> export OS_PASSWORD=ADMIN_PASS					#设置密码
> export OS_PROJECT_NAME=admin
> export OS_USER_DOMAIN_NAME=Default
> export OS_PROJECT_DOMAIN_NAME=Default
> export OS_AUTH_URL=http://ct:5000/v3
> export OS_IDENTITY_API_VERSION=3
> export OS_IMAGE_API_VERSION=2
> EOF
[root@ct ~]# source ~/.bashrc
[root@ct ~]# openstack user list
+----------------------------------+-------+
| ID                               | Name  |
+----------------------------------+-------+
| d1553b14431c4f7d8397e6ffb15cee30 | admin |
+----------------------------------+-------+

创建OpenStack域、项目、用户和角色
##创建一个项目（project），在知道的domain中，project名称为service
[root@ct ~]# openstack project create --domain default --description "Service Project" service
+-------------+----------------------------------+
| Field       | Value                            |
+-------------+----------------------------------+
| description | Service Project                  |
| domain_id   | default                          |
| enabled     | True                             |
| id          | 0683dd857dec4bc68b2d4d84806b5e23 |
| is_domain   | False                            |
| name        | service                          |
| options     | {}                               |
| parent_id   | default                          |
| tags        | []                               |
+-------------+----------------------------------+

##创建角色
[root@ct ~]# openstack role create user
+-------------+----------------------------------+
| Field       | Value                            |
+-------------+----------------------------------+
| description | None                             |
| domain_id   | None                             |
| id          | eb2fe06b20824e5d8b16a582f382f4c4 |
| name        | user                             |
| options     | {}                               |
+-------------+----------------------------------+
[root@ct ~]# openstack role list		#查看创建的角色
+----------------------------------+--------+列表
| ID                               | Name   |
+----------------------------------+--------+
| 622ba83b60dc40aa8c44e4858ee44a02 | admin  |
| 73aa0b3a87f142a5803c133d12a8c4ee | member |
| ba33f04a1c964d849b8b827470ba0dc0 | reader |
| eb2fe06b20824e5d8b16a582f382f4c4 | user   |
+----------------------------------+--------+

##
[root@ct ~]# openstack token issue		#查看是否可以不知道密码就可以获取到token信息（验证认证服务）
+------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| Field      | Value                                                                                                                                                                                   |
+------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| expires    | 2021-08-23T07:13:14+0000                                                                                                                                                                |
| id         | gAAAAABhIzx6NUyyRnDfYio2YyKpzozx2Es1kVV26v0WOhi5YrxHq3Zwj1RKByVfR7K4rVRFmAGGcuD5ElKco0vYgqS47FCSSqGOJdyM4Cn0KVH3wZKXbvN6L-cozznyHqDV8ovz82TscssKowYzYIcwKg-SO4Tv1xxD8bi6PpQy4AXxhCgPm-Y |
| project_id | 933a6997e78d4927847c2f2a32c7a358                                                                                                                                                        |
| user_id    | d1553b14431c4f7d8397e6ffb15cee30                                                                                                                                                        |
+------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+

Glance组件部署

创建数据库实例和数据库用户


[root@ct ~]# mysql -uroot -p
MariaDB [(none)]> create database glance;
Query OK, 1 row affected (0.000 sec)

MariaDB [(none)]> grant all privileges on glance.* to 'glance'@'localhost' identified by 'GLANCE_DBPASS';
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> grant all privileges on glance.* to 'glance'@'%' identified by 'GLANCE_DBPASS';
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> flush privileges;
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> exit
Bye

创建用户，修改配置文件
[root@ct ~]# openstack user create --domain default --password GLANCE_PASS glance
+---------------------+----------------------------------+
| Field               | Value                            |
+---------------------+----------------------------------+
| domain_id           | default                          |
| enabled             | True                             |
| id                  | db20009e0b1f441899ac9aeb26fce300 |
| name                | glance                           |
| options             | {}                               |
| password_expires_at | None                             |
+---------------------+----------------------------------+
[root@ct ~]# openstack role add --project service --user glance admin
##将glance用户添加到service项目中，并针对这个项目拥有admin权限

[root@ct ~]# openstack service create --name glance --description "OpenStack Image" image
##创建service服务，名称为glance。类型为image
+-------------+----------------------------------+
| Field       | Value                            |
+-------------+----------------------------------+
| description | OpenStack Image                  |
| enabled     | True                             |
| id          | 3d9adf0d2c68457294effa2b293ad02e |
| name        | glance                           |
| type        | image                            |
+-------------+----------------------------------+
[root@ct ~]# openstack service list			#查看service项目用户列表
+----------------------------------+----------+----------+
| ID                               | Name     | Type     |
+----------------------------------+----------+----------+
| 097835c29bca44d29534dd6beb75cc10 | keystone | identity |
| 3d9adf0d2c68457294effa2b293ad02e | glance   | image    |
+----------------------------------+----------+----------+

创建镜像服务API端点，OpenStack使用三种API端点
[root@ct ~]# openstack endpoint create --region RegionOne image public http://ct:9292
+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | c3f4bd393a004bdb9f32785449870674 |
| interface    | public                           |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | 3d9adf0d2c68457294effa2b293ad02e |
| service_name | glance                           |
| service_type | image                            |
| url          | http://ct:9292                   |
+--------------+----------------------------------+
[root@ct ~]# openstack endpoint create --region RegionOne image internal http://ct:9292
+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | d70014945d4644b7991ce5d6e6e8e8c5 |
| interface    | internal                         |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | 3d9adf0d2c68457294effa2b293ad02e |
| service_name | glance                           |
| service_type | image                            |
| url          | http://ct:9292                   |
+--------------+----------------------------------+
[root@ct ~]# openstack endpoint create --region RegionOne image admin http://ct:9292
+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | 9957f757cfae46f5a4004511933fe95c |
| interface    | admin                            |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | 3d9adf0d2c68457294effa2b293ad02e |
| service_name | glance                           |
| service_type | image                            |
| url          | http://ct:9292                   |
+--------------+----------------------------------+

安装openstack-glance软件包，修改配置文件
[root@ct ~]# yum install -y openstack-glance
[root@ct ~]#  cp -a /etc/glance/glance-api.conf{,.bak}
[root@ct glance]# grep -Ev '^$|#' /etc/glance/glance-api.conf.bak > /etc/glance/glance-api.conf
[root@ct glance]# cat /etc/glance/glance-api.conf
[DEFAULT]
[cinder]
[cors]
[database]
[file]
[glance.store.http.store]
[glance.store.rbd.store]
[glance.store.sheepdog.store]
[glance.store.swift.store]
[glance.store.vmware_datastore.store]
[glance_store]
[image_format]
[keystone_authtoken]
[oslo_concurrency]
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_middleware]
[oslo_policy]
[paste_deploy]
[profiler]
[store_type_location_strategy]
[task]
[taskflow_executor]

输入以下命令修改/etc/glance/glance-appi.conf配置文件
openstack-config --set /etc/glance/glance-api.conf database connection mysql+pymysql://glance:GLANCE_DBPASS@ct/glance
openstack-config --set /etc/glance/glance-api.conf keystone_authtoken www_authenticate_uri http://ct:5000
openstack-config --set /etc/glance/glance-api.conf keystone_authtoken auth_url http://ct:5000
openstack-config --set /etc/glance/glance-api.conf keystone_authtoken memcached_servers ct:11211
openstack-config --set /etc/glance/glance-api.conf keystone_authtoken auth_type password
openstack-config --set /etc/glance/glance-api.conf keystone_authtoken project_domain_name Default
openstack-config --set /etc/glance/glance-api.conf keystone_authtoken user_domain_name Default
openstack-config --set /etc/glance/glance-api.conf keystone_authtoken project_name service
openstack-config --set /etc/glance/glance-api.conf keystone_authtoken username glance
openstack-config --set /etc/glance/glance-api.conf keystone_authtoken password GLANCE_PASS
openstack-config --set /etc/glance/glance-api.conf paste_deploy flavor keystone
openstack-config --set /etc/glance/glance-api.conf glance_store stores file,http
openstack-config --set /etc/glance/glance-api.conf glance_store default_store file
openstack-config --set /etc/glance/glance-api.conf glance_store filesystem_store_datadir /var/lib/glance/images/

[root@ct glance]# cat /etc/glance/glance-api.conf		#查看配置文件修改结果
[DEFAULT]
[cinder]
[cors]
[database]
connection = mysql+pymysql://glance:GLANCE_DBPASS@ct/glance
[file]
[glance.store.http.store]
[glance.store.rbd.store]
[glance.store.sheepdog.store]
[glance.store.swift.store]
[glance.store.vmware_datastore.store]
[glance_store]
stores = file,http
default_store = file
filesystem_store_datadir = /var/lib/glance/images/
[image_format]
[keystone_authtoken]
www_authenticate_uri = http://ct:5000
auth_url = http://ct:5000
memcached_servers = ct:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = glance
password = GLANCE_PASS
[oslo_concurrency]
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_middleware]
[oslo_policy]
[paste_deploy]
flavor = keystone
[profiler]
[store_type_location_strategy]
[task]
[taskflow_executor]

修改glance-registry.conf 配置文件
[root@ct glance]# cp -a /etc/glance/glance-registry.conf{,.bak}
[root@ct glance]# grep -Ev '^$|#' /etc/glance/glance-registry.conf.bak > /etc/glance/glance-registry.conf

输入以下命令
openstack-config --set /etc/glance/glance-registry.conf database connection  mysql+pymysql://glance:GLANCE_DBPASS@t/glance
openstack-config --set /etc/glance/glance-registry.conf keystone_authtoken www_authenticate_uri   http://ct:5000
openstack-config --set /etc/glance/glance-registry.conf keystone_authtoken auth_url  http://ct:5000
openstack-config --set /etc/glance/glance-registry.conf keystone_authtoken memcached_servers  ct:11211
openstack-config --set /etc/glance/glance-registry.conf keystone_authtoken auth_type  password
openstack-config --set /etc/glance/glance-registry.conf keystone_authtoken project_domain_name  Default
openstack-config --set /etc/glance/glance-registry.conf keystone_authtoken user_domain_name  Default
openstack-config --set /etc/glance/glance-registry.conf keystone_authtoken project_name  service
openstack-config --set /etc/glance/glance-registry.conf keystone_authtoken username  glance
openstack-config --set /etc/glance/glance-registry.conf keystone_authtoken password  GLANCE_PASS
openstack-config --set /etc/glance/glance-registry.conf paste_deploy flavor  keystone

[root@ct glance]# cat /etc/glance/glance-registry.conf
[DEFAULT]
[database]
connection = mysql+pymysql://glance:GLANCE_DBPASS@t/glance
[keystone_authtoken]
www_authenticate_uri = http://ct:5000
auth_url = http://ct:5000
memcached_servers = ct:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = glance
password = GLANCE_PASS
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_policy]
[paste_deploy]
flavor = keystone
[profiler]

初始化glance数据库，开启glance服务
[root@ct glance]# su -s /bin/sh -c "glance-manage db_sync" glance
[root@ct glance]# systemctl enable openstack-glance-api.service
Created symlink from /etc/systemd/system/multi-user.target.wants/openstack-glance-api.service to /usr/lib/systemd/system/openstack-glance-api.service.
[root@ct glance]# systemctl start openstack-glance-api.service
[root@ct glance]# netstat -antp | grep 9292
tcp        0      0 0.0.0.0:9292            0.0.0.0:*               LISTEN      68138/python2

赋予openstack-glance-api.service服务对存储设备的可写权限（-h：值对符号连接/软链接的文件修改)
[root@ct glance]# chown -hR glance:glance /var/lib/glance/

##镜像导入，先上传cirros-0.3.5-x86_64-disk.img镜像
[root@ct glance]# openstack image create --file cirros-0.3.5-x86_64-disk.img --disk-format qcow2 --container-format bare --public cirros
[root@ct glance]# openstack image list			##查看结果
+--------------------------------------+--------+--------+
| ID                                   | Name   | Status |
+--------------------------------------+--------+--------+
| f7b8bd29-807b-4511-99d6-b398c9653cdf | cirros | active |
+--------------------------------------+--------+--------+

OpenStack-Nova和OpenStack-Placement模块部署模块部署

创建数据库实例和数据库用户
[root@ct ~]# mysql -uroot -p
MariaDB [(none)]> CREATE DATABASE placement;
Query OK, 1 row affected (0.001 sec)
MariaDB [(none)]> grant all privileges on plancement.* to 'plancement'@'localhost' identified by 'PLANCEMENT_DBPASS';
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> grant all privileges on plancement.* to 'plancement'@'%' identified by 'PLANCEMENT_DBPASS';
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> flush privileges;
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> exit
Bye

创建plancement用户和API的endpoint
[root@ct ~]# openstack user create --domain default --password PLACEMENT_PASS placement
+---------------------+----------------------------------+
| Field               | Value                            |
+---------------------+----------------------------------+
| domain_id           | default                          |
| enabled             | True                             |
| id                  | 18fd239f6afe4a1eb4d7da2946332262 |
| name                | plancement                       |
| options             | {}                               |
| password_expires_at | None                             |
+---------------------+----------------------------------+

##给与plancement用户对service项目拥有admin权限
[root@ct ~]# openstack role add --project service --user placement admin

##创建一个placement服务，服务类型为placement
[root@ct ~]# openstack service create --name placement --description "Placement API" placement
+-------------+----------------------------------+
| Field       | Value                            |
+-------------+----------------------------------+
| description | Placement API                    |
| enabled     | True                             |
| id          | 08f7d8d3df9348f4a85dca595e0da681 |
| name        | placement                        |
| type        | placement                        |
+-------------+----------------------------------+

##注册API段考到placement的service中；注册的信息会写入到mysql中
[root@ct ~]# openstack endpoint create --region RegionOne placement public http://ct:8778
+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | 87b90cfcff85487ba05712c785877883 |
| interface    | public                           |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | 08f7d8d3df9348f4a85dca595e0da681 |
| service_name | placement                        |
| service_type | placement                        |
| url          | http://ct:8778                   |
+--------------+----------------------------------+
[root@ct ~]# openstack endpoint create --region RegionOne placement internal http://ct:8778
+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | 040748ac9a264439b664f04351076d97 |
| interface    | internal                         |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | 08f7d8d3df9348f4a85dca595e0da681 |
| service_name | placement                        |
| service_type | placement                        |
| url          | http://ct:8778                   |
+--------------+----------------------------------+
[root@ct ~]# openstack endpoint create --region RegionOne placement admin http://ct:8778
+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | a639fb5e0a764cf7a4da9ec8a54a70bd |
| interface    | admin                            |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | 08f7d8d3df9348f4a85dca595e0da681 |
| service_name | placement                        |
| service_type | placement                        |
| url          | http://ct:8778                   |
+--------------+----------------------------------+

安装placement服务
[root@ct ~]# yum install -y openstack-placement-api

##修改placement.conf配置文件
[root@ct ~]# cp /etc/placement/placement.conf{,.bak}
[root@ct ~]# grep -Ev '^$|#' /etc/placement/placement.conf.bak > /etc/placement/placement.conf
##输入以下命令
openstack-config --set /etc/placement/placement.conf placement_database connection mysql+pymysql://placement:PLACEMENT_DBPASS@ct/placement
openstack-config --set /etc/placement/placement.conf api auth_strategy keystone
openstack-config --set /etc/placement/placement.conf keystone_authtoken auth_url  http://ct:5000/v3
openstack-config --set /etc/placement/placement.conf keystone_authtoken memcached_servers ct:11211
openstack-config --set /etc/placement/placement.conf keystone_authtoken auth_type password
openstack-config --set /etc/placement/placement.conf keystone_authtoken project_domain_name Default
openstack-config --set /etc/placement/placement.conf keystone_authtoken user_domain_name Default
openstack-config --set /etc/placement/placement.conf keystone_authtoken project_name service
openstack-config --set /etc/placement/placement.conf keystone_authtoken username placement
openstack-config --set /etc/placement/placement.conf keystone_authtoken password PLACEMENT_PASS
[root@ct ~]# cat /etc/placement/placement.conf		##查看配置文件
[DEFAULT]
[api]
auth_strategy = keystone
[cors]
[keystone_authtoken]
auth_url = http://ct:5000/v3				##指定keystone地址
memcached_servers = ct:11211				##session信息是缓存放到了memcached中
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = placement
password = PLACEMENT_PASS
[oslo_policy]
[placement]
[placement_database]
connection = mysql+pymysql://placement:PLACEMENT_DBPASS@ct/placement
[profiler]

##导入数据库
[root@ct placement]# su -s /bin/sh -c "placement-manage db sync" placement
/usr/lib/python2.7/site-packages/pymysql/cursors.py:170: Warning: (1280, u"Name 'alembic_version_pkc' ignored for PRIMARY key.")
  result = self._query(query)

修改00-placemenct-api.conf配置文件
[root@ct placement]# cd /etc/httpd/conf.d/
[root@ct conf.d]# ls
00-placement-api.conf  autoindex.conf  README  userdir.conf  welcome.conf  wsgi-keystone.conf
[root@ct conf.d]# vi 00-placement-api.conf 		##在末尾添加以下内容
<Directory /usr/bin>			#此处是bug，必须添加下面的配置来启用对placement api的访问，否则在访问apache的
<IfVersion >= 2.4>				#api时会报403；添加在文件的最后即可
	Require all granted
</IfVersion>
<IfVersion < 2.4>				#apache版本；允许apache访问/usr/bin目录；否则/usr/bin/placement-api将不允许被访问
	Order allow,deny
	Allow from all				#允许apache访问
</IfVersion>
</Directory>
[root@ct conf.d]# systemctl restart httpd.service
[root@ct conf.d]# netstat -antp | grep 8778
tcp        0      0 192.168.140.10:60610    192.168.140.10:8778     TIME_WAIT   -
tcp6       0      0 :::8778                 :::*                    LISTEN      71692/httpd

检查placement状态
[root@ct conf.d]# placement-status upgrade check
+----------------------------------+
| Upgrade Check Results            |
+----------------------------------+
| Check: Missing Root Provider IDs |
| Result: Success                  |
| Details: None                    |
+----------------------------------+
| Check: Incomplete Consumers      |
| Result: Success                  |
| Details: None                    |
+----------------------------------+

在ct节点安装部署Nova组件
在控制节点ct创建用户并授权
MariaDB [(none)]> create database nova_api;
Query OK, 1 row affected (0.000 sec)

MariaDB [(none)]> create database nova;
Query OK, 1 row affected (0.000 sec)

MariaDB [(none)]> create database nova_cell0;
Query OK, 1 row affected (0.000 sec)

MariaDB [(none)]> grant all privileges on nova_api.* to 'nova'@'localhost' identified by 'NOVA_DBPASS'
    -> ;
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> grant all privileges on nova_api.* to 'nova'@'%' identified by 'NOVA_DBPASS'
    -> ;
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> grant all privileges on nova.* to 'nova'@'%' identified by 'NOVA_DBPASS';
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> grant all privileges on nova.* to 'nova'@'localhost' identified by 'NOVA_DBPASS';
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> grant all privileges on nova_cell0.* to 'nova'@'localhost' identified by 'NOVA_DBPASS';
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> grant all privileges on nova_cell0.* to 'nova'@'%' identified by 'NOVA_DBPASS';
Query OK, 0 rows affected (0.000 sec)
MariaDB [(none)]> flush privileges;
Query OK, 0 rows affected (0.000 sec)

MariaDB [(none)]> exit
Bye

创建Nova用户和服务
[root@ct conf.d]# openstack user create --domain default --password NOVA_PASS nova
+---------------------+----------------------------------+
| Field               | Value                            |
+---------------------+----------------------------------+
| domain_id           | default                          |
| enabled             | True                             |
| id                  | 4b98eaf74b2a4579b83dbd3e81fa4fad |
| name                | nova                             |
| options             | {}                               |
| password_expires_at | None                             |
+---------------------+----------------------------------+
[root@ct conf.d]# openstack role add --project service --user nova admin

##创建nova服务
[root@ct conf.d]# openstack service create --name nova --description "OpenStack Compute" compute
+-------------+----------------------------------+
| Field       | Value                            |
+-------------+----------------------------------+
| description | OpenStack Compute                |
| enabled     | True                             |
| id          | 7bcedc7c3adf432c986236bbf9dbc83f |
| name        | nova                             |
| type        | compute                          |
+-------------+----------------------------------+

给nova服务管理endpoint
[root@ct conf.d]# openstack endpoint create --region RegionOne compute public http://ct:8774/v2.1
+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | b111cd0285e64920aa1b7e06a79e9eae |
| interface    | public                           |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | 7bcedc7c3adf432c986236bbf9dbc83f |
| service_name | nova                             |
| service_type | compute                          |
| url          | http://ct:8774/v2.1              |
+--------------+----------------------------------+
[root@ct conf.d]#  openstack endpoint create --region RegionOne compute internal http://ct:8774/v2.1
+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | 054fe754b1ad45c5a9312206117061e6 |
| interface    | internal                         |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | 7bcedc7c3adf432c986236bbf9dbc83f |
| service_name | nova                             |
| service_type | compute                          |
| url          | http://ct:8774/v2.1              |
+--------------+----------------------------------+
[root@ct conf.d]# openstack endpoint create --region RegionOne compute admin http://ct:8774/v2.1
+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | c601fedecc684817a445942b64895607 |
| interface    | admin                            |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | 7bcedc7c3adf432c986236bbf9dbc83f |
| service_name | nova                             |
| service_type | compute                          |
| url          | http://ct:8774/v2.1              |
+--------------+----------------------------------+
[root@ct conf.d]# openstack endpoint create --region RegionOne compute admin http://ct:8774/v2.1
+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | c601fedecc684817a445942b64895607 |
| interface    | admin                            |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | 7bcedc7c3adf432c986236bbf9dbc83f |
| service_name | nova                             |
| service_type | compute                          |
| url          | http://ct:8774/v2.1              |
+--------------+----------------------------------+

安装nova组件（nova-api、nova-conductor、nova-novncproxy、nova-scheduler）
[root@ct conf.d]# yum -y install openstack-nova-api openstack-nova-conductor openstack-nova-novncproxy openstack-nova-scheduler

修改nova.conf配置文件
[root@ct conf.d]#  cp -a /etc/nova/nova.conf{,.bak}
[root@ct conf.d]#  grep -Ev '^$|#' /etc/nova/nova.conf.bak > /etc/nova/nova.conf
##执行以下命令
 openstack-config --set /etc/nova/nova.conf DEFAULT enabled_apis osapi_compute,metadata
 openstack-config --set /etc/nova/nova.conf DEFAULT my_ip 192.168.140.10
 openstack-config --set /etc/nova/nova.conf DEFAULT use_neutron true
 openstack-config --set /etc/nova/nova.conf DEFAULT firewall_driver nova.virt.firewall.NoopFirewallDriver
 openstack-config --set /etc/nova/nova.conf DEFAULT transport_url rabbit://openstack:RABBIT_PASS@ct
 openstack-config --set /etc/nova/nova.conf api_database connection mysql+pymysql://nova:NOVA_DBPASS@ct/nova_api
 openstack-config --set /etc/nova/nova.conf database connection mysql+pymysql://nova:NOVA_DBPASS@ct/nova
 openstack-config --set /etc/nova/nova.conf placement_database connection mysql+pymysql://placement:PLACEMENT_DBPASS@ct/placement
 openstack-config --set /etc/nova/nova.conf api auth_strategy keystone
 openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_url http://ct:5000/v3
 openstack-config --set /etc/nova/nova.conf keystone_authtoken memcached_servers ct:11211
 openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_type password
 openstack-config --set /etc/nova/nova.conf keystone_authtoken project_domain_name Default
 openstack-config --set /etc/nova/nova.conf keystone_authtoken user_domain_name Default
 openstack-config --set /etc/nova/nova.conf keystone_authtoken project_name service
 openstack-config --set /etc/nova/nova.conf keystone_authtoken username nova
 openstack-config --set /etc/nova/nova.conf keystone_authtoken password NOVA_PASS
 openstack-config --set /etc/nova/nova.conf vnc enabled true
 openstack-config --set /etc/nova/nova.conf vnc server_listen ' $my_ip'
 openstack-config --set /etc/nova/nova.conf vnc server_proxyclient_address ' $my_ip'
 openstack-config --set /etc/nova/nova.conf glance api_servers http://ct:9292
 openstack-config --set /etc/nova/nova.conf oslo_concurrency lock_path /var/lib/nova/tmp
 openstack-config --set /etc/nova/nova.conf placement region_name RegionOne
 openstack-config --set /etc/nova/nova.conf placement project_domain_name Default
 openstack-config --set /etc/nova/nova.conf placement project_name service
 openstack-config --set /etc/nova/nova.conf placement auth_type password
 openstack-config --set /etc/nova/nova.conf placement user_domain_name Default
 openstack-config --set /etc/nova/nova.conf placement auth_url http://ct:5000/v3
 openstack-config --set /etc/nova/nova.conf placement username placement
 openstack-config --set /etc/nova/nova.conf placement password PLACEMENT_PASS

初始化nova-api数据库
[root@ct conf.d]# su -s /bin/sh -c "nova-manage api_db sync" nova
[root@ct conf.d]# su -s /bin/sh -c "nova-manage cell_v2 map_cell0" nova
#创建cell1单元格
[root@ct conf.d]# su -s /bin/sh -c "nova-manage cell_v2 create_cell --name=cell1 --verbose" nova
0a5e9760-2693-4b1c-ba2f-0791eda1eaff
#初始化nova数据库；可以通过 /var/log/nova/nova-manage.log 日志判断是否初始化成功
[root@ct conf.d]# su -s /bin/sh -c "nova-manage db sync" nova
/usr/lib/python2.7/site-packages/pymysql/cursors.py:170: Warning: (1831, u'Duplicate index `block_device_mapping_instance_uuid_virtual_name_device_name_idx`. This is deprecated and will be disallowed in a future release')
  result = self._query(query)
/usr/lib/python2.7/site-packages/pymysql/cursors.py:170: Warning: (1831, u'Duplicate index `uniq_instances0uuid`. This is deprecated and will be disallowed in a future release')
  result = self._query(query)
#可使用以下命令验证cell0和cell1是否注册成功
[root@ct conf.d]# su -s /bin/sh -c "nova-manage cell_v2 list_cells" nova
+-------+--------------------------------------+----------------------------+-----------------------------------------+----------+
|  名称 |                 UUID                 |       Transport URL        |                数据库连接               | Disabled |
+-------+--------------------------------------+----------------------------+-----------------------------------------+----------+
| cell0 | 00000000-0000-0000-0000-000000000000 |           none:/           | mysql+pymysql://nova:****@ct/nova_cell0 |  False   |
| cell1 | 0a5e9760-2693-4b1c-ba2f-0791eda1eaff | rabbit://openstack:****@ct |    mysql+pymysql://nova:****@ct/nova    |  False   |
+-------+--------------------------------------+----------------------------+-----------------------------------------+----------+

启动nova服务
[root@ct conf.d]# systemctl enable openstack-nova-api.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.service
Created symlink from /etc/systemd/system/multi-user.target.wants/openstack-nova-scheduler.service to /usr/lib/systemd/system/openstack-nova-scheduler.service.
Created symlink from /etc/systemd/system/multi-user.target.wants/openstack-nova-conductor.service to /usr/lib/systemd/system/openstack-nova-conductor.service.
Created symlink from /etc/systemd/system/multi-user.target.wants/openstack-nova-novncproxy.service to /usr/lib/systemd/system/openstack-nova-novncproxy.service.
[root@ct conf.d]#  systemctl start openstack-nova-api.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.service
[root@ct conf.d]#  netstat -tnlup|egrep '8774|8775'		##检查nova端口
tcp        0      0 0.0.0.0:8775            0.0.0.0:*               LISTEN      77149/python2
tcp        0      0 0.0.0.0:8774            0.0.0.0:*               LISTEN      77149/python2

在计算节点配置nova服务
ct1和ct2节点配置相同，除了配置文件中的IP地址不同
[root@ct1 ~]# yum -y install openstack-nova-compute
[root@ct1 ~]# cp -a /etc/nova/nova.conf{,.bak}
[root@ct1 ~]# grep -Ev '^$|#' /etc/nova/nova.conf.bak > /etc/nova/nova.conf

##输入以下内容,注意里面的两个IP地址
openstack-config --set /etc/nova/nova.conf DEFAULT enabled_apis osapi_compute,metadata
openstack-config --set /etc/nova/nova.conf DEFAULT transport_url rabbit://openstack:RABBIT_PASS@ct
openstack-config --set /etc/nova/nova.conf DEFAULT my_ip 192.168.140.20
openstack-config --set /etc/nova/nova.conf DEFAULT use_neutron true
openstack-config --set /etc/nova/nova.conf DEFAULT firewall_driver nova.virt.firewall.NoopFirewallDriver
openstack-config --set /etc/nova/nova.conf api auth_strategy keystone
openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_url http://ct:5000/v3
openstack-config --set /etc/nova/nova.conf keystone_authtoken memcached_servers ct:11211
openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_type password
openstack-config --set /etc/nova/nova.conf keystone_authtoken project_domain_name Default
openstack-config --set /etc/nova/nova.conf keystone_authtoken user_domain_name Default
openstack-config --set /etc/nova/nova.conf keystone_authtoken project_name service
openstack-config --set /etc/nova/nova.conf keystone_authtoken username nova
openstack-config --set /etc/nova/nova.conf keystone_authtoken password NOVA_PASS
openstack-config --set /etc/nova/nova.conf vnc enabled true
openstack-config --set /etc/nova/nova.conf vnc server_listen 0.0.0.0
openstack-config --set /etc/nova/nova.conf vnc server_proxyclient_address ' $my_ip'
openstack-config --set /etc/nova/nova.conf vnc novncproxy_base_url http://192.168.140.10:6080/vnc_auto.html
openstack-config --set /etc/nova/nova.conf glance api_servers http://ct:9292
openstack-config --set /etc/nova/nova.conf oslo_concurrency lock_path /var/lib/nova/tmp
openstack-config --set /etc/nova/nova.conf placement region_name RegionOne
openstack-config --set /etc/nova/nova.conf placement project_domain_name Default
openstack-config --set /etc/nova/nova.conf placement project_name service
openstack-config --set /etc/nova/nova.conf placement auth_type password
openstack-config --set /etc/nova/nova.conf placement user_domain_name Default
openstack-config --set /etc/nova/nova.conf placement auth_url http://ct:5000/v3
openstack-config --set /etc/nova/nova.conf placement username placement
openstack-config --set /etc/nova/nova.conf placement password PLACEMENT_PASS
openstack-config --set /etc/nova/nova.conf libvirt virt_type qemu

在ct节点上查看计算机点是否注册
[root@ct conf.d]# openstack compute service list --service nova-compute
+----+--------------+------+------+---------+-------+----------------------------+
| ID | Binary       | Host | Zone | Status  | State | Updated At                 |
+----+--------------+------+------+---------+-------+----------------------------+
|  8 | nova-compute | ct1  | nova | enabled | up    | 2021-08-27T03:22:35.000000 |
|  9 | nova-compute | ct2  | nova | enabled | up    | 2021-08-27T03:22:33.000000 |
+----+--------------+------+------+---------+-------+----------------------------+

扫描当前openstack中有哪些计算节点可用，发现后会把计算节点创建到cell中，后面就可以在cell中创建虚拟机；相当于openstack内部对计算节点进行分组，把计算节点分配到不同的cell中
[root@ct conf.d]# su -s /bin/sh -c "nova-manage cell_v2 discover_hosts --verbose" nova
Found 2 cell mappings.
Skipping cell0 since it does not contain hosts.
Getting computes from cell 'cell1': 0a5e9760-2693-4b1c-ba2f-0791eda1eaff
Checking host mapping for compute host 'ct1': bfb82c72-838f-4202-a267-4450c92c844b
Creating host mapping for compute host 'ct1': bfb82c72-838f-4202-a267-4450c92c844b
Checking host mapping for compute host 'ct2': e28927d1-c2e1-49be-92a7-d17d92431acf
Creating host mapping for compute host 'ct2': e28927d1-c2e1-49be-92a7-d17d92431acf
Found 2 unmapped computes in cell: 0a5e9760-2693-4b1c-ba2f-0791eda1eaff

##默认每次添加个计算节点，在控制端就需要执行一次扫描，这样会很麻烦，所以可以修改控制端nova的主配置文件
[root@ct conf.d]# vim /etc/nova/nova.conf
[scheduler]
discover_hosts_in_cells_interval = 300		#每300秒扫描一次
[root@ct conf.d]# systemctl restart openstack-nova-api.service

检查 nova 的各个服务是否都是正常，以及 compute 服务是否注册成功
[root@ct conf.d]# openstack compute service list
+----+----------------+------+----------+---------+-------+----------------------------+
| ID | Binary         | Host | Zone     | Status  | State | Updated At                 |
+----+----------------+------+----------+---------+-------+----------------------------+
|  3 | nova-conductor | ct   | internal | enabled | up    | 2021-08-27T03:28:12.000000 |
|  5 | nova-scheduler | ct   | internal | enabled | up    | 2021-08-27T03:28:13.000000 |
|  8 | nova-compute   | ct1  | nova     | enabled | up    | 2021-08-27T03:28:15.000000 |
|  9 | nova-compute   | ct2  | nova     | enabled | up    | 2021-08-27T03:28:13.000000 |
+----+----------------+------+----------+---------+-------+----------------------------+

##查看各个组件的zpi是否正常
[root@ct conf.d]# openstack catalog list
+-----------+-----------+---------------------------------+
| Name      | Type      | Endpoints                       |
+-----------+-----------+---------------------------------+
| placement | placement | RegionOne                       |
|           |           |   internal: http://ct:8778      |
|           |           | RegionOne                       |
|           |           |   public: http://ct:8778        |
|           |           | RegionOne                       |
|           |           |   admin: http://ct:8778         |
|           |           |                                 |
| keystone  | identity  | RegionOne                       |
|           |           |   public: http://ct:5000/v3/    |
|           |           | RegionOne                       |
|           |           |   internal: http://ct:5000/v3/  |
|           |           | RegionOne                       |
|           |           |   admin: http://ct:5000/v3/     |
|           |           |                                 |
| glance    | image     | RegionOne                       |
|           |           |   admin: http://ct:9292         |
|           |           | RegionOne                       |
|           |           |   public: http://ct:9292        |
|           |           | RegionOne                       |
|           |           |   internal: http://ct:9292      |
|           |           |                                 |
| nova      | compute   | RegionOne                       |
|           |           |   internal: http://ct:8774/v2.1 |
|           |           | RegionOne                       |
|           |           |   public: http://ct:8774/v2.1   |
|           |           | RegionOne                       |
|           |           |   admin: http://ct:8774/v2.1    |
|           |           |                                 |
| placement | placement |                                 |
+-----------+-----------+---------------------------------+

查看是否能拿到镜像
[root@ct conf.d]# openstack image list
+--------------------------------------+--------+--------+
| ID                                   | Name   | Status |
+--------------------------------------+--------+--------+
| f7b8bd29-807b-4511-99d6-b398c9653cdf | cirros | active |
+--------------------------------------+--------+--------+

查看cell的api和placement的api是否正常，只要其中一个有误，后期无法创建虚拟机
[root@ct conf.d]# nova-status upgrade check
.+--------------------------------+
| Upgrade Check Results          |
+--------------------------------+
| Check: Cells v2                |
| Result: Success                |
| Details: None                  |
+--------------------------------+
| Check: Placement API           |
| Result: Success                |
| Details: None                  |
+--------------------------------+
| Check: Ironic Flavor Migration |
| Result: Success                |
| Details: None                  |
+--------------------------------+
| Check: Cinder API              |
| Result: Success                |
| Details: None                  |
+--------------------------------+
CPU TechTalk：Power Management and Supply（Ⅰ）
第五位面壁者
06-21 1495
速度和省电就像是矛与盾，二者相互依存却又此消彼长。
X86架构下Intel CPU的power management
zeewee1986的专栏
06-28 4864
这里不提power management的重要性，只说如何理解Intel CPU所提供的对于power management的支持。 在计算机系统里，几乎所有的设备在工作的时候都需要一个时钟频率，即clock，对于CPU来说也不例外。在Intel CPU里，和clock相关的东西有以下几个： core clock：这个是CPU中运算单元实际运行的频率；core refere
09-Maximum Power Mitigation Mechanism (MPMM)
baron-周贺贺-代码改变世界ctw
11-20 1716
MPMM 是一些 Arm Armv9-A 内核支持的可选微架构电源管理机制，从 Cortex-X2、Cortex-A710 和 Cortex-A510 内核开始。 这种机制检测和限制高活动事件，以协助 SoC 处理器电源域动态功率预算，并限制对过流条件的全轨（即时钟斩波）响应的触发。 MPMM 由 EL3 运行时固件基于每个内核启用。 固件无法在运行时确定 MPMM 的存在，因此平台必须通过两种可能的机制之一公开此信息： FCONF，由 ENABLE_MPMM_FCONF 构建选项控制。 plat_mpmm
Linux Power Management for x86 CPU (1)---- C-State
JK198310的专栏
10-16 4255
http://blog.sina.com.cn/s/blog_7014a5340100mv7m.html Linux Power Management for x86 CPU  (1)---- C-State ------------------------------------------------ Modern CPUs are more and more powerful.
Intel CPU Power Management
白杨谷的博客
05-09 6202
Linux中CPU频率那点事
IntelCPUPowerManagement培训.pdf
07-20
介绍了Intel CPU中Global States,Device States,CPU States,PCIE Link PM State,Sleep States
Ipsaki D,Voutetakis S,Seferlis P,et al. Power management strateg
06-21
在能源领域，电力管理系统（Power Management System，PMS）对于优化独立电力系统，尤其是那些依赖可再生能源和储存技术的系统，具有至关重要的作用。本文"Ipsaki D, Voutetakis S, Seferlis P, et al. Power ...
Clock.Power.Management.Advanced.Course.rar_单片机开发_PDF_
08-12
5. **电源管理策略**：介绍低功耗模式，如待机、睡眠、休眠等，以及如何在这些模式下切换，以减少不必要的功耗。 6. **电源转换技术**：探讨DC-DC转换器、LDO（低压差线性稳压器）等电源组件的工作原理和应用，以及...
PCIE Power Management.pdf
01-16
PCIE Power Management PCIE Power Management（Peripheral Component Interconnect Express Power Management）是指在PCIE总线中实现的电源管理技术。该技术的主要目的是降低PCIE设备的功耗，以延长电池的使用寿命...
dmx.zip_DMX_Dmx.zip_power management
09-22
本文将深入探讨标题"dmx.zip_DMX_Dmx.zip_power management"所涉及的DMX技术与电源管理，以及相关文档"power_management___6_channel_dmx_dimmer___an2302_12.pdf"的内容。 首先，DMX（Digital MultipleX）是一种...
NullCPUPowerManagement.kext
04-20
安装mac中必备驱动NullCPUPowerManagement.kext
TNKernel-Power-Management-Demo：超低功耗CPU的TNKernel电源管理（演示）
02-09
TNKernel电源管理演示 描述 此示例显示了低功耗睡眠和深度睡眠操作模式的用法微控制器（该项目用于TI MSP430X MCU，但可以使用任何其他低功耗MCU）。 该演示项目使用TNKernel RTOS 3.0版 自动切换到睡眠和深度睡眠模式非常有效。 该方法消除了不必要的活动时间，并获得了睡眠/深度睡眠性能。 1. CPU睡眠模式 每次，当所有任务完成其当前作业，并且系统进入空闲任务时， 系统检查深度睡眠状况（请参阅下文）。 如果没有深度睡眠条件，则系统进入睡眠模式： •CPU已停止（在LP3模式下） •将适当的硬件设置为睡眠模式 所有外围设备均保持不变。 任何系统中断都将使CPU进入常规操作模式。 2.深度睡眠概念 深度睡眠模式假定以最小的功耗工作。 在深度睡眠模式下： •CPU已停止（在LP3模式下）。 •禁用晶体振荡器20 MHZ，并从晶体32768Hz产生CPU时
usb.rar_power management
09-23
在“usb.rar_power management”这个主题中，我们可以深入探讨USB设备的电源管理抽象层。这一层的主要任务是处理USB设备的电源访问，确保它们在需要时能获得电力，而在空闲或不工作时则节省能源。 `usb.c`和`core.c...
Power Management
sunweizhong1024的专栏
12-03 8973
Power Management 迫切的想知道power management 的流程。 对整个流程稍微整理了下 参考这个链接http://blog.csdn.net/suntao222/article/details/8162938 还有这个链接;http://blog.csdn.net/tommy_wxie/article/details/7208633
PCIe扫盲——Power Management概述（一）
zsmcdut的博客
09-10 2254
转http://blog.chinaaet.com/justlxy/p/5100061872 PCIe总线定义的与功耗管理功能（Power Management，PM）相关的主要有：PCI-Compatible PM、Native PCIe Extensions、Bandwith Management和Event Timing Optimization。 其中，PCI-Compatible PM是一种在软件上和硬
【笔记】CPU 性能调节
NEWLIA 在 优快云 的博客。
08-15 4114
CPU frequency scaling CPU Performance Scaling
arm64架构分析
tugouxp的专栏
04-24 5328
arm64架构分析 此文分析基于arm官方文档 ARM Architecture Reference Manual ARMv8, for ARMv8-A architecture profile ARM Architecture Reference Manual Supplement ARMv8.1, for ARMv8-A architecture profile Errata marku...
[architecture]-ARMV8的一些总结-一篇就够了
热门推荐
baron-周贺贺-代码改变世界ctw
09-29 1万+
ARM、armv8、armv9、arm架构、arm视频、添加vx : arm_2023 获取更多资料, arm资料、arm下载、arm学习、arm免费、arm课程， PE - processing element ARM体系结构定义了抽象机器的行为，称为处理元素（processing element），通常缩写为PE。与ARM体系结构兼容的实现必须符合处理元素所描述的行为。 RISC架构 ARM架构是一个精简指令集计算机(RISC)架构，具有以下RISC架构特征： - 一个大的统一寄存器文件。 - 一种
spring-boot-autoconfigure-2.5.9.jar中文-英文对照文档.zip
最新发布
05-11
# 压缩文件中包含： 中文-英文对照文档 jar包下载地址 Maven依赖 Gradle依赖 源代码下载地址 # 本文件关键字： jar中文-英文对照文档.zip,java,jar包,Maven,第三方jar包,组件,开源组件,第三方组件,Gradle,中文API文档,手册,开发手册,使用手册,参考手册 # 使用方法： 解压最外层zip，再解压其中的zip包，双击 【index.html】 文件，即可用浏览器打开、进行查看。 # 特殊说明： ·本文档为人性化翻译，精心制作，请放心使用。 ·只翻译了该翻译的内容，如：注释、说明、描述、用法讲解 等； ·不该翻译的内容保持原样，如：类名、方法名、包名、类型、关键字、代码 等。 # 温馨提示： （1）为了防止解压后路径太长导致浏览器无法打开，推荐在解压时选择“解压到当前文件夹”（放心，自带文件夹，文件不会散落一地）； （2）有时，一套Java组件会有多个jar，所以在下载前，请仔细阅读本篇描述，以确保这就是你需要的文件；
pcie power management
08-26
PCIe（Peripheral Component Interconnect Express）是一种计算机扩展总线接口，用于连接计算机主板和其他设备，如显卡、网卡和存储设备等。PCIe电源管理是一种技术，用于管理和控制这些设备的电源消耗，以提高能源效率和延长设备的寿命。 PCie电源管理有几个主要方面： 1. 睡眠模式（Sleep Mode）：当PCIe设备处于空闲状态时，可以进入睡眠模式以节省能源。睡眠模式可以降低设备的功耗，并将设备从活动状态转换为低功耗状态，以便待机使用。 2. 电源状态管理（Power State Management）：PCIe设备可以在不同的电源状态之间切换，根据需要调整功耗。例如，设备可以在正常模式、节能模式和待机模式之间切换，以便根据具体的工作负载和需求来调整功耗。 3. 数据传输优化：PCIe电源管理技术还可以优化数据传输，以降低功耗。例如，可以使用通过数据压缩和解压缩来减少数据传输量，从而降低功耗和延长设备的寿命。 4. 功耗监测和报告：PCIe电源管理技术可以监测设备的功耗，并提供相应的报告和统计数据。通过监测设备的功耗，用户可以了解设备的能耗情况，并采取相应的措施来优化设备的电源管理。 总之，PCIe电源管理是一种重要的技术，可以提高设备能源效率、延长设备寿命，并对整个计算机系统的能耗进行优化。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
