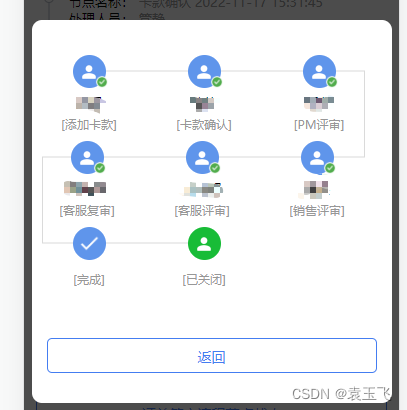

移动端流程图，对数据的处理。

 上述页面的开发，需要对数据进行处理。如果接口返回的是一维数组，需要将之处理为二维数组，原因是为了控制一行展示多少条数据，处理好数据后，直接对其进行遍历即可。

<template>
  <!-- 订单签审流程图展示 -->
  <view class="components-task-flow">
    <view v-for="(item, index) in flowList" :key="index" class="task-flow__row" :class="{ 'row-reverse': (index + 1) % 2 == 0 }">
<!-- row-reverse 样式 当为偶数行时，将数据进行翻转 -->
      <!-- 线条 -->
      <!-- 奇数行 -->
      <template v-if="(index + 1) % 2 != 0">
        <view v-if="item.length >= 1 && index != 0" class="line line-a"></view>
        <view v-if="item.length >= 2" class="line line-b"></view>
        <view v-if="item.length == 3" class="line line-c"></view>
        <view v-if="item.length == 3 && index + 1 != flowList.length" class="line line-d"></view>
      </template>
      <!-- 偶数行 -->
      <template v-if="(index + 1) % 2 == 0">
        <view v-if="item.length >= 1 && index != 0" class="line line-d"></view>
        <view v-if="item.length >= 2" class="line line-c"></view>
        <view v-if="item.length == 3" class="line line-b"></view>
        <view v-if="item.length == 3 && index + 1 != flowList.length" class="line line-a"></view>
      </template>
      <view v-if="index + 1 != flowList.length && (index + 1) % 2 != 0" class="line-column-right"></view>
      <view v-if="index + 1 != flowList.length && (index + 1) % 2 == 0" class="line-column-left"></view>
      <!-- 流程节点 -->
      <view v-for="(sonItem, sonIndex) in item" :key="sonItem.id" class="flow__item" :class="{ 'center-node': sonIndex == 1 }">
        <view v-if="sonItem.node == '完成'" class="success-icon" :class="{ done__node: sonItem.hasDone, current__node: sonItem.currentFlag }">
          <image class="success-icon-img" src="@/static/success__icon.png"></image>
        </view>
        <view v-else class="default__node" :class="{ done__node: sonItem.hasDone, current__node: sonItem.currentFlag }">
          <view class="user-icon"></view>
        </view>
        <view v-if="sonItem.hasDone && sonItem.node != '完成'" class="complete-icon"></view>
        <view class="detail__info">
          <view class="user-name">{{ sonItem.processor }}</view>
          <view class="node-name">[{{ sonItem.node }}]</view>
        </view>
      </view>
    </view>
  </view>
</template>

<script>
export default {
  name: 'components-task-flow',
  props: {
    /**
     * 流程图数据
     */
//接口请求到的，流程图一维数据
    taskFlowList: {
      type: Array,
      default: () => [],
    },
  },
  computed: {
    flowList() {
      let taskFlowList = this.taskFlowList
      let list = this.sliceIntoChunks(taskFlowList, 3)
      console.log('flowList', list)
      return list
    },
  },
  methods: {
    /**
     * 把数组分割成指定大小的二维数组
     */
    sliceIntoChunks(arr, chunkSize) {
      const res = []
      //   let num = 3 // 需要翻转的数组标识
      for (let i = 0; i < arr.length; i += chunkSize) {
        let chunk = arr.slice(i, i + chunkSize)
        // if (i == num) {
        //   chunk = chunk.reverse()
        //   num += 6
        // }
        res.push(chunk)
      }
      return res
    },
  },
}
</script>

<style lang="less" scoped>
.components-task-flow {
  width: 646rpx;
  position: relative;
  display: flex;
  flex-direction: column;
  box-sizing: border-box;

  .user-icon {
    width: 28rpx;
    height: 28rpx;
    background: url('~@/static/user-icon.png') center/28rpx 28rpx no-repeat;
  }

  .complete-icon {
    width: 29rpx;
    height: 29rpx;
    background: url('~@/static/complete-icon.png') center/29rpx 29rpx no-repeat;
  }

  .task-flow__row {
    position: relative;
    display: flex;
    height: 172rpx;
    box-sizing: border-box;
    padding: 0 62rpx;

    .line {
      position: absolute;
      top: 32rpx;
      height: 2rpx;
      background: #dadada;
      transform: translateY(-50%);
    }

    .line-a {
      left: 0;
      width: 62rpx;
    }

    .line-b {
      left: 124rpx;
      width: 168rpx;
    }

    .line-c {
      right: 124rpx;
      width: 172rpx;
    }

    .line-d {
      right: 0;
      width: 64rpx;
    }

    .line-column-right {
      position: absolute;
      top: 32rpx;
      right: 0;
      width: 2rpx;
      height: 172rpx;
      background: #dadada;
    }

    .line-column-left {
      position: absolute;
      top: 32rpx;
      left: 0;
      width: 2rpx;
      height: 172rpx;
      background: #dadada;
    }

    .flow__item {
      position: relative;
      width: 66rpx;
      height: 66rpx;

      .success-icon {
        display: flex;
        justify-content: center;
        align-items: center;
        width: 66rpx;
        height: 66rpx;
        background: #c7c9ce;
        overflow: hidden;
        border-radius: 50%;

        .success-icon-img {
          width: 46rpx;
          height: 46rpx;
        }
      }

      .default__node {
        display: flex;
        justify-content: center;
        align-items: center;
        width: 66rpx;
        height: 66rpx;
        background: #c7c9ce;
        border-radius: 50%;
      }

      .done__node {
        background: #5f95eb;
      }

      .current__node {
        background: #18bc37;
      }

      .complete-icon {
        position: absolute;
        left: 45rpx;
        top: 41rpx;
      }

      .detail__info {
        width: 168rpx;
        position: absolute;
        left: 50%;
        bottom: -13rpx;
        transform: translate(-50%, 100%);
        display: flex;
        flex-direction: column;
        align-items: center;
        text-align: center;

        .user-name {
          width: 100%;
          font-size: 26rpx;
          font-family: PingFang SC;
          font-weight: 500;
          color: #000000;
          overflow: hidden;
          text-overflow: ellipsis;
          white-space: nowrap;
        }

        .node-name {
          width: 100%;
          margin-top: 10rpx;
          font-size: 22rpx;
          font-family: PingFang SC;
          font-weight: 400;
          color: #979797;
          overflow: hidden;
          text-overflow: ellipsis;
          white-space: nowrap;
        }
      }
    }

    .center-node {
      margin: 0 164rpx;
    }
  }

  .row-reverse {
    flex-direction: row-reverse;
  }
}
</style>
