YOLO目标检测.xml和.json文件转为.txt标签文件格式

        在python中创建一个.py文件，然后把文件路径填为自己的就行

1.xml转txt

import os
import xml.etree.ElementTree as ET

# YOLO 格式转换函数
def convert_xml_to_yolo(xml_file, output_file, image_width, image_height):
    # 解析 XML 文件
    tree = ET.parse(xml_file)
    root = tree.getroot()

    with open(output_file, 'w') as f:
        for obj in root.findall("object"):
            # 获取类别名称
            label_name = obj.find("name").text

            # 根据类别名称映射到类别 ID
            label_to_name = {
                "Alligator crack": 0,
                "Longitudinal crack": 1,
                "Oblique crack": 2,
                "Repair": 3,
                "Transverse crack": 4
            }
            label_id = label_to_name.get(label_name, -1)
            if label_id == -1:
                print(f"未知类别: {label_name}")
                continue

            # 获取边界框信息
            bndbox = obj.find("bndbox")
            x_min = float(bndbox.find("xmin").text)
            y_min = float(bndbox.find("ymin").text)
            x_max = float(bndbox.find("xmax").text)
            y_max = float(bndbox.find("ymax").text)

            # 转换为 YOLO 格式
            x_center = (x_min + x_max) / 2 / image_width
            y_center = (y_min + y_max) / 2 / image_height
            width = (x_max - x_min) / image_width
            height = (y_max - y_min) / image_height

            # 写入 .txt 文件
            f.write(f"{label_id} {x_center:.6f} {y_center:.6f} {width:.6f} {height:.6f}\n")


# 批量转换函数
def convert_xml_folder_to_yolo(input_folder, output_folder, image_width, image_height):
    # 确保输出文件夹存在
    if not os.path.exists(output_folder):
        os.makedirs(output_folder)

    # 遍历 XML 文件夹中的所有文件
    for filename in os.listdir(input_folder):
        if filename.endswith(".xml"):
            xml_file_path = os.path.join(input_folder, filename)
            txt_file_path = os.path.join(output_folder, f"{os.path.splitext(filename)[0]}.txt")

            # 转换为 YOLO 格式
            convert_xml_to_yolo(xml_file_path, txt_file_path, image_width, image_height)
            print(f"转换完成: {xml_file_path} -> {txt_file_path}")


# 主函数
if __name__ == "__main__":
    # 输入文件夹路径
    input_folder = r"D:\labels\xml\test"  # XML 文件夹路径
    output_folder = r"D:\labels\test"  # 输出 TXT 文件夹路径
    image_width = 1024  # 图像宽度
    image_height = 1024  # 图像高度

    # 批量转换
    convert_xml_folder_to_yolo(input_folder, output_folder, image_width, image_height)

2.json转.txt

import json
import os

# 标签类别和对应的 ID
label_to_id = {
    "Alligator crack": 0,
    "Longitudinal crack": 1,
    "Oblique crack": 2,
    "Repair": 3,
    "Transverse crack": 4
}

def convert_to_yolo_format(json_file):
    with open(json_file, 'r') as f:
        data = json.load(f)

    image_width = data["imageWidth"]
    image_height = data["imageHeight"]
    output_txt = []

    for shape in data["shapes"]:
        label = shape["label"]
        points = shape["points"]

        # 获取边界框的四个角坐标
        x_min = min([point[0] for point in points])
        x_max = max([point[0] for point in points])
        y_min = min([point[1] for point in points])
        y_max = max([point[1] for point in points])

        # 计算中心点坐标和宽度/高度
        x_center = (x_min + x_max) / 2
        y_center = (y_min + y_max) / 2
        width = x_max - x_min
        height = y_max - y_min

        # 将坐标归一化
        x_center_norm = x_center / image_width
        y_center_norm = y_center / image_height
        width_norm = width / image_width
        height_norm = height / image_height

        # 获取标签 ID
        label_id = label_to_id.get(label, -1)

        # 存储转换后的结果
        output_txt.append(f"{label_id} {x_center_norm} {y_center_norm} {width_norm} {height_norm}")

    return output_txt

def save_yolo_labels(output_txt, output_file):
    with open(output_file, 'w') as f:
        for line in output_txt:
            f.write(line + '\n')

# 输入文件夹路径
input_folder = r"D:\labels\test"  # 请替换为你的文件夹路径
output_folder = r"D:\labels\txt版本\test"  # 请替换为你想保存的txt文件夹路径

# 遍历文件夹中的所有 JSON 文件
for filename in os.listdir(input_folder):
    if filename.endswith(".json"):
        json_file_path = os.path.join(input_folder, filename)

        # 为输出 txt 文件创建对应的路径
        output_txt_file = os.path.join(output_folder, f"{os.path.splitext(filename)[0]}.txt")

        # 转换为 YOLO 格式
        yolo_labels = convert_to_yolo_format(json_file_path)

        # 保存到 txt 文件
        save_yolo_labels(yolo_labels, output_txt_file)

        print(f"YOLO 格式标签已保存到: {output_txt_file}")

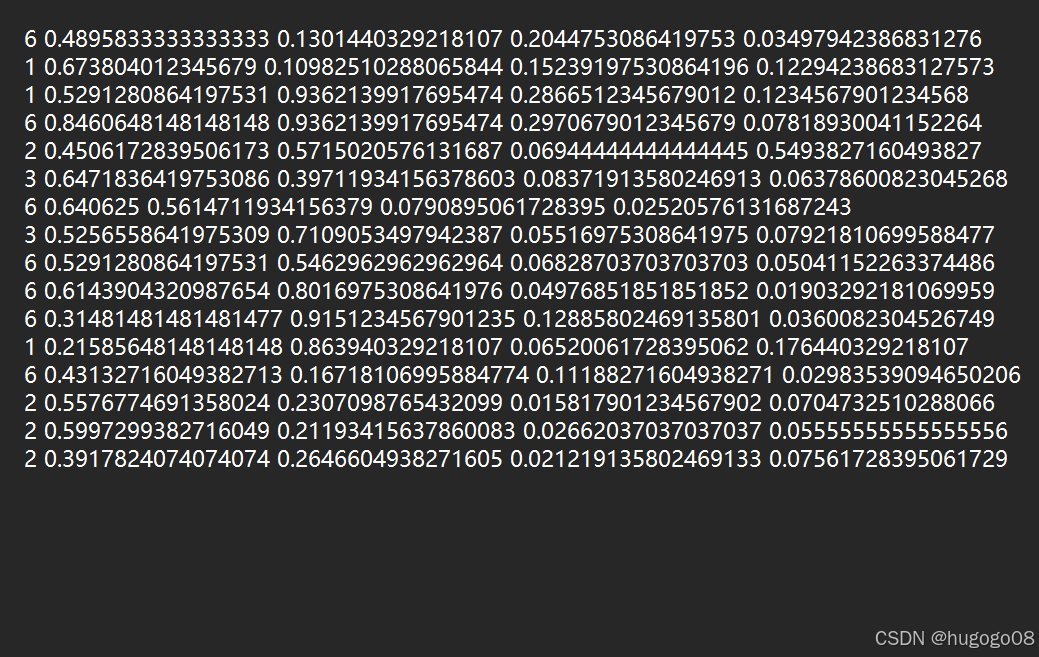

使用上述代码即可转换为下列.txt标签格式啦
