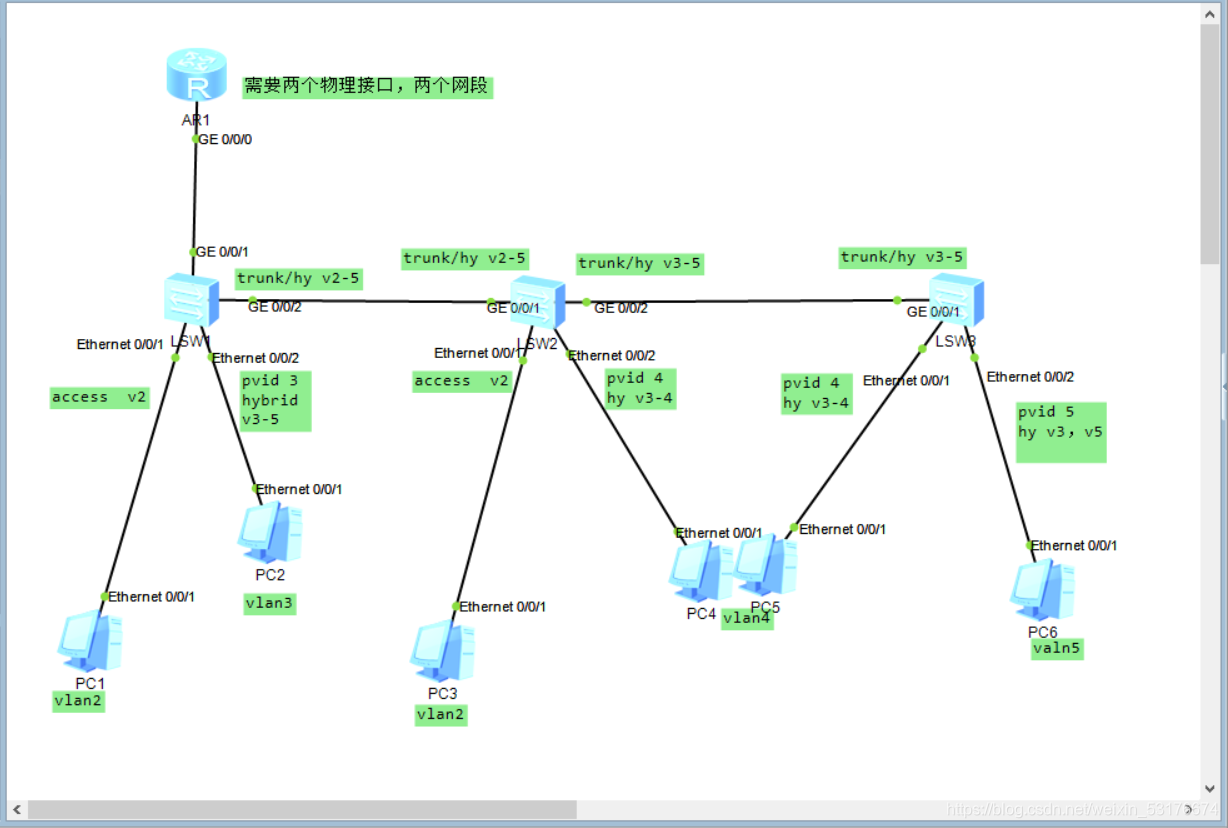

由图中要求得
pc1/3在vlan2，access锁定
pc6在一个vlan5
pc2在一个vlan3
pc4/5在vlan4
需要两个网段
配置思路
1、交换机上创建vlan
2、交换机上的各个接口划分到对应的vlan中
3、trunk干道—中继干道

LSW1配置

[sw1]vlan batch 2 to 5
[sw1]interface Ethernet0/0/1
[sw1-Ethernet0/0/1]port link-type access
[sw1-Ethernet0/0/1]port default vlan 2
[sw1]interface e0/0/2
[sw1-GigabitEthernet0/0/2]port hybrid pvid vlan 3
[sw1-GigabitEthernet0/0/2]port hybrid untagged vlan 3 to 5
[sw1]int g0/0/2
[sw1-GigabitEthernet0/0/2]port link-type trunk
[sw1-GigabitEthernet0/0/2]port trunk allow-pass vlan 2 to 5
[sw1]int g0/0/1
[sw1-GigabitEthernet0/0/1]port hybrid tagged vlan 2
[sw1-GigabitEthernet0/0/1]port hybrid untagged vlan 3 to 5

LSW2配置

[sw2]int e0/0/1
[sw2-Ethernet0/0/1]port link-type access
[sw2-Ethernet0/0/1]port default vlan 2
[sw2]int e0/0/2
[sw2-Ethernet0/0/2] port hybrid pvid vlan 4
[sw2-Ethernet0/0/2] port hybrid untagged vlan 3 to 4
[sw2]interface g0/0/1
[sw2-GigabitEthernet0/0/1]port hybrid tagged vlan 2 to 5
[sw2]int g0/0/2
[sw2-GigabitEthernet0/0/2] port hybrid tagged vlan 3 to 5

LSW3配置

[sw3]int e0/0/1
[sw3-Ethernet0/0/1]port hybrid pvid vlan 4
[sw3-Ethernet0/0/1] port hybrid untagged vlan 3 to 4
[sw3]int e0/0/2
[sw3-Ethernet0/0/2]port hybrid pvid vlan 5
[sw3-Ethernet0/0/2]port hybrid untagged vlan 3 5
[sw3]int g0/0/1
[sw3-GigabitEthernet0/0/1] port link-type trunk
[sw3-GigabitEthernet0/0/1]	port trunk allow-pass vlan 3 to 5

路由器配置

路由器要分为两个物理接口并且拥有两个网段vlan2在一个网段，vlan345在一个网段

[Huawei]interface g0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 192.168.1.1 24
[Huawei-GigabitEthernet0/0/0]int g0/0/0.1
[Huawei-GigabitEthernet0/0/0.1]dot1q termination vid 2
[Huawei-GigabitEthernet0/0/0.1]arp broadcast enable
[Huawei-GigabitEthernet0/0/0.1]ip address 192.168.2.1 24
[Huawei]dhcp enable
[Huawei]ip pool a
[Huawei-ip-pool-a]network 192.168.1.0 mask 24
[Huawei-ip-pool-a]gateway-list 192.168.1.1
[Huawei-ip-pool-a]dns-list 114.114.114.114 8.8.8.8
[Huawei]ip pool b
[Huawei-ip-pool-b]network 192.168.2.0 mask 24
[Huawei-ip-pool-b]gateway-list 192.168.2.1
[Huawei-ip-pool-b]dns-list 114.114.114.114 8.8.8.8
[Huawei]interface g0/0/0
[Huawei-GigabitEthernet0/0/0]dhcp select global
[Huawei-GigabitEthernet0/0/0]int g0/0/0.1
[Huawei-GigabitEthernet0/0/0.1]dhcp select global
