准备工作

①创建 Maven Module

②导入依赖

<packaging>war</packaging>
    <properties>
        <spring.version>5.3.1</spring.version>
    </properties>
    <dependencies>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-context</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-beans</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <!--springmvc-->
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-web</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-webmvc</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-jdbc</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-aspects</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-test</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <!-- Mybatis核心 -->
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis</artifactId>
        <version>3.5.7</version>
    </dependency>
    <!--mybatis和spring的整合包-->
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis-spring</artifactId>
        <version>2.0.6</version>
    </dependency>
    <!-- 连接池 -->
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid</artifactId>
        <version>1.0.9</version>
    </dependency>
    <!-- junit测试 -->
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.12</version>
        <scope>test</scope>
    </dependency>
    <!-- MySQL驱动 -->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>5.1.49</version>
    </dependency>
    <!-- log4j日志 -->
    <dependency>
        <groupId>log4j</groupId>
        <artifactId>log4j</artifactId>
        <version>1.2.17</version>
    </dependency>
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
            <version>5.2.0</version>
        </dependency>
        <!-- 日志 -->
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>1.2.3</version>
        </dependency>
        <!-- ServletAPI -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.12.1</version>
        </dependency>
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.1</version>
        </dependency>
        <!-- Spring5和Thymeleaf整合包 -->
        <dependency>
            <groupId>org.thymeleaf</groupId>
            <artifactId>thymeleaf-spring5</artifactId>
            <version>3.0.12.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.26</version>
            <optional>true</optional>
        </dependency>
    </dependencies>

③创建表

CREATE TABLE `t_emp` (
`emp_id` int(11) NOT NULL AUTO_INCREMENT,
`emp_name` varchar(20) DEFAULT NULL,
`age` int(11) DEFAULT NULL,
`sex` char(1) DEFAULT NULL,
`email` varchar(50) DEFAULT NULL,
PRIMARY KEY (`emp_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8

配置 web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
    <!--设置编码过滤器解决post请求乱码问题-->
    <filter>
        <filter-name>CharacterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>CharacterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <!--处理请求方式过滤器    -->
    <filter>
        <filter-name>HiddenHttpMethodFilter</filter-name>
        <filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
    </filter>
    <filter-mapping>
        <filter-name>HiddenHttpMethodFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <!--设置SpringMVC的前端控制器-->
    <servlet>
        <servlet-name>SpringMVC</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:springmvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>SpringMVC</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
    <!--配置spring监听器，在服务器启动时加载Spring的配置文件    -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <!-- 设置Spring的配置文件的位置和名称 -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:spring.xml</param-value>
    </context-param>
</web-app>

创建 SpringMVC 的配置文件并配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!--    扫描控制层组件-->
    <context:component-scan base-package="com.songqiao.ssm.controller"></context:component-scan>
    <!-- 配置Thymeleaf视图解析器 -->
    <bean id="viewResolver" class="org.thymeleaf.spring5.view.ThymeleafViewResolver">
        <property name="order" value="1"/>
        <property name="characterEncoding" value="UTF-8"/>
        <property name="templateEngine">
            <bean class="org.thymeleaf.spring5.SpringTemplateEngine">
                <property name="templateResolver">
                    <bean class="org.thymeleaf.spring5.templateresolver.SpringResourceTemplateResolver">
                        <!--物理视图=视图前缀+逻辑视图+试图后缀
                        使用逻辑视图即可访问到我们想访问的页面
                        本案例中的逻辑视图是index
                        -->
                        <!-- 视图前缀 -->
                        <property name="prefix" value="/WEB-INF/templates/"/>
                        <!-- 视图后缀 -->
                        <property name="suffix" value=".html"/>
                        <property name="templateMode" value="HTML5"/>
                        <property name="characterEncoding" value="UTF-8" />
                    </bean>
                </property>
            </bean>
        </property>
    </bean>
    <!-- 配置默认的servlet处理静态资源 -->
    <mvc:default-servlet-handler />
    <!--   开启mvc的注解驱动 -->
    <mvc:annotation-driven></mvc:annotation-driven>
    <!--
        视图控制器：为当前的请求设置视图名称实现页面跳转
        若设置视图控制器，则只有视图控制器的请求会被处理，其他的请求将会全部404
        此时需要开启mvc的注解驱动
    -->
    <mvc:view-controller path="/" view-name="index"></mvc:view-controller>
</beans>

搭建 MyBatis 环境

①创建属性文件 jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://127.0.0.1:3306/sssm?useSSL=false
jdbc.username=root
jdbc.password=123456

②创建 MyBatis 的核心配置文件 mybatis-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
<!--    都可以在spring.xml中配置-->
    <settings>
    <!--   映射下划线为驼峰 如果属性名与字段名没对上时使用     -->
        <setting name="mapUnderscoreToCamelCase" value="true"/>
    </settings>

    <!--    配置分页插件-->
    <plugins>
        <plugin interceptor="com.github.pagehelper.PageInterceptor"></plugin>
    </plugins>
</configuration>

③创建 Mapper 接口和映射文件

@Repository
@Mapper
public interface EmployeeMapper {

    List<Employee> getAllEmployee();


    void addEmployee(Employee employee);

    Employee selectById(@Param("empId") Integer empId);

    void updateEmployee(Employee employee);

    void deleteEmployee(@Param("empId") Integer empId);
}

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.songqiao.ssm.mapper.EmployeeMapper">
<!--namespace根据自己需要创建的的mapper的路径和名称填写-->
    <select id="getAllEmployee" resultType="Employee">
        select * from t_emp
    </select>

    <select id="selectById" resultType="Employee">
        select * from t_emp where emp_id=#{empId}
    </select>

    <insert id="addEmployee" parameterType="Employee">
        insert into t_emp (emp_name,age,sex,email) values (#{empName},#{age},#{sex},#{email});
    </insert>

    <delete id="deleteEmployee" parameterType="integer">
        delete from t_emp where emp_id=#{empId}
    </delete>

    <update id="updateEmployee" parameterType="Employee">
        update t_emp
        set emp_name=#{empName},sex=#{sex},email=#{email},age=#{age}
        where emp_id=#{empId}
    </update>
</mapper>

④创建日志文件 log4j.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE log4j:configuration SYSTEM "log4j.dtd">
<log4j:configuration xmlns:log4j="http://jakarta.apache.org/log4j/">
    <appender name="STDOUT" class="org.apache.log4j.ConsoleAppender">
        <param name="Encoding" value="UTF-8" />
        <layout class="org.apache.log4j.PatternLayout">
            <param name="ConversionPattern" value="%-5p %d{MM-dd HH:mm:ss,SSS}
%m (%F:%L) \n" />
        </layout>
    </appender>
    <logger name="java.sql">
        <level value="debug" />
    </logger>
    <logger name="org.apache.ibatis">
        <level value="info" />
    </logger>
    <root>
        <level value="debug" />
        <appender-ref ref="STDOUT" />
    </root>
</log4j:configuration>

创建 Spring 的配置文件并配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">

<!--  扫描组件，除了控制层-->
    <context:component-scan base-package="com.songqiao.ssm">
        <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>
<!--引入jdbc.properties-->
    <context:property-placeholder location="classpath:jdbc.properties"></context:property-placeholder>
<!--    配置数据源-->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${jdbc.driver}"></property>
        <property name="url" value="${jdbc.url}"></property>
        <property name="username" value="${jdbc.username}"></property>
        <property name="password" value="${jdbc.password}"></property>
    </bean>
<!--    配置事务管理器-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"></property>
    </bean>
<!--
    开启事务的注解驱动
    将使用注解@Transactional标识的方法或类中所有的方法进行事务管理
-->
    <tx:annotation-driven transaction-manager="transactionManager"></tx:annotation-driven>
<!--    配置SqlSessionFactoryBean,可以直接在Spring的IOC中获取SqlSessionFactory-->
    <bean class="org.mybatis.spring.SqlSessionFactoryBean">
<!--    设置Mybatis的核心配置文件路径-->
        <property name="configLocation" value="classpath:mybatis-config.xml"></property>
<!--    设置数据源-->
        <property name="dataSource" ref="dataSource"></property>
<!--    设置类型别名-->
        <property name="typeAliasesPackage" value="com.songqiao.ssm.pojo"></property>
<!--    设置映射文件路径，只有映射文件的包和mapper接口的包不一致时-->
        <property name="mapperLocations" value="classpath:mapper/*.xml"></property>
    </bean>
<!--    配置mapper接口的扫描，将制定包下所有的mapper接口，通过SqlSession创建代理实现类对象，并将这些对象交给IOC容器管理-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.songqiao.ssm.mapper"></property>
    </bean>
</beans>

测试功能

①创建组件

实体类 Employee

package com.songqiao.ssm.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Employee {
    private Integer empId;
    private String empName;
    private String age;
    private String sex;
    private String email;
}

创建控制层组件 EmployeeController

/**
 * 1.查询所有员工信息--->/employee-->get
 * 1.1.查询员工分页信息--->/employee/page/1-->get
 * 2.跳转到添加页面----->/to/add-->get
 * 3.新增员工信息------>/employee-->post
 * 4.跳转到修改页面--->/employee/1-->get
 * 5.修改员工信息--->/employee-->put
 * 6.删除员工信息--->/employee/1-->delete
 */
@Controller
public class EmployeeController {

    @Autowired
    private EmployeeService employeeService;

    @GetMapping("/employee/page/{pageNum}")
    public String getEmployeePage(@PathVariable("pageNum") Integer pageNum,Model model){
        //获取员工分页信息
        PageInfo<Employee> page=employeeService.getEmployeePage(pageNum);
        //将分页数据共享到请求域中
        model.addAttribute("page",page);
        //跳转到employee_list.html
        return "employee_list";
    }

    @GetMapping("/to/add")
    public String toAddPage(){
        return "employee_add";
    }

    @PostMapping("/employee")
    public String addEmployee(Employee employee){
        employeeService.addEmployee(employee);
        return "redirect:/employee/page/1";
    }

    //4.跳转到修改页面--->/employee/1-->get
    @GetMapping("/employee/{empId}")
    public String toUpdatePage(@PathVariable("empId") Integer empId,Model model){
        //根据id查询员工
        Employee employee = employeeService.selectById(empId);
        //把员工信息放入请求域中
        model.addAttribute("employee",employee);
        return "employee_update";
    }
    //5.修改员工信息--->/employee-->put
    @PutMapping("/employee")
    public String updateEmployee(Employee employee){
        employeeService.updateEmployee(employee);
        return "redirect:/employee/page/1";
    }
    //6.删除员工信息--->/employee/1-->delete
    @RequestMapping("/deleteEmployee/{empId}")
    public String deleteEmployee(@PathVariable("empId") Integer empId){
        employeeService.deleteEmployee(empId);
        return "redirect:/employee/page/1";
    }

    @GetMapping("/employee")
    public String getAllEmployee(Model model){
        //查询所有员工信息
        List<Employee> list=employeeService.getAllEmployee();
        //将员工信息在请求域中共享
        model.addAttribute("list",list);
        //跳转到employee_list.html
        return "employee_list";
    }
}

创建接口 EmployeeService

public interface EmployeeService {

    List<Employee> getAllEmployee();

    PageInfo<Employee> getEmployeePage(Integer pageNum);

    void addEmployee(Employee employee);

    Employee selectById(Integer empId);

    void updateEmployee(Employee employee);

    void deleteEmployee(Integer empId);
}

创建实现类 EmployeeServiceImpl

@Service
//开启事务管理
@Transactional
public class EmployeeServiceImpl implements EmployeeService {
    @Autowired
    private EmployeeMapper employeeMapper;
    @Override
    public List<Employee> getAllEmployee() {
        return  employeeMapper.getAllEmployee();
    }

    @Override
    public PageInfo<Employee> getEmployeePage(Integer pageNum) {
        //开启分页功能
        PageHelper.startPage(pageNum,4);
        //查询所有员工信息
        List<Employee> list = employeeMapper.getAllEmployee();
        //获取分页相关数据
        PageInfo<Employee> page=new PageInfo<>(list,5);
        return page;
    }

    @Override
    public void addEmployee(Employee employee) {
        employeeMapper.addEmployee(employee);
    }

    @Override
    public Employee selectById(Integer empId) {
        return employeeMapper.selectById(empId);
    }

    @Override
    public void updateEmployee(Employee employee) {
        employeeMapper.updateEmployee(employee);
    }

    @Override
    public void deleteEmployee(Integer empId) {
        employeeMapper.deleteEmployee(empId);
    }
}

②创建页面

1.添加页面

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>添加</title>
</head>
<body>
    <form th:action="@{/employee}" method="post">
        <table>
            <tr>
                <th colspan="2">添加数据</th>
            </tr>
            <tr>
                <td>姓名</td>
                <td>
                    <input type="text" name="empName">
                </td>
            </tr>
            <tr>
                <td>年龄</td>
                <td>
                    <input type="text" name="age">
                </td>
            </tr>
            <tr>
                <td>邮箱</td>
                <td>
                    <input type="text" name="email">
                </td>
            </tr>
            <tr>
                <td>性别</td>
                <td>
                    <input type="radio" name="sex" value="1">男
                    <input type="radio" name="sex" value="0">女
                </td>
            </tr>
            <tr>
                <td colspan="2">
                    <input type="submit" value="添加！">
                </td>
            </tr>
        </table>
    </form>
</body>
</html>

2.修改页面

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>修改</title>
</head>
<body>
<form th:action="@{/employee}" method="post">
    <input type="hidden" name="_method" value="put">
    <input type="hidden" name="empId" th:value="${employee.empId}">
    <table>
        <tr>
            <th colspan="3">修改数据</th>
        </tr>
        <tr>
            <td>姓名</td>
            <td>
                <input type="text" name="empName" th:value="${employee.empName}">
            </td>
        </tr>
        <tr>
            <td>邮箱</td>
            <td>
                <input type="text" name="email" th:value="${employee.email}">
            </td>
        </tr>
        <tr>
            <td>年龄</td>
            <td>
                <input type="text" name="age" th:value="${employee.age}">
            </td>
        </tr>
        <tr>
            <td>性别</td>
            <td>
                <input type="radio" name="sex" value="1" th:field="${employee.sex}">男
                <input type="radio" name="sex" value="0" th:field="${employee.sex}">女
            </td>
        </tr>
        <tr>
            <td colspan="3">
                <input type="submit" value="修改">
            </td>
        </tr>
    </table>
</form>
</body>
</html>

3.展示数据页面

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>员工列表</title>
</head>
<body>
    <table>
        <tr>
            <th colspan="6">员工列表</th>
        </tr>
        <tr>
            <th>序号(流水号)</th>
            <th>员工姓名</th>
            <th>年龄</th>
            <th>邮箱</th>
            <th>性别</th>
            <th>操作(<a th:href="@{/to/add}">添加</a> )</th>
        </tr>
        <tr th:each="employee,status : ${page.list}">
            <td th:text="${status.count}"></td>
            <td th:text="${employee.empName}"></td>
            <td th:text="${employee.age}"></td>
            <td th:text="${employee.email}"></td>
            <td th:text="${employee.sex}"></td>
            <td>
                <a th:href="@{'/deleteEmployee/'+${employee.empId}}">删除</a>
                <a th:href="@{'/employee/'+${employee.empId}}">修改</a>
            </td>
        </tr>
    </table>
<div style="text-align: center">
    <a th:if="${page.hasPreviousPage}" th:href="@{/employee/page/1}">首页</a>
    <a th:if="${page.hasPreviousPage}" th:href="@{'/employee/page/'+${page.prePage}}">上一页</a>
    <span th:each="num : ${page.navigatepageNums}">
        <a th:if="${page.pageNum==num}" style="color: aquamarine" th:href="@{'/employee/page/'+${num}}" th:text="'['+${num}+']'"></a>
        <a th:if="${page.pageNum!=num}" th:href="@{'/employee/page/'+${num}}" th:text="${num}"></a>
    </span>
    <a th:if="${page.hasNextPage}" th:href="@{'/employee/page/'+${page.nextPage}}">下一页</a>
    <a th:if="${page.hasNextPage}" th:href="@{'/employee/page/'+${page.pages}}">末页</a>
</div>
</body>
</html>

4.首页

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>首页</title>
</head>
<body>
    <a th:href="@{/employee/page/1}">点击我进入首页</a>
</body>
</html>

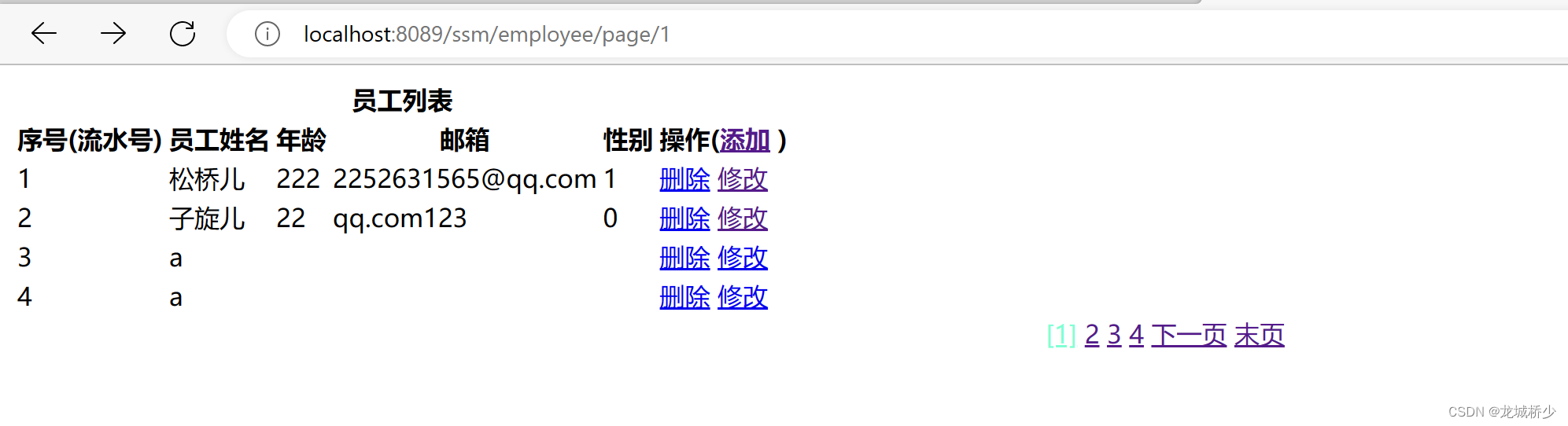

③访问测试分页功能

localhost:8089/employee/page/1
