某美验证码攻克日记

最新推荐文章于 2024-10-14 16:43:25 发布

原创最新推荐文章于 2024-10-14 16:43:25 发布 · 2.8k 阅读

28 ·

CC 4.0 BY-SA版权

文章标签：

#前端 #javascript #开发语言

若有侵权请联系作者删除。

注意：这是其实是一个某美的点选验证。

https://secure.elong.com/passport/login_cn.html?nexturl=https://www.elong.com/
https://www.ishumei.com/trial/captcha.html

1.必备知识点

在开始逆向案例之前，先来学一些前置必备的技能。

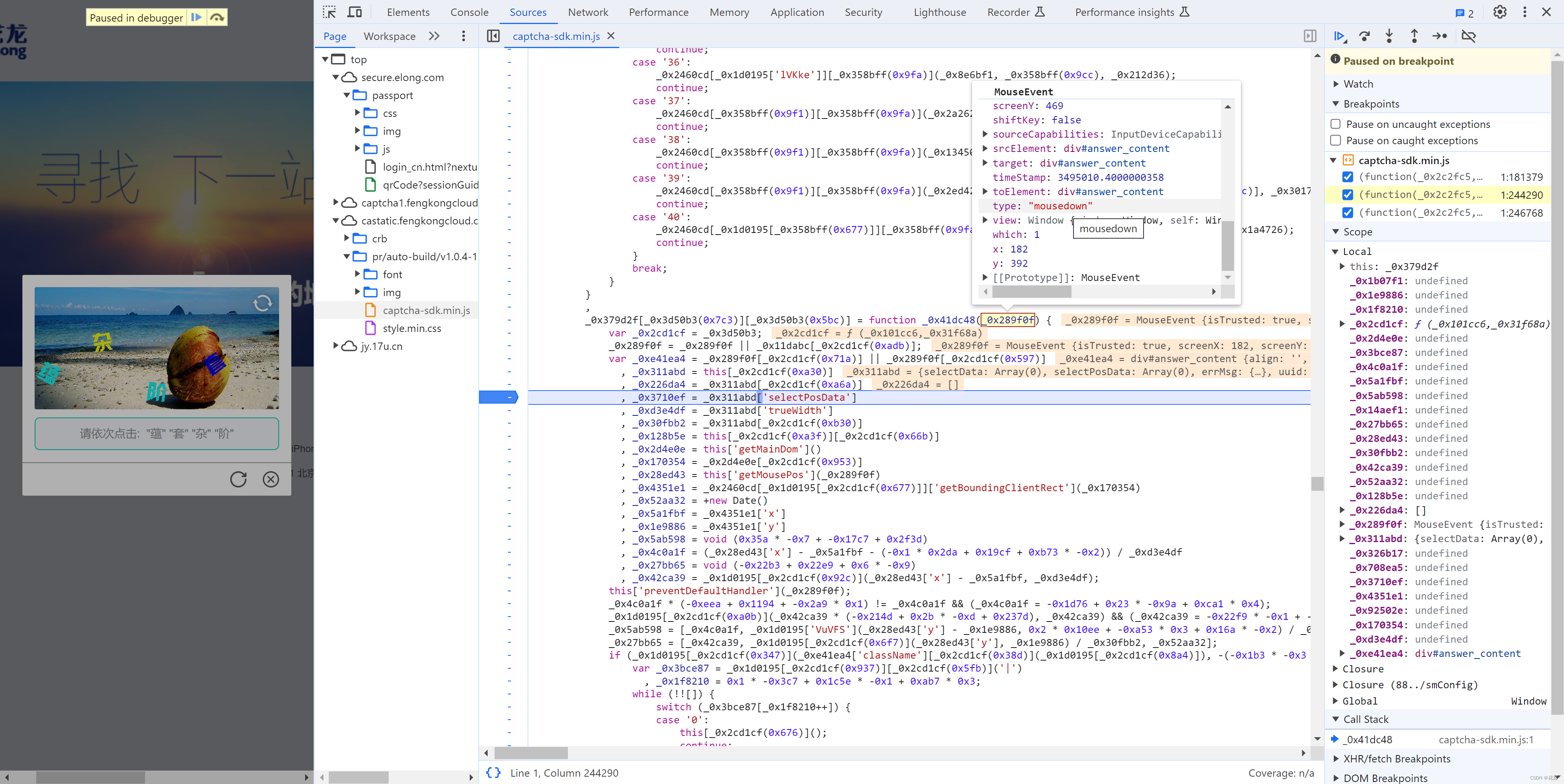

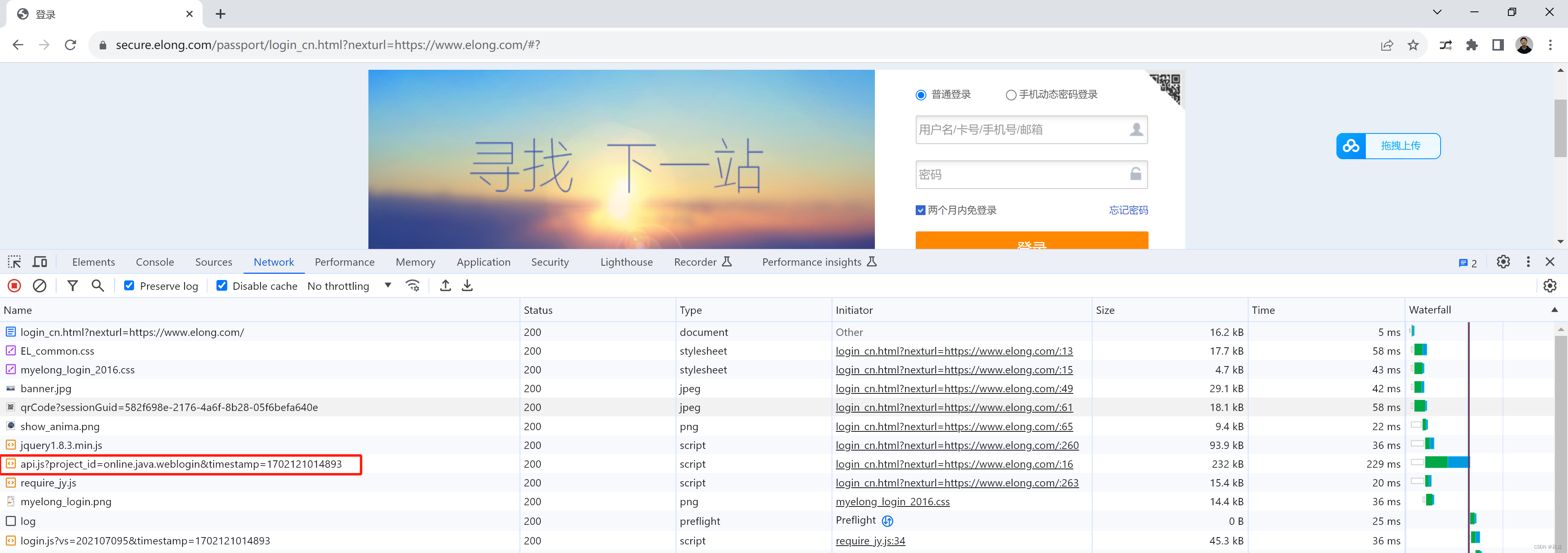

1.1 动态无法调试

网页定位到某个js文件中的位置，想要断点调试，但由于每次js的网址都会更新（返回内容虽然一样），导致断点无法执行，这种情况下怎么办？

解决方案：找到返回此js地址的页面，将返回值其替换为固定的值，具体步骤：

安装抓包工具Charles，让Charles代理网页的请求

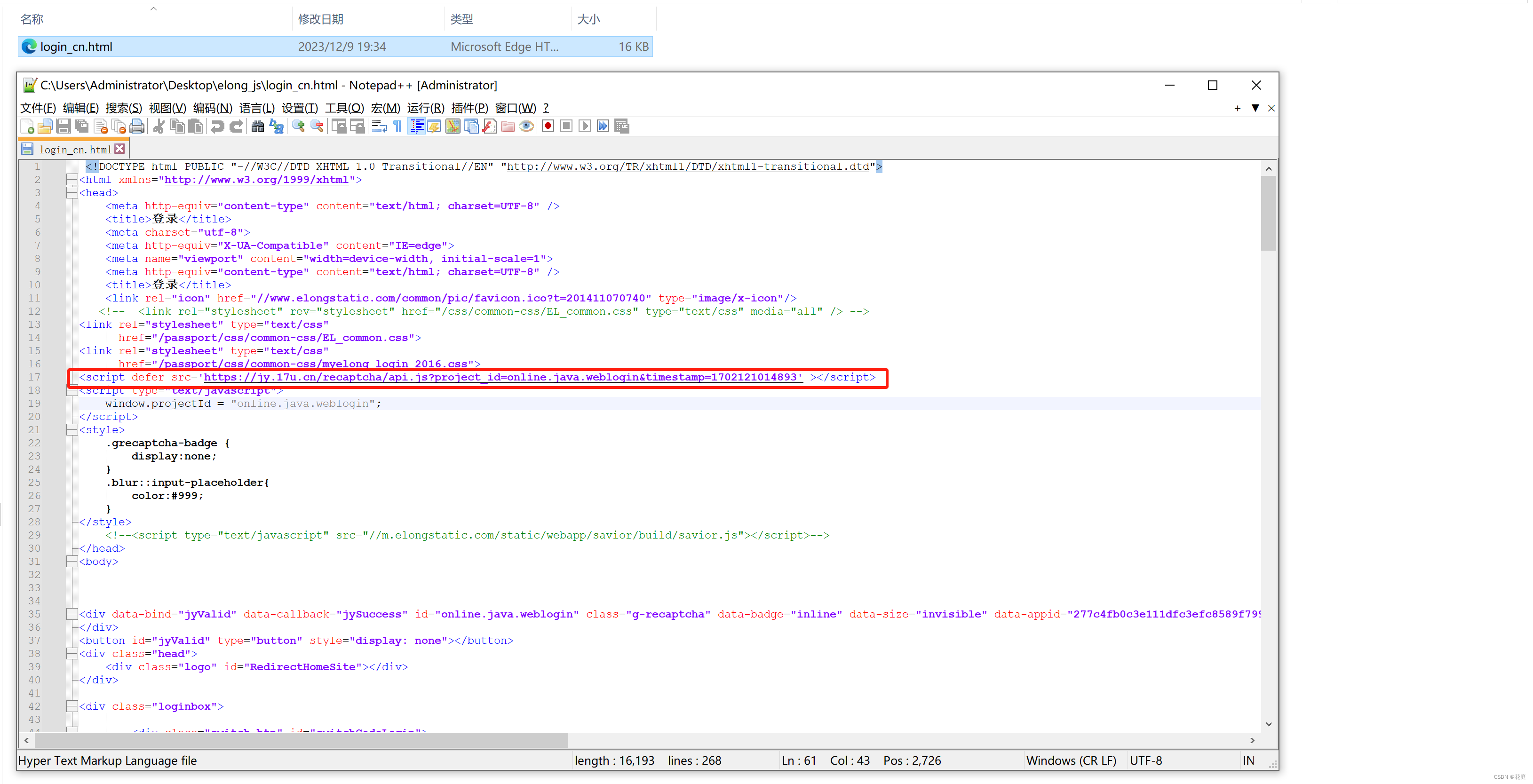

在Charles中配置，当请求网址时，返回我们指定的HTML数据（网页上加载js地址就是固定的了）

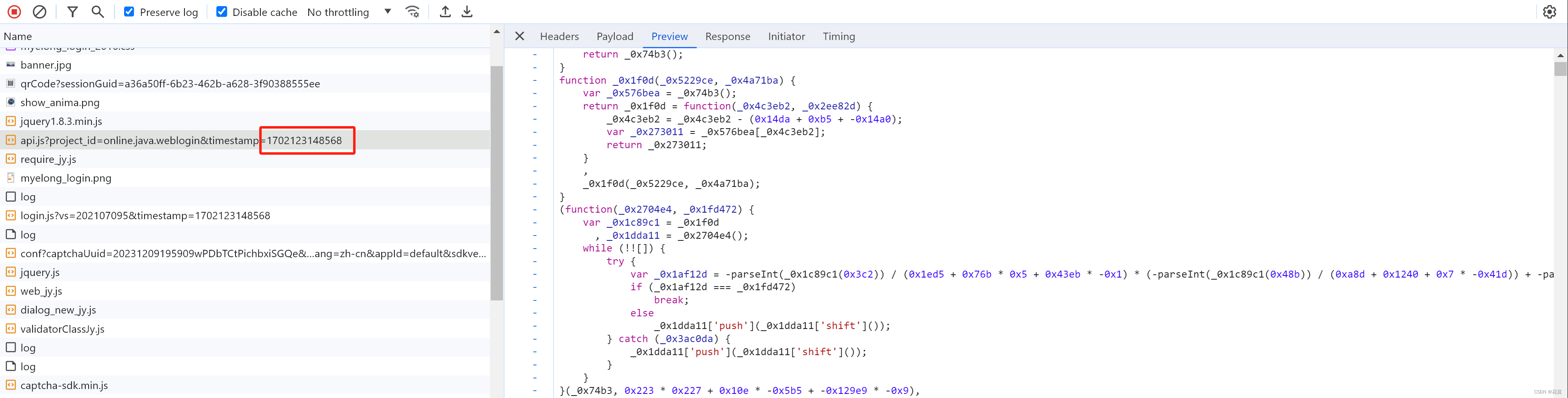

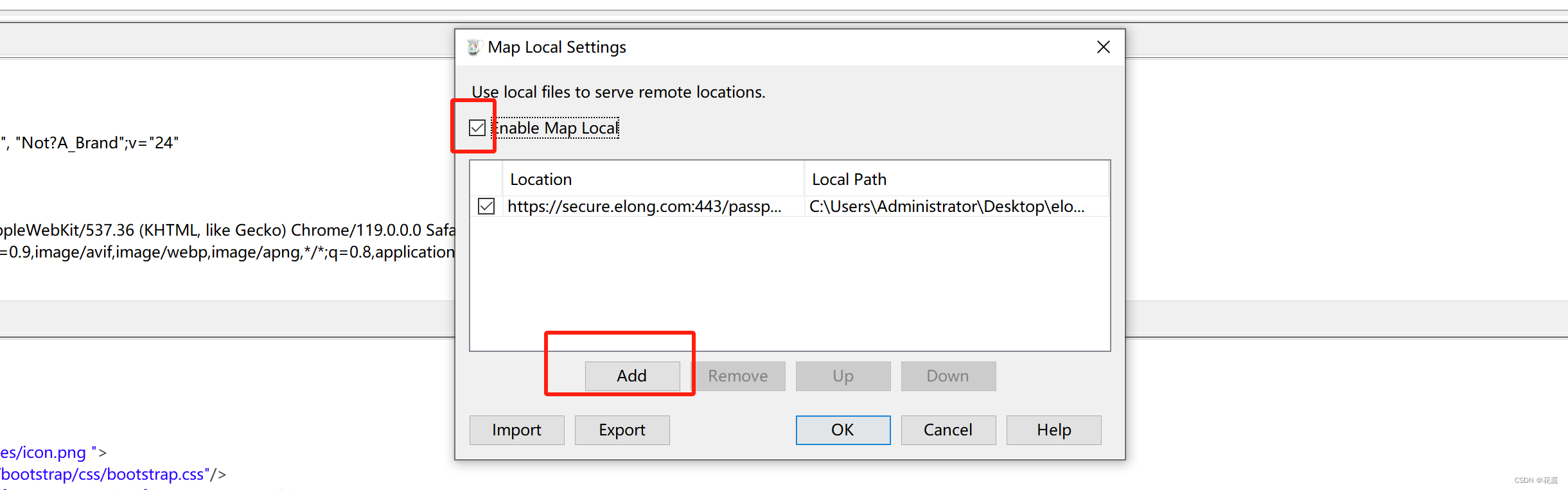

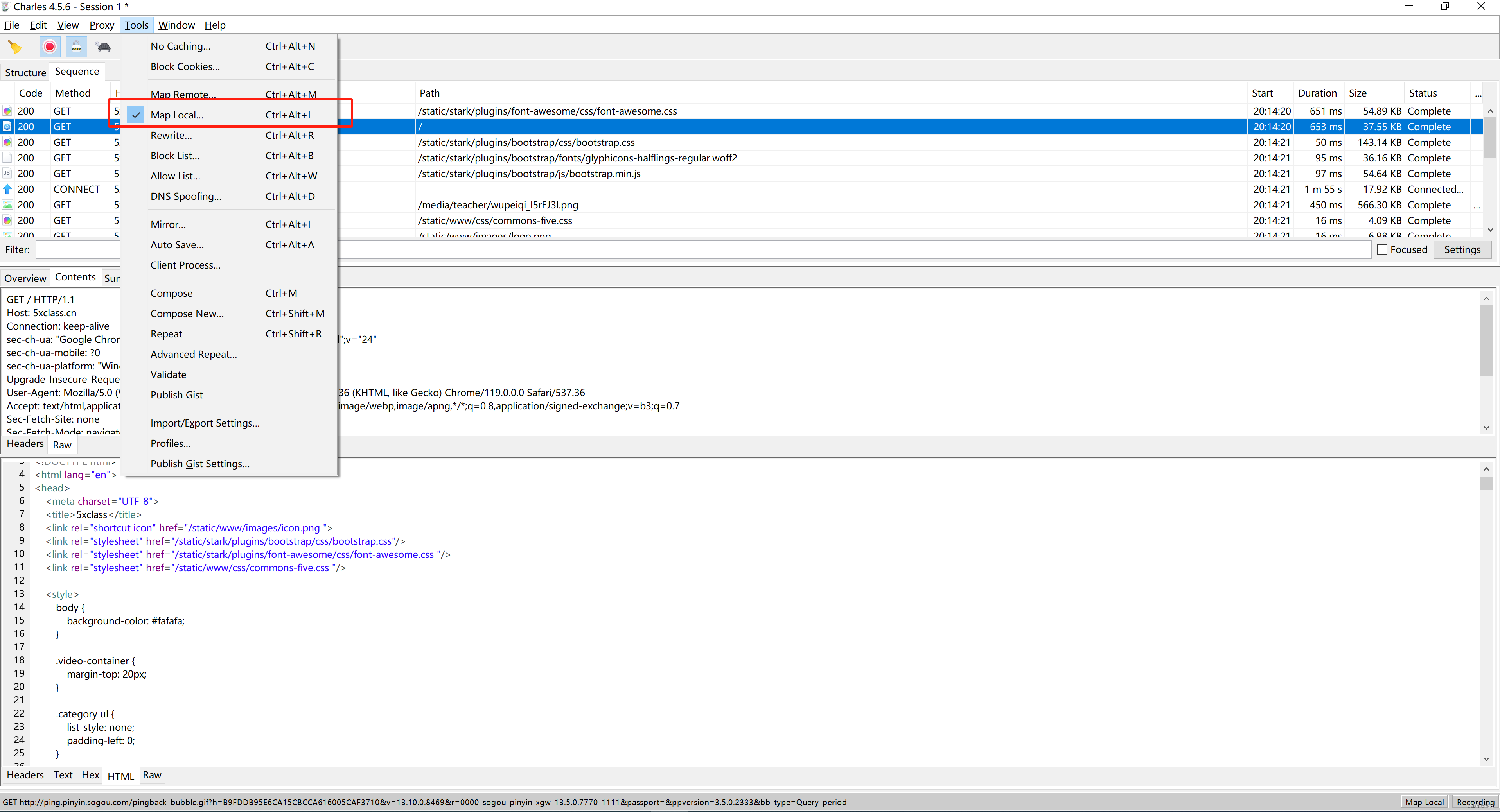

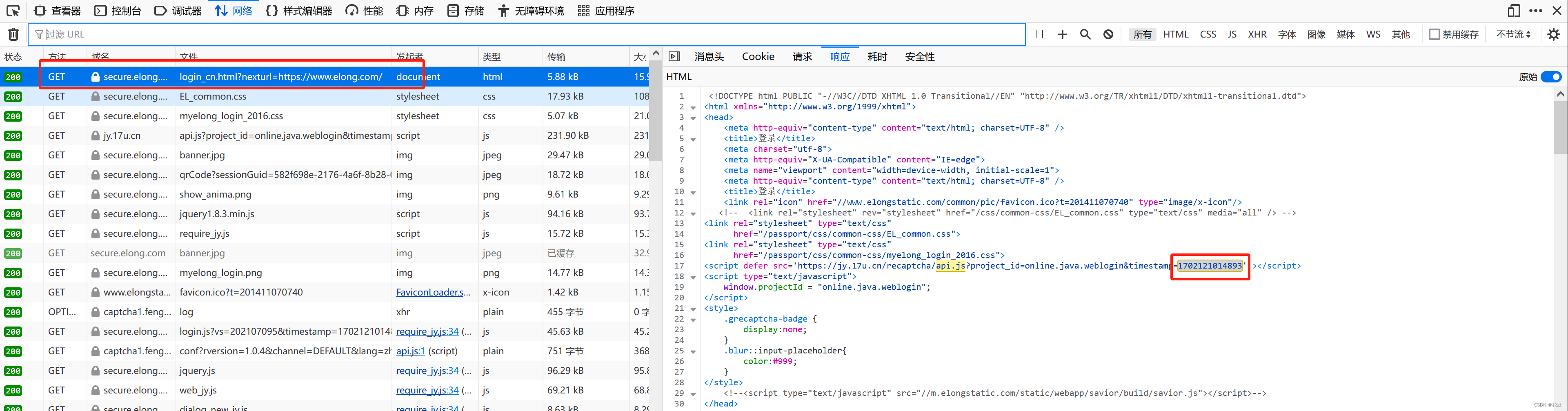

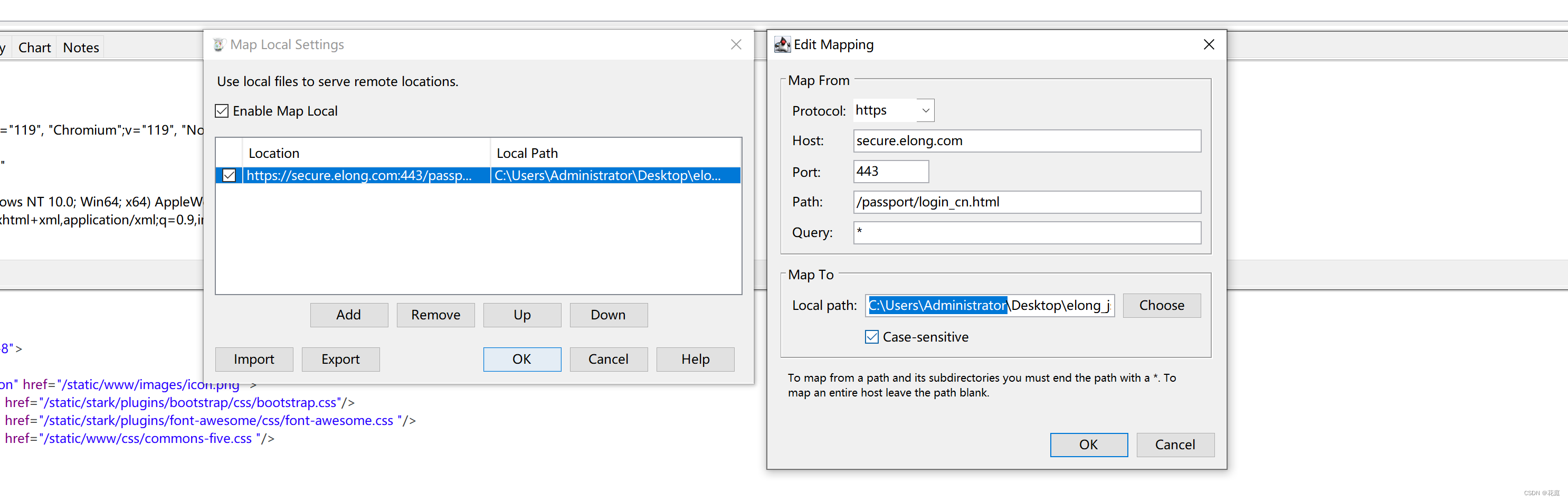

Charles页面替换

当charles可以作为代理之后，可以在Charles中配置：如果浏览器上访问某网址，给他返回特定的内容。

网页访问和调试

1.2 数美示例

智能验证码体验_图片验证码_数美科技

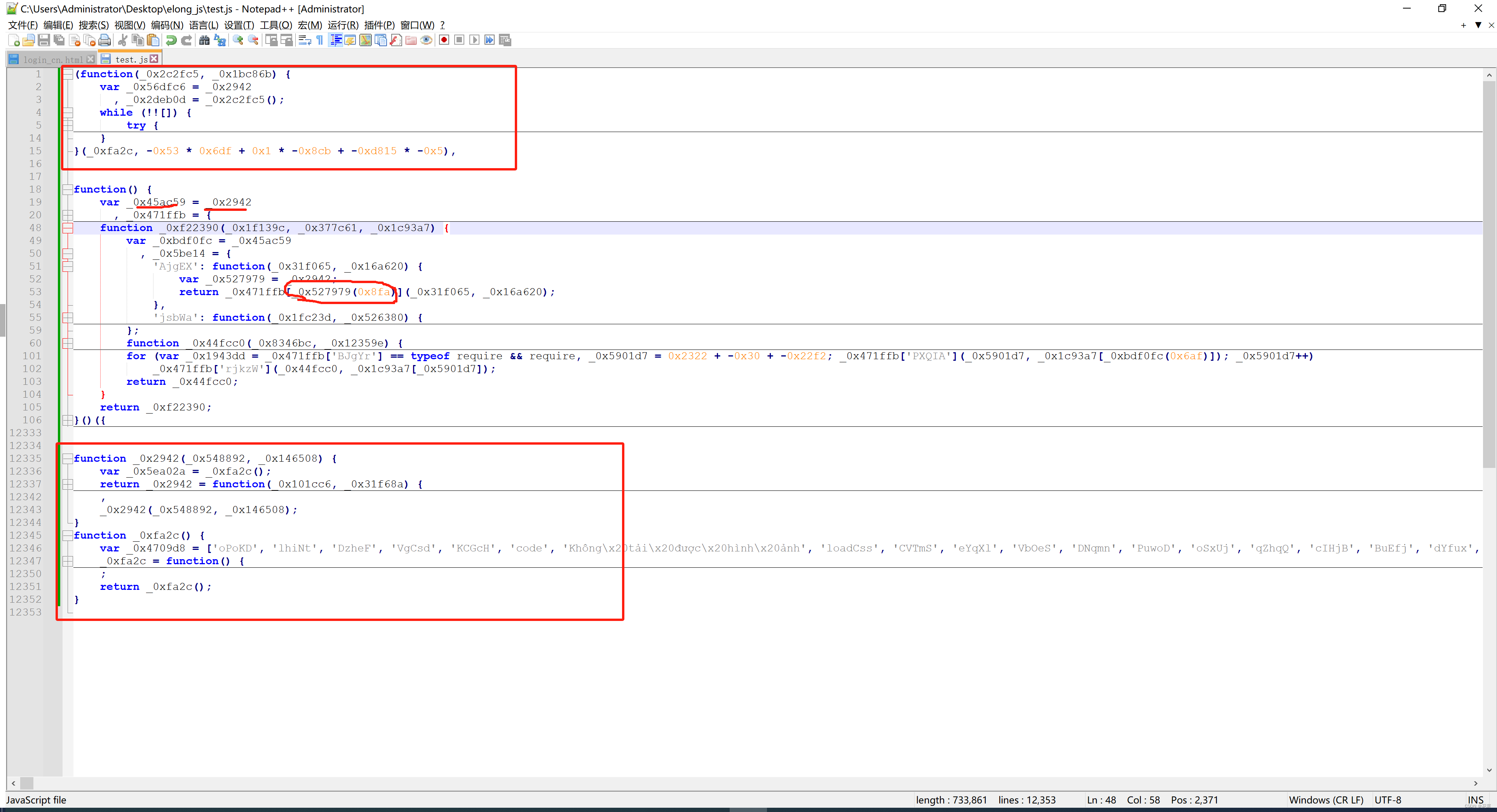

文本替换

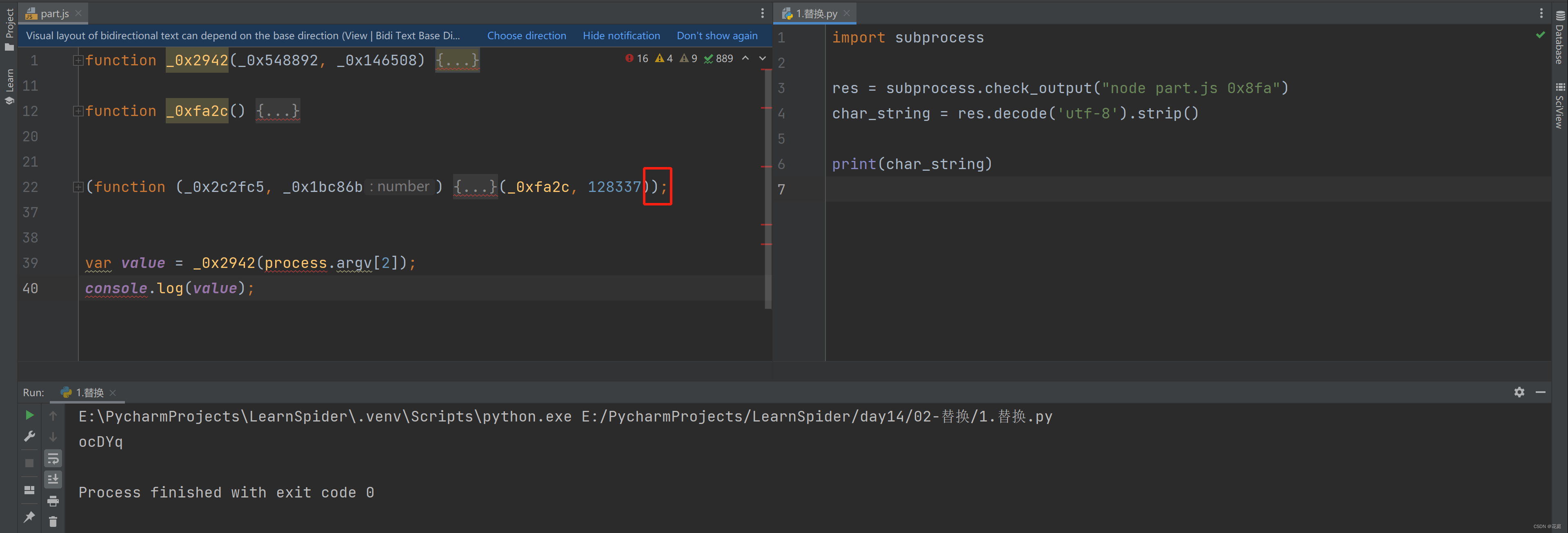

1.单独替换

import subprocess

res = subprocess.check_output("node part.js 0x8fa")
char_string = res.decode('utf-8').strip()

print(char_string)

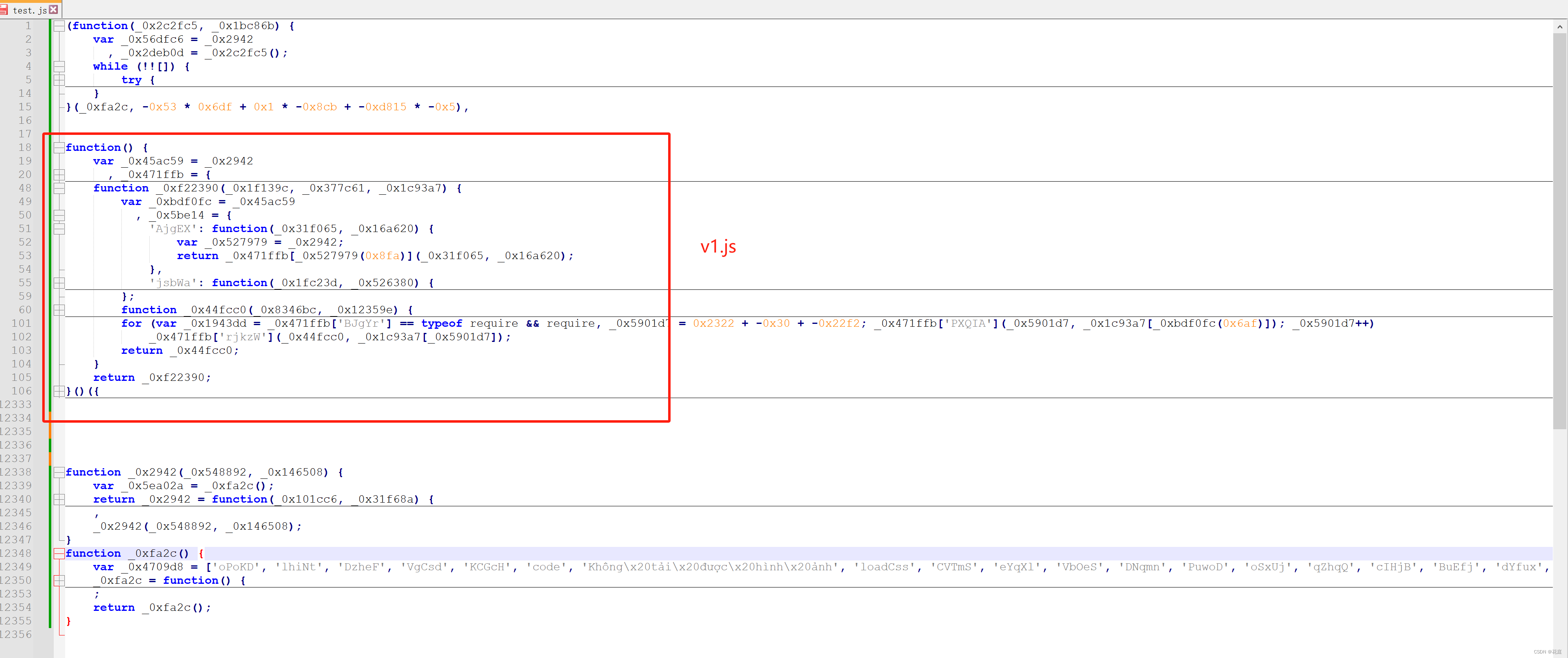

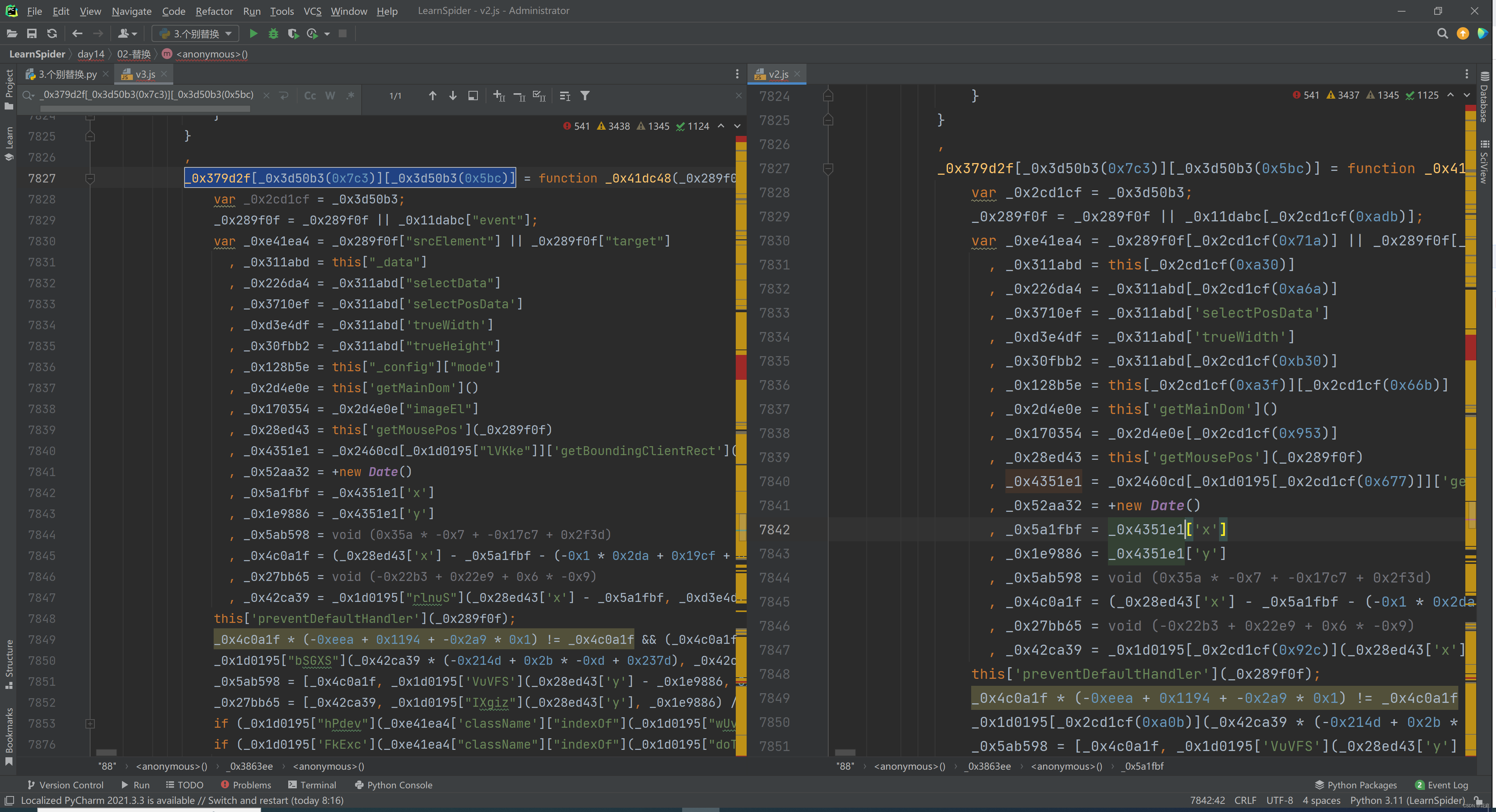

2.整体替换

import re
import subprocess


def exec_value(hex_string):
    res = subprocess.check_output(f"node part.js {hex_string}")
    char_string = res.decode('utf-8').strip()
    return char_string


def get_total_set():
    data_set = set()
    with open("v1.js", mode='r', encoding='utf-8') as f1:
        for line in f1:
            if not line:
                continue
            match_list = re.findall(r"var (.*) = _0x2942", line)
            if match_list:
                data_set.add(match_list[0])
    return data_set


def loop_re_match(data_set, line):
    for func in data_set:
        match_list = re.findall(f"({func}\((.*?)\))", line)
        if not match_list:
            continue
        for total, arg in match_list:
            real_value = exec_value(arg)
            line = line.replace(total, f'"{real_value}"')
    return line


def run():
    data_set = get_total_set()
    counter = 0
    with open("v1.js", mode='r', encoding='utf-8') as f1, open("v2.js", mode='w', encoding='utf-8') as f2:
        for line in f1:
            counter += 1
            print(counter)
            if not line:
                f2.write(line)
                continue
            line = loop_re_match(data_set, line)
            f2.write(line)


if __name__ == '__main__':
    run()

2.整体请求分析

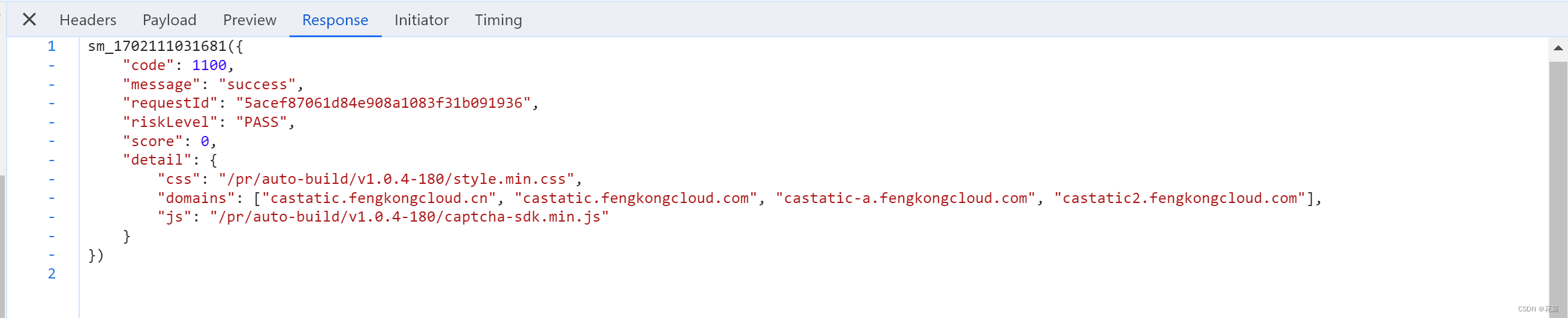

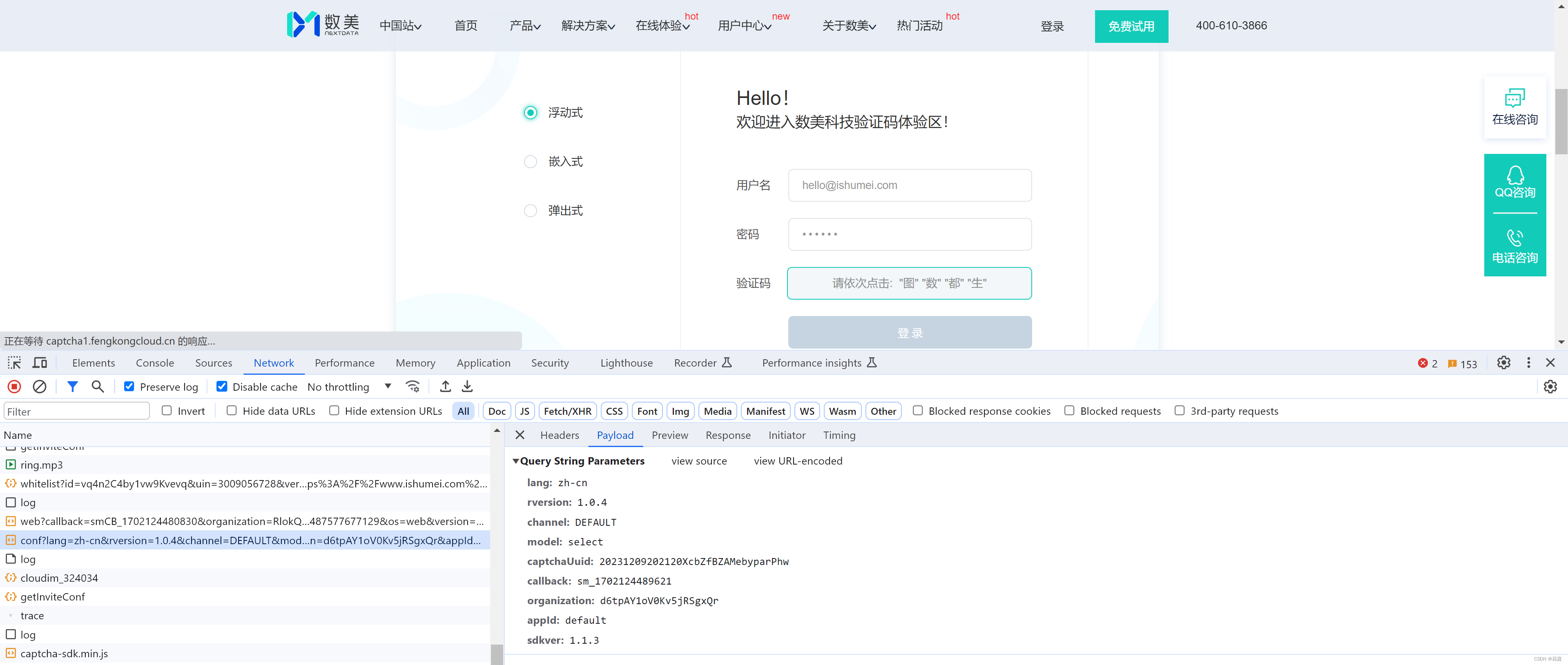

2.1 配置

https://captcha1.fengkongcloud.cn/ca/v1/conf?organization=xQsKB7v2qSFLFxnvmjdO&lang=zh-cn&sdkver=1.1....

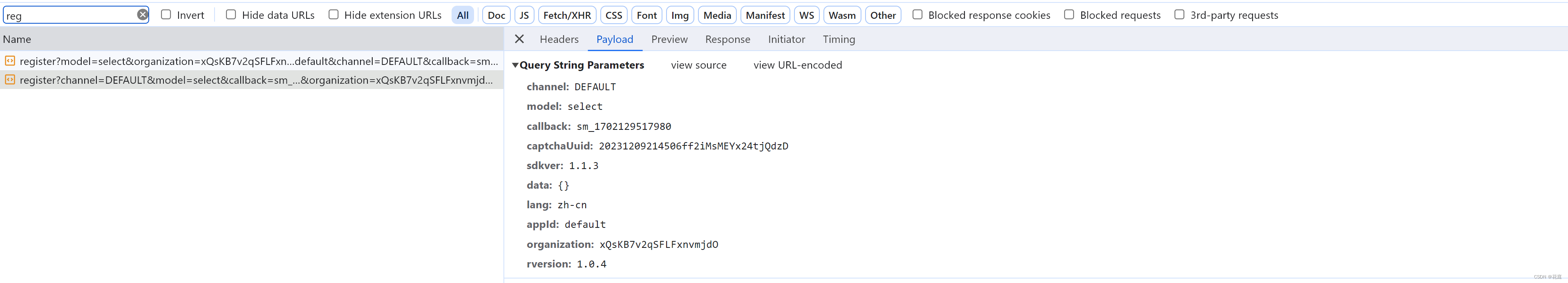

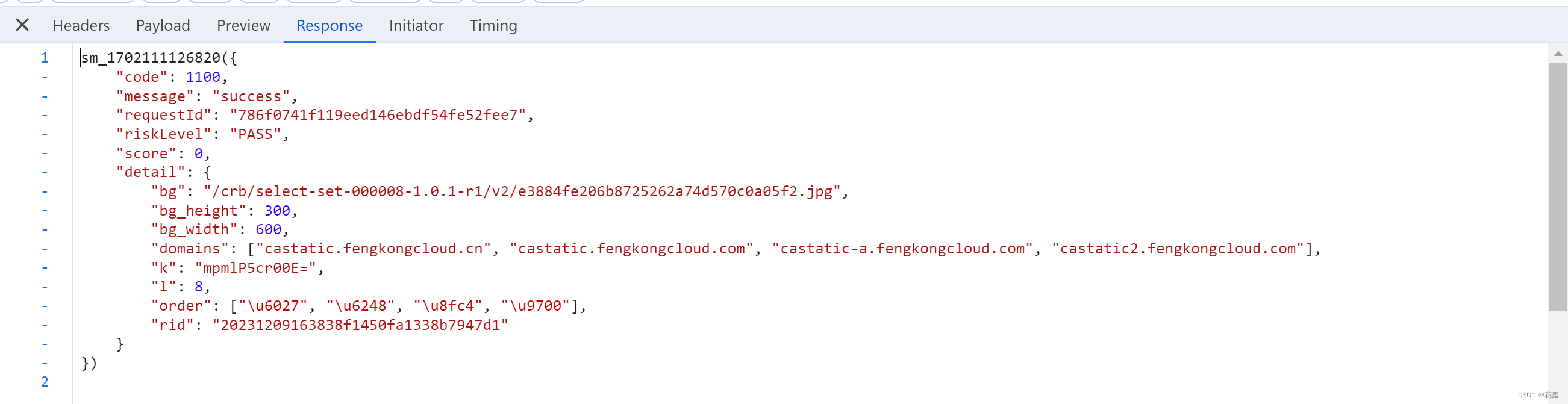

2.2 获取验证码

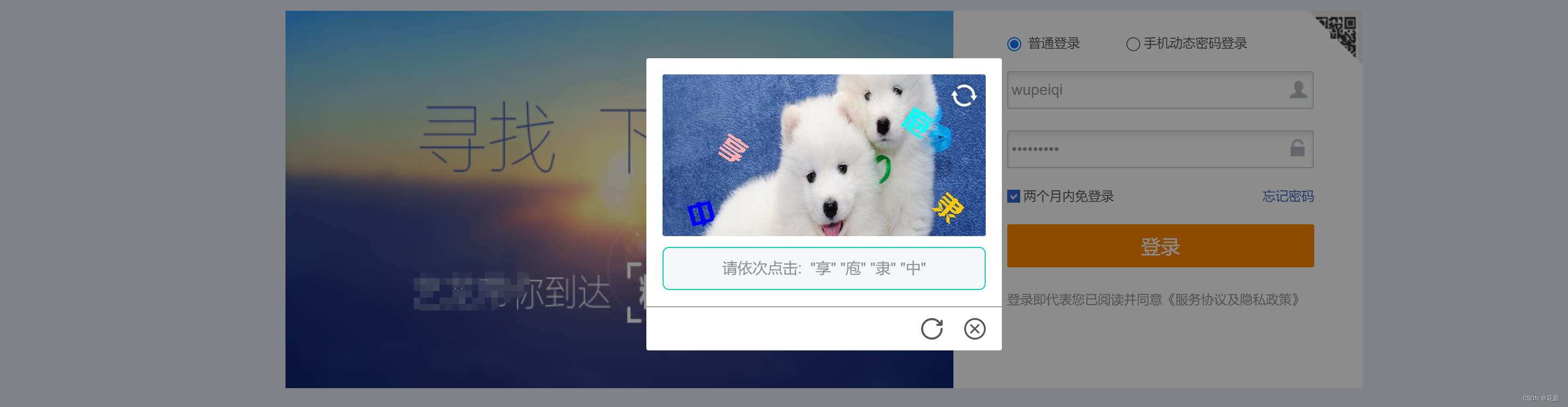

点击登录或验证失败，出现验证码。

https://captcha1.fengkongcloud.cn/ca/v1/register?rversion=1.0.4&model=select&captchaUuid=20231209163703YF....

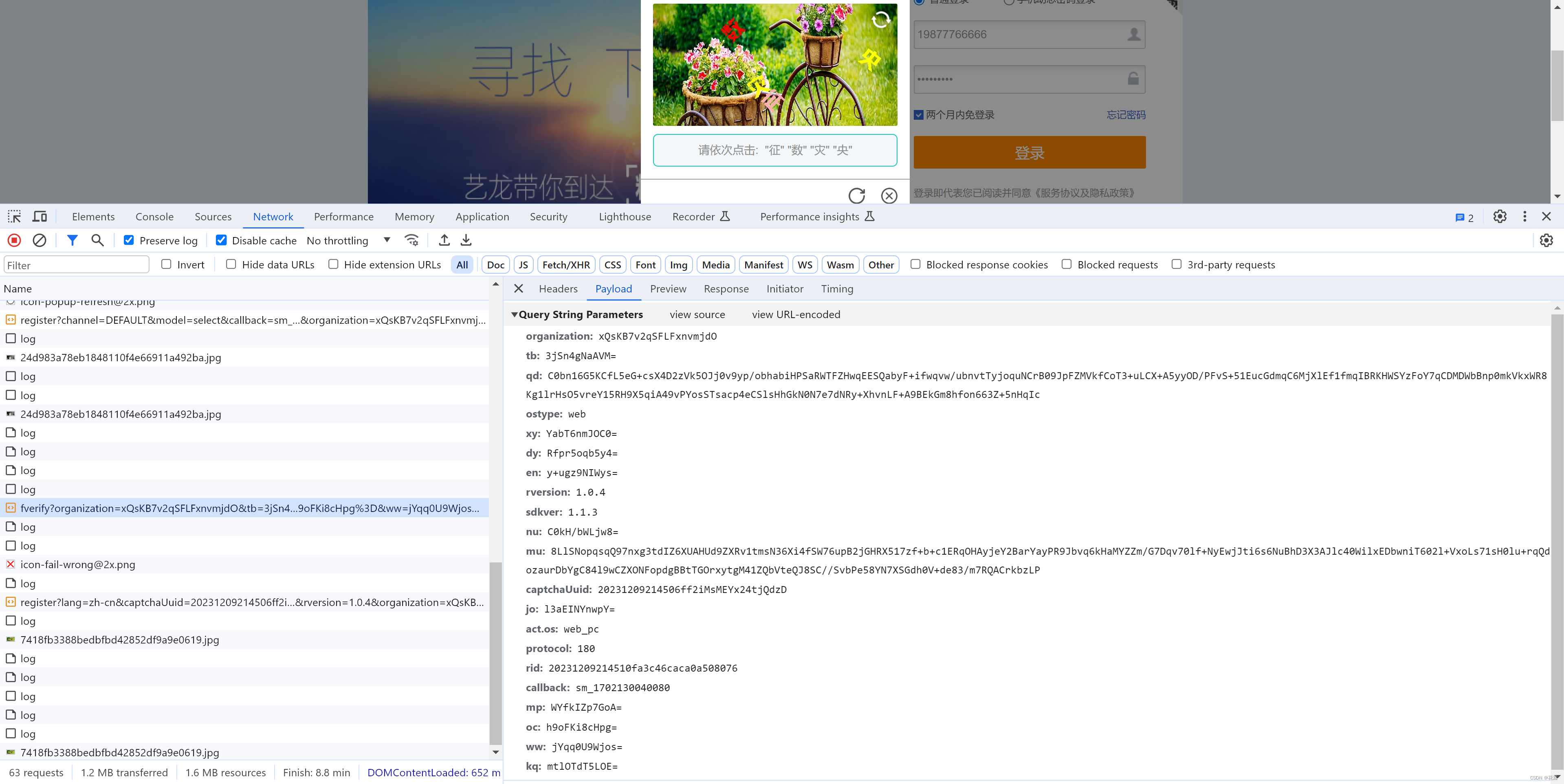

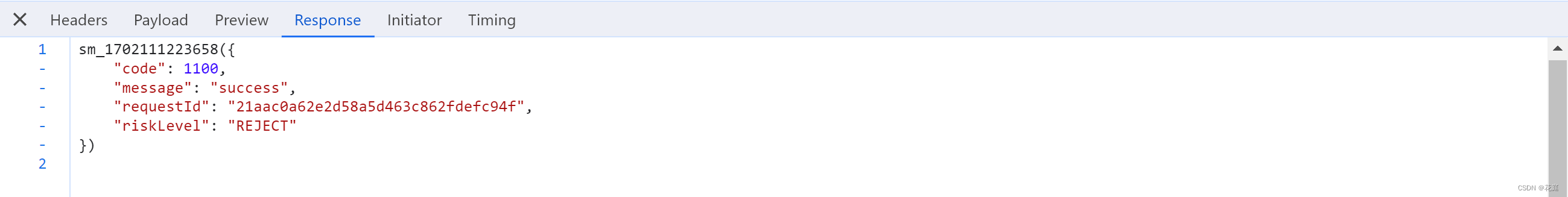

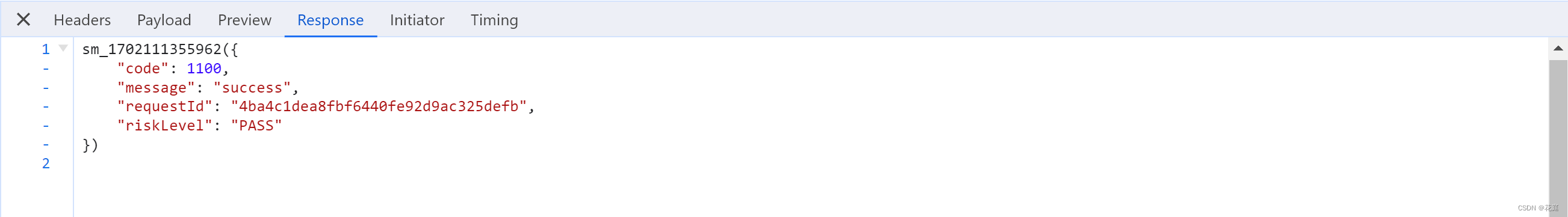

2.3 提交验证

点击4个验证码后，自动提交。

https://captcha1.fengkongcloud.cn/ca/v2/fverify?qd=tbJHTr9SEFvL5eG%2B...

3.逆向：配置

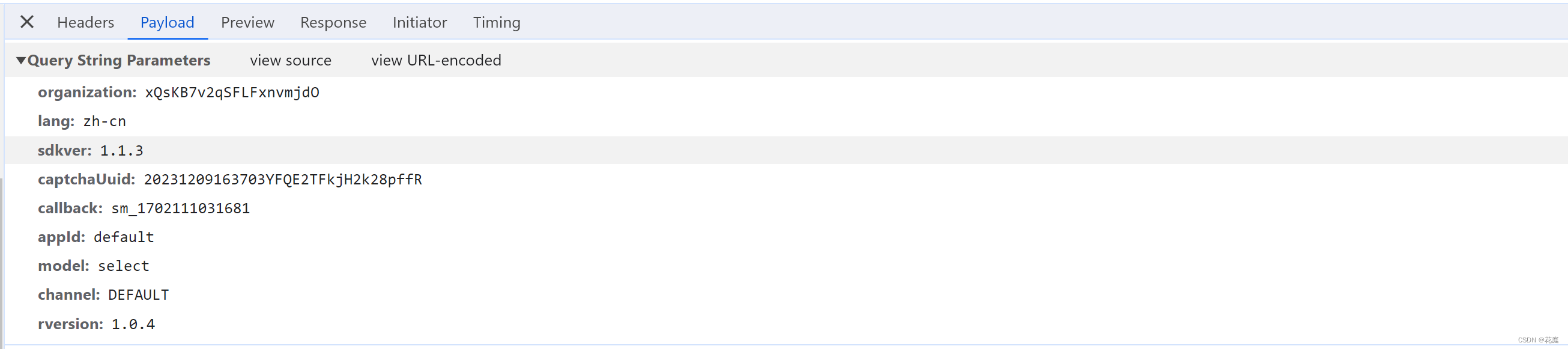

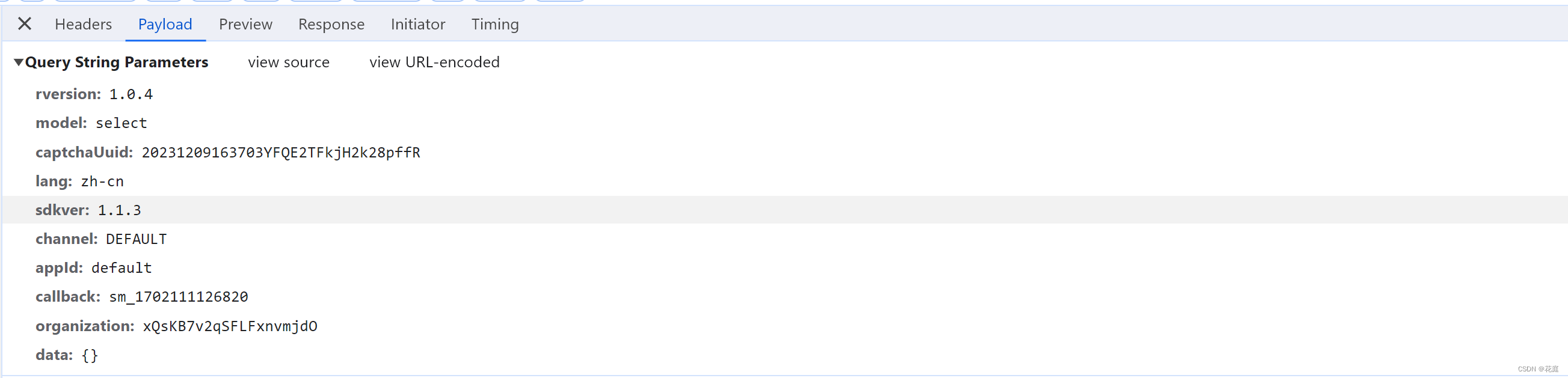

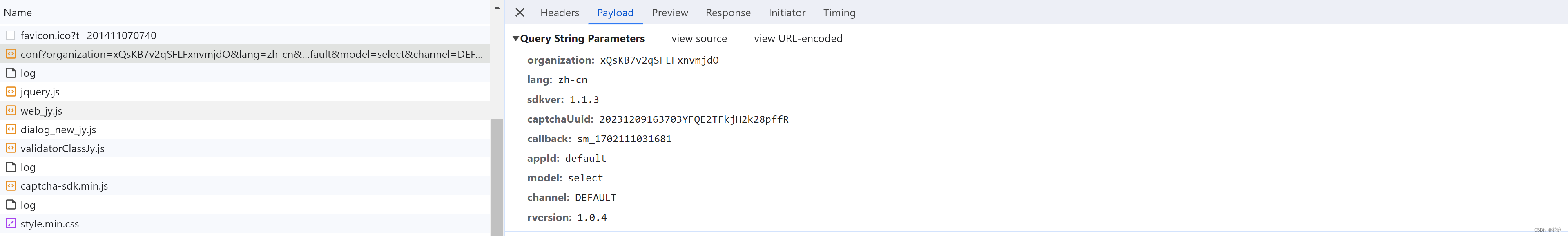

3.1 请求分析

organization: xQsKB7v2qSFLFxnvmjdO               固定，应该是购买数美产品给的ID
lang: zh-cn
sdkver: 1.1.3
captchaUuid: 20231209163703YFQE2TFkjH2k28pffR    动态，每次刷新不一样【需逆向】
callback: sm_1702111031681
appId: default
model: select                                    应该是验证模式：点选、滑块
channel: DEFAULT
rversion: 1.0.4

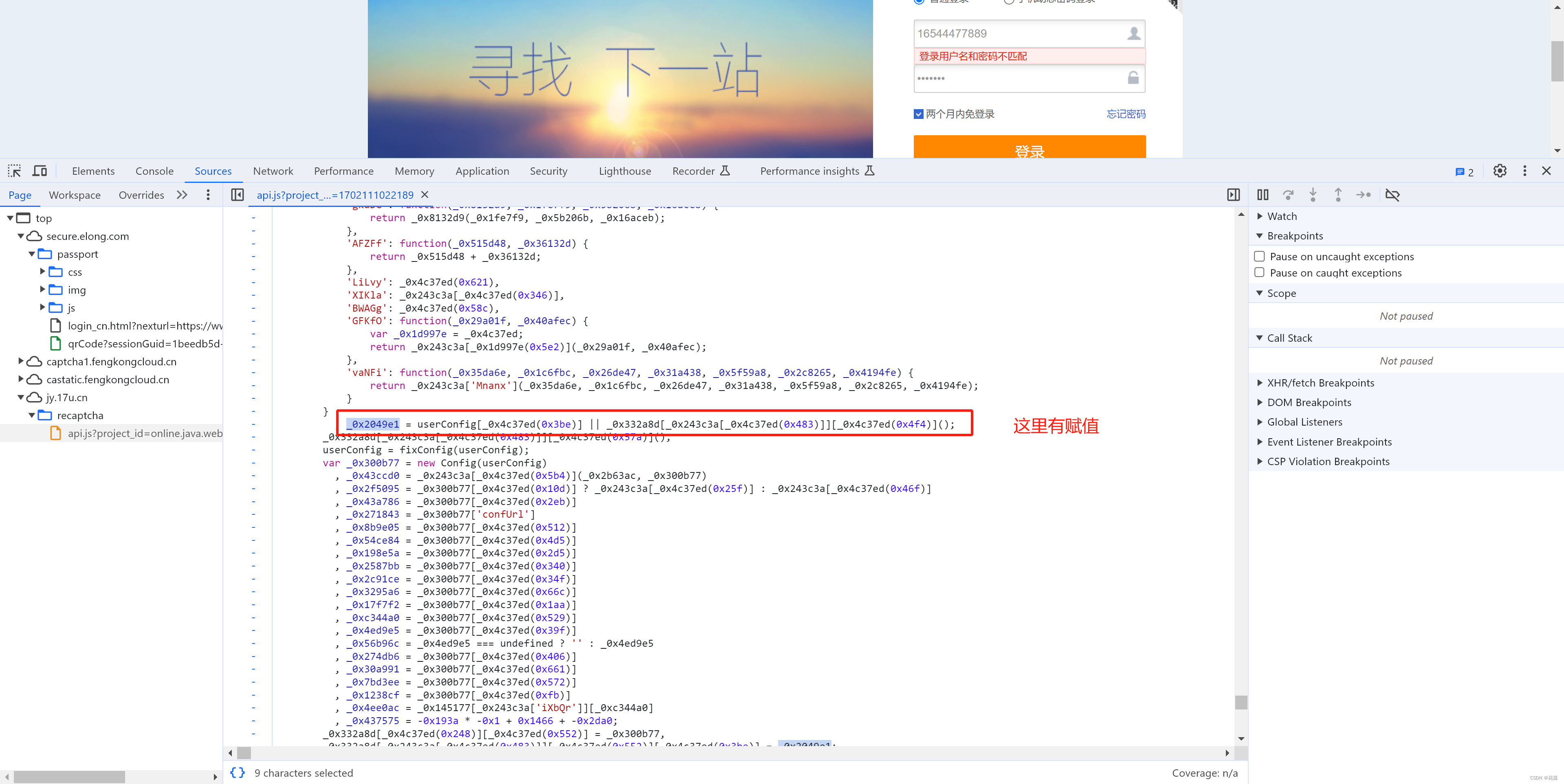

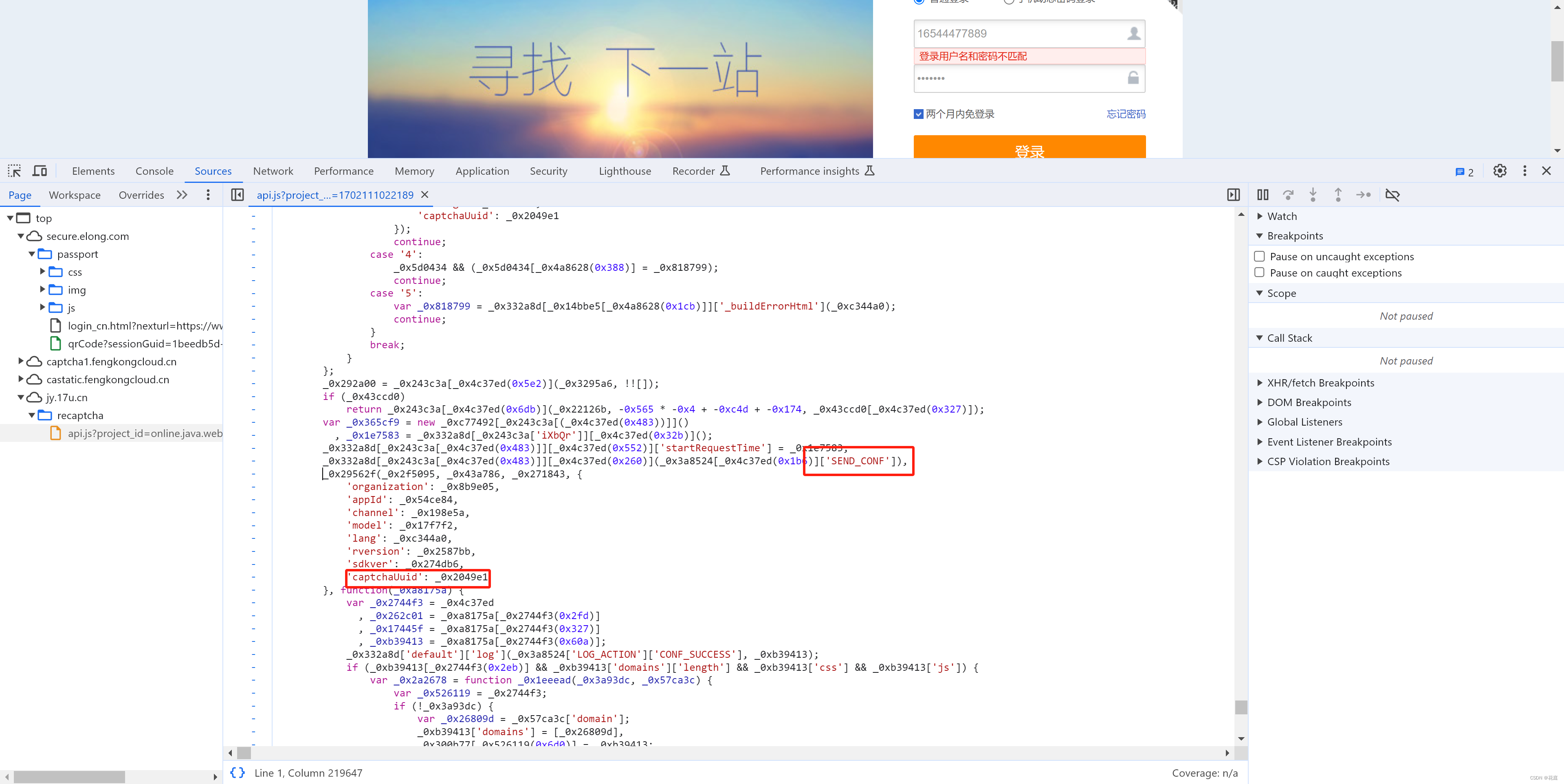

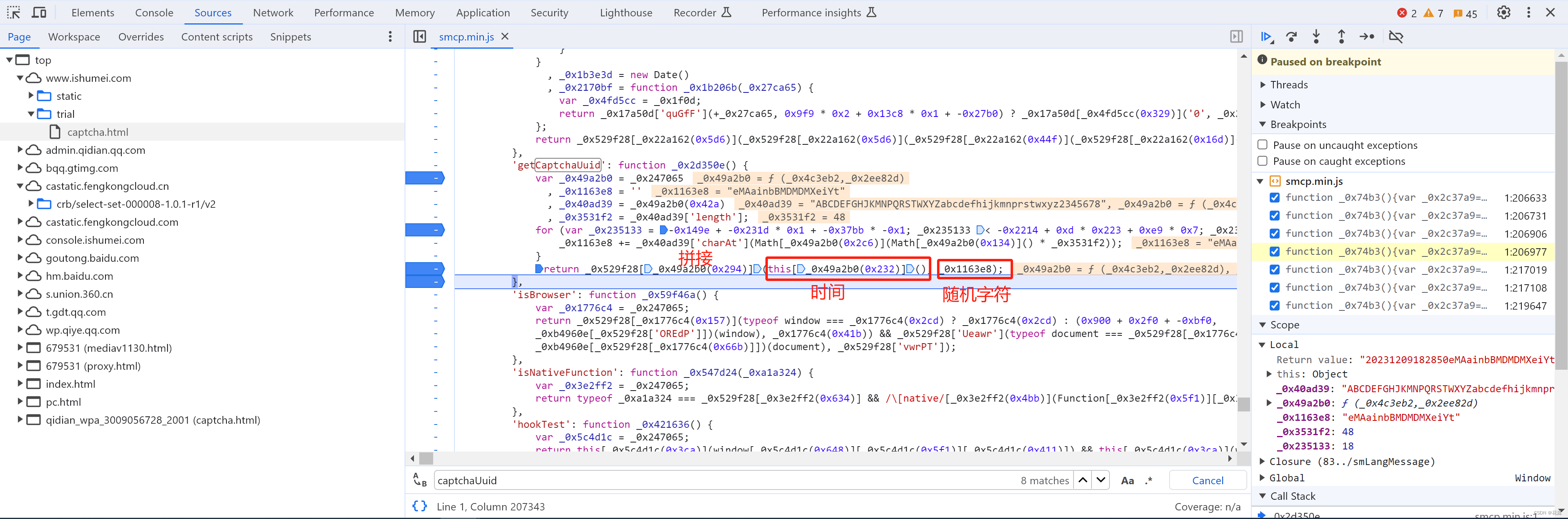

可以分析出，CaptchaUuid的生成其实就是：时间 + 随机字符串（例如："20231209202804MKhadf765PiJNRwYAG"）

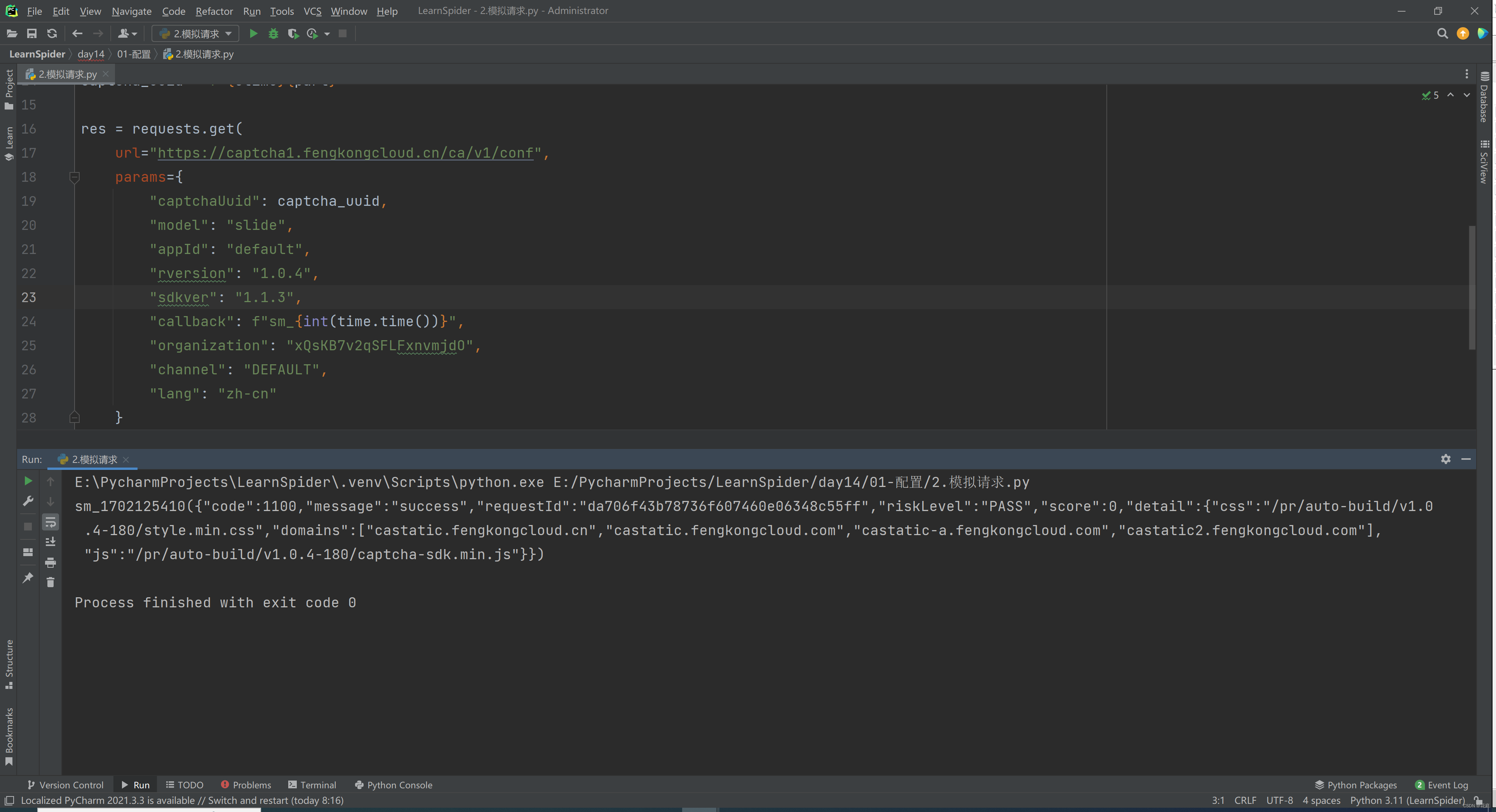

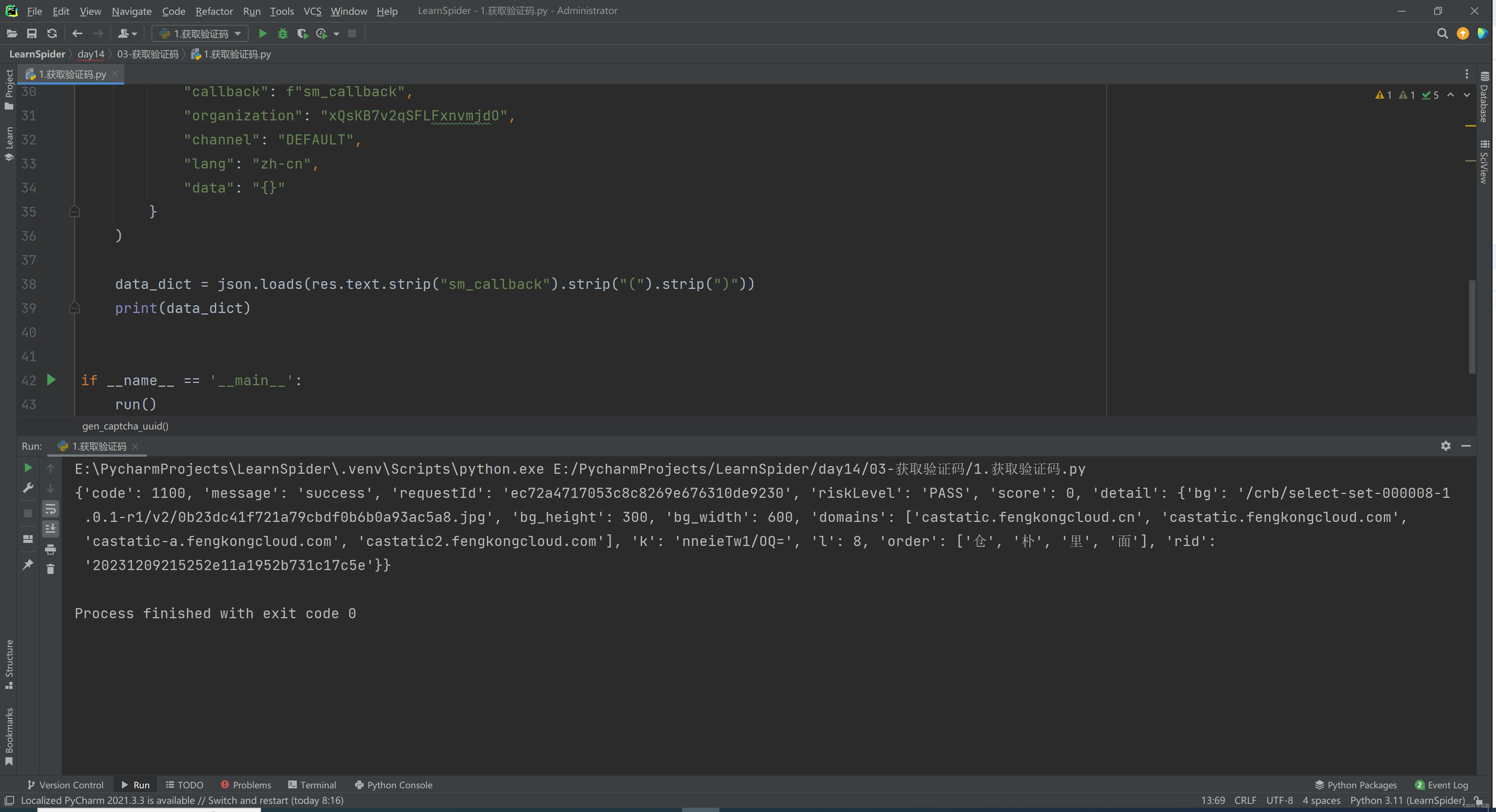

3.2 发送请求

requests.get(
    url="https://captcha1.fengkongcloud.cn/ca/v1/conf",
    params={
        "captchaUuid": captcha_uuid,
        "model": "select",
        "appId": "default",
        "rversion": "1.0.4",
        "sdkver": "1.1.3",
        "callback": f"sm_{int(time.time())}",
        "organization": "xQsKB7v2qSFLFxnvmjdO",
        "channel": "DEFAULT",
        "lang": "zh-cn"
    }
)

4.逆向：获取验证码

无需逆向，直接请求：

5.逆向：提交指纹

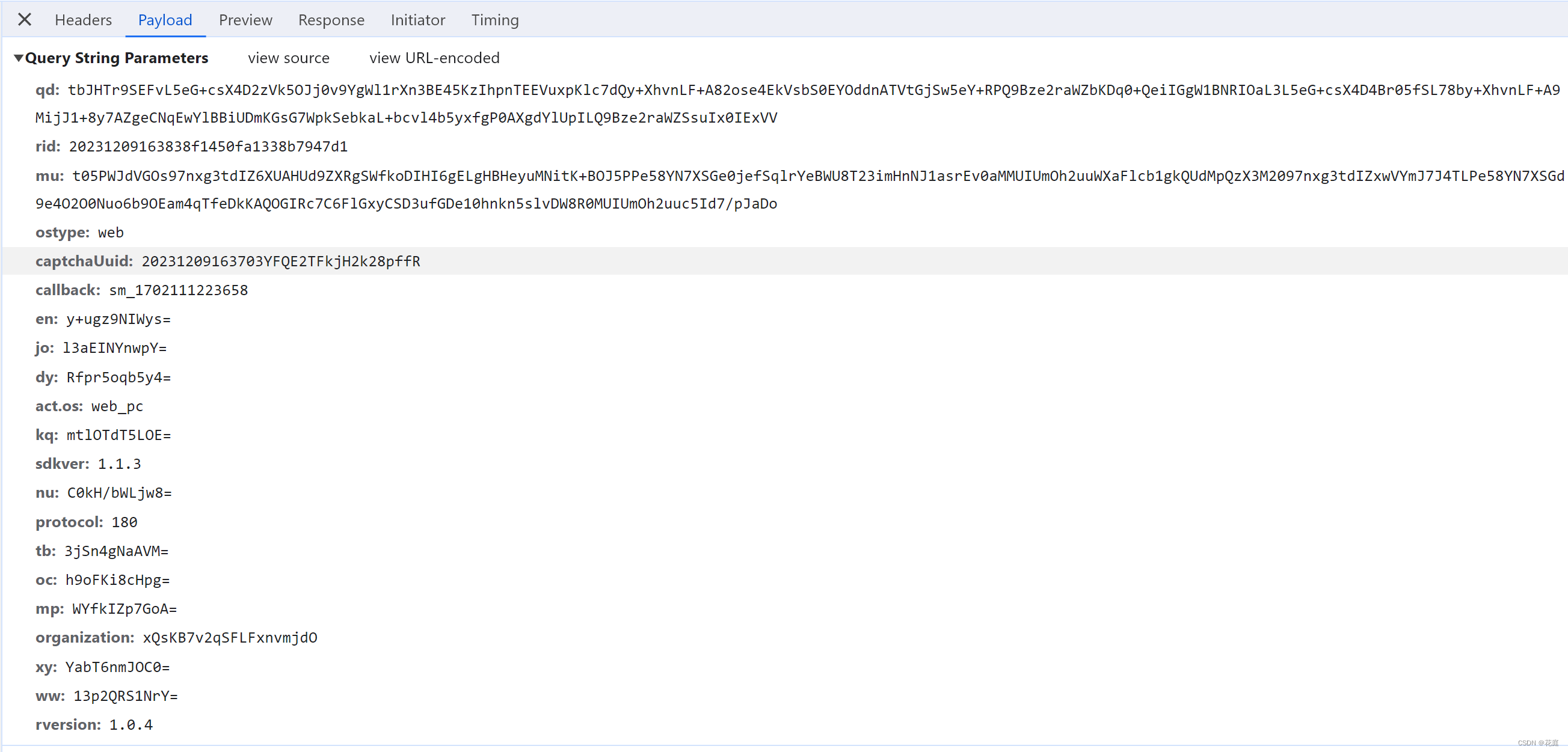

https://captcha1.fengkongcloud.cn/ca/v2/fverify

{
    "organization": "xQsKB7v2qSFLFxnvmjdO",
    "tb": "3jSn4gNaAVM%3D",
    "qd": "C0bn16G5KCfL5eG%2BcsX4D2zVk5OJj0v9yp%2FobhabiHPSaRWTFZHwqEESQabyF%2Bifwqvw%2FubnvtTyjoquNCrB09JpFZMVkfCoT3%2BuLCX%2BA5yyOD%2FPFvS%2B51EucGdmqC6MjXlEf1fmqIBRKHWSYzFoY7qCDMDWbBnp0mkVkxWR8Kg1lrHsO5vreY15RH9X5qiA49vPYosSTsacp4eCSlsHhGkN0N7e7dNRy%2BXhvnLF%2BA9BEkGm8hfon663Z%2B5nHqIc",
    "ostype": "web",
    "xy": "YabT6nmJOC0%3D",
    "dy": "Rfpr5oqb5y4%3D",
    "en": "y%2Bugz9NIWys%3D",
    "rversion": "1.0.4",
    "sdkver": "1.1.3",
    "nu": "C0kH%2FbWLjw8%3D",
    "mu": "8LlSNopqsqQ97nxg3tdIZ6XUAHUd9ZXRv1tmsN36Xi4fSW76upB2jGHRX517zf%2Bb%2Bc1ERqOHAyjeY2BarYayPR9Jbvq6kHaMYZZm%2FG7Dqv70lf%2BNyEwjJti6s6NuBhD3X3AJlc40WilxEDbwniT602l%2BVxoLs71sH0lu%2BrqQdozaurDbYgC84l9wCZXONFopdgBBtTGOrxytgM41ZQbVteQJ8SC%2F%2FSvbPe58YN7XSGdh0V%2Bde83%2Fm7RQACrkbzLP",
    "captchaUuid": "20231209214506ff2iMsMEYx24tjQdzD",
    "jo": "l3aEINYnwpY%3D",
    "act.os": "web_pc",
    "protocol": "180",
    "rid": "20231209214510fa3c46caca0a508076",
    "callback": "sm_1702130040080",
    "mp": "WYfkIZp7GoA%3D",
    "oc": "h9oFKi8cHpg%3D",
    "ww": "jYqq0U9Wjos%3D",
    "kq": "mtlOTdT5LOE%3D"
}

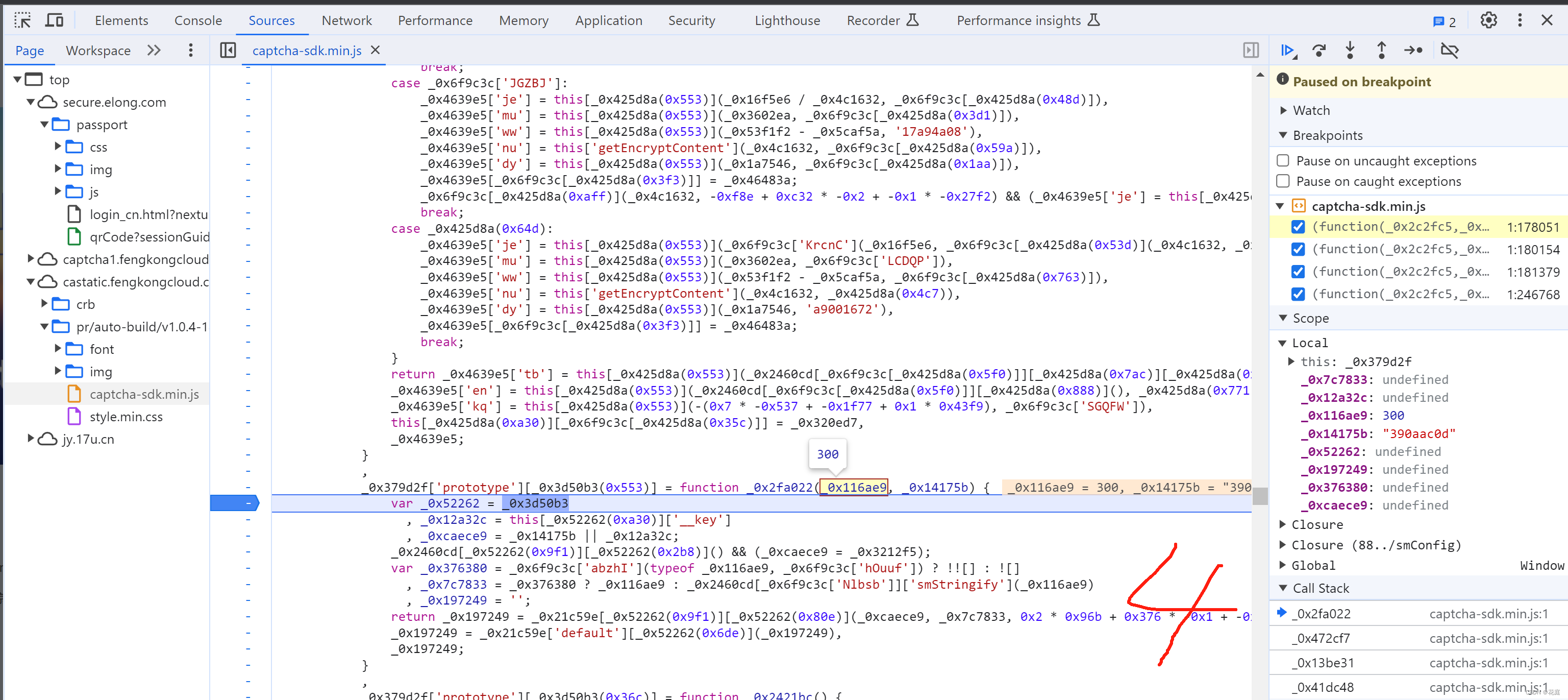

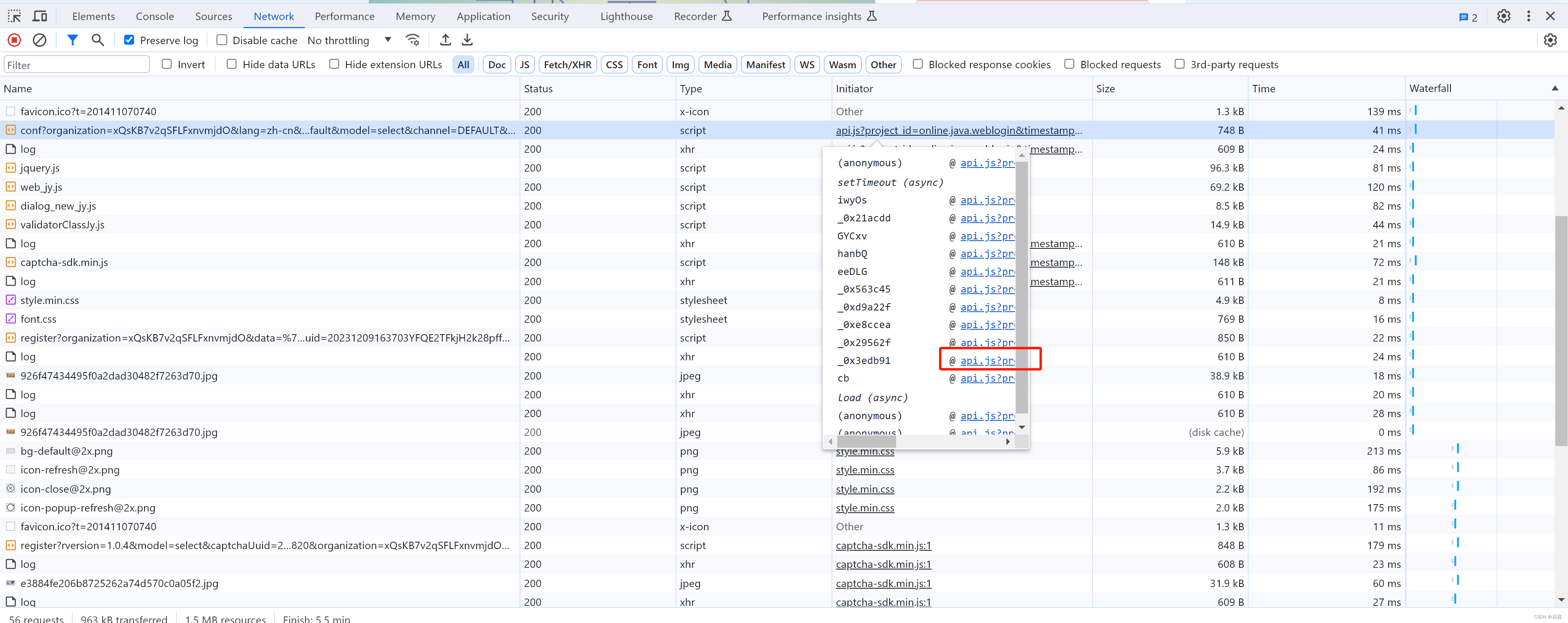

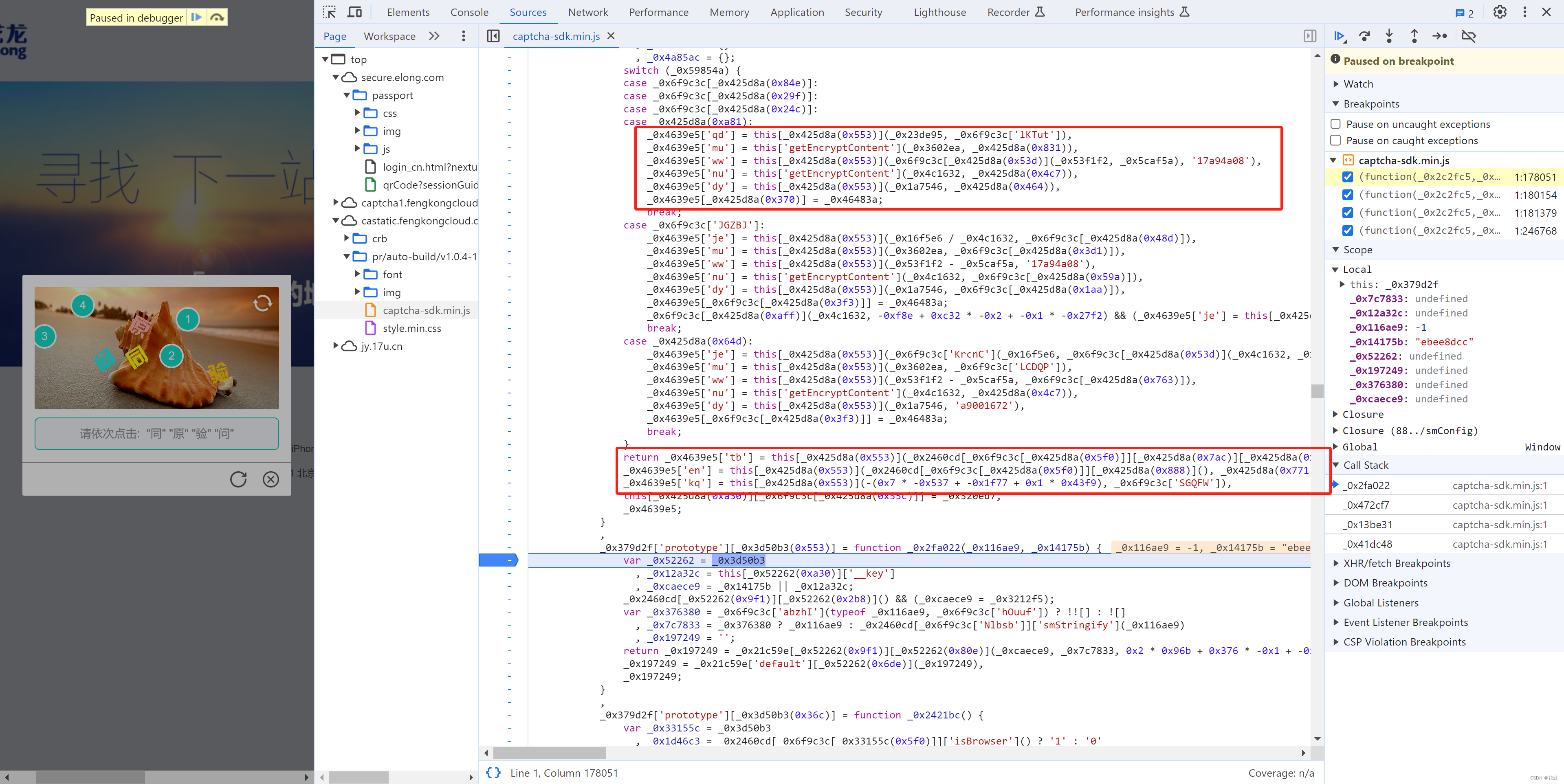

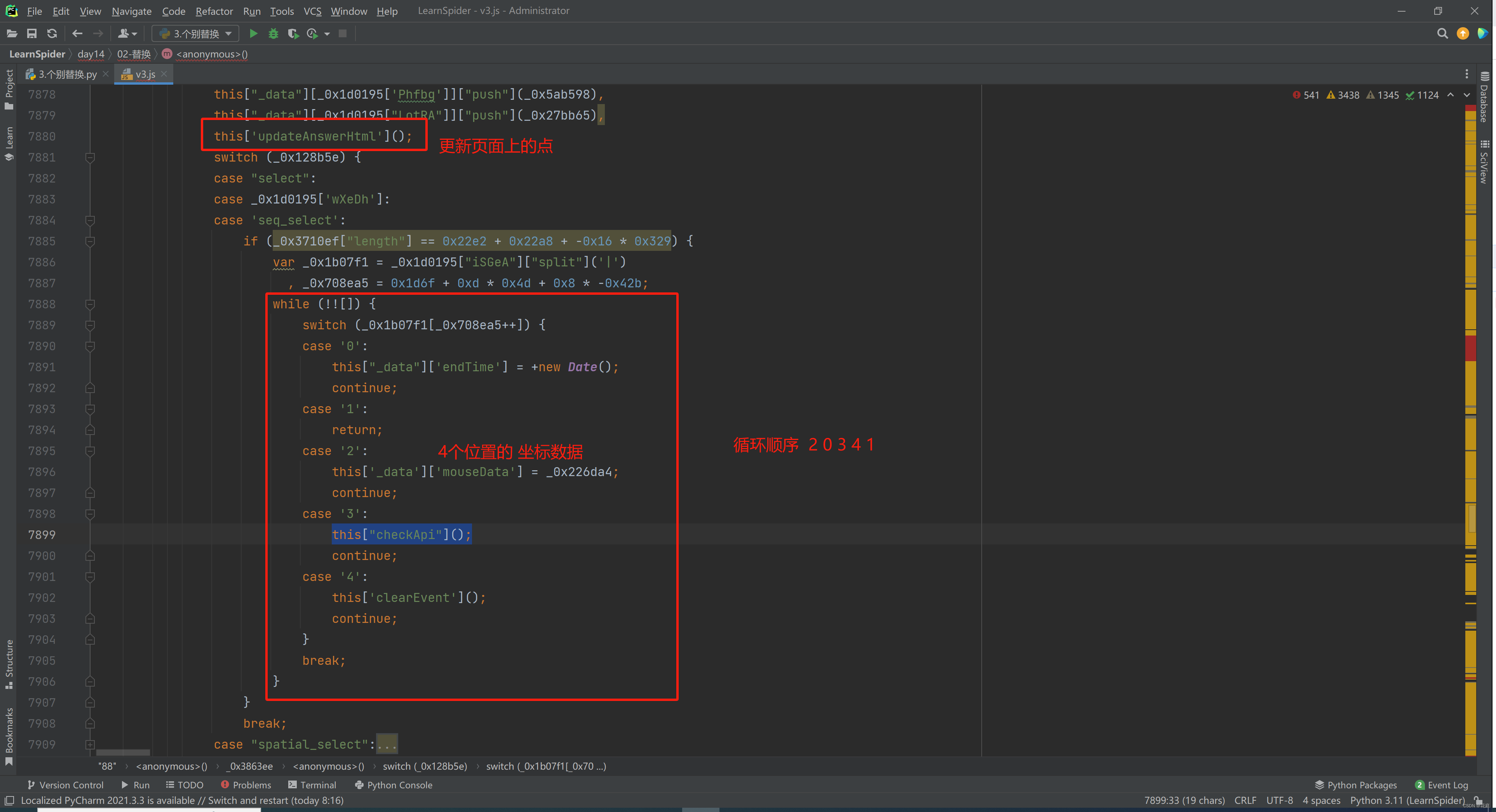

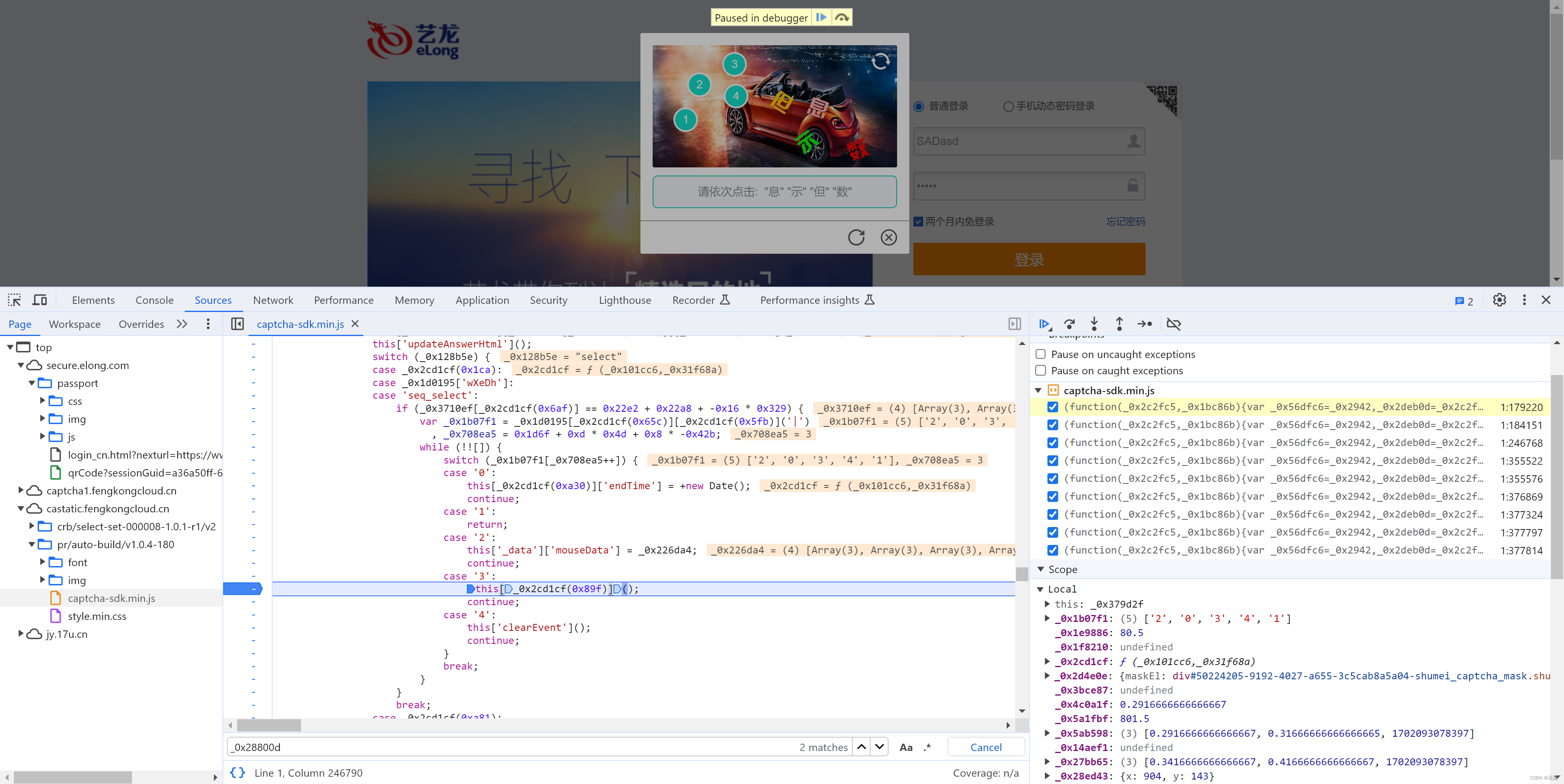

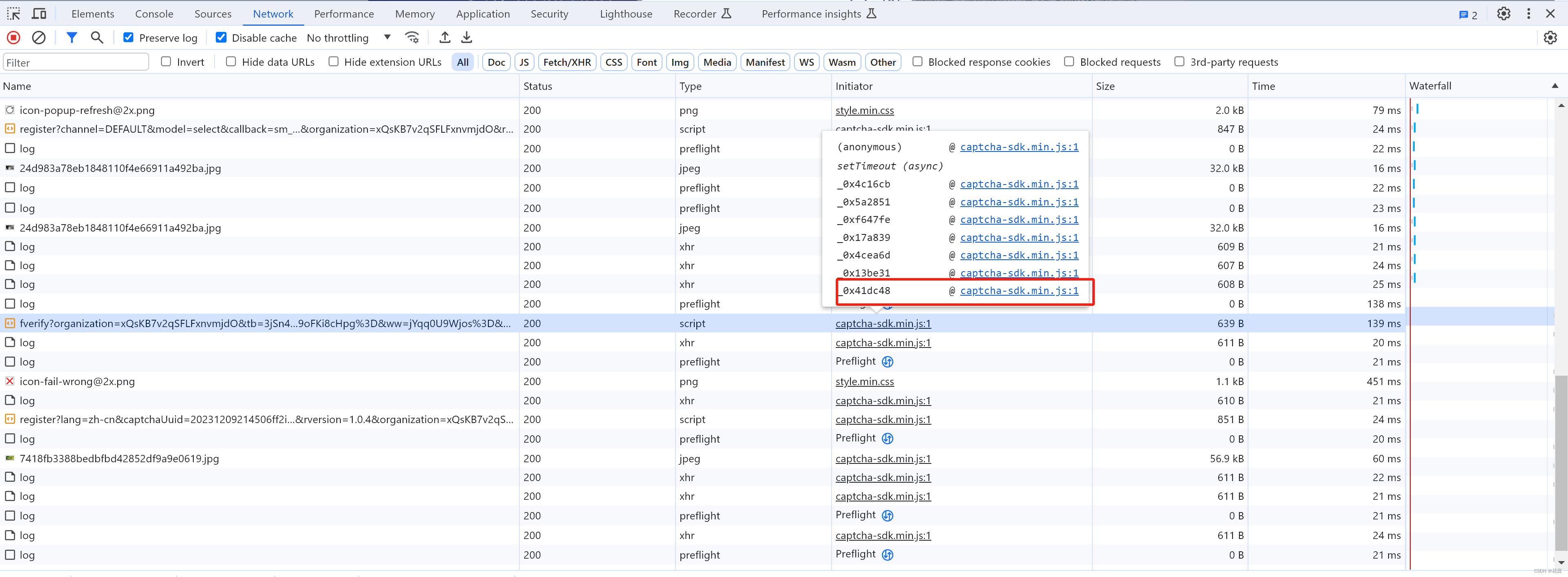

5.1 定位

当在图片上点击第4标记时，触发请求。

5.2 特殊替换

5.3 第4次请求

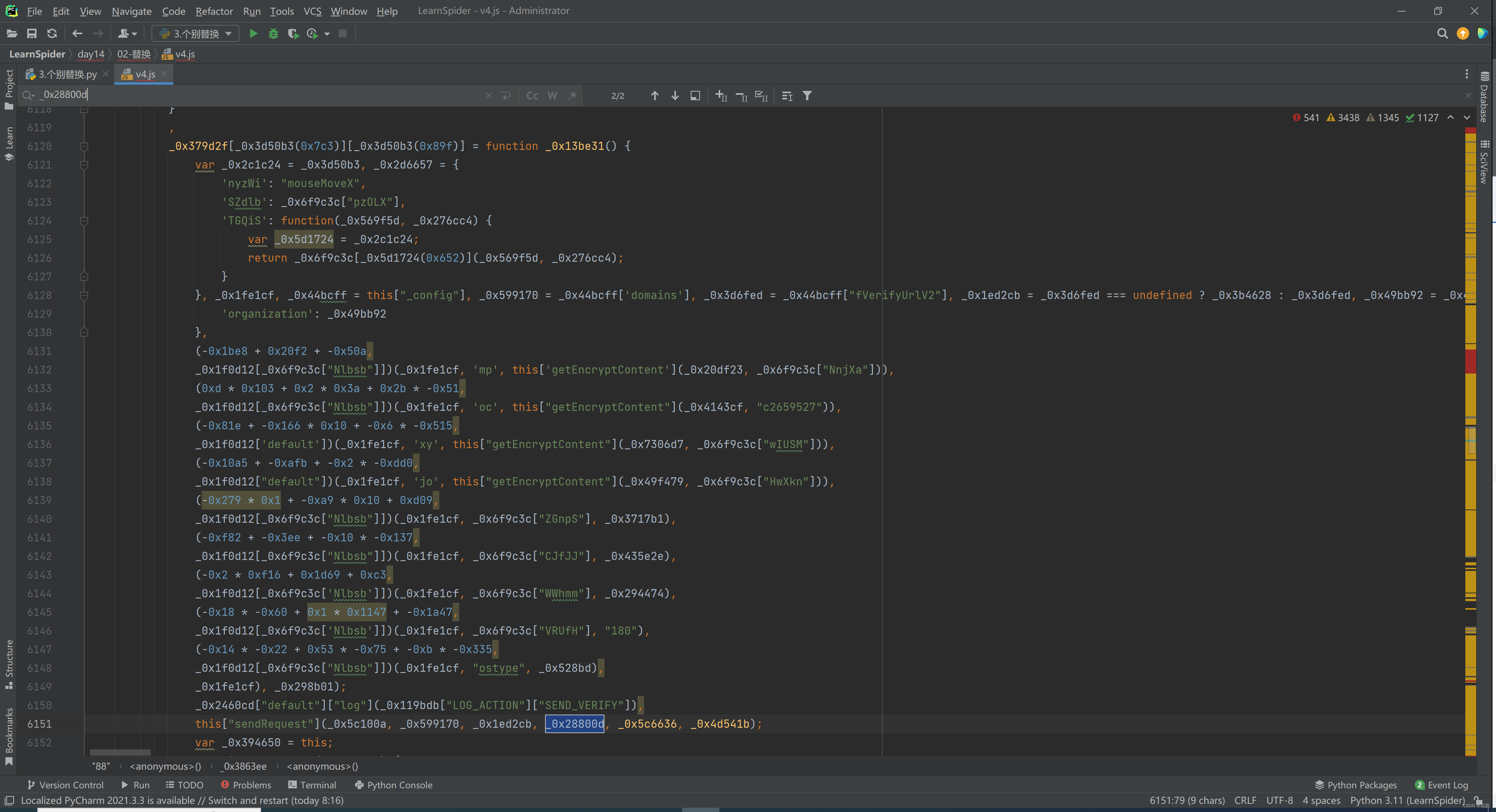

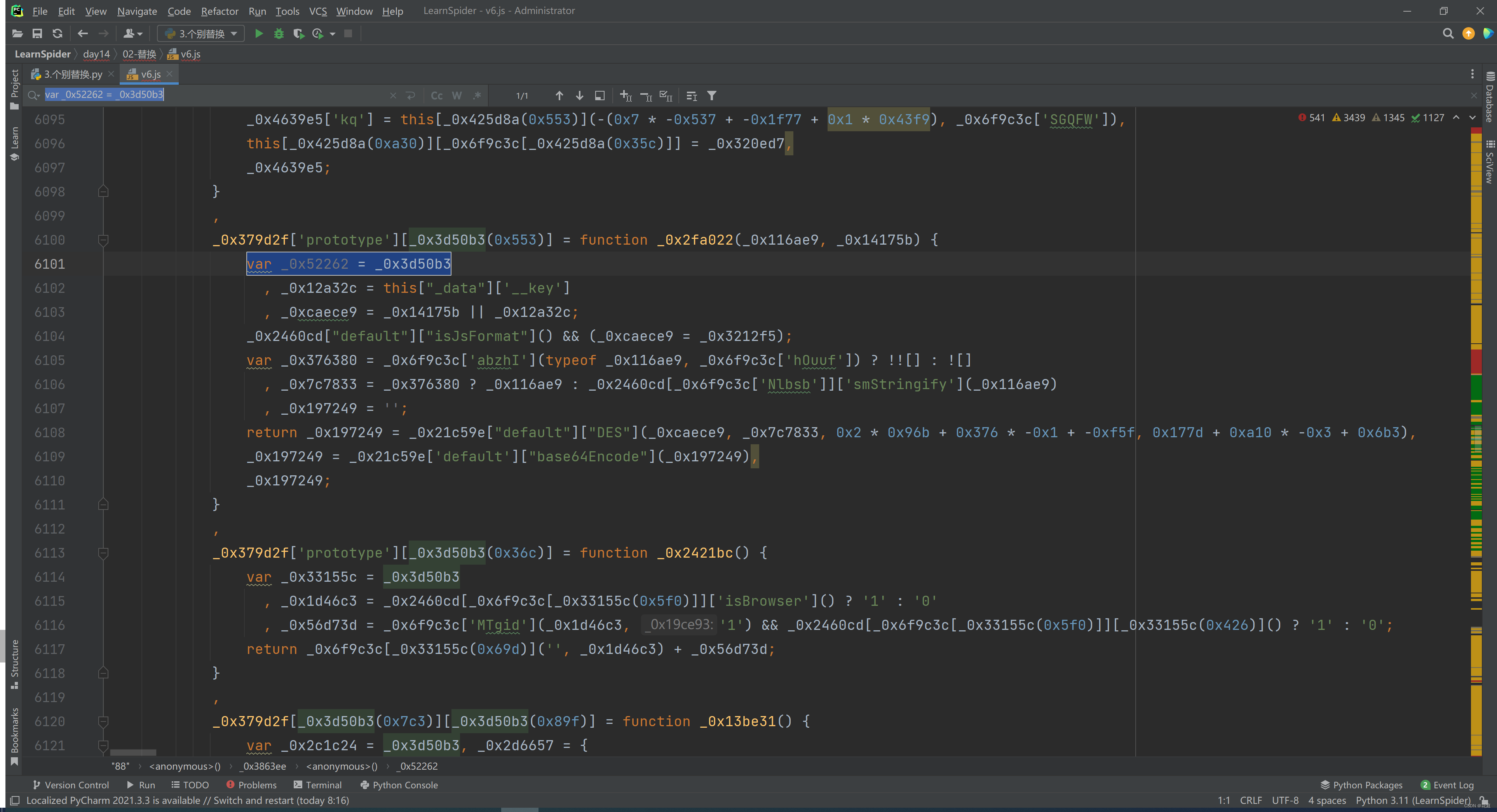

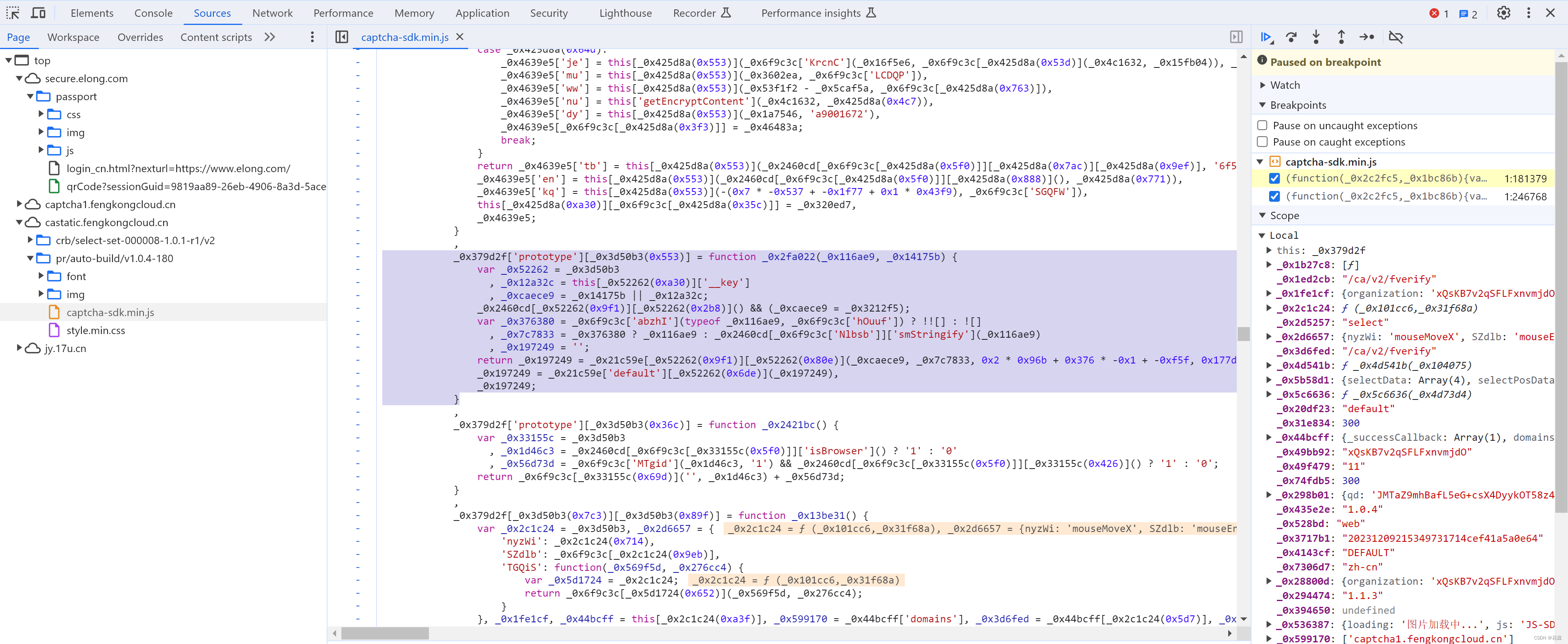

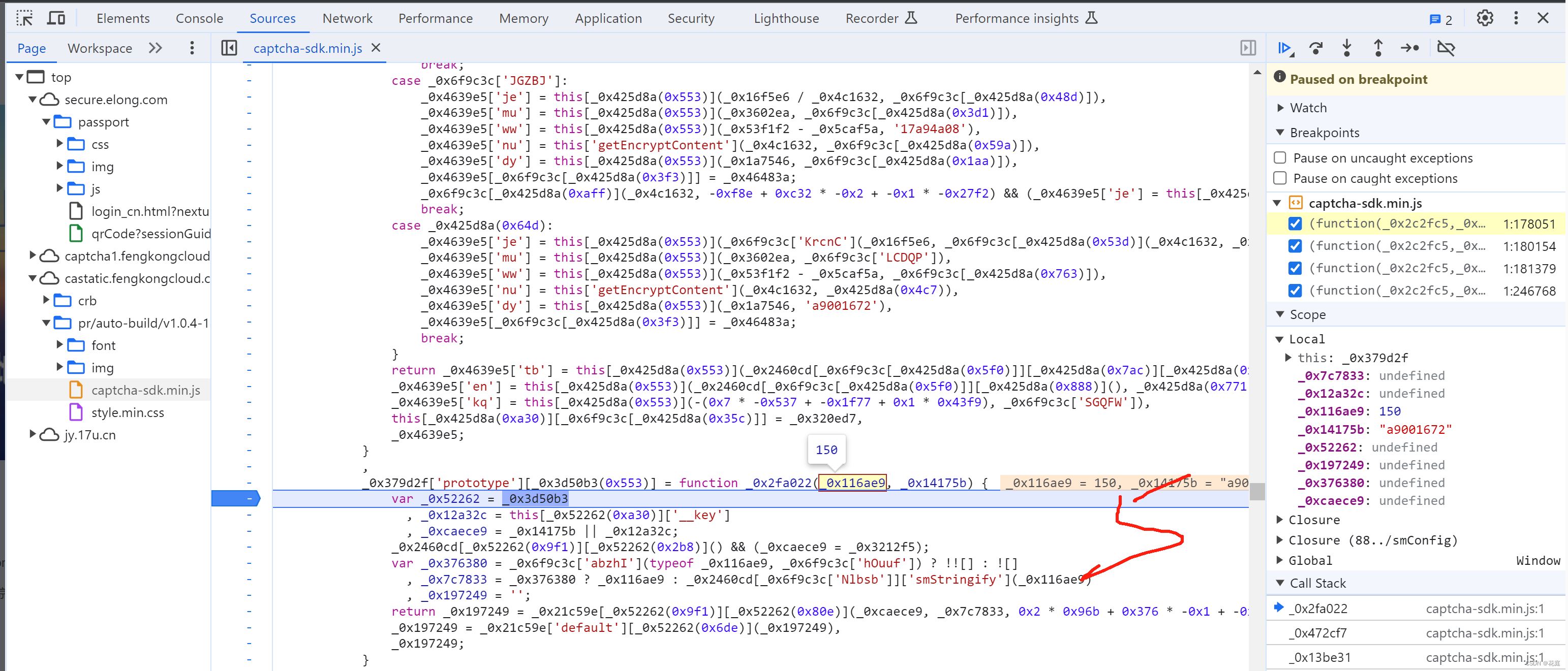

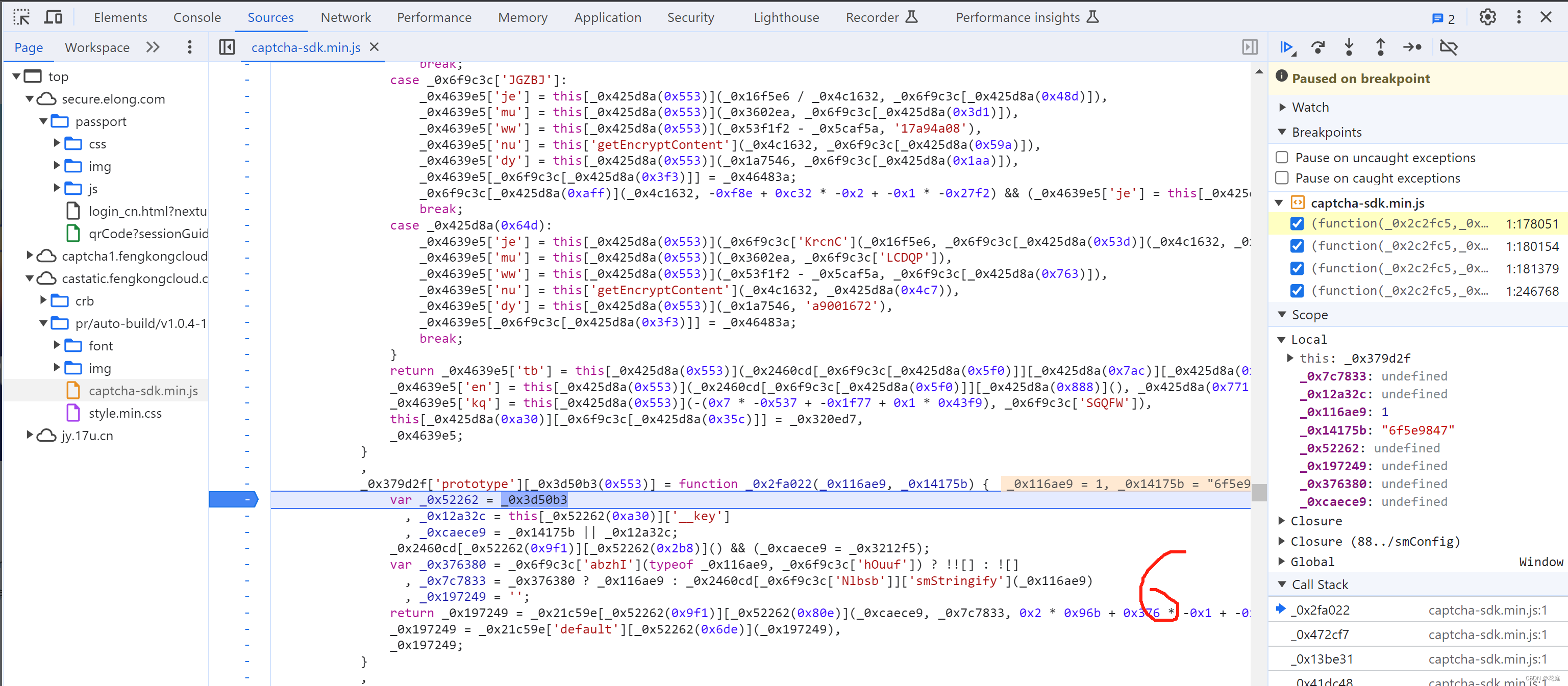

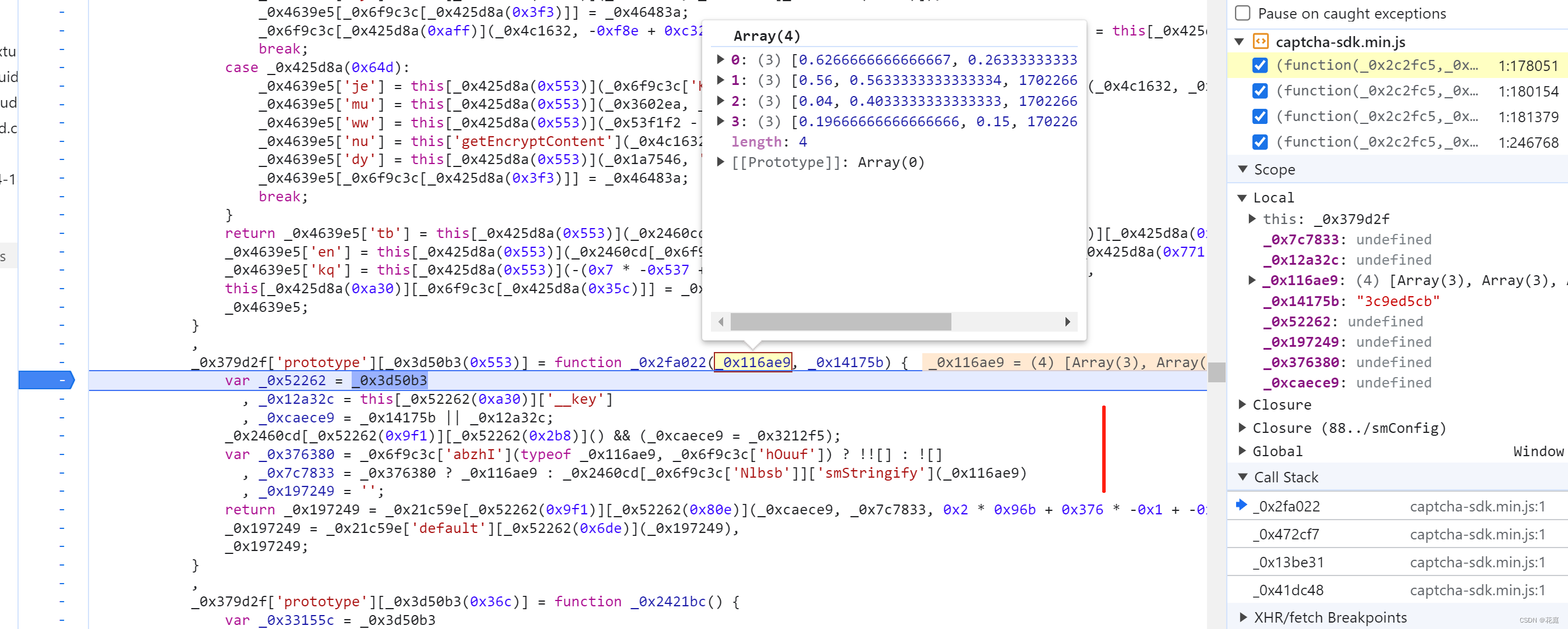

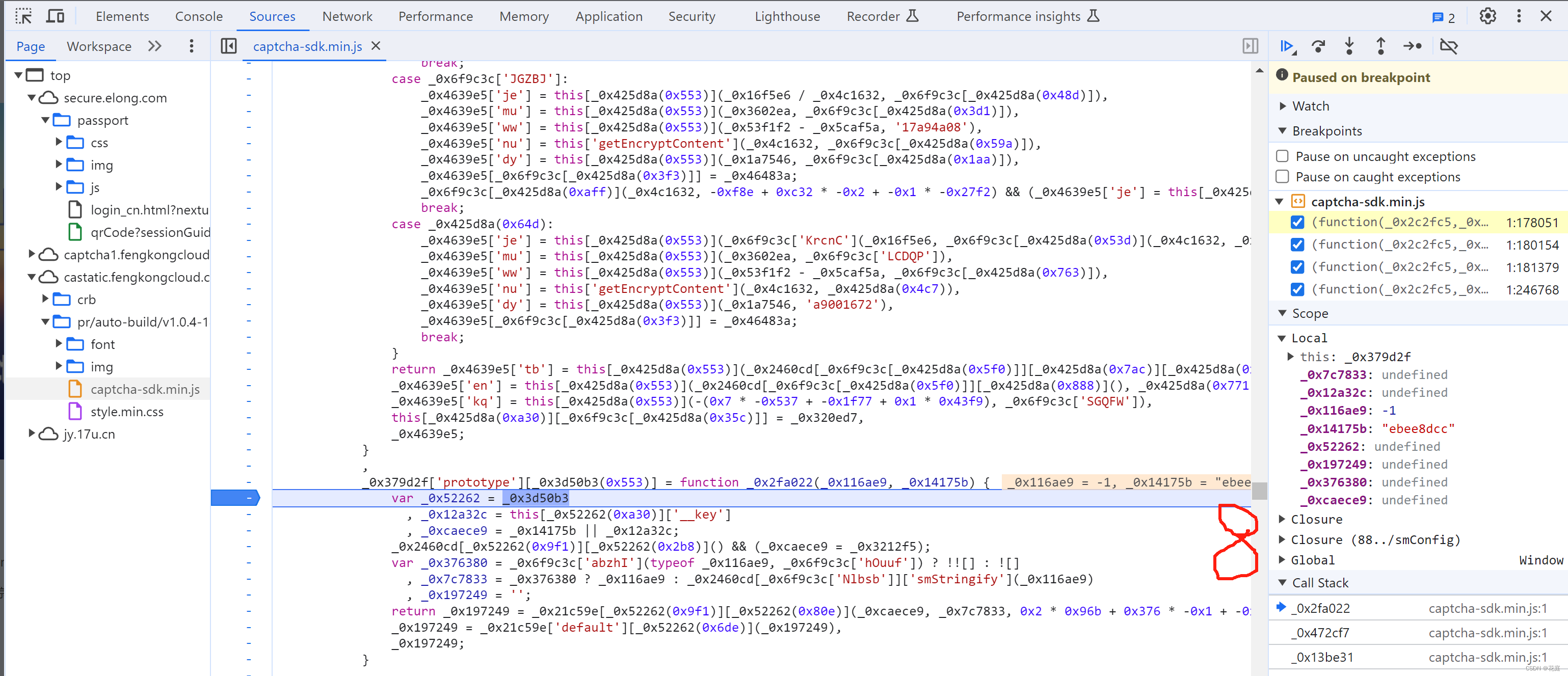

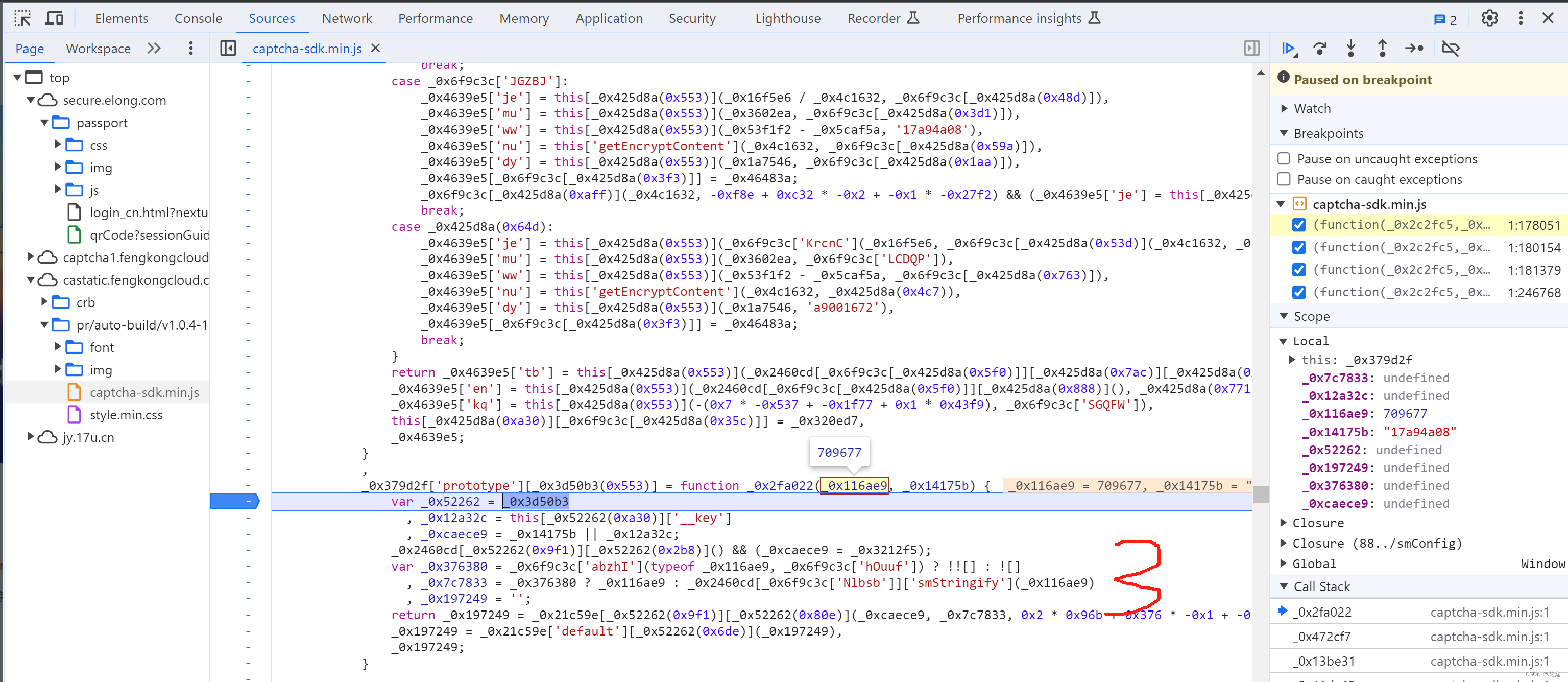

5.4 getEncryptContent

5.5 DES加密

npm install crypto-js -g

var CryptoJS = require("crypto-js")

function DESEncrypt(key, word) {
    var key_ = CryptoJS.enc.Utf8.parse(key);
    var srcs = CryptoJS.enc.Utf8.parse(word);
    var encrypted = CryptoJS.DES.encrypt(srcs, key_, {
        mode: CryptoJS.mode.ECB,
        padding: CryptoJS.pad.ZeroPadding
    });
    return encrypted.toString();
}

function DESDecrypt(key, word) {
    var key_ = CryptoJS.enc.Utf8.parse(key);
    var decrypt = CryptoJS.DES.decrypt(word, key_, {
        mode: CryptoJS.mode.ECB,
        padding: CryptoJS.pad.ZeroPadding
    });
    return decrypt.toString(CryptoJS.enc.Utf8);
}


var result = DESEncrypt("6f5e9847","1");
console.log(result);

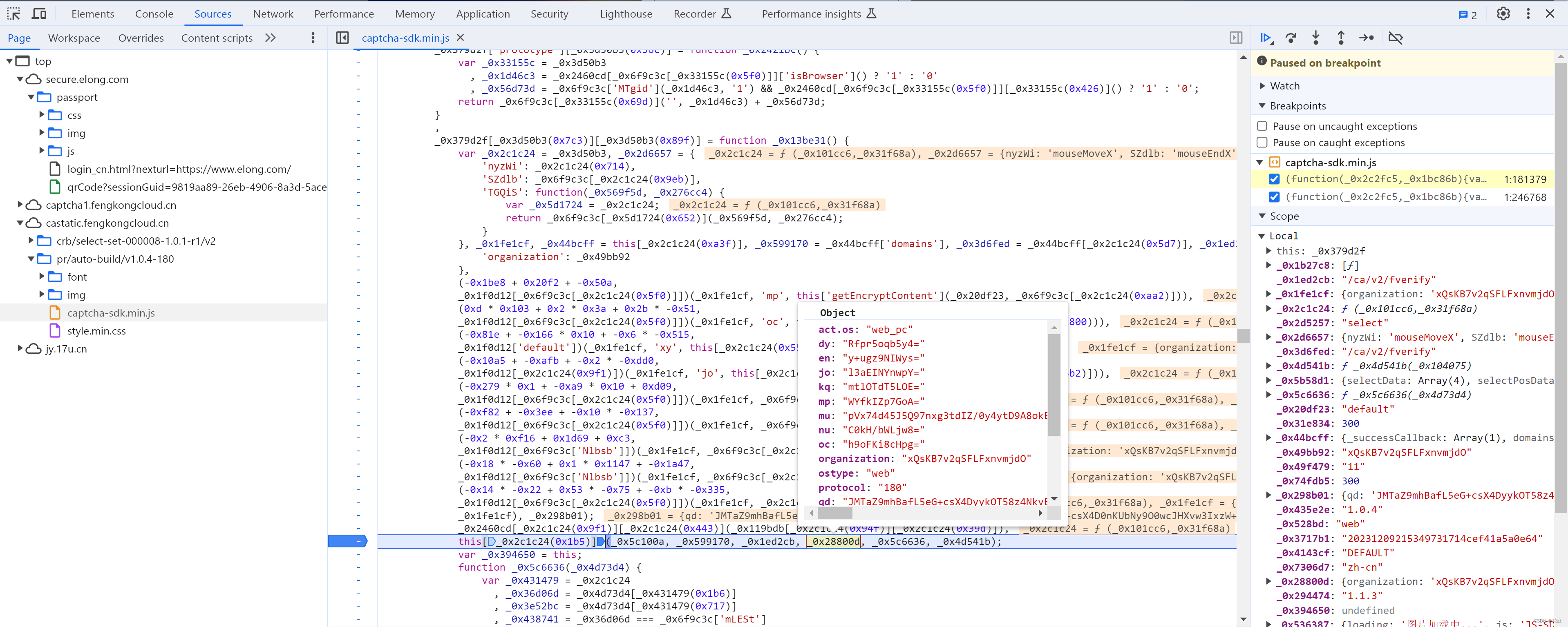

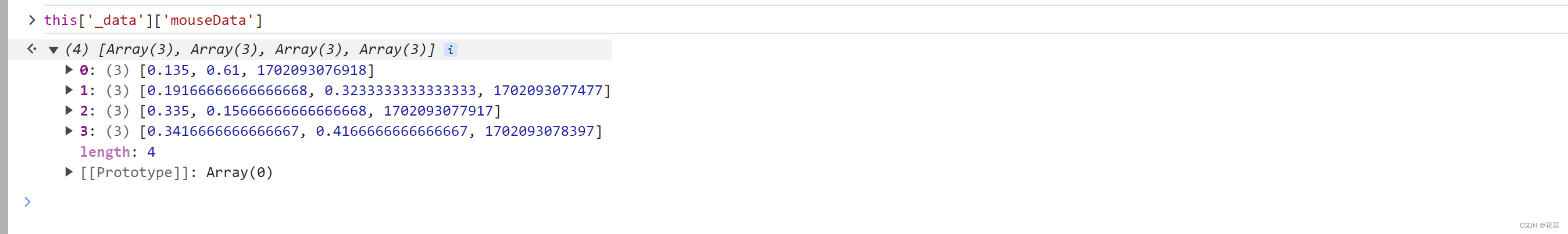

5.6 意外收获-其他参数

在调试getEncryptContent时，发现除了 _0x298b01 相关的参数也走了 getEncryptContent。

{

    "mp":"WYfkIZp7GoA=",
    "oc":"h9oFKi8cHpg=",
    "xy":"YabT6nmJOC0=",
    "jo":"l3aEINYnwpY=",

    "qd":"iUUzUpbSrVLL5eG+cs....",
    "mu":"Gcxg3RiVeoM97nxg3tdIZ3nzK3R7...",
    "ww":"iLL8K/VHX50=",
    "nu":"C0kH/bWLjw8=",
    "dy":"Rfpr5oqb5y4=",
    "tb":"3jSn4gNaAVM=",
    "en":"y+ugz9NIWys=",
    "kq":"mtlOTdT5LOE=",

	"rid":"2023121111394173034a940e0c5d82cc",
    "organization":"xQsKB7v2qSFLFxnvmjdO",
    "rversion":"1.0.4",
    "sdkver":"1.1.3",
    "protocol":"180",
    "ostype":"web",
    "callback":"随便写",
	"act.os":"web_pc",
    "captchaUuid":"20231211113934kRf2pzsG3e7ACCJzDt"
}
