创建基本视图，添加剖视图

	//得到当前图纸页TAG
	tag_t drwa_TAG = NULL_TAG;
	UF_DRAW_ask_current_drawing(&drwa_TAG);

	//获得前视图TAG
	tag_t viewTAG = NULL_TAG;
	UF_OBJ_cycle_by_name_and_type(UF_ASSEM_ask_work_part(), "FRONT", UF_view_type, false, &viewTAG);

	//初始化视图信息结构
	UF_DRAW_view_info_t view_info;
	UF_DRAW_initialize_view_info(&view_info);

	//导入视图到当前图纸页
	double dwg_point[2] = { 300, 200 };
	tag_t draw_view_tag;
	UF_DRAW_import_view(drwa_TAG, viewTAG, dwg_point, &view_info, &draw_view_tag);

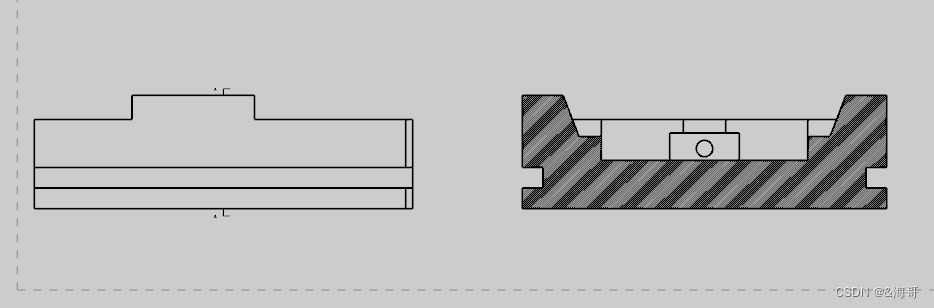

	//创建剖视图
	double step_dir[3] = { 0.0, 1.0, 0.0 };
	double arrow_dir[3] = { 1.0, 0.0, 0.0 };
	UF_DRF_object_t cut_object1;
	cut_object1.object_assoc_type = UF_DRF_dwg_pos;
	cut_object1.assoc_dwg_pos[0] = dwg_point[0];
	cut_object1.assoc_dwg_pos[1] = dwg_point[1];
	double view_pt1[2] = { 1000, 200 };
	tag_t  sxview_tag = NULL_TAG;
	UF_DRAW_create_simple_sxview(drwa_TAG, 1.0, step_dir, arrow_dir, draw_view_tag, &cut_object1, view_pt1, &sxview_tag);

	//更新图纸页所有视图
	UF_DRAW_upd_out_of_date_views(drwa_TAG);
