prometheus监控k8s（02）

node_exporter安装：https://blog.youkuaiyun.com/weixin_50801368/article/details/118051444

 k8s集群中部署prometheus server

#创建一个sa账号
kubectl create serviceaccount monitor -n monitor-sa
#把sa账号monitor通过clusterrolebing绑定到clusterrole上
kubectl create clusterrolebinding monitor-clusterrolebinding-user  -n monitor-sa --clusterrole=cluster-admin  --user=system:serviceaccount:monitor-sa:monitor
#在k8s集群的任何一个node节点操作，因为我在k8s集群192.168.1.152上面部署prometheus所以我在这台上面执行命令，创建数据目录
mkdir /data
chmod 777 /data/

创建一个configmap存储卷，用来存放prometheus配置信息

vim prometheus-cfg.yaml
---
kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    app: prometheus
  name: prometheus-config
  namespace: monitor-sa
data:
  prometheus.yml: |
    global:
      scrape_interval: 15s
      scrape_timeout: 10s
      evaluation_interval: 1m
    scrape_configs:

    - job_name: 'kubernetes-node-cadvisor'    #这个是k8s集群自带的exporter，不需要安装
      kubernetes_sd_configs:，
      - role:  node
      scheme: https
      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
      relabel_configs:
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
      - target_label: __address__
        replacement: kubernetes.default.svc:443
      - source_labels: [__meta_kubernetes_node_name]
        regex: (.+)
        target_label: __metrics_path__
        replacement: /api/v1/nodes/${1}/proxy/metrics/cadvisor

      metric_relabel_configs:
      - source_labels: [instance]
        separator: ;
        regex: (.+)
        target_label: node
        replacement: $1
        action: replace

      - source_labels: [pod_name]
        separator: ;
        regex: (.+)
        target_label: pod
        replacement: $1
        action: replace
      - source_labels: [container_name]
        separator: ;
        regex: (.+)
        target_label: container
        replacement: $1
        action: replace

    - job_name: 'kubernetes-apiserver'    #自带
      kubernetes_sd_configs:
      - role: endpoints
      scheme: https
      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
      relabel_configs:
      - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
        action: keep
        regex: default;kubernetes;https
    - job_name: 'kubernetes-service-endpoints'
      kubernetes_sd_configs:
      - role: endpoints
      relabel_configs:
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
        action: keep
        regex: true
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
        action: replace
        target_label: __scheme__
        regex: (https?)
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
        action: replace
        target_label: __metrics_path__
        regex: (.+)
      - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
        action: replace
        target_label: __address__
        regex: ([^:]+)(?::\d+)?;(\d+)
        replacement: $1:$2
      - action: labelmap
        regex: __meta_kubernetes_service_label_(.+)
      - source_labels: [__meta_kubernetes_namespace]
        action: replace
        target_label: kubernetes_namespace
      - source_labels: [__meta_kubernetes_service_name]
        action: replace
        target_label: kubernetes_name

prometheus server安装

vim prometheus-deploy.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: prometheus-server
  namespace: monitor-sa
  labels:
    app: prometheus
spec:
  replicas: 1
  selector:
    matchLabels:
      app: prometheus
      component: server
    #matchExpressions:
    #- {key: app, operator: In, values: [prometheus]}
    #- {key: component, operator: In, values: [server]}
  template:
    metadata:
      labels:
        app: prometheus
        component: server
      annotations:
        prometheus.io/scrape: 'false'
    spec:
      nodeName: 192.168.1.152        #选择你创建文件夹的地址
      serviceAccountName: monitor
      containers:
      - name: prometheus
        image: prom/prometheus:v2.2.1
        imagePullPolicy: IfNotPresent
        command:
          - prometheus
          - --config.file=/etc/prometheus/prometheus.yml
          - --storage.tsdb.path=/prometheus
          - --storage.tsdb.retention=720h
          - --web.enable-lifecycle
        ports:
        - containerPort: 9090
          protocol: TCP
        volumeMounts:
        - mountPath: /etc/prometheus/prometheus.yml
          name: prometheus-config
          subPath: prometheus.yml
        - mountPath: /prometheus/
          name: prometheus-storage-volume
      volumes:
        - name: prometheus-config
          configMap:
            name: prometheus-config
            items:
              - key: prometheus.yml
                path: prometheus.yml
                mode: 0644
        - name: prometheus-storage-volume
          hostPath:
           path: /data
           type: Directory

 svc创建

apiVersion: v1
kind: Service
metadata:
  name: prometheus
  namespace: monitor-sa
  labels:
    app: prometheus
spec:
  type: NodePort
  ports:
    - port: 9090
      targetPort: 9090
      protocol: TCP
  selector:
    app: prometheus
    component: server

检查创建的应用并验证

[root@master prometheus]# kubectl get pods -n monitor-sa
NAME                                READY   STATUS    RESTARTS   AGE
node-exporter-lt4sj                 1/1     Running   0          7d21h
node-exporter-xkk45                 1/1     Running   0          7d21h
node-exporter-xqhsl                 1/1     Running   0          7d21h
prometheus-server-fdd869d7d-zhxbp   1/1     Running   0          24h
[root@master prometheus]# kubectl get svc -n monitor-sa
NAME         TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)          AGE
prometheus   NodePort   10.68.115.55   <none>        9090:35123/TCP   7d21h
[root@master prometheus]# kubectl logs prometheus-server-fdd869d7d-zhxbp -n monitor-sa

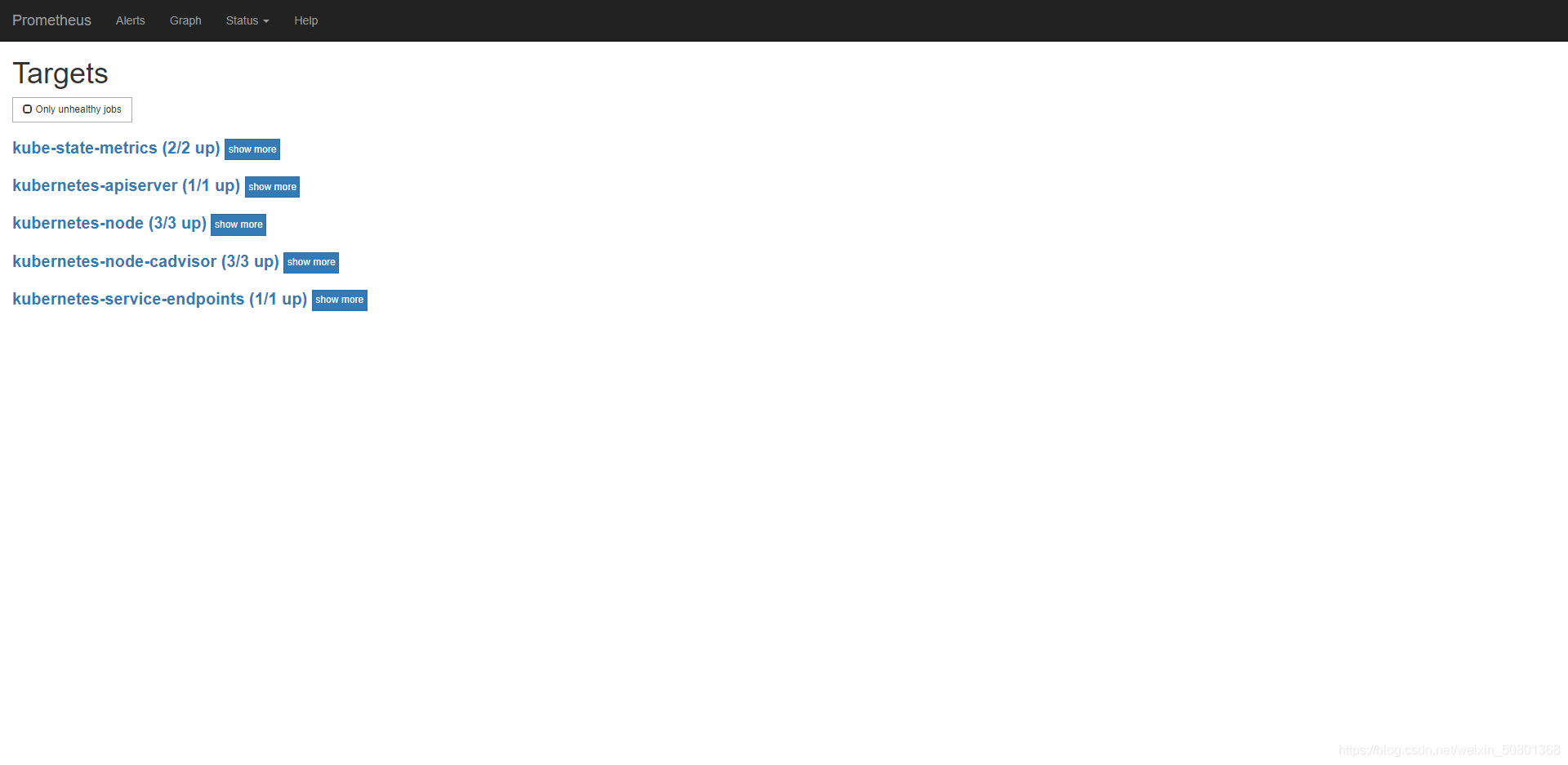

这个时候我们就可以用过浏览器去访问了192.168.1.151:35123

这样就是正常的了但是由于kube-state-metrics没有安装所以暂时还看不到，后续会更新kube-state-metrics的安装
