antv/g6图表决策代码

useEffect(()=>{

   let srcScript = document.createElement('script')
   srcScript.async = false
   srcScript.src="https://gw.alipayobjects.com/os/lib/antv/g6/4.3.11/dist/g6.min.js"
   document.head.appendChild(srcScript)
 },[])
 const initScript = () => {
  let script = document.createElement('script')
  script.type = 'text/javascript'
  script.async = false
  localStorage.getItem("mapDataNumber2")
  script.text = `
  setTimeout(() => {

    var count =  document.getElementById('data').textContent

  // var code = window.location.href.split("@")[1]
  // code = decodeURIComponent(code)
  datas = JSON.parse(count)

  let data ={
    "nodes": [

    ],
    "edges": [

    ]
  }
  datas.forEach((i,d)=>{
    if(d<100){
      data.nodes.push({id:i.data.pdAggregateTitle,name:i.data.pdAggregateTitle,level:0,tag:i.data.pdAggregateTitle,childrenNum:i.list.length})
      i.list.forEach(item=>{
        data.nodes.push({id:item.aggregateTitle,name:item.aggregateTitle,level:2,isLeaf:true,tags:[i.data.pdAggregateTitle]})
        data.edges.push({source:i.data.pdAggregateTitle,target:item.aggregateTitle})
      })
    }
  })
  let showNodes = [];
  let showEdges = [];
  let curShowNodes = [];
  let curShowEdges = [];
  let nodes = [];
  let edges = [];
  let nodeMap = new Map();
  let edgesMap = new Map();
  let curShowNodesMap = new Map();
  let highlighting = false;
  let currentFocus;
  const width = document.getElementById('container').scrollWidth;
  const height = document.getElementById('container').scrollHeight || 500;

  const LIMIT_OVERFLOW_WIDTH = width;
  const LIMIT_OVERFLOW_HEIGHT = height;

  const mapNodeSize = (nodes, propertyName, visualRange) => {
    let minp = 9999999999;
    let maxp = -9999999999;
    nodes.forEach((node) => {
      minp = node[propertyName] < minp ? node[propertyName] : minp;
      maxp = node[propertyName] > maxp ? node[propertyName] : maxp;
    });
    const rangepLength = maxp - minp;
    const rangevLength = visualRange[1] - visualRange[0];
    nodes.forEach((node) => {
      node.size = ((node[propertyName] - minp) / rangepLength) * rangevLength + visualRange[0];
    });
  };

  const lightColors = [
    '#8FE9FF',
    '#87EAEF',
    '#FFC9E3',
    '#A7C2FF',
    '#FFA1E3',
    '#FFE269',
    '#BFCFEE',
    '#FFA0C5',
    '#D5FF86',
  ];
  const darkColors = [
    '#7DA8FF',
    '#44E6C1',
    '#FF68A7',
    '#7F86FF',
    '#AE6CFF',
    '#FF5A34',
    '#5D7092',
    '#FF6565',
    '#6BFFDE',
  ];
  const uLightColors = [
    '#CFF6FF',
    '#BCFCFF',
    '#FFECF5',
    '#ECFBFF',
    '#EAD9FF',
    '#FFF8DA',
    '#DCE2EE',
    '#FFE7F0',
    '#EEFFCE',
  ];
  const uDarkColors = [
    '#CADBFF',
    '#A9FFEB',
    '#FFC4DD',
    '#CACDFF',
    '#FFD4F2',
    '#FFD3C9',
    '#EBF2FF',
    '#FFCBCB',
    '#CAFFF3',
  ];

  const gColors = [];
  const unlightColorMap = new Map();
  lightColors.forEach((lcolor, i) => {
    gColors.push('l(0) 0:' + lcolor + ' 1:' + darkColors[i]);
    unlightColorMap.set(gColors[i], 'l(0) 0:' + uLightColors[i] + ' 1:' + uDarkColors[i]);
  });

  let graph;
  const layoutCfg = {
    type: 'force',
    nodeSize: (d) => {
      return d.size / 2 + 5;
    },
    nodeStrength: 30,
    collideStrength: 0.8,
    alphaDecay: 0.01,
    preventOverlap: true,
    onTick: () => {
      const nodeItems = graph.getNodes();
      const height = graph.get('height');
      const width = graph.get('width');
      const padding = 10;
      nodeItems.forEach((item) => {
        const model = item.getModel();
        if (model.x > width - padding) model.x = width - padding;
        else if (model.x < padding) model.x = padding;

        if (model.y > height - padding) model.y = height - padding;
        else if (model.y < padding) model.y = padding;
      });
    },
  };

  G6.registerBehavior('double-finger-drag-canvas', {
    getEvents: function getEvents() {
      return {
        wheel: 'onWheel',
      };
    },

    onWheel: (ev) => {
      if (ev.ctrlKey) {
        const canvas = graph.get('canvas');
        const point = canvas.getPointByClient(ev.clientX, ev.clientY);
        let ratio = graph.getZoom();
        if (ev.wheelDelta > 0) {
          ratio = ratio + ratio * 0.05;
        } else {
          ratio = ratio - ratio * 0.05;
        }
        graph.zoomTo(ratio, {
          x: point.x,
          y: point.y,
        });
      } else {
        const x = ev.deltaX || ev.movementX;
        const y = ev.deltaY || ev.movementY || (-ev.wheelDelta * 125) / 3;
        translate(x, y);
      }
      ev.preventDefault();
    },
  });

  G6.registerNode(
    'bubble',
    {
      drawShape(cfg, group) {
        const self = this;
        const r = cfg.size / 2;
        // a circle by path
        const path = [
          ['M', -r, 0],
          ['C', -r, r / 2, -r / 2, r, 0, r],
          ['C', r / 2, r, r, r / 2, r, 0],
          ['C', r, -r / 2, r / 2, -r, 0, -r],
          ['C', -r / 2, -r, -r, -r / 2, -r, 0],
          ['Z'],
        ];
        const keyShape = group.addShape('path', {
          attrs: {
            x: 0,
            y: 0,
            path,
            fill: cfg.color || 'steelblue',
          },
          name: 'path-shape',
        });

        const mask = group.addShape('path', {
          attrs: {
            x: 0,
            y: 0,
            path,
            opacity: 0.25,
            fill: cfg.color || 'steelblue',
            shadowColor: cfg.color.split(' ')[2].substr(2),
            shadowBlur: 40,
            shadowOffsetX: 0,
            shadowOffsetY: 30,
          },
          name: 'mask-shape',
        });

        const spNum = 10; // split points number
        const directions = [],
          rs = [];
        self.changeDirections(spNum, directions);
        for (let i = 0; i < spNum; i++) {
          const rr = r + directions[i] * ((Math.random() * r) / 1000); // +-r/6, the sign according to the directions
          if (rs[i] < 0.97 * r) rs[i] = 0.97 * r;
          else if (rs[i] > 1.03 * r) rs[i] = 1.03 * r;
          rs.push(rr);
        }
        keyShape.animate(
          () => {
            const path = self.getBubblePath(r, spNum, directions, rs);
            return { path };
          },
          {
            repeat: true,
            duration: 10000,
          },
        );

        const directions2 = [],
          rs2 = [];
        self.changeDirections(spNum, directions2);
        for (let i = 0; i < spNum; i++) {
          const rr = r + directions2[i] * ((Math.random() * r) / 1000); // +-r/6, the sign according to the directions
          if (rs2[i] < 0.97 * r) rs2[i] = 0.97 * r;
          else if (rs2[i] > 1.03 * r) rs2[i] = 1.03 * r;
          rs2.push(rr);
        }
        mask.animate(
          () => {
            const path = self.getBubblePath(r, spNum, directions2, rs2);
            return { path };
          },
          {
            repeat: true,
            duration: 10000,
          },
        );
        return keyShape;
      },
      changeDirections(num, directions) {
        for (let i = 0; i < num; i++) {
          if (!directions[i]) {
            const rand = Math.random();
            const dire = rand > 0.5 ? 1 : -1;
            directions.push(dire);
          } else {
            directions[i] = -1 * directions[i];
          }
        }
        return directions;
      },
      getBubblePath(r, spNum, directions, rs) {
        const path = [];
        const cpNum = spNum * 2; // control points number
        const unitAngle = (Math.PI * 2) / spNum; // base angle for split points
        let angleSum = 0;
        const sps = [];
        const cps = [];
        for (let i = 0; i < spNum; i++) {
          const speed = 0.001 * Math.random();
          rs[i] = rs[i] + directions[i] * speed * r; // +-r/6, the sign according to the directions
          if (rs[i] < 0.97 * r) {
            rs[i] = 0.97 * r;
            directions[i] = -1 * directions[i];
          } else if (rs[i] > 1.03 * r) {
            rs[i] = 1.03 * r;
            directions[i] = -1 * directions[i];
          }
          const spX = rs[i] * Math.cos(angleSum);
          const spY = rs[i] * Math.sin(angleSum);
          sps.push({ x: spX, y: spY });
          for (let j = 0; j < 2; j++) {
            const cpAngleRand = unitAngle / 3;
            const cpR = rs[i] / Math.cos(cpAngleRand);
            const sign = j === 0 ? -1 : 1;
            const x = cpR * Math.cos(angleSum + sign * cpAngleRand);
            const y = cpR * Math.sin(angleSum + sign * cpAngleRand);
            cps.push({ x, y });
          }
          angleSum += unitAngle;
        }
        path.push(['M', sps[0].x, sps[0].y]);
        for (let i = 1; i < spNum; i++) {
          path.push([
            'C',
            cps[2 * i - 1].x,
            cps[2 * i - 1].y,
            cps[2 * i].x,
            cps[2 * i].y,
            sps[i].x,
            sps[i].y,
          ]);
        }
        path.push(['C', cps[cpNum - 1].x, cps[cpNum - 1].y, cps[0].x, cps[0].y, sps[0].x, sps[0].y]);
        path.push(['Z']);
        return path;
      },
      setState(name, value, item) {
        const shape = item.get('keyShape');
        if (name === 'dark') {
          if (value) {
            if (shape.attr('fill') !== '#fff') {
              shape.oriFill = shape.attr('fill');
              const uColor = unlightColorMap.get(shape.attr('fill'));
              shape.attr('fill', uColor);
            } else {
              shape.attr('opacity', 0.2);
            }
          } else {
            if (shape.attr('fill') !== '#fff') {
              shape.attr('fill', shape.oriFill || shape.attr('fill'));
            } else {
              shape.attr('opacity', 1);
            }
          }
        }
      },
    },
    'single-node',
  );

  G6.registerNode(
    'animate-circle',
    {
      setState(name, value, item) {
        const shape = item.get('keyShape');
        const label = shape.get('parent').get('children')[1];
        if (name === 'disappearing' && value) {
          shape.animate(
            (ratio) => {
              return {
                opacity: 1 - ratio,
                r: shape.attr('r') * (1 - ratio),
              };
            },
            {
              duration: 200,
            },
          );
          label.animate(
            (ratio) => {
              return {
                opacity: 1 - ratio,
              };
            },
            {
              duration: 500,
            },
          );
        } else if (name === 'appearing' && value) {
          const r = item.getModel().size / 2;
          shape.animate(
            (ratio) => {
              return {
                opacity: ratio,
                r: r * ratio,
                fill: shape.attr('fill'),
              };
            },
            {
              duration: 300,
            },
          );
          label.animate(
            {
              onFrame(ratio) {
                return {
                  opacity: ratio,
                };
              },
            },
            {
              duration: 300,
            },
          );
        } else if (name === 'dark') {
          if (value) {
            if (shape.attr('fill') !== '#fff') {
              shape.oriFill = shape.attr('fill');
              const uColor = unlightColorMap.get(shape.attr('fill'));
              shape.attr('fill', uColor);
            } else {
              shape.attr('opacity', 0.2);
              label.attr('fill', '#A3B1BF');
            }
          } else {
            if (shape.attr('fill') !== '#fff') {
              shape.attr('fill', shape.oriFill || shape.attr('fill'));
            } else {
              shape.attr('opacity', 1);
              label.attr('fill', '#697B8C');
            }
          }
        }
      },
    },
    'circle',
  );

  G6.registerEdge(
    'animate-line',
    {
      drawShape(cfg, group) {
        const self = this;
        let shapeStyle = self.getShapeStyle(cfg);
        shapeStyle = Object.assign(shapeStyle, {
          opacity: 0,
          strokeOpacity: 0,
        });
        const keyShape = group.addShape('path', {
          attrs: shapeStyle,
          name: 'path-shape',
        });
        return keyShape;
      },
      afterDraw(cfg, group) {
        const shape = group.get('children')[0];
        shape.animate(
          (ratio) => {
            const opacity = ratio * cfg.style.opacity;
            const strokeOpacity = ratio * cfg.style.strokeOpacity;
            return {
              opacity: ratio || opacity,
              strokeOpacity: ratio || strokeOpacity,
            };
          },
          {
            duration: 300,
          },
        );
      },
      setState(name, value, item) {
        const shape = item.get('keyShape');
        if (name === 'disappearing' && value) {
          shape.animate(
            (ratio) => {
              return {
                opacity: 1 - ratio,
                strokeOpacity: 1 - ratio,
              };
            },
            {
              duration: 200,
            },
          );
        } else if (name === 'dark') {
          if (value) shape.attr('opacity', 0.2);
          else shape.attr('opacity', 1);
        }
      },
    },
    'line',
  );

  graph = new G6.Graph({
    container: 'container',
    width,
    height,
    linkCenter: true,
    layout: layoutCfg,
    modes: {
      default: ['drag-canvas'],
    },
    defaultNode: {
      type: 'bubble',
      size: 95,
      labelCfg: {
        position: 'center',
        style: {
          fill: 'white',
          fontStyle: 'bold',
        },
      },
    },
    defaultEdge: {
      color: '#888',
      type: 'animate-line', //'animate-line'
    },
  });
  graph.get('canvas').set('localRefresh', false);

  function translate(x, y) {
    let moveX = x;
    let moveY = y;

    /* 获得当前偏移量*/
    const group = graph.get('group');
    const bbox = group.getBBox();
    const leftTopPoint = graph.getCanvasByPoint(bbox.minX, bbox.minY);
    const rightBottomPoint = graph.getCanvasByPoint(bbox.maxX, bbox.maxY);
    /* 如果 x 轴在区域内，不允许左右超过100 */
    if (x < 0 && leftTopPoint.x - x > LIMIT_OVERFLOW_WIDTH) {
      moveX = 0;
    }
    if (x > 0 && rightBottomPoint.x - x < width - LIMIT_OVERFLOW_WIDTH) {
      moveX = 0;
    }

    if (y < 0 && leftTopPoint.y - y > LIMIT_OVERFLOW_HEIGHT) {
      moveY = 0;
    }
    if (y > 0 && rightBottomPoint.y - y < height - LIMIT_OVERFLOW_HEIGHT) {
      moveY = 0;
    }
    graph.translate(-moveX, -moveY);
  }

  function refreshDragedNodePosition(e) {
    const model = e.item.get('model');
    model.fx = e.x;
    model.fy = e.y;
  }
  graph.on('node:dragstart', (e) => {
    graph.layout();
    refreshDragedNodePosition(e);
  });
  graph.on('node:drag', (e) => {
    refreshDragedNodePosition(e);
  });
  graph.on('node:dragend', (e) => {
    e.item.get('model').fx = null;
    e.item.get('model').fy = null;
  });

  const loadData = (data) => {
    const layoutController = graph.get('layoutController');
    layoutController.layoutCfg.nodeStrength = 30;
    layoutController.layoutCfg.collideStrength = 0.8;
    layoutController.layoutCfg.alphaDecay = 0.01;
    nodes = data.nodes;
    edges = data.edges;

    showNodes = [];
    showEdges = [];
    nodeMap = new Map();
    edgesMap = new Map();
    // find the roots
    nodes.forEach((node) => {
      if (node.level === 0) {
        node.color = gColors[showNodes.length % gColors.length];
        node.style = {
          fill: gColors[showNodes.length % gColors.length],
          lineWidth: 0,
        };
        node.labelCfg = {
          style: {
            fontSize: 25,
            fill: '#fff',
            fontWeight: 300,
          },
        };
        node.x = Math.random() * 800;
        node.y = Math.random() * 800;
        showNodes.push(node);
      }
      if (!node.isLeaf) {
        const num = node.childrenNum ? \r'('+node.childrenNum+')' : '';
        node.label = node.name +    num;
      } else {
        node.label = node.name;
      }
      nodeMap.set(node.id, node);
    });

    mapNodeSize(showNodes, 'childrenNum', [100, 150]);

    // map the color to F nodes, same to its parent
    nodes.forEach((node) => {
      if (node.level !== 0 && !node.isLeaf) {
        const parent = nodeMap.get(node.tags[0]);
        node.color = parent.color;
        node.style = {
          fill: parent.color,
        };
      }
    });
    edges.forEach((edge) => {
      // map the id
      edge.id = edge.source+'-'+edge.target;
      edge.style = {
        lineWidth: 0.5,
        opacity: 1,
        strokeOpacity: 1,
      };
      edgesMap.set(edge.id, edge);
    });
    graph.data({
      nodes: showNodes,
      edges: showEdges,
    });
    graph.render();
  };

  graph.on('node:mouseenter', (e) => {
    const item = e.item;
    const model = item.getModel();
    if (model.level === 0) {
      return;
    }
    highlighting = true;
    graph.setAutoPaint(false);
    const nodeItems = graph.getNodes();
    const edgeItems = graph.getEdges();
    nodeItems.forEach((node) => {
      graph.setItemState(node, 'dark', true);
      node.getModel().light = false;
    });
    graph.setItemState(item, 'dark', false);
    model.light = true;
    const tags = model.tags;
    const findTagsMap = new Map();
    let mid = 0;

    let fTag = '';
    // if the model is F node, find the leaves of it
    if (!model.isLeaf && model.level !== 0) {
      fTag = model.tag;
      nodeItems.forEach((item) => {
        const itemModel = item.getModel();
        if (!itemModel.isLeaf) return;
        const modelTags = itemModel.tags;
        modelTags.forEach((mt) => {
          const mts = mt.split('-');
          if (mts[1] === fTag) {
            graph.setItemState(item, 'dark', false);
            itemModel.light = true;
          }
        });
      });
    }

    // find the tags
    tags.forEach((t) => {
      const ts = t.split('-');
      findTagsMap.set(ts[0], mid);
      mid++;
      if (ts[1]) {
        findTagsMap.set(ts[1], mid);
        mid++;
      }
    });
    // find the nodes with tag === tags[?]
    nodeItems.forEach((item) => {
      const node = item.getModel();
      if (findTagsMap.get(node.tag) !== undefined) {
        graph.setItemState(item, 'dark', false);
        node.light = true;
      }
    });
    edgeItems.forEach((item) => {
      const source = item.getSource().getModel();
      const target = item.getTarget().getModel();
      if (source.light && target.light) {
        graph.setItemState(item, 'dark', false);
      } else {
        graph.setItemState(item, 'dark', true);
      }
    });
    graph.paint();
    graph.setAutoPaint(true);
  });

  graph.on('node:mouseleave', () => {
    if (highlighting) {
      const nodeItems = graph.getNodes();
      const edgeItems = graph.getEdges();
      highlighting = false;
      nodeItems.forEach((item) => {
        graph.setItemState(item, 'dark', false);
      });
      edgeItems.forEach((item) => {
        graph.setItemState(item, 'dark', false);
      });
    }
  });


      loadData(data);

  // click root to expand
  graph.on('node:click', (e) => {
    curShowNodes = [];
    curShowEdges = [];
    const item = e.item;
    const model = item.getModel();
    if (!model.isLeaf && model.level !== 0) {
      return;
    }
    // if clicked a root, hide unrelated items and show the related items
    if (model.level === 0) {
      const layoutController = graph.get('layoutController');
      const forceLayout = layoutController.layoutMethods[0];
      forceLayout.forceSimulation.stop();
      // light the level 0 nodes
      showNodes.forEach((snode) => {
        const item = graph.findById(snode.id);
        graph.setItemState(item, 'dark', false);
        if (snode.x < 0.5 * width) {
          snode.x = 300;
        } else {
          snode.x = width - 300;
        }
      });
      model.x = width / 2;
      model.y = height / 2;
      // animatively hide the items which are going to disappear
      if (curShowEdges.length) {
        curShowEdges.forEach((csedge) => {
          const item = graph.findById(csedge.id);
          item && graph.setItemState(item, 'disappearing', true);
        });
      }
      curShowNodes.forEach((csnode) => {
        const item = graph.findById(csnode.id);
        item && graph.setItemState(item, 'disappearing', true);
      });
      graph.positionsAnimate();

      // reset curShowNodes nad curShowEdges
      curShowNodes = [];
      curShowEdges = [];

      // click on the same node which is the current focus node, hide the small nodes, change the layout parameters to roots view
      if (currentFocus && currentFocus.id === model.id) {
        currentFocus = undefined;
        layoutController.layoutCfg.nodeStrength = 30;
        layoutController.layoutCfg.collideStrength = 0.8;
        layoutController.layoutCfg.alphaDecay = 0.01;
      } else {
        // click other focus node, hide the current small nodes and show the related nodes
        currentFocus = model;
        // change data after the original items disappearing
        const layoutController = graph.get('layoutController');
        layoutController.layoutCfg.nodeStrength = () => {
          return -80;
        };
        layoutController.layoutCfg.collideStrength = 0.2;
        layoutController.layoutCfg.linkDistance = (d) => {
          if (d.source.level !== 0) return 120;
          const length = 250;
          return length;
        };
        layoutController.layoutCfg.edgeStrength = () => {
          return 2;
        };

        const tag = model.tag;
        const findTags = [];
        curShowNodesMap = new Map();
        // find the nodes which are the descendants of clicked model
        nodes.forEach((node) => {
          if (!node.tags) return;
          const tags = node.tags;
          const tlength = tags.length;
          let isChild = false;
          const parents = [];
          for (let i = 0; i < tlength; i++) {
            const ts = tags[i].split('-');
            if (ts[0] === tag) {
              isChild = true;
            }
            parents.push(nodeMap.get(ts[0]));
          }
          if (isChild) {
            const randomAngle = Math.random() * 2 * Math.PI;
            node.x = model.x + (Math.cos(randomAngle) * model.size) / 2 + 10;
            node.y = model.y + (Math.sin(randomAngle) * model.size) / 2 + 10;
            // const dist = (model.x - node.x) * (model.x - node.x) + (model.y - node.y) * (model.y - node.y);

            if (!node.style) node.style = {};
            node.style.lineWidth = 0;
            node.style.opacity = 1;
            if (node.isLeaf) {
              node.type = 'animate-circle';
              let color = 'l(0)';
              const parentsNum = parents.length;
              parents.forEach((parent, i) => {
                const parentColor = parent.color.split(' ')[1].substr(2);
                color += i / (parentsNum - 1)+':'+ parentColor;
              });
              if (parentsNum === 1) {
                color = model.color.split(' ')[1].substr(2);
              }
              node.color = color;
              node.style.fill = color;
              node.style.fill = '#fff';
              node.style.lineWidth = 1;
              node.size = 60;
              node.labelCfg = {
                style: {
                  fontSize: 11,
                  lineHeight: 19,
                  fill: '#697B8C',
                },
                position: 'center',
              };
            } else if (node.level !== 0) {
              node.type = 'circle'; // 'bubble';
              node.size = 95;
              if (!node.style) node.style = {};
              node.color = model.color;
              node.style.fill = model.color;
              node.labelCfg = {
                style: {
                  fill: '#fff',
                  fontSize: 14,
                },
                position: 'center',
              };
            }
            curShowNodes.push(node);
            curShowNodesMap.set(node.id, node);

            // add the edge connect from model to node which exists in edges
            const edgeId = model.id+'-'+node.id;
            const edge = edgesMap.get(edgeId);
            if (edge) {
              edge.color = model.color;
              curShowEdges.push(edge);
            }
            tags.forEach((t) => {
              const ts = t.split('-');
              if (ts[0] !== tag) {
                findTags.push(ts[0]);
              }
              if (ts[1]) {
                findTags.push(ts[1]);
              }
            });
          }
        });

        // find the nodes which are the ancestors of the current curShowNodes
        nodes.forEach((node) => {
          const findTagsLength = findTags.length;
          for (let i = 0; i < findTagsLength; i++) {
            if (node.tag === findTags[i] && curShowNodesMap.get(node.id) === undefined) {
              curShowNodes.push(node);
              curShowNodesMap.set(node.id, node);
              return;
            }
          }
        });

        // find the edges whose target end source are in the curShowNodes
        curShowNodes.forEach((nu, i) => {
          const lu = nu.level;
          curShowNodes.forEach((nv, j) => {
            if (j <= i) return;
            const lv = nv.level;
            let edgeId;
            if (lu < lv) {
              edgeId = nu.id+'-'+nv.id;
            } else {
              edgeId = nv.id+'-'+nu.id;
            }
            let color = model.color;
            if (nu.isLeaf) {
              if (nv.level === 0 && nv.tag !== model.tag) color = '#DFE5EB';
              else if (!nv.isLeaf && nv.tags[0] !== model.tag) {
                color = '#DFE5EB';
              }
            } else if (nv.isLeaf) {
              if (nu.level === 0 && nu.tag !== model.tag) color = '#DFE5EB';
              else if (!nu.isLeaf && nu.tags[0] !== model.tag) {
                color = '#DFE5EB';
              }
            }
            const edge = edgesMap.get(edgeId);
            if (edge) {
              edge.color = color;
              curShowEdges.push(edge);
            }
          });
        });
      }
      setTimeout(() => {
        graph.changeData({
          nodes: showNodes.concat(curShowNodes),
          edges: showEdges.concat(curShowEdges),
        });
        const nodeItems = graph.getNodes();
        const edgeItems = graph.getEdges();
        edgeItems.forEach((item) => {
          graph.clearItemStates(item);
        });
        nodeItems.forEach((item) => {
          graph.clearItemStates(item);
          graph.setItemState(item, 'appearing', true);
        });
      }, 400);
    }
  });
  graph.on('canvas:click', () => {
    currentFocus = undefined;
    const forceLayout = graph.get('layoutController').layoutMethods[0];
    forceLayout.forceSimulation.stop();
    const nodeItems = graph.getNodes();
    const edgeItems = graph.getEdges();
    if (highlighting) {
      highlighting = false;
      nodeItems.forEach((item) => {
        graph.setItemState(item, 'dark', false);
      });
      edgeItems.forEach((item) => {
        graph.setItemState(item, 'dark', false);
      });
    } else {
      nodeItems.forEach((item) => {
        const model = item.getModel();
        if (model.level === 0) {
          graph.setItemState(item, 'dark', false);
        } else {
          graph.setItemState(item, 'disappearing', true);
        }
      });
      edgeItems.forEach((item) => {
        graph.setItemState(item, 'disappearing', true);
      });
      curShowNodes = [];
      curShowEdges = [];
      setTimeout(() => {
        const layoutController = graph.get('layoutController');
        layoutController.layoutCfg.nodeStrength = 30;
        layoutController.layoutCfg.collideStrength = 0.8;
        layoutController.layoutCfg.alphaDecay = 0.01;

        graph.changeData({
          nodes: showNodes,
          edges: showEdges,
        });
      }, 400);
    }
  });

  if (typeof window !== 'undefined')
    window.onresize = () => {
      if (!graph || graph.get('destroyed')) return;
      if (!container || !container.scrollWidth || !container.scrollHeight) return;
      graph.changeSize(container.scrollWidth, container.scrollHeight);
    };
  }, 1000);
  `
 document.head.appendChild(script)
}
const onSearch = (values:any) =>{
  if(!values.fuzzyCode) return
  props.history.push({ pathname:`/nlpMap/@${values.fuzzyCode}` })

}

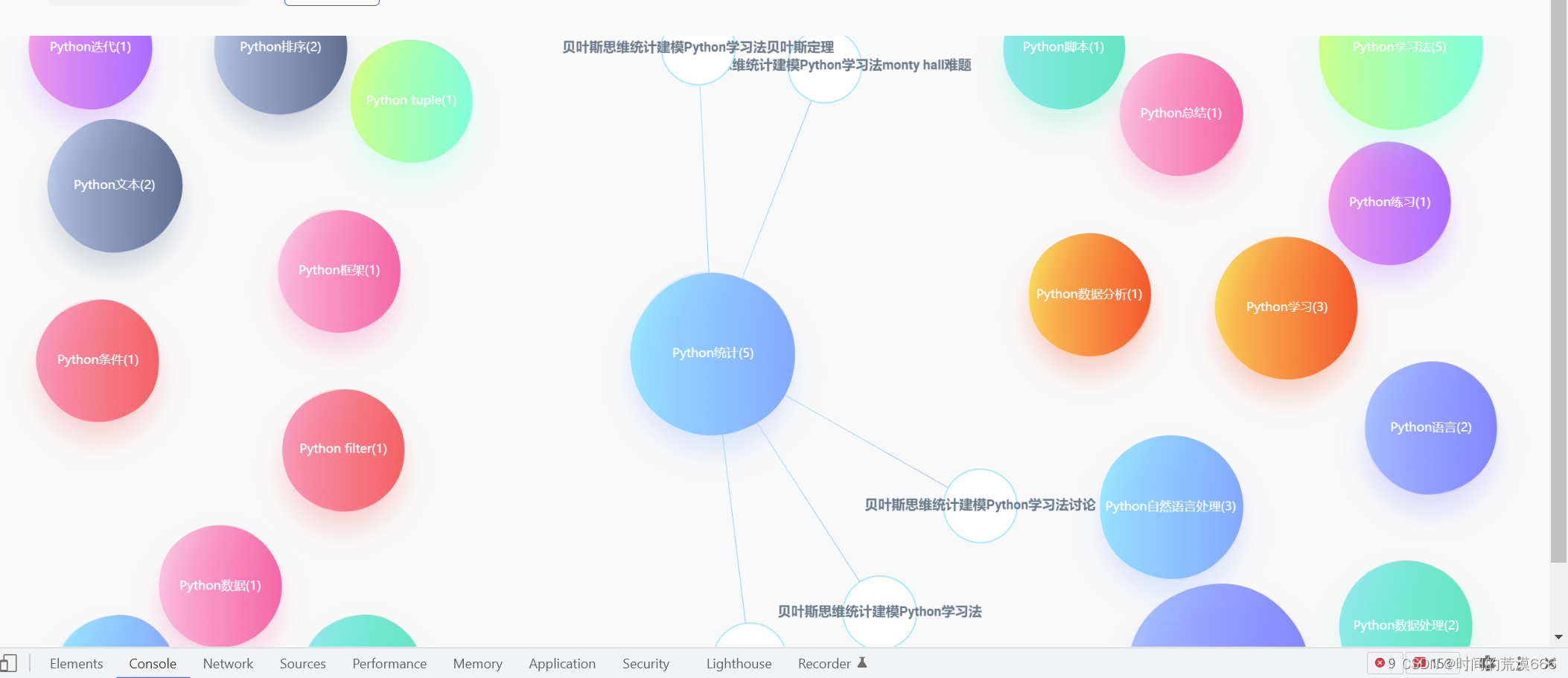

示例图
