华为实验

华为ospf实验

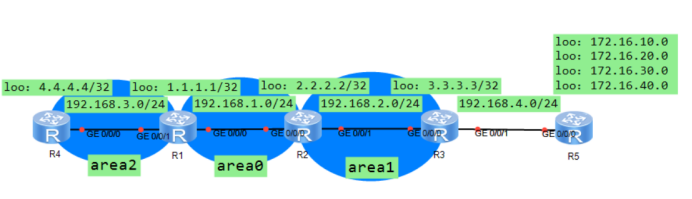

【实验拓扑】
【实验要求】
1.配置IP
2.配置opfs
3.配置路由汇总
4.配置路由重分发
【实验步骤】
1.IP地址

R1：
	[R1]interface GigabitEthernet 0/0/1
	[R1-GigabitEthernet0/0/1]ip address 192.168.3.2 	255.255.255.0
	[R1-GigabitEthernet0/0/1]undo shutdown
	[R1-GigabitEthernet0/0/1]quit
	[R1]interface GigabitEthernet 0/0/0
	[R1-GigabitEthernet0/0/0]ip address 192.168.1.1 255.255.255.0
	[R1-GigabitEthernet0/0/0]undo shutdown
	[R1-GigabitEthernet0/0/0]quit
	[R1]interface LoopBack 0
	[R1-LoopBack0]ip address 1.1.1.1 32
R2：
	[R2]interface GigabitEthernet 0/0/0
	[R2-GigabitEthernet0/0/0]ip address 192.168.1.2 255.255.255.0
	[R2-GigabitEthernet0/0/0]undo shutdown
	[R2-GigabitEthernet0/0/0]quit
	[R2]interface GigabitEthernet 0/0/1
	[R2-GigabitEthernet0/0/1]ip address 192.168.2.1 255.255.255.0
	[R2-GigabitEthernet0/0/1]undo shutdown
	[R2-GigabitEthernet0/0/1]quit
	[R2]interface LoopBack 0
	[R2-LoopBack0]ip address 2.2.2.2 32
R3：
	[R3]interface GigabitEthernet 0/0/0
	[R3-GigabitEthernet0/0/0]ip address 192.168.2.2 24
	[R3-GigabitEthernet0/0/0]undo shutdown
	[R3-GigabitEthernet0/0/0]quit
	[R3]interface GigabitEthernet 0/0/1
	[R3-GigabitEthernet0/0/1]ip address 192.168.4.1 24
	[R3-GigabitEthernet0/0/1]undo shutdown
	[R3-GigabitEthernet0/0/1]quit
	[R3]interface LoopBack 0
	[R3-LoopBack0]ip address 3.3.3.3 32
R4：
	[R4]interface GigabitEthernet 0/0/0
	[R4-GigabitEthernet0/0/0]ip address 192.168.3.1 24
	[R4-GigabitEthernet0/0/0]undo shutdown
	[R4-GigabitEthernet0/0/0]quit
	[R4]interface LoopBack 0
	[R4-LoopBack0]ip address 4.4.4.4 32
R5：
	[R5]interface GigabitEthernet 0/0/0
	[R5-GigabitEthernet0/0/0]ip address 192.168.4.2 24
	[R5-GigabitEthernet0/0/0]undo shutdown
	[R5-GigabitEthernet0/0/0]quit
	[R5]interface LoopBack 0
	[R5-LoopBack0]ip address 172.16.10.1 32
	[R5]interface LoopBack 1
	[R5-LoopBack1]ip address 172.16.20.1 32
	[R5]interface LoopBack 2
	[R5-LoopBack2]ip address 172.16.30.1 32
	[R5]interface LoopBack 3
	[R5-LoopBack3]ip address 172.16.40.1 32

2.ospf

R1：
	[R1]ospf 1 router-id 1.1.1.1
	[R1-ospf-1]area 0
	[R1-ospf-1-area-0.0.0.0]network 192.168.1.0 0.0.0.255
	[R1-ospf-1-area-0.0.0.0]network 1.1.1.1 0.0.0.0
	[R1-ospf-1-area-0.0.0.0]quit
	[R1-ospf-1]area 2
	[R1-ospf-1-area-0.0.0.2]network 192.168.3.0 0.0.0.255
	[R1-ospf-1-area-0.0.0.2]quit
	[R1-ospf-1]quit
R2：
	[R2]ospf 1 router-id 2.2.2.2
	[R2-ospf-1]area 0
	[R2-ospf-1-area-0.0.0.0]network 192.168.1.0 0.0.0.255
	[R2-ospf-1-area-0.0.0.0]quit
	[R2-ospf-1]area 1
	[R2-ospf-1-area-0.0.0.1]network 2.2.2.2 0.0.0.0
	[R2-ospf-1-area-0.0.0.1]network 192.168.2.0 0.0.0.255
	[R2-ospf-1-area-0.0.0.1]quit
	[R2-ospf-1]quit
R3：
	[R3]ospf 1 router-id 3.3.3.3
	[R3-ospf-1]area 1
	[R3-ospf-1-area-0.0.0.1]network 3.3.3.3 0.0.0.0
	[R3-ospf-1-area-0.0.0.1]network 192.168.2.0 0.0.0.255
	[R3-ospf-1-area-0.0.0.1]quit
	[R3-ospf-1]quit
	[R3]ospf 1
	[R3-ospf-1]area 1
	[R3-ospf-1-area-0.0.0.1]nass default-route-adrertise
R4：
	[R4]ospf 1 router-id 4.4.4.4
	[R4-ospf-1]area 2
	[R4-ospf-1-area-0.0.0.2]network 192.168.3.0 0.0.0.255
	[R4-ospf-1-area-0.0.0.2]network 4.4.4.4 0.0.0.0
	[R4-ospf-1-area-0.0.0.2]quit
	[R4-ospf-1]quit

3.路由重分发

R3：
	[R3]ospf 1
	[R3-ospf-1]import-route rip
	[R3-ospf-1]rip 1
	[R3-rip-1]import-route ospf

4.路由汇总

R5：
	[R5]ospf 1
	[R5--ospf-1]asbr-summary 172.16.0.0 255.255.0.0
