K8S多节点部署（二进制方式）

一、基于单节点基础环境，部署多节点

1.1、复制kubernetes目录到master02

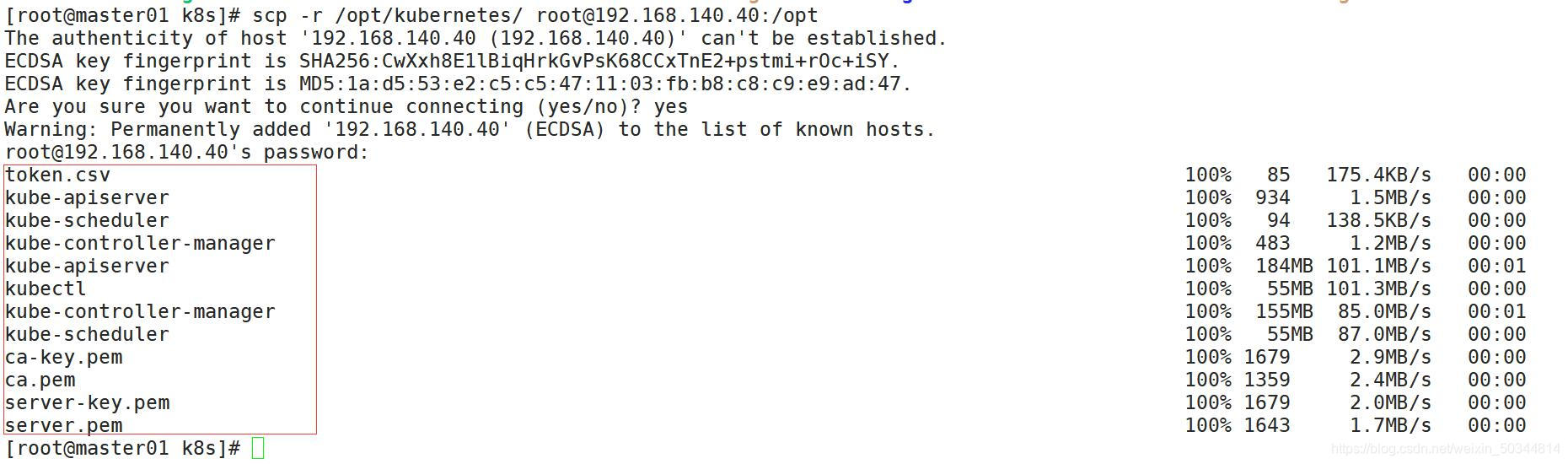

[root@master01 k8s]# scp -r /opt/kubernetes/ root@192.168.140.40:/opt

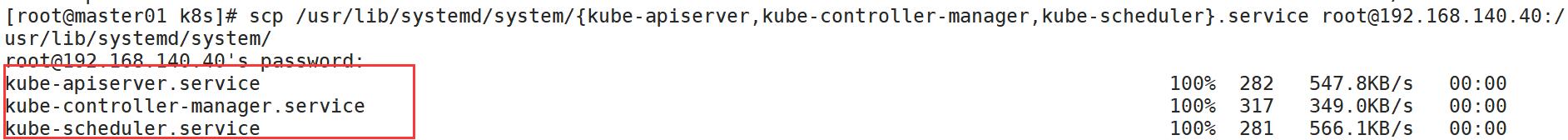

[root@master01 k8s]# scp /usr/lib/systemd/system/{kube-apiserver,kube-controller-manager,kube-scheduler}.service root@192.168.140.40:/usr/lib/systemd/system/

1.2、master02上操作

[root@server ~]# hostnamectl set-hostname master02
[root@server ~]# su
[root@master02 ~]#
[root@master02 ~]# cd /opt/kubernetes/cfg/

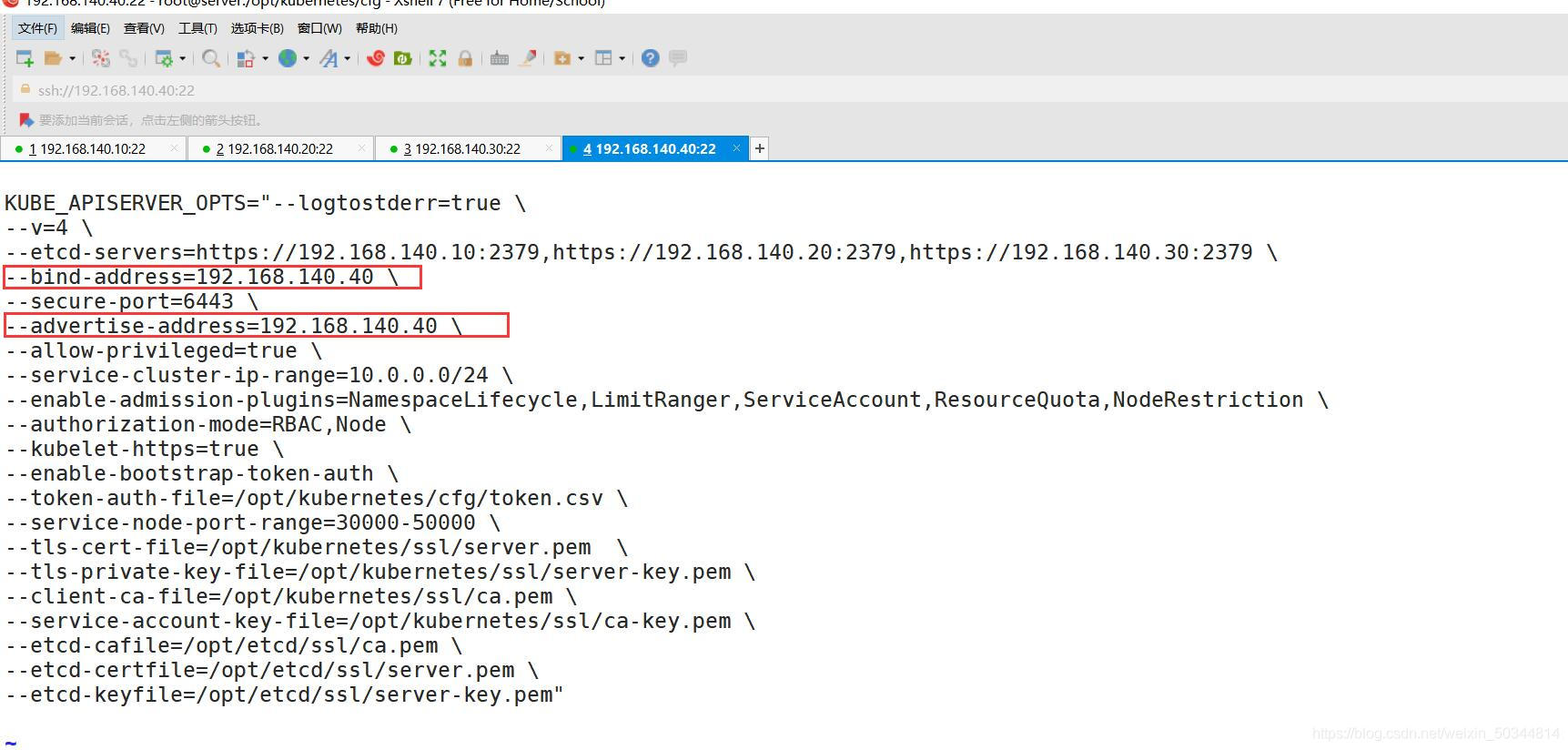

[root@master02 cfg]# vim kube-apiserver

1.3、拷贝master01上已有的etcd证书给master02使用

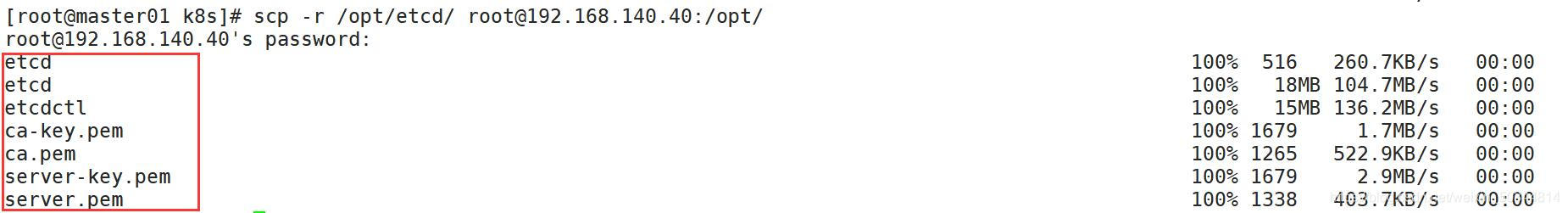

[root@master01 k8s]# scp -r /opt/etcd/ root@192.168.140.40:/opt/

1.4、启动master02中的三个组件服务

[root@master02 cfg]# systemctl start kube-apiserver.service
[root@master02 cfg]# systemctl enable kube-apiserver.service
Created symlink from /etc/systemd/system/multi-user.target.wants/kube-apiserver.service to /usr/lib/systemd/system/kube-apiserver.service.
[root@master02 cfg]# systemctl start kube-controller-manager.service
[root@master02 cfg]# systemctl enable kube-controller-manager.service
Created symlink from /etc/systemd/system/multi-user.target.wants/kube-controller-manager.service to /usr/lib/systemd/system/kube-controller-manager.service.
[root@master02 cfg]# systemctl start kube-scheduler.service
[root@master02 cfg]# systemctl enable kube-scheduler.service
Created symlink from /etc/systemd/system/multi-user.target.wants/kube-scheduler.service to /usr/lib/systemd/system/kube-scheduler.service.

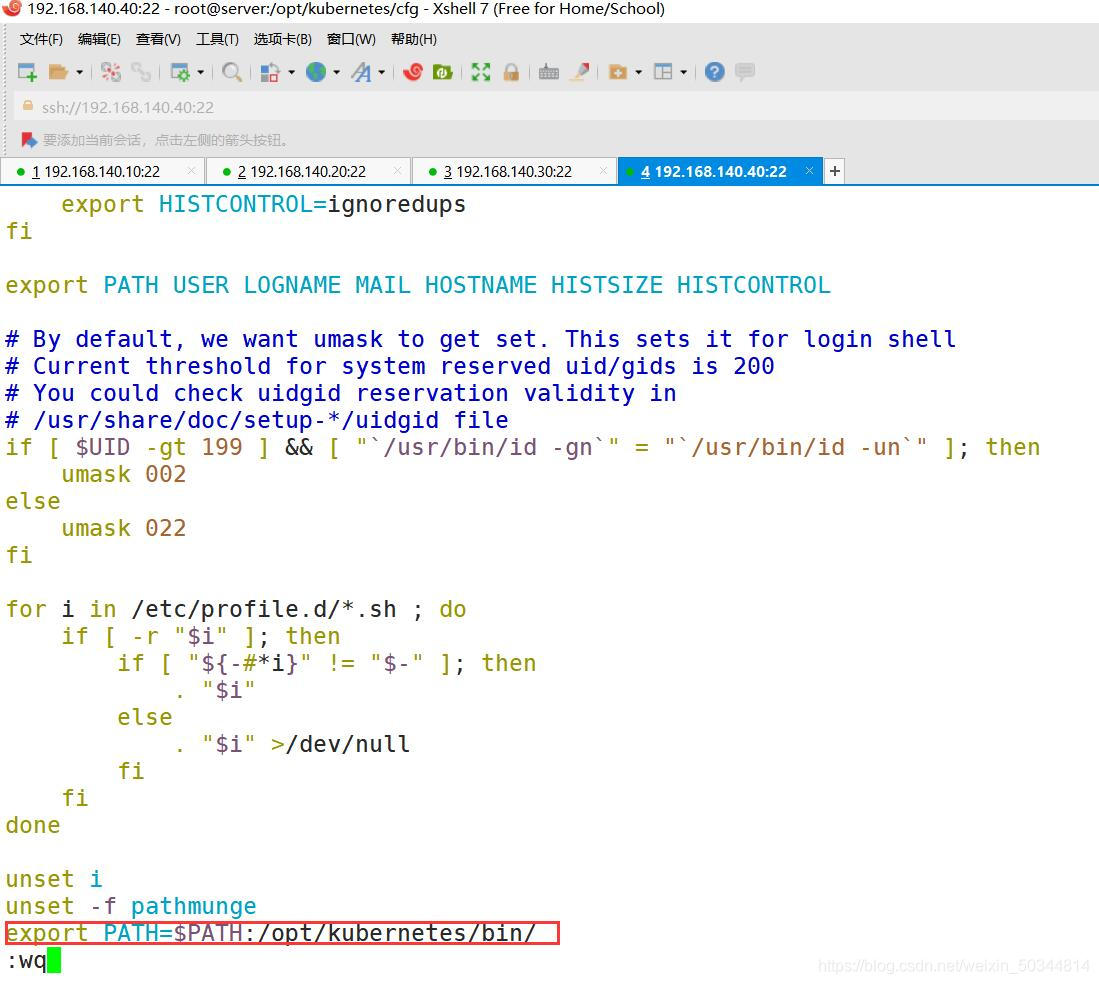

[root@master02 cfg]# vim /etc/profile      #增加环境变量

[root@master02 cfg]# source /etc/profile

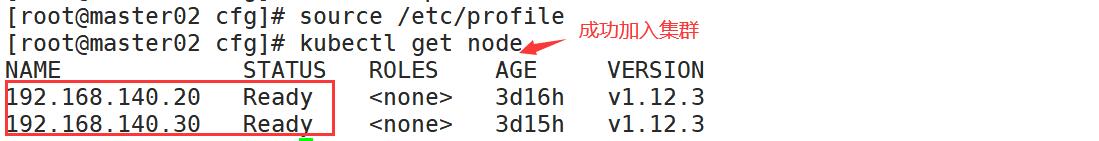

[root@master02 cfg]# kubectl get node

二、K8S负载均衡部署

[root@zabbix-server ~]# hostnamectl set-hostname nginx01
[root@zabbix-server ~]# su
[root@nginx01 ~]#
[root@zabbix-client ~]# hostnamectl set-hostname nginx02
[root@zabbix-client ~]# su
[root@nginx02 ~]#

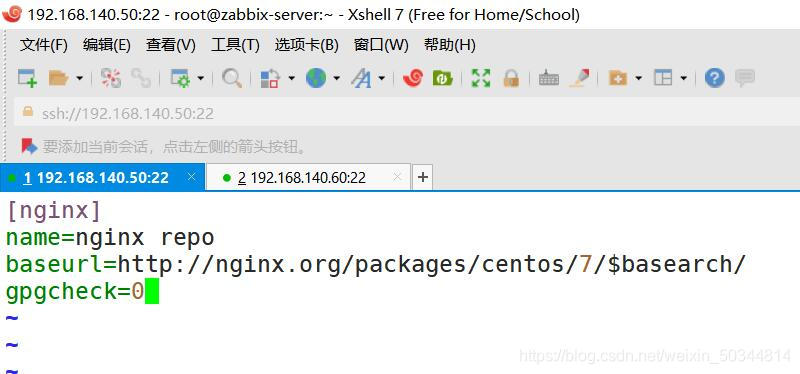

[root@nginx01 ~]# vim /etc/yum.repos.d/nginx.repo
[nginx]
name=nginx repo
baseurl=http://nginx.org/packages/centos/7/$basearch/
gpgcheck=0

[root@nginx01 ~]# yum clean all
[root@nginx01 ~]# yum list
[root@nginx01 ~]# yum -y install nginx

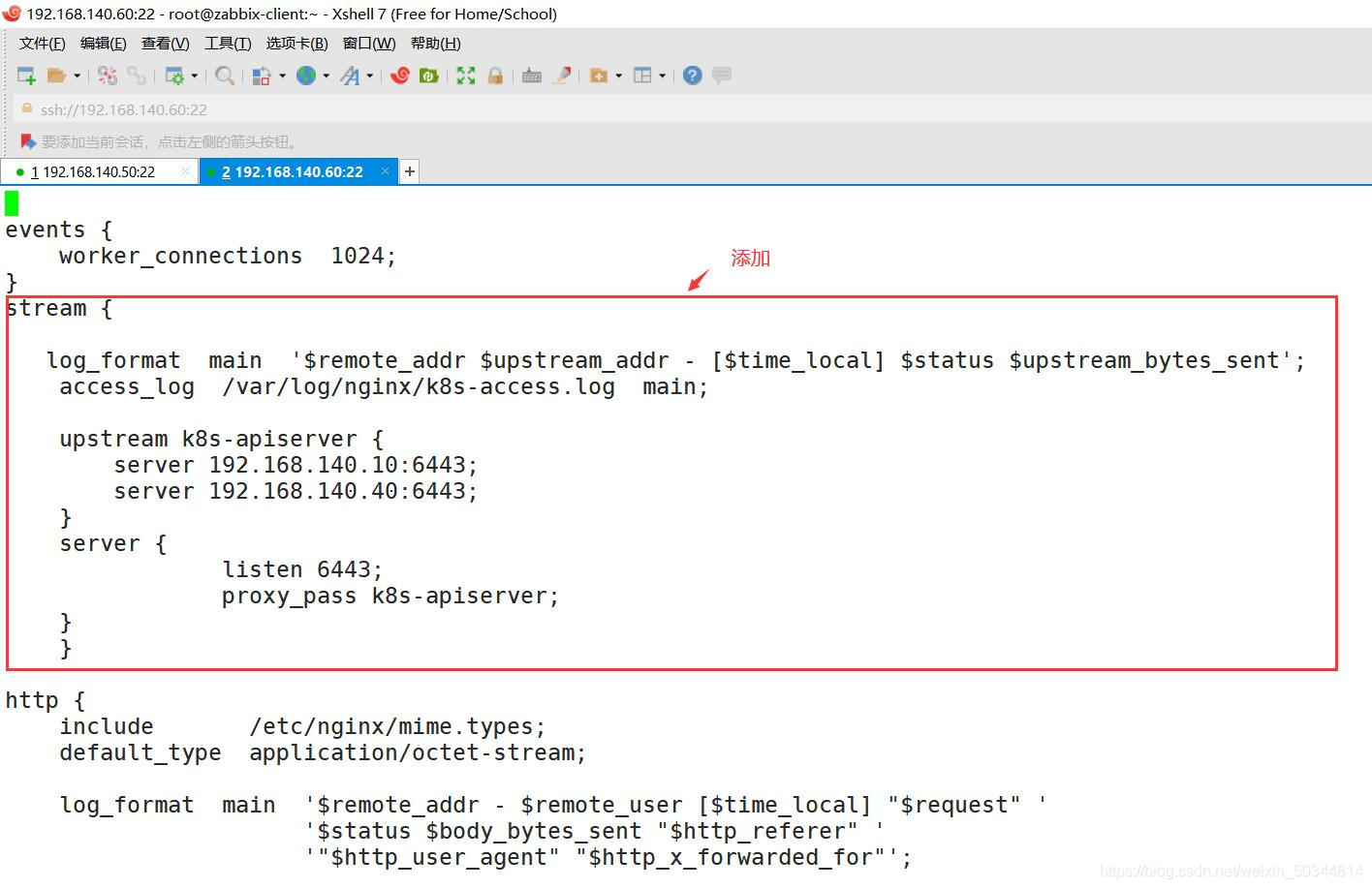

[root@nginx01 ~]# vim /etc/nginx/nginx.conf      #添加四层转发

[root@nginx01 ~]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@nginx01 ~]# systemctl start nginx

2.1、部署keepalived服务

[root@nginx01 ~]# yum -y install keepalived   #下载keepalived

[root@nginx01 ~]# cp keepalived.conf /etc/keepalived/keepalived.conf   #修改配置文件

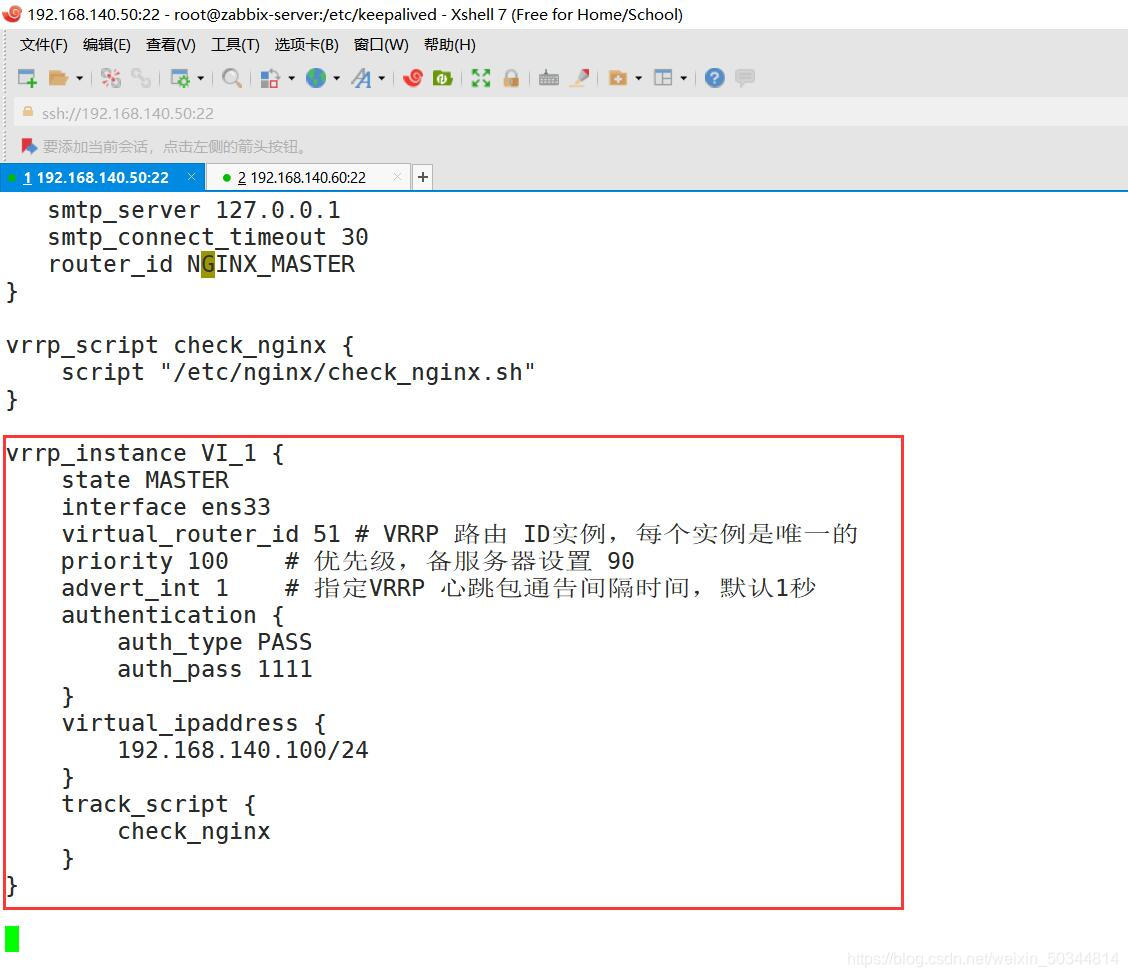

[root@nginx01 keepalived]# vim keepalived.conf
! Configuration File for keepalived

global_defs {
   # 接收邮件地址
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   # 邮件发送地址
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id NGINX_MASTER
}

vrrp_script check_nginx {
    script "/etc/nginx/check_nginx.sh"
}

vrrp_instance VI_1 {
    state MASTER
    interface ens33
    virtual_router_id 51 # VRRP 路由 ID实例，每个实例是唯一的
    priority 100    # 优先级，备服务器设置 90
    advert_int 1    # 指定VRRP 心跳包通告间隔时间，默认1秒
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.140.100/24
    }
    track_script {
        check_nginx
    }

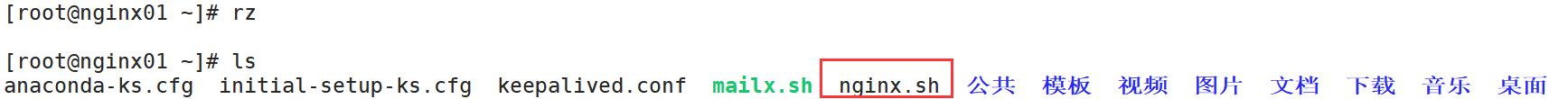

[root@nginx01 ~]# rz

[root@nginx01 ~]# ls

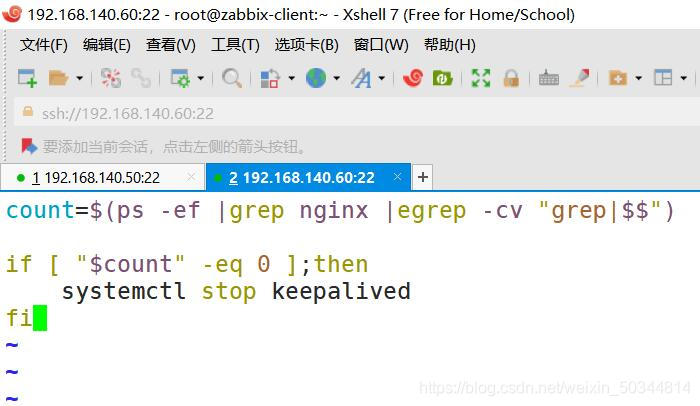

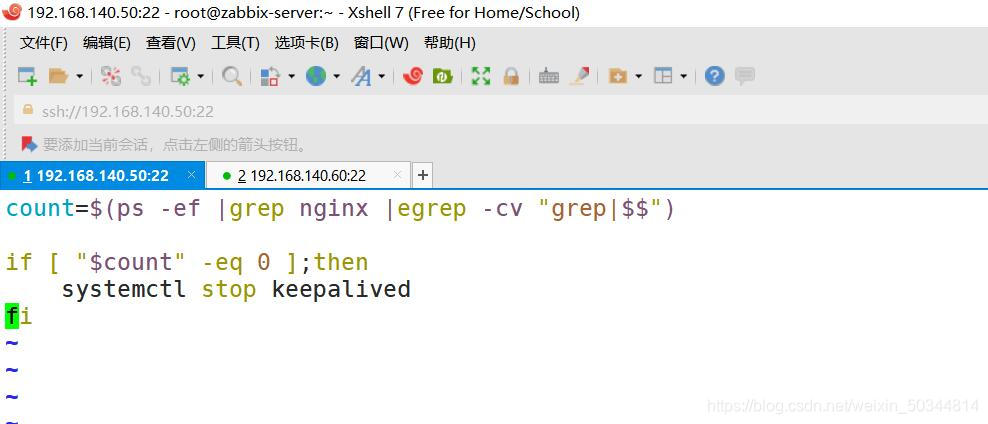

[root@nginx01 ~]# vim /etc/nginx/check_nginx.sh
count=$(ps -ef |grep nginx |egrep -cv "grep|$$")

if [ "$count" -eq 0 ];then
    systemctl stop keepalived
fi

[root@nginx01 ~]# chmod +x /etc/nginx/check_nginx.sh
[root@nginx01 nginx]# systemctl start keepalived.service

2.2、node2节点部署

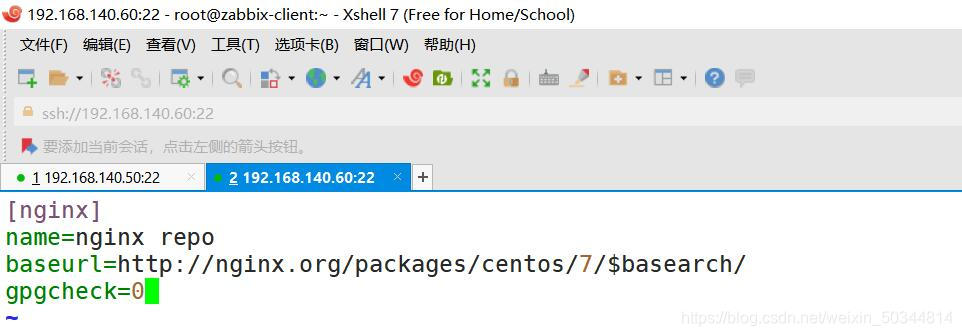

[root@nginx02 ~]# vim /etc/yum.repos.d/nginx.repo
[nginx]
name=nginx repo
baseurl=http://nginx.org/packages/centos/7/$basearch/
gpgcheck=0

[root@nginx02 ~]# yum clean all
[root@nginx02 ~]# yum list
[root@nginx02 ~]# yum -y install nginx
[root@nginx02 ~]# vim /etc/nginx/nginx.conf

[root@nginx02 ~]# systemctl start nginx

2.2.1、部署keepalived服务

[root@nginx02 ~]# yum -y install keepalived

[root@nginx02 ~]# cp keepalived.conf /etc/keepalived/keepalived.conf

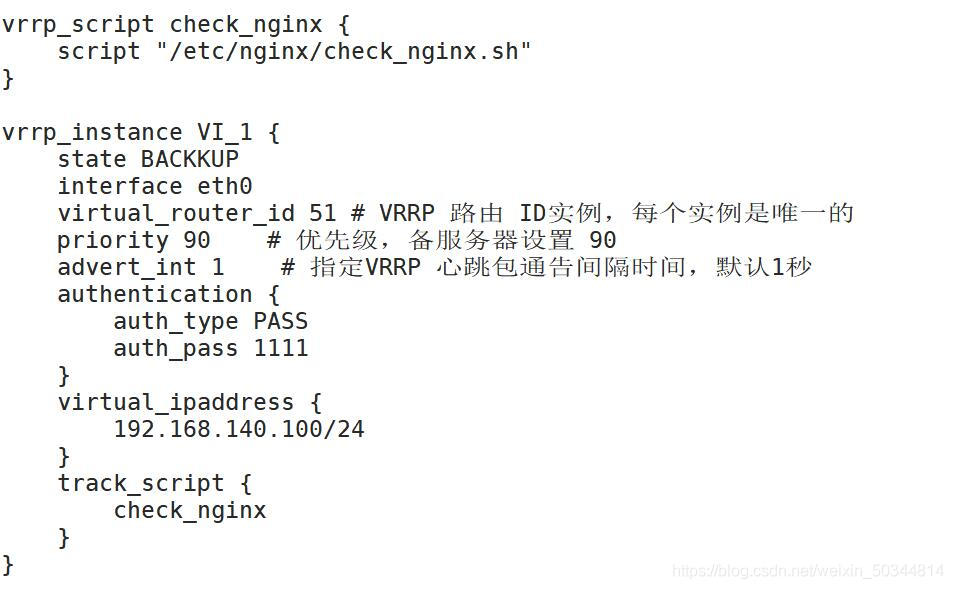

[root@nginx02 keepalived]# vim keepalived.conf

[root@nginx02 ~]# vim /etc/nginx/check_nginx.sh

[root@nginx02 ~]# chmod +x /etc/nginx/check_nginx.sh
[root@nginx02 nginx]# systemctl start keepalived.service

三、验证

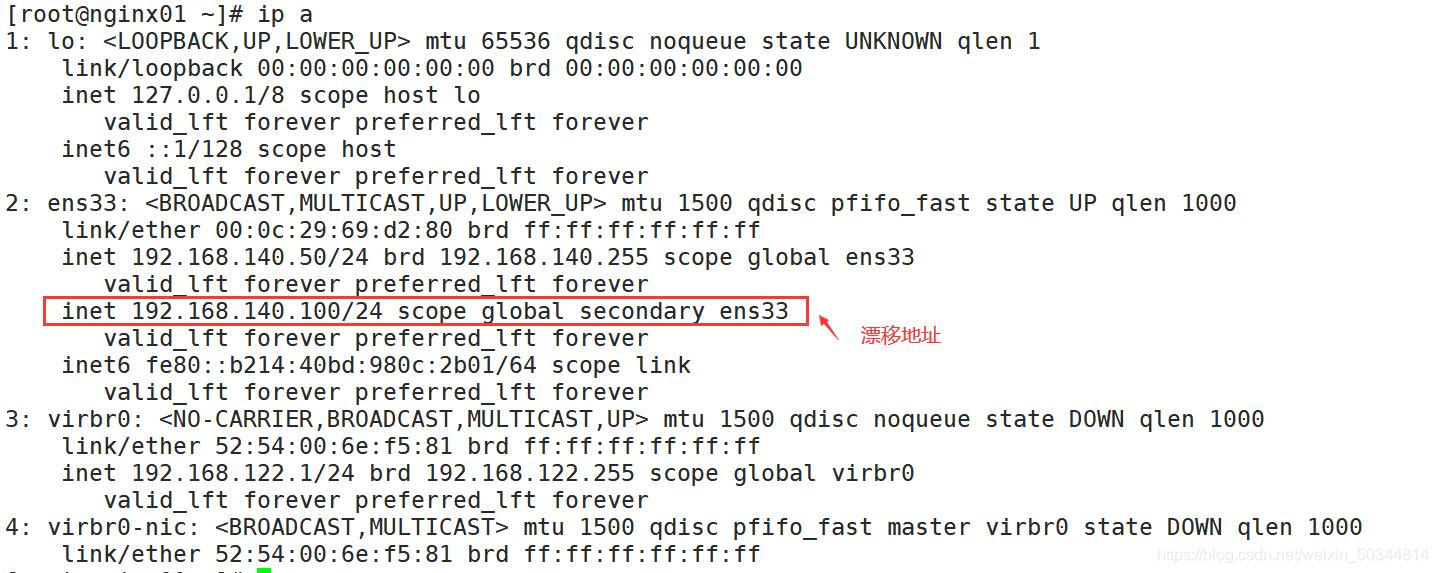

[root@nginx01 ~]# ip a

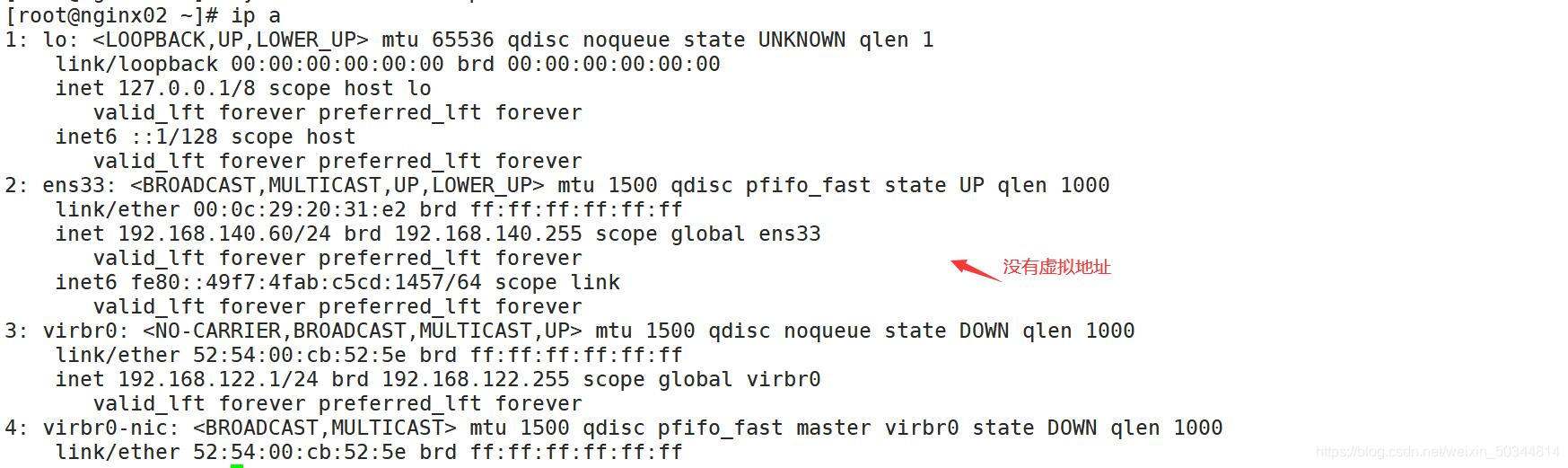

[root@nginx02 ~]# ip a

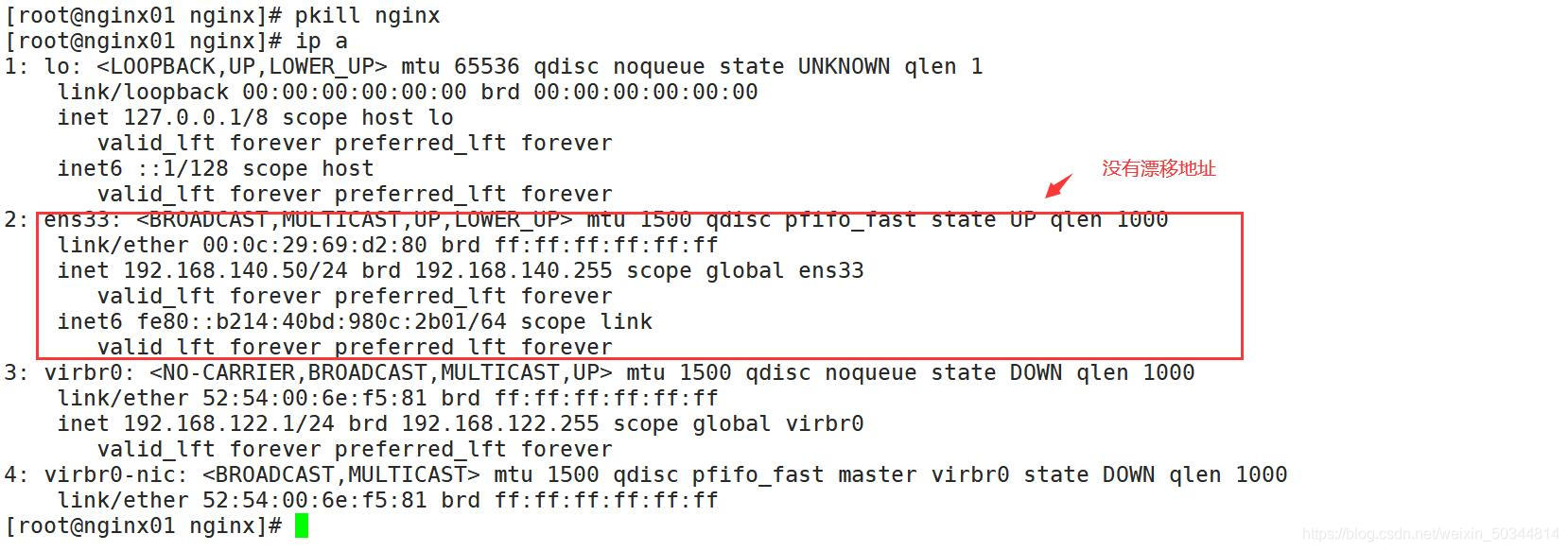

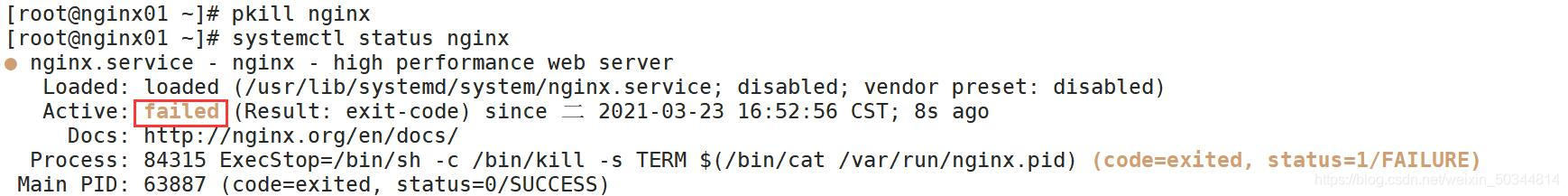

[root@nginx01 ~]# pkill nginx
[root@nginx01 ~]# systemctl status nginx

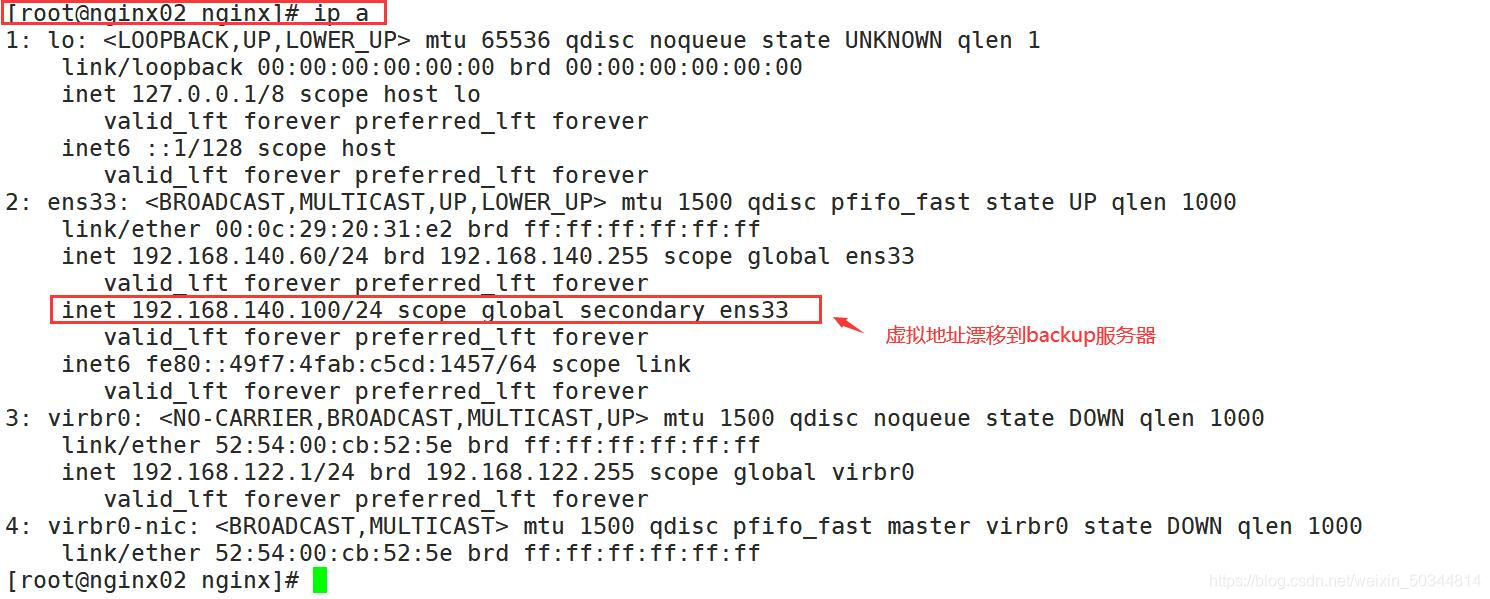

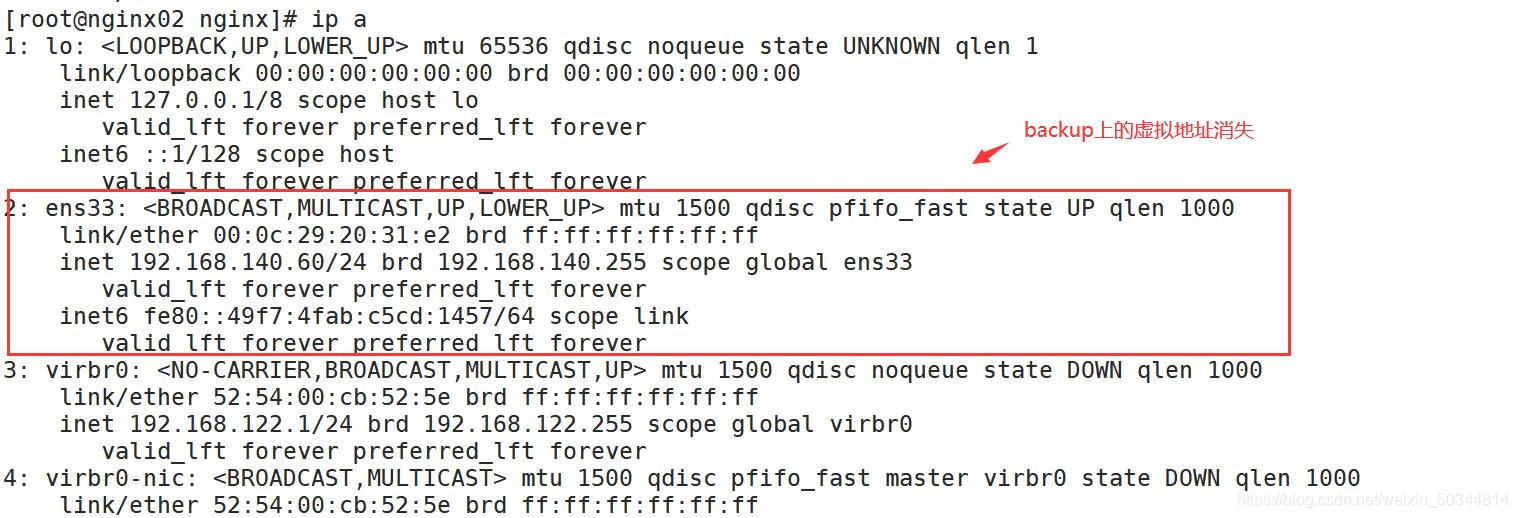

[root@nginx02 nginx]# ip a

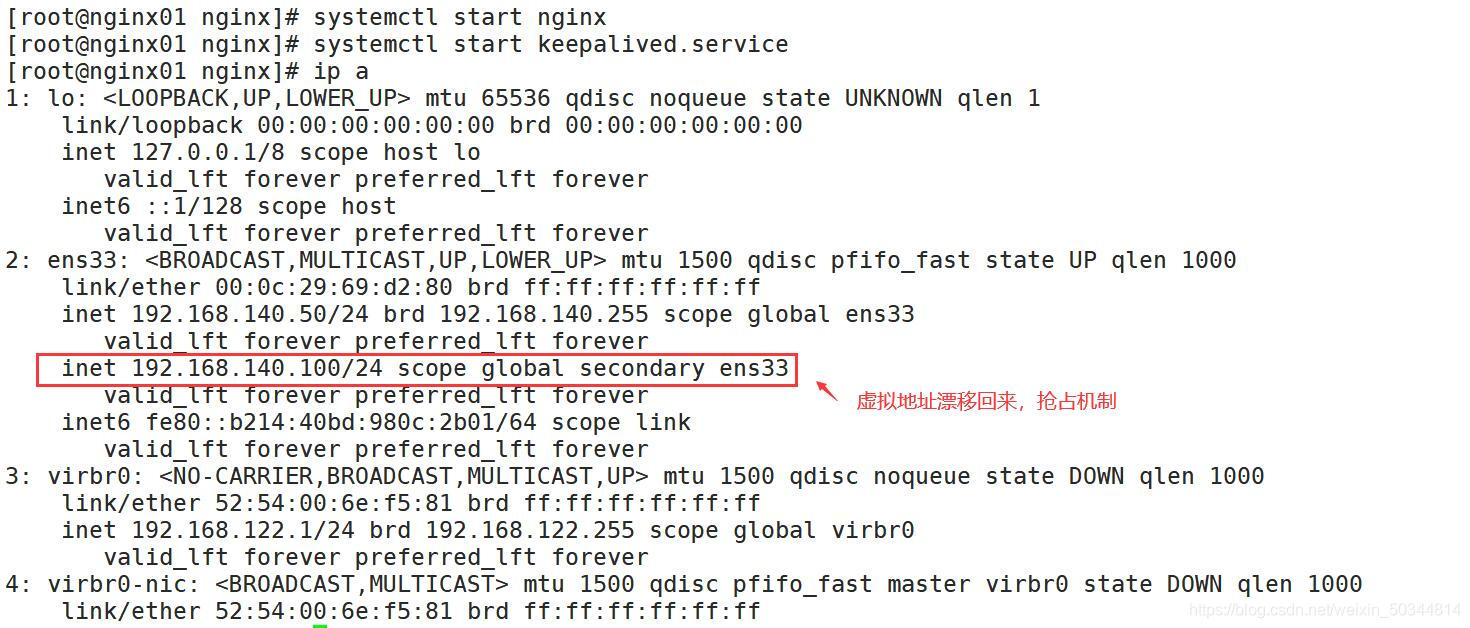

3.1、master恢复nginx，再次验证虚拟地址

[root@nginx01 nginx]# systemctl start nginx
[root@nginx01 nginx]# systemctl start keepalived.service
[root@nginx01 nginx]# ip a

3.2、开始修改node节点配置文件统一VIP

[root@node01 etc]# cd /opt/kubernetes/
[root@node01 kubernetes]# cd cfg/

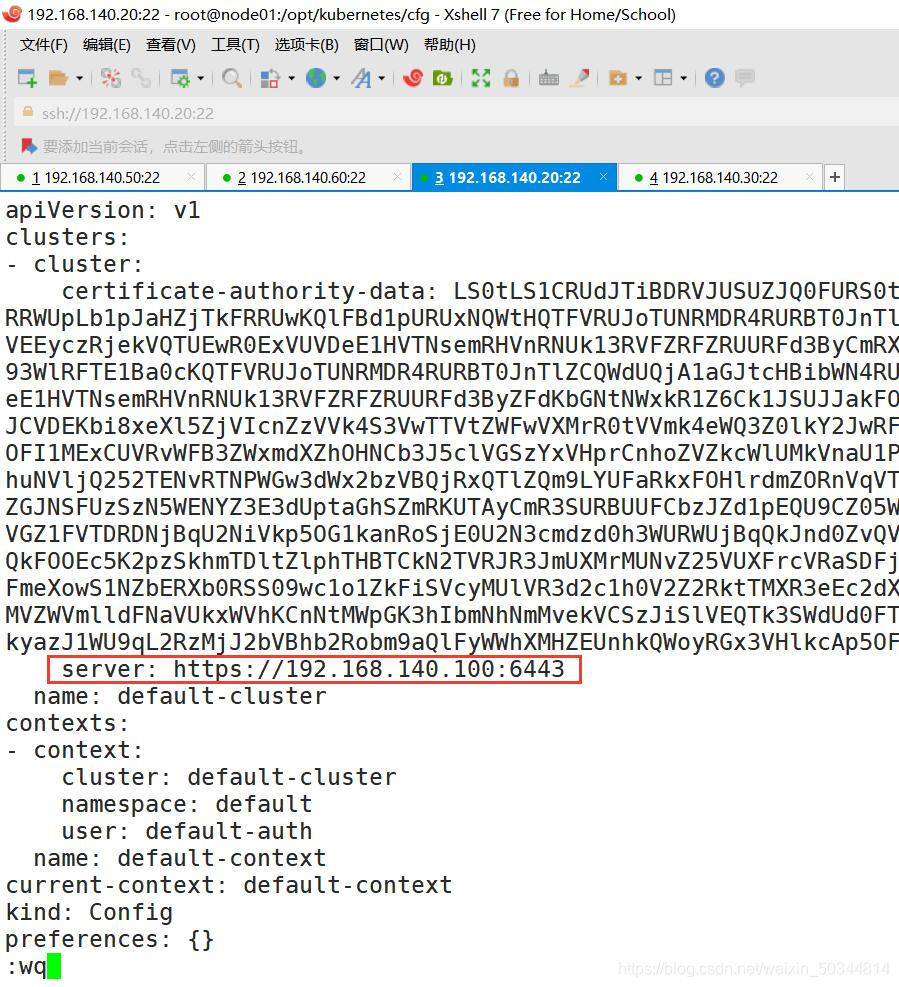

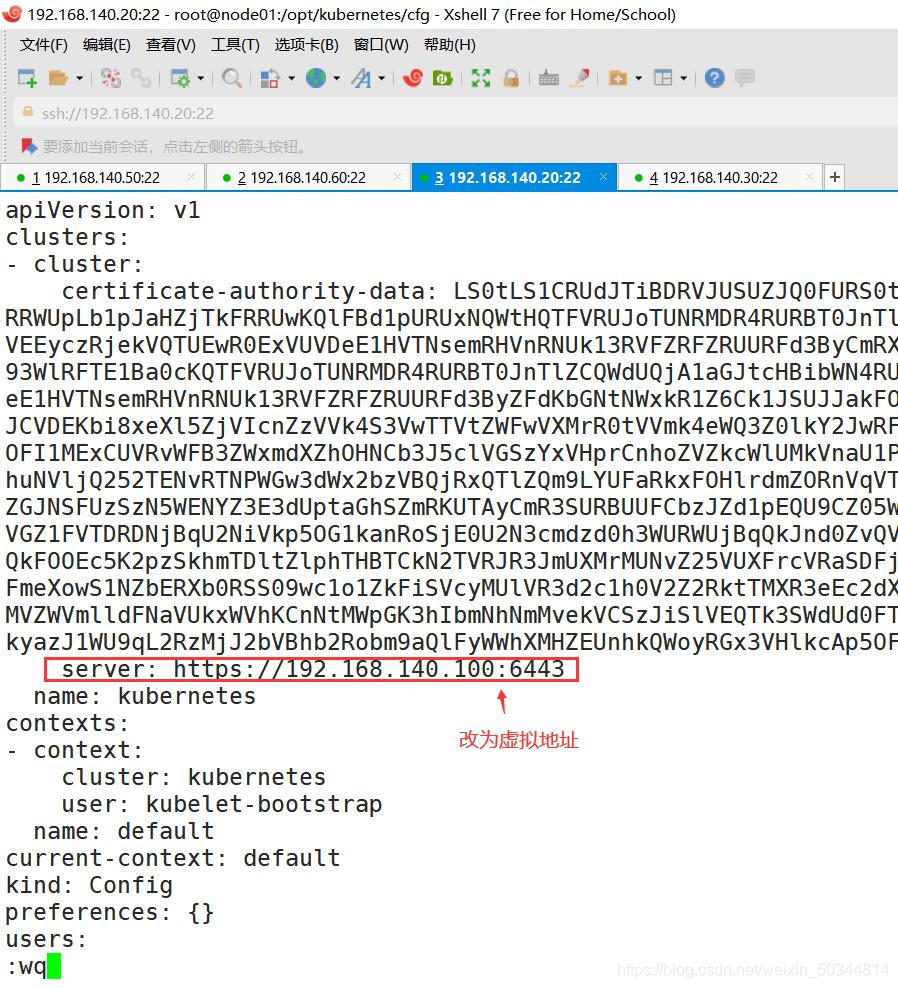

[root@node01 cfg]# vim /opt/kubernetes/cfg/bootstrap.kubeconfig

[root@node02 ~]# cd /opt/kubernetes/cfg/

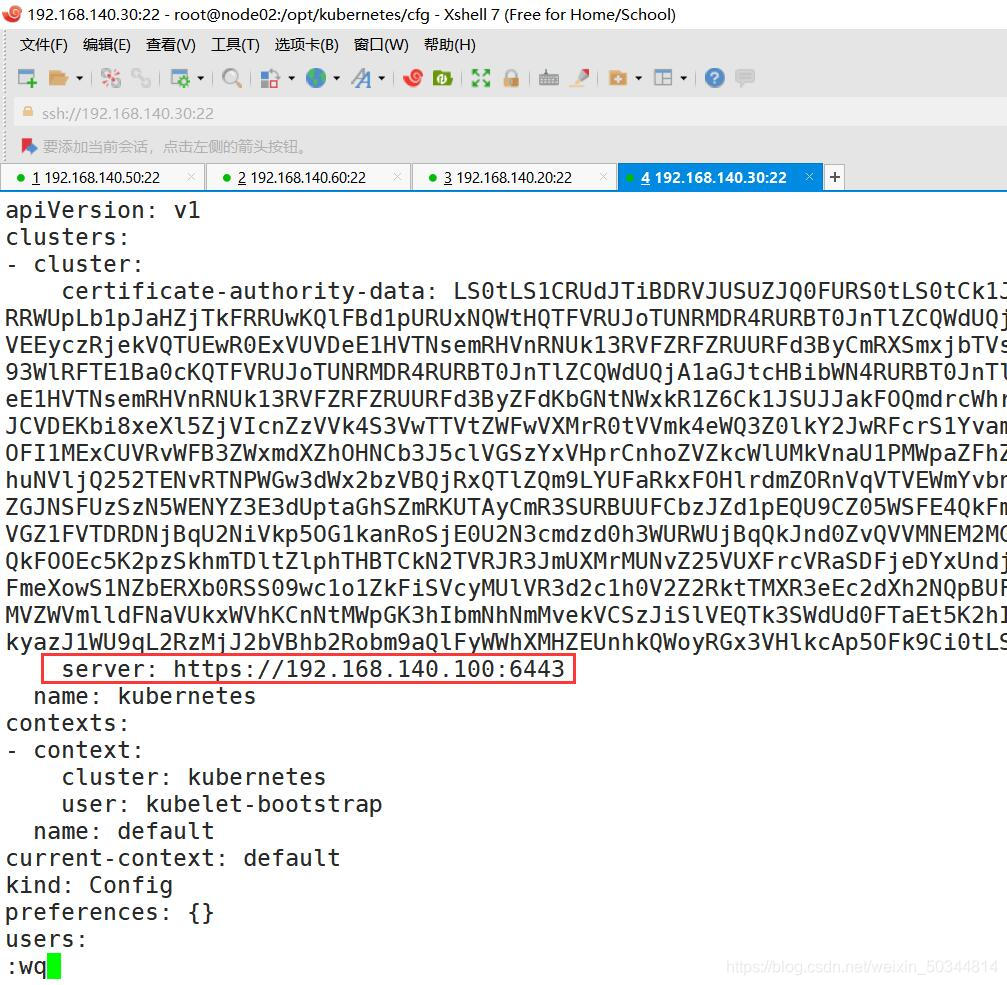

[root@node02 cfg]# vim /opt/kubernetes/cfg/bootstrap.kubeconfig

[root@node01 cfg]# vim /opt/kubernetes/cfg/kubelet.kubeconfig
[root@node02 cfg]# vim /opt/kubernetes/cfg/kubelet.kubeconfig

[root@node01 cfg]# vim /opt/kubernetes/cfg/kube-proxy.kubeconfig
[root@node02 cfg]# vim /opt/kubernetes/cfg/kube-proxy.kubeconfig
//全部修改为VIP server: https://192.168.140.100:6443
[root@node01 cfg]# systemctl restart kubelet.service
[root@node01 cfg]# systemctl restart kube-proxy.service
[root@node02 cfg]# systemctl restart kubelet.service
[root@node02 cfg]# systemctl restart kube-proxy.service

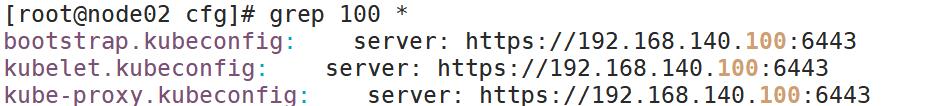

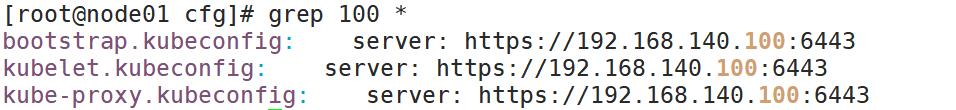

[root@node01 cfg]# grep 100 *
[root@node02 cfg]# grep 100 *

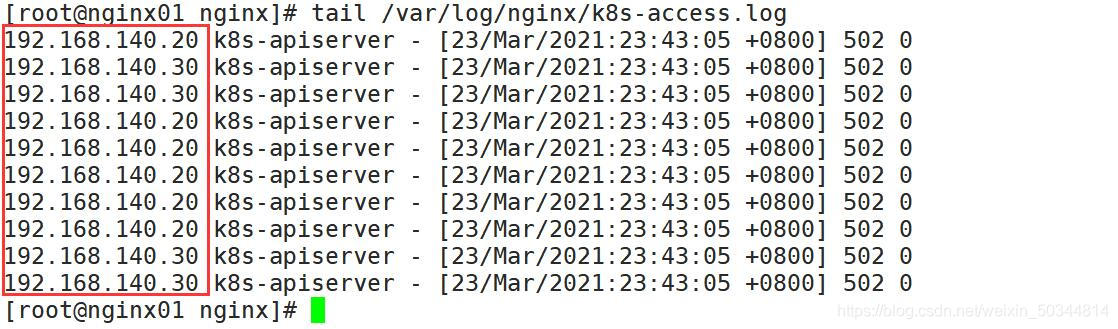

3.3、在lb01上查看nginx的k8s日志

[root@nginx01 nginx]# tail /var/log/nginx/k8s-access.log   #负载均衡已完成

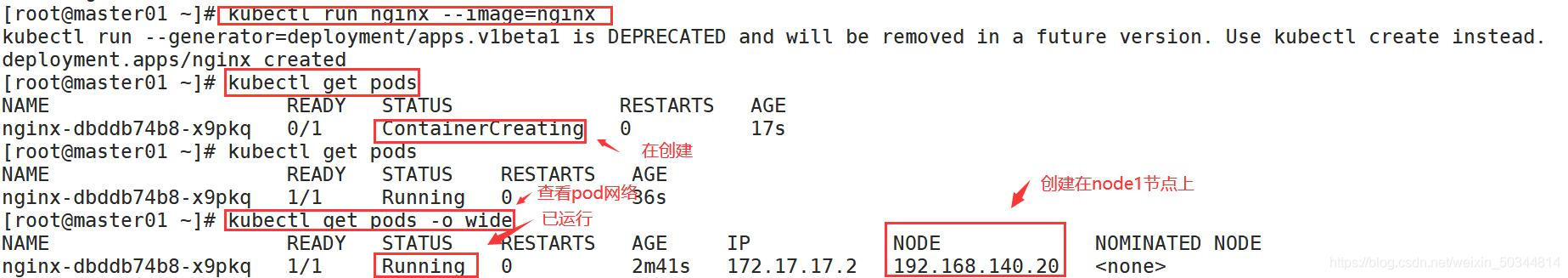

3.4、在master01上操作测试创建pod

[root@master01 ~]# kubectl run nginx --image=nginx
[root@master01 ~]# kubectl get pods
[root@master01 ~]# kubectl get pods
[root@master01 ~]# kubectl get pods -o wide   #查看pod网络

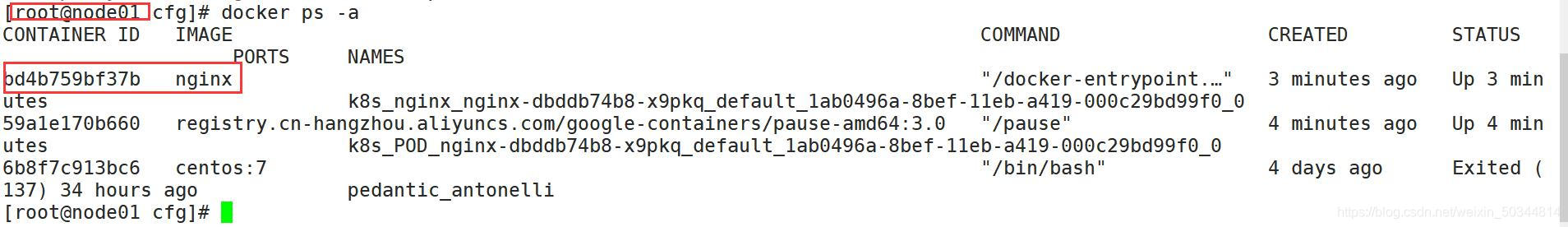

[root@node01 cfg]# docker ps -a

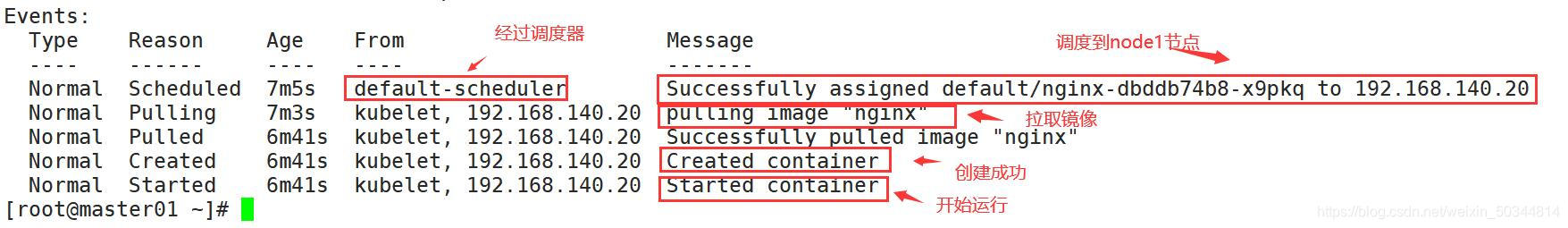

[root@master01 ~]# kubectl describe pod nginx-dbddb74b8-x9pkq   #查看创建过程

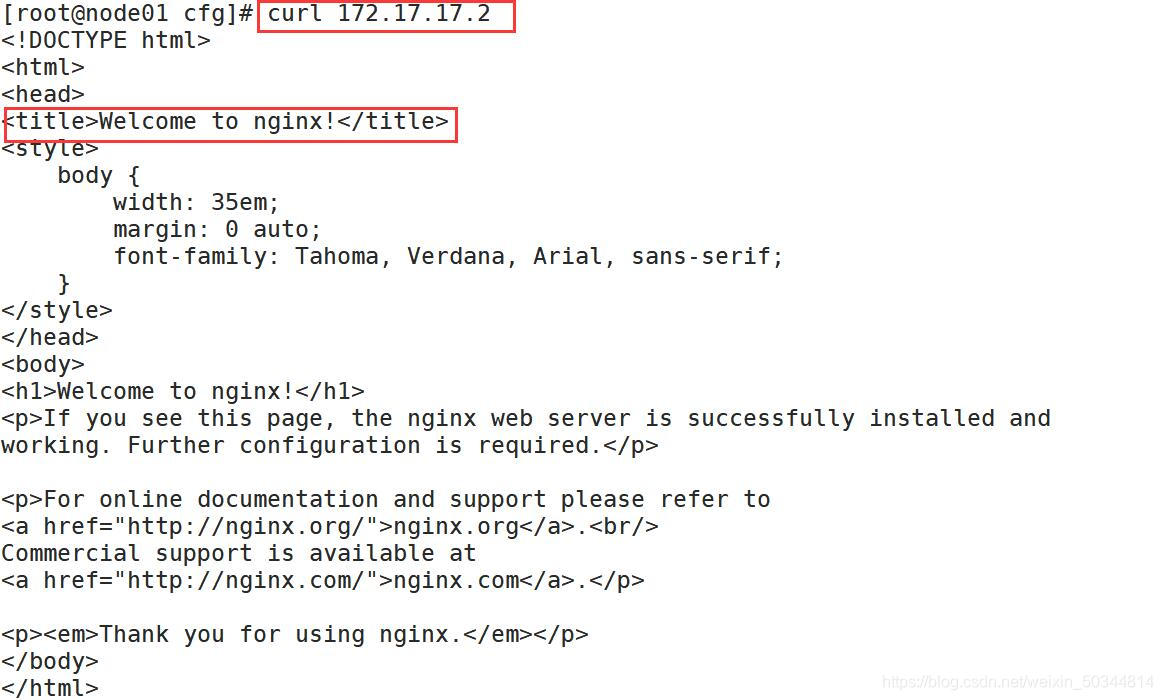

3.5、在node1节点访问

[root@node01 cfg]# curl 172.17.17.2

3.6、回到master01查看日志

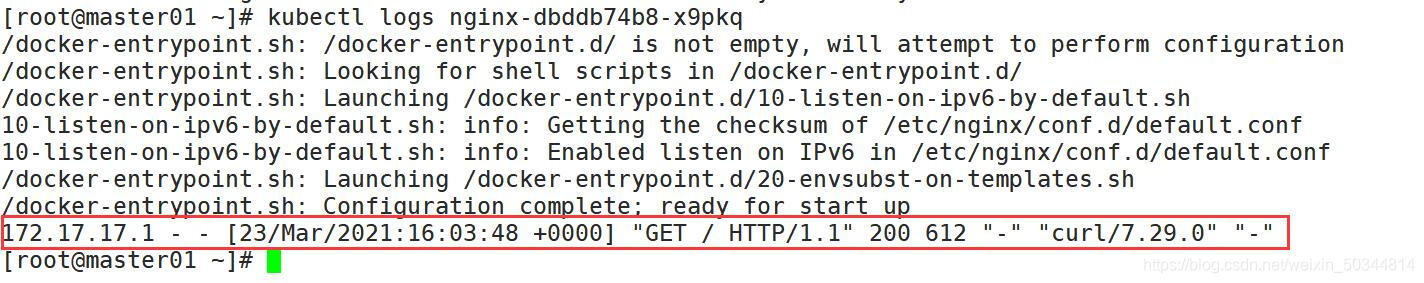

[root@master01 ~]# kubectl logs nginx-dbddb74b8-x9pkq

四、总结

多Master集群中，node节点指向虚拟地址，由VIP去调度Master,Master上的apiserver去和etcd建立联系，并且把数据写入到etcd
