Cobbler定制安装

定制安装步骤：

• 统计服务器mac地址
• 配置cobbler
• 安装
  统计mac地址此处就不赘述了，直接最重要的配置------在 cobbler 的web界面上配置

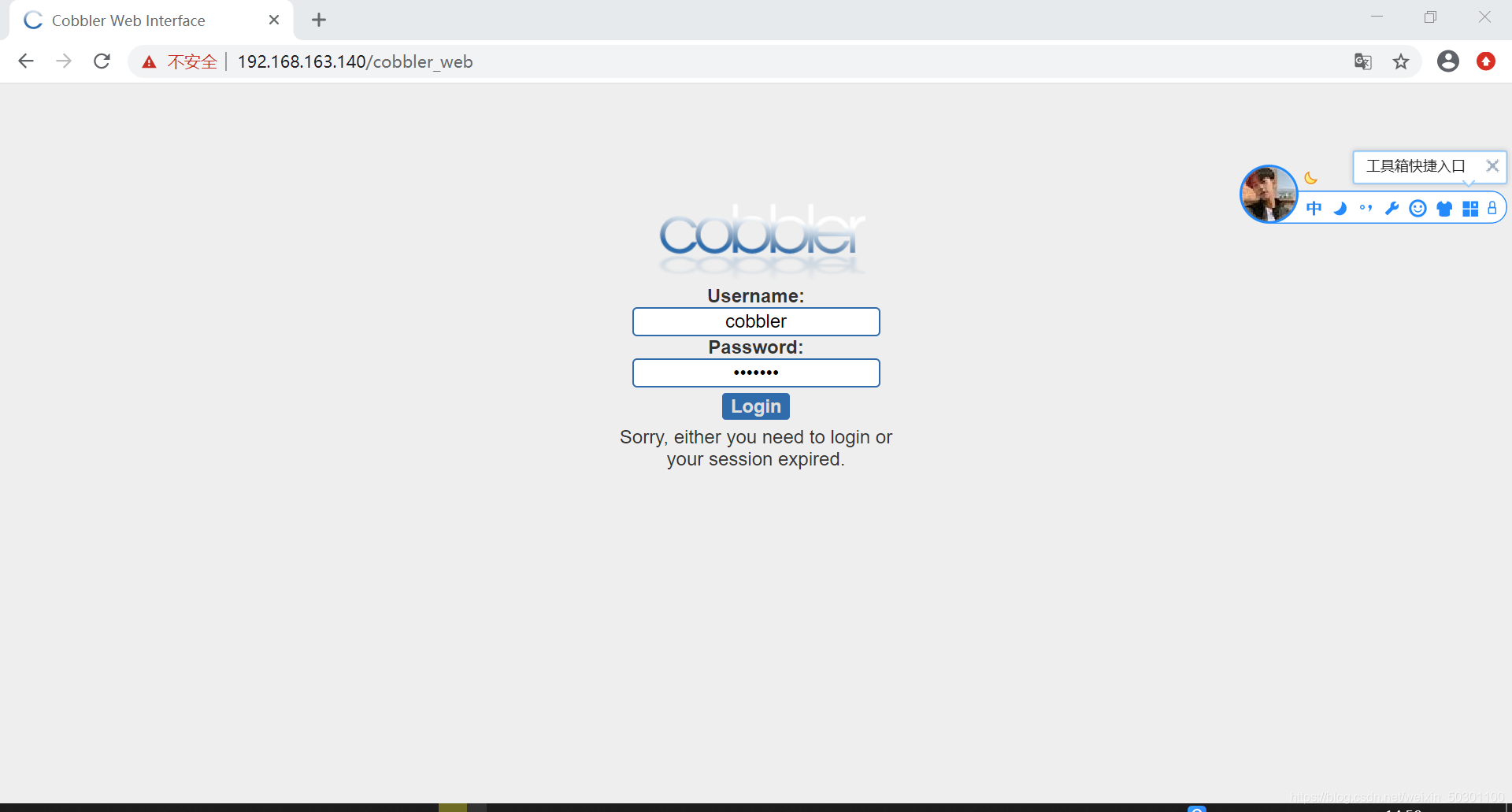

  登录界面，如遇登录不上去输入完整网址如：https://192.168.163.140
  账户密码均为cobbler

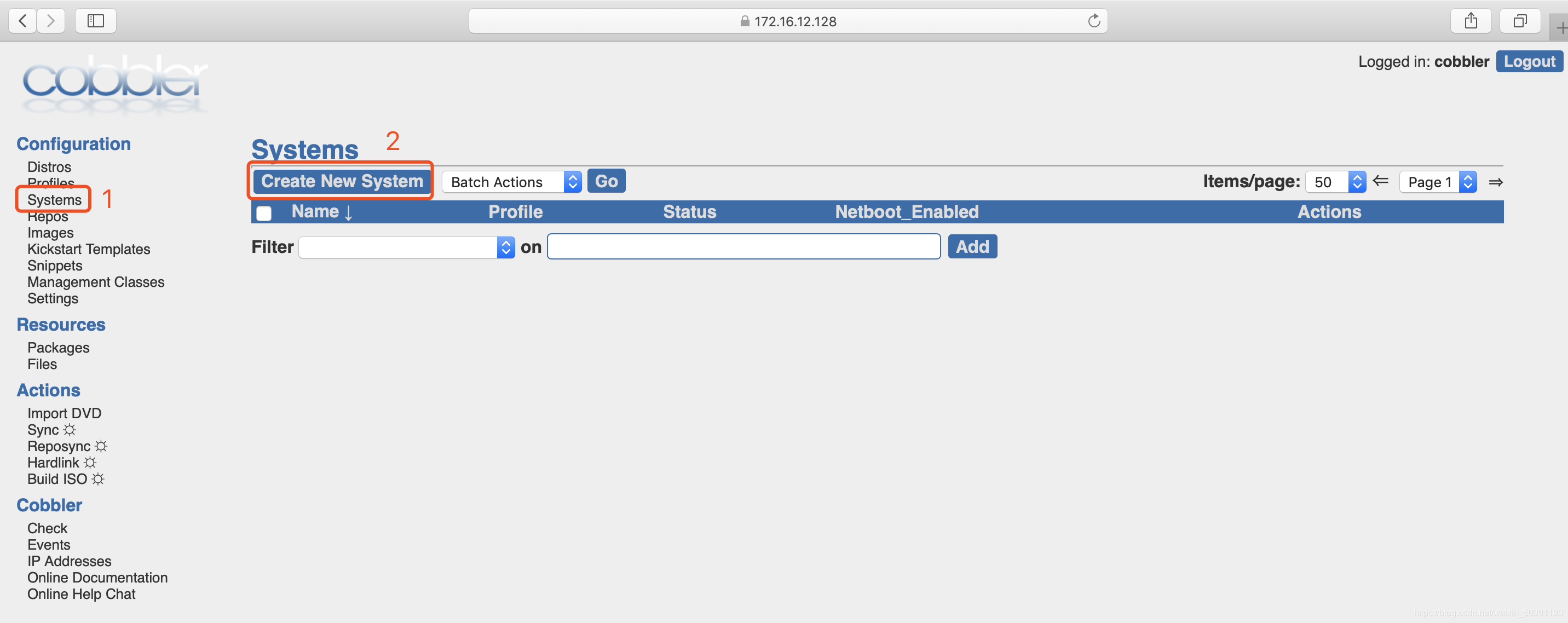

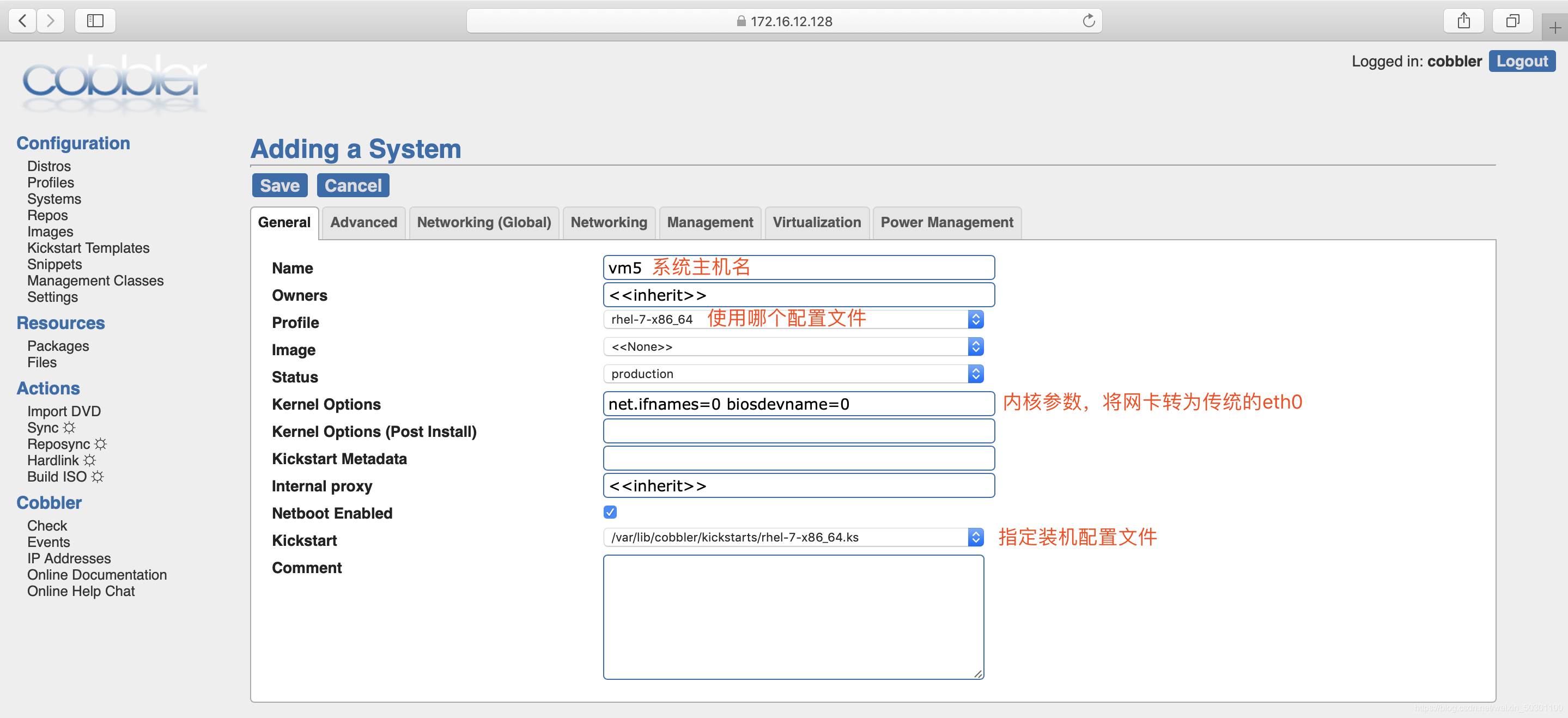

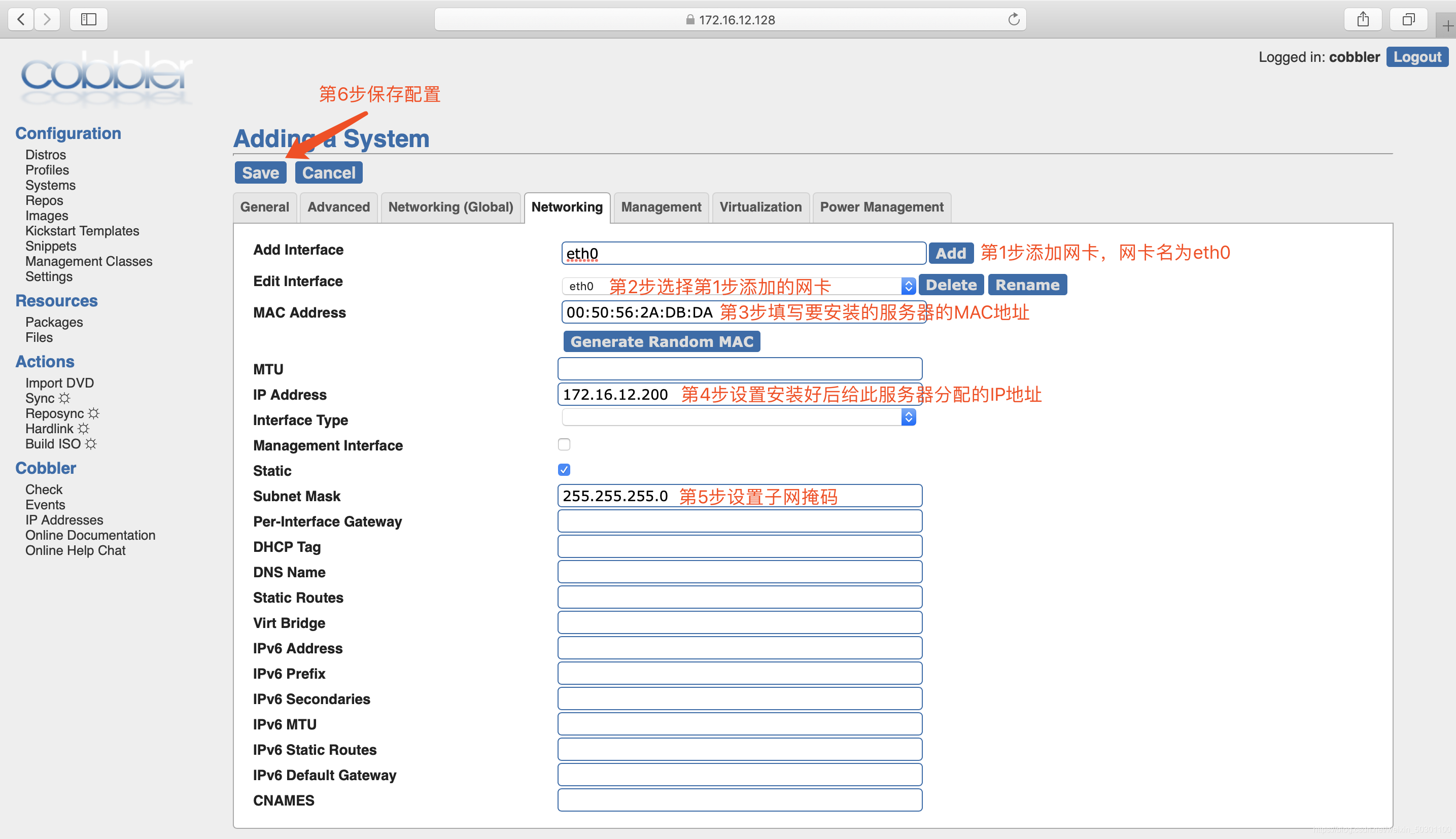

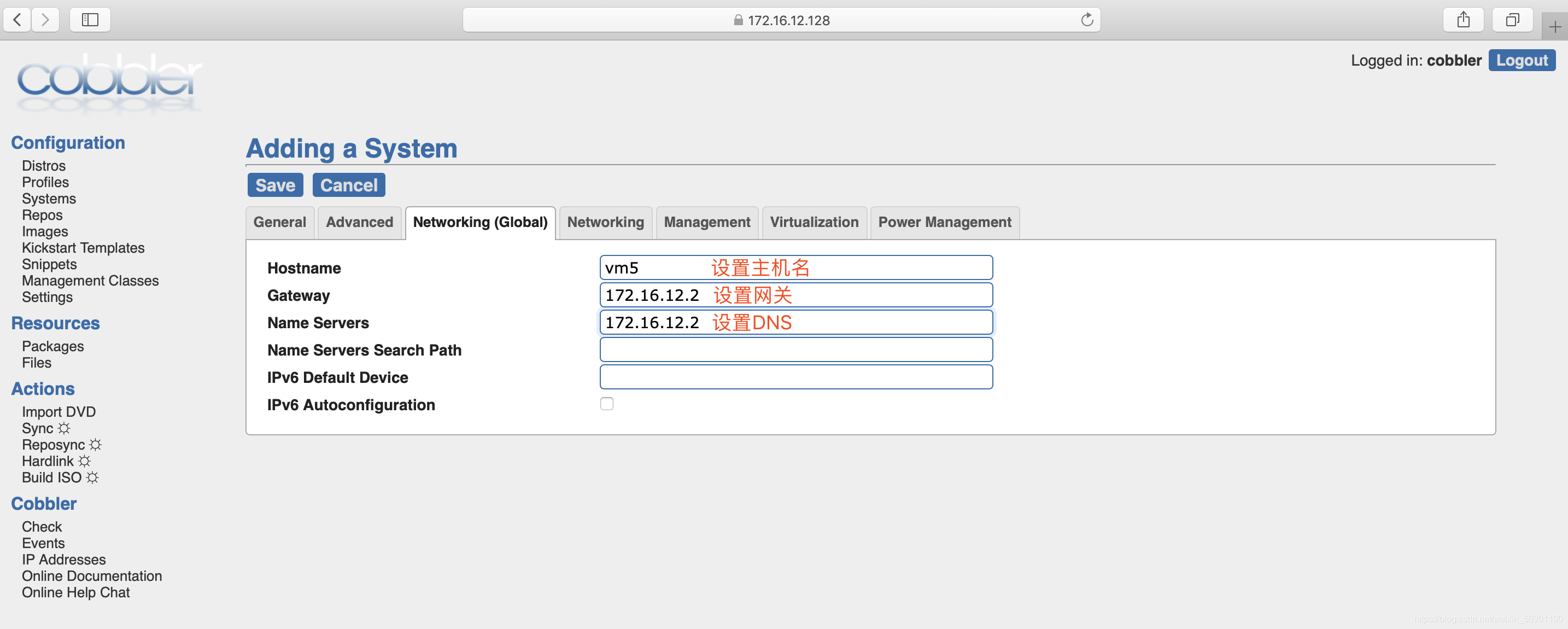

  步骤如下:




  同步配置并重启相关服务：

[root@localhost ~]# cobbler sync
[root@localhost ~]# systemctl restart httpd
[root@localhost ~]# systemctl restart cobblerd
[root@localhost ~]# systemctl restart xinetd

此网页配置文件在以下位置

[root@localhost systems.d]# ls
VM88.json
[root@localhost systems.d]# pwd
/var/lib/cobbler/config/systems.d

复制VM88.json,到网站搜索json美化工具
效果如下

{
	"comment": "",
	"status": "production",
	"kickstart": "/var/lib/cobbler/kickstarts/rhel-7-x86_64.ks",
	"name_servers_search": [],
	"ks_meta": {},
	"kernel_options_post": {},
	"image": "",
	"redhat_management_key": "<<inherit>>",
	"virt_path": "<<inherit>>",
	"power_user": "",
	"kernel_options": {
		"biosdevname": "0",
		"net.ifnames": "0"
	},
	"ctime": 1606205761.083491,
	"name_servers": ["114.114.114.114"],
	"mtime": 1606205761.083491,
	"enable_gpxe": false,
	"template_files": {},
	"gateway": "192.168.163.1",
	"uid": "MTYwNjIwNTc2MS4wODc2NjQwNDguNDMxMzg",
	"virt_auto_boot": 0,
	"power_type": "ipmitool",
	"virt_cpus": "<<inherit>>",
	"mgmt_parameters": "<<inherit>>",
	"boot_files": {},
	"hostname": "88",
	"repos_enabled": false,
	"mgmt_classes": [],
	"power_pass": "",
	"netboot_enabled": true,
	"ipv6_autoconfiguration": false,
	"profile": "centos-7-x86_64",
	"virt_type": "xenpv",
	"interfaces": {
		"eth88": {
			"ipv6_address": "",
			"interface_type": "",
			"static": true,
			"cnames": [],
			"mtu": "",
			"management": false,
			"interface_master": "",
			"mac_address": "00:50:56:30:1E:A5",
			"ipv6_prefix": "",
			"virt_bridge": "xenbr0",
			"netmask": "255.255.255.0",
			"bonding_opts": "",
			"ip_address": "192.168.163.88",
			"dhcp_tag": "",
			"static_routes": [],
			"ipv6_mtu": "",
			"ipv6_static_routes": [],
			"if_gateway": "",
			"dns_name": "",
			"bridge_opts": "",
			"connected_mode": false,
			"ipv6_secondaries": [],
			"ipv6_default_gateway": ""
		}
	},
	"power_address": "",
	"proxy": "<<inherit>>",
	"fetchable_files": {},
	"virt_file_size": "<<inherit>>",
	"ldap_enabled": false,
	"monit_enabled": false,
	"ipv6_default_device": "",
	"virt_pxe_boot": 0,
	"virt_disk_driver": "<<inherit>>",
	"owners": "<<inherit>>",
	"name": "VM88",
	"virt_ram": "<<inherit>>",
	"power_id": "",
	"server": "<<inherit>>",
	"redhat_management_server": "<<inherit>>",
	"depth": 2,
	"ldap_type": "authconfig",
	"template_remote_kickstarts": 0
}

在此基础上写脚本,这里暂时写死看效果

[root@localhost scripts]# cat cobbler_create_system.sh
#!/bin/bash

cat > /var/lib/cobbler/config/systems.d/VM88.json <<EOF
{
	"comment": "",
	"status": "production",
	"kickstart": "/var/lib/cobbler/kickstarts/rhel-7-x86_64.ks",
	"name_servers_search": [],
	"ks_meta": {},
	"kernel_options_post": {},
	"image": "",
	"redhat_management_key": "<<inherit>>",
	"virt_path": "<<inherit>>",
	"power_user": "",
	"kernel_options": {
		"biosdevname": "0",
		"net.ifnames": "0"
	},
	"ctime": 1606205761.083491,
	"name_servers": ["114.114.114.114"],
	"mtime": 1606205761.083491,
	"enable_gpxe": false,
	"template_files": {},
	"gateway": "192.168.163.1",
	"uid": "MTYwNjIwNTc2MS4wODc2NjQwNDguNDMxMzg",
	"virt_auto_boot": 0,
	"power_type": "ipmitool",
	"virt_cpus": "<<inherit>>",
	"mgmt_parameters": "<<inherit>>",
	"boot_files": {},
	"hostname": "88",
	"repos_enabled": false,
	"mgmt_classes": [],
	"power_pass": "",
	"netboot_enabled": true,
	"ipv6_autoconfiguration": false,
	"profile": "centos-7-x86_64",
	"virt_type": "xenpv",
	"interfaces": {
		"eth88": {
			"ipv6_address": "",
			"interface_type": "",
			"static": true,
			"cnames": [],
			"mtu": "",
			"management": false,
			"interface_master": "",
			"mac_address": "00:50:56:30:1E:A5",
			"ipv6_prefix": "",
			"virt_bridge": "xenbr0",
			"netmask": "255.255.255.0",
			"bonding_opts": "",
			"ip_address": "192.168.163.88",
			"dhcp_tag": "",
			"static_routes": [],
			"ipv6_mtu": "",
			"ipv6_static_routes": [],
			"if_gateway": "",
			"dns_name": "",
			"bridge_opts": "",
			"connected_mode": false,
			"ipv6_secondaries": [],
			"ipv6_default_gateway": ""
		}
	},
	"power_address": "",
	"proxy": "<<inherit>>",
	"fetchable_files": {},
	"virt_file_size": "<<inherit>>",
	"ldap_enabled": false,
	"monit_enabled": false,
	"ipv6_default_device": "",
	"virt_pxe_boot": 0,
	"virt_disk_driver": "<<inherit>>",
	"owners": "<<inherit>>",
	"name": "VM88",
	"virt_ram": "<<inherit>>",
	"power_id": "",
	"server": "<<inherit>>",
	"redhat_management_server": "<<inherit>>",
	"depth": 2,
	"ldap_type": "authconfig",
	"template_remote_kickstarts": 0
}
EOF

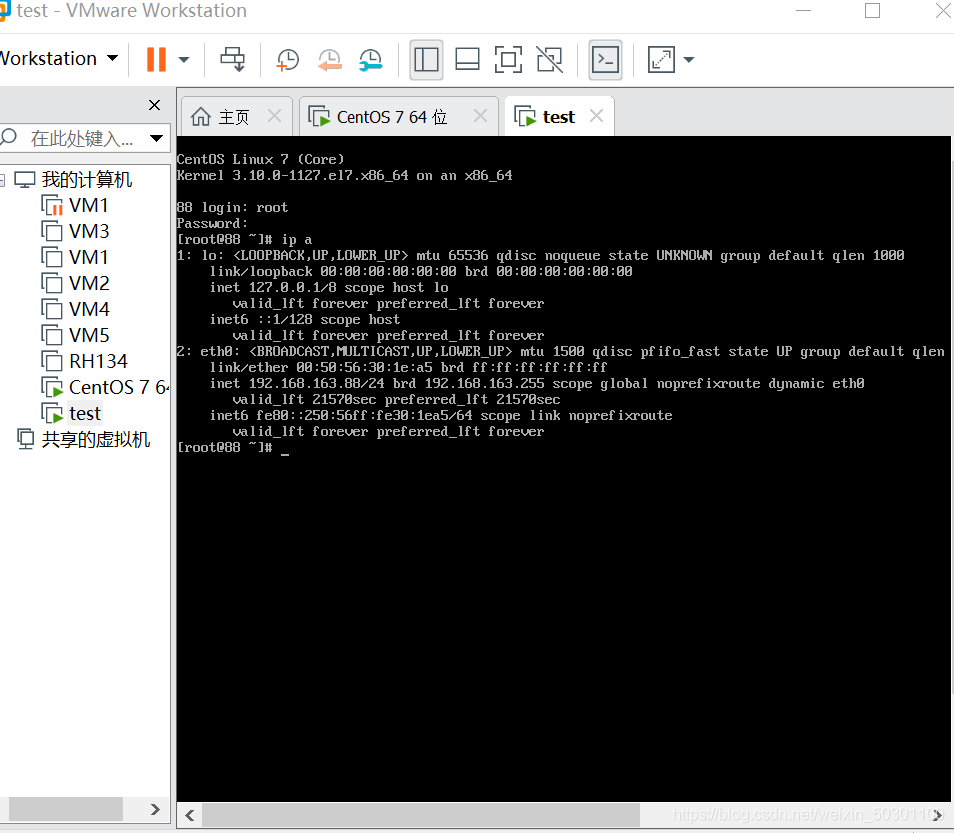

验证
