ClickHouse多实例部署
文章借鉴http://fuxkdb.com/2020/05/02/2020-05-02-ClickHouse多实例部署/
感谢大佬！
生产环境并不建议多实例部署, ClickHouse一个查询可以用到多个CPU, 本例只适用于测试环境

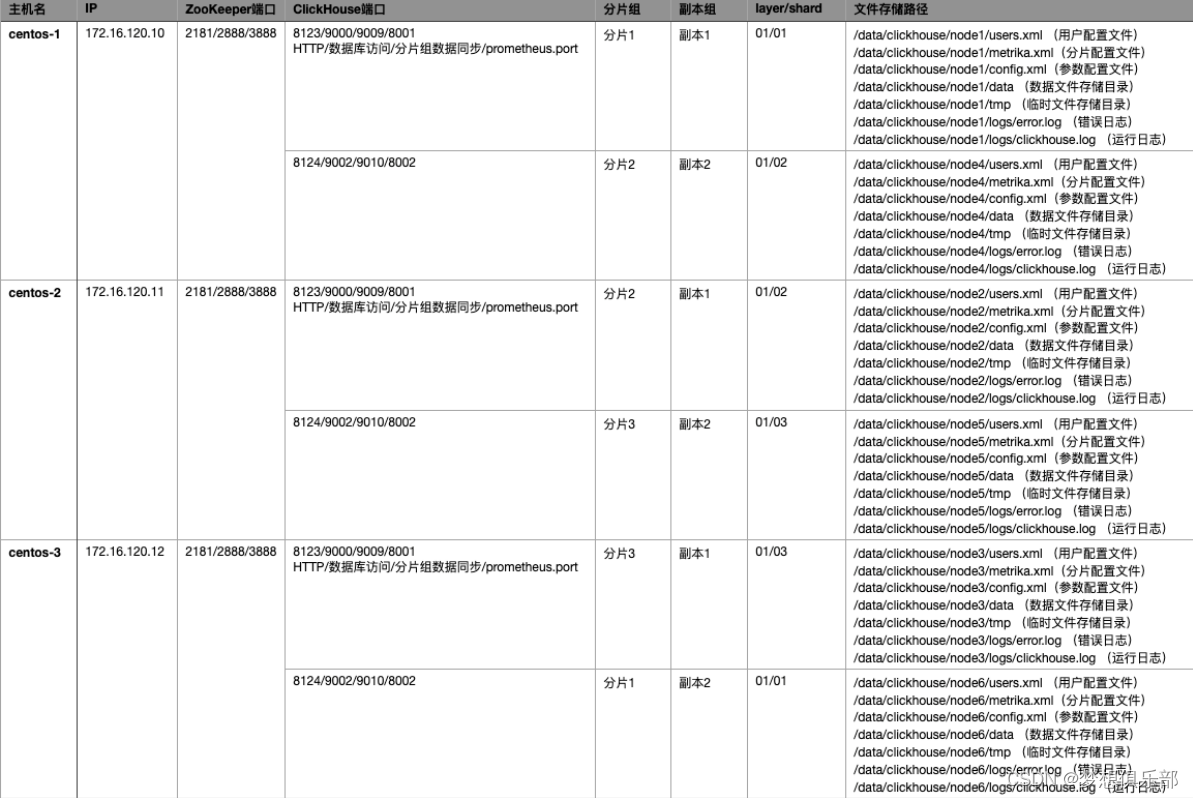

集群部署关系如下:
逻辑结构图如下:
编辑三台主机/etc/hosts添加如下内容:
172.16.120.10 centos-1
172.16.120.11 centos-2
172.16.120.12 centos-3
依赖组件安装
JDK
下载openjdk
wget https://github.com/AdoptOpenJDK/openjdk8-binaries/releases/download/jdk8u242-b08/OpenJDK8U-jdk_x64_linux_hotspot_8u242b08.tar.gz
tar -zxvf OpenJDK8U-jdk_x64_linux_hotspot_8u242b08.tar.gz -C /usr/local/
做软链
ln -s /usr/local/jdk8u242-b08 /usr/local/java
配置环境变量
#vi ~/.bashrc
export JAVA_HOME=/usr/local/java
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib
export PATH=${JAVA_HOME}/bin:$PATH
ZooKeeper
3.6.0有bug
所以改用稳定版本3.4.14
下载安装包
wget https://downloads.apache.org/zookeeper/zookeeper-3.4.14/zookeeper-3.4.14.tar.gz
tar -zxvf zookeeper-3.4.14.tar.gz -C /usr/local/
做软链
ln -s /usr/local/zookeeper-3.4.14 /usr/local/zookeeper
配置环境变量
#vi ~/.bashrc
export ZOOKEEPER_HOME=/usr/local/zookeeper
export PATH=$PATH:$ZOOKEEPER_HOME/bin
修改配置文件
cd /usr/local/zookeeper/conf
#参考官方
#https://clickhouse.tech/docs/en/operations/tips/#zookeeper
#vim zoo.cfg
tickTime=2000
initLimit=30000
syncLimit=10
maxClientCnxns=2000
maxSessionTimeout=60000000
dataDir=/data/zookeeper/data
dataLogDir=/data/zookeeper/logs
autopurge.snapRetainCount=10
autopurge.purgeInterval=1
preAllocSize=131072
snapCount=3000000
leaderServes=yes
clientPort=2181
集群配置部分三个节点分别为:
# centos-1
server.1=0.0.0.0:2888:3888
server.2=172.16.120.11:2888:3888
server.3=172.16.120.12:2888:3888
# centos-2
server.1=172.16.120.10:2888:3888
server.2=0.0.0.0:2888:3888
server.3=172.16.120.12:2888:3888
# centos-3
server.1=172.16.120.10:2888:3888
server.2=172.16.120.11:2888:3888
server.3=0.0.0.0:2888:3888
创建目录
mkdir -p /data/zookeeper/{data,logs}
mkdir -p /usr/local/zookeeper/logs
myid
# centos-1
echo "1">/data/zookeeper/data/myid
# centos-2
echo "2">/data/zookeeper/data/myid
# centos-3
echo "3">/data/zookeeper/data/myid
配置zk日志
默认zk日志输出到一个文件,且不会自动清理,所以,一段时间后zk日志会非常大
1.zookeeper-env.sh ./conf目录下新建zookeeper-env.sh文件,修改到sudo chmod 755 zookeeper-env.sh权限
#cat conf/zookeeper-env.sh
#!/usr/bin/env bash
#tip:custom configurationfile，do not amend the zkEnv.sh file
#chang the log dir and output of rolling file
ZOO_LOG_DIR="/usr/local/zookeeper/logs"
ZOO_LOG4J_PROP="INFO,ROLLINGFILE"
2.log4j.properties 修改日志的输入形式
zookeeper.root.logger=INFO, ROLLINGFILE
#zookeeper.root.logger=INFO, CONSOLE
# Max log file size of 10MB
log4j.appender.ROLLINGFILE.MaxFileSize=128MB
# uncomment the next line to limit number of backup files
log4j.appender.ROLLINGFILE.MaxBackupIndex=10
配置运行zk的JVM
./conf目录下新建java.env文件,修改到sudo chmod 755 java.env权限,主要用于GC log,RAM等的配置.
#!/usr/bin/env bash
#config the jvm parameter in a reasonable
#note that the shell is source in so that do not need to use export
#set java classpath
#CLASSPATH=""
#set jvm start parameter , also can set JVMFLAGS variable
SERVER_JVMFLAGS="-Xms1024m -Xmx2048m $JVMFLAGS"
启动zookeeper服务(所有节点)
# zkServer.sh start
ZooKeeper JMX enabled by default
Using config: /usr/local/zookeeper/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
验证zk
# zkServer.sh status
#bin/zkCli.sh -server 127.0.0.1:2181
Connecting to 127.0.0.1:2181
[zk: 127.0.0.1:2181(CONNECTED) 0]
[zk: 127.0.0.1:2181(CONNECTED) 0] ls /
[zookeeper]
[zk: 127.0.0.1:2181(CONNECTED) 1] create /zk_test mydata
Created /zk_test
[zk: 127.0.0.1:2181(CONNECTED) 2] ls /
[zk_test, zookeeper]
[zk: 127.0.0.1:2181(CONNECTED) 3] get /zk_test
mydata
[zk: 127.0.0.1:2181(CONNECTED) 4] set /zk_test junk
[zk: 127.0.0.1:2181(CONNECTED) 5] get /zk_test
junk
[zk: 127.0.0.1:2181(CONNECTED) 6] delete /zk_test
[zk: 127.0.0.1:2181(CONNECTED) 7] ls /
[zookeeper]
[zk: 127.0.0.1:2181(CONNECTED) 8]
ClickHouse安装
yum安装
yum install yum-utils
rpm --import https://repo.clickhouse.tech/CLICKHOUSE-KEY.GPG
yum-config-manager --add-repo https://repo.clickhouse.tech/rpm/stable/x86_64
yum install clickhouse-server clickhouse-client
RPM方式离线安装

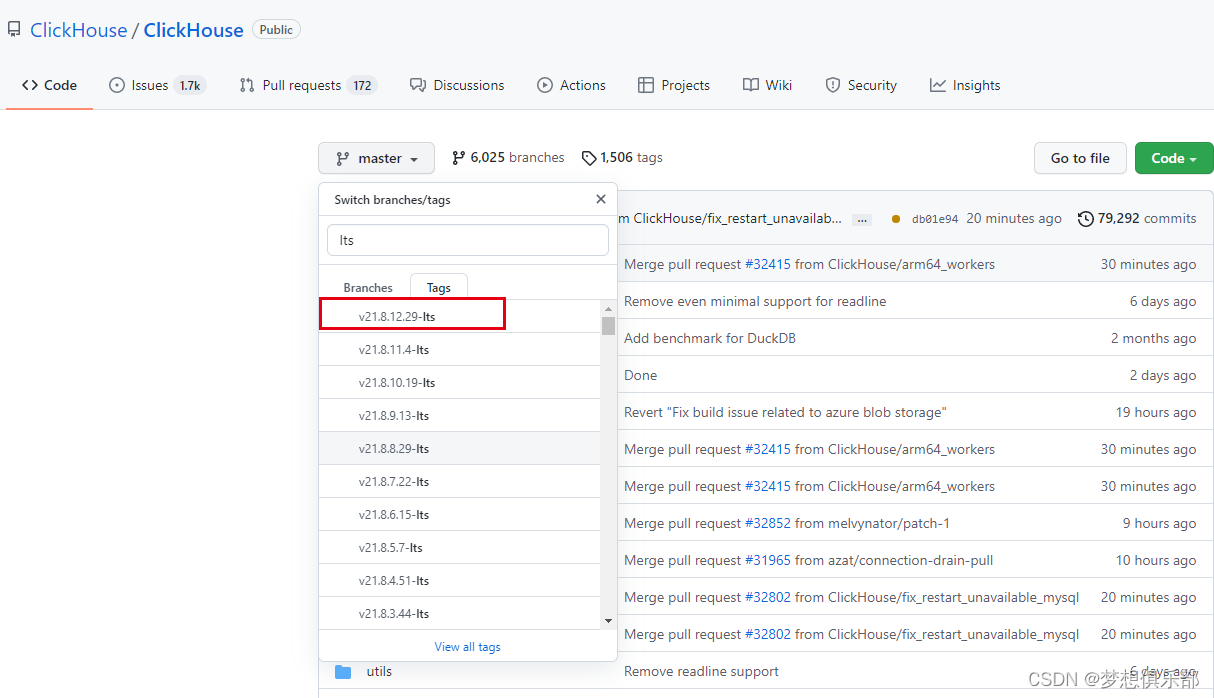

查看clickhouse源码tag,找出最近的长期维护的版本
官网下载如下包：
https://repo.yandex.ru/clickhouse/rpm/stable/x86_64/clickhouse-client-21.8.12.29-2.noarch.rpm
https://repo.yandex.ru/clickhouse/rpm/stable/x86_64/clickhouse-common-static-21.8.12.29-2.x86_64.rpm
https://repo.yandex.ru/clickhouse/rpm/stable/x86_64/clickhouse-common-static-dbg-21.8.12.29-2.x86_64.rpm
https://repo.yandex.ru/clickhouse/rpm/stable/x86_64/clickhouse-server-21.8.12.29-2.noarch.rpm
https://repo.yandex.ru/clickhouse/rpm/stable/x86_64/clickhouse-test-21.8.12.29-2.noarch.rpm
安装clickhouse
rpm -ivh /soft/clickhouse/*.rpm
创建目录
centos-1 创建目录：
mkdir -p /data/clickhouse/{node1,node4}/{data,tmp,logs}
centos-2 创建目录：
mkdir -p /data/clickhouse/{node2,node5}/{data,tmp,logs}
centos-3 创建目录：
mkdir -p /data/clickhouse/{node3,node6}/{data,tmp,logs}
创建配置文件
配置clickhouse参数文件，账户文件，分片配置文件
node1配置文件如下
config.xml
<?xml version="1.0"?>
<yandex>
<!--日志-->
<logger>
<level>warning</level>
<log>/data/clickhouse/node1/logs/clickhouse.log</log>
<errorlog>/data/clickhouse/node1/logs/error.log</errorlog>
<size>500M</size>
<count>5</count>
</logger>
<!--本地节点信息-->
<http_port>8123</http_port>
<tcp_port>9000</tcp_port>
<interserver_http_port>9009</interserver_http_port>
<interserver_http_host>centos-1</interserver_http_host>
<!--本机域名或IP-->
<!--本地配置-->
<listen_host>0.0.0.0</listen_host>
<max_connections>2048</max_connections>
<keep_alive_timeout>3</keep_alive_timeout>
<max_concurrent_queries>64</max_concurrent_queries>
<uncompressed_cache_size>4294967296</uncompressed_cache_size>
<mark_cache_size>5368709120</mark_cache_size>
<path>/data/clickhouse/node1/</path>
<tmp_path>/data/clickhouse/node1/tmp/</tmp_path>
<users_config>/data/clickhouse/node1/users.xml</users_config>
<access_control_path>/data/clickhouse/node1/access/</access_control_path>
<default_profile>default</default_profile>
<query_log>
<database>system</database>
<table>query_log</table>
<partition_by>toMonday(event_date)</partition_by>
<flush_interval_milliseconds>7500</flush_interval_milliseconds>
</query_log>
<query_thread_log>
<database>system</database>
<table>query_thread_log</table>
<partition_by>toMonday(event_date)</partition_by>
<flush_interval_milliseconds>7500</flush_interval_milliseconds>
</query_thread_log>
<prometheus>
<endpoint>/metrics</endpoint>
<port>8001</port>
<metrics>true</metrics>
<events>true</events>
<asynchronous_metrics>true</asynchronous_metrics>
</prometheus>
<default_database>default</default_database>
<timezone>Asia/Shanghai</timezone>
<!--集群相关配置-->
<remote_servers incl="clickhouse_remote_servers" />
<zookeeper incl="zookeeper-servers" optional="true" />
<macros incl="macros" optional="true" />
<builtin_dictionaries_reload_interval>3600</builtin_dictionaries_reload_interval>
<max_session_timeout>3600</max_session_timeout>
<default_session_timeout>300</default_session_timeout>
<max_table_size_to_drop>0</max_table_size_to_drop>
<merge_tree>
<parts_to_delay_insert>300</parts_to_delay_insert>
<parts_to_throw_insert>600</parts_to_throw_insert>
<max_delay_to_insert>2</max_delay_to_insert>
</merge_tree>
<max_table_size_to_drop>0</max_table_size_to_drop>
<max_partition_size_to_drop>0</max_partition_size_to_drop>
<distributed_ddl>
<!-- Path in ZooKeeper to queue with DDL queries -->
<path>/clickhouse/task_queue/ddl</path>
</distributed_ddl>
<include_from>/data/clickhouse/node1/metrika.xml</include_from>
</yandex>
users.xml
<?xml version="1.0"?>
<yandex>
<profiles>
<default>
<!-- 请根据自己机器实际内存配置 -->
<max_memory_usage>54975581388</max_memory_usage>
<max_memory_usage_for_all_queries>61847529062</max_memory_usage_for_all_queries>
<max_bytes_before_external_group_by>21474836480</max_bytes_before_external_group_by>
<max_bytes_before_external_sort>21474836480</max_bytes_before_external_sort>
<use_uncompressed_cache>0</use_uncompressed_cache>
<load_balancing>random</load_balancing>
<distributed_aggregation_memory_efficient>1</distributed_aggregation_memory_efficient>
<max_threads>8</max_threads>
<log_queries>1</log_queries>
</default>
<readonly>
<max_threads>8</max_threads>
<max_memory_usage>54975581388</max_memory_usage>
<max_memory_usage_for_all_queries>61847529062</max_memory_usage_for_all_queries>
<max_bytes_before_external_group_by>21474836480</max_bytes_before_external_group_by>
<max_bytes_before_external_sort>21474836480</max_bytes_before_external_sort>
<use_uncompressed_cache>0</use_uncompressed_cache>
<load_balancing>random</load_balancing>
<readonly>1</readonly>
<distributed_aggregation_memory_efficient>1</distributed_aggregation_memory_efficient>
<log_queries>1</log_queries>
</readonly>
</profiles>
<quotas>
<default>
<interval>
<duration>3600</duration>
<queries>0</queries>
<errors>0</errors>
<result_rows>0</result_rows>
<read_rows>0</read_rows>
<execution_time>0</execution_time>
</interval>
</default>
</quotas>
<users>
<default>
<password_sha256_hex>328afba155145b9ab4dadc378a38f830107b1c48ae64a37690b163408b47c52c</password_sha256_hex>
<access_management>1</access_management>
<networks>
<ip>::/0</ip>
</networks>
<profile>default</profile>
<quota>default</quota>
</default>
<ch_ro>
<password_sha256_hex>328afba155145b9ab4dadc378a38f830107b1c48ae64a37690b163408b47c52c</password_sha256_hex>
<networks>
<ip>::/0</ip>
</networks>
<profile>readonly</profile>
<quota>default</quota>
</ch_ro>
</users>
</yandex>
metrika.xml
<?xml version="1.0"?>
<yandex>
<!--ck集群节点-->
<clickhouse_remote_servers>
<ch_cluster_all>
<!--分片1-->
<shard>
<internal_replication>true</internal_replication>
<replica>
<host>centos-1</host>
<port>9000</port>
<user>default</user>
<password>t5P9rh5M</password>
</replica>
<!--复制集1-->
<replica>
<host>centos-3</host>
<port>9002</port>
<user>default</user>
<password>t5P9rh5M</password>
</replica>
</shard>
<!--分片2-->
<shard>
<internal_replication>true</internal_replication>
<replica>
<host>centos-2</host>
<port>9000</port>
<user>default</user>
<password>t5P9rh5M</password>
</replica>
<!--复制集2-->
<replica>
<host>centos-1</host>
<port>9002</port>
<user>default</user>
<password>t5P9rh5M</password>
</replica>
</shard>
<!--分片3-->
<shard>
<internal_replication>true</internal_replication>
<replica>
<host>centos-3</host>
<port>9000</port>
<user>default</user>
<password>t5P9rh5M</password>
</replica>
<!--复制集3-->
<replica>
<host>centos-2</host>
<port>9002</port>
<user>default</user>
<password>t5P9rh5M</password>
</replica>
</shard>
</ch_cluster_all>
</clickhouse_remote_servers>
<!--zookeeper相关配置-->
<zookeeper-servers>
<node index="1">
<host>centos-1</host>
<port>2181</port>
</node>
<node index&#
