在centos7服务器命令安装gitlab runner

1、选择你需要的版本 uname -a

https://gitlab-runner-downloads.s3.amazonaws.com/latest/index.html

2、下载选择版本内容

wget https://gitlab-runner-downloads.s3.amazonaws.com/latest/rpm/gitlab-runner_amd64.rpm

3、rpm安装服务你会发现错误这个时候请安装 git 服务

rpm -i gitlab-runner_amd64.rpm

4、rpm更新服务

rpm -Uvh gitlab-runner_<arch>.rpm

5、安装git 服务继续第四步

yum install git

6、开始注册runner

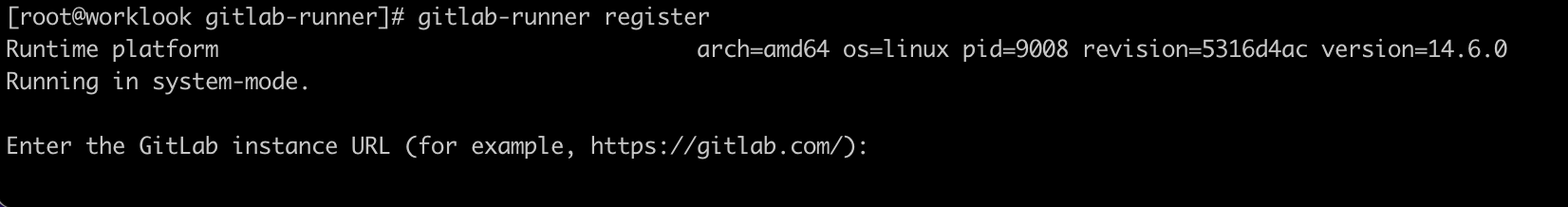

gitlab-runner register

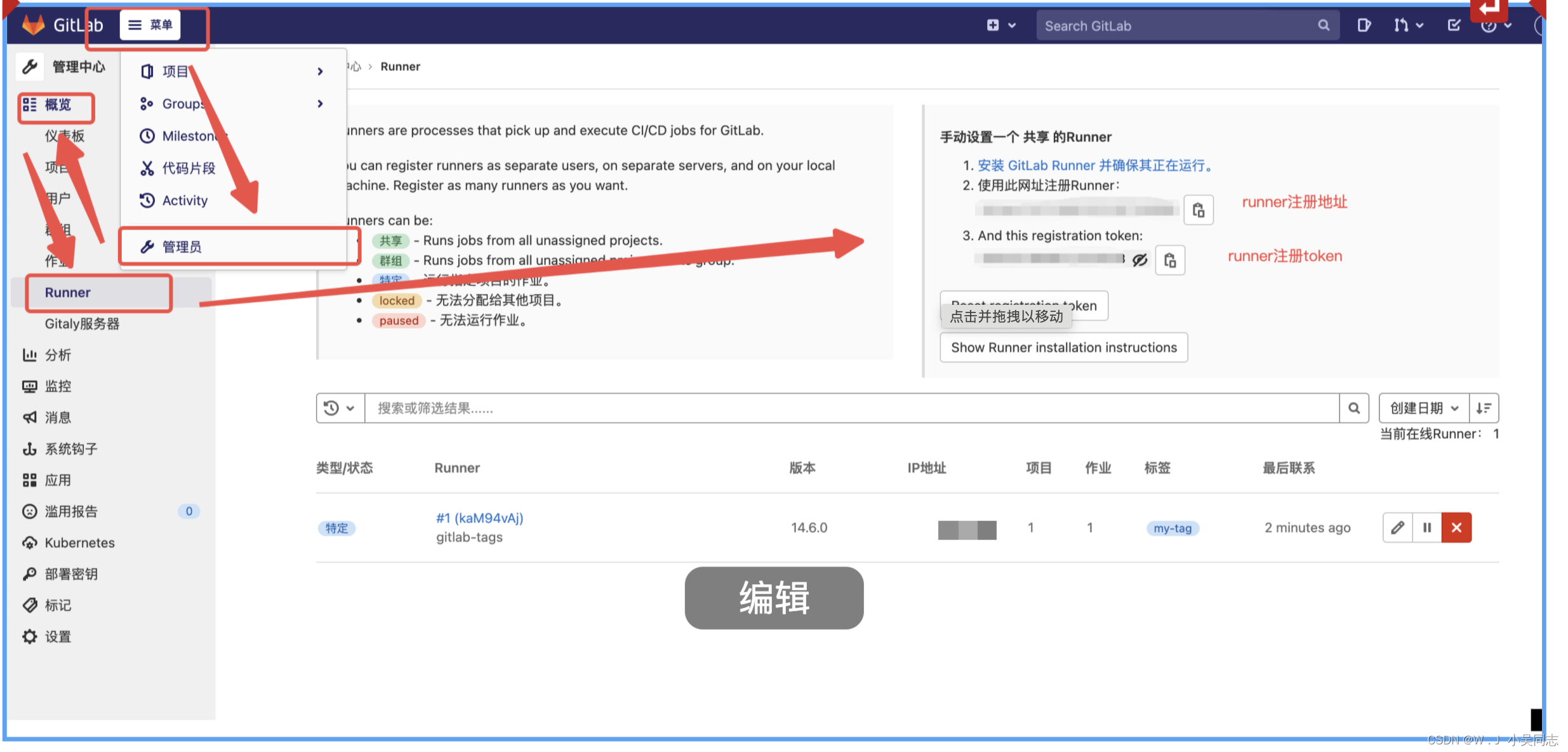

7、gitlab页面操作获取地址以及token

8、开始注册runnner

gitlab-runner register

Please enter the gitlab-ci coordinator URL (e.g. https://gitlab.com )

https://gitlab.com（输入GitLab实例URL）

Please enter the gitlab-ci token for this runner

xxx（输入runner注册令牌）

Please enter the gitlab-ci tags for this runner (comma separated):

my-tag（输入runner标签 可在gitlab的UI页面修改）

Please enter the executor: ssh, docker+machine, docker-ssh+machine, kubernetes, docker, parallels, virtualbox, docker-ssh, shell:

docker（输入runner脚本执行环境根据自身选择
Enter the default Docker image (for example, ruby:2.6):
app

9、此时最好是把宿主机的docker 执行权限配置给 runner

/etc/gitlab-runner/config.toml

10、找到配置runners.docker 修改配置前面路径为宿主机目录后面为内部路径 [如果你是docker 安装的runner , 你只需要做这一步将宿主机的docker权限挂载、映射到你的runner docker 里面]

volumes = [
	"/cache",
	"/usr/local/bin/docker:/usr/local/bin/docker:ro",
	"/var/run/docker.sock:/var/run/docker.sock:rw"
    ]

11、重启服务

systemctl restart gitlab-runner

12、上传项目并在项目根目录添加文件 .gitlab-ci.yml

image: circleci/jdk8:0.1.1
variables:
  DOCKER_DRIVER: overlay2
  DOCKER_TLS_CERTDIR: ''

stages:
  - test

test:
  stage: test
  script:
    - ls
    - pwd
    - java -version

13、测试needs流水线写法

image: circleci/jdk8:0.1.1
variables:
  DOCKER_DRIVER: overlay2
  DOCKER_TLS_CERTDIR: ''

stages:
  - build
  - test
  - deploy

# test:
#   stage: test
#   script:
#     - ls
#     - pwd
#     - java -version

linux:build:
  stage: build
  script: echo "Building linux..."

mac:build:
  stage: build
  script: echo "Building mac..."

lint:
  stage: test
  needs: []
  script: echo "Linting..."

linux:rspec:
  stage: test
  needs: ["linux:build"]
  script: echo "Running rspec on linux..."

linux:rubocop:
  stage: test
  needs: ["linux:build"]
  script: echo "Running rubocop on linux..."

mac:rspec:
  stage: test
  needs: ["mac:build"]
  script: echo "Running rspec on mac..."

mac:rubocop:
  stage: test
  needs: ["mac:build"]
  script: echo "Running rubocop on mac..."

production:
  stage: deploy
  script: echo "Running production..."

14、查看项目CI/CD流水线完成后大功告成

15、新问题默认runner 单线程执行所以修改参数配置
