keepalived 安装与配置（centos6.5版本nginx）

准备

1.环境 centos6.5

2.文件 keepalived-1.2.13.tar.gz

3.环境准备

  下载相关依赖 yum -y install  pcre-devel openssl openssl-devel

4.上传安装包至/usr/local/

安装

1.解压

 tar -zxvf keepalived-1.2.13.tar.gz

2.进入目录

cd keepalived-1.2.13

3.配置

./configure

如出现如下错误：

configure: error:
  !!! OpenSSL is not properly installed on your system. !!!
  !!! Can not include OpenSSL headers files.            !!!


则使用安装openssl解决

 yum -y install openssl-devel

4.编译安装

make
make install

设置开机启动项

cp /usr/local/etc/sysconfig/keepalived /etc/sysconfig/

#后续有的版本直接可以使用systemctl 启动keepalived，不需手动添加 所以用systemctl status keepalived 查看状态，如果有显示则不需要下面这句
cp /usr/local/etc/rc.d/init.d/keepalived /etc/init.d/

ln -s /usr/local/sbin/keepalived /sbin/

chkconfig keepalived on

配置

1.创建配置文件路径，默认/etc/keepalived/目录下

mkdir /etc/keepalived/

2.拷贝默认的配置文件

cp / usr/local/etc/keepalived/keepalived.conf /etc/keepalived/

3.配置（以nginx为列子）

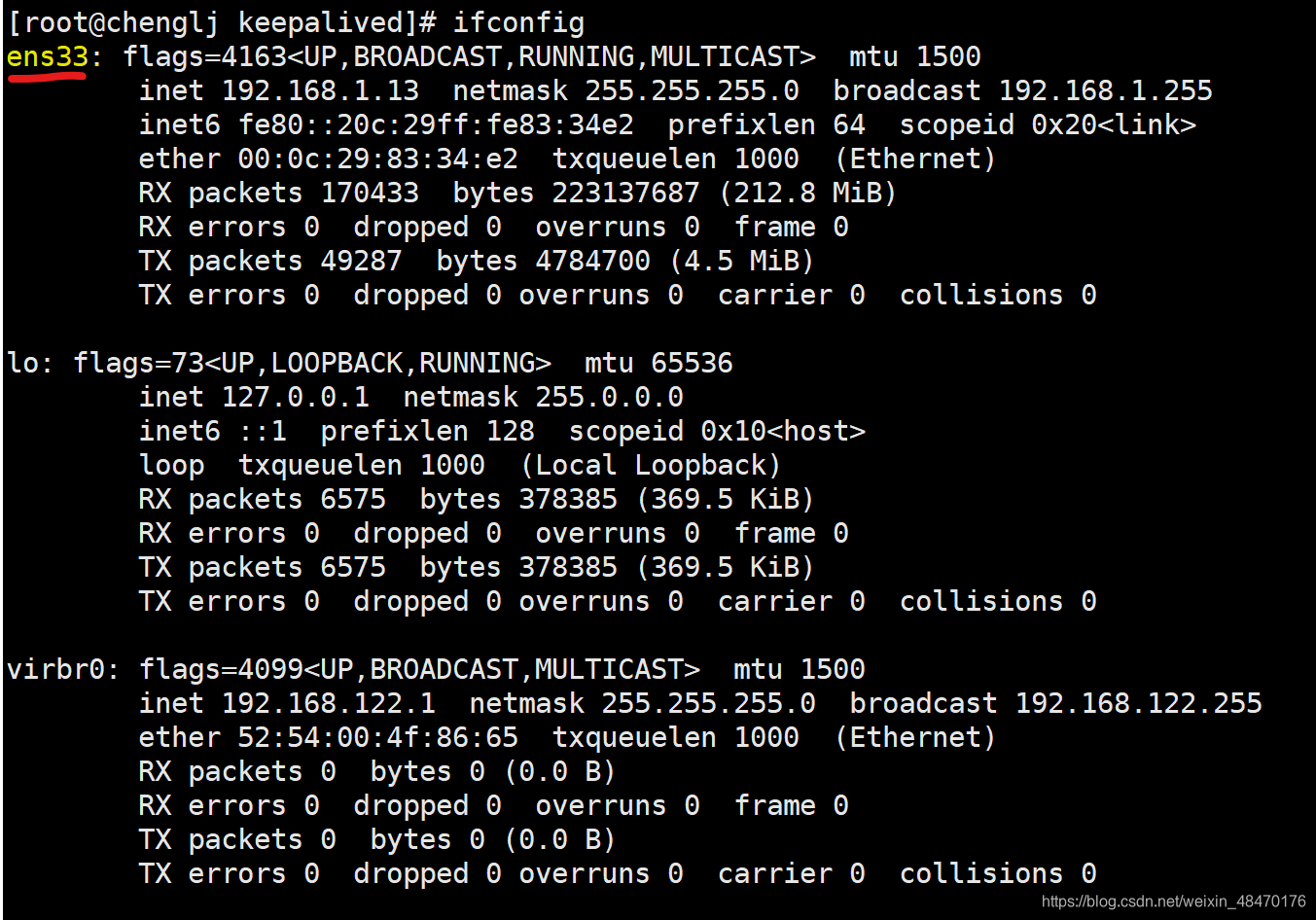

1.使用 ifconfig 查看自己的网络设备名，如下ens33，下面配置keepalived有用到

2.配置keepalived.conf

3.编写检测nginx脚本

详见：keepalived配置nginx高可用

启动

service keepalived start

#使用service keepalived status 检查

#使用 ip addr 检查暴露的虚拟IP
